USER MANUAL BL 6860 GRUNDIG

Product photo of a Gründig brand blender with three kitchen utensils (butter, whisk, and stand) shown in different colors and sizes.

DE

EN

TR

FR

HR

FI

NO

ANL\$

VRO

DEUTSCH 07-12

ENGLISH 13-18

TÜRKÇE 19-27

FRANÇAIS 28-33

ESPAÑOL 34-39

HRVATSKI 40-44

SUOMI 45-49

NORSK 50-56

NEDERLANDS 57-62

DANSK 63-67

SVENSKA 68-72

ROMÂNĂ 73-82

I J G A turbo B C D E H 1000 nm HCC 900 nm 800 nm 700 nm 600 nm 500 nm 400 nm 300 nm 200 nm 100 nm F

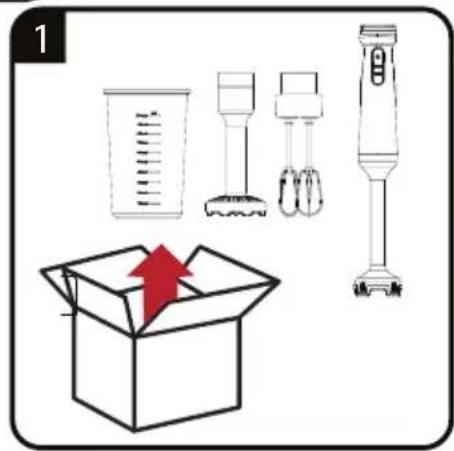

1

Illustration of a hand pressing a button on a device with three rectangular blocks nearby (no text or symbols)

3

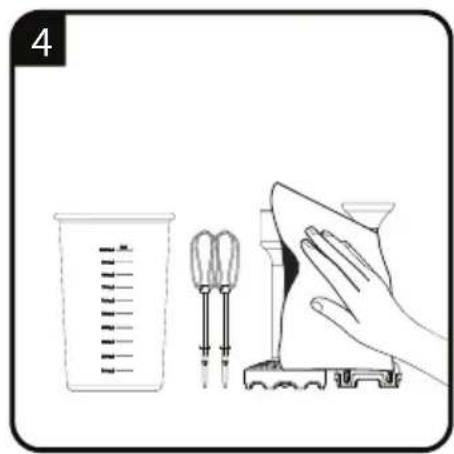

4

5a 2 1

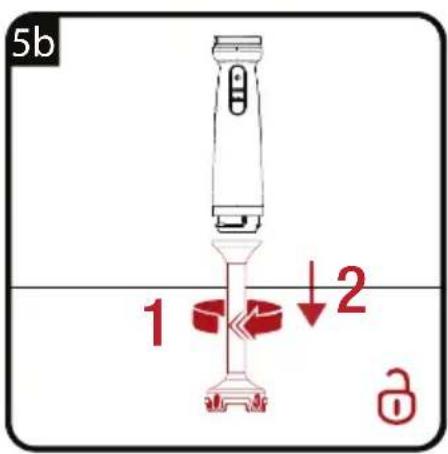

5b 1 2

Diagram showing a device with two test probes and an upward arrow, no text or symbols present

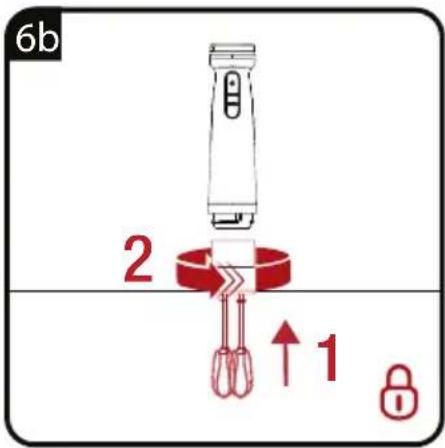

6b 2 1

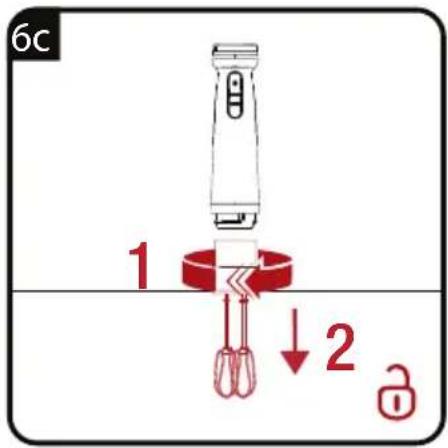

6c 1 2

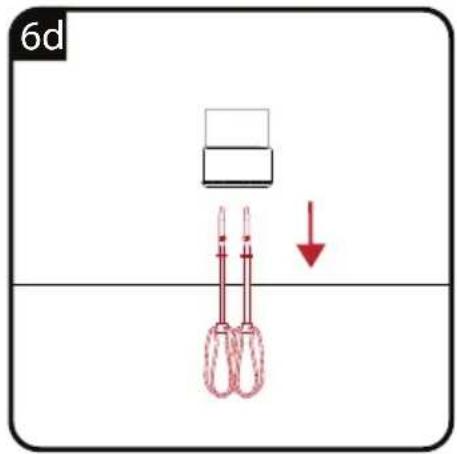

6d

Diagram of a mechanical device with a rotating knob and a lock, no text or symbols present

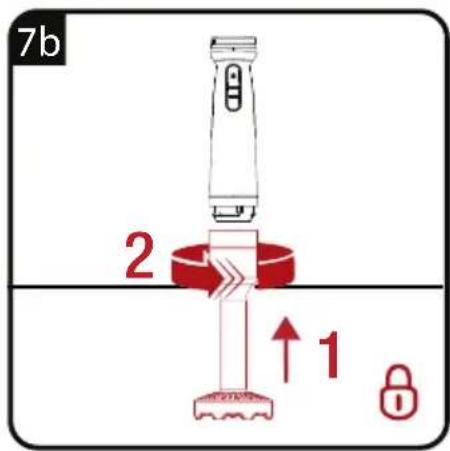

7b 2 1

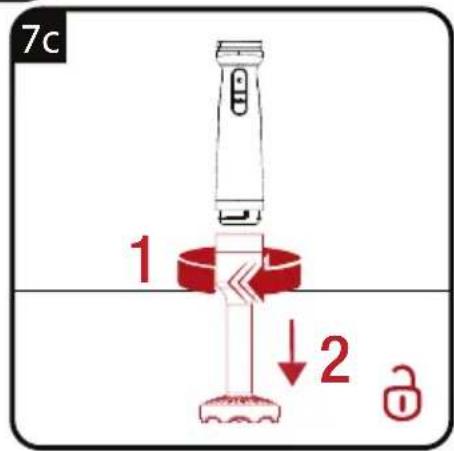

7c 1 2

Diagram of a mechanical press or valve assembly with a red circular component and a base, no text or symbols present.

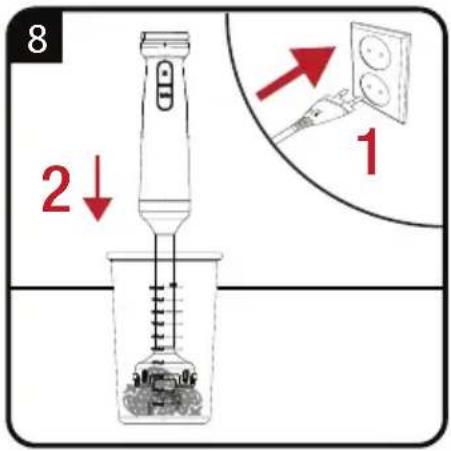

8 2↓ 1

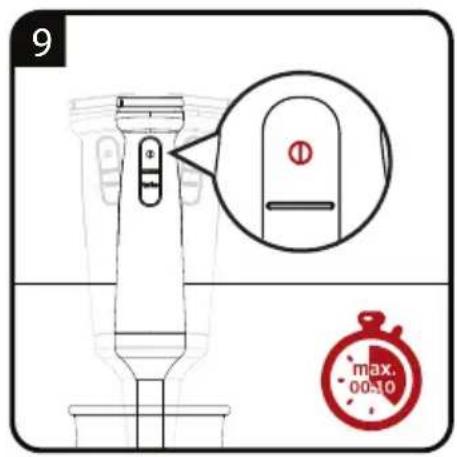

9 max. 00:10

10 turbo

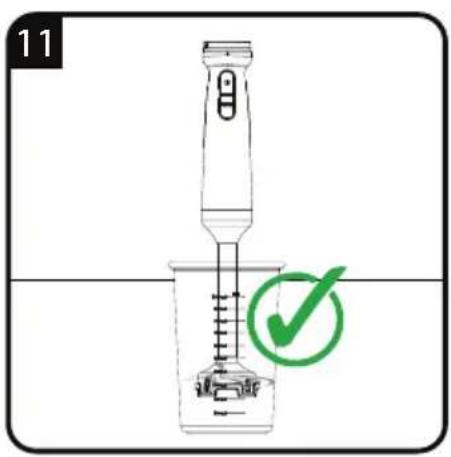

11

1

Line drawing of a hand cleaning a wall-mounted device with three rectangular blocks nearby (no text or symbols)

3

Illustration of cleaning a cleaning machine with measuring cup, tool holder, and cloth (no text or symbols)

Line drawing of a kitchen appliance with a blender, measuring cup, and three kitchen utensils (no text or symbols)

DE	BETRIEB REINIGUNG UND	PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMIZLEME VE	BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMP	EZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
FI	KÄYTTÖ PUHDISTUS JA HUOLTO
NO	DRIFT RENGJ∅RING OG VEDLIKEHOLD
NL	WERKING REINIGING EN	ONDERHOUD
DA	BETJENING RENG∅RING	OG VEDLIGEHOLDELSE
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
RO	UTILIZARE CURÃ AREA ŞI İNGRIJIREA

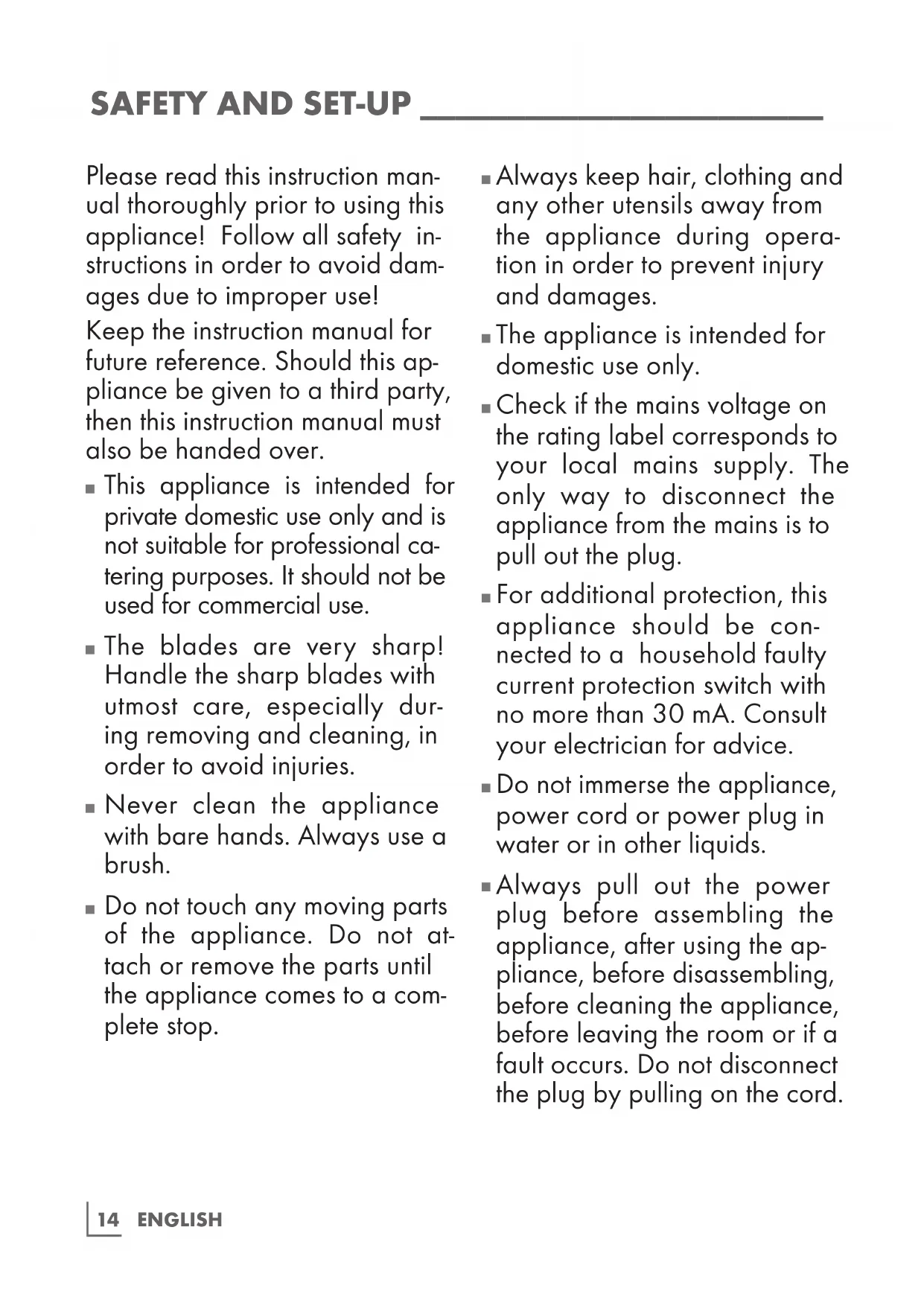

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ This appliance is intended for private domestic use only and is not suitable for professional catering purposes. It should not be used for commercial use.
■ The blades are very sharp! Handle the sharp blades with utmost care, especially during removing and cleaning, in order to avoid injuries.
■ Never clean the appliance with bare hands. Always use a brush.
- Do not touch any moving parts of the appliance. Do not attach or remove the parts until the appliance comes to a complete stop.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
■ The appliance is intended for domestic use only.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
■ For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.
■ Do not immerse the appliance, power cord or power plug in water or in other liquids.
■ Always pull out the power plug before assembling the appliance, after using the appliance, before disassembling, before cleaning the appliance, before leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.

■ AUTION The blender must be disabled before being removed from its base.
- Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.
- Keep the cord away from hot surfaces and open flames.
■ Do not use an extension cord with the appliance.
■ Never use the appliance if the power cord or the appliance is damaged.
- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
■ Cleaning and user maintenance shall not be made by children without supervision.
■ Always keep the appliance and its cord out of reach of children.

■ The appliance should not be used by the following persons, including children: those with limited physical, sensory or mental capabilities and also those with a lack of experience and knowledge. This does not apply to the latter if they were instructed in the use of the appliance or if they use it under the supervision of a person responsible for their safety.

■ Children should always be supervised to ensure that they do not play with the appliance.

■ This appliance cannot be used by children.

■ Do not leave the appliance unattended as long as it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.

■ Before using the appliance for the first time, clean all parts which come into contact with food carefully.

■ Dry the appliance and all parts before connecting it to the mains supply and before attaching the accessories.
- Do not operate the appliance without ingredients in the measuring beaker or chopping bowl.
■ Never place the appliance, attachments, power cord or plug on hot surfaces such as gas or electric burners or hot oven surfaces and never use with hot liquids or food.
■ Do not use the appliance for anything other than its intended use.
■ Never switch on the appliance for longer than necessary for processing the food.
■ Never use the appliance with damp or wet hands.
■ Operate the appliance with delivered parts only.
■ The appliance is designed to process only common household quantities.
■ Do not use the appliance if the blades are damaged or show signs of wear.

■ Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
■ Position the appliance in such a way that the plug is always accessible.
■ A spatula may be used to remove the food from the measuring beaker and chopping bowl. Make sure that the appliance is switched off before doing this.
■ To prevent overheating, do not use the appliance continuously for more than 10 seconds. After operating the appliance for 10 seconds, switch it off and wait for 1 minute to let it cool down if you would like to use it another 10 seconds.
■ We do not recommend operating the appliance with dry or hard foods or for ice crushing as this may conclude in dull or damaged blades.
■ Remove bones and stones from food to prevent the blades and the appliance from being damaged.

Dear Customer,

congratulations on the purchase of your new GRUNDIG Hand Blender Set BL 6860.

Please read the following user notes carefully to ensure full enjoyment of your quality product from GRUNDIG for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

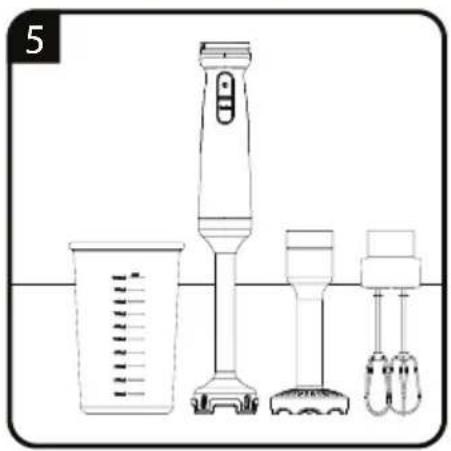

Controls and parts

See the figure on page 3.

A Start button

B Turbo button

c Motor unit

D Measuring beaker

E Blending attachment

F Chopping blade

G Balloon whisk

H Masher blade

Masher head

J Whisk holder

OPERATION

Notes

■ To prevent overheating do not operate the appliance continuously for more than 10 seconds.

■ To prevent overflowing of the mixture do not overfill the measuring beaker ☐ or bowl. Smaller amounts are easier to process.

■ To prevent any accidents use the beaker lid as anti-slip rubber pad by putting the beaker base on the lid.

Notes

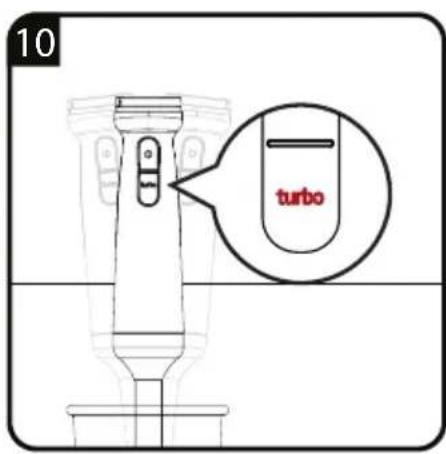

If you use the turbo button B the product will operate at the highest speed.

■ Before you take the processed food out of the bowl, always turn off the product.

■ To avoid splashing, put the food first and then the blending accessories and turn on the product.

If you would like to use the blending attachment directly in the pot, first take the pot off the stove to prevent the blending attachment from overheating.

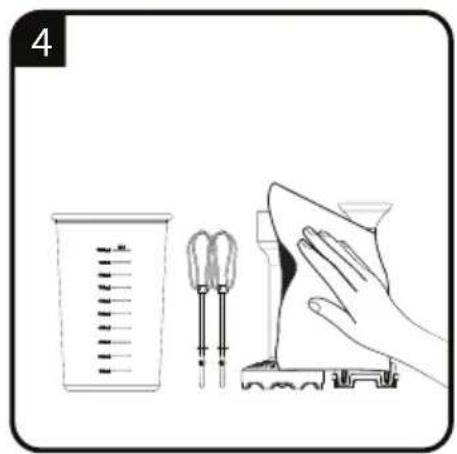

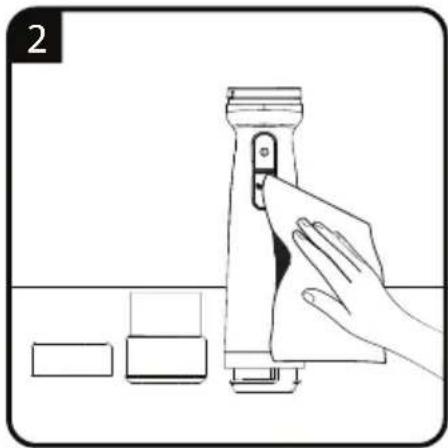

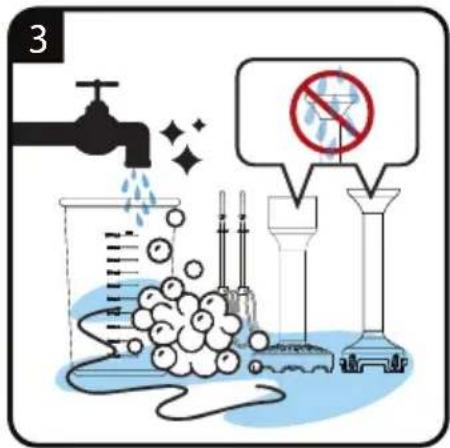

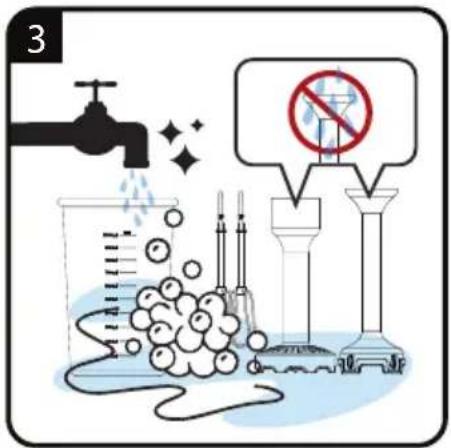

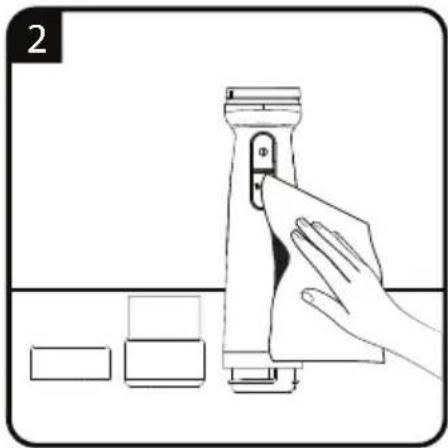

Cleaning and care

Caution

■ Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
- Do not touch the chopping blades with your bare hands. The blades are very sharp. Use a brush!
■ Never put the motor unit Ⓔ or power cord in water or any other liquids and never hold them under running water.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240 V\~, 50-60 Hz

Power: 600 W

Technical and design modifications reserved.

Storage

■ If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure the appliance is unplugged and completely dry.
■ Store the appliance in a cool, dry place.
■ Make sure the appliance is kept out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
■ Dropping the appliance will render it nonoperational or cause permanent damage.

Please see the cover page of the user manual for initial use, general use and cleaning sections.
