USER MANUAL HAP16200E4 HONEYWELL

INNEHÅLLSFÖRTECKNING SVENSKA

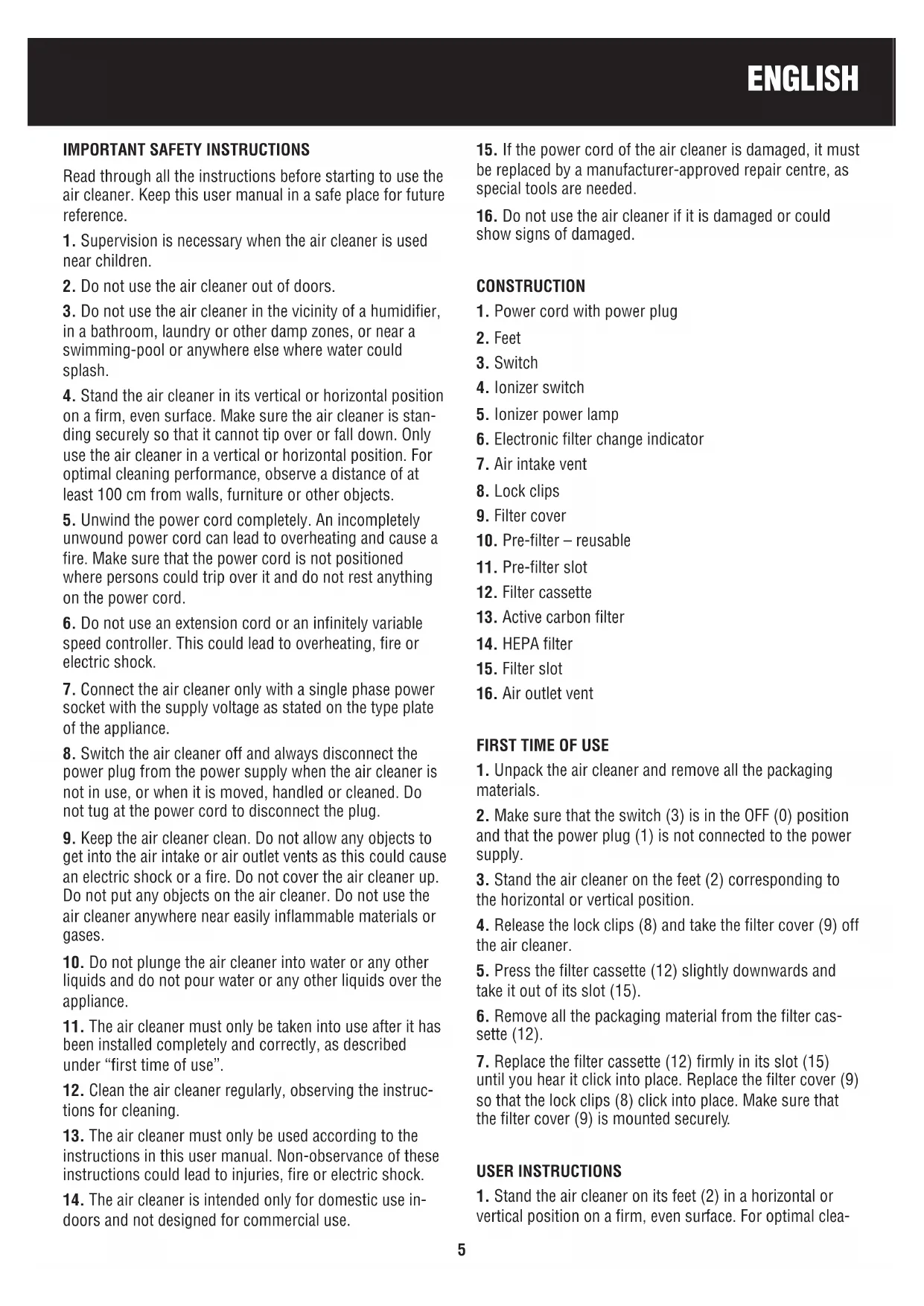

Read through all the instructions before starting to use the air cleaner. Keep this user manual in a safe place for future reference.

1. Supervision is necessary when the air cleaner is used

2. Do not use the air cleaner out of doors.

3. Do not use the air cleaner in the vicinity of a humidifier,

in a bathroom, laundry or other damp zones, or near a swimming-pool or anywhere else where water could splash.

4. Stand the air cleaner in its vertical or horizontal position

on a firm, even surface. Make sure the air cleaner is stan- ding securely so that it cannot tip over or fall down. Only use the air cleaner in a vertical or horizontal position. For optimal cleaning performance, observe a distance of at least 100 cm from walls, furniture or other objects.

5. Unwind the power cord completely. An incompletely

unwound power cord can lead to overheating and cause a fire. Make sure that the power cord is not positioned where persons could trip over it and do not rest anything on the power cord.

6. Do not use an extension cord or an infinitely variable

speed controller. This could lead to overheating, fire or electric shock.

7. Connect the air cleaner only with a single phase power

socket with the supply voltage as stated on the type plate of the appliance.

8. Switch the air cleaner off and always disconnect the

power plug from the power supply when the air cleaner is not in use, or when it is moved, handled or cleaned. Do not tug at the power cord to disconnect the plug.

9. Keep the air cleaner clean. Do not allow any objects to

get into the air intake or air outlet vents as this could cause an electric shock or a fire. Do not cover the air cleaner up. Do not put any objects on the air cleaner. Do not use the air cleaner anywhere near easily inflammable materials or gases.

10. Do not plunge the air cleaner into water or any other

liquids and do not pour water or any other liquids over the appliance.

11. The air cleaner must only be taken into use after it has

been installed completely and correctly, as described under “first time of use”.

12. Clean the air cleaner regularly, observing the instruc-

13. The air cleaner must only be used according to the

instructions in this user manual. Non-observance of these instructions could lead to injuries, fire or electric shock.

14. The air cleaner is intended only for domestic use in-

doors and not designed for commercial use.

15. If the power cord of the air cleaner is damaged, it must

be replaced by a manufacturer-approved repair centre, as special tools are needed.

16. Do not use the air cleaner if it is damaged or could

show signs of damaged. CONSTRUCTION

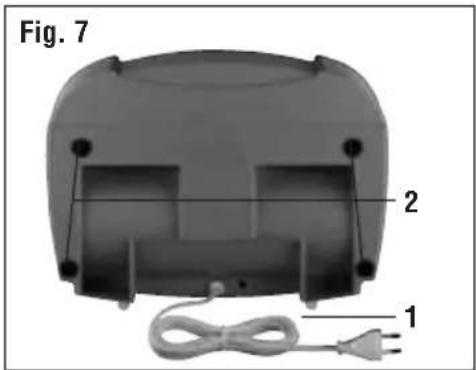

1. Power cord with power plug

6. Electronic filter change indicator

13. Active carbon filter

1. Unpack the air cleaner and remove all the packaging

2. Make sure that the switch (3) is in the OFF (0) position

and that the power plug (1) is not connected to the power supply.

3. Stand the air cleaner on the feet (2) corresponding to

the horizontal or vertical position.

4. Release the lock clips (8) and take the filter cover (9) off

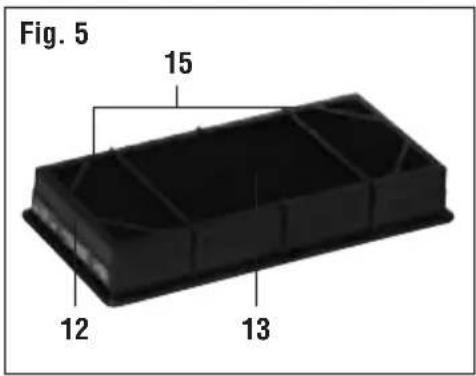

5. Press the filter cassette (12) slightly downwards and

take it out of its slot (15).

6. Remove all the packaging material from the filter cas-

7. Replace the filter cassette (12) firmly in its slot (15)

until you hear it click into place. Replace the filter cover (9) so that the lock clips (8) click into place. Make sure that the filter cover (9) is mounted securely

1. Stand the air cleaner on its feet (2) in a horizontal or

vertical position on a firm, even sur face. For optimal clea-ENGLISH

ning performance a distance of at least 100 cm should be maintained from walls, furniture and other objects. Please note: When the air cleaner is in use, large amounts of air are sucked in. The surfaces surrounding the applian- ce should be cleaned regularly and/or vacuumed, to pre- vent dust and dirt from accumulating. This can also help prolong the life of the filter. If the appliance is standing on a light-coloured carpet, you should place a mat or protecti- ve cover under the air cleaner, in order to avoid the carpet becoming permanently soiled. This is especially important if the air is contaminated by smoke, an open fireplace or stoves.

2. Make sure that the switch (3) is in the OFF (0) position

and insert the power plug (1) into the power socket.

3. Turn the switch (3) to the desired position:

I = low air flow rate II = medium air flow rate III = high air flow rate To achieve a continuous cleaning performance you are recommended to run the air cleaner 24 hours a day. Air cleaners are more effective in rooms in which all doors and windows are closed.

4. Turn the ionizer switch (4) to Position I to switch the

ionizer on. The ionizer power lamp (5) lights up. The ioni- zer supports the cleaning performance and air refreshing.

5. To switch the air cleaner off, turn the switch (3) to the

OFF (0) position and disconnect the power plug (1) from the power socket.

FILTER CHANGING AND CLEANING

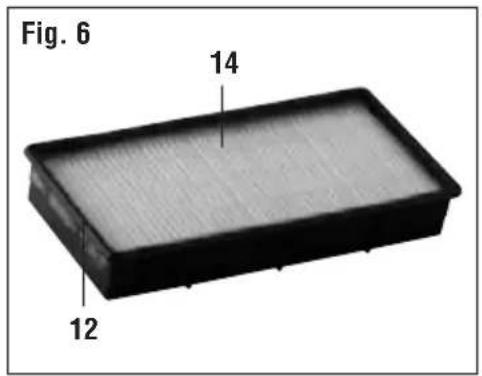

Electronic filter change indicator and changing the filter cassette The filter system, which consists of pre-filter, active car- bon filter and HEPA filter, filters particles of dirt such as dust, smells and gases out of the air. The filter cassette (12) is effective for a period of 6 months. This is only a guideline. The actual duration of effectiveness depends on the amount of use and the concentration of dirt particles in the air. If the air cleaner is operated in surroundings with a high concentration of dirt particles (e.g. pollen, dust or smoke) or used constantly, the duration of effectiveness is curtailed. You should check the condition of the filters regularly. This air cleaner has an electronic filter change indicator, which reminds you when it is time to change the filter cas- sette. This point in time is calculated on the basis of the running hours. The LED filter change indicator (6) is then continuously lit up red. When you change the filter cassette (12), please follow the instructions described in the section on “first time of use”. As soon as you have mounted a new filter cassette (12) you should reset the filter change indicator. Switch the air cleaner on, push the tip of a ball-point pen or paperclip into the opening of the filter change indicator and press it for 5 seconds until the red control lamp goes off. If you mount a new filter cassette before the control lamp lights up red, you should also reset the filter change indi- cator. Please note: The filter cassette is not washable. Cleaning the pre-filter The pre-filter filters large dirt particles out of the air. For an optimal cleaning performance we recommend you to clean the pre-filter every two weeks.

1. Release the lock clips (8) and take the filter cover (9) off

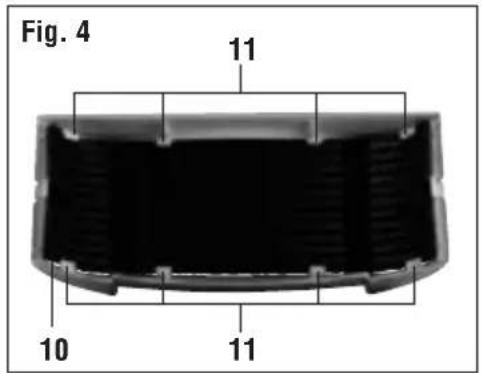

2. Take the pre-filter (10) carefully out of its slot (11).

3. Tap the pre-filter (10) gently (into a trash bin) or clean it

by hand in lukewarm water. Allow the pre-filter (10) to dry completely before you replace it in its slot.

4. Replace the filter cover (9) so that the lock clips (8)

click into place. Make sure that the lock clips (8) are secu- re.

CLEANING, STORAGE AND DISPOSAL

We recommend you to clean the air cleaner regularly. In order to avoid impairing the functioning of the air cleaner. Please observe the following instructions. Cleaning We recommend you to clean the air cleaner at least once a month.

1. Check that the switch (3) is in the OFF (0) position and

disconnect the power plug (1) from the power socket.

2. Clean the outer surfaces of the air cleaner with a soft,

dry cloth. Use your vacuum cleaner with the brush attach- ment to clean the air intake and air outlet vents. Do not use any abrasives or chemical cleaning agents.

3. Do not allow water to get into the air cleaner. Do not

clean the air cleaner under running water and do not immerse it in water. Storage If you do not plan to use the air cleaner for a longer period (about 3 – 4 weeks), we recommend you to store it as fol- lows:

1. Make sure that the switch (3) is in the OFF (0) position

and disconnect the power plug (1) from the power supply.7 ENGLISH

2. Take the filter cassette (12) out of the air cleaner as des-

cribed under “first time of use” and replace the filter cover (9). Wrap the filter cassette (12) airtight in a plastic bag.

3. Clean the air cleaner as described under “cleaning” and

“cleaning the pre-filter”.

4. Store the air cleaner in a cool, dry place.

5. When you want to resume using the air cleaner, take the

filter cassette (12) out of the plastic bag and proceed as described under “first time of use”. Disposal This symbol on the product or its packaging indi- cates that the appliance cannot be treated as nor- mal domestic trash, but must be handed in at a collection point for recycling electric and electronic appli- ances. Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incor- rect disposal. Further information about the recycling of this product can be obtained from your local town hall, your refuse collec- tion service, or in the store at which you bought the pro- duct. This regulation is valid only in EU member states.

CONDITION OF PURCHASE

As condition of purchase the purchaser assumes responsi- bility for the correct use and care of this KAZ product according to these user instructions. The purchaser or user must himself or herself decide when and for how long this KAZ product is in use

WARNING: IF PROBLEMS ARISE WITH THIS KAZ PRO-
