Ecolux 35L - Refrigerator Outwell - Free user manual and instructions

Product type	Electric cooler with refrigeration and heating
Brand and model	Outwell Ecolux 35L
Capacity	35 liters
Power supply	12 V DC (cigarette lighter socket) and 230 V AC
Refrigeration technology	Wear-free Peltier effect, fan-cooled
Heating function	Yes (up to 65°C) with optional "Heater" accessory
Operating modes	ECO and MAX for cooling; HOT/COLD switch
Battery protection (ABS)	Integrated, prevents excessive vehicle battery discharge
Priority connection	Available on certain versions (automatic switching between DC and AC)
Antibacterial treatment	Yes, phosphate glass with silver, zinc, aluminum and boron
Cleaning and maintenance	Clean inside and outside with a damp cloth; do not immerse
Safety	Disconnect before cleaning; do not use if damaged; repairs by qualified personnel
Intended use	Cool or heat food; mobile use, camping, vehicle, boat
Optional accessories	24 V DC/DC transformer (Y24) for connection to a 24 V socket
Dimensions (approx.)	Not specified in the manual

Frequently Asked Questions - Ecolux 35L Outwell

How to start cooling?

Connect the appropriate connection cable (12 V DC or 230 V AC). For models without the Heater accessory, cooling starts automatically. For models with Heater, set the switch to COLD and adjust the thermostat (ECO or MAX mode).

Can I heat food with this cooler?

Yes, if your model is equipped with the Heater function (optional accessory). Set the switch to HOT to heat up to 65°C max.

What is the difference between ECO and MAX modes?

ECO mode is more energy efficient and recommended for normal use. MAX mode cools faster but consumes more. In 12 V, MAX mode is not available.

How to protect my car battery?

The device has an activatable battery protector (ABS) that prevents excessive discharge. If the cooler is connected to the DC socket, disconnect it before charging the battery with a rapid charger.

Can the cooler be used in the rain?

No, the device must not be exposed to rain. Use it only in a dry environment (camping, inside a vehicle).

How to clean the cooler?

Disconnect the device. Clean the inside and outside with a damp cloth. Do not use abrasive products and never immerse the device in water.

What to do if the cooler does not work?

Check that the DC socket is powered (ignition on) or that the mains socket works. If the fan appears defective, contact an authorized after-sales service.

Can I connect the cooler to a 24 V socket?

Yes, with the optional 24 V DC/DC transformer (Y24) which converts 24 V to 12 V for the device.

What foods can be stored?

All foods that require refrigeration (original packaging or suitable containers). Do not place glass bottles at too low temperatures (risk of breakage).

Is the device under warranty?

The manual does not specify a specific warranty period. Consult your dealer or the manufacturer Outwell for warranty conditions.

USER MANUAL Ecolux 35L Outwell

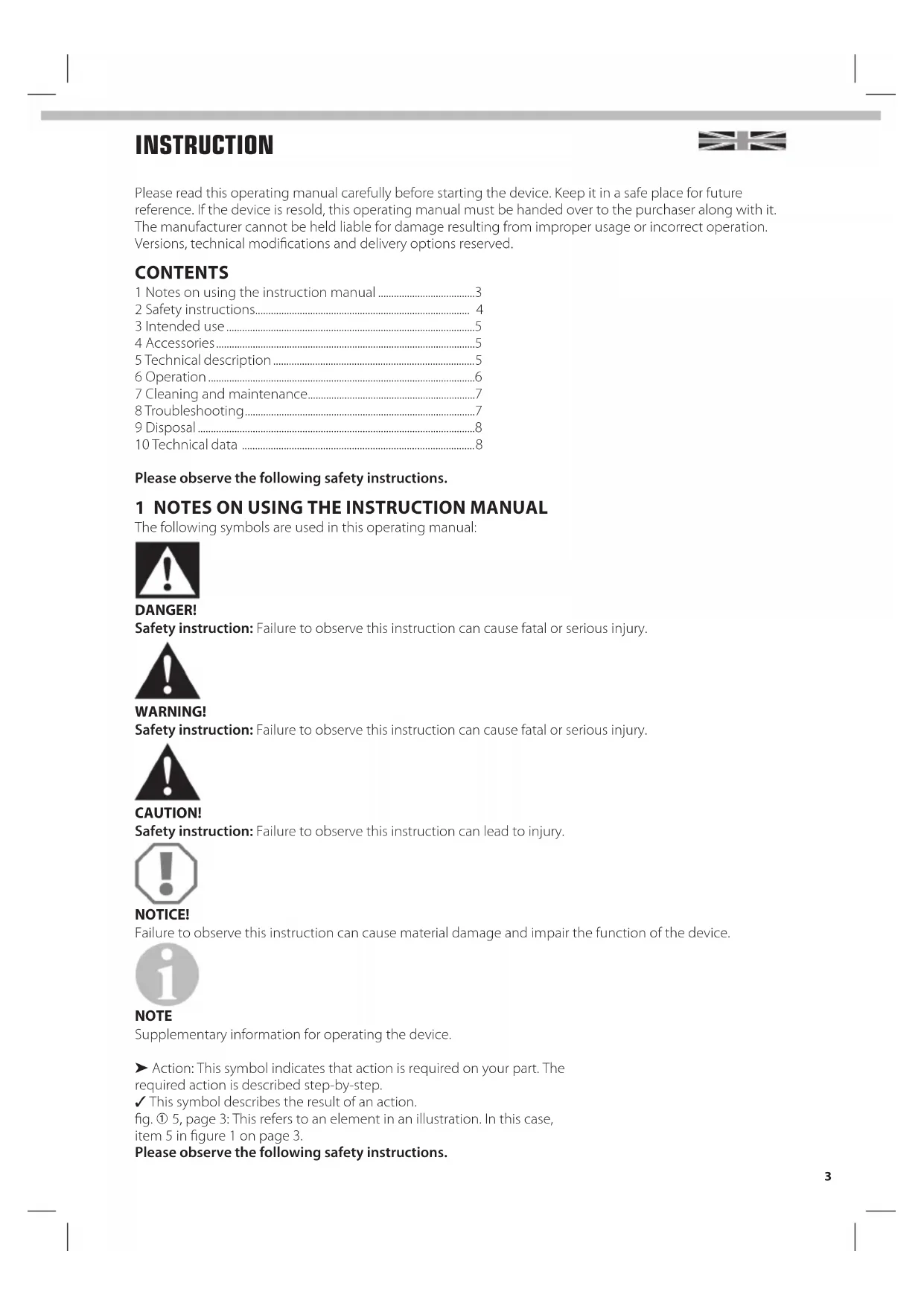

UK:INSTRUCTION MANUAL

INNOVATIVE FAMILY CAMPING

INSTRUCTION

Thermoelectric cooler

Instruction Manual 3

BEDIENUNGSANLEITUNG

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. Versions, technical modifications and delivery options reserved.

CONTENTS

1 Notes on using the instruction manual 3
2 Safety instructions. 4
3 Intended use 5
4 Accessories. 5
5 Technical description. 5
6 Operation 6
7 Cleaning and maintenance. 7
8 Troubleshooting. 7
9 Disposal 8
10 Technical data 8

Please observe the following safety instructions.

1 NOTES ON USING THE INSTRUCTION MANUAL

The following symbols are used in this operating manual:

DANGER!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the device.

NOTE

Supplementary information for operating the device.

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
This symbol describes the result of an action.

fig. ① 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

Please observe the following safety instructions.

INSTRUCTION

2 SAFETY INSTRUCTIONS

2.1 General safety DANGER!

• On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING!

• Do not operate the device if it is visibly damaged.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• Persons whose physical sensory or mental capacities prevent them from using this device safely should not operate it without the supervision of a responsible adult.
• Electrical devices are not toys. Always keep and use the device out of the reach of children.
  Children must be supervised to ensure that they do not play with the device.
• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

CAUTION!

• Disconnect the device from the mains before cleaning and maintenance
  after use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Only connect the device as follows:

• With the DC cable to a DC plug socket in the vehicle (e.g. cigarette lighter)

• Or with the 230V connection cable to the 230V AC mains supply

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• Never pull the plug out of the socket by the cable.
• If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device. If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.

2.2 Operating the device safely DANGER!

• Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.

CAUTION!

• Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heatsources (heaters, direct sunlight, gas ovens etc.).

INSTRUCTION

• Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
• Ensure that the ventilation slots are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

3 INTENDED USE

For ECOlux items with USB function, it only can be used in MAX. mode, in ECO mode the electricity will be cut off.

The cooling device is suitable for cooling foodstuffs.

The device is also able to heat using the additional heating feature.

The device is designed for use with:

• a DC vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate)
  a 230 V AC mains supply

The appliance may also be used for camping use. The appliance shall not to

be exposed to rain.

CAUTION! Health hazard!

If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.

4 ACCESSORIES

Available as accessory (not included in scope of delivery):

Designation Description

Y24 24/12 DC/DC converter

for connecting 12-V cooling device to 24V

5 TECHNICAL DESCRIPTION

The cooler is portable. It can cool items and keep them cool or heat items and keep them warm (with the additional heating feature) to max. 65^ . Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

5.1 Optional accessories

The device is available in different versions. The version you bought may have the following additional features:

Heating

The contents of your cooler can be warmed or kept warm to max. 65^

Priority circuit

Models with a priority circuit have an integrated mains adapter. The device switches automatically to mains operation when it is connected to a 230 V AC mains supply even if the DC connection cable is still connected.

ABS (activatable battery protection)

An integrated battery monitor can be switched on to protect your vehicle battery from discharging to dangerously low levels.

5.2 Antibacterial effect

This product has been treated with a biocidal product (Silver-zinc-aluminum-boron phosphate-glass), which has an antibacterial effect.

INSTRUCTION

6 OPERATION

CAUTION! Health hazard!

• Food may only be stored in its original packaging or in suitable containers.

NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienicreasons (please also refer to the chapter "Cleaning and maintenance" on page 7.
• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

6.1 Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooler unit open for longer than necessary.
• Remove individual drinks bottles through the bottle hatch, if present.

6.2 Using the cooler

NOTICE! Risk of damage

• Ensure that the objects placed in the cooler are suitable for cooling or heating (with the additional heating feature) to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

NOTE For coolers with fold in handles

Connection cable plug

Coolers without the additional heating feature

Connect the corresponding cable (see figure) to the required voltage.
The cooler starts cooling the interior.
To switch off the cooler, disconnect the plug.

Coolers with the additional heating feature

Connect the corresponding cable (see figure) to the required voltage.
For fast cool down switch to MAX on the cool box. Please be aware that doing so you will not run on ECO mode. We advice that the ECO function is primarily used.

Push the switch on the control panel to HOT or COLD to switch the cooler on.
The indicators on the control panel show you the operating mode:

INSTRUCTION

Operating display Operating mode

Red

Heating

Green

Cooling

The cooler starts cooling/heating the interior.

To switch off the cooler,

• slide the switch to the OFF position,

• disconnect the plug.

If this box runs on 12V Max mode is not possible. If it runs on 230V both Max and Eco mode is possible.

6.3 Connecting to the cigarette lighter

NOTE

If you connect the cooler to the cigarette lighter, remember that the ignition must be turned on to supply it with power.

7 CLEANING AND MAINTENANCE

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

Occasionally clean the device interior and exterior with a damp cloth.

8 TROUBLESHOOTING

Problem Possible cause Suggested remedy

Your device is not There is no voltage flowing The ignition must be switched working (plug is inserted) from the DC socket (cigarette on in most vehicles to supply

lighter) in your vehicle.

current to the cigarette lighter.

	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter): The ignition is on and the cooler is not working.	The fuse of the DC plug is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown.	Replace the fuse of the DC plug with one of the same rating.
	The vehicle fuse has blown.	Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

INSTRUCTION

9 DISPOSAL

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

10 TECHNICAL DATA

Technical data can be found on the type plate.
