USER MANUAL M.Zuiko Digital 25mm F1.8 OLYMPUS

25mm f1.8 WD166902 Printed in Japan © 2013

The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only. OLYMPUS EUROPA SE & Co. KG Wendenstrasse 14-18, 20097 Hamburg, GermanyJP 5 ご注意必ずお読みください

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.

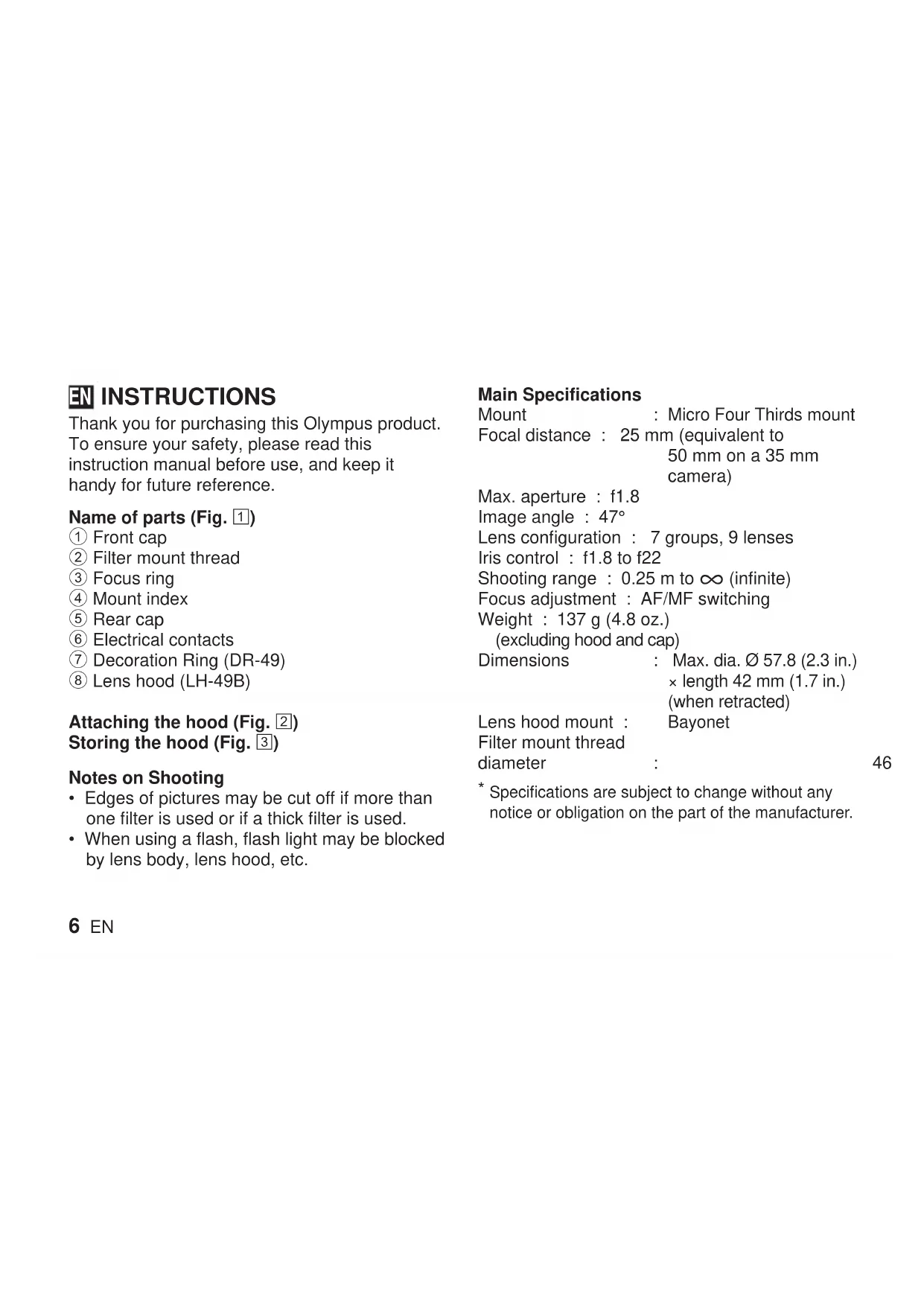

• When using a flash, flash light may be blocked by lens body, lens hood, etc. Main Specifications Mount : Micro Four Thirds mount Focal distance : 25 mm (equivalent to 50 mm on a 35 mm camera) Max. aperture : f1.8 Image angle : 47° Lens configuration : 7 groups, 9 lenses Iris control : f1.8 to f22 Shooting range : 0.25 m to ) (infinite) Focus adjustment : AF/MF switching Weight : 137 g (4.8 oz.) (excluding hood and cap) Dimensions : Max. dia. Ø 57.8 (2.3 in.) × length 42 mm (1.7 in.) (when retracted) Lens hood mount : Bayonet Filter mount thread diameter : 46 mm

Specifications are subject to change without any notice or obligation on the part of the manufacturer. ENEN 7 Precautions: Be Sure to Read the Following Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.

• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.

• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire. Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION. For customers in North America, Central America, South America and the Caribbean FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any unauthorized changes or modifications to this equipment would void the user’s authority to operate. This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B) Technical Support (U.S.A. / Canada) 24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.1-800-260-1625 (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : distec@olympus.com8 EN For customers in Europe The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe. This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product. European Technical Customer Support Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)
