USER MANUAL 477073 METRONIC

SINCRONIZACAO COM OUTRA COLUNA (PRECISA-SE OUTRA COLUNA)

This logo means that it does not have to throw equipment damaged or already used with the ordinary sweepings. These equipment are susceptible to contain dangerous substances that can harm the health and the environment. It demands the

collection of these equipment by his distributor or uses the means of selective collection that are to their disposition in their locality

Out of respect for the environment and the law, not place used batteries with ordinary garbage. Deposit them in special containers at points of sale.

DESCRIPTION

1	Power button
2	PAIR button left/right
3	BT LED: Flashing blue: pair mode Blue: connected
4	LED: RED: charging / GREEN: fully charged.
5	Micro USB input: Recharge the battery
6	LINE IN: Audio jack 3.5mm input

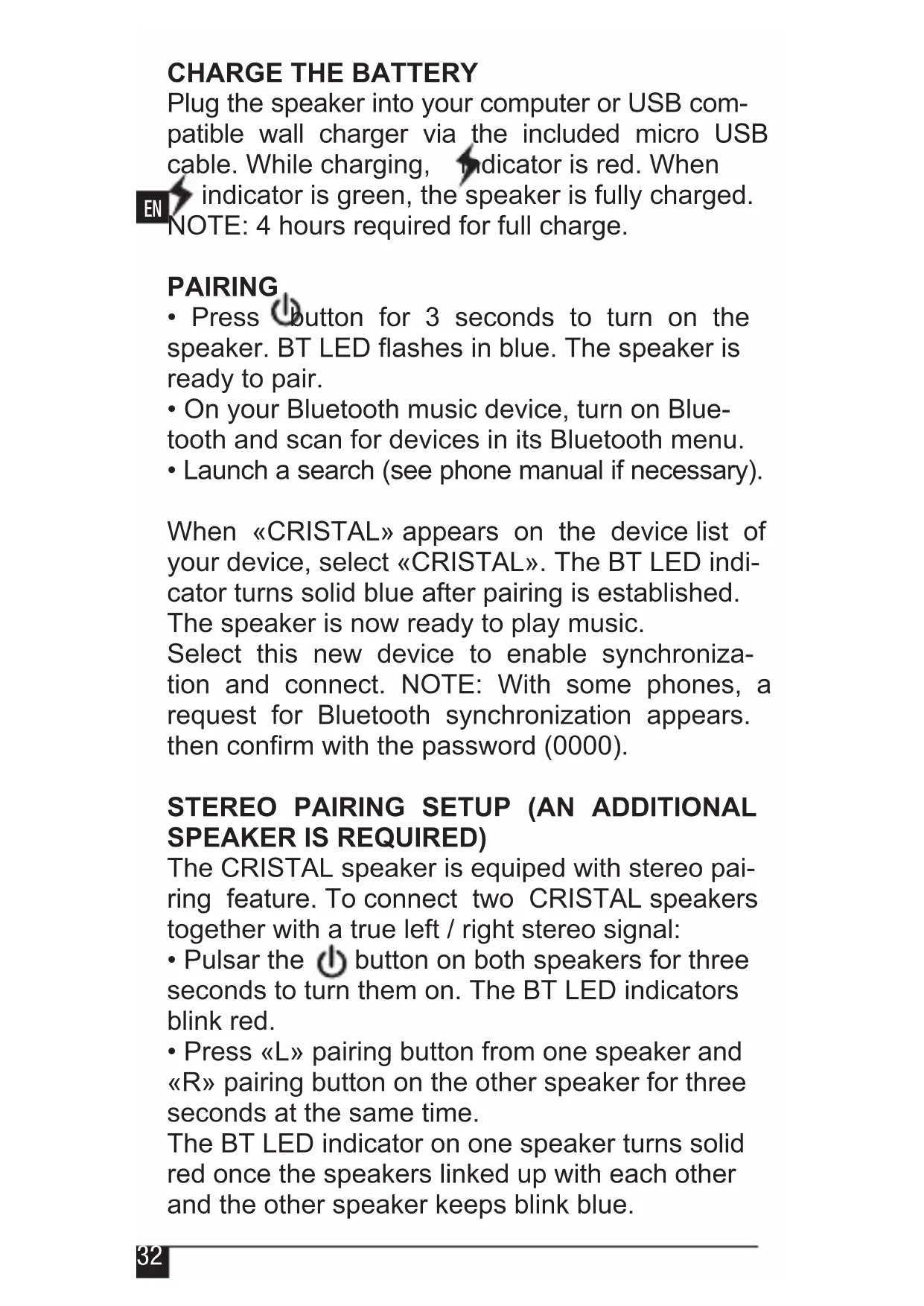

CHARGE THE BATTERY

Plug the speaker into your computer or USB compatible wall charger via the included micro USB cable. While charging, indicator is red. When indicator is green, the speaker is fully charged. NOTE: 4 hours required for full charge.

PAIRING

• Press button for 3 seconds to turn on the speaker. BT LED flashes in blue. The speaker is ready to pair.
• On your Bluetooth music device, turn on Bluetooth and scan for devices in its Bluetooth menu.
• Launch a search (see phone manual if necessary).

When «CRISTAL» appears on the device list of your device, select «CRISTAL». The BT LED indicator turns solid blue after pairing is established. The speaker is now ready to play music.

Select this new device to enable synchronization and connect. NOTE: With some phones, a request for Bluetooth synchronization appears. then confirm with the password (0000).

STEREO PAIRING SETUP (AN ADDITIONAL SPEAKER IS REQUIRED)

The CRISTAL speaker is equipped with stereo pairing feature. To connect two CRISTAL speakers together with a true left / right stereo signal:

• Pulsar the button on both speakers for three seconds to turn them on. The BT LED indicators blink red.
• Press «L» pairing button from one speaker and «R» pairing button on the other speaker for three seconds at the same time.

The BT LED indicator on one speaker turns solid red once the speakers linked up with each other and the other speaker keeps blink blue.

• On your Bluetooth music device, turn on Bluetooth and scan for devices in its Bluetooth menu. The BT LED indicator turns solid blue after pairing is established. The speaker is now ready to play music in stereo mode.

VOLUME CONTROL

After paired with the smartphone device

• Press L each time to volume DOWN
• Press R each time to volume UP

Do not hold the L/R button for volume UP/DOWN, because it will enter to the searching mode for stereo fucntion.

RECONNECTING BLUETOOTH DEVICE

The speaker has a 10mts range in open field. If you move out of range or turn off the Bluetooth feature on your Bluetooth device, the Bluetooth speaker will disconnect from your device. To reconnect, simply follow the instruction in the «pairing» section.

CHANGING CONNECTED BLUETOOTH DEVICE

• Disable the Bluetooth function of your Bluetooth device.
• The Bluetooth speaker can now be connected to the different Bluetooth device.
• Following the instructions in the «pairing» section.

AUX IN MODE

You can plug a device to the AUX IN jack with the included 3.5mm cable.

• Turn on the speaker and plug the non-Bluetooth audio device via the included 3,5mm aux cable. The speaker is ready to play music.

SPECIFICATIONS

Model:CRISTAL

Output power :
- 3W+5W (extra bass)

EN

Input :

Audio jack input 3,5mm : to plug a non-Bluetooth audio device

• Bluetooth specs :
• Bluetooth version : Bluetooth 3.0
• Range : up to 10 m
• Supported Bluetooth profiles : HFP, HSP, ASDP & AVRCP
• Playback time :
• Up to 6 hours
• Power :
• Internal battery 2800mAh
• Recharged in any USB port
• Charge time: 4 hours
• Input voltage: DC 5V / 1A
• Included in this pack :
• Micro USB cable
• Jack 3,5mm male / male cable
• Dimensions : 175 × 90 × 75 mm
  Weight: 460 gr

SUPPORT

Even though our efforts in designing our products and production of this manual you may find difficulties.

Please call us, we will respond as it deserves:

Monday to Thursday: from 9 to 12,30h and from 14.30 to 17h.

Friday: from 8,30 to 13,30h

902 09 01 36 or [e-mail]

Device:CRISTALBluetoothspeaker(477073-black/477074-white)

METRONIC

WARRANTY CERTIFICATE

This device has a legal guarantee of 2 years (24 months in workmanship and materials from the date of purchase. In case of damage, the customer must send the product for repair. It is recommendable to send the product in its original packaging, well protected to prevent damage in shipping. Device must be sent (INCLUDING RCU OR MOUSE AND RF MODULE) attaching the Certificate of Legal guarantee and a copy of proof of purchase (invoice or receipt).

METRONIC will check that the device is under warranty and has not been subject to misuse or manipulation, and then be repaired. Once repaired, the cost of transportation back to your home are under our care (only Peninsula and Balearic Islands). Are excluded from this warranty is damage caused due to handling of the device or remote control, physical damage caused by corrosive liquids, stains, etc.. Also are excluded damage caused by power surges from the power supply and damage by natural disasters (fire, lightning, floods, bumps and falls).

Batteries who have reached the end of its service life are not covered by warranty. Changes by damage or any part not involves any warranty extension.

During the rest of warranty period the device will be repaired if this device has not always been subject to misuse or manipulation. In case of a previous manipulation METRONIC provides a repair estimate to be paid BEFORE repair. If the warranty period has ended, you can also perform a estimate repair. You MUST contact the technical service METRONIC before sending any device.

CRISTAL Bluetooth speaker (477073-black / 477074-white) Purchase date:

Pol. Ind. Can Vinalets C/ Can Vinalets - parcela 6 - CIF: B61357372

08130 SANTA PERPÉTUA DE LA MOGODA (Barcelona) SPAIN

EC/UE Declaration of Conformity

Spain / Portugal: Distributed by: LINEAS OMENEX METRONIC S.L. Pol. Ind. Can Vinyalets C/ Can Vinyalets - parcela 6

08130 Sta. Perpètua de la Mogoda (Barcelona) Spain
Phone: [phone]
Fax: [phone]

We, Metronic, declare, under our sole responsibility, that the product:

Description: Altavoz Bluetooth CRISTAL

Model number: 477073 (black) - 477074 (white)

satisfies the essential requirements defined in the following directives:

2006/95/CE (low voltage)
- 1999/5/CE (radio and telecom terminal equipments)
2011/65/UE (Reduction of hazardous substances in EEE)

To this respect, the product has been tested and found compliant with the relevant section

of the following standards:

EN 60065:2002 + A12:2011
EN 62479:2010
EN300328V1.8.1

Sta. Perpetua de la Mogoda (Barcelona), August 2016
