Product Type	Wall-mounted vitreous china urinal
Brand	TOTO
Model	UT105U(V)(G)
Gross Height	Approx. 500 mm
Gross Width	Approx. 350 mm
Gross Depth	Approx. 300 mm
Approximate Weight	20 kg
Water Supply	Pressurized water (plumbing connection)
Flush System	Manually operated flush valve
Material	Vitreous china
Outlet Flange Included	108mm or 152mm long outlet flange
Strainer Included	Strainer for trap (models UT105U(V)(G) and UT445U(V)(G))
Wall Mounting	Wall hooks (not supplied)
Care and Cleaning	Clean with a soft cloth and non-abrasive cleaner. Avoid chlorine-based products.
Safety	Follow local plumbing codes. Shut off water supply before installation. Check for leaks after installation.
Spare Parts Available	Outlet flange, strainer, flush valve (not supplied by TOTO).
Warranty	1 year against defects in material and workmanship (original purchaser only, North/Central/South America)
Recommended Use	Indoor, commercial or residential use
Tools Required for Installation	Adjustable wrench, pliers, level, flathead screwdriver, hacksaw, putty knife
Electrical Compatibility	No electrical connection required

Frequently Asked Questions - UT105U(V)(G) TOTO

How to install the TOTO UT105U(V)(G) urinal?

Follow the detailed installation procedure in the manual: close the water supply, install the wall supports, attach the outlet flange to the drain pipe, position the urinal on the hooks, tighten the screws, connect the flush valve and water supply, then turn on the water and check for leaks.

What are the exact dimensions of the urinal?

Exact gross dimensions are not specified in the manual. Estimate approximately 500 mm height, 350 mm width, and 300 mm depth. Refer to the dimensional drawing in the manual for precise connection measurements.

What tools are needed for installation?

You need a 10-inch (25.4 cm) adjustable wrench, hand pliers, a level, a flathead screwdriver, a hacksaw, and a putty knife. You will also need a wax ring for the bowl and floor flange mounting bolts (not supplied).

How to install the supplied strainer (filter)?

After removing the strainer from its packaging, visually check that the legs are evenly spaced. Insert it into the trap opening and turn the screw until you feel slight resistance. Press until the screen is in place, then adjust the screw until the screen starts to turn. Do not overtighten.

What is the warranty period for the TOTO urinal?

TOTO warrants its vitreous china products for one year from the date of purchase against defects in material or workmanship under normal use and proper installation. The warranty is limited to the original purchaser and is not transferable.

What to do in case of a leak after installation?

First check that all connections are tight. Ensure the outlet flange is properly installed with sealing tape. If the leak persists, contact a professional or TOTO customer service at [phone].

Can I use cleaning products containing chlorine?

No, TOTO advises against using chlorine-based products (calcium hypochlorite) as they can damage the china and components. Use a mild non-abrasive cleaner.

Where can I download the user manual?

You can download the manual for free in PDF format from notice-facile.com or the official TOTO website (totousa.com). The manual is available in French, English, and Spanish.

Does the urinal require electrical power?

No, the TOTO UT105U(V)(G) urinal is a mechanical model without electrical components. It operates solely with pressurized water via a manual flush valve.

What additional parts do I need to purchase for installation?

You need to purchase a wax ring for bowl sealing, floor flange mounting bolts, and possibly a flush valve if not included. All these items are not supplied by TOTO.

USER MANUAL UT105U(V)(G) TOTO

TABLE OF CONTENTS
Thanks for Choosing TOTO!............................................2 Included Parts............................................2 Common Tools Needed............................................2 Before Installation............................................2 Rough-in Dimensions............................................3 Installation Procedure............................................4 Urinal Strainer Installation............................................5 Warranty............................................6
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
INCLUDED PARTS
Check to make sure you have all these parts from the package:
Urinal w/ Spud	Outlet Flange, 108mm & 152mm pitch	Strainer, UT105U(V)(G), UT445U(V)	2 Hangers required for UT445U(V), UT447E(V)
COMMON TOOLS NEEDED
• 12" pipe wrench • 10" adjustable wrench • Carpenter's Level	• Screwdriver • Drill • Tape Measure
MATERIALS REQUIRED: (Not Included) • Flush Valve	• Stop Valve
BEFORE INSTALLATION
If you are installing this product in a new construction or remodel, please make sure you are following all local plumbing and building codes. Carefully unpack and examine your new fixture for damage. To help ensure that the installation process will proceed smoothly and correctly, please read these instruction carefully before you begin. CAUTION Ignoring these symbols may cause personal injury and/or property damage.

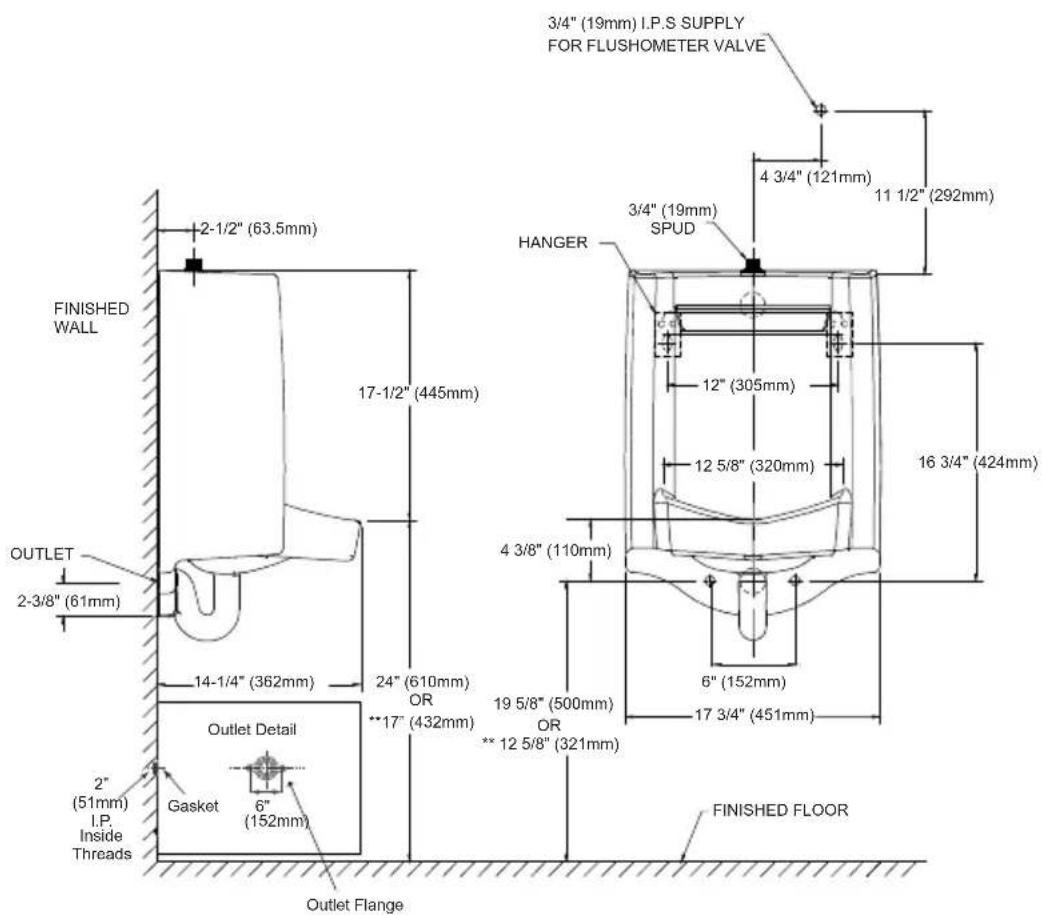

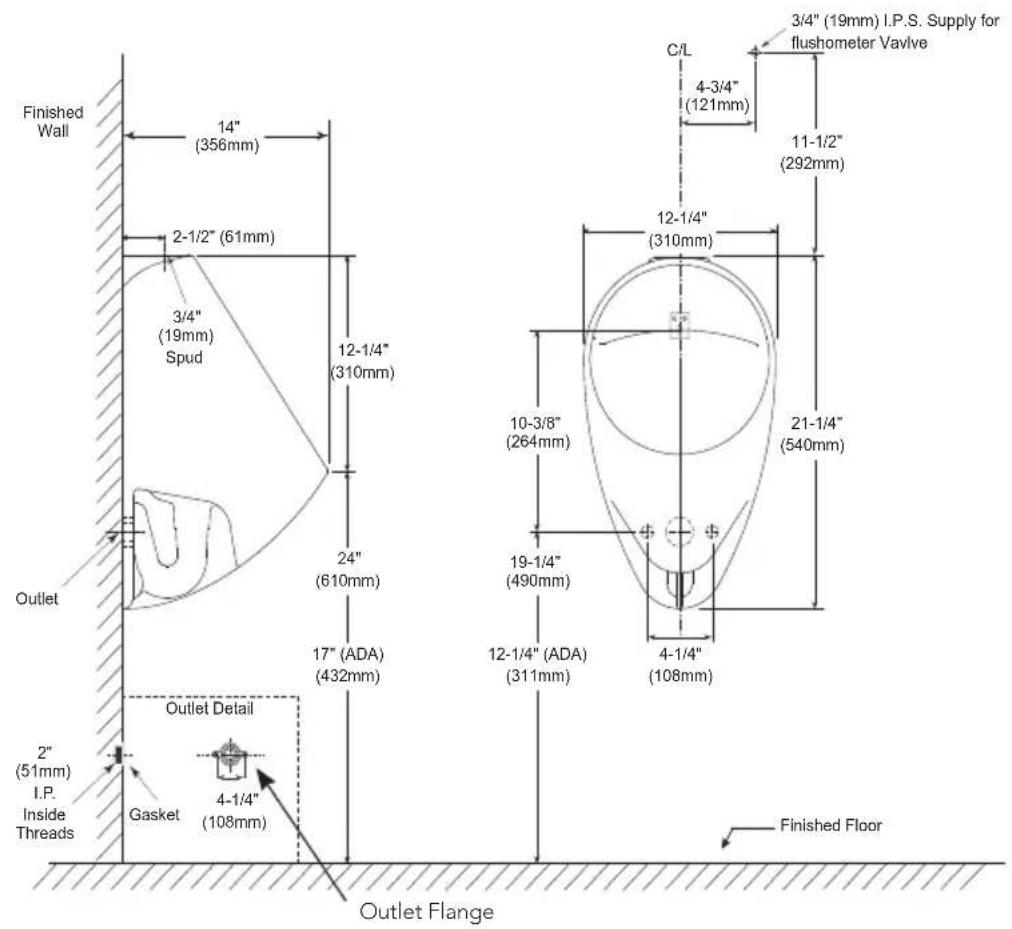

ROUGH-IN DIMENSIONS

INSTALLATION PROCEDURE

• Turn off water supply and if necessary remove the old urinal.
• Install or relocate the water supply pipe and drain pipe to the specified rough-in dimension shown above.
• Install adequate support to mount the urinal.
  Install the wall hanger per rough-in specification.
• Apply sealant tape to the drain pipe threads and install the outlet flange to the drain pipe.
• Install the gasket on the outlet flange.
• Carefully position the urinal on the wall hanger.
• Secure the urinal to outlet flange with screws and washers.
• Install the flush valve per manufacturer's instructions.
• Install the strainer per the installation procedure shown, see page 5.
• Turn-on the water supply and flush urinal several times.
• Carefully check all connections for leaks.

URINAL STRAINER INSTALLATION

Included with UT105U(V)(G) and UT445U(V)(G) only.

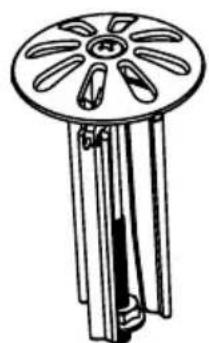

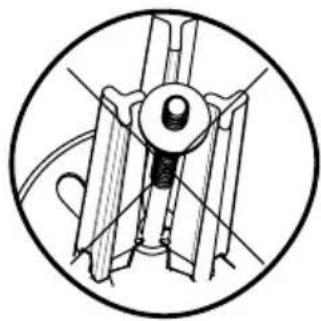

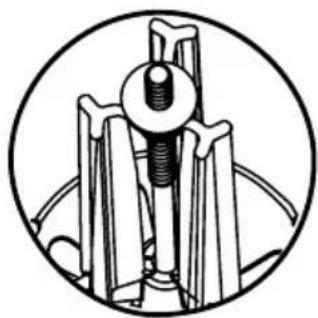

VISUAL INSPECTION

Remove part from plastic bag. Make sure all components are assembled as shown. Make sure urinal trapway is dry before installation.

INSTALLATION INSTRUCTIONS

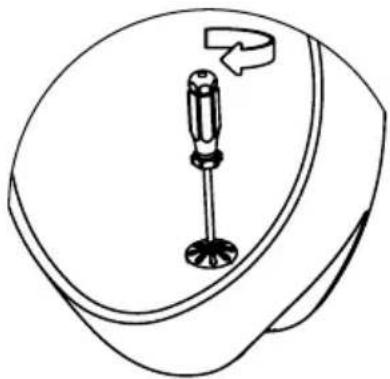

1. Make sure strainer legs are spaced evenly around the nut. With a screwdriver, turn the screw until the strainer legs start to spread apart slightly.

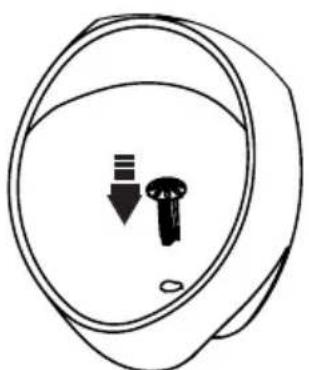

2. Place the strainer in the trapway opening and adjust the screw until a slight resistance is met.

1. Press the unit until the grate fully seats in the china. Continue to adjust the screw until the grate starts to spin.

DO NOT OVERTIGHTEN! Strainer should be snug and not rattle

WARRANTY

1. TOTO warrants its vitreous china products ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.

b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.

c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. (NOTE: Product model codes allow a maximum of 80 PSI. Check local codes or standards for requirements).
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions.
g. Tank flushing mechanisms of plastic or rubber moving parts.
h. Toilet seats of plastic, wood or metal.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
3. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this Product caused by either chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite). NOTE: The use of a high concentrate chlorine or chlorine related products can seriously damage the fittings. This damage can cause leakage and serious property damage.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCurred BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTYES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

TOTO® U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

OGU050-3

07/15

Warranty Registration and Inquiry
