USER MANUAL DEV50V SONY

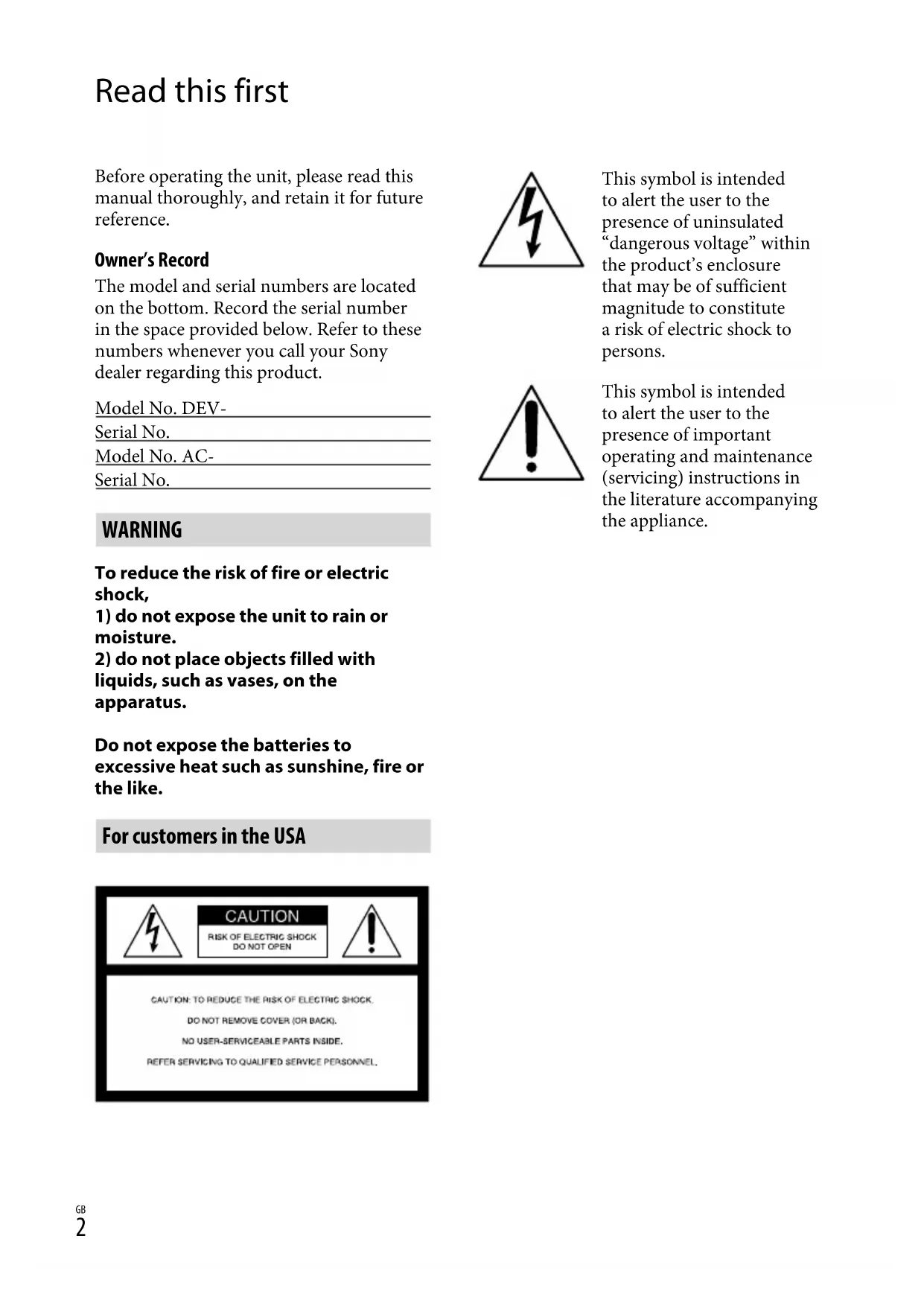

Read this first Before operating the unit, please read this manual thoroughly, and retain it for future reference. Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. DEV- Serial No. Model No. AC- Serial No. WARNING To reduce the risk of fire or electric shock,

2) do not place objects filled with

liquids, such as vases, on the apparatus. Do not expose the batteries to excessive heat such as sunshine, fire or the like. For customers in the USA This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.3

INSTRUCTIONS. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

Representative plug of power supply cord of countries/regions around the world. A Type (American Type) B Type (British Type) BF Type (British Type) B3 Type (British Type) C Type (CEE Type) SE Type (CEE Type) O Type (Ocean Type) The representative supply voltage and plug type are described in this chart. Depend on an area, Different type of plug and supply voltage are used. Attention: Power cord meeting demands from each country shall be used. For only the United States Use a supplied power cord Europe Countries/regions Voltage Frequency (Hz) Plug type Austria 230 50 C Belgium 230 50 C Czech 220 50 C Denmark 230 50 C Finland 230 50 C France 230 50 C Germany 230 50 C Greece 220 50 C Hungary 220 50 C Iceland 230 50 C Ireland 230 50 C/BF Italy 220 50 C Luxemburg 230 50 C Netherlands 230 50 C Norway 230 50 C Poland 220 50 C Portugal 230 50 C Romania 220 50 C Russia 220 50 C Slovak 220 50 C Spain 127/230 50 C Sweden 230 50 C Switzerland 230 50 C UK 240 50 BF Asia Countries/regions Voltage Frequency (Hz) Plug type China 220 50 A Hong Kong 200/220 50 BF India 230/240 50 C Indonesia 127/230 50 C Japan 100 50/60 A Korea (rep) 220 60 C Malaysia 240 50 BF Philippines 220/230 60 A/C Singapore 230 50 BF Taiwan 110 60 A Thailand 220 50 C/BF Vietnam 220 50 A/C5

CAUTION Battery pack If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions. Do not disassemble. Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it. Do not short circuit and do not allow metal objects to come into contact with the battery terminals. Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun. Do not incinerate or dispose of in fire. Do not handle damaged or leaking lithium ion batteries. Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack. Keep the battery pack out of the reach of small children. Keep the battery pack dry. Replace only with the same or equivalent type recommended by Sony. Dispose of used battery packs promptly as described in the instructions. Replace the battery with the specified type only. Otherwise, fire or injury may result. AC Adaptor Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture. Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using apparatus.

Even if this product is turned off, AC power source (mains) is still supplied to it while connected to the wall outlet (wall socket) via the AC Adaptor. Note on the power cord (mains lead) The power cord (mains lead) is designed specifically for use with this product only, and should not be used with other electrical equipment. Excessive sound pressure from earphones and headphones can cause hearing loss. For customers in the U.S.A. and CANADA

RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822- 8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium- Ion batteries. Battery pack This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in the U.S.A. If you have any questions about this product, you may call: Sony Customer Information Center 1-800- 222-SONY (7669). The number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: DEV-50V Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

FOR CUSTOMERS IN EUROPE

Hereby, Sony Corporation, declares that this DEV-50V Digital Recording Binoculars is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Notice for the customers in the countries applying EU Directives This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

ATTENTION The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit. This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet). Notice If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of- life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.9

Notice for customers in the United Kingdom A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an

mark) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. Using this product Do not hold this product by the viewfinder or covers. Also, do not place this product with the viewfinder facing down. This product is dustproof and rainproof. See “About dust & rain proof performance of this product” (p . 10). Menu items, viewfinder, and lens The viewfinder is manufactured using extremely high precision technology, so over 99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue, or green in color) that appear constantly in the viewfinder. These points are normal results of the manufacturing process and do not affect the recording in any way.

Exposing the viewfinder or the lens to direct sunlight for long periods of time may cause malfunctions. Do not aim at the sun. Doing so might cause this product to malfunction. Take images of the sun only in low light conditions, such as at dusk. About language setting The on-screen displays in each local language are used for illustrating the operating procedures. To change the screen language, select (MENU) [Setup]

On recording Before starting to record, test the recording function to make sure the image and sound are recorded without any problems. Compensation for the contents of recordings cannot be provided, even if recording or playback is not possible due to a malfunction of this product, memory card, etc. TV color systems differ depending on the country/region. To view your recordings on a TV, set [60i/50i Sel] to the setting required in

ur country/region before recording (p. 15). Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the copyright laws. Use this product in accordance with local regulations. About this manual, illustrations and on-screen displays The example images used in this manual for illustration purposes are captured using a digital still camera, and therefore may appear different from images and screen indicators that actually appear on this product. And, the illustrations of this product and its screen indication are exaggerated or simplified for understandability. Design and specifications of this product and accessories are subject to change without notice.

Viewing 3D video images Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if necessary. You should also review the instruction manual of any other device or media used with this product. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images. Adults should supervise young children to ensure they follow the recommendations listed above. Notes on use Be careful of your surroundings when using this product. Especially, do not use this product while walking. Doing so may cause accidents or injury. Do not do any of the following. Otherwise, the memory card may be damaged, recorded images may be impossible to play back or may be lost, or other malfunctions could occur. ejecting the memory card when the access

mp (p. 17) is lit or flashing removing the battery pack or AC Adaptor from this product, or applying mechanical shock or vibration to this product when the (Movie)/ (Photo) lamps (p. 19) or the access lamp (p. 17) are lit or flashing About dust & rain proof performance of this product The main unit of this product has been proven (by our performance test) to reach dust & rain proof performance requirements equivalent to IEC60529 IP54.

Sudden rain or fugitive dust will not affect operation of this product. Dustproof performance (IP5x): enclosure does not allow such ingress of dust as to cause harmful effects. The enclosure is not completely dust-tight, however, and is not guaranteed to protect against extreme dust exposure. Rainproof performance (IPx4): enclosure that does not allow splashing of water from any directions to cause harmful effects. This product is not protected against pressurized water, such as from a shower or tap, etc. When an accessory is attached or the AC adaptor or cables are connected, the dust & rain proof performance of this product may be compromised. Be careful not to allow dust or water to enter this product. Do not let the product come in contact with hot water or that with high mineral content. Strong shocks such as from dropping of this product may compromise the rain proof performance of this product. We recommended that you contact your Sony dealer or local authorized Sony service facility (charge applies) regarding repairs. Make sure to use this product properly, observing the following points, as damage caused by misuse, abuse or failure to properly maintain this product is not covered by warranty. Do not use this product underwater. This product is not waterproof, and should not be used underwater. Never immerse this product in water. Securely close the battery/memory card cover or jack covers. Water is more likely to enter this product if the cover is open. When using this product in the rain or with wet or sandy hands, do not open the battery/memory card cover or jack covers. Doing so may cause a malfunction. On use and care Sand, hair, dirt, etc., trapped in the sealing gasket of the battery/memory card cover or jack covers may lead to water entering this product. Wipe the area clean with a soft cloth that does not leave fibers.

wfinder to escape from the bottom (p. 36).If sand caught in the parts of this product impairs their movement, remove the sand with a blower, etc., and then operate them repeatedly. About manuals for this product Two manuals have been prepared for this product, the “Operating Guide” and the “Digital Recording Binoculars Handbook (PDF).” The “Operating Guide” introduces basic operations and the “Digital Recording Binoculars Handbook (PDF)” explains details of functions. How to read Digital Recording Binoculars Handbook (PDF) Install the “Digital Recording Binoculars Handbook” on your computer from the supplied CD-ROM. Place the supplied CD-ROM in the ptical disc drive of your computer. The top page should appear. If the top page does not appear, double-click the [index.html] file in the CD-ROM. Click the CD-ROM manual you want to read. The PDF file on the CD-ROM manual will open.You need Adobe Reader to read the “Digital Recording Binoculars Handbook.” If it is not installed on your computer, you can download it from the Adobe Systems web page. http://www.adobe.com/

Getting started Step 1: Checking the supplied items The numbers in ( ) are the supplied quantity. Digital Recording Binoculars (1) AC Adaptor (1) Power cord (Mains lead) (1) HDMI cable (1) Micro USB cable (1) Rechar geable ba ttery pack NP-FV70 (1) Lens cap (1) Neck strap (1) “Operating Guide” (1) CD-ROM “Manuals for Digital Recording Binoculars” (1) “Digital Recording Binoculars Handbook (PDF)”NotesThe “PlayMemories Home” software and “PlayMemories Home Help Guide” can be dow nloaded from the Sony website (p. 23). Only for DEV-50/50V Carrying case (1) Finder cap (1) Lar ge eyecup (2)

Attaching the neck strap To avoid dropping this product, attach the neck strap to the binoculars following the steps below. Insert one end of the neck strap into the strap mount on the binoculars. Then, fasten the neck strap, placing the end of the neck strap into the clasp. Attaching the large eyecup (DEV-50/50V) If you cannot see the picture in the viewfinder clearly under bright light, use the large eyecup.13

Getting started Step 2: Charging the battery pack You can charge the “InfoLITHIUM” battery pack (V series). NotesYou cannot use any “InfoLITHIUM” battery pack other than NP-FV70/FV100 with this product.To charge the battery, turn off this product by pressing the POWER button.

Press the battery/memory card cover button () and slide the cover in the direction of the arrow (), then open the cover

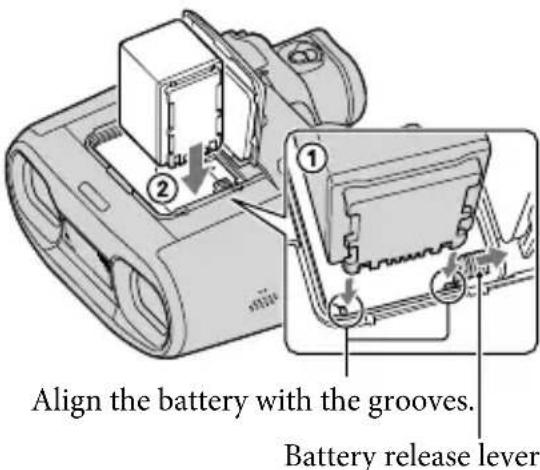

Align the battery with the grooves in the battery compartment while pressing the battery release lever (), then slide the battery until it clicks ().

Close the battery/memory card cover.

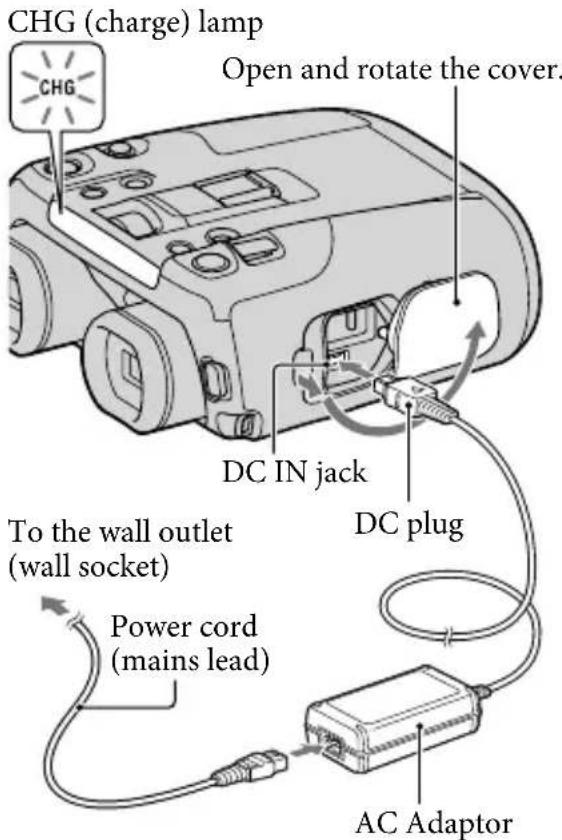

Connect the AC Adaptor and the power cord (mains lead) to this product and the wall outlet (wall socket). The CHG (charge) lamp lights up and charging starts. The CHG (charge) lamp turns off when the battery pack is fully charged. Align the battery with the grooves.Battery release leverSlide the cover until there is no gap.DC IN jackDC plugAC AdaptorPower cord (mains lead)To the wall outlet (wall socket)CHG (charge) lampOpen and rotate the cover.14

When the battery is charged, disconnect the AC Adaptor from the DC IN jack of this product. Tips When this product is on, you can check the approximate amount of remaining battery power (expected recording and playing time) with the remaining battery indicator at the upper right on the screen.To remove the battery pack Turn off this product by pressing the POWER button (p. 14), then open the battery/memory card cover (p. 13). Slide the battery release lever and remove the battery.

Step 3: Turning the power on, and setting up this product NotesIf this product is used by more than one person, adjust the diopter and the width whenever a different person uses it.

Press the POWER button. This product is turned on.To turn off the power, press the POWER button again.

Adjust the diopter until you can see a clear image with each eye by turning the diopter adjustment knob. Adjust the diopter for each eye separately.If you bring your eyes close to the viewfinder, the eye sensor reacts to display the viewfinder screen.

Adjust the width between the left and right viewfinder to fit your eyes using the IPD ADJ dial.

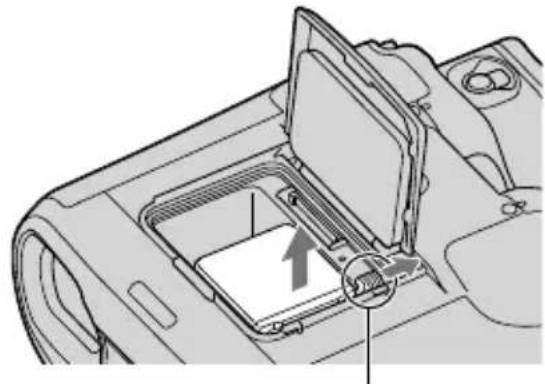

Eye sensor Battery release lever15

Getting started Adjust the width so that left and right images overlap.Make sure that the image in the viewfinder does not appear as a double image.When the viewfinder exceeds the limit of the adjustable range, you will hear a click. The viewfinder will not move any further.

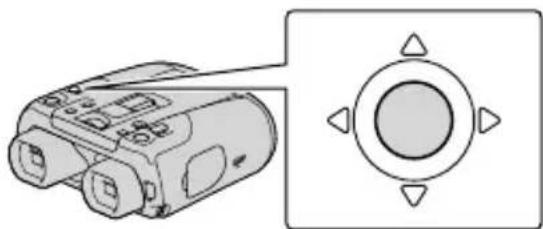

Set the language, area, summer time, date & time format, and date & time using the multi- selector, then confirm each setting. Using the multi-selector Move the multi-selector towards /// to select the desired item, and then press the center of the selector to complete the selection. When each setting have been completed, select [Next].

Select [60i (NTSC)] or [50i (PAL)] to suit the TV color system used in your country/region, then select . When the 60i/50i selection is made, this product restarts to update the system. See page 16 for details on the TV color system in your country/region.

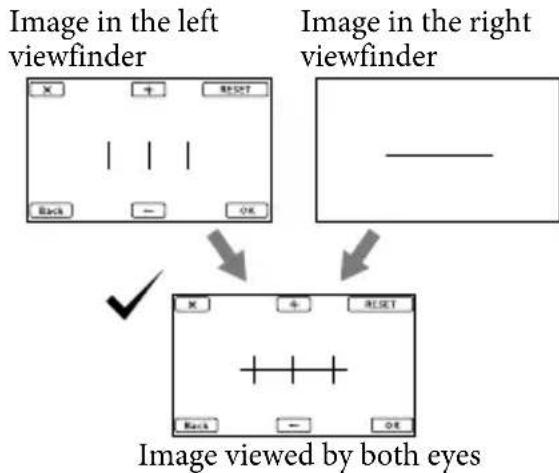

Adjust the relative vertical position of the right and left viewfinder. Make sure that the horizontal line overlaps the vertical lines. If the horizontal line and the vertical lines do not overlap, adjust the position of the image in the right viewfinder by selecting / until the lines overlap, then select

If you see the image below, the device works correctly.If you see the image below even after adjusting the viewfinder, cease using this product. If you cannot see images correctly, this product may be damaged. Contact your Sony dealer or local authorized Sony service facility.

The horizontal line and the vertical lines do not overlap. Image in the left viewfinder Image in the right viewfinder Image viewed by both eyes16

Select [Run]. If you select [Run Later], the recording mode screen appears. When you turn on this product next time, the [Auto 3D Lens Adjust] screen will appear.

Adjust the 3D lens. Aim this product at a subject to display it on the screen.View a subject for which the scale of the indicator exceeds the mark, and then select Do not change the subject until the adjustment is completed.NotesIf this product fails to perform [Auto 3D Lens Adjust], select [Run Again]. Type of subjects that should be displayed on the screen for [Auto 3D Lens Adjust] The scale indicated varies depending on the subject displayed on the screen.Subjects that indicate a higher scale:Distant subjects in bright places such as outdoors

Subjects farther away than 20 m (65 ft.) from this productSubjects with various colors and shapes Watching the recorded movies on a TV To watch recorded movies on a TV, record movies after selecting the appropriate [60i/50i Sel] setting for the TV color system of the country/region where you are using this product.Countries/regions where you need to set [60i/50i Sel] to [60i (NTSC)]Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Guyana, Jamaica, Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the USA, Venezuela, etc.Countries/regions where you need to set [60i/50i Sel] to [50i (PAL)]Argentina, Australia, Austria, Belgium, Bulgaria, Brazil, China, Czech Republic, Denmark, Finland, France, Germany, Guiana, Holland, Hong Kong, Hungary, Iran, Iraq, Italy, Kuwait, Malaysia, Monaco, New Zealand, Norway, Paraguay, Poland, Portugal, Russia, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand, Ukraine, United Kingdom, Uruguay, etc.

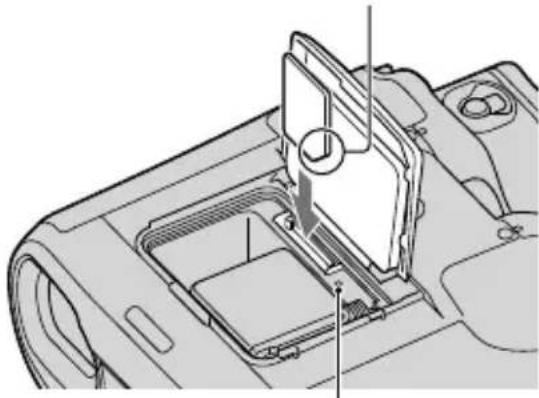

Getting started Step 4: Inserting a memory card Types of memory card you can use with this product “Memory Stick PRO Duo” media (Mark2)“Memory Stick PRO-HG Duo” media

Described in this manual, “Memory Stick PRO Duo” media“Memory Stick XC-HG Duo” media Described in this manual, “Memory Stick XC-HG Duo” mediaSD memory cardSDHC memory card SDXC memory card

Described in this manual, SD cardSD Speed Class 4 or faster is required.Operation with all memory cards is not assured.“Memory Stick PRO Duo” media of up to 32 GB, “Memory Stick XC-HG Duo” media of up to 64 GB and SD cards of up to 64 GB have been verified to operate with this product. Open the battery/memory card cover (p. 13), and insert the memory card with the nothched edge in the direction as illustrated until it clicks. Close the battery/memory card cover after installing the memory card.

If the [Preparing image database file. Please wait.] screen is displayed, wait until the screen disappears.NotesIf [Failed to create a new Image Database File. It may be possible that there is not enough free space.] is displayed, format the memory card.Confirm the direction of the memory card. If you forcibly insert the memory card in the wrong direction, the memory card, memory card slot, and/or image data may be damaged.Do not eject the memory card while the access lamp is lit. Doing so may cause movies and/or photos to not be saved on the memory card properly. To eject the memory card Open the battery/memory card cover and lightly push the memory card in once. NotesMovies recorded on “Memory Stick XC-HG Duo” media and SDXC memory cards cannot be imported to or played back on computers or AV devices not supporting the exFAT

• file system by connecting this product to these devices with the USB cable. Confirm in advance that the connecting equipment is supporting the exFAT system. If you connect an equipment not supporting the exFAT system and the format screen appears, do not perform the format. All the data recorded will be lost.
• The exFAT is a file system that is used for the “Memory Stick XC-HG Duo” media and SDXC memory cards.

Access lampNote the direction of notched corner.18

Binoculars/Recording/Playback Using this product as binoculars

Press the POWER button. This product is turned on.Some settings screen may appear depending on the status of this product when it is turned on. Use this product after completing any necessary adjustments.

Make sure that the diopter, the width, and the relative vertical position of the right and left viewfinder fit you (p . 14).

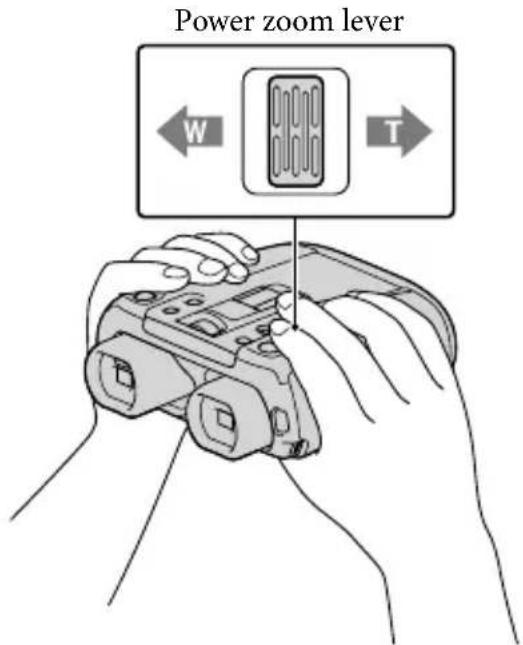

Hold this product with both hands and aim it at the subject. You can magnify images with the power zoom lever.This product adjusts the focus automatically with the auto-focus function (default setting).NotesBe sure to keep your finger on the power zoom lever. If you move your finger off the power zoom lever, the operation sound of the power zoom lever may also be recorded. Tips

SteadyShot] is set to [Active] in the default setting.About zoomingThe default setting for binoculars magnification is as noted below.DEV-30: 0.8 to 15 (approx.)DEV-50/50V: 0.8 to 25 (approx.)Binoculars magnification is available if the following conditions are met.2D recording mode is activated. SteadyShot] is set to something other than [Active] and [Digital Zoom] is set to [On]. Tips The binoculars magnification indicates how big the subject looks with the binoculars compared with your naked eye.To adjust the focus manually Select (MENU) [Camera/Mic] [ Manual Settings] [Focus] using the multi-selector. Select [Manual], then select (nearby subject) / (distant subject) several times to adjust the focus. Tips To adjust the focus automatically, select [Auto].

Binoculars/Recording/Playback Recording In the default setting, images in the viewfinder are displayed in 3D (p. 19), but movies are recorded in 2D.

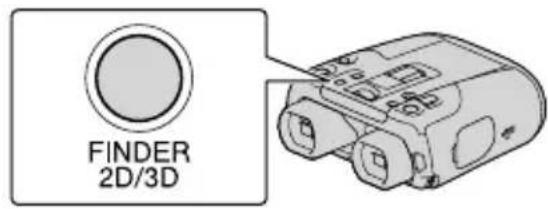

With the power on, press the MODE button to enter the desired recording mode.

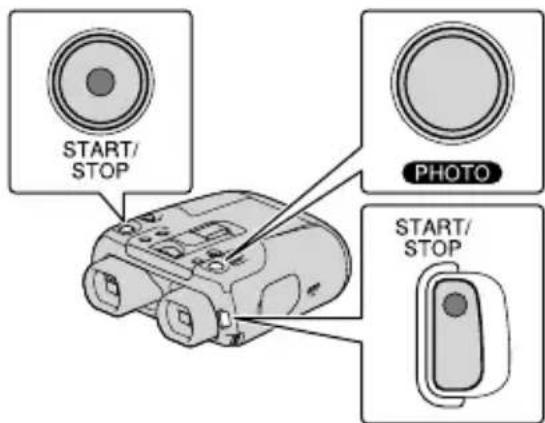

Movie recording mode: Press START/STOP to start recording. To stop recording, press START/STOP again. Photo shooting mode: Press PHOTO lightly to adjust the focus, then press it fully. To switch the viewfinder display between 2D and 3DPress FINDER 2D/3D to switch the viewfinder display between 2D and 3D.At the default setting, images in the viewfinder are displayed in 3D.NotesThe recorded image does not change even if you press the FINDER 2D/3D.To use this product in dark places (Hyper Gain)You can view a subject brightly even in dark places by increasing the gain.Select (MENU) [Camera/Mic] [ Manual Settings] [Hyper Gain] [On].NotesThe image quality deteriorates due to noise when using [Hyper Gain]. In addition, the color of the image becomes light. Tips It is recommended that you adjust the focus manually.If you turn off this product, [Hyper Gain] is also set to [Off].

(Movie): When recording a movie (Photo): When recording a photo MODE button20

NotesThe following states will be indicated if data is still being written onto the memory card after recording has finished. During this time, do not apply shock or vibration to this product, or remove the battery or AC Adaptor.

cces s lamp (p. 17) is lit or flashingThe media icon in the upper right of the screen is flashingYou cannot shoot photos when [2D/3D Mode Select] is set to [3D]. Select (MENU) [Image Quality/Size] [2D/3D Mode Select] [2D].You cannot shoot photos in 3D. To switch the 2D and 3D recording mode You can select a recording mode of either 2D or 3D. To switch 2D and 3D, select (MENU) [Image Quality/Size] [2D/3D Mode Select]. Recommended distance from the subject and zooming level The distance at which you can obtain good 3D movies varies depending on the zooming level. Recommended recording distance (approx.) Zoom 2 m to (9 m) [6 ft. to (30 ft.)] 6 m to (16 m) [20 ft. to (51 ft.)] 24 m to (30 m) [78 ft. to (100 ft.)] A subject farther away than the recommended recording distance will lose 3D depth. Notes You should not record a subject closer than the recommended recording distance in 3D because an uncomfortable movie will be recorded. Record the subject in 2D.

When you record 3D movies, the binocular magnification can be set to up to about 6 . If you want to view or record a subject at greater magnification, set [2D/3D Mode Select] to [2D]. Using menus directly By registering a favorite menu to the left part of the viewfinder screen, you can use the assigned menu directly ([My Button],

26). The default settings are [Hyper Gain], [2D/3D Mode Select] and [VF Brightness]. Controlling the image settings manually with the MANUAL dial It is convenient to assigning a menu item to the MANUAL dial (p. 36). By pressing the MANUAL button, you can use the assigned menu. Also, by pressing and holding the MANUAL button for a few seconds, you can assign a desired menu item. Acquiring location information using the GPS (DEV-50V) Set [GPS Setting] to [On] (p. 27). appears on the screen, and this product starts acquiring the location information. The acquired location information is recorded on movies and photos.

Binoculars/Recording/Playback Playback on this product You can play back images recorded with this product. Tips If you want to play back 3D images, set [2D/3D Mode Select] to [3D].

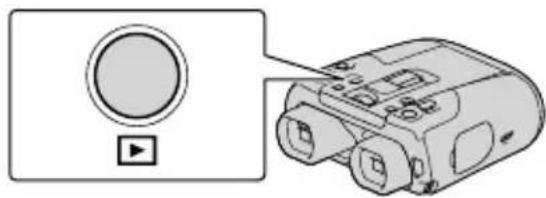

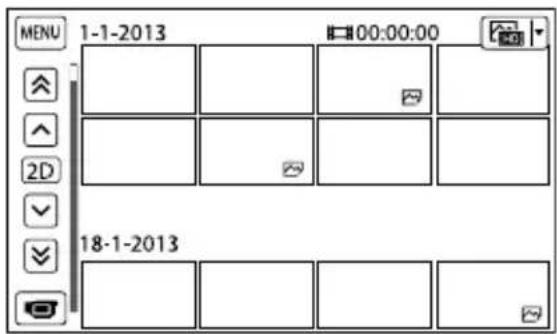

With the power on, press (View Images). The Event Index screen appears after some seconds.

Select an image you want to view using the multi-selector, then press the center of the selector. Playback starts. previous image / next image previous event / next eventThis product organizes images into a group that is called an event, based on the date and time, and information on how often you record images.

Fast-reverse/Fast- forward Play slide show Volume Delete Context Some buttons may not be displayed depending on the playback image.NotesYou may not be able to play back normally images recorded on this product with other devices. Also, you may not be able to play back images recorded on other devices with this product. Tips Select / during pause to play back movies slowly.As you repeat pressing Enter after selecting

during playback, movies are played as fast as about 5 times about 10 times about 30 times about 60 times.

Saving movies and photos with a computer Playing images on a computer The “PlayMemories Home” software allows you to import movies and still images to your computer to use them in a variety of ways. What you can do with “PlayMemories Home” software (Windows) “PlayMemories Home” can be downloaded from the following URL. www.sony.net/pm NotesAn Internet connection is required to install “PlayMemories Home.”An Internet connection is required to use online services. The services may not be available in some countries/regions. Software for Mac The “PlayMemories Home” software is not supported on Mac computers. To import images from this product to your Mac and play them, use the appropriate software on your Mac. For details, visit the following URL. http://www.sony.co.jp/imsoft/Mac/

Import images from this productView images in a calendarUpload images to online servicesCreate a movie disc23

Saving movies and photos with a computer Preparing a computer (Windows) Installing the “PlayMemories Home” software in your computer

Install according to the on-screen instructions. When the on-screen instructions prompting you to connect this product to a computer appear, connect this product to your computer with the micro USB cable (supplied). When the installation completes, “PlayMemories Home” starts up. Notes on installation If the “PlayMemories Home” software is already installed on your computer, connect this product to your computer. Functions that can be used with this product will then be available. If the “PMB (Picture Motion Browser)” software is installed on your computer, it will be overwritten by the “PlayMemories Home” software. In this case, you cannot use some functions that were available with “PMB” with this “PlayMemories Home” software.

View the “PlayMemories Home Help Guide” Double-click the “PlayMemories Home Help Guide” short-cut icon on the computer screen. When using Windows 8, select [PlayMemories Home Help Guide] from the help menu of “PlayMemories Home.” If the icon is not displayed on the computer screen, click [Start] [All Programs] [PlayMemories Home] the desired item. For details on “PlayMemories Home,” select (“PlayMemories Home Help Guide”) on the software or visit the PlayMemories Home support page (http:// www.sony.co.jp/pmh-se/).

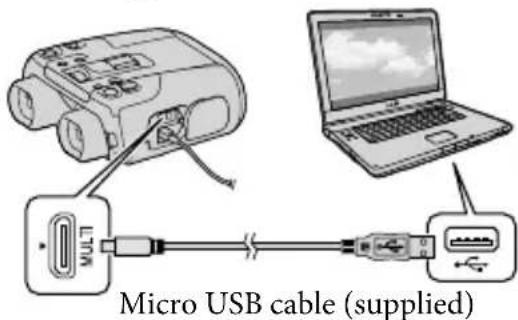

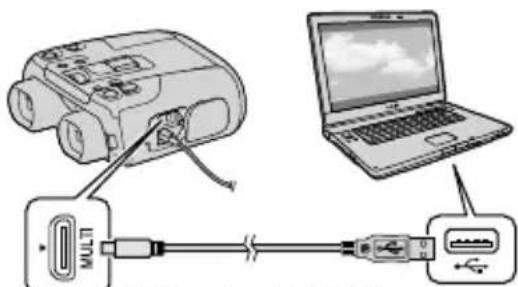

Micro USB cable (supplied)24

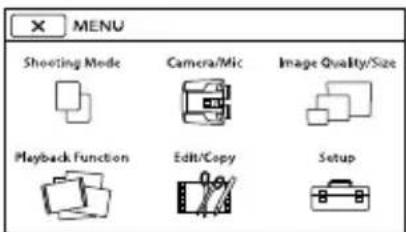

Customizing this product Using menus This product has various menu items under each of 6 menu categories.

Select your desired menu item. NotesSelect to finish setting the menu or to return to the previous menu screen.

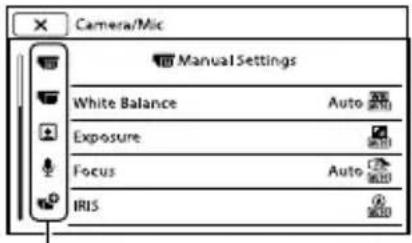

To find a menu item quicklyThe [Camera/Mic] and [Setup] menus have sub-categories. Select the sub-category icon so that the screen displays the list of menus in the sub-category selected.When you cannot select a menu itemGrayed out menu items or settings are not available.When you select the grayed out menu item, this product displays the reason why you cannot select the menu item or the instruction of under which condition you can set the menu item. Sub-category icons25

Customizing this product Menu lists The available menu items differ between the movie mode ( ) and photo mode ( ). Shooting Mode Movie Records movies. Photo Shoots photos. Camera/Mic Manual Settings White Balance Adjusts the color balance to the recording environment. Exposure Adjusts the brightness of movies and photos. Focus Focuses manually. IRIS Adjusts the iris. Shutter Speed Adjusts the shutter speed. AE Shift Adjusts the exposure based on the results of the automatic exposure measurement. White Balance Shift Adjusts the white balance manually. Low Lux Records bright color images in the dim. Hyper Gain Records bright images in dark places by increasing the gain. Camera Settings Auto 3D Lens Adjust Automatically corrects the vertical position of the right and left movies to record 3D movies that can be viewed comfortably, without blurring. Scene Selection Selects an appropriate recording setting according to the type of scene, such as night view or beach. Self-Timer Sets the self-timer when this product is in photo recording mode. Tele Macro Shoots a subject in focus with the background out of focus. SteadyShot Sets the SteadyShot function when recording movies. SteadyShot Sets the SteadyShot function when shooting photos. Digital Zoom Sets the digital zoom. Auto Back Light Adjusts the exposure for backlit subjects automatically. Dial Setting Assigns a function to the MANUAL dial. Face Face Detection Adjusts the image quality of the face(s) automatically. Microphone Closer Voice Detects human faces and records the associated voice clearly. Auto Wind NR Recognizes the recording conditions and reduces the wind noise. Micref Level Sets the microphone reference level.26

Shooting Assist My Button Assigns functions to My Buttons. Grid Line Displays grid lines as a guide to make sure the subject is horizontal or vertical. Display Setting Sets the duration that icons or indicators are displayed in the viewfinder. Image Quality/Size REC Mode Sets the mode to record movies. When recording fast moving subject, a high image quality is recommended. Frame Rate Sets the frame rate to record movies. 2D/3D Mode Select Switches the movie recording type between 2D and 3D. x.v.Color Records wider range of colors. Image Size Sets the photo size. Playback Function Plays back movies or photos. Edit/Copy Delete Deletes movies or photos. Protect Protects movies or photos to avoid deleting. Copy Copies movies or photos to external media devices. Direct Copy Copies all movies and photos that have not yet been saved on an external media device. Setup Media Settings Media Info Displays memory card information, such as free space. Format Deletes all data on the memory card. Repair Img. DB F. Repairs the image database file on a memory card. File Number Sets how to assign the file number. Playback Settings Data Code Displays the detailed recording data during playback. Volume Adjusts the volume of playback sound, and the volume of sound output to monitoring headphones during recording. Connection TV Type Sets the aspect ratio to suit the connected TV. HDMI 3D Setting Select the output format of the right and left images when you connect this product to a 3D TV with the HDMI cable (supplied). HDMI Resolution Select the output image resolution when connecting this product to a TV with the HDMI cable (supplied).27

Customizing this product

Sets whether or not the TV’s Remote Commander is to be used when this product is connected to a “BRAVIA” Sync compatible TV with the HDMI cable (supplied). USB Connect Connects this product to an external device via USB. USB LUN Setting Sets this product to improve the compatibility of a USB connection by restricting some USB functions. General Settings VF Brightness Adjusts the brightness of the viewfinder. Viewfinder Adjust Adjusts the relative vertical position of the right and left viewfinder. GPS Information* Displays location information. GPS Setting* Sets the GPS. REC Lamp Sets the recording lamp to light up or not. Beep Sets whether this product sounds operation beeps or not. Language Setting Sets the display language. 60i/50i Sel Switch 1080/60i (NTSC-system) and 1080/50i (PAL- system). Battery Info Displays the battery information. Power Save Sets the power to turn off automatically. Initialize Initializes all the settings to the default settings. Clock Settings Date & Time Setting Sets the [Date & Time Format], [Summer Time], or [Date & Time]. Area Setting Adjusts for a time difference without stopping the clock. Auto Clock ADJ * Compensates for time automatically by acquiring location information from the GPS system. Auto Area ADJ* Compensates for time differences automatically by acquiring location information from the GPS system.

Additional information Troubleshooting If you run into any problems using this product, follow the steps below. Check the list on this page, and inspect this product. Remove the power source, attach the power source again after about 1 minute, and turn this product on. Select (MENU) [Setup]

General Settings] [Initialize]. If you select [Initialize], all settings, including the clock setting, are reset. Contact your Sony dealer or local authorized Sony service facility if the issue is not resolved. See “Digital Recording Binoculars Handbook” (p. 11) for details on the symptoms of this product, and “PlayMemories Home Help

uide ” (p. 23) on connecting this product to a computer. The power does not turn on. Attach a charged battery pack to this product (p. 13). This product does not operate even when the power is set to on. Disconnect the AC Adaptor from the wall outlet (wall socket) or remove the battery pack, then reconnect it after about 1 minute. This product gets warm. This product may become warm during operation. This is not a malfunction.

Self-diagnosis display/Warning indicators If indicators appear on the viewfinder screen, check the following. If the problem persists even after you have tried to fix a couple of times, contact your Sony dealer or local authorized Sony service facility. In this case, when you contact them, give them all the numbers of the error code beginning with C or E. C:04: The battery pack is not an “InfoLITHIUM” battery pack V series. Use an “InfoLITHIUM” ttery pack (V series) (p. 13).Connect the DC plug of the AC Adaptor to

s product securely (p. 13). C:06: The battery pack temperature is high. Change the battery pack or place it in a cool place. C:13: / C:32: Remove the power source. Reconnect it and operate this product again. E:: Follow the procedure from in “ Troubleshooting.”The battery pack temperature is high. Change the battery pack or place it in a cool place.

Additional information Precautions On use and care Do not use or store this product and accessories in the following locations: Anywhere extremely hot, cold or humid. Never leave them exposed to temperatures

ove 60 C (140 °F), such as under direct sunlight, near heaters or in a car parked in the sun. They may malfunction or become deformed. Near strong magnetic fields or mechanical vibration. This product may malfunction. Near strong radio waves or radiation. This product may not be able to record properly. Near AM receivers and video equipment. Noise may occur. On a sandy beach or anywhere dusty. If sand or dust gets in this product, it may result in a malfunction. Sometimes this malfunction cannot be repaired. For DC or AC operation, use the accessories recommended in these operating instructions. Do not let this product get wet, for example, from rain or sea water. If this product gets wet, it may malfunction. Sometimes this malfunction cannot be repaired. If any solid object or liquid gets inside the casing, unplug this product and have it checked by a Sony dealer before operating it any further. Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping or stepping on the product. Be particularly careful of the lens. Keep this product turning off when you are not using this product. Do not wrap this product with a towel, for example, and operate it. Doing so might cause heat to build up inside. When disconnecting the power cord (mains lead), pull it by the plug and not the cord (lead). Do not damage the power cord (mains lead) such as by placing anything heavy on it. Do not use a deformed or damaged battery pack. Keep metal contacts clean. If the battery electrolytic liquid has leaked: Consult your local authorized Sony service facility.

Wash off any liquid that may have contacted your skin. If any liquid gets in your eyes, wash with plenty of water and consult a doctor. When not using this product for a long time To keep this product in optimum state for a long time, turn it on and let it run by recording and playing back images about once a month. Use up the battery pack completely before storing it. On handling the casing If the casing is soiled, clean this product body with a soft cloth lightly moistened with water, and then wipe the casing with a dry soft cloth. Avoid the following to avoid damage to the finish: Using chemicals such as thinner, benzine, alcohol, chemical cloths, repellent, insecticide and sunscreen Handling this product with above substances on your hands Leaving the casing in contact with rubber or vinyl objects for a long period of time About care and storage of the lens Wipe the surface of the lens clean with a soft cloth in the following instances: When there are fingerprints on the lens surface In hot or humid locations When the lens is exposed to salty air such as at the seaside Store in a well-ventilated location subject to little dirt or dust. To prevent mold, periodically clean the lens as described above. Save all your recorded image data To prevent your image data from being lost, save all your recorded images on external media periodically.

Notes on battery pack/AC Adaptor Be sure to remove the battery pack or the AC Adaptor after turning off this product. Disconnect the AC Adaptor from this product, holding both this product and the DC plug. Note on the binoculars/battery pack temperature When the temperature of this product or battery pack becomes extremely high or extremely low, you may not be able to record or play back on this product, due to the protection features of this product being activated in such situations. In this case, an indicator appears on the screen. When this product is connected to a computer or accessories Do not try to format the memory card of this product using a computer. If you do so, this product may not operate correctly. When connecting this product to another device with communication cables, be sure to insert the connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal and may result in a malfunction of this product. Notes on optional accessories We recommend using genuine Sony accessories. Genuine Sony accessories may not be available in some countries/regions. To ensure stable operation of the memory card It is recommended that you format the memory card with this product before using it the first time. Formatting the memory card will erase all the data stored on it and the data will be irrecoverable. Save your important data on your PC etc.

On charging the pre-installed rechargeable battery This product has a pre-installed rechargeable battery to retain the date, time, and other settings even when this product is turned off. The pre- installed rechargeable battery is always charged while this product is connected to the wall outlet (wall socket) via the AC Adaptor or while the battery pack is attached. The rechargeable battery will be fully discharged in about 3 months if you do not use this product at all. Use this product after charging the pre-installed rechargeable battery. However, even if the pre-installed rechargeable battery is not charged, this product operation will not be affected as long as you are not recording the date. Procedures Connect this product to a wall outlet (wall socket) using the supplied AC Adaptor, and leave it with this product turned off for more than 24 hours.31

Additional information Specifications System Signal format: HD TV NTSC color, EIA standards

44.7 – 2.4 (2D movie)*

44.7 – 1.4 (2D movie)*

Apparent field of view*

828 m – 25 m (2 484 ft. – 75 ft.) (2D movie)

Interpupillary distance adjust: 55 mm – 75 mm (2 1/4 in. – 3 in.) Diopter adjustment: –3.5 to +3.5 Image device:

0.8 – 15 (2D movie)*

0.8 – 25 (2D movie)*

Zoom ratio (approx.): DEV-30:

(photo) F1.8 - F3.4 When converted to a 35 mm still camera DEV-30: f=49.8 mm – 661.6 mm (2 in. – 26 1/8 in.) (2D movie)

f=49.8 mm – 992.3 mm (2 in. – 39 1/8 in.) (2D movie)

f=33.4 mm – 402.0 mm (1 3/8 in. – 15 7/8 in.) (3D movie)

f=49.8 mm – 1 645.7 mm (2 in. – 64 7/8 in.) (2D movie)

f=33.4 mm – 402.0 mm (1 3/8 in. – 15 7/8 in.) (3D movie)

Minimum illumination 11 lx (lux) (in default setting, shutter speed 1/60 second

[60i/50i Sel] is set to [60i (NTSC)].

[60i/50i Sel] is set to [50i (PAL)].

[ SteadyShot] is set to [Standard] or [Off].

The unique pixel array of Sony’s ClearVid and the image processing system (BIONZ) allow still image resolution equivalent to the sizes described.

[Digital Zoom] is set to [Off].

Supports Micro USB compatible devices. General Power requirements: DC 6.8 V (battery pack) DC

Average power consumption: Monitoring *: 2D: 3.7 W, 3D: 4.0 W Recording: 2D: 4.1 W, 3D: 5.0 W

• In this manual, “monitor” means that the user watches or views a subject without recording.

erating temperature: 0 C to 40 C (32 °F to 104 °F)

72.5 mm 157.5 mm (5 7/8 in.

× 2 7/8 in. × 6 1/4 in.) (w/h/d) including the projecting parts 166 mm

78.5 mm 202 mm (6 5/8 in.

× 3 1/8 in. × 8 in.) (w/h/d) (DEV-50/50V) including the projecting parts, and the supplied large eyecup attached Mass (approx.): 765 g (1 l b 10 oz) main unit only DEV-30: 860 g (1 lb 14 oz) including the rechargeable battery pack (NP-FV70) and “Memory Stick PRO Duo” media DEV-50/50V: 890 g (1 l b 15 oz) including the rechargeable battery pack (NP-FV70), “Memory Stick PRO Duo” media, and large eyecup AC Adaptor AC-L200C/AC-L200D Power requirements: AC 100 V - 240 V, 50 Hz/60 Hz Current consumption: 0.35 A - 0.18 A Power consumption: 18 W Output voltage: DC 8.4 V

Operating temperature: 0 C to 40 C (32 °F to 104 °F)

orage temperature: –20 C to + 60 C (‒4 °F to +140 °F) Dimen sions (approx.): 48 mm 29 mm 81 mm (1 15/16 in. 1 3/16 in. 3 1/4 in.) (w/h/d) excluding the projecting parts

ss (approx.): 150 g (5.3 oz) excluding the power cord (mains lead)

• See the label on the AC Adaptor for other specifications. Rechargeable battery pack NP-FV70 Maximum output voltage: DC 8.4 V Output voltage: DC 6.8 V Maximum charge voltage: DC 8.4 V Maximum charge current: 3.0 A Capacity Typ ical: 14.0 Wh (2 060 mAh) Minimum: 13.0 Wh (1 960 mAh) Type: Li-ion Design and specifications of this product and accessories are subject to change without notice.33

Additional information Charging time Approximate time (min.) required when you fully charge a fully discharged battery pack. Battery pack Charging time NP-FV70 (supplied) 195 The charging time shown in the table above is measured when charging this product at a temperature of 25 C (77 °F). It is recommended that you charge the battery in a temperature range of 10 C to 30 C (50 °F to 86 °F). Available time with the supplied battery pack (NP-FV70) Approximate time available when recording in 2D mode with fully charged battery pack. (unit: minute) Continuous recording time 185 Typical recording time 95 Continuous monitoring time 210 Playing time 315 Each operating time in the 2D mode is measured with [ REC Mode] set to [Standard

Typical recording time shows the time when you repeatedly start/stop recording, switch the MODE lamp, and zoom. Times measured when using this product at

C (77 °F). 10 C to 30 C (50 °F to 86 °F) is recommended. The recording, monitoring, and playback time will be shorter, depending on the conditions under which you use this product, such as when using this product in low temperatures.

e r emaining battery indicator (p. 34) shows the expected recording and playing time.

On trademarks “AVCHD 3D/Progressive” and “AVCHD 3D/Progressive” logo are trademarks of Sony Corporation and Panasonic Corporation. “Memory Stick,” “ ,” “Memory Stick Duo,”

,” “Memory Stick PRO Duo,” “ ,” “Memory Stick PRO-HG Duo,” “ ,” “Memory Stick XC-HG Duo,”

,” “MagicGate Memory Stick” and “MagicGate Memory Stick Duo” are trademarks or registered trademarks of Sony Corporation. “InfoLITHIUM” is a trademark of Sony Corporation. “x.v.Color”/“x.v.Colour” is a trademark of Sony Corporation. “BRAVIA” is a registered trademark of Sony Corporation. Blu-ray Disc and Blu-ray are trademarks of the Blu-ray Disc Association. Dolby and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Microsoft, Windows, Windows Vista, and DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are registered trademarks of Apple Inc. in the U.S. and other countries. Intel, Intel Core, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc. Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. SDXC logo is a trademark of SD-3C, LLC. All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, and are not mentioned in each case in this manual.

Quick reference Screen indicators Left Indicator Meaning MENU button Self-timer recording GPS triangulating status Face Detection

Warning Right Indicator Meaning 60i Frame rate (60p (50p)/60i (50i)) and recording mode (PS/FX/ FH/HQ/LP) 60min Remaining battery (expected recording and playing time)

Photo size Recording/playback/ editing media 0:00:00 Counter (hour:minute: second) 00min Estimated recording remaining time

Protected image Automatic Exposure is set manually. Indicators and their positions are approximate and may differ from what you actually see.Some indicators may not appear, depending on the model.

Quick reference Parts and controls Figures in ( ) are reference pages.

(View Images) button (21)

CHG (charge) lamp (13)

Camera recording lamp The camera recording lamp lights up in red during recording. The lamp flashes when the remaining memory card capacity or battery power is low.

Multi/Micro USB terminal Supports Micro USB compatible devices.

Tripod receptacle Attach a tripod (sold separately) to the tripod receptacle using a tripod screw (sold separately: the length of the screw must be less than 5.5 mm (7/32 in.)).Depending on the specifications of the tripod, this product may not attach in the proper direction.

Battery/memory card cover (13)

Battery/memory card cover button (13)

Memory card access lamp (17) While the lamp is lit or flashing, this product is reading or writing data.

Battery release lever (14)

Strap mount (12) Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. http://www.sony.net/ Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink.37
