SAFETY REGULATIONS ON THE APPLIANCES

To meet safety regulations, it is compulsory to install and use our products carefully following the instructions contained in this manual.

DECLARATION OF CONFORMITY OF THE MANUFACTURER

Object: Absence of asbestos and cadmium We declare that the materials used for the assembly of all our appliances are without asbestos parts or asbestos derivates and that in the material used for welding, cadmium is not present, as prescribed in relevant norm. Object: CE n. 1935/2004 regulation. We declare that in all products we produce, the materials which will get in touch with food are suitable for alimentary use, according to the a.m. CE regulation.

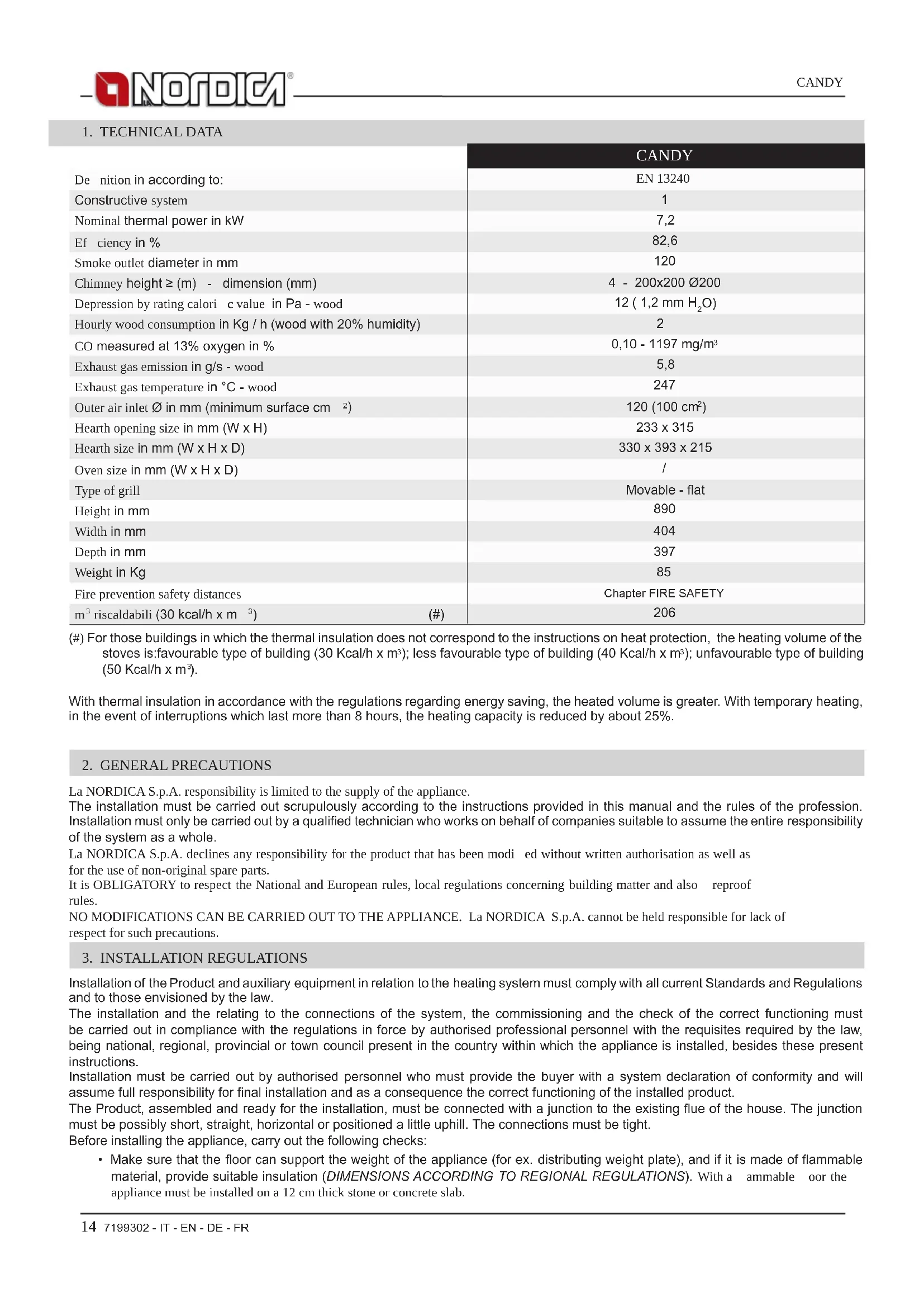

Denition in according to: Constructive system Nominal thermal power in kW Efciency in % Smoke outlet diameter in mm Chimney height ≥ (m) - dimension (mm) Depression by rating caloric value in Pa - wood Hourly wood consumption in Kg / h (wood with 20% humidity) CO measured at 13% oxygen in % Exhaust gas emission in g/s - wood Exhaust gas temperature in °C - wood Outer air inlet Ø in mm (minimum surface cm

Hearth opening size in mm (W x H) Hearth size in mm (W x H x D) Oven size in mm (W x H x D) Type of grill Movable - at Height in mm Width in mm Depth in mm Weight in Kg

Fire prevention safety distances Chapter FIRE SAFETY

(#) For those buildings in which the thermal insulation does not correspond to the instructions on heat protection, the heating volume of the stoves is:favourable type of building (30 Kcal/h x m

); less favourable type of building (40 Kcal/h x m

); unfavourable type of building (50 Kcal/h x m

With thermal insulation in accordance with the regulations regarding energy saving, the heated volume is greater. With temporary heating, in the event of interruptions which last more than 8 hours, the heating capacity is reduced by about 25%.

2. GENERAL PRECAUTIONS

La NORDICA S.p.A. responsibility is limited to the supply of the appliance. The installation must be carried out scrupulously according to the instructions provided in this manual and the rules of the profession. Installation must only be carried out by a qualied technician who works on behalf of companies suitable to assume the entire responsibility of the system as a whole. La NORDICA S.p.A. declines any responsibility for the product that has been modied without written authorisation as well as for the use of non-original spare parts. It is OBLIGATORY to respect the National and European rules, local regulations concerning building matter and also reproof rules. NO MODIFICATIONS CAN BE CARRIED OUT TO THE APPLIANCE. La NORDICA S.p.A. cannot be held responsible for lack of respect for such precautions.

3. INSTALLATION REGULATIONS

Installation of the Product and auxiliary equipment in relation to the heating system must comply with all current Standards and Regulations and to those envisioned by the law. The installation and the relating to the connections of the system, the commissioning and the check of the correct functioning must be carried out in compliance with the regulations in force by authorised professional personnel with the requisites required by the law, being national, regional, provincial or town council present in the country within which the appliance is installed, besides these present instructions. Installation must be carried out by authorised personnel who must provide the buyer with a system declaration of conformity and will assume full responsibility for nal installation and as a consequence the correct functioning of the installed product. The Product, assembled and ready for the installation, must be connected with a junction to the existing ue of the house. The junction must be possibly short, straight, horizontal or positioned a little uphill. The connections must be tight. Before installing the appliance, carry out the following checks:

• Make sure that the oor can support the weight of the appliance (for ex. distributing weight plate), and if it is made of ammable material, provide suitable insulation (DIMENSIONS ACCORDING TO REGIONAL REGULATIONS). With a ammable oor the appliance must be installed on a 12 cm thick stone or concrete slab. CANDY EN 13240

When installing the product, the following safety measures must be observed: a) In order to ensure sufcient thermal insulation, respect the minimum safety distance from objects or furnishing components ammable and sensitive to heat (furniture, wood sheathings, fabrics. etc.) and from materials with ammable structure (see Picture 4 at page 40 - A). All the minimum safety distances are shown on the product data plate and lower values must not be used. b) In front of the furnace door, in the radiation area there must be no ammable or heat-sensitive objects or material at a distance of less than 100 cm. This distance can be reduced to 40 cm where a rear-ventilated, heat-resistant protection device is installed in front of the whole component to protect. c) If the product is installed on a non totally refractory oor, one must foresee a reproof background. The oors made of inammable material, such as moquette, parquet or cork etc., must be replaced by a layer of no-inammable material, for instance ceramic, stone, glass or steel etc. (size according to regional law). In case the replacement of the oor is not possible, the appliance shall be placed on a minimum 12 cm thick slab made of stone or concrete. The base must extend at least 50 cm at the front and at least 30 cm at the sides, in addition to the opening of the loading door (see Picture 4 at page 40 - B). d) No ammable components (e.g. wall units) must be present above the product. The Product must always operate exclusively with the ash drawer inserted. The solid combustion residues (ash) must be collected in a sealed, re resistant container. The Product must never be on in the presence of gaseous emissions or vapours (for example glue for linoleum, petrol etc.). Never deposit ammable materials near the Product. During combustion, thermal energy is released which leads to considerable heating of the surfaces, doors, handles, controls, glass parts, the ue gas pipe and possibly the front part of the appliance. Avoid contact with these elements unless using suitable protective clothing or accessories (heat resistant gloves, control devices). Ensure children are aware of these dangers and keep them away from the furnace when it is on. When using the wrong fuel or one which is too damp, due to deposits present in the ue, a ue re is possible.

If there is a re in the ue connection : a) Close the loading door and the ash drawer door b) Close the comburent air registers c) Use carbon dioxide ( CO

powder ) extinguishers to put out the re d) Request the immediate intervention of the Fire Brigade DO NOT PUT OUT THE FIRE WITH WATER. When the ue stops burning, have it checked by a specialist to identify any cracks or permeable points.

The chimney stoves of La Nordica are suitable to heat living spaces for some periods. As fuel, wood logs are used. The appliance works as an intermittent operating appliance. The stove is made of sheets in galvanized and painted steel, of cast iron (grate and grate holder of the hearth, exhaust pipe) of stone tiles. The hearth is totally sheathed with single cast-iron sheets. Its back is extractable. Thanks to calibrated holes, made on the same back, it is guaranteed a supply of pre-heated air inside the hearth, thus obtaining a post-combustion which increases the efciency and reduces the emission of the unburnt gases. Inside it there is a turning and extractable grate. The inside smoke plate made of vermiculite, reects the re radiation and increases the internal temperature of the combustion chamber. This process together with the exhaust gases ows, makes optimal the combustion and improves the efciency (see Picture 9 at page 41). The hearth is equipped with a panoramic door with ceramic glass (resistant up to 700 °C). This allows a wonderful view on the burning ames. Furthermore, it is thus avoided the output of sparks and smoke. Below the hearth door will be found an extractable ash-drawer with a closing door (Picture 8 at page 41 B). The heating of the environment is made by irradiation: through the panoramic glass and the external hot surfaces of the stove, the heat is radiated into the environment See chapter CALCULATION OF THE THERMAL POWER). The stove is equipped with controls of primary and secondary air by which it is adjusted the combustion air. 1A - PRIMARY air register (Picture 6 at page 41) With the air register located under the door of the hearth, it is possible to adjust the air ow through the ash drawer and the grating

• Make sure that there is adequate ventilation in the room where the appliance is to be installed, with particular attention to windows and doors with tight closing (seal ropes).

• Do not install the appliance in rooms containing collective ventilation ducts, hoods with or without extractor, type B gas appliances, heat pumps, or other appliances that, operating at the same time, can put the room in depression (ref. UNI 10683 standard).

• Make sure that the ue and the pipes to which the appliance will be connected are suitable for its operation. It is not allowed the connection of various appliances to the same chimney.

• The diameter of the opening for connection to the chimney must at least correspond to the diameter of the ue gas pipe. The opening must be equipped with a wall connection for the insertion of the exhaust pipe and a rosette.

• The installation must be appropriate and has to allow the cleaning and maintenance of the product and the ue. La NORDICA S.p.A. declines all responsibility for damage to things and/or persons caused by the system. In addition, it is not responsible for any product modied without authorisation and even less for the use of non original spare parts. Your regular local chimney sweep must be informed about the installation of the appliance so that he can check the correct connection to the chimney.CANDY 16 7199302 - IT - EN - DE - FR in direction of the fuel. The primary air is necessary for the combustion process during the ignition. In order to open the passage of primary air the lever should be completely pulled. The ash drawer has to be emptied regularly, so that ash cannot hinder the intake of primary air for the combustion. Primary air is also necessary to keep re live. When the control is completely on the left, the register is closed, when the knob is completely on the right the register is opened. During the combustion of wood, the primary air register must be opened only a few, since otherwise the wood burns quickly and the device can overheat (see chapter NORMAL OPERATION). 2A - SECONDARY air register (Picture 6 at page 41) Over the hearth door there is the secondary air register. Also this control must be opened (then moved to the right), especially for wood combustion, so that unburnt carbon does not undergo a post-combustion (see chapter NORMAL OPERATION). The adjustment of the registers necessary to reach the rated caloric yield is the following one: Fuel PRIMARY air SECONDARY air TERTIARY AIR CANDY Wood Picture 6 pos. 1 Picture 6 pos. 3 PRE-ADJUSTED

Essential requirements for correct appliance operation:

• the internal section must preferably be circular;

• the appliance must be thermally insulated and impermeable and built with suitable materials which are resistant to heat, combustion products and any condensation;

• there must be no narrowing and vertical passages with deviations must not be greater than 45°;

• if already used, it must be clean;

• the technical data from the instruction manual must be respected; If the ues are of a square or rectangular section, the internal edges must be rounded with a radius of not less than 20 mm. For the rectangular section, the maximum ratio between the sides must be ≤ 1.5. A section which is too small causes a reduction in draught. A minimum height of 4 m is advisable. The following materials are FORBIDDEN and compromise the good operation of the appliance: asbestos cement, galvanised steel, rough and porous internal surfaces. Picture 1 at page 38 shows some example solutions. The minimum section must be 4 dm

(for example 20x20 cm) for appliances whose pipe dimensions are less than 200 mm, or 6.25

(for example 25x25 cm) for appliances with a diameter of more than 200 mm. The draught created by your ue must be sufcient but not excessive. A section of the ue which is too large can present a volume which is too large to heat and therefore cause operating difculties for the appliance; to avoid this, it is necessary to intubate the appliance for its entire height. A section which is too small causes a reduction in draught. The ue must be at a suitably distance from ammable or combustible material using suitable insulation or an air space. It is FORBIDDEN to pass system piping or air ducts inside the ue. It is also forbidden to create moveable or xed openings on the ue itself, for the connection of further different appliances (See chapter CONNECTING A FIREPLACE OR OPEN HEARTH TO THE FLUE). 6.1. CHIMNEY POT The ue draught depends on the suitability of the chimney pot. It is therefore essential that, if built in a handcrafted way, the exit section is more than twice the internal section of the ue (Picture 2 at page 38) . As it must always go past the ridge of the roof, the chimney pot must ensure exhaust even in the presence of wind (Picture 3 at page 39). The chimney pot must meet the following requirements:

• Have an internal section equivalent to that of the chimney.

• Have a useful exit section of double the internal section of the ue.

• Be built so as to prevent rain, snow or any foreign body entering the ue.

• Be easy to inspect, for any maintenance and cleaning operations.

6.2. CONNECTION TO THE CHIMNEY

Products with automatic door closing (type 1) must operate, for safety reasons, with the furnace door closed (except during the fuel loading or ash removal phases). Products with non-automatic door closing (type 2) must be connected to their own ue. Operation with doors open is only allowed when supervised. The connection pipe to the ue must be as short as possible, straight horizontal and positioned slightly in ascent, and watertight. Connection must be carried out with stable and robust pipes (we recommend a thickness of 2 mm) and be hermetically secured to the ue. The internal diameter of the connection pipe must correspond to the external diameter of the cooker ue gas exhaust stub pipe (DIN 1298). ATTENTION: as far as concern the realisation of the ue connection and ammable materials please follow the requirements provided by UNI 10683 standard. The ue must be properly spaced from any ammable materials or fuels through a proper insulation or an air cavity. The chimney pressure (DRAUGHT) must be at least 12 Pa (=1.2 mm of water column). The measurement must always be carried out when the appliance is hot (nominal caloric power). When the pressure exceeds 17 Pascal, it is necessary to reduce it through the installation of an additional draught regulator (false air valve) on the exhaust pipe or in the chimney, according to the regulations in force. For correct appliance operation, it is essential that sufcient air for combustion is introduced into the place of installation (see paragraph 7).CANDY 7199302 - IT - EN - DE - FR 17 6.3. CONNECTING A FIREPLACE OR OPEN HEARTH TO THE FLUE The ue gas channel is the stretch of piping which connects the thermo-product to the ue. In the connection, these simple but extremely important principles must be respected:

• under no circumstances use a ue gas channel with a diameter less than that of the exhaust clamp with which the thermo-product is equipped;

• each metre of the horizontal stretch of the ue gas channel causes a slight loss of head which must be compensated if necessary by elevating the ue;

• the horizontal stretch must never exceed 2 metres (UNI 10683);

• each bend of the ue gas channel slightly reduces the ue draught which must be compensated if necessary by elevating it suitably;

• The UNI 10683 – ITALY regulation requires that under no circumstances must there be more than 2 bends or variations in direction including the intake into the ue. If the user wishes to use the ue as a replace or open hearth, it is necessary to seal the hood below the entrance point of the ue gas channel pos. A Picture 5 at page 40. If the ue is then too big (e.g. 30x40cm or 40x50cm), it is necessary to intubate it with a stainless steel tube with a diameter of at least 200mm, pos. B, taking care to close the remaining spaces between the pipe and the ue immediately under the chimney pot pos. C.

7. AIR FLOW IN THE PLACE OF INSTALLATION DURING COMBUSTION

As the thermo-product draw their combustion air from the place of installation, it is MANDATORY that in the place itself, a sufcient quantity of air is introduced. If windows and doors are airtight (e.g. built according to energy saving criteria), it is possible that the fresh air intake is no longer guaranteed and this jeopardises the draught of the appliance and your health and safety. It is therefore necessary to guarantee a supply of fresh air through an external air inlet placed near the appliance or by placing piping for combustion air which leads outside or to a nearby airy place, with the exception of the boiler room or garage (FORBIDDEN). The intake of air for combustion in the place of installation must not be obstructed during operation of the thermo-product. It is absolutely essential that in environments in which thermo-products are operated with a natural chimney draught, as much air as is necessary for combustion is introduced, i.e. up to 20 m³/hour. The natural recirculation of air must be guaranteed by some xed openings to the outside. Their size is established by regulations regarding the subject. Ask for information from a chimneys weep. The openings must be protected with grills and must never be blocked up. An extractor hood (suction) installed in the same room or in a neighbouring one causes a depression in the environment. This causes the leakage of burnt gas (dense smoke, smell); it is therefore necessary to ensure a greater ow of fresh air. The depression of an extractor hood can, in the worst case scenario, transform the ue of the thermo-product into an external air inlet, re sucking the ue gases into the environment with very serious consequences for persons.

8. ALLOWED / NOT ALLOWED FUELS

Allowed fuels are logs. Use exclusively dry logs (max. content of water 20%). Maximum 3 logs should be loaded. The pieces of wood should have a length of ca. 20-30 cm and a maximum circumference of 30-35 cm. Compressed not worked-out wood briquettes must be used carefully to avoid overheating that may damage the device, since these have a very high caloric value. The wood used as fuel must have a humidity content lower than the 20% and must be stored in a dry place. Humid wood tends to burn less easily, since it is necessary a greater quantity of energy to let the existing water evaporate. Moreover, humid content involves the disadvantage that, when temperature decreases, the water condensates earlier in the hearth and therefore in the stack causing a remarkable deposit of soot with following possible risk of re of the same. Fresh wood contains about 60% of H

O, therefore it is not suitable to be burnt. It is necessary to place this wood in a dry and ventilated place (for example under a roong) for at least two years before using it. Besides others, it is not possible to burn: carbon, cuttings, waste of bark and panels, humid wood or wood treated with paints, plastic materials; in this case, the warranty on the device becomes void. Paper and cardboard must be used only to light the re. The combustion of waste is FORBIDDEN and would even damage the appliance and the ue, causing health damages and claims by the neighborhood owing to the bad smell. The wood is not a fuel which allows a continuous operation of the appliance, as consequence the heating all over the night is not possible. Variety Kg/mc kWh/kg moistness 20% Beech 750 4,0 Oak 900 4,2 Elm 640 4,1 Poplar 470 4,1 Larch* 660 4,4 Spruce* 450 4,5 Scots pine * 550 4,4

• RESINOUS WOOD NOT SUITABLE FOR THE BURNING ATTENTION : the continuous and protracted use of aromatic wood (eucalyptus, myrtle etc.) quickly damages the cast iron parts (cleavage) of the product.CANDY 18 7199302 - IT - EN - DE - FR

WARNING: After the rst ignition you can smell bad odours (owing to the drying of the glue used in the garnitures or of the paint) which disappear after a brief using of the appliance. It must be ensured, in any case, a good ventilation of the environment. Upon the rst ignition we suggest loading a reduced quantity of fuel and slightly increasing the caloric value of the equipment To perform a correct rst lighting of the products treated with paints for high temperature, it is necessary to know the following information:

• the construction materials of the involved products are not homogeneous, in fact there are simultaneously parts in cast iron, steel, refractory material and majolica;

• the temperature to which the body of the product is subject is not homogeneous: from area to area, variable temperatures within the range of 300°C - 500°C are detected;

• during its life, the product is subject to alternated lighting and extinguishing cycles in the same day, as well as to cycles of intense use or of absolute standstill when season changes;

• the new appliance, before being considered seasoned has to be subject to many start cycles to allow all materials and paints to complete the various elastic stresses;

• in detail, initially it is possible to remark the emission of smells typical of metals subject to great thermal stress, as well as of wet paint. This paint, although during the manufacture it is backed at 250 °C for some hours, must exceed many times and for a given period of time the temperature of 350 °C before becoming completely embedded in the metallic surfaces. Therefore, it is extremely relevant to take these easy steps during the lighting:

1. Make sure that a strong air change is assured in the room where the appliance is installed.

2. During the rst starts, do not load excessively the combustion chamber (about half the quantity indicated in the instructions manual) and keep the product continuously ON for at least 6-10 hours with the registers less open than the value indicated in the instructions manual.

3. Repeat this operation for at least 4-5 or more times, according to your possibilities.

4. Then load more and more fuel (following in any case the provisions contained in the installation booklet concerning maximum load) and, if possible, keep the lighting periods long avoiding, at least in this initial phase, short ON/OFF cycles. 5. During the rst starts, no object should be leaned on the appliance and in detail on enameled surfaces. Enameled surfaces must not be touched during heating. 6. Once the «break-in» has been completed, it is possible to use the product as the motor of a car, avoiding abrupt heating with excessive loads. To light the re, it is suggested to use small wood pieces together with paper or other traded lighting means. It is FORBIDDEN to use any liquid substance as for ex. alcohol, gasoline, oil and similar. The openings for air (primary and secondary) must be opened together (you must open the eventual Ignition control, and buttery valve placed on the pipe of smokes exhaust). When the wood starts burning, you may load other fuels and adjust the air for combustion according to the instructions on paragraph TECHNICAL DESCRIPTION. Please always be present during this phase. Never overload the appliance (see the technical table - max quantity of fuel that can be loaded / hourly consumption). Too much fuel and too much air for combustion can cause overheating and therefore damage the appliance. The warranty does not cover the damages due to overheating of the equipment. Never switch on the device when there are combustible gases in the room. 9.1. LOW EMISSION re lighting Smokeless combustion is a way of lighting a re able to signicantly reduce the emission of harmful substances. The wood burns gradually from the top downwards, so combustion is slower and more controlled. Burnt gases pass through the high temperatures of the ame and therefore burn almost completely. A load will last from 6 to 8 hours. Place the logs in the hearth a certain distance apart as shown in the Picture 7 at page 41. Arrange the largest at the bottom and the smallest at the top, or vertically in the case of tall narrow combustion chambers. Place the re starter module on top of the pile, arranging the rst logs in the module at right angles to the pile of wood. Fire STARTER MODULE. This re starter module replaces a paper or cardboard starter. Prepare four logs, 20 cm long with a cross section of 3 cm by 3 cm Picture 7 at page 41. Cross the four logs and place them on top of the pile of wood at right angles, with the re lighter (wax impregnated wood bre for example) in the middle. The re can be lit with a match. If you want, you can use thinner pieces of wood. In this case, you will need a larger quantity. Keep the ue gas exhaust valve and combustion air regulator open. After lighting the re, leave the combustion air regulator open in the position shown in according to the instructions on paragraph TECHNICAL DESCRIPTION FUEL Primary AIR Aria SECONDARIA Wood CLOSED 1/2 OPEN IMPORTANT:

• do not add further wood between one complete load and the next;

• do not suffocate the re by closing the air intakes;

• regular cleaning by a chimney sweep reduces ne particle emissions.

After having positioned the registers correctly, insert the indicated hourly wood load avoiding overloads that cause anomalous stresses and deformations (according to the instructions on paragraph TECHNICAL DESCRIPTION). You should always use the product with the door closed in order to avoid damages due to overheating (forge effect). The inobservance of this rule makes the warranty expire. For safety reasons the door of the appliances with constructive system 1, must be opened only for the loading of the fuel or for removing the ashes, while during the operation and the rest, the door of the hearth must remain closed. The appliances with constructive system 2 must be connected to their own ue. The operating with open door is allowed under supervision. IMPORTANT: For safety reasons the door of the hearth can be opened only for the loading of the fuel. The hearth door must always remain closed during operation or rest. With the controls positioned on the front of the appliance it is possible to adjust the heat emission of the hearth. They have to be opened according to the caloric need. The best combustion (with minimum emissions) is reached when, by loading the wood, most part of the air for combustion ows through the secondary air register. Never overload the appliance (see the hourly wood load in the table here below). Too much fuel and too much air for the combustion may cause overheating and then damage the stove. You should always use the appliance with the door closed in order to avoid damages due to overheating (forge effect). The inobservance of this rule makes the warranty expire. The adjustment of the registers necessary to reach the rated caloric yield with a depression at the stack of 12 Pa (1,2mm of column of water) is the following one: see chapter TECHNICAL DESCRIPTION. The appliance works as an intermittent operating appliance. Besides the adjustment of the air for the combustion, the intensity of the combustion and consequently the thermal performance of the device is inuenced by the stack. A good draught of the stack requires a stricter adjustment of air for combustion, while a poor draught requires a more precise adjustment of air for combustion. To verify the good combustion, check whether the smoke coming out from the stack is transparent. If it is white, it means that the device is not properly adjusted or the wood is too wet; if instead the smoke is gray or black, it signals that the combustion is not complete (it is necessary a greater quantity of secondary air). 10.1. USE OF THE OVEN (If present) Thanks to the air ow for the combustion, the temperature of the oven may become remarkably affected. A sufcient ue of the chimney and of the channels, well cleaned for the ow of burning smokes around the oven are fundamental for a good cooking result. The oven pan may be located on different plans. Thick cakes and big roasts must be introduced in the lowest level. Flat cakes and biscuits must reach the medium level. The upper level may be used to heat or grill.

10.2. OPERATION IN TRANSITION PERIODS

During transition periods when the external temperatures are higher, if there is a sudden increase of temperature it can happen that the combustion gases inside the ue cannot be completely sucked up. The exhaust gases do not come out completely (intense smell of gas). In this case, shake the grating more frequently and increase the air for the combustion. Then, load a reduced quantity of fuel in order to permit a rapid burning (growing up of the ames) and the stabilization of the draught. Then, check that all openings for the cleaning and the connections to the stack are air-tigh. In case of doubt, do not operate the product.

After cleaning the hearth, chimney and hood, totally eliminating the ash and other eventual residues, close all the doors of the hearth and the relevant registers; in case you disconnect the appliance from the chimney you must close its openings in order to let work others possible appliances connected to the same ue. We suggest performing the cleaning operation of the ue at least once per year; verifying in the meantime the actual status of the rope seals, which cannot ensure the good operation of the equipment if they are not in good condition and are not making a good seal! In this case the seals must be replaced. In presence of dampness in the room where the stove has been placed, we advise you to put absorbent salts into the hearth. If you want to keep for long the aesthetic look of the cooker it is important to protect its internal walls in row cast iron with neutral Vaseline.CANDY 20 7199302 - IT - EN - DE - FR

12. MAINTENANCE AND CARE

Check the external air intake, by cleaning it, at least once a year. The stack must be regularly swept by the chimney sweeper. Let your chimney sweeper in charge of your area check the regular installation of the device, the connection to the stack and the aeration. IMPORTANT: The maintenance must be carried out only and exclusively with cold device . You should only use spare parts approved and supplied by La NORDICA. Please contact your specialized retailer if you require spare parts. YOU MUST NOT MAKE ANY CHANGES TO THE DEVICE!!! 12.1. MAJOLICAS La NORDICA has chosen majolica tiles, which are the result of high-quality artisan work. As they are completely carried out by hand, the majolica may present crackles, speckles, and shadings. These characteristics certify their precious origin. Enamel and majolica, due to their different coefcient of dilatation, produce microcrackles, which show their authentic feature. For the cleaning of the majolica we suggest you to use a soft and dry cloth; if you use a detergent or liquid, the latter might soak in and make the crackles more visible.

12.2. PRODUCTS MADE OF NATURAL STONE

Natural stone has to be cleaned with very thin abrasive paper or with an abrasive sponge. Do NOT use any cleanser or uid. 12.3. VARNISHED PRODUCTS After some years of product use a change in the varnished details colour is totally normal. This is due to the considerable temperature range the product is subject to whenever in use and to the varnish ageing of time passing by. ATTENTION: before any possible application of the new varnish, do clean and remove all the traces from the surface which has to be varnished. 12.4. ENAMELLED PRODUCTS For the cleaning of enamelled surfaces use soap water or not aggressive and not chemically abrasive detergents. After the cleaning do NOT let soapy water or any cleanser dry but remove them immediately. 12.5. CHROMIUM-COMPONENTS If the components become bluish due to overheating, this can be solved with a suitable product for cleaning. DO NOT use abrasives or solvents. 12.6. GLASS CLEANING Thanks to a specic inlet of secondary air, the accumulation of dirty sediments on the glass-door is reduced with efcacy. Nevertheless this can never be avoided by using solid fuels ( particularly wet wood ) and it has not to be understood as a defect of the appliance. IMPORTANT: The cleaning of the sight glass must be carried out only and exclusively with cold device to avoid the explosion of the same. For the cleaning, it is possible to use specic products or a wet newspaper paper ball passed in the ash to rub it. Do not use cloths, abrasive or chemically aggressive products by cleaning the hearth glass. The correct lighting phase, the use of proper quantities and types of fuels, the correct position of the secondary air regulator, enough draught of the chimney-ue and the presence of combustion air are the essential elements for the optimal functioning of the appliance and for the cleaning of the glass. BREAK OF GLASSES: Given that the glass-ceramic glasses resist up to a heat shock of 750°C, they are not subject to thermal shocks. Their break can be caused only by mechanic shocks (bumps or violent closure of the door, etc.). Therefore, their replacement is not included in the warranty.

12.7. CLEANING OUT THE ASHES

All the devices are equipped with a hearth grating and an ash drawer for the collection of the ashes. It is suggested to empty periodically the ash drawer and to avoid it lls completely in order not to overheat the grating. Moreover, it is suggested to leave always 3-4 cm of ash in the hearth. CAUTION: The ashes removed from the hearth have to be stored in a container made of re-resistant material equipped with an air-tight cover. The container has to be placed on a re-resistant oor, far from ammable materials up to the switching off and complete cooling.

12.8. CLEANING THE FLUE

The correct lighting phase, the use of proper quantities and types of fuels, the correct position of the secondary air regulator, enough draught of the chimney-ue and the presence of combustion air are the essential elements for the optimal functioning of the appliance. The device should be completely cleaned at least once a year or every time it is needed (in case of bad working and low yield). An excessive deposit of soot can cause problems in the discharge of smokes and re in the ue. The cleaning must be carried out exclusively with cold equipment. This operation should be carried out by a chimney sweeper who can simultaneously perform an audit of the ue (checking of possible deposits). During the cleaning, it is necessary to remove the ash drawer, the grating, and the smoke deectors from the device in order to ease the fall of the soot. The deectors can be easily extracted from their seats since they are not fastened using screws. Once the clearing has been carried out, place them back in their seats (Picture 9 at page 41). CAUTION: The lack of the deectors causes a strong depression, with a too fast combustion, an excessive consumption of wood with related overheating of the device.CANDY 7199302 - IT - EN - DE - FR 21

13. CALCULATION OF THE THERMAL POWER

There is not an absolute rule for calculating the correct necessary power. This power is given according to the space to be heated, but it depends also largely on the insulation. On an average, the caloric value necessary for a properly insulated room is 30 kcal/h per m

(for an external temperature of 0°C). Given that 1 kW corresponds to 860 kcal/h, it is possible to adopt a value of 38 W/m

Let’s suppose one wishes to heat a room of 150 m

(10 x 6 x 2.5 m) in an insulated apartment. In this case, it is necessary to have 150 m

8. COMBUSTIBLES ADMIS / NON ADMIS

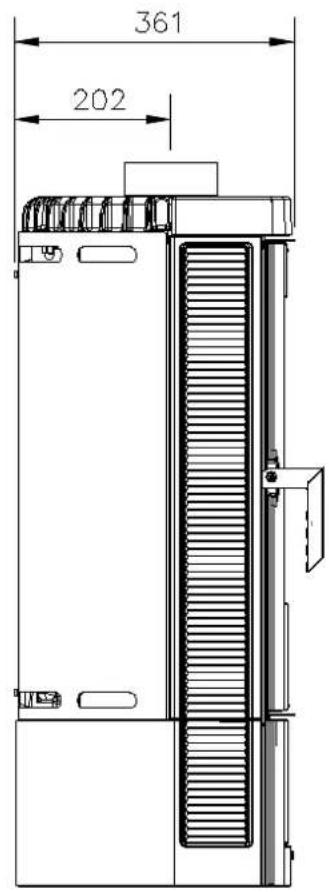

14. DIMENSIONS SHEETS
