48816 - Ice machine UNOLD - Free user manual and instructions

Product type	Ice cream machine
Brand	Unold
Model	48816
Total reservoir capacity	1.5 L
Maximum filling capacity	1000 ml
Dimensions (H x W x D)	38.5 x 33.0 x 32.0 cm
Power supply	220-240 V~, 50 Hz
Power	150 W
Preparation time	Approximately 30 minutes for ice cream
Timer	10, 30, 40 or 50 minutes (no 20 min)
Display	Digital, alternates between remaining time and temperature
Automatic program	Yes, with automatic stop and audible signal
Bottle cooling function	Yes, by removing the reservoir
Automatic cold keeping	Yes, after the program ends for up to 1 hour
Included accessories	Graduated cup, spoon
Optional accessory	Ice reservoir (ref. 4881610)
Reservoir material	Food-grade plastic
Maintenance	Clean removable parts with hot water; wipe the housing with a damp cloth
Safety	Automatic stop at end of program; do not immerse
Warranty	24 months (Germany and Austria)

Frequently Asked Questions - 48816 UNOLD

How to use the bottle cooling function?

Remove the ice reservoir and place the bottle directly in the hollow of the ice cream maker. Select 10 minutes on the timer and start the program. You can extend the time if necessary. For optimal efficiency, cover the neck with an insulating sleeve, without blocking the ventilation slots.

Can I add alcohol to the ice cream?

Yes, but in small quantities and preferably at the end of preparation, because alcohol prolongs freezing time. Add it when the ice cream is almost ready.

How to clean the ice cream machine after use?

Always unplug the device. Clean removable parts (reservoir, mixer, lid) with hot water and a little mild detergent. Wipe the housing with a damp cloth. Never immerse the motor block or compressor. Dry well before reassembling.

What to do if the ice cream is still too soft after the cycle?

You can extend the time by pressing START/STOP for 2 seconds, then selecting additional time (in 10-minute increments) before restarting. The cycle can be repeated until desired consistency is achieved.

How to set the preparation time?

Press the ZEITWAHL/TIME button several times to choose between 10, 30, 40 or 50 minutes (20 minutes is not available). The selected time is displayed. Start with START/STOP. During operation, you can add 5 minutes by pressing the same button again, up to a maximum of 50 minutes.

Can I use fresh fruit with chunks?

Yes, puree the fruits just before preparation. Add fruit chunks or berries directly before the end of the cycle to avoid them being over-processed. Use ripe fruits for better taste.

What is the maximum filling capacity?

Do not fill the reservoir beyond three-quarters of its capacity, as ice cream increases in volume when freezing. The maximum preparation capacity is 1000 ml.

What does the alternating display mean?

The digital display alternately shows the remaining time and the reservoir temperature. This allows you to monitor the progress and temperature of the preparation.

How to store homemade ice cream?

Transfer the ice cream to a suitable container with a lid and place it in the freezer. Consume within a week. If it has partially melted, consume immediately. Homemade ice cream contains no preservatives; it is best fresh.

Does the appliance stop automatically?

Yes, at the end of the program, the appliance stops automatically and emits an audible signal (10 beeps). The display shows '0:00'. If the ice cream is not removed within 10 minutes, an automatic cooling is triggered in 10-minute cycles for up to 1 hour to prevent melting.

USER MANUAL 48816 UNOLD

Modern kitchen appliance with a black lid and ventilation grille, no visible text or symbols

Bedienungsanleitung

Modell 48816

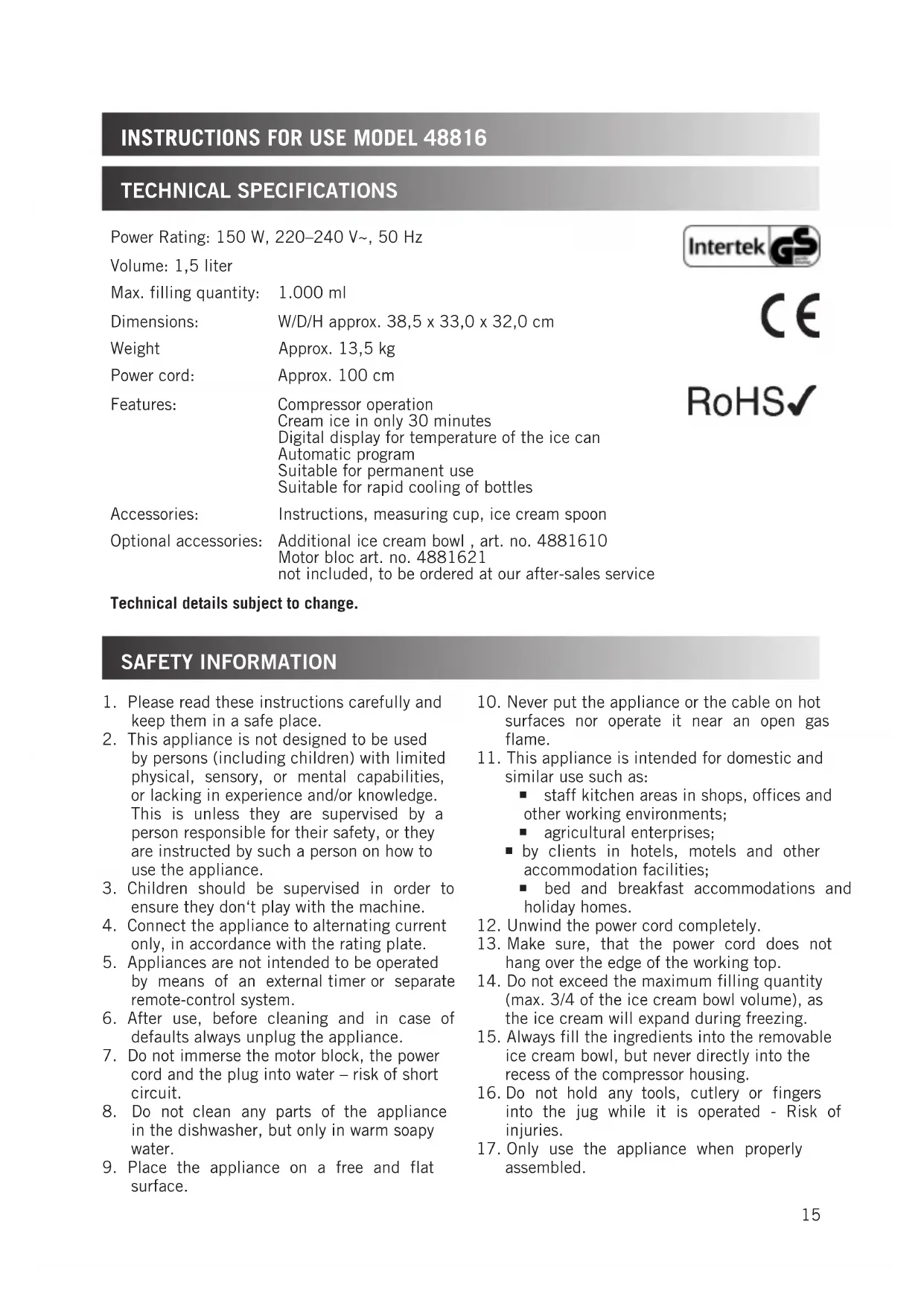

Instructions for use Model 48816

Technical Specifications.... 15

Safety Information 15

Before using the appliance 16

Preparation of ice cream 16

Cooling function for bottles....17

Cleaning 17

Recipes: General information 18

Soft ice cream....18

Cream ice 19

Fruit ice cream....19

Sherbet 20

Parfait 21

Guarantee Conditions....54

Waste Disposal / Environmental Protection 58

Exploded view diagram of a kitchen appliance with numbered parts for identification

EINZELTEILE

1 D Antriebsteil

GB Motor block

F Bloc moteur

NL Aandrijf

I Blocco motore

E Accionamiento

CZ Hnací část

2 D Transparenter Deckel

GB Transparent lid

F Couvercle transparent

NL Transparente deksel

GB Mixing arm (illustration similar)

F Mixeur (illustration ressemblante)

GB Ice cream bowl (illustration similar)

GB Compressor housing

NL Compressor behuizing

I Corpo compressore

Power Rating: 150 W, 220–240 V\~, 50 Hz

Volume: 1,5 liter

Max. filling quantity: 1.000 ml

Dimensions: W/D/H approx. 38,5 x 33,0 x 32,0 cm

Weight Approx. 13,5 kg

Power cord: Approx. 100 cm

Features: Compressor operation

Cream ice in only 30 minutes

Digital display for temperature of the ice can

Automatic program

Suitable for permanent use

Suitable for rapid cooling of bottles

Accessories: Instructions, measuring cup, ice cream spoon

Optional accessories: Additional ice cream bowl, art. no. 4881610

Motor bloc art. no. 4881621

not included, to be ordered at our after-sales service

Technical details subject to change.

SAFETY INFORMATION

1. Please read these instructions carefully and keep them in a safe place.
2. This appliance is not designed to be used by persons (including children) with limited physical, sensory, or mental capabilities, or lacking in experience and/or knowledge. This is unless they are supervised by a person responsible for their safety, or they are instructed by such a person on how to use the appliance.
3. Children should be supervised in order to ensure they don't play with the machine.
4. Connect the appliance to alternating current only, in accordance with the rating plate.
5. Appliances are not intended to be operated by means of an external timer or separate remote-control system.
6. After use, before cleaning and in case of defaults always unplug the appliance.
7. Do not immerse the motor block, the power cord and the plug into water – risk of short circuit.
8. Do not clean any parts of the appliance in the dishwasher, but only in warm soapy water.

9. Place the appliance on a free and flat surface.

10. Never put the appliance or the cable on hot surfaces nor operate it near an open gas flame.

11. This appliance is intended for domestic and similar use such as:
    ■ staff kitchen areas in shops, offices and other working environments;
    ■ agricultural enterprises;
    ■ by clients in hotels, motels and other accommodation facilities;
    ■ bed and breakfast accommodations and holiday homes.

12. Unwind the power cord completely.

13. Make sure, that the power cord does not hang over the edge of the working top.

14. Do not exceed the maximum filling quantity (max. 3/4 of the ice cream bowl volume), as the ice cream will expand during freezing.

15. Always fill the ingredients into the removable ice cream bowl, but never directly into the recess of the compressor housing.

16. Do not hold any tools, cutlery or fingers into the jug while it is operated - Risk of injuries.

17. Only use the appliance when properly assembled.

18. During operation, the ventilation slots of the compressor housing as well as of the motor block must be free and uncovered.

19. Do not use the appliance with accessories of other machines or brands.

20. Do not use any sharp objects to take out the ice cream. Only use plastic or wooden spoons or spatulas.

21. Check the plug and power cord regularly for wear and damage. In case of a fault, please send the appliance for inspection/repair to our after sales service (address see last page). Inadequate repair may constitute a risk for the user and result in the loss of guarantee.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE

1. Before using the appliance for the first time, wash the removable parts except motor block (1) and compressor housing (6) in warm soapy water.

2. Wipe the motor block and the compressor housing with a damp cloth.

3. Place the appliance on a flat and dry surface.

PREPARATION OF ICE CREAM

Control lamp KÜHLEN/Cooling

ON/OFF

UNOLD 40:29 ZEITWAHL/Time selection Control lamp RÜHREN/Mixing START/STOP START/STOP

1. Prepare the ingredients according to the respective recipe. If the ingredients must be cooked before, do this the day before as the ice cream mass must be cooled down before filling it into the ice machine.
2. Mash fruits only directly before preparing the ice cream, add fruit pieces only at the end of the freezing procedure.
3. Cool the prepared ice mass resp. the ingredients in the refrigerator to a temperature of approx. 6–8 °C.
4. Fill the cooled ingredients into the ice cream bowl (4). Do not exceed the maximum filling quantity of 34 of the ice cream bowl volume, as the ice cream will get more volume during freezing.
5. Use alcohol only in small quantities as it prolongs the freezing time.
6. Place the sealing ring (5) on the upper edge of the recess (6).

7. Place the filled ice cream bowl (4) into the recess of the compressor housing (6).

8. Place the mixer (3) onto the transparent lid(2).

9. Place the transparent lid (2) together with the mixer (3) on top and turn it clockwise(bayonet lock). The opening for refill of ingredients must be at the left side.
10. Place the motor block (1) on the transparent lid (2) and make sure, that the drixe axle (3) fits into the opening of the mixer and that the power contact with the compressor housing (6) is established.
11. Put the plug into a power socket and press the button ON/OFF to start the appliance. The display shows „50:00“ an. The appliance is ready for operation.

12. Select the desired freezing time by repeated pressing of the button ZEITWAHL/Time select in steps of 10 minutes (10, 30, 40 odr 50 minutes). The setting „20 min.“ is not provided.

13. Press the START/STOP button. After a few seconds, the appliance starts mixing. The green control light is turning on.

14. Approx. 2 minutes later the freezing is turned on and the red control light turns on.
15. The display shows alternatingly the remaining preparation time and the actual temperature of the cooling bowl.
16. During operation, the appliance can be stopped at any time by pressing the START/STOP button for at least 2 seconds.
17. During operation the freezing time can be extended by pressing the time select button (Zeitwahl) in steps of 5 minutes up to a max. freezing time of 50 minutes.
18. The appliance turns off automatically after the preselected time. Ten beeps will sound. The display shows „0:00“. The ice cream can be taken out.
19. If the ice cream is still too soft, you can restart the appliance by pressing the START/STOP button for at least 2 seconds. Select the desired additional freezing time with the time select button (Zeitwahl). Then press

the START/STOP button. The appliance will restart for the preselected time and will then return into the initial mode.

1. If the ice is not taken out within 10 minutes after the beeps, the automatic freezing function is activated to avoid the ice cream from melting.

2. This function cools the ice cream in steps of 10 minutes for max. 1 hour. Then the appliance returns into the starting mode.

3. Switch off and unplug the appliance before taking out the ice cream.

4. To take out the ice cream first remove the motor block und then the transparent lid by turning it counterclockwise.

5. Take the ice cream bowl out and remove the mixer from the ice cream.

6. Fill the ice cream into an appropriate freezing container with lid. Do not use any sharp tools, but preferably plastic or wood spoons or spatulas.

7. You can now prepare new icecream, just restart at point 1 of this chapter.

COOLING FUNCTION FOR BOTTLES

1. For rapid cooling of bottles remove the ice cream bowl (4) and place the bottle directly into the recess (6).

2. Select a short operation time 10 minutes and start the appliance. If necessary the cooling time can be prolonged as described above.

3. The best cooling effect will be reached, if the bottle top is covered with an isolating collar. However, do not cover the ventilation openings of the motor block and the compressor housing.

CLEANING

1. Switch off and unplug the appliance. Let the appliance cool down.
2. Do not clean the appliance, the motor block and the cord in or under water or any other liquid.
3. Do not use any sharp or scouring clean-

4. sers which might damage the surface.

5. All removable parts except the motor block can be cleaned in warm soapy water. The parts are not dishwasher proof.

6. The compressor housing and the motor block can be wiped with a damp cloth.
7. Dry all parts carefully before reassembling the appliance.

RECIPES: GENERAL INFORMATION

In the following you find some general information for the preparation of ice cream as well as some basic recipes. You will find a lot of good cooking books in good bookstores. Please adapt the quanti-ties always to the maximum filling quantity of the ice bowl.

The ice cream smells best when it is fresh. Homemade ice cream does not contain any conserving agents and is thus provided for immediate use.

If you want to store the ice cream for some time, you should add 20 g ice cream base which avoids the formation of big ice crystals. In Germany the ice base (Eisbasis) is available under the following address in Germany:

Hobbybäcker-Versand - Inge Pinzer

Am Mühlholz 6 – 89287 Bellenberg

Tel. [phone] - Fax [phone]

Only use ripe fruits for fruit ice cream.

Fruit pieces or berries should be added at the end of the freezing procedure.

Only use very fresh eggs.

You can replace milk by cream or cream by milk.

The more cream is used, the softer the ice cream will be.

Sugar can be replaced by honey, syrup or sweetener (not in case of soft ice cream).

Milk can be replaced by soy milk.

If you want hard ice cream, put the mass for about 15-30 minutes into the freezer before filling it into the ice cream bowl, or just select a longer freezing time.

The ingredients must be well cooled before filling them into the ice cream bowl. The cooler the ingredients, the shorter the preparation time (15 bis 30 minutes).

Ice will loose taste and quality if stored too long.

To conserve the ice cream for a certain time, do not leave it in the removable bowl of the ice machine, but fill it into an adequate freezing box with lid.

Ice cream can be stored for a short time in the freezer.

Use the homemade ice cream within one week. Melted ice cream should be used immediately and should not be frozen again.

SOFT ICE CREAM

Basic recipe soft ice cream

375 ml cream, 80 g honey, 2 egg yolk, 1 egg, 1 pinch of salt

Mix all ingredients and prepare ice cream in the ice cream maker. Sesaon to taste with liqueur, chocolate chips etc.

Vanilla soft ice

375 ml cream, 12 sliced vanilla pod, 80 g honey, 1 egg yolk, 1 egg, 1 pinch of salt

Cook cream, vanilla pod and honey the day before and let it cool down.

Mix all ingredients and prepare ice cream in the ice cream maker.

Chocolate soft ice

375 ml cream, 40 g milk chocolate, 40 g dark chocolate, 1 egg yolk, 1 egg, 1 pinch of salt Heat cream and chocolate the day before and let it cool down in the refrigerator. Add eggs and salt immediately before the ice preparation.

Raspberry soft ice

375 ml cream, 12 tsp vanilla sugar, 80 g honey, 1 egg yolk, 1 egg, 1 pinch of salt, 175 ml mashed raspberries

Mix cream, vanilla sugar and honey. Add mashed raspberries, eggs and salt immediately before the ice preparation.

CREAM ICE

Cream ice is made of milk, cream, egg yolk, sugar and other ingredients. It becomes smooth and soft by being stirred constantly during freezing.

Basic recipe vanilla ice cream

250 ml milk, 300 ml cream, 1 vanilla pod, 1 pinch of salt, 3 egg yolk, 3 tblsp sugar

Heat milk and cream, slit the vanilla pod and add the pulp to the milk, as well as the salt. Beat egg yolk with sugar and add slowly the warm milk. Cool the ice cream mass for about 24 hours in the refrigerator, then prepare ice cream in the ice cream maker.

TIPP: For children add some chocolate chips or jelly bears at the end of the freezing process.

Quick vanilla ice cream

125 ml milk, 375 ml cream, 1 egg, 4 tblsp sugar, 1–2 tsp vanilla sugar

Mix all ingredients and prepare ice cream in the ice cream maker.

Basic recipe chocolate ice cream

12 bar each of plain and milk chocolate, 300 ml cream, 70 ml milk, 1 egg

Heat chocolate with milk and cream and cool for about 24 hours in the refrigerator. Then add the egg and prepare ice cream in the ice cream maker.

Quick chocolate ice

180 ml chocolate syrup, 1 egg, 180 ml cream, 180 ml milk

Mix all ingredients and prepare ice cream in the ice cream maker.

Mocha ice cream

Prepare vanilla ice cream according to the basic recipe, but add 2-3 tblsp of granulated mocha or espresso powder to the hot milk. At the end of freezing add 1-2 tblsp of coffee liqueur.

Walnut ice cream

Caramelize 75 g of sugar in a pan, add 75 g of chopped walnuts and mix it with the caramel. Let the caramel cool down on an oiled plate.

Prepare vanilla ice cream according to the basic recipe, add the chopped caramelized walnuts at the end of the freezing process.

TIPP: Replace walnuts by pumpkin seeds and season the ice cream with 1 tsp of pumpkin seed oil.

Amaretto ice cream

Prepare vanilla ice cream according to the basic recipe. Add the crumbs of 125 g amaretti (almond macaroons) with 2-3 tblsp of amaretto liqueur at the end of the freezing process.

FRUIT ICE CREAM

Fruit ice cream consists mainly of mashed fruits with sugar, cream or yoghurt and evtl. some eggwhite. To have a smooth fruit ice cream, it has to be stirred during freezing, which is achieved best in a ice cream maker.

Basic recipe

300 g mashed fruits, 1 tblsp lemon juice, 75-100 g sugar, 1 tblsp eggwhite, 150 ml cream

Mix mashed fruits with sugar and lemon juice. Beat eggwhite and cream and add it to the mashed fruits. Mix all ingredients and prepare ice cream in the ice cream maker.

If canned fruits are used, it might not be necessary to add additional sugar.

Basic recipe strawberry ice cream

400 g strawberries, 2-3 tblsp sugar, 300 ml sweet cream, 40 ml milk

Mix the mashed strawberries with all ingredients and prepare ice cream in the ice cream maker.

Yoghurt fruit ice cream

300 g mashed fruits (strawberries, raspberries, cherries etc.), 1 dash of sweetener, 300 ml natural yoghurt, 3 tblsp of cream

Prepare ice cream as described above.

Quick Yoghurt fruit ice

Just prepare ice cream of 750 ml fruity yoghurt (4,5% grease).

Mango coconut ice cream

1 ripe mango, 1 cup of natural yoghurt, 200 ml coconut milk, 2-3 tblsp sugar, 2-3 tblsp grated coconut

Peel and mash the mango, mix it with the other ingredients and prepare ice cream in the ice cream maker.

SHERBET

Sherbet can be made from nearly all sorts of fruits or fruit juice, e.g. from raspberries, apricots, peaches, melons, kiwis etc. A sherbet must be stirred constantly during freezing to avoid the formation of big ice crystals. Sherbets don't necessarily have to be sweet. Just try a tomato or a campari orange sherbet as starter of a dinner. A special delight is a bowl of sherbet served in a glass of champagne.

Basic recipe

600-700 ml mashed fruits / fruit juice, 75-100 g sugar (depending on the type of fruit), 1-2 tblsp eggwhite.

Mix all ingredients and prepare ice cream in the ice cream maker. The sherbet can be seasoned with 1 tblsp liqueur, brandy, etc.

If canned fruits are used, it is not necessary to add sugar.

Strawberry sherbet

375 g strawberries, 1 tsp lemon juice, 1 tblsp eggwhite, 3-4 tblsp sugar, 100 ml apple juice

Mix all ingredients and prepare a sherbet in the ice cream maker.

Campari orange sherbet

650 ml orange juice, 125 ml Campari, 1-2 tblsp eggwhite, sugar to taste

Mix all ingredients and prepare a sherbet in the ice cream maker.

Cassis sherbet

650 ml mashed black currants, juice of one lemon, 70 g sugar, 2 cl Crème de Cassis, 1 eggwhite

Pass the mashed black currants through a sieve, mix them with all ingredients and prepare a sherbet in the ice cream maker.

Elder flower sherbet

600 ml water, 200 g icing sugar, 8-10 elderflowers, 1 lemon, 1 eggwhite

Boil sugar with water and take it from the sto-ve. Add the rinsed elder flowers to season the sugar water for at least 30 minutes. Pass through a sieve and let the syrup cool down. Mix the cooled syrup with the eggwhite and prepare a sherbet in the ice cream maker. Serve with fruits of the season (red currants, strawberries) and fried elder flowers.

Champagne basil sherbet

1 bunch of basil leafs, 125 g sugar, 250 ml dry white wine, 125 ml champagne, juice of 1 lemon, 1 eggwhite,

Mash the washed basil leafs with 100 ml white wine and leave for at least 30 minutes. Boil sugar with the remaining wine. Pass the mashed basil through a fine sieve and add it to the cooled syrup. Mix all ingredients and prepare a sherbet in the ice cream maker.

TIPP: If prepared without basil it's also a delicious dessert.

PARFAIT

The basis of a parfait consists of egg yolk and sugar, beaten in a bain-marie and then mixed and frozen with other ingredients and cream to get a very creamy ice cream.

Apple Calvados Parfait

375 g apple, 1 lemon, 2-3 tblsp Calvados or apple brandy, 1 egg, 1 egg yolk, 75 g sugar, 250 ml cream

Peel and cube the apple, mix it with the lemon juice. Take 1 teaspoon aside and cook and mash the remaining apple in a small amount of water. Beat eggs and sugar in a bain-marie. Add the mashed apple to the cooled egg mass. Beat the cream and add it also. Prepare ice cream in the ice cream maker. At the end of freezing, add the apple cubes and the apple brandy.

Serve with black current or blackberry sauce.

Praliné Parfait

50 g sugar, 80 ml water, 2 egg yolk, 1 tsp vanilla sugar, 1 pinch of grated orange peels, 75 g plain chocolate, 60 g nougat, 1 tblsp cocoa liqueur or rum, 250 ml cream

Boil sugar with water, beat the egg with the cooled sugar water, the vanilla sugar and the orange peels. Melt chocolate and nougat and add to the eggs, add liqueur or rum. Add the beaten cream. Mix all ingredients and prepare ice cream in the ice cream maker.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

SPÉCIFICATION TECHNIQUE

Puissance: 150 W, 220–240 V\~, 50 Hz

Volume: 1,5 litre

Contenu max. 1.000 ml

Dimensions H/L/P 320 x 275 x 390 mm

Poids: Env. 13,5 kg

Cordon: Env. 100 cm

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
