USER MANUAL BTEva MIDLAND

Charging batteries Make sure that the unit is fully charged before use. Allow at least 5/6 hours for a full charge before using the unit for the rst time. Normal- ly, after the rst time, it takes 4 hours for a full charge. Charge the unit by inserting the wall-charger into the charging socket (lift the rubber cover to insert the plug). › The red LED on the unit will start ashing when charging begins. › Allow the headset to charge until the blu LED turns on. › When the charge is complete (blu LED on), release the headset from the charger. Attention: everytime the mini USB recharging plug is inserted (or detached), the device is automatically turned o. To use it while it is in charge, you should turn the device on with the plug already inserted. Description of the unit and installation brackets The BTCity/BTEva has 3 multifunction buttons and 3 wired connec- tions in the lower section. Description of the button features: › Control: can be used to enable/disable the intercom and manage mobile phone features › Volume+: enables you to increase the volume › Volume -: enables you to decrease the volume Description of the wired connections › Charger jack: enables to recharge the unit using a standard mi- niUSB power supply › Audio kit jack: enable to connect an audio kit (stereo headset and microphone) › Auxiliary audio jack (AUX): can be used to connect an audio source, like a stereo iPod/MP3 player or PMR446 transceiver Description of the audio kit The audio system includes two ultra-at stereo speakers and two in- terchangeable microphones, which are both supplied with a bracket and wire connection. Fixing the stereo speakers The two stereo speakers have a Velcro/adhesive strip that aids their xing to your helmet. Beware to not completely cover your ear with the speakers, you must always be able to listen to the trac sound and indication. The microphone can be xed onto the helmet in two ways: Boom Microphone Place the section with the Velcro/adhesive strip between the padding and the rigid cover of the helmet, so that the microphone is correctly positioned in front of your mouth and that the white symbol is facing Volume+Volume - Control Charger jack Auxiliary audio jack (AUX) Audio kit jackA

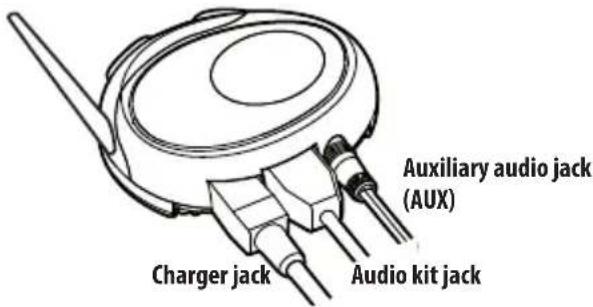

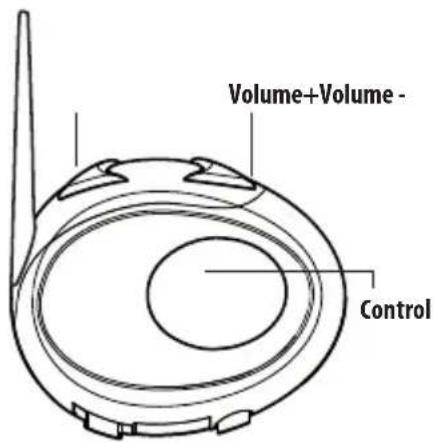

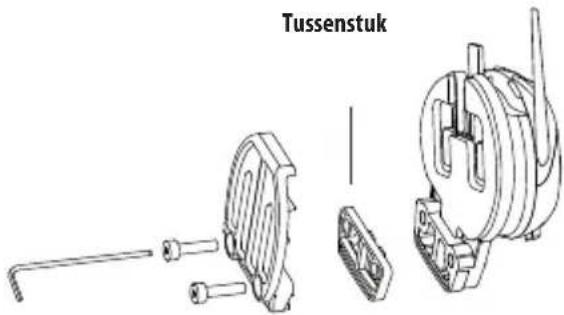

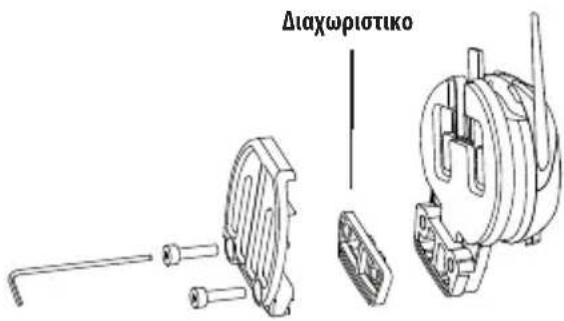

your mouth. This type of microphone is suited for Open Faced and Flip Front helmets. Wire microphone Using the Velcro/adhesive strip, place the microphone inside the hel- met in front of your mouth. This type of microphone is more suited for Full Faced helmets. The mini connector on the microphone allows you choose the microphone that best suits the helmet you are using. Audio kit jack The audio kit must then be connected to the central jack of the Mid- land BTCity/BTEva unit using the “L” shaped connector. Description of the installation brackets The Midland BTCity/BTEva can be xed onto the helmet in two dif- ferent ways: By either using the plate with bi-adhesive strip, or the clamp. These methods allow you to safely “x” the BTCity/BTEva unit onto your helmet and to remove it at any time in order to recharge or store it. Plate with bi-adhesive strip The xing plate has a bi-adhesive strip on one of its sides. To x the plate in place, clean the application area on the helmet surface, remove the bi-adhesive lm and place the xing plate on the helmet by keeping it contact with the surface for a few seconds. Clamp Using the Allen Key, loosen the two screws on the clamp and place the rear plate between the helmet padding and the external rigid protec- tion. Then, tighten the two screws in order to rmly x the clamp in place. Inside the clamp is included a small plastic spacer, that can be removed to close tigher the clamp. Fitting and removing your Midland BTCity/BTEva The BTCity/BTEva can be easily tted onto the helmet by sliding it downwards so that it ts into the slot of the selected xing device (plate with bi-adhesive strip or clamp). BTCity/BTEva is maintained in position thanks to the xing clip located on the upper section (A). To detach the BTCity/BTEva, simply press the xing clip and push the unit upwards. SpacerUK

Switching your Midland BTCity/BTEva on and o Switching the unit on: › Press and hold “Control” button down for approximately 3 seconds until the BLUE indicator lights. Switching the unit o: › Press and hold both “Control” and “VOL-” buttons together for ap- proximately 3 seconds until the RED indicator ashes 3 times, thus lessening the chances that you might turn o the unit accidentally (especially whilst wearing heavy gloves). Adjusting the volume Your Midland BTCity/BTEva uses AGC technology, which automatically adjusts the listening volume in relation to background noises. However, it is also possible to manually adjust the volume by means of the “Volume+” and “Volume -“buttons. Attention: volume can be adjust only when an audio connection is active. Pairing with Bluetooth devices Your Midland BTCity/BTEva is a Bluetooth unit that can be paired with other Bluetooth devices, such as a mobile phone or another BTCity/ BTEva device for Intercom communications. Before performing this procedure, it is necessary to set BTCity/BTEva into the Setup mode. Setup mode › Switch o the BTCity/BTEva device. Press and hold down the central button “Control” for about 7 sec. until the red indicator switches on permanently. BTCity/BTEva is now in “Setup” mode and can therefore be paired with other devices. Exiting from the Setup mode › To exit the Setup mode double click the “Control” button. Once the red light turns o, the blue led starts blinking. Now you can use your BTCity/BTEva. Using the features of the Bluetooth devices Using the telephone feature To use the Telephone feature, be sure the units are correctly paired together. Pairing the unit with a mobile phone

1. Enable the Bluetooth device search feature on your mobile phone.

As this procedure varies according to the brand and model of the mobile phone, refer to the manual supplied to your particular pho- ne for further information.

2. Set the BTCity/BTEva unit in “Setup” mode, then press the Control

button on the unit until the red and blue indicators start ashing.

3. After a few seconds the mobile phone will display “Midland BTCi-

ty/BTEva”. Select it and follow the instructions provided in your mobile phone manual to accept the pairing. When prompted, enter the pairing code, which is 0000 (four zeroes). Your mobile phone should then display a conrmation message if the pairing operation has been successfully completed

4. The BTCity/BTEva will automatically exit the set up mode (red indi-

cator on) and go to the working mode (blue light ashing). Answering a call When you hear the phone ring, you can answer in two dierent ways: Vocally: Simply say one word to answer the call and start talking. Remembering that you can only do this if you answer the call after the third Ring. (Be aware that some phones may not support voice answering) Manually: Tap the “Control” button and start speaking.6 Rejecting a call If you don’t wish to answer, you can let the mobile phone ring or press the “Control” button for a few seconds (you will hear one audio con- rmation tone). Making a call There are several ways to make a call. From the mobile keypad: › Dial the number on the mobile keypad: › Press “Send” on the mobile phone. To redial the last number: › Press and hold “Control” button for 3 seconds in order to redial the last number (you will hear one audio conrmation tone). To make a voice call: › Briey press “Control” button. If your mobile phone supports voice calls, you will be asked to speak the name of the contact you wish to call. Priority: Calls have a high priority, which means that all other commu- nications are temporarily disabled when a call arrives and automatically re-enabled once the call ends. Attention: the voice call command is possible only if the BTCity/ BTEva has never been connected to another BTCity/BTEva for Intercom communication. Ending a call There are several ways to end a call: › Wait for the called person to end the call. › Press the “Control” button for 3 seconds (you will hear an audio conrmation tone). › Press “End” button on the mobile phone. Using the MP3 player feature of the mobile phone Many mobile phones are now designed to be used as stereo MP3 players. The BTCity/BTEva device fully supports the A2DP and AVRCP protocols that enable you to listen to stereo music and remotely con- trol your mobile phone’s MP3 player. You can even use the buttons on the BTCity/BTEva unit to control the following play options: Play, Pause, Forward and Backward. Available controls: › To play/pause music: double click the “Control” button. › To skip forward to the next song: keep pressed the “Volume+” button. › To skip backwards to the previous song: keep pressed the “volume-“ button. › To enable your connected MP3 Player (ADP/AVRCP): press and hold down the “Volume +” and “Volume-“ buttons for 3 se- conds (this feature is active by default). › To disable the MP3 player: press and hold down the ”Volume+” and “volume-“ buttons (2 beeps will conrm it). Priority: the music listening mode has the lowest priority. Therefore, it will always be disabled when another type of communication is ena- bled. Pairing the unit with a GPS Sat-Nav It is generally possible to pair the BTCity/BTEva unit with all GPS Sat- Navs that support Bluetooth earpieces. Midland BTCity/BTEva has been successfully tested for use with GPS ZUMO Sat-Navs manufactured by Garmin and TOMTOM Rider 1 and 2 Sat-Navs. Volume+ forward Volume - backward Control Pause/PlayUK

ture. As this procedure varies according to the brand and model of GPS, we recommend you refer to the manual supplied with your GPS Sat-Nav for further information.

2. Ensure that the BTCity/BTEva is in Setup mode (Red light on) &

Press the “Control” button on the BTCity/BTEva unit until the red and blue indicators start to ash.

3. After a few seconds the GPS Sat-Nav will display “Midland BTCity-

BTEva”. Select it and follow the instructions provided in the GPS Sat-Nav manual to accept the pairing. When prompted, enter the pairing code, which is 0000 (four zeroes). The GPS should then display a conrmation message if the pairing operation has been successfully completed.

4. The BTCity/BTEva unit returns to the Setup mode (red indicator

permanently on) to indicate that it is ready to be paired with other devices. If you pair the BTCity/BTEva unit with a GPS Sat-Nav, you will not be able to pair it with a mobile phone. This problem can be easily solved by pairing the mobile phone directly with the GPS Sat-Nav and by then pairing your GPS with the Midland BTCity/BTEva. In this case, the mobile phone features will be managed by the GPS Sat-Nav. Using the intercom feature To use the Intercom feature, be sure both BTCity/BTEva units are tur- ned on and previously paired together. The two units supplied in the Midland BTCity/BTEva TWIN Pack, are already paired and ready for use, which means that it is not necessary to perform this procedure. If the devices are not part of the same pack, or one of the BTCity/BTEva units has been purchased separately, you need to pair them in order to be able to use the Intercom function. Pairing with another BTCity/BTEva device

1. Place both BTCity/BTEva units in Setup mode (red indicator per-

2. Press the “Volume +” button on the rst unit until the RED and

BLUE lights begin to ash rapidly and alternately.

3. Then press the “Volume –“button on the second unit until the RED

and BLUE lights begin to ash rapidly and alternately.

4. Now both BTCity/BTEva units are trying to pair to each other.

When successfully paired, the blue led of each device will light for 1 sec and go back to setting mode (red light always on) waiting for additional pairing or setting procedures.

5. To use the two devices, exit the setting mode: Double click on the

“Control” button. The red light will quit and the blue light will be- gin to ash. Now you can use your BTCity/BTEva. Intercom The Intercom feature can be enabled in two ways: Manual activation: › Press “Control” button, on one of the two units. Communication is enabled and remains active until you press the “Control” button again. You will hear 1 audio tone when the Intercom feature is enabled and 2 audio tones when it is disabled. Voice activation (VOX): › This is enabled by default. To start an Intercom communication, simply start talking. The communication will remain active for all the time you are talking. Attention: the rst intercom activation must be done manually with the control button. After that, the VOX activation will be available. › If there is no conversation, the Intercom is automatically closed after 20 seconds. › To re-open it, simply start talking again. When the Intercom is “VOX” activated, you can decide to disable it before the predened time, simply by pressing the ”Control” button once. › To disable the voice activation mode, follow the instructions provi- ded in the “Special congurations” section. Intercom and GPS If BTCity/BTEva is connected to a GPS, the Intercom feature won’t be disabled when the GPS talks. Intercom and GPS features work si- multaneously. The same is for phone calls when the mobile phone is connected to the GPS.8 Due to this functionality, when the phone is connected to the GPS, it can happen that not always the phone calls are managed correctly. In this case you can decide to disable the “Intercom+GPS “ feature and listen to your GPS talk or phone call without interferences. (note the “Special conguration” section) Priority: With phone: The intercom feature is disabled during a phone call, and is automatically re-enabled as soon as these communications end. With music: Bluetooth music is disabled when the Intercom is open. With GPS navigator: In case of GPS navigator street indications, the intercom feature is not disable, allowing the intercom conversation to be keep open, together with the GPS indication in background. Distance Two Midland BTCity/BTEva units can communicate up to a maximum range of approximately 200meters outdoors. The maximum coverage depends on the presence of obstructions in the area or on the head orientation. Resetting all paired devices Sometimes you may nd it necessary to delete all the pairing referen- ces stored in the BTCity/BTEva unit (reset operation). › To perform this operation, switch o the BTCity/BTEva and keep pressed the “Control” button. The red led turns on. › Simultaneously press and hold down the “Volume +” and “Volume –“ buttons for 4 seconds. The Blue Light will be lit on for 1 sec. This procedure deletes all the paired Bluetooth devices stored in the memory and it is therefore possible to start a new “clean” pairing session. Using the wired audio input Your Midland BTCity/BTEva is also supplied with a wired audio input (labeled AUX), that can be used to connect an audio source, like an iPod (or any other MP3 Player) or a PMR446 transceiver for communi- cations in group or for a coverage increase. Priority: the wired audio input has the lowest priority when compared to the other Bluetooth connections (including the Intercom) and will therefore always be disabled when another Bluetooth communication is opened. Using a i-Pod/MP3 Player Listening to music To listen to music from the wired input, connect the audio source using the cable supplied with the BTCity/BTEva unit. The volume level is automatically adjusted by the AGC system, which means that you only need to adjust the volume of your iPod/ MP3 player to a level that will allow you to listen to music in normal speed. Attention: never set the volume of the MP3 Player to the maxi- mum possible. Hint: We recommend that you perform a few tests adjusting the volume of your iPod/MP3 player so at the normal speed the Headset volume is suited to your needs. The AGC system will automatically increase the volume on higher speed. Make a note to remember this setting for fu- ture trips. Attention: the volume adjustment, (“Volume+” and “Volume –“) buttons, cannot be used to adjust the volume of the wired audio source(eg MP3 player). Enabling/disabling the wire input The wire input can be enabled and disabled › Enabling: double click the “Control” button (you will hear one au- dio conrmation tone). › Disabling: double click the “Control” button(you will hear two au- dio conrmation tones). Attention: this function is available only if there is no music active via Bluetooth. Using a Two Way Radio transceiver To be able to use the transceiver, it is necessary to purchase a specic cable (sold separately) in order to connect the radio to your Midland BTCity/BTEva:UK

Some manufacturers radios use a dierent pin conguration, so we recommend that you ask your dealer as to which cable is best suited to your needs. To communicate via the attached radio, press the transmission Press To Talk (PTT) button to speak and release it to listen. It is not possible to talk and listen simultaneously. Communications can be activated also without pushing the PTT button, by enabling the VOX function. Special congurations Some Midland BTCity/BTEva features can be congured to suit specic needs: › Adjusting/ Disabling the VOX feature (Intercom and telephone) › Wired connection always on › Intercom and GPS Adjusting/ Disabling the VOX feature (Intercom and telephone) The Intercom feature can be enabled both manually and vocally (VOX). The VOX activation is inuenced by the background noise and therefore by the speed. For optimum results, it is possible to choose one of the following four microphone sensitivity levels: high, medium, low and very low. The default setting of BTCity/BTEva is “low”. It is also possible to disable the VOX feature in order to activate the Intercom and phone call an- swering features in manual mode only. Adjusting the sensitivity of the microphone (VOX)

1. Enter the Setup mode: Switch your BTCity/BTEva o.

Press and hold down the central button (Control) until the red in- dicator switches on permanently. Your BTCity/BTEva is now in “Set up mode”.

2. Press the “Volume+” and “Control” buttons till the red indicator

will turn to steady blue.

3. Now, press “Volume +” or “Volume -“to increase or reduce sensi-

tivity. Every time you press the Volume buttons the RED light will ash for conrmation. When you reach the end of the upper and lower limit, the RED light will not ash.

4. Double press the “Control” button; the Blue light will ash several

times, in order to let you know the selected sensitivity: once = VOX disabled Twice = very low sensitivity 3 times= low sensitivity 4 times= medium sensitivity 5 times = high sensitivity Default = low sensitivity

5. The light indicator is now back to steady RED (“Set up mode”) and

the changes are conrmed

6. If needed, you can adjust again the sensitivity repeating the steps

from point 2, otherwise exit the Setting mode by double clicking the “Control” button. Once the red light turns o, the blue led starts blinking. Now you can use your BTCity/BTEva. Disabling the VOX feature (Intercom and telephone) Follow all the procedure described in the previous steps and choose the option 1 (VOX disabled). You will see the blue led blinks once. Wired connection always on This feature let you keep the wired connection always on, even when the phone or the intercom is open. This feature can be useful when you connect a PMR446 transceiver. Enabling: › Enter the “Setup” mode. › Press the “Volume+” and “Volume -” buttons for one second. The blue LED will ash once. › To exit the “Setup” mode double press the “Control” button. Disabling: › Follow the same procedure up described; now the blue LED will ash twice › To exit the “Setup” mode double press the “Control” button. Intercom and GPS Disabling: › Enter the “Setup” mode.10 › Press the “Control” and “Volume -” buttons for one second. The blue LED will ash once. › To exit the “Setup”mode double press the “Control” button. Enabling again: › Follow the same procedure up described; now the blue LED will ash twice › To exit the “Setup”mode double press the “Control” button. Recommendations for specic uses The section that follows, provides a few useful suggestions on how to achieve maximum performance from your BTCity/BTEva unit. Using a PMR446 transceiver To be able to use the transceiver, it is necessary to purchase a specic cable (sold separately) in order to connect the radio to your Midland BTCity/BTEva: › Some manufacturers radios use a dierent pin conguration, so we recommend that you ask your dealer as to which cable is best suited to your needs To communicate via the attached radio, press the transmission Press Top Talk (PTT) button to speak and release it to listen. It is not possible to talk and listen simultaneously. The cable connected to the transcei- ver has a PTT button that can be placed on the handlebar of your bike or held in your hand (If you are the pillion rider). Adjust the volume of the transceiver to your needs, remembering that the volume adjustment is controlled by the automatic AGC system and that it will therefore be automatically increased in relation to background noise. If you wish to use a PMR446 transceiver for group communications and simultaneously maintain the Intercom feature enabled between two BTCity/BTEva devices, you must remember that the Intercom fe- ature is enabled every time you speak by means of the BTCity/BTEva’s VOX feature. Consequently, radio communications will be disabled whilst you are talking with somebody, because they have a lower priority compared to Intercom communications. This can be prevented by enabling the “Wired connection always on” or “Disabling the VOX feature” (both explained in the previous section). Disable the VOX feature, as explained in the previous section, to make sure that the intercom will not automatically be activated when you speak on the PMR446. To enable the Intercom feature when using this conguration, you will have to press “Control” button manually. (This operation disables radio communications that will be automatically re-enabled when the Intercom feature is disabled). Attention! If you disable the VOX feature, you will only be able to answer incoming phone calls by pressing the “Control” button. Using the BTSki Audio Kit accessory (optional) This optional kit is the Bluetooth solution designed for winter sports (use without helmets or with semi rigid type ski helmets). The audio system is made up of two ultra thin stereo speakers and a boom mike, all contained in a soft material lining The audio system includes two ultra-at stereo speakers and one mi- crophone with boom, all assembled into a earwarmer headset. Fitting and removing your Midland BTCity/BTEva The BTCity/BTEva can be easily tted by sliding it downwards so that it ts into the slot of the xing device. BTCity/BTEva is maintained in position thanks to the xing clip loca- ted on the upper section (A). To detach the BTCity/BTEva, simply press the xing clip and push the unit upwards.UK

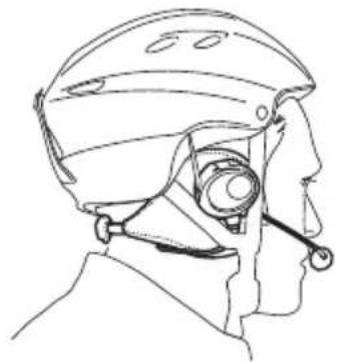

Using the BTCity/BTEva without helmet After have xed your BTCity/BTEva on its suitable tool and have inser- ted the audio kit plug into the central socket, wear your earwarmer headset as shown in the gure. Please, be sure to have placed the microphone in the right way, with the white sign oriented towards your mouth. Using the BTCity/BTEva with a semi-rigid helmet To place the BTCity/BTEva into a semi-rigid helmet you should rst of all remove the little triangular pads, used to cover the ears in most of helmets on sale, and then put your helmet directly on the earwarmer headset audio system. Be sure the BTCity/BTEva unit is placed between the two “V” shapes strap. If your helmet is not equipped with the two removable pads, you could anyway mount your BTCity/BTEva system by using the supplied Velcro-band. Be sure to x the Velcro-band as shown in the gure. Now, x the BTCity/BTEva on the Velcro-band. Wear your headset, in- sert the connection cable of the headset into the BTCity/BTEva device and wear the helmet. A12 Use at your own risk The use of the headphone-headset will impair your ability to hear other sounds and others around you. Listening to music or speaking on a telephone may prevent you from hearing others around you and distract you from riding safely. The use of such headphone-headset while riding or skiing may endanger you and others, and its use, in some areas, could not be allowed. Using this headset at a high volume may result in permanent hearing loss. If you experience ringing in your ear or any other hearing related pain, reduce the volume or discontinue using this device. With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing. Please use this device at a safe volume level. Warranty Midland will repair or replace, at its option without charge, any BT CITY/EVA device which fails due to a defect in material or workman- ship within TWO Years following the initial consumer purchase. In the event of a product defect, please return it to the authorized customer service or to the Manufacturer himself. To make use of this warranty, it is necessary to return to the autho- rized service centre: › The aected product (or accessory) › The original proof of purchase, which clearly indicates the name and address of the seller and the date and place of purchase. This warranty does not apply to accidents of any kind, exposure to pressure, extreme temperatures (outside of -10°C to 55°C), submer- sion water damage, battery leak or abuse. This warranty does not include the cost of labor for removal or re- installation of the product. European CE Notice Certication and Safety Approvals Information This product is CE marked according to the RTTE Directive (99/5/EC) and is free use in all the EU countries. Users are not permitted to make any changes or modications to the device. Modications which are not expressly approved by the producer inva- lidate the warranty card. For further information, please go to our website www.cte.itUK

LED indication Status GENERAL None Unit is switched o or full charged when connected to the power supply Single Blue ash every 3 seconds Unit being turned on/ Unit in working mode Triple red ash Unit being turned o Single Red ash every 3 seconds Standby - low battery RED and BLUE (together) every 3 seconds Active (Intercom, phone call or Bluetooth connection in progress) RED and BLUE (together) and one ash of RED light every 3 seconds Active but low battery Single red ash every 2 seconds Unit in charge when connected to the power supply Steady Blue Unit in charge when connected to the power supply: full battery charge SETUP Steady Red Setup mode Rapid Red-Blue alternating ash Pairing mode (searching for devices) Steady Blue for two second Successful pairing/ Reset paired devices Audio signals Status Ascending tone (low-high) Unit being turned on Descending tone (high-low) Unit being turned o Enable/Disable the Intercom 1 tone = enabled / 2 tones = disabled 1 tone Specic feature turned on 2 tones Specic feature turned o14 UNIT FUNCTIONS If you want to... …do this GENERAL Turn on the unit Press the Control button for 3 seconds at least (start Blue ash) Turn o the unit Press the Control and VOL- buttons together for 3 seconds (triple Red ash) Increase the volume Short press the Volume Up control Decrease the volume Short press the Volume Down control MOBILE PHONE Answer a call Short press of the Control button / say a word Reject a call Long press the Control Button / remain silent until the rings stop Terminate a call Short press the Control Button Voice Dial Short press the Control button and state the name of the person to call (only if your BTCity/BTEva has not been paired with another BTCity/BTEva device). Redial Last number Long press of the Control button INTERCOM (if paired with another BTCity/BTEva device) Start using the Intercom Start talking/short press the Control button Stop using the Intercom Stop talking (after 20 sec. you will return to stand by mode)/Short press the Control button BLUETOOTH MP3 player of the mobile phone Activate the MP3 player Press and hold down the VOL+ and VOL- buttons for 3 seconds Play and Pause Double click the Control button Forward (next song) While the music play, keep pressed of the VOL+ button for 3 sec. Backward (previous song) While the music play, keep pressed of the VOL- button for 3 sec. Deactivate the MP3 Player Press and hold down the VOL+ and VOL- buttons for 3 seconds WIRED CONNECTION Activate /Deactivate Double click the Control button (only if Music via Bluetooth is disabled)UK

SETUP/PAIRING Enter SETUP mode Press the Control button for 7 seconds while the unit is o Exit SETUP mode While in Setup mode, double click the Control button. The Red light will turn o and the Blue light starts ashing. Pairing a Phone While in Setup mode, press the Control button until the LED light ash Red and Blue alternately Pairing your BTCity/BTEva with another BTCity/BTEva device While in Setup mode, press the Volume + on one unit (the light will ash Red and Blue alternately), press the Volume- on the other unit (the light will ash Red and Blue alternately). On a successful pairing, both light turn to Blue for one second. Reset all paired devices While in Setup mode, long press he Volume + and he Volume -. On a successful reset, the Blue light will turn on for two second.

SPECIAL SETUP CONFIGURATION

Change VOX sensitivity or disable it While in Setup mode, press short the Control and VOL+ buttons (blue light on). Now, press “Volume +” or “Volume-“ to increase or reduce sensitivity. Double click the Control button to visualize the VOX status. Go back to the SETUP mode (Red light always on). VOX STATUS (Blue light ashing): Once = VOX disable Twice = very low sensitivity 3 times = low sensitivity 4 times = medium sensitivity. 5 times = high sensitivity Wired connection always on Enabling: In “Setup” mode, press the “Volume+” and “Volume -” buttons for one second. The blue LED will ash once. Disabling: Follow the same procedure up described; now the blue LED will ash twice Intercom and GPS Disabling: Enter the “Setup” mode. Press the “Control” and “Volume -” buttons for one second. The blue LED will ash once. To exit the “Setup”mode double press the “Control” button. Enabling again: Follow the same procedure up described; now the blue LED will ash twice. To exit the “Setup”mode double press the “Control” button. CTE International herewith declares that the product complies with the essential requirements of EC Directive 99/05/EC; the declaration of confor- mity of the device can be consulted onto www.midlandradio.eu16D
