TM1956 - Cupcake maker Tomado - Free user manual and instructions

Product type	Cupcake maker
Brand	Tomado
Model	TM1956
Power supply	220-240 V ~ 50 Hz
Power	1400 W
Dimensions (W × D × H)	250 × 210 × 120 mm
Net weight	1.36 kg
Capacity	8 to 16 cupcakes per batch (depending on recipe)
Plate coating	Non-stick
Indicator lights	Power indicator, temperature indicator
Preheating time	Approximately 2 to 3 minutes
Cooking time	4 to 10 minutes depending on recipe
Handle	Heat-insulated
Exterior material	Heat-resistant plastic
Cord length	Approximately 80 cm (estimate)
Cleaning	Damp cloth, warm soapy water
Maintenance	Do not use sharp or abrasive objects
Safety	Overheat protection, automatic shut-off not specified
Warranty	2 years
Intended use	Domestic, dry indoor

Frequently Asked Questions - TM1956 Tomado

How to use the Tomado TM1956 for the first time?

Remove all packaging, wipe the appliance with a slightly damp cloth. During first use, a slight odor or smoke may be emitted; this is normal. Plug in the appliance; the power indicator lights up. Wait 2 to 3 minutes for the plate to heat up. When the temperature indicator lights up, place the batter and close. Cooking takes 4 to 10 minutes.

Is it necessary to grease the plates before each use?

No, the non-stick coating allows cooking without grease under normal use. You may lightly grease if desired.

How to clean the Tomado TM1956?

Always unplug the appliance and let it cool completely. Clean the plates with a damp cloth and warm soapy water. Do not use steel wool, metal brushes, or hard objects to avoid scratching the non-stick coating.

What is the capacity of the appliance?

The appliance can cook 8 to 16 cupcakes depending on the size of the paper liners and the recipe. The provided recipes indicate quantities for 8 or 16 pieces.

Can I use paper liners in the Tomado TM1956?

Yes, it is recommended to use paper cupcake liners for easy removal and presentation. Place them in the cavities before pouring the batter.

What to do if the appliance does not heat up?

Check that the plug is properly connected and the power indicator is on. If the temperature indicator remains off, wait 2-3 minutes (preheating time). If nothing happens, contact Tomado after-sales service.

Is it possible to make other recipes besides cupcakes?

The appliance is designed mainly for cupcakes, but you can also prepare small cakes, madeleines, or muffins by adapting recipes. Respect cooking times and batter quantities.

Does the appliance turn off automatically?

The manual does not mention automatic shut-off. It is recommended to monitor cooking and unplug the appliance after use. An overheat protection device is present to prevent overheating.

How to know when the cupcakes are done?

Standard cooking time is 7 to 10 minutes, but it may vary depending on the recipe. Cupcakes should be golden brown. Use a toothpick: if it comes out dry, they are done.

What is the warranty for the Tomado TM1956?

The warranty is 2 years from the date of purchase, covering manufacturing and material defects. Keep your proof of purchase. The warranty does not cover damage due to misuse.

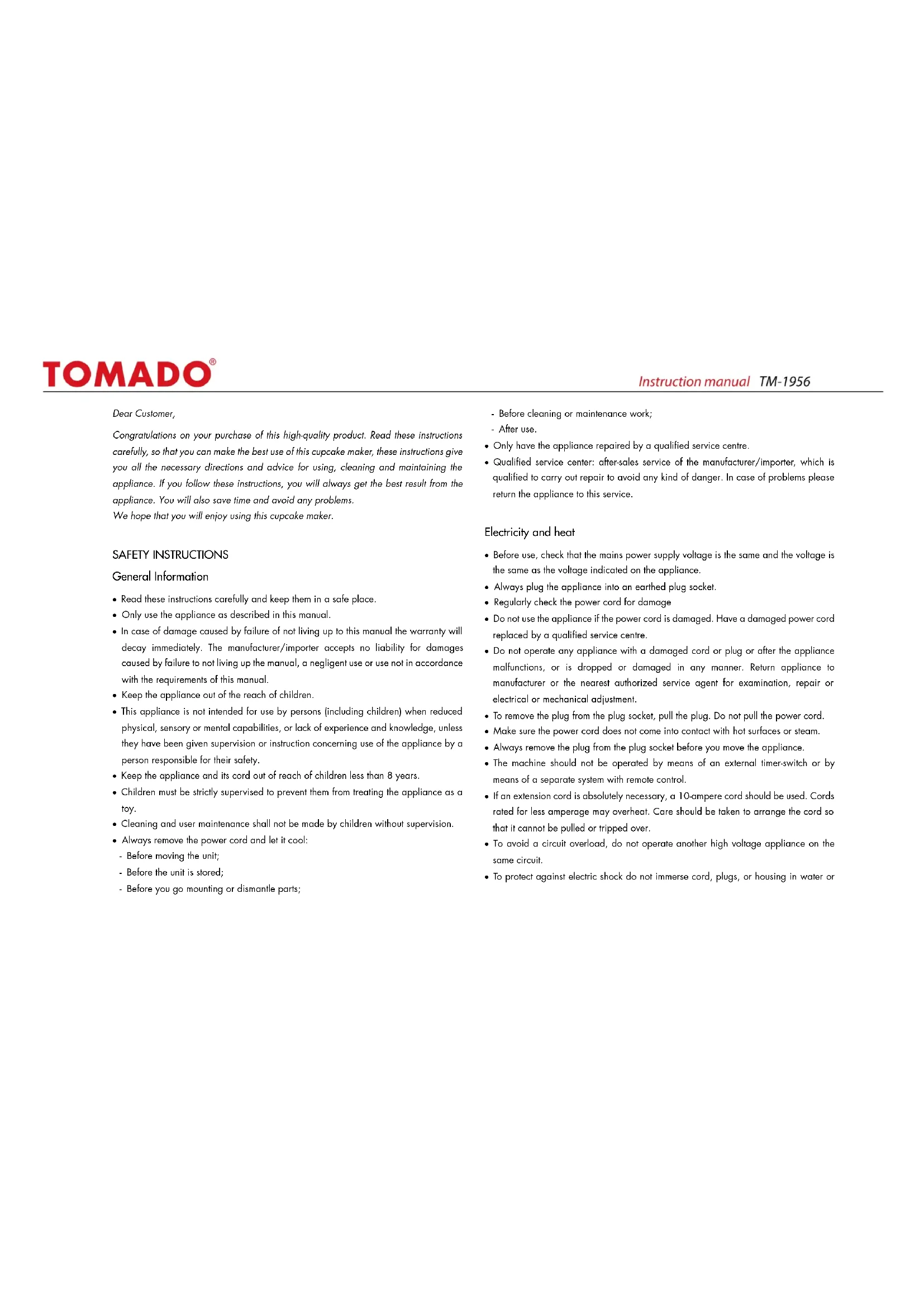

USER MANUAL TM1956 Tomado

1% eletelpel heet water

Congratulations on your purchase of this high-quality product. Read these instructions carefully, so that you can make the best use of this cupcake maker, these instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always get the best result from the appliance. You will also save time and avoid any problems. We hope that you will enjoy using this cupcake maker.

SAFETY INSTRUCTIONS

General Information

• Read these instructions carefully and keep them in a safe place.
  Only use the appliance as described in this manual.
• In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.
• Keep the appliance out of the reach of children.
• This appliance is not intended for use by persons (including children) when reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Children must be strictly supervised to prevent them from treating the appliance as a toy.

• Cleaning and user maintenance shall not be made by children without supervision.
  Always remove the power cord and let it cool:

• Before moving the unit;
  Before the unit is stored:
  Before you go mounting or dismantle parts;

Before cleaning or maintenance work;
- After use.
Only have the appliance repaired by a qualified service centre.
Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

• Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
  Always plug the appliance into an earthed plug socket.
  Regularly check the power cord for damage
• Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service centre.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
• To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
  Make sure the power cord does not come into contact with hot surfaces or steam.
  Always remove the plug from the plug socket before you move the appliance.
• The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
  If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
  To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
• To protect against electric shock do not immerse cord, plugs, or housing in water or

other liquid.

• Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and do not use it again.
• Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

• This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shop, offices and other working environment;
Farm houses;
By clients in hotels, motels and other residential type environments;
Bed and breakfast type environments.

• The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
• Only use the appliance indoors, in dry areas away from water.
• Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
  To reduce the risk of electric shock do not use the appliance outdoors or on wet surfaces
• Place the appliance on a stable, level surface from which it cannot fall of.
• Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.
• Place the appliance at least 5cm of the wall or flammable objects [such as curtains, candles or towels].
• Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
• Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.
• Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

• Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the floor or has other parts been damaged. In such cases take the appliance to a specialist for checking and repair is necessary.

• Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

• Close supervision is necessary for any appliance being used by or near children
• Never leave the appliance unattended during use.
  It is necessary to keep this appliance clean because it is in direct contact with food
• Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.
• Warning!

Please do not touch surface while in use. The accessible surface may get hot when the appliance is operating.

PART LIST

1. Power indicator
2. Temperature indicator
3. Heating plate
4. Cool touch handle

FIRSTUSE

• Het apparaat kan bij het eerste gebruik wat geur en rook verspreiden, dit is normal.
• Please remove all the various packaging materials
• Wipe off the unit with a slightly dampened cloth.
• With first use the appliance can spread some smell and smoke, this is normal

OPERATION

• Plug the device into a properly installed mains socket (the power indicator lights up).
  The plate requires approx. 2-3 minutes to warm up.
• When the desired temperature has been attained, the temperature indicator lights up.
• Now open the device and place the dough inside.
  The heating plates include a non-stick coating. This means pre-greasing is not necessary for normal use.
• Now shut the lid, the baking process will last approx. 4-6 minutes (depending on the thickness and content of the dough).
• Now remove the cup-cakes with the help of wooden or heat resistant plastic spatula. Do not use any objects with sharp edges, to avoid damaging the coating!
• Unplug the device after use.

RECIP

Basic recipe cup-cakes for ca 16 pieces

2 eggs

145g castor sugar

12 sachet vanilla sugar

145 g self-rising flour 9 shifted)

Pinch of salt

65g melted butter

Beat the eggs with the castor sugar and vanilla sugar. Add the flour scoop by scoop and

stir after each scoop. Then add the salt and butter and stir again. Place if desired the paper cake cases in the appliance. Fill each hole in the lower plate half with the cup-cake batter. Bake the cup-cakes until they are golden brown, approx. 7-10 minutes.

Strawberry cup-cakes for ca 8 pieces

65g butter

85g sugar

2 eggs

135g flour

1 teaspoon baking powder

65g strawberry

35ml milk

1 teaspoon vanilla sugar

Salt

Put the butter and sugar in a bowl and stir it firmly. Add the eggs one by one and mix it into a smooth batter. Add the milk and vanilla sugar. Mash 14 of the strawberries and stir this through the mixture. Powder the rest of the strawberries with some flour, add it to the mixture and stir firmly. Place if desired the paper cake cases in the appliance. Fill each hole in the lower plate half with the cup-cake batter. Bake the cup-cakes until they are golden brown, approx. 7-10 minutes.

Chocolate cup-cakes for ca 8 pieces

260g plain chocolate, in pieces

30g soft butter

130g brown sugar

3 eggs

30g flour

Salt

First melt the chocolate in about 30 seconds using the microwave. Stir it until the

chocolate is smooth. You can also melt the chocolate au bain-marie. Beat the butter together with the soft brown sugar mixture. Add the flour and a pinch of salt. Finally add the melted chocolate. Place if desired the paper cake cases in the appliance. Fill each hole in the lower plate half with the cup-cake batter. Bake the cup-cakes until they are golden brown, approx. 7-10 minutes.

Raspberry cup-cakes for ca 8 pieces

95g self-rising flout

1 teaspoon cinnamon powder
40g castor sugar
1 egg
75g raspberries
2 tablespoons of sunflower oil
2 tablespoons of milk
2 teaspoons of cane sugar

Beat the egg. Mix the flour, cinnamon and castor sugar in a bowl. Make a hole in the center of the mixture and pour the stirred egg, oil and milk in. mix firmly. Then add the raspberries to the batter. This must be done in a careful way. Place if desired the paper cake cases in the appliance. Fill each hole in the lower plate half with the cup-cake batter. Bake the cup-cakes until they are golden brown, approx. 7-

10 minutes.

Hazelnut cup-cakes for ca 8 pieces

80g butter

100g flour

80g brown sugar

50g hazelnuts, quartered

12 teaspoon baking powder

6g rum

1 egg

1g cinnamon powder
1½ teaspoon instant coffee

80g powdered sugar

1½ tablespoons hot water

Chocolate coffee beans

Stir the butter soft and creamy with the sugar. Add the egg and stir, add the flour and stir, strew the baking powder and cinnamon above and then stir. Add the quartered hazelnuts, the rum and a pinch of salt. Stir everything firmly. Place if desired the paper cake cases in the appliance. Fill each hole in the lower plate half with the cup-cake batter. Bake the cup-cakes until they are golden brown, approx. 7-10 minutes. For making the icing, dissolve the instant coffee very well and stir this through the powdered sugar.

CARE AND CLEANING

Warming:

Before cleaning the appliance, always switch it off, disconnect it from the electricity supply and allow it to completely cool down.

• Do not allow stains to dry. Clean the appliance and the baking surfaces as soon as possible after use.
• The inner baking surfaces can be cleaned with a damp cloth and a mild washing-up liquid. Wipe the surfaces dry with a soft cloth.
• Do not use any wire wool, metal brushes, scourers or other hard objects to clean the appliance and the baking surfaces; these could scratch the appliance and its non-stick surfaces.
• Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

TECHNICAL DATA

Type nr: TM-1956

Power:1400W

Supply voltage: 220-240V~50Hz

Dimensions:

Product measurements: 250 × 210 × 120mm

Net weight: 1.36kg

TOMADO

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
- The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

All other claims, including damages, are excluded unless the Law states otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic

appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
