USER MANUAL TV EasyFlex M Goobay

goobay® VESA MOUNTING COMPANY

DE	BETRIEBSANLEITUNG
EN	USER'S MANUAL
FR	MODE D'EMPLOI
IT	ISTRUZIONI PER L'USO

TV-Wandhalter TV wall mount TV Support mural Supporto per TV

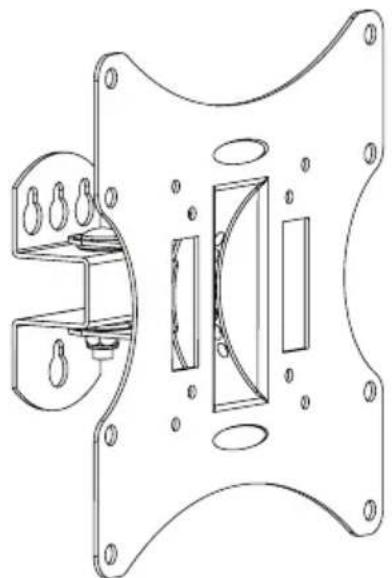

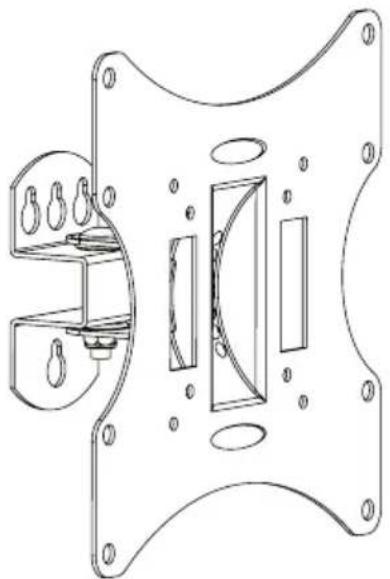

51883 Goobay TV EasyFlex M (si)

Technical line drawing of a mechanical housing assembly (no text or symbols)

51893 Goobay TV EasyFlex M (bl)

Technical line drawing of a mechanical housing assembly with internal components (no text or symbols)

BETRIEBSANLEITUNG 2

USER'S MANUAL 16

MODE D'EMPLOI 28

ISTRUZIONI PER L'USO 42

BETRIEBSANLEITUNG

Inhalt

W-B W-A 3mm Fig. 1: Wandmontage

MIS-D

75x75 / 100x100mm

MIS-E 200x100 / 200x200mm

MIS-F 400x200 / 400x400 / 600x200 / 600x400 / 800x400mm

1 Safety Instructions 17

1.1 General Notes 17

1.2 User Groups 18

1.3 Warning Levels 18

2 Description and Function 19

2.1 Scope of Delivery 19

2.2 Required tools 19

3 Intended Use.... 20

3.1 Use restrictions.... 20

4 Installing 20

4.1 Preparing 20

4.2 Wall mounting 21

4.3 Mounting the flat screen 22

4.3.1 Flat screens with flat back 22

4.3.2 Flat screens with arched back.... 23

4.4 Attaching and locking the flat screen 23

5 Adjusting the flat screen 24

6 Warranty and Liability 25

7 Maintenance, Care, Storage and Transport 25

8 Troubleshooting 26

9 Specifications.... 26

10 Information for VESA standard 26

11 Disposal Instructions 27

1 Safety Instructions

1.1 General Notes

• Read the including product documentation completely and carefully before use. It is part of the product.
• Attend to the safety instructions in product documentation, on product and accessories, such as on the package.
  • Use product, product parts and accessories only in perfect condition.
• Keep the product documentation for other potential users and for later requests.
• For questions, defects, mechanical damage, disturbances and other not remediable problems, consult your dealer.

Risk of life by suffocating

Children can suffocate by swallowed or inhaled parts and insulation materials.

Protect small parts and insulation material against unintentionally use.

Risk of injury by tripping and falling

Unfavorable placed or installed products and cable connections can injure persons.

Place, transport and install product, parts and accessories in a safe way.
When working with burdens, secure yourself and the working place, let a second person help you.
Let only a specialist do disassembly, maintenance and repair work.

Risk of injury by cutting

Children can cut themselves on packaging materials.

Protect packaging materials against unintentionally use.

Risk of material damage by improper product combination

Incompatible product combination does not fulfill required functions, can cause quality losses or material damage.

The specifications of all used products must match or be within the specified range.

Risk of injury by inappropriate ambient conditions

Extreme conditions can injure persons.

Attend to live cables or other lines lying behind plaster, and do not damage them!
Do not install the product to places with direct sunlight or bright light. This contributes to eye fatigue.

Risk of injury by moving product parts

Moving product parts can pinch or squeeze limbs.

Do not hold limbs between shear parts during use.
Mind the mobility of the product during use. This may move away from the wall or towards it and swivel sideways.

Risk of self-intervention and misuse

Self-interventions and misuse hide unpredictable risks and cause expiration of

warranty.

Do not modify or alter either the product or the accessories!

Risk of material damage by inappropriate ambient conditions

Incorrect ambient conditions can damage things.

Avoid extreme conditions, such as extreme heat, coldness, humidity or direct exposure to the sun, as well as vibrations and mechanical pressure.
Keep enough space around product and to the whole system to ensure proper ventilation and mobility.

The included mounting material is only suitable for mounting on massive stone or concrete walls.

For other wall types use suitable mounting material.
Check the stability of the system periodically after installation.

1.2 User Groups

Caused to different risk levels and hazard potentials some working steps only may be done by trained specialists.

Working step User Group
Installing, Un-installing, Care, Storage, Transport, Disposal	Consumers and users with basical mechanical knowledge can do this work.>> Protect children and people with mental and motoral impairments from using the product!
Maintenance, Repairing	Trained specialists only>> special safety measures, knowledge and tools are necessary!

Tab. 10: User Groups

1.3 Warning Levels

Warnings against hazards that will result directly in serious injuries or death in case of non-observance.

Warnings against hazards that may result in serious injuries or death in case of nonobservance.

Warnings against hazards that may result in injuries in case of non-observance.

Warnings against hazards that may result in material damage in case of non-observance.

2 Description and Function

Your TV wall mount is made for mounting your flat screen at stable, vertical walls. The compact and slim design supports individual, space-saving mounting. It is tiltable and swivelable.

2.1 Scope of Delivery

Part Figure Symbol Amount
Wall mounting
TV wall mount 51883 or TV wall mount 51893		A	1
Wall screw 6.3x55		W-A 3
Concrete anchor		W-B 3
Flat screen mounting
M4x14 M-A 4
M5x14		M-B 4
M6x14		M-C 4
M8x20		M-D 4
Washer D5		M-E 4
Washer D8		M-F 4
TV Spacer		M-G 8

Tab. 11: Scope of Delivery

2.2 Required tools

Tool

Figure

Line tester
Spirit level
Pencil
Phillips screwdriver
Drilling mashine
Concrete drill 8x60mm
Second person

Tab. 12: Required tools

3 Intended Use

This product is made for mounting flat screens with specific screen sizes, weights and mounting points, which are summarized in chapter "Technical data", on a vertical wall. Another use than described in chapter "Description and Function" is not permitted. Neglecting and ignoring these regulations and safety instructions can cause serious accidents, personal injury and material damage. Also refer to chapter "Warranty and Liability".

3.1 Use restrictions

Only use in dry interior rooms.

4 Installing

4.1 Preparing

Checking the completeness and integrity

Check the packing content by comparing it to the scope of delivery regarding completeness and integrity.

Ensuring compatibility

Warning level Safety instruction

Bid /

Ban

NOTICE

Risk of material damage by improper product combination

The specifications of all used products must match or be within the specified range.

Tab. 13: Ensuring compatibility

4.2 Wall mounting

Warning level Safety instruction Bid / Ban

CAUTION

Risk of injury due to inappropriate ambient conditions

Check the wall structure before installing or choose a safe installation place.
Attend to live cables or other lines lying behind plaster, and do not damage them!

Do not install the product to places with direct sunlight or bright light. This contributes to eye fatigue.

NOTICE

Risk of material damage by inappropriate ambient conditions

Keep enough space around product and to the whole system to ensure proper ventilation and mobility.

Tab. 14: Wall mounting

W-B W-A

3mm

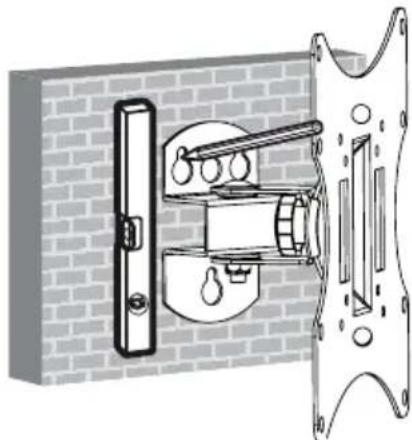

Technical line drawing of a door lock assembly mounted on a brick wall (no text or symbols)

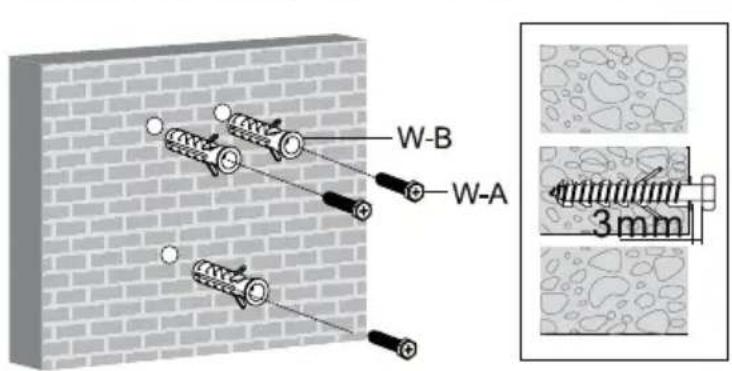

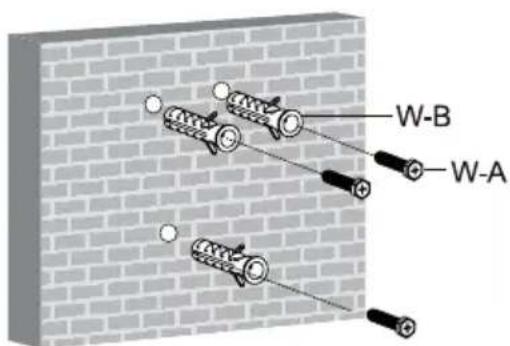

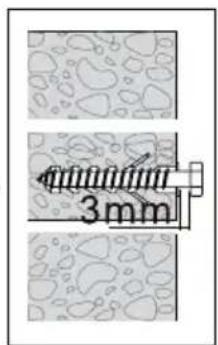

Fig. 8: Wall mounting

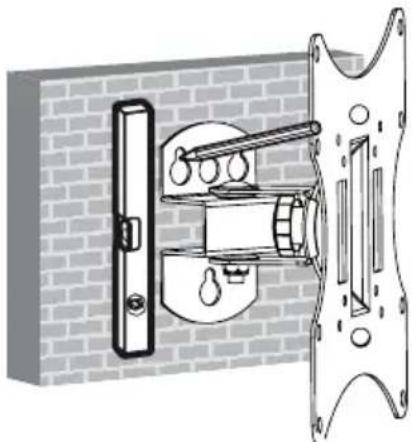

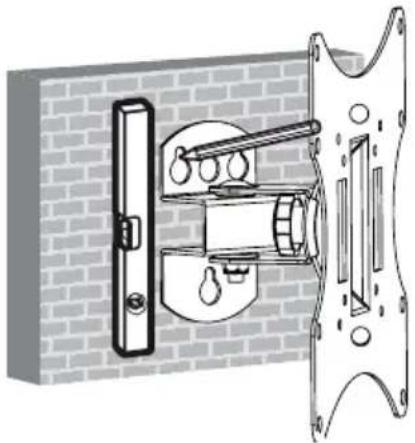

1. Before drilling, attend to live cables or other lines lying behind plaster, and do not damage them.

1. Use a spirit level to mark the drill holes on the wall.
2. Use the TV wall mount (A) as template.
3. Drill the holes with a 10mm concrete drill 60mm deep.
4. Plug a concrete anchor (W-B) in each drilling hole.
5. Mount the TV wall mount (A) by using the wall screws (W-A).

4.3 Mounting the flat screen

Warning level Safety instruction Bid / Ban
	Risk of injury by tripping and falling>> Place, transport and install product, parts and aceories in a safe way.
	Risk of material damage by improper procedure>> Only use moderate force when tightening the screws in order to avoid damaging threads.
	>> NEVER set the screen on the front during installation!>> Do not damage the flat screen by too long screws.

Tab. 15: Mounting the flat screen

4.3.1 Flat screens with flat back

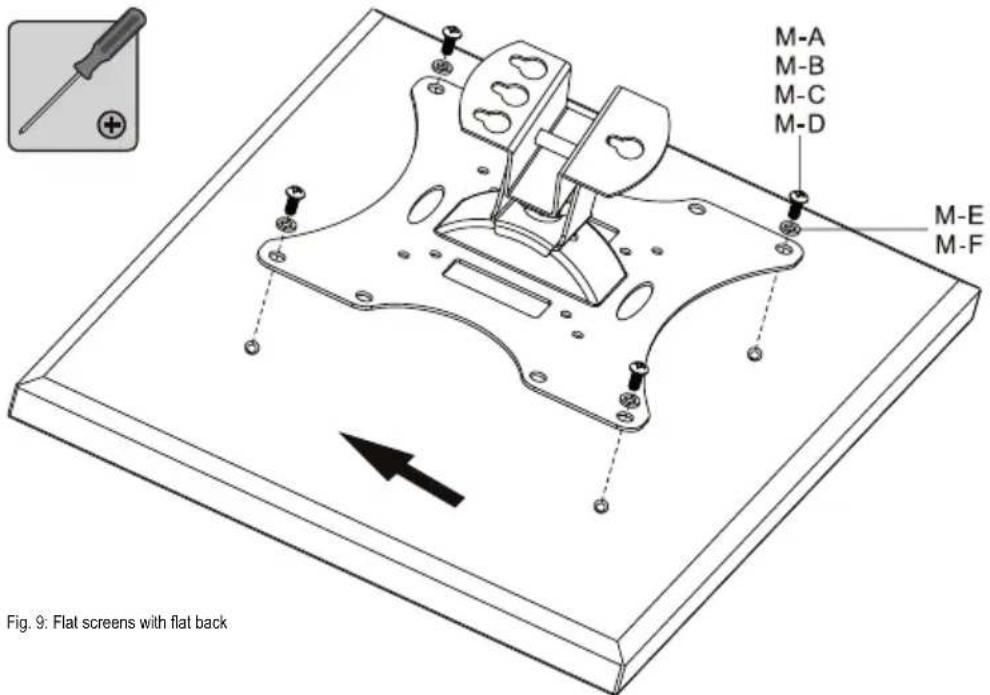

M-A M-B M-C M-D M-E M-F Fig. 9: Flat screens with flat back

1. Lean the flat screen vertically on a soft, large surface or a wall and protect it of scratches and overturning.
2. Mount the TV wall mount (A) with matching washers and screws like shown.

Make sure, fixing the TV wall mount (A) with the 3 wall holes facing to the flat screens top.

4.3.2 Flat screens with arched back

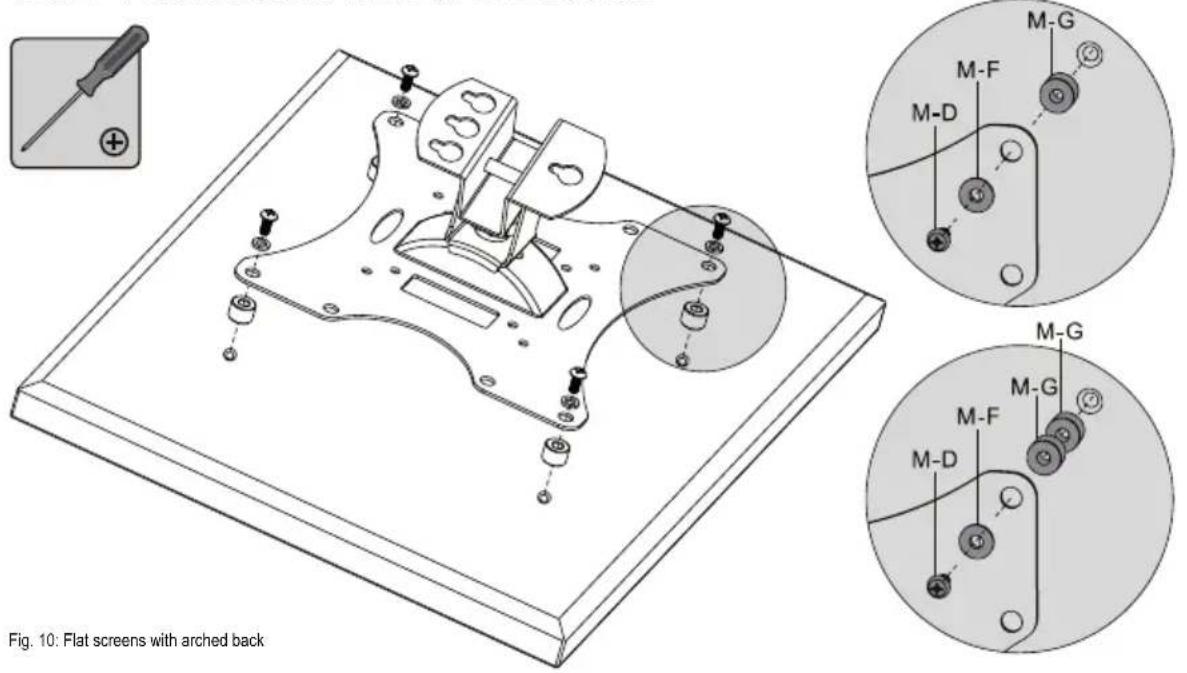

Fig. 10: Flat screens with arched back

1. Apart from the following working step - proceed like shown in chapter 4.3.1.
2. Mount the fitting TV spacers (M-G) single or double between TV wall mount (A) and flat screen like shown.

Make sure, fixing the TV wall mount (A) with the 3 wall holes facing to the flat screens top.

4.4 Attaching and locking the flat screen

Warning level Safety instruction Bid/Ban

CAUTION

Risk of injury by tripping and falling

Place, transport and install product, parts and aceories in a safe way.
When working with burdens, secure yourself and the working place, let a second person help you.

Risk of material damage by inappropriate ambient conditions

Keep enough space around product and to the whole system to ensure proper ventilation and mobility.

Tab. 16: Attaching and locking the flat screen


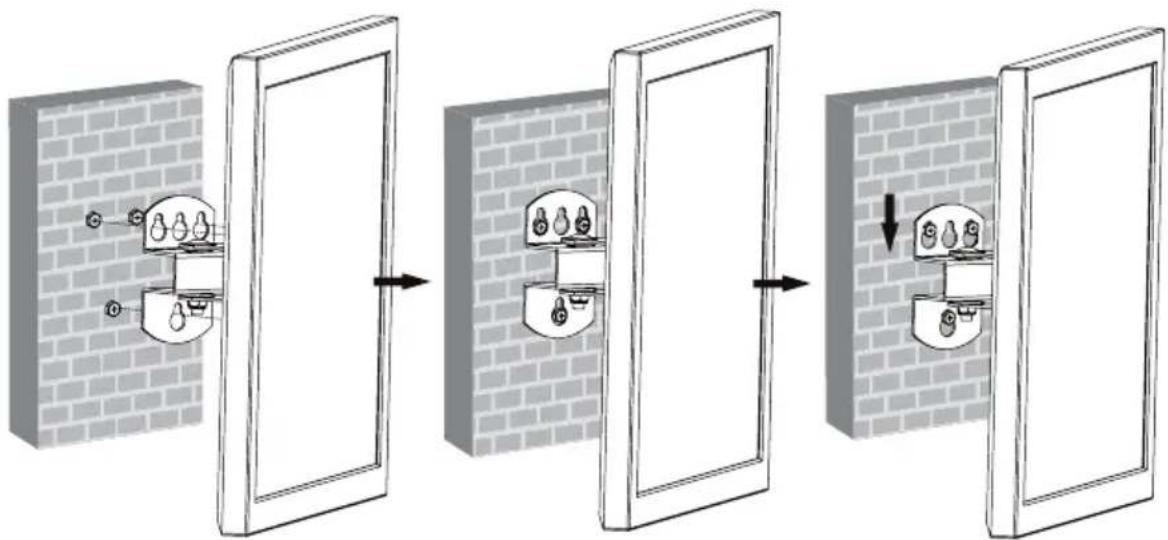

Fig. 11: Attaching and locking the flat screen

1. Attach the prepared flat screen with TV wall mount (A) to the wall screws (W-A) together with a second person as shown.
2. Fix all wall screws (W-A).

End of installing. To remove, proceed in reversed order.

5 Adjusting the flat screen

Warning level Safety instruction Bid/Ban

CAUTION

Risk of injury by moving product parts

Do not hold limbs between shear parts during use.
Mind the mobility of the product during use. This may move away from the wall or towards it and swivel sideways.

Tab. 17: Adjusting the flat screen

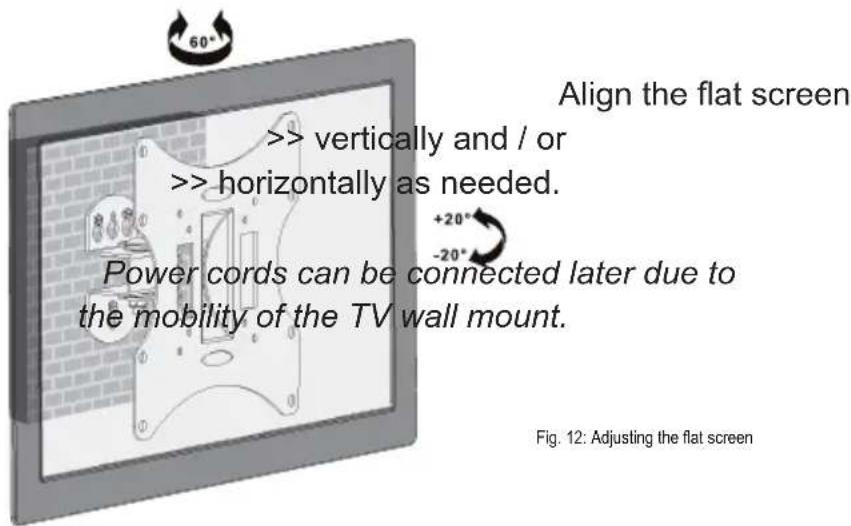

60° Align the flat screen >> vertically and / or >> horizontally as needed. +20° -20° Power cords can be connected later due to the mobility of the TV wall mount. Fig. 12: Adjusting the flat screen

6 Warranty and Liability

• The producer grants a 2 years warranty to a new device.
• As the manufacturer has no influence on installation, warranty only applies to the product itself.
- If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, describing possible faults in detail – only then you can be assured that faults, occurring only rarely, will be found and repaired with certainty!
- The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance, not described in the manual.
• Do not alter or modify the product or its accessories.
- Any use other than described in this user's manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
• We reserve our right for misprints and changes of the device, packing, or user's manual.

7 Maintenance, Care, Storage and Transport

• The product must be maintained only by professional workshops.
- Protect the angles from dirt and grease them regularly with light machine oil.
- Use a dry and soft cloth to clean your product. Be careful to avoid scratches. Use a slightly moist cloth for heavy stains. Look out for live cables! Do not use any cleaning supplies. This can cause burns to the materials. Avoid liquid entry to the device.

• Make sure no body parts will be pinched in the swivel device, when parts of the device are moved!

- Periodically check, if all attachments and screws are secured, and tighten them again when they are loosened. This may be caused e.g. by frequent movements. Do not overtighten screws.

- Avoid places with high temperatures, humidity, or places which can become wet, also during maintenance, care, storage, and transport.

- Keep the product away from children and store it at dry and dust-proof places!

- Drill holes are still visible after removing the product. After use for a longer time period, a spot may remain on the surface.

- Keep the original packing for transport and to avoid damages.

8 Troubleshooting

Problem Help
How to test wall quality?	Loads for home use are regulated in various European standards.>> Check wall thickness and material under plaster / wall paper.>> Ask a specialist.
Which drill holes must be drilled?	>> Read chapter 4.2.
Other questions	>> Contact your dealer.

Tab. 18: Troubleshooting

9 Specifications

Phys. size Specification Unit
TV diameter 17-42 “/ Inch
VESA max. 200x200 mm
Load	max. 30	kg
Tilting angle	+/-20	°
Swivel angle	+/-45	°
Wall distance	90	mm
Color	51883: silver51893: black
Dimensions	220 x 220 x 90	mm
Weight	0.933	kg

Tab. 19: Specifications

10 Information for VESA standard

To harmonize attachment options of monitors, TV devices and their stands and wall brackets in a user-friendly manner, VESA (Video Electronic Standard Organization) defined 3 standards for the applications mentioned above. Using the relevant VESA standard specified on your display unit, or in its user's manual, and the specifications in Chapter Specifications in this manual you are able to define the possible points of attachment. Some models allow for an infinitely variable individual attachment (e.g. 300 x 300 mm for Sony TVs).

VESA Class	Hole distance for attachment of monitors
MIS-D	75x75 / 100x100mm
MIS-E	200x100 / 200x200mm
MIS-F	400x200 / 400x400 / 600x200 / 600x400 / 800x400mm

Tab. 20: Information for VESA standard

11 Disposal Instructions

This product should not be disposed together with domestic waste. Please return your product free of charge at the end of its service life at the producer, the sales outlet, or a public collection point, established for this purpose. Details for disposal are regulated in the relevant federal state law. Potential recyclable materials are fed into the recycling cycle to obtain new raw materials from them. Following materials are collected a local collection points:

- Waste glass, plastic, waste metal, metal sheet, and more.

This type of recycling of waste contributes significantly to the protection of our environment.

BETRIEBSANLEITUNG 2

USER'S MANUAL 16

MODE D'EMPLOI 28

ISTRUZIONI PER L'USO 42

MODE D'EMPLOI

Contenu

Diagram illustrating construction steps for a brick wall, including tool installation, rebar installation, and door assembly.

Fig. 13: Montage mural

Technical illustration of a wall-mounted switch mounted on a brick wall, showing internal components and mounting brackets (no text or symbols)

Set of seven different tools and devices, including a pen, screwdriver, and pliers (no text or labels visible)

W-B W-A 3mm

Technical illustration of a door lock assembly with handlebars and internal components, mounted on a brick wall (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Goobay®

Pillmannstraße 12

38112 Braunschweig

Germany

Made in China.

Hotline: [phone]
