USER MANUAL TV EasyFold ML Goobay
TV-Wandhalter TV mount TV Support mural Supporto per TV
69295 Goobay TV EasyFold ML
BETRIEBSANLEITUNG 2
USER'S MANUAL 16
MODE D'EMPLOI 30
ISTRUZIONI PER L'USO 46
BETRIEBSANLEITUNG
Inhalt
Fig.3: Locher bohren
1 Safety Instructions 17
1.1 General Notes 17
1.2 User Groups 18
1.3 Warning Levels 18
2 Description and Function 19
2.1 Scope of Delivery 19
2.2 Required tools 20
3 Intended Use 21
3.1 Use restrictions 21
4 Installing 21
4.1 Preparing 21
4.2 Wall mounting 21
4.2.1 Preparing 22
4.2.2 Implementing 22
4.3 Mounting the flat screen 23
4.3.1 Flat screens with flat back 24
4.3.2 Flat screens with arched back 24
4.4 Attaching the flat screen 25
5 Aligning the flat screen 26
6 Warranty and Liability 26
7 Maintenance, Care, Storage and Transport 26
8 Troubleshooting 27
9 Specifications 27
10 Information for VESA standard 28
11 Disposal Instructions 28
1 Safety Instructions
1.1 General Notes
- Read the including product documentation completely and carefully before use. It is part of the product.
- Attend to the safety instructions in product documentation, on product and accessories, such as on the package.
- Use product, product parts and accessories only in perfect condition.
- Keep the product documentation for other potential users and for later requests.
- For questions, defects, mechanical damage, disturbances and other not remediable problems, consult your dealer.
Risk of life by suffocating
Children can suffocate by swallowed or inhaled parts and insulation materials.
Protect small parts and insulation material against unintentionally use.
Risk of injury by tripping and falling
Unfavorable placed or installed products and cable connections can injure persons.
Place, transport and install product, parts and accessories in a safe way.
When working with burdens, secure yourself and the working place, let a second person help you.
Let only a specialist do disassembly, maintenance and repair work.
Risk of injury by cutting
Children can cut themselves on packaging materials.
Protect packaging materials against unintentionally use.
Risk of material damage by improper product combination
Incompatible product combination does not fulfill required functions, can cause quality losses or material damage.
The specifications of all used products must match or be within the specified range.
Risk of injury by inappropriate ambient conditions
Extreme conditions can injure persons.
Attend to live cables or other lines lying behind plaster, and do not damage them!
Do not install the product to places with direct sunlight or bright light. This contributes to eye fatigue.
Risk of injury by moving product parts
Moving product parts can pinch or squeeze limbs.
Do not hold limbs between shear parts during use.
Mind the mobility of the product during use. This may move away from the wall or towards it and swivel sideways.
Risk of self-intervention and misuse
Self-interventions and misuse hide unpredictable risks and cause expiration of warranty.
Do not modify or alter either the product or the accessories!
Risk of material damage by inappropriate ambient conditions
Incorrect ambient conditions can damage things.
Avoid extreme conditions, such as extreme heat, coldness, humidity or direct exposure to the sun, as well as vibrations and mechanical pressure.
Keep enough space around product and to the whole system to ensure proper ventilation and mobility.
The included mounting material is only suitable for mounting on massive stone or concrete walls.
For other wall types use suitable mounting material.
Check the stability of the system periodically after installation.
1.2 User Groups
Caused to different risk levels and hazard potentials some working steps only may be done by trained specialists.
| Working step User Group | |
| Installing, Uninstalling, Aligning, Care, Storage, Transport, Disposal | Consumers and users with basical mechanical knowledge can do this work. >> Protect children and people with mental and motoral impairments from using the product! |
| Maintenance, Repairing | Trained specialists only >> special safety measures, knowledge and tools are necessary! |
Tab.12:User Groups
1.3 Warning Levels
Warnings against hazards that will result directly in serious injuries or death in case of non-observation.
Warnings against hazards that may result in serious injuries or death in case of nonobservance.
Warnings against hazards that may result in injuries in case of non-observance.
Warnings against hazards that may result in material damage in case of non-observation.
2 Description and Function

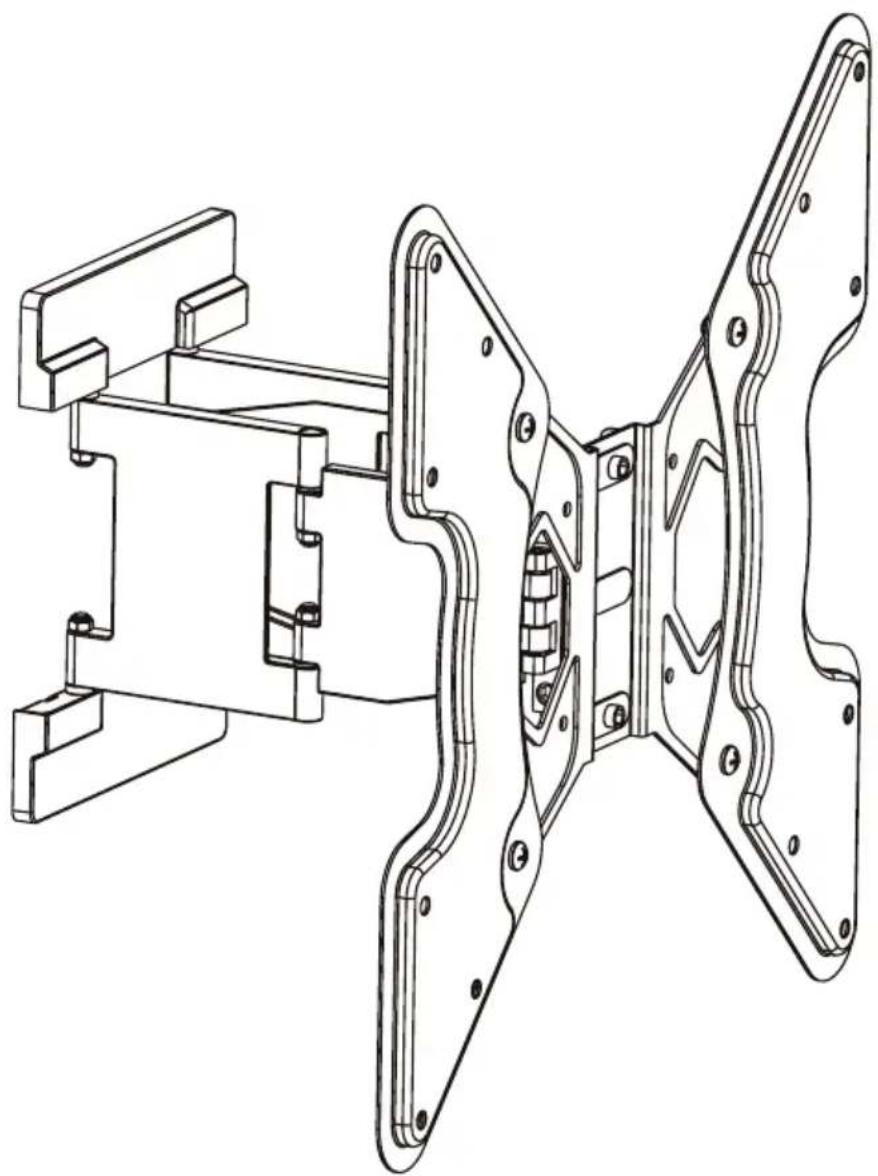

Your wall mount is made for mounting your flat screen at stable, vertical walls. The double wing design combines weight saving and stability. The TV wall mount is tiltable vertically and swivelable horizontally and is suitable for flat screens from VESA 100x100mm to 400x400mm.
2.1 Scope of Delivery
| Part Figure Symbol Amount | ||
| Wall mounting | ||
| Wall mount with VESA plate and plastic covers | A | 1 |
| Wall screw 6.3x55 | W-A 6 | |
| Concrete anchor | W-B 6 | |
| Washer D6 | W-C 6 | |
| TV-wall mount assembling | ||
| VESA Adapter B 2 | C | 4 |
| M8x15 | D 4 | |
| Nut M8 | ||
| Flat screen mounting | ||
| M5x14 M-A 4 | M-B 4 | |
| M6x14 | M-B 4 | |
| M8x20 | M-C 4 | |
| M6x30 | M-D 4 | |
| M8x30 M-E 4 | ||
| Washer D5 | M-F 4 | |
| Washer D8 | M-G 4 | |
| TV Spacer | M-H 8 | |
| TV Spacer | M-I 4 | |
| Tools | ||
| Allen key E 1 | ||
| Wrench | F 1 | |
Tab.13: Scope of Delivery
2.2 Required tools
| Tool Figure | |
| Line tester | |
| Spirit level | |
| Pencil | |
| Phillips screwdriver | |
| Drilling mashine | |
Concrete drill 8x60mm
Second person
Tab.14: Required tools
3 Intended Use
This product is made for mounting flat screens with specific screen sizes, weights and mounting points, which are summarized in chapter "Technical data", on a vertical wall. Another use than described in chapter "Description and Function" is not permitted. Neglecting and ignoring these regulations and safety instructions can cause serious accidents, personal injury and material damage. Also refer to chapter "Warranty and Liability".
3.1 Use restrictions
Only use in dry interior rooms.
4 Installing
4.1 Preparing
Checking the completeness and integrity
Check the packing content by comparing it to the scope of delivery regarding completeness and integrity.
Ensuring compatibility
| NOTICE | Risk of material damage by improper product combination |
| >> The specifications of all used products must match or be within the specified range. |
Tab.15: Ensuring compatibility
4.2 Wall mounting
| CAUTION | Risk of injury due to inappropriate ambient conditions >> Check the wall structure before installing or choose a safe installation place. >> Attend to live cables or other lines lying behind plaster, and do not damage them! >> Do not install the product to places with direct sunlight or bright light. This contributes to eye fatigue. |
NOTICE
Risk of material damage by inappropriate ambient conditions
Keep enough space around product and to the whole >> system to ensure proper ventilation and mobility.
Tab.16: Wall mounting
4.2.1Preparing
- Remove the 2 plastic covers of the
TV wall mount (A) by sliding the upper plastic cover slopingly forwards and upwards and the lower plastic cover forwards and downwards. Remove the VESA plate by lifting it forwards and upwards out of its guideway.
Make sure that the screws 1 and 2 stuck firmly in the VESA plate.
Fig.12: Removing plastic covers and VESA plate
- Turn the nut M8 (D) clockwise to screw 1 about 2-3 turns until fitting
loosely.
4.2.2 Implementing
Fig.13: Aligning and marking
- Before drilling, attend to live cables or g behind plaster, and
Use a spirit level to mark the drillthe drill holes 1 to 6 with a
do not damage them.
holes on the wall.
Use the wall plate (A) as template.
- Drill the drill holes with a 10mm concrete drill 60mm deep.
Fig.14: Drilling drill holes
Fig.15: Wall mounting

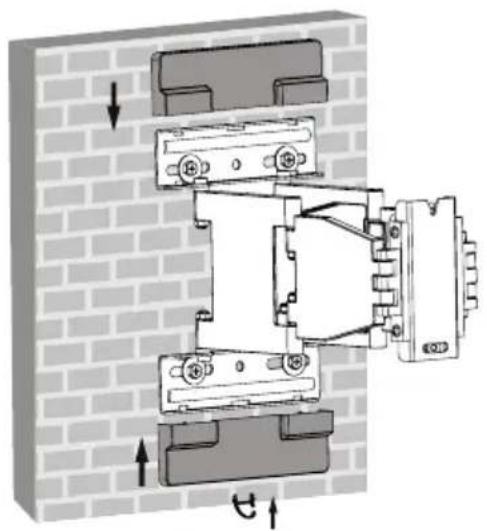

Fig.16: Reattaching the plastic covers
- Reattach the plastic covers to the TV wall mount (A).
4.3 Mounting the flat screen
CAUTION
Risk of injury by tripping and falling
Place, transport and install product, parts and accessories in a safe way.
NOTICE
Risk of material damage by improper procedure
Only use moderate force when tightening the screws in order to avoid damaging threads.
NEVER set the screen on the front during installation!
Do not damage the flat screen by too long screws.
Tab.17: Mounting the flat screen
- Measure the mounting hole spacings
screen.
Mount flat screens of VESA sizes
100x100mm, 100x200mm and
200x200mm directly to the VESA
plate, like described in chapters 4.3.1
and 4.3.2.
Fig.17: Mounting the flat screen
4.3.1 Flat screens with flat back
4.3.2 Flat screens with arched back
Fig.19: Flat screens with arched back
Make sure that the pre-assembled nut M8 (D) sits on screw 1 and is located on the flat screens top as described in chapter 4.2. This nut holds VESA plate and flat screen when mounting to the wall mount.
4.4 Attaching the flat screen
Risk of injury by tripping and falling
CAUTION
Place, transport and install product, parts and accessories in a safe way.
When working with burdens, secure yourself and the working place, let a second person help you.
NOTICE
Risk of material damage by inappropriate ambient conditions
Keep enough space around product and to the whole system to ensure proper ventilation and mobility.
Tab.18: Attaching the flat screen
- Attach the VESA plate (with VESA Adapters (B)) connected flat screen together with a 2nd person with the screw 1 and nut M8 (D) slopingly onto the notch of the TV wall bracket (A).
- Set the flat screen vertically.
Fig.20: Attaching the flat screen
- Tighten the nuts M8 (D) clockwise to
Fig.21: Fixing the flat screen
End of installing. To remove, proceed in reversed order.
5 Aligning the flat screen
Risk of injury by moving product parts
Do not hold limbs between shear parts during use.
Mind the mobility of the product during use. This may move away from the wall or towards it and swivel sideways.
Tab.19: Alligning the flat screen

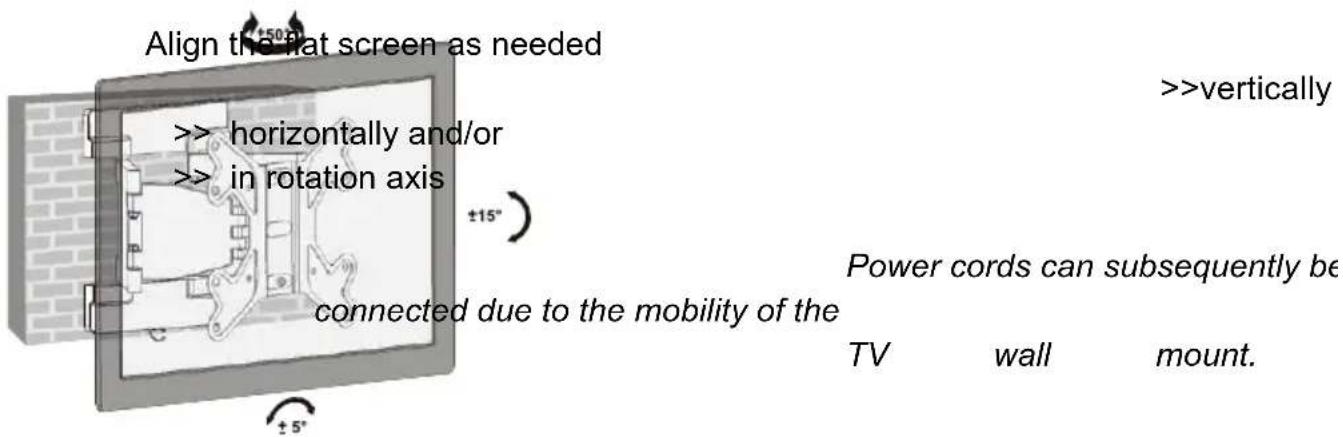

Fig.22: Aligning the flat screen
Power cords can subsequently be
nd Liability
TV wall mount.
The producer grants a 2 years warranty to a new device.
- As the manufacturer has no influence on installation, warranty only applies to the product itself.
- If any fault or damage is detected on your device, please contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, describing possible faults in detail – only then you can be assured that faults, occurring only rarely, will be found and repaired with certainty!
- The manufacturer is not liable for damages to persons or property caused by improper installation, operation or maintenance, not described in the manual.
- Do not alter or modify the product or its accessories.
- Any use other than described in this user's manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability.
- We reserve our right for misprints and changes of the device, packing, or user's manual.
7 Maintenance, Care, Storage and Transport
- The product must be maintained only by professional workshops.
- Protect the angles from dirt and grease them regularly with light machine oil.
- Use a dry and soft cloth to clean your product. Be careful to avoid scratches.
Use a slightly moist cloth for heavy stains. Look out for live cables! Do not use any cleaning supplies. This can cause burns to the materials. Avoid liquid entry to the device.
- Make sure no body parts will be pinched in the swivel device, when parts of the device are moved!
- Periodically check, if all attachments and screws are secured, and tighten them again when they are loosened. This may be caused e.g. by frequent movements. Do not overtighten screws.
- Avoid places with high temperatures, humidity, or places which can become wet, also during maintenance, care, storage, and transport.
- Keep the product away from children and store it at dry and dust-proof places!
- Drill holes are still visible after removing the product. After use for a longer time period, a spot may remain on the surface.
- Keep the original packing for transport and to avoid damages.
8 Troubleshooting
| Problem Help | |
| How to test wall quality? | Loads for home use are regulated in various European standards. >> Check wall thickness and material under plaster / wall paper. >> Ask a specialist. |
| Which drill holes must be drilled? | >> Read chapter 4.2. |
| The wall mount is hard to align. | >> Slightly loosen the joints with the Allen wrench (E). >> Due the TV size the maximum swivel angle may be smaller than indicated. |
| Other questions >> Contact your dealer. | |
Tab.20: Troubleshooting
9 Specifications
| Physical size Specification Unit | ||
| TV diameter | 23-55 | “/Inch” |
| VESA | max. 400x400 | mm |
| Load | max. 30 | kg |
| Tilting angle | +/-15 | ° |
| Swivel angle of inner rocker | +/-90 | ° |
| Swivel angle of outer rocker | -50 ~ +90 | ° |
| Rotation angle of VESA plate | +/-5 ° |
| Wall distance 37-272 mm | |
| Dimensions 450 x 450 x 37-272 mm | |
| Weight 4.125 kg | |
Tab.21: Specifications
10 Information for VESA standard
To harmonize attachment options of monitors, TV devices and their stands and wall brackets in a user-friendly manner, VESA (Video Electronic Standard Organization) defined 3 standards for the applications mentioned above. Using the relevant VESA standard specified on your display unit, or in its user's manual, and the specifications in Chapter Specifications in this manual you are able to define the possible points of attachment. Some models allow for an infinitely variable individual attachment (e.g. 300 × 300 mm for Sony TVs).
| VESA Class Hole distance for attachment of monitors | |
| MIS-D 75x75 / 100x100mm | |
| MIS-E | 200x100 / 200x200mm |
| MIS-F 400x200 / 400x400 / 600x200 / 600x400 / 800x400mm | |
Tab.22: Information for VESA standard
11 Disposal Instructions
This product should not be disposed together with domestic waste. Please return your product free of charge at the end of its service life at the producer, the sales outlet, or a public collection point, established for this purpose. Details for disposal are regulated in the relevant federal state law. Potential recyclable materials are fed into the recycling cycle to obtain new raw materials from them. Following materials are collected a local collection points:
- Waste glass, plastic, waste metal, metal sheet, and more.
This type of recycling of waste contributes significantly to the protection of our environment.
BETRIEBSANLEITUNG 2
USER'S MANUAL 16
MODE D'EMPLOI 30
ISTRUZIONI PER L'USO 46
MODE D'EMPLOI
Contenu
Tab.27: Montage mural
4.2.1 Préparation
Le support mural (A) sort de matrice.
Tab.31: Specifications
TV-Wandhalter TV mount TV Support mural Supporto per TV
69295
Revision 2014-05-12 Version 1,1
Goobay
Pillmannstraße 12
38112 Braunschweig
Germany
Made in China.
Hotline: +49 (0180) 5005882
E-Mail: info@goobay.de
Web: www.mygoobay.de
