USER MANUAL KA5029 TRISTAR

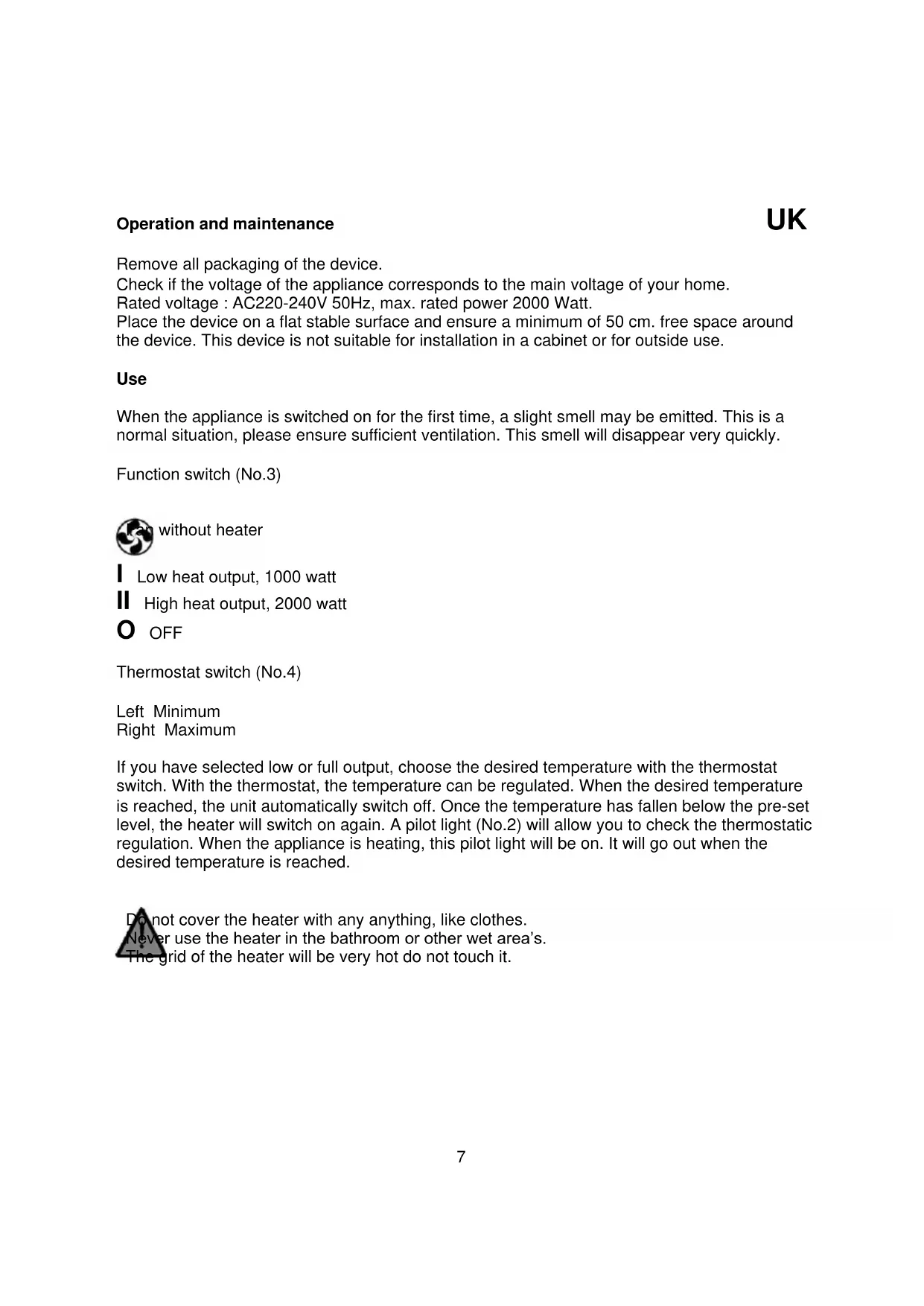

Operation and maintenance

UK

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage: AC220-240V 50Hz, max. rated power 2000 Watt.

Place the device on a flat stable surface and ensure a minimum of 50~cm free space around the device. This device is not suitable for installation in a cabinet or for outside use.

Use

When the appliance is switched on for the first time, a slight smell may be emitted. This is a normal situation, please ensure sufficient ventilation. This smell will disappear very quickly.

Function switch (No.3)

without heater

Low heat output, 1000 watt

II High heat output, 2000 watt

OFF

Thermostat switch (No.4)

Left Minimum

Right Maximum

If you have selected low or full output, choose the desired temperature with the thermostat switch. With the thermostat, the temperature can be regulated. When the desired temperature is reached, the unit automatically switch off. Once the temperature has fallen below the pre-set level, the heater will switch on again. A pilot light (No.2) will allow you to check the thermostatic regulation. When the appliance is heating, this pilot light will be on. It will go out when the desired temperature is reached.

not cover the heater with any anything, like clothes.

er use the heater in the bathroom or other wet area's.

grid of the heater will be very hot do not touch it.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
• This appliance is for household use only and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Do not place the heater directly under a wall outlet.
• Do not use this heater close to a bathtub, a shower or a swimming pool.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
- During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
- Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
- If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC.

On Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 73/23/EEC, the protection requirements of the EMC Directive 89/336/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Interruttore termostato (No.4)

Sinistra Minimo

Destra Massimo
