Product type	Grill plate with raclette function
Brand	Rotel
Model	U1232CH
Rated voltage	220-240 V
Rated frequency	50/60 Hz
Rated power	1200 W
Included accessories	8 raclette pans, natural stone cooking stone, wooden spatula
Functions	Grill, Raclette, Stone cooking
Number of pans	8
Cooking stone material	Natural stone (100% natural)
Temperature setting	Variable thermostat (on/off and adjustment button)
First use of the cooking stone	Wash in clean water, oil with a heat-resistant oil, heat in the oven at 220 °C for 40 minutes
Cleaning of pans and cooking stone	Nylon cloth and mild liquid soap solution; do not use abrasive products
Cleaning of the appliance	Unplug and let cool; clean with water avoiding immersion
Safety	Hot surface, do not touch; use oven mitts; never leave unattended; unplug after use
Usage instructions	Stable, dry and flat surface; out of reach of children; do not immerse
Compliance	European directives 2014/35/EU and 2014/30/EU, CE marking
Warranty	Free repair for material or manufacturing defects (according to conditions, see manual)
Disposal	Do not dispose with household waste; recycle according to WEEE directive

Frequently Asked Questions - U1232CH ROTEL

How to use the cooking stone for the first time?

Wash the cooking stone in clean water and dry it. Apply a heat-resistant oil (e.g., peanut oil) evenly on the dry cooking stone. Then heat it in the oven at 220 °C for at least 40 minutes. This prevents stress and gives a uniform color.

Why does my cooking stone have cracks?

The cooking stone is a 100% natural product. Small cracks are normal and do not affect its operation. They are excluded from any warranty claim.

How to clean the raclette pans?

Wash the pans with a nylon cloth and a liquid solution based on mild soap. Never use abrasive products or corrosive cleaners on the non-stick surface.

Can I immerse the appliance in water?

No, to avoid any risk of fire or electric shock, never immerse the appliance, its cord or plug in water or any other liquid. Clean it with a damp cloth after unplugging.

Which oil to use for the cooking stone?

Use a heat-resistant oil, such as peanut oil. Apply it evenly on the cooking stone before the first use.

How to adjust the temperature for the grill?

Turn the thermostat to maximum to preheat, then lower it gradually according to your needs. The cooking stone reaches the ideal grilling temperature after about 20 minutes.

Can I use metal utensils on the cooking stone?

It is recommended to use the wooden spatula provided to turn food. Metal utensils could scratch the surface of the cooking stone or pans.

What to do in case of malfunction?

If the appliance is not working properly, check that it is properly plugged in and the thermostat is on. If the problem persists, contact an authorized after-sales service. Do not attempt to repair it yourself.

Is the appliance suitable for people with reduced mobility?

Yes, the appliance can be used by persons with reduced physical capabilities if they are supervised or have received instructions on safe use. However, children should not use it.

How to dispose of the appliance at the end of its life?

Do not throw the appliance away with household waste. Return it to a retailer or a collection point for recycling of electrical and electronic equipment (WEEE) in accordance with Directive 2012/19/EU.

USER MANUAL U1232CH ROTEL

Exterior view of a modern electric microwave grater with control knobs and a flat top (no text or symbols visible)

• GEBRAUCHSANWEISUNG
- MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE

CE RoHS 又

1. Small pan (8x)
2. Full slate
3. Power cord
4. On/Off knob and adjustable temperature control

TECHNISCHE DATEN

- Safety instructions.... 24

- Starting up the appliance .... 28

Note 28

- Grilling 28

• Raclette....28
• Cleaning....29
• Disposal 29
  D/F/I/E....30
  • Garantie / Garantie / Garanzia / Warranty 30

Deutsch

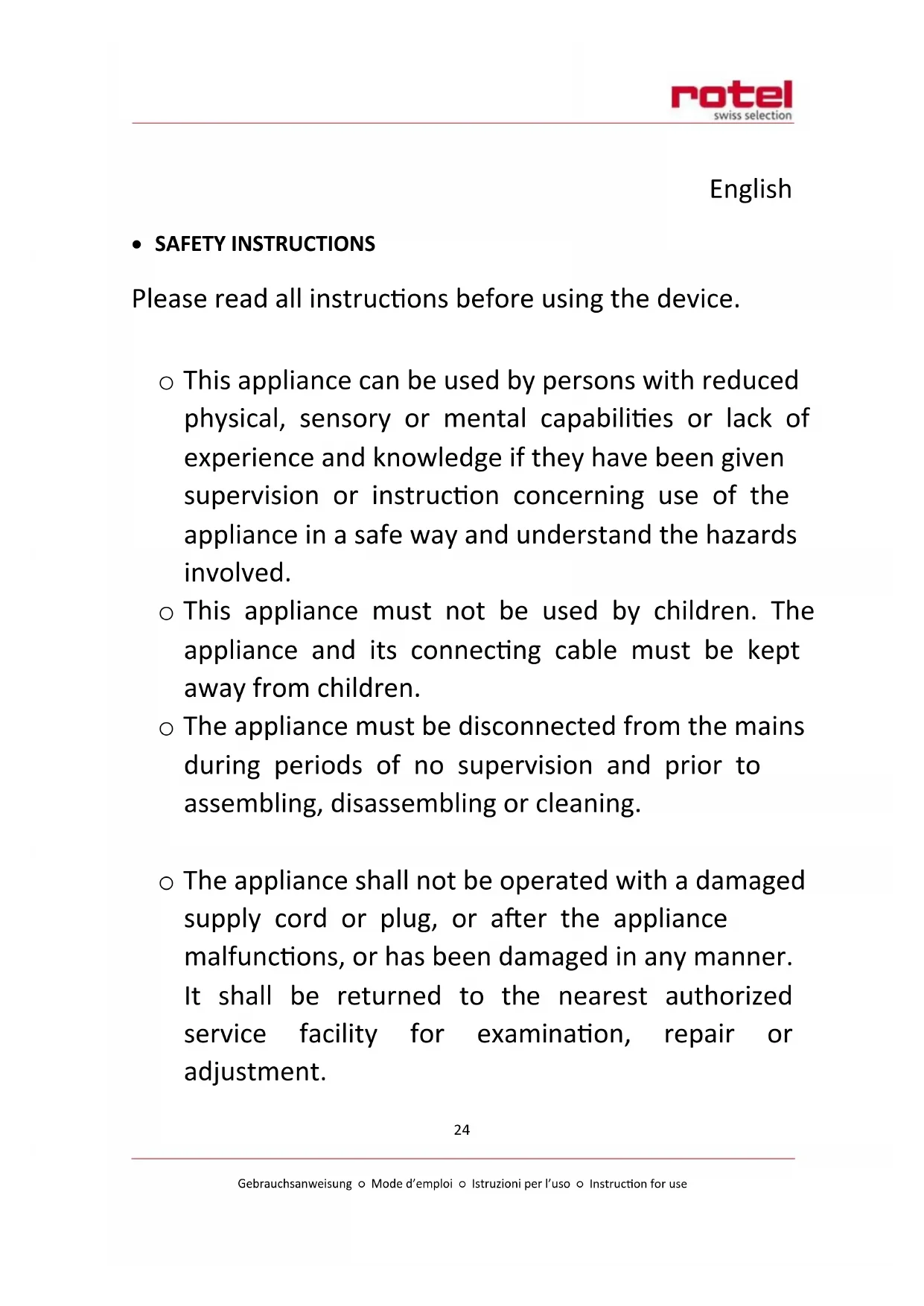

Please read all instructions before using the device.

○ This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

○ This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.

- The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

- The appliance shall not be operated with a damaged supply cord or plug, or after the appliance malfunctions, or has been damaged in any manner. It shall be returned to the nearest authorized service facility for examination, repair or adjustment.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- The appliance shall be used on a steady, dry and level surface.

○ The appliance shall not be placed on or near a hot gas or electric burner.

- To avoid fire, this appliance shall not be covered or touch flammable material, including curtains, draperies, walls, etc. when in operation.

○ If the use of an extension cord is required, it should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over accidentally.

○ The power cord shall not hang over the edge of a table or counter, or touch hot surfaces.

- To avoid fire, electric shock and personal injury, the appliance, its cord or plug shall not be immersed into water or any other fluid.

• To assure safe operation, over-sized utensils or food must not be inserted into the raclette grill.
  ○ CAUTION: Never leave the raclette grill unattended when in use.
  ○ CAUTION: HOT SURFACE

The temperature of accessible surfaces may be high when the appliance is operating.

• Do not touch hot surfaces. Use handles and hot pads.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• The appliance shall always be unplugged when not in use or when left unattended. Moreover, it shall be allowed to cool before assembling, disassembling or cleaning.
  ○ Unplug the appliance by grasping the plug and never by pulling the cord.
• Incorrect reassembly or use of any accessory/attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury and will void the manufacturer's warranty.
• Do not use this appliance for other than the intended use.

○ This appliance is intended to be used in household and similar applications such as:

■ staff kitchen areas in shops, offices and other working environments;

- farm houses;

■ by clients in hotels, motels and other residential type environments;

■ bed and breakfast type environments.

• STARTING UP THE APPLIANCE

Before you use the raclette pans for the first time, wash them with washing-up liquid and dry them.
To make sure that the natural stone slab remains free from stresses and to give the slab a uniform appearance in terms of colour, the following points must be observed:

■ Wash the natural stone slab under running water and dry well.
■ Apply heat-resistant oil (e.g. peanut oil) evenly over the dry slab.
■ Next heat up the natural stone slab in the oven for at least 40 minutes at 220 degrees.

- Your stone slab is now free from stresses and best prepared to create all of your grilling delights.

NOTE

The stone slab is a 100 percent natural product. It is normal for the stone to have slight cracks and this does not in any way impair its function. Cracks are therefore excluded from any warranty claims.
o The stone slab is preheated to the ideal grilling temperature after about 20 minutes.

- GRILLING

☐ Thermostat at maximum. Season the meat or fish and depending on the thickness, grill it for around 2 to 4 minutes on each side, then add salt. Sausages can be barbecued whole, but we do advise that you cut thick sausages into approx. 2 cm thick slices. Always use the wooden spatula supplied to turn the food on the grill. Tomatoes, fruit and vegetables can be cooking away at the same time in the raclette pans under the griddle.

• RACLETTE

When you start, turn the thermostat to maximum and then turn it down gradually. Cut the cheese into approx. 5 mm thick slices and place it in the raclette pans under the griddle. If there are additional pans, you can preheat or keep the cheese warm on the griddle. Season the raclette to your liking with paprika and pepper.

- CLEANING

○ Periodic cleaning of the raclette/grilling area

■ Always unplug the raclette grill and allow it to cool before cleaning.
- The pans and grilling plate may be cleaned using a nylon pad and a mild liquid soap solution.
■ Never use harsh abrasive or caustic cleansers on the non-stick surface.

○ Cleaning other parts of the raclette grill

■ Always unplug the raclette grill and allow it to cool before cleaning.
- To assure maximum safe operation, keep the unit free of grease and build-up of food particles.
■ Then you can clean it with water.

- DISPOSAL

• For proper disposal, please return device to a retailer, a service agent or Rotel AG.
  European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)

2014/30/EU (Electromagnetic Compatibility Directive)

D/F/I/E

• GARANTIE / GARANTIE / GARANZIA / WARRANTY

• 2 JAHRE GARANTIE
• 2 ANS DE GARANTIE
• 2 ANNI DI GARANZIA
• 2 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-vente: Rotel AG

After-sales service:

5012 Schönenwerd

E-mail: [e-mail]
