DUO - Grill plate ROTEL - Free user manual and instructions

Brand	Rotel
Model	DUO
Product type	Grill and raclette plate
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W (estimated)
Approximate dimensions	40 x 25 x 15 cm
Approximate weight	3 kg
Plate material	Non-stick coating
Number of mini pans	8
Functions	Grill, Raclette
Temperature adjustment	Adjustable thermostat
Care and cleaning	Plate and mini pans washable with soapy water; do not immerse the base
Safety	Hot surface; never leave unattended; unplug before cleaning
Warranty	Free repair for material or manufacturing defects under conditions
Included accessories	8 mini pans, wooden spatula

Frequently Asked Questions - DUO ROTEL

How to use the appliance for the first time?

Wash the mini pans with dish soap and dry them. Wash the plate with clean water and dry it. Apply a heat-resistant oil (e.g., peanut oil) evenly on the plate. Then heat the plate for at least 10 minutes until it is ready.

What types of food can I cook on the grill?

You can grill meat, fish, sausages (cut into slices about 2 cm thick if thick), as well as tomatoes, fruits and vegetables in the mini pans under the grill.

How to prepare raclette?

Turn on the appliance, set the thermostat to maximum then lower it gradually. Cut the cheese into slices about 5 mm thick and place them in the mini pans under the grill. Season with paprika and pepper to taste.

Can I use metal utensils on the plate?

No, only use the provided wooden spatula to turn the food. Metal utensils can damage the non-stick coating.

How to clean the appliance?

Always unplug the appliance and let it cool before cleaning. Clean the mini pans and plate with a nylon cloth and a mild soapy solution. Never use abrasive or corrosive products. The base must not be immersed in water.

What to do if the non-stick coating is damaged?

If the coating is scratched or chipped, stop using the appliance. Contact Rotel customer service for a possible replacement. The warranty does not cover damage due to misuse.

Can the appliance be used by children?

No, this appliance cannot be used by children. It must be kept out of reach of children, and its power cord must not hang over the edge of the table.

What are the important safety instructions?

Never leave the appliance unattended during use. Do not place it near hot or flammable surfaces. Always unplug before cleaning. The surface becomes very hot: use oven mitts.

Can I use an extension cord?

If necessary, use an extension cord suitable for the appliance's power. Ensure it does not hang over the edge of the table to prevent a child from pulling it or tripping.

How to dispose of the appliance at the end of its life?

Do not throw the appliance away with household waste. In accordance with the European directive WEEE (2012/19/EU), take it to a collection point for recycling. Contact your local council or retailer for more information.

USER MANUAL DUO ROTEL

1. Small pan (8x)
2. Griddle
3. Power cord
4. On/Off knob and adjustable temperature control

TECHNISCHE DATEN

• Caracteristiques techniques
• Specifiche tecniche
  Technical specifications

220-240 V	Nennspannung Tension nominale Tensione nominale Rated voltage
50/60 Hz	Nennfrequenz Fréquence nominale Frequenza nominale Rated frequency
350 W	Nenneingangsleistung Puisance d'entrée nominale Potenza nominale Rated input power

Inhaltsverzeichnis / Table des matériès / Indice / Table of contents

Deutsch 5

• Safety instructions 23
  Starting up the appliance 27
  Grilling 27
  Raclette 27
• Cleaning 27
  Disposal 28

D/F/I/E 29

Garantie/Garantie/Garanzia/Warranty 29

Deutsch

SICHERHEITSHINWEISE

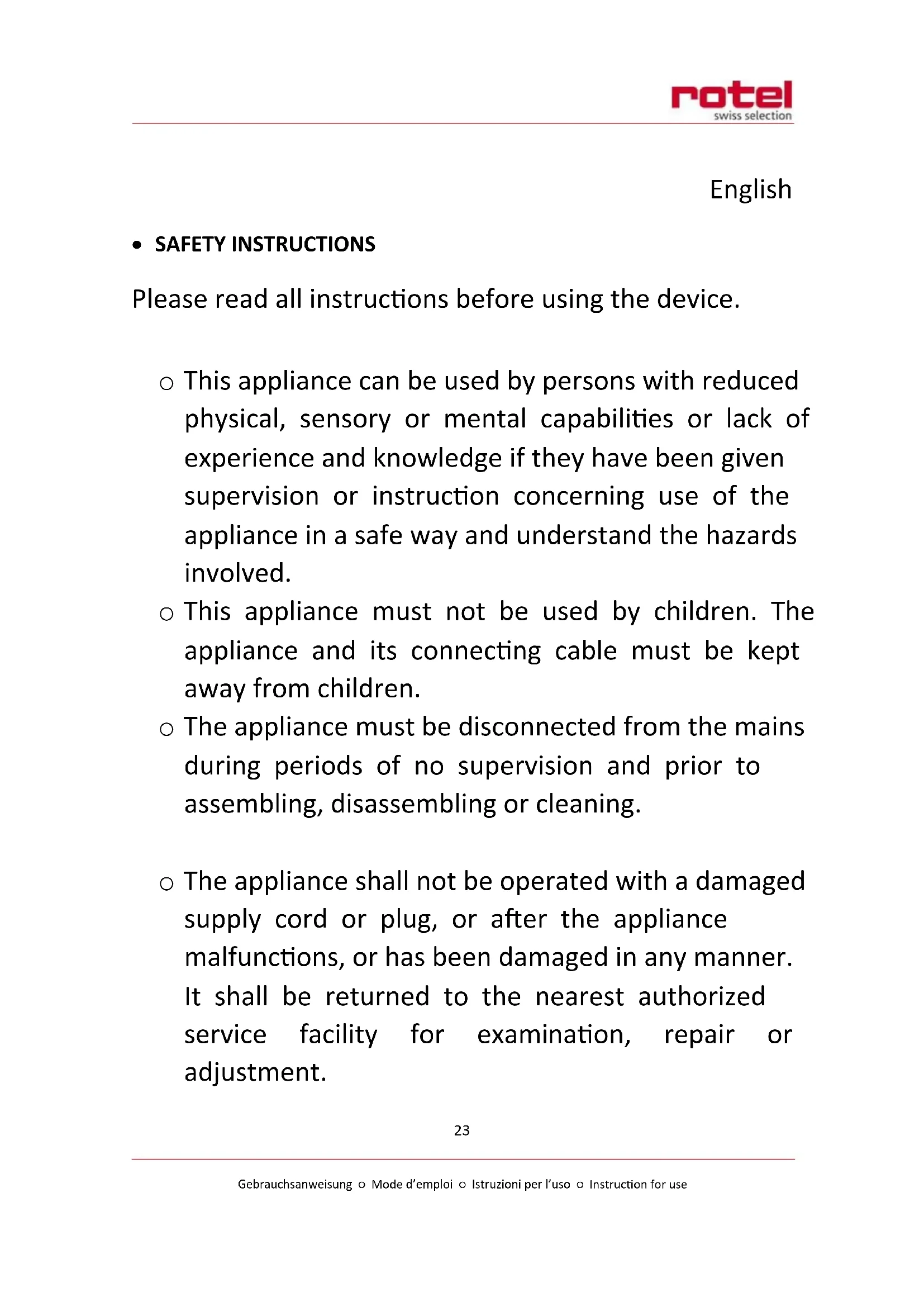

- SAFETY INSTRUCTIONS

Please read all instructions before using the device.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.

• The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

• The appliance shall not be operated with a damaged supply cord or plug, or after the appliance malfunctions, or has been damaged in any manner. It shall be returned to the nearest authorized service facility for examination, repair or adjustment.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The appliance shall be used on a steady, dry and level surface.

• The appliance shall not be placed on or near a hot gas or electric burner.

○ To avoid fire, this appliance shall not be covered or touch flammable material, including curtains, draperies, walls, etc. when in operation.

If the use of an extension cord is required, it should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over accidentally.

• The power cord shall not hang over the edge of a table or counter, or touch hot surfaces.

○ To avoid fire, electric shock and personal injury, the the appliance, its cord or plug shall not be immersed into water or any other fluid.

To assure safe operation, over-sized utensils or food must not be inserted into the raclette grill.
○ CAUTION: Never leave the raclette grill unattended when in use.
CAUTION: HOT SURFACE

The temperature of accessible surfaces may be high when the appliance is operating.

• Do not touch hot surfaces. Use handles and hot pads.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• The appliance shall always be unplugged when not in use or when left unattended. Moreover, it shall be allowed to cool before assembling, disassembling or cleaning.

• Unplug the appliance by grasping the plug and never by pulling the cord.
  ○ Incorrect reassembly or use of any accessory/attachment not recommended or sold by the manufacturer may cause fire, electric shock or personal injury and will void the manufacturer's warranty.
  o Do not use this appliance for other than intended use.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- STARTING UP THE APPLIANCE

Before you use the griddle and raclette pans for the first time, wash them with washing up liquid and dry them.
Place the griddle with the flat side facing upwards.
Before the first use, lightly oil the griddle.
The griddle is preheated to the ideal grilling temperature after about 10 minutes.

GRILLING

• Thermostat at maximum. Season the meat or fish and depending on the thickness, grill it for around 2 to 4 minutes on each side, then add salt. Sausages can be barbecued whole, but we do advise that you cut thick sausages into approx. 2 cm thick slices. Always use the wooden spatula supplied to turn the food on the grill. Tomatoes, fruit and vegetables can be cooking away at the same time in the raclette pans under the griddle.

- RACLETTE

When you start, turn the thermostat to maximum and then turn it down gradually. Cut the cheese into approx. 5 mm thick slices and place it in the raclette pans under the griddle. If there are additional pans, you can preheat or keep the cheese warm on the griddle. Season the raclette to your liking with paprika and pepper.

- CLEANING

Periodic cleaning of the raclette/grilling area

Always unplug the raclette grill and allow it to cool before cleaning.
- The pans and grilling plate may be cleaned using a nylon pad and a mild liquid soap solution.
- Never use harsh abrasives, caustic cleansers on the non-stick surface.

Cleaning other parts of the Raclette grill

Always unplug the raclette grill and allow it to cool before cleaning.
To assure maximum safe operation, keep the unit free of grease and build-up of food particles.
- Then can clean it with water.

DISPOSAL

For proper disposal, please return device to a retailer, a service agent or Rotel AG.

European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

2014/35/EU (Low Voltage Directive)
2014/30/EU (Electromagnetic Compatibility Directive)

D/F/I/E

- GARANTIE / GARANTIE / GARANZIA / WARRANTY

2JAHREGARANTIE
2 ANS DE GARANTIE
2 ANNI DI GARANZIA
2 YEARS WARRANTY

Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-vente: Rotel AG

After-sales service:

5012 Schonenwerd

E-mail: [e-mail]
