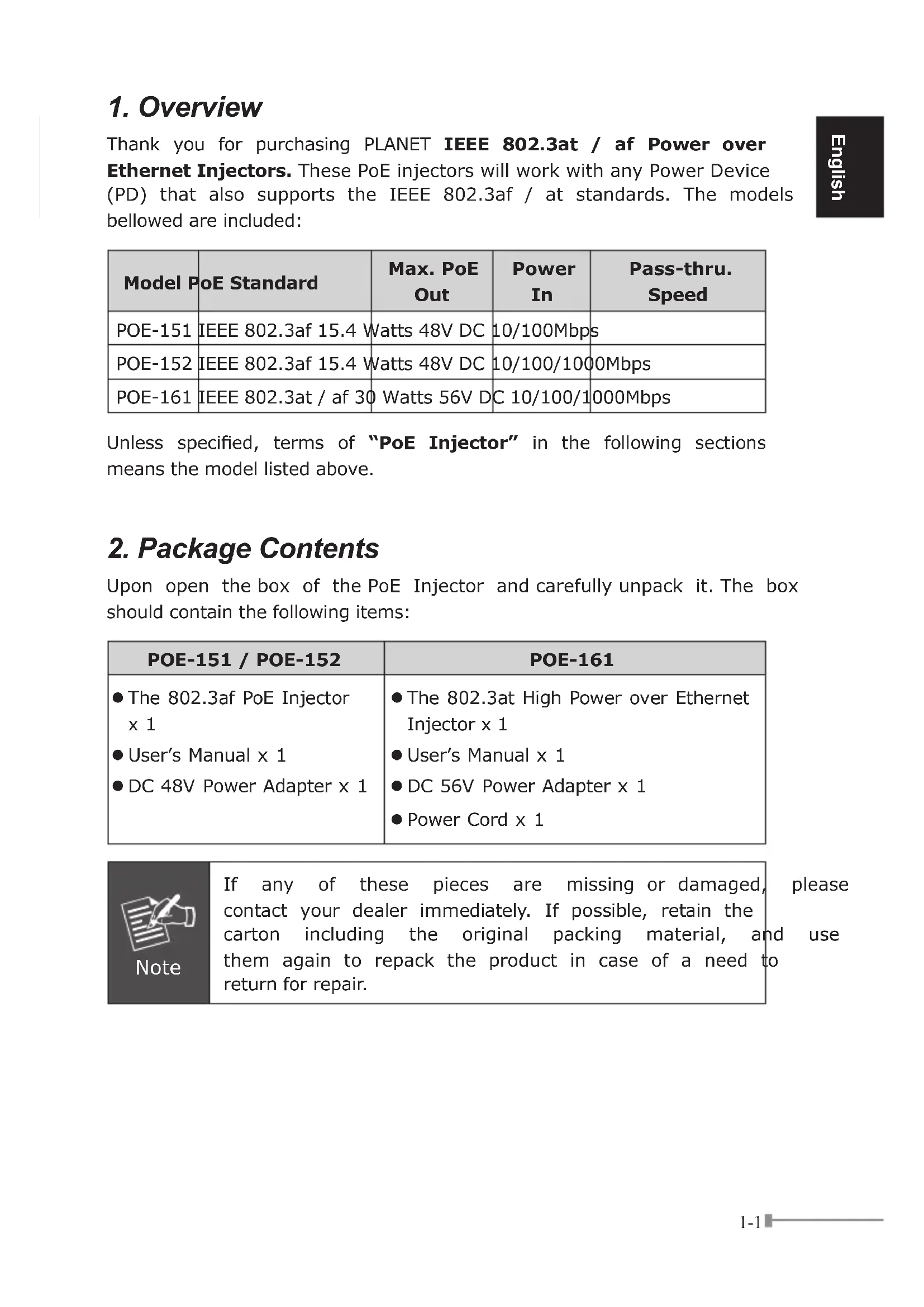

Thank you for purchasing PLANET IEEE 802.3at / af Power over Ethernet Injectors. These PoE injectors will work with any Power Device (PD) that also supports the IEEE 802.3af / at standards. The models bellowed are included:

Model	PoE Standard	Max. PoE Out	Power In	Pass-thru. Speed
POE-151	IEEE 802.3af 15.4	Watts 48V DC	10/100Mbps
POE-152	IEEE 802.3af 15.4	Watts 48V DC	10/100/1000Mbps
POE-161	IEEE 802.3at / af 30	Watts 56V DC	C 10/100/1000Mbps

Unless specified, terms of "PoE Injector" in the following sections means the model listed above.

2. Package Contents

Upon open the box of the PoE Injector and carefully unpack it. The box should contain the following items:

POE-151 / POE-152	POE-161
●The 802.3af PoE Injector x 1 ●User's Manual x 1 ●DC 48V Power Adapter x 1	●The 802.3at High Power over Ethernet Injector x 1 ●User's Manual x 1 ●DC 56V Power Adapter x 1 ●Power Cord x 1

3. Product Outlook

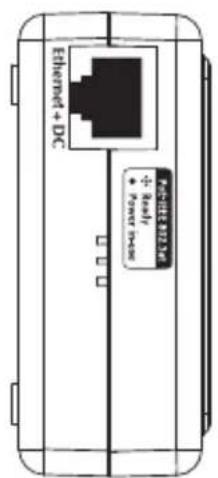

POE-151 / POE-152

There are two RJ-45 Twisted-Pair jack, one DC 48V Power socket and two LED indicators.

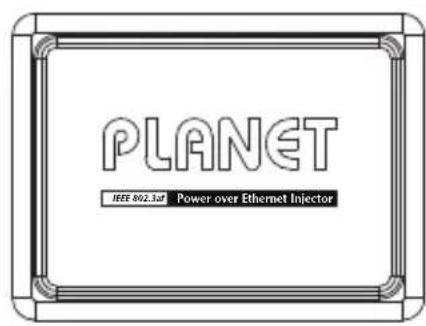

Figure 1: POE-151 / POE-152

POE-161

There are two RJ-45 Twisted-Pair jack, one DC 56V Power socket and two LED indicators.

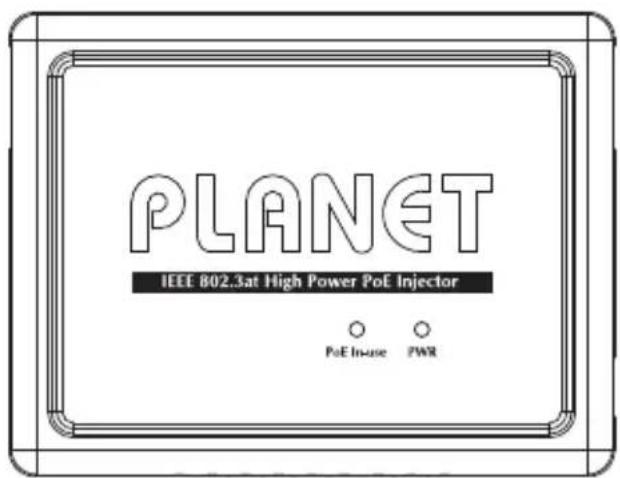

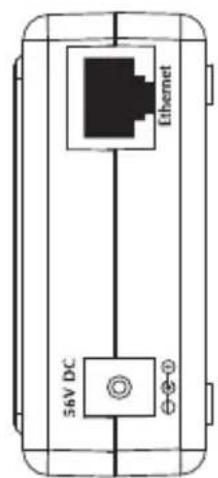

Figure 2: POE-161 Overview

4. LED Indication

LED Description
Power	Lights to indicate that the PoE Injector has power from AC-DC adapter.
PoE In-use	Lights to indicate the PoE Injector is providing DC in-line power.

5. Hardware Installation

This section describes the hardware features of PoE Injector. Before connecting any network device to the PoE Injector, refer to this chapter carefully.

5.1 Before Installation

Before your installation, it is recommended to check your network environment. The PLANET PoE Injector is with an AC-DC adapter and inject the DC power into the pin of the twisted pair cable follow the IEEE standard, the power and pin assignment relationship is the table below:

Model	Required AC-DC adapter Spec.	PoE Pin Assignment
POE-151	Input: 100~240V AC	4/5(+), 7/8(-)
POE-152 1/2	Output: 48V DC
POE-161	Input: 100~240C AC	4/5(+), 7/8(-)
	Output: 56V DC

Category 5/5e/6 UTP/STP cable that with 8-wire are required for the installation. UTP cable with 4-wire (pin 1/2, 3/6) can not work with POE-151/161 and only can work with POE-152 in 10/100Base-TX Ethernet.

Note

PLANET PoE Injector and PLANET PoE Splitter (ex. POE-151S, POE-152S and POE-162S) can be installed in pair. Use of third-party device is allowed if the device complied with IEEE 802.3at or IEEE 802.3af standard.

5.2 PoE Injector Installation

1. Connect a standard network cable from Switch/workstation to "Ethernet" port of PoE Injector.
2. Connect the long cable that will be used to connect to the remote device to the port "Ethernet+DC".

3. Connect the AC adapter to "DC 48V" of POE-151/POE-152. The power LED will be steady on. Connect the AC adapter to "DC 56V" of POE-161. The power LED will be steady on.

4. Connect with IEEE 802.3af devices. Base on IEEE 802.3af the POE-151/POE-152 can directly connect with any IEEE 802.3af end-nodes like wireless access point, VoIP phones and IP camera support IEEE 802.3af Power over Ethernet interface.

Note

For POE-161, base on IEEE 802.3at standard, the POE-161 can directly connect with any IEEE 802.3at end-nodes such as PTZ (Pan, Tilt & Zoom) IP camera, Speed power consumption wireless LAN access point that support IEEE 802.3at Power over Ethernet port.

Dom

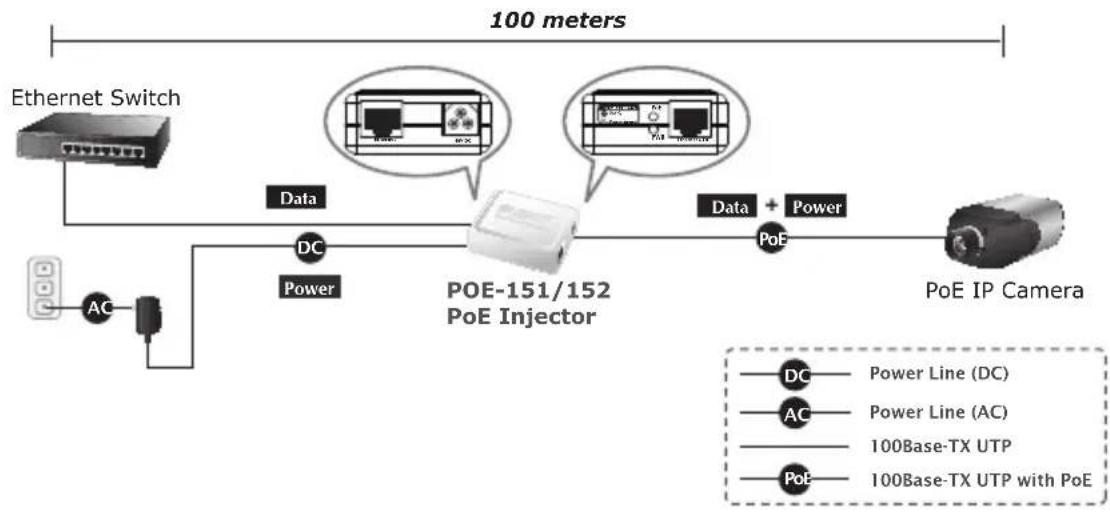

Figure 3: Connection to IEEE 802.3af Device

1. Once POE-151/POE-152 detects the existence of an IEEE 802.3af device, the LED indicator will be steady ON to shows it is power. The same to POE-161 that detects the existence of an IEEE 802.3at / af device.

Note

If the connected device is not fully complying with IEEE 802.3af standard, the LED indicator of POE-151/POE-152 will not be steady on.

Note

1. Since the POE-161 PoE port supports 56V DC PoE power output, please check and assure the Device (PD) acceptable DC power range is from 52 to 56V DC. Otherwise, it will damage the Powered I (PD).

2. If the connected device is not fully complying with IEEE 802.3at / af Power over Ethernet, the LED POE-161 will not be steady on.

5.3 PoE Injector and PoE Splitter Installation

For non PoE remote device or Ethernet equipment, the PoE Injector and PoE Splitter can runs in pair to provide DC Power for those devices, the table below shows the model of PLANET PoE Splitters:

Model PoE Standard DC Power Out Pass-thru. Speed

POE-151S IEEE 802.3af 5V / 12V DC 10/100Mbps

POE-152S IEEE 802.3af 5V / 12V DC 10/100/1000Mbps

POE-162S IEEE 802.3at 12V / 24V DC 10/100/1000Mbps

1. Follow step 1, step 2 and step 3 of Section 5.2 for the connection.
2. Connect the UTP cable in the package from "Ethernet" of the PoE splitter to the RJ-45 port of remote device.
3. Connect proper DC plug from "DC OUT" of PoE Splitter to the remote device.

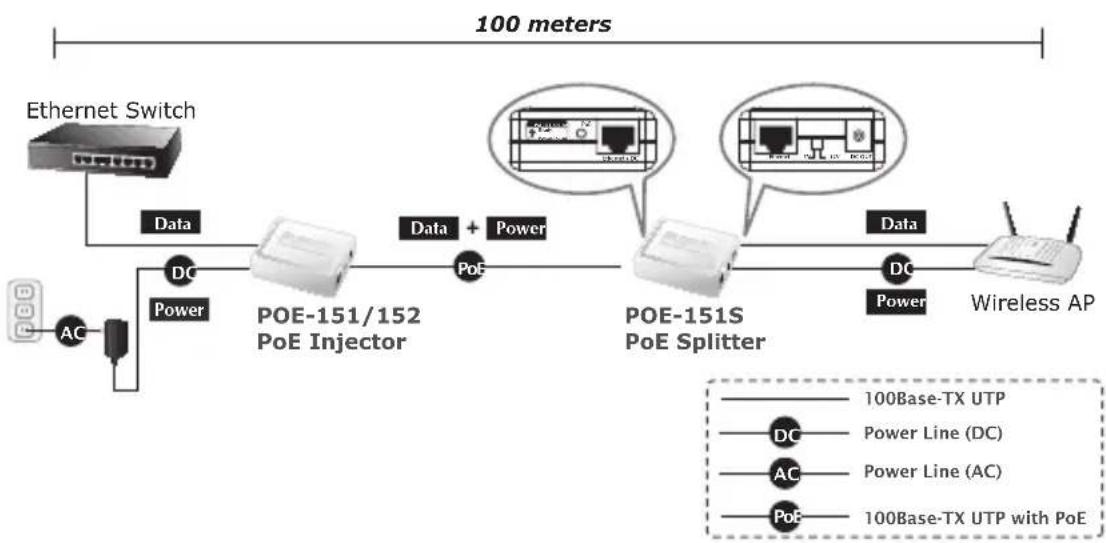

Figure 4: Connection Architecture via PoE Injector and PoE Splitter

6. Product Specification

Product POE-151 POE-152 POE-161
Hardware Specification
Interface	"Data" Input Port 1 x RJ-45 STP
	"PoE (Data+Power)" Output Port	1 x RJ-45 STP
	DC Input power socket	1 x 48V DC 1 x 56V DC
LED Indicator		System: Power x 1 (Yellow) PoE Port: PoE in Use x 1 (Green)		System: Power x 1 (Green) PoE Port: PoE in Use x 1 (Green)
Network Cable UTP Cat. 5/5e/6, up to 100m (328ft)
Data Rate 10/100Mbps 10/100/1000Mbps 10/100/1000Mbps
Dimension (W x D x H) 73 x 55 x 24 mm 73 x 55 x 24 mm 95 x 70 x 25 mm
Weight 50g 50g 83g
Unit Input Voltage	DC 48V, 0.4A	DC 48V, 0.4A		DC 56V, 0.53A
Power Requirement	100-240V AC, 50/60Hz
Power Consumption	15.4 Watts max.	15.4 Watts max.		30 Watts max.
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE			IEEE 802.3at / af Power over Ethernet / PSE
PoE Power Output	DC 48V / 15.4 Watts			DC 56V / 30 Watts
PoE Power supply Type	Mid-Span	End-Span		Mid-Span
Power Pin Assignment	4/5(+), 7/8(-)	1/2(+), 3/6(-)		4/5(+), 7/8(-)
Standards Conformance
IEEE 802.3 10Base-T Ethernet	■	■		■
IEEE 802.3u 100Base-TX Fast Ethernet	■	■		■
IEEE 802.3ab 1000Base-T Gigabit Ethernet	-	■		■
IEEE 802.3af Power over Ethernet	■	■		■
IEEE 802.3at Power over Ethernet	-	-		■
Regulation Compliance	FCC Class B, CE mark	FCC Class B, CE mark		FCC Class A, CE mark
Environment
Operating Temperature	0 ~ 50 Degree C
Storage Temperature	-10 ~ 70 Degree C
Humidity	5 ~ 90% (Non-condensing)

1. Vue d'ensemble

Upon open the box of the PoE Injector and carefully unpack it. The box should contain the following items:

5.1 Before Installation

5.3 IPOE Injector and PoE Splitter Installation

5.3 PoE Injector and PoE Splitter Installation
