HST010 - Mp3 player Hipstreet - Free user manual and instructions

Frequently Asked Questions - HST010 Hipstreet

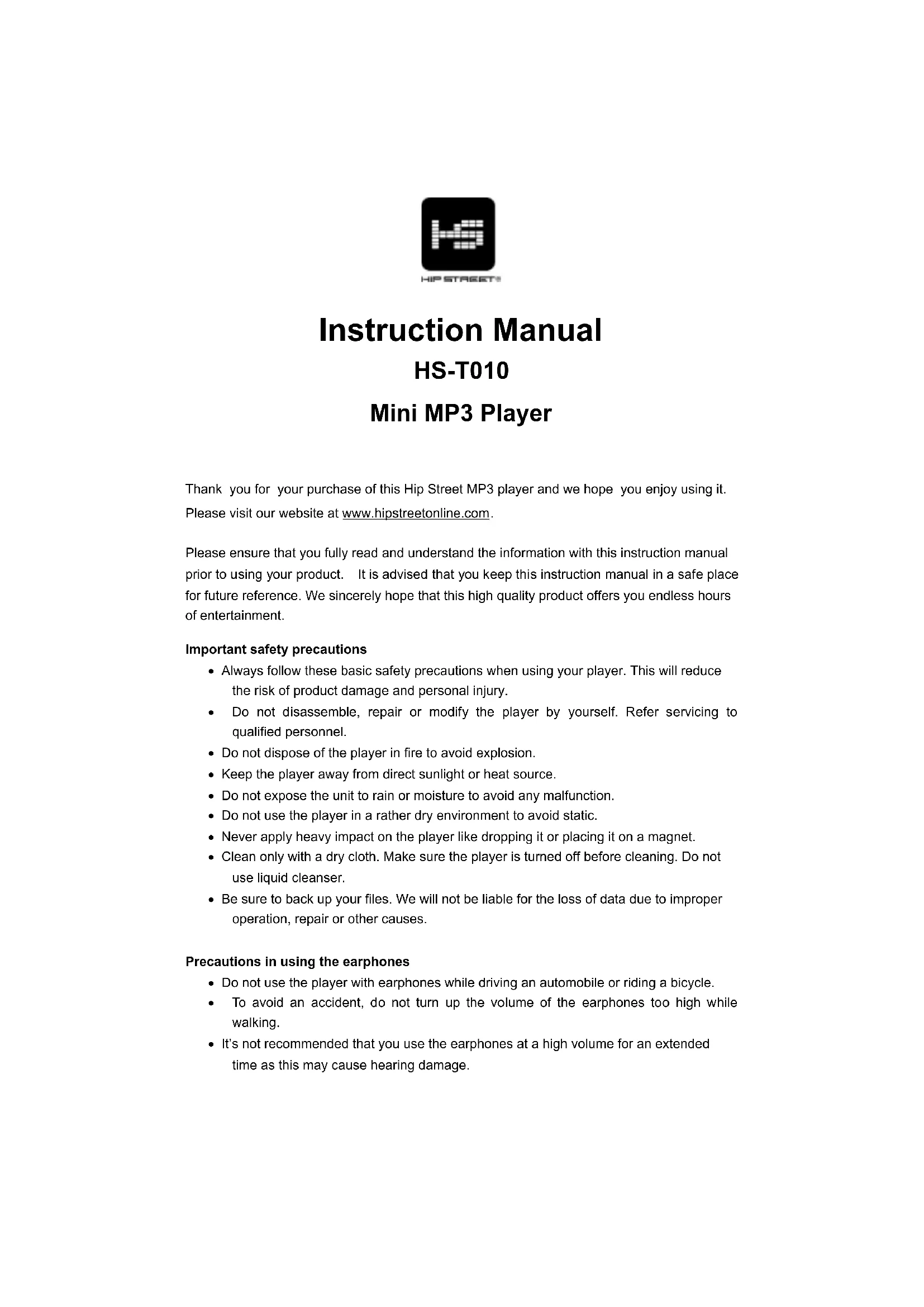

USER MANUAL HST010 Hipstreet

Thank you for your purchase of this Hip Street MP3 player and we hope you enjoy using it.

Please visit our website at www.hipstreetonline.com.

Please ensure that you fully read and understand the information with this instruction manual prior to using your product. It is advised that you keep this instruction manual in a safe place for future reference. We sincerely hope that this high quality product offers you endless hours of entertainment.

Important safety precautions

• Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and personal injury.
• Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.
• Do not dispose of the player in fire to avoid explosion.
• Keep the player away from direct sunlight or heat source.
• Do not expose the unit to rain or moisture to avoid any malfunction.
• Do not use the player in a rather dry environment to avoid static.
• Never apply heavy impact on the player like dropping it or placing it on a magnet.
• Clean only with a dry cloth. Make sure the player is turned off before cleaning. Do not use liquid cleanser.
• Be sure to back up your files. We will not be liable for the loss of data due to improper operation, repair or other causes.

Precautions in using the earphones

• Do not use the player with earphones while driving an automobile or riding a bicycle.
• To avoid an accident, do not turn up the volume of the earphones too high while walking.
• It's not recommended that you use the earphones at a high volume for an extended time as this may cause hearing damage.

Features

• 2GB memory capacity
• MP3 / WMA Player
• Works as a memory storage device (USB flash drive)

Connecting with the Computer

System requirements

Your computer system must meet the following specifications:

• Pentium 200MHz or above
- Microsoft Windows 2000/ME/XP/Vista, Mac OS 10.3+
• 120MB of available hard disk space
- USB port supported

Connecting the player to computer

Before connecting the player, make sure your computer is powered on.

1. Insert the USB cable provided into the player and computer.
2. For Windows, the computer system detects "New hardware" and starts to install the driver automatically. Wait for the system to finish the installation. When it has finished, a new "Removable Disk" will be created in "My Computer". For Mac, the computer will detect the player as a "NO Name" drive.

Loading files to the player

To download the files from your computer, perform the following steps.

1. Open Windows Explorer or My computer. "Removable Disk" will be displayed.
2. Select the files on your computer and simply move it into the "Removable Disk" in the usual way (drag-and-drop or copy-and-paste). After copying is completed, the data will be available on the MP3 player.

Note:

- Do not disconnect the player during loading. It may cause malfunction of the player and the files.

Disconnecting the player

After completing the file transfer, safely disconnect the MP3 player.

1. Double click the green arrow "Safety Remove Hardware" in the taskbar on the bottom right of the window.
2. Select "USB Device" and click "Stop".
3. When the "Stop a Hardware device" appears, click "OK" to disconnect the USB mass storage device. Then you can unplug the player safely.

Mass Storage

The MP3 player can be used to store any type of file as a USB flash drive. It can, for example, be used to simply transfer files from one computer to another or as a back-up device.

Charging the battery

The battery of the player is charged automatically when the player is connected to the computer. Ensure the computer is turned on.

The battery of the player is 80% charged in about one hour and fully charged in about two hours. If you charge the player while loading files to the player, it may take longer.

During charging, the indicator flashes slowly. When the player is fully charged, the indicator will stop flashing and illuminate permanently.

Diagram

1 2 3 4 5 6 - 9 8 7 10

1. Master Power Switch
2. USB Port
3. Indicator Light
4. Volume Increase
5. Play/ Pause and On/Off
6. Fast Forward
7. Lanyard Loop
8. Volume Decrease
9. Earphone Jack
10. Rewind

Power on/off the player

Ensure to slide the master Power Switch to the On position.

Press and hold the ON/Off button to turn on and off the unit.

Playing music

Press the Play/Pause button to play and pause music.

Press the Fast Forward or Rewind buttons to skip to the next or previous song.

Press and hold the Fast Forward or Rewind buttons to forward or rewind within the song.

Adjusting the volume

Press and hold the + or - button to increase or decrease the volume.

Troubleshooting

If you have problems in operating your player, please check the points below before sending it to the service center.

Cannot power on

- The battery may be exhausted. Please recharge the battery.

Files cannot be downloaded

• Check the connection between the player and PC.
• The memory capacity may be full.

No sound from the earphone

• Please ensure the volume is not fully decreased and earphone jack is connected properly.
• Check if the format of music file is supported by the player.

The buttons do not work

- Please ensure the Master Power Switch is on.

Need assistance? Please call us!

If you encounter any difficulties with this product, please visit our website at www.hipstreetonline.com and review our support section or call us. Our representatives are ready to help you with any questions about your product. We can guide you through connections, first-time use, or any of the features. Just give us a call or send us an email.

Customer & Technical Support: 1-888-4KOBIAN or 1-888-456-2426

Monday through Friday: 8:30am – 5:00pm EST

Email: [e-mail]

We want you to start enjoying your product right away!
