USER MANUAL HS200 HD Hipstreet

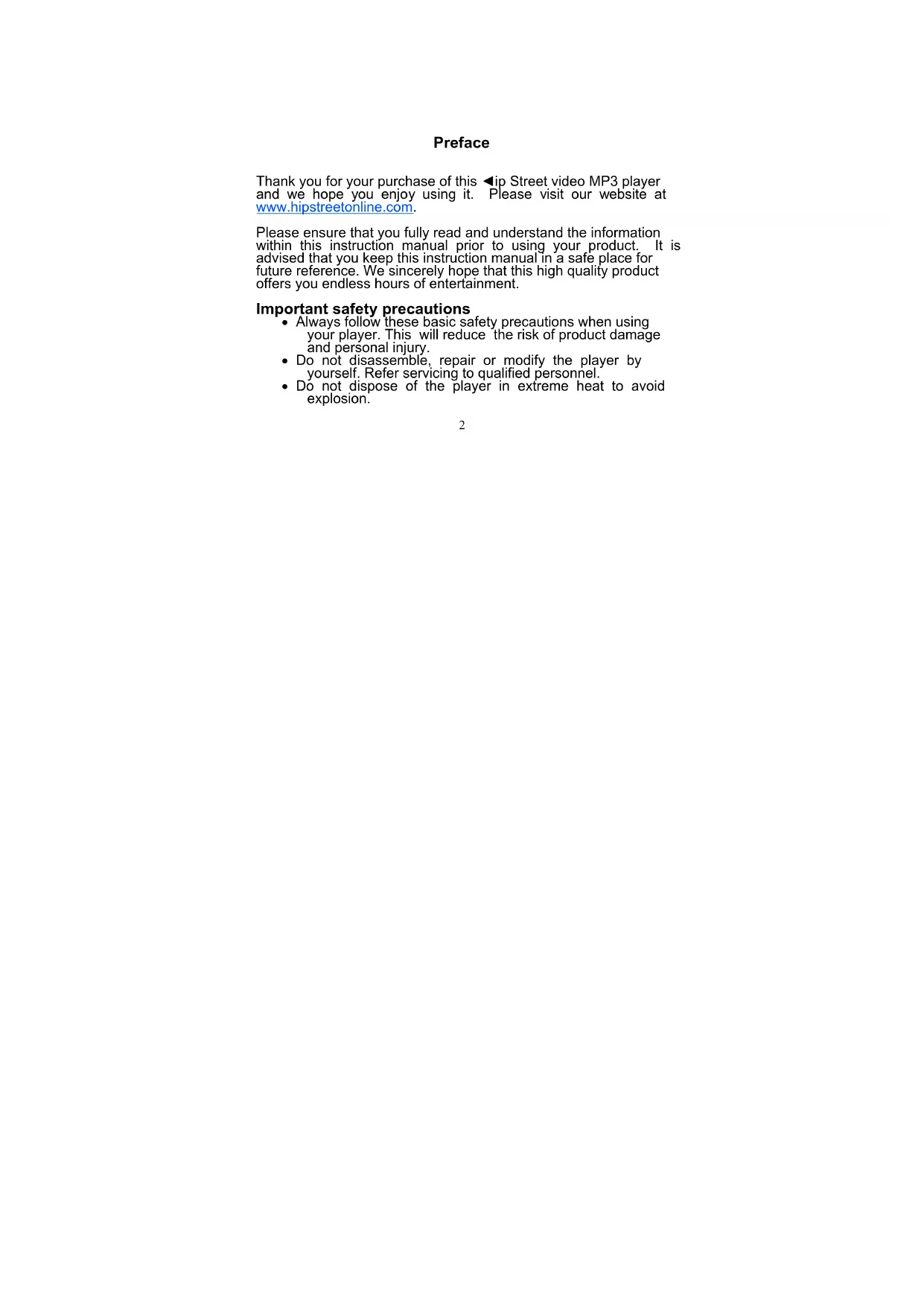

HS-200 High Definition Video MP3 Player Instruction Manual2 Preface Thank you for your purchase of this Hip Street video MP3 player and we hope you enjoy using it. Please visit our website at www.hipstreetonline.com. Please ensure that you fully read and understand the information within this instruction manual prior to using your product. It is advised that you keep this instruction manual in a safe place for future reference. We sincerely hope that this high quality product offers you endless hours of entertainment. Important safety precautions

• Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and personal injury.

• Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.

• Do not dispose of the player in extreme heat to avoid explosion.3

• Keep the player away from direct sunlight or heat source.

• Do not expose the unit to rain or moisture to avoid any malfunction.

• Do not use the player in a rather dry environment to avoid static.

• Never apply heavy impact on the player like dropping it or placing it on a magnet.

• Clean only with a dry cloth. Make sure the player is turned off before cleaning. Do not use liquid cleanser.

• Be sure to back up your files. We will not be liable for the loss of data due to improper operation, repair or other causes. Precautions in using the earphones

• Do not use the player with earphones while driving a motor vehicle or riding a bicycle.

• To avoid an accident, do not turn up the volume too high while walking.

• It’s not recommended that you use the earphones at a high volume for an extended time as this may cause hearing damage.4 System Requirements

• Video card: above 800x640, enhanced color, minimum16 bits

• Available USB port Product and Battery Disposal This product contains a built-in lithium battery and should not be disposed of in normal household waste. For disposal and recycling, please contact your local waste management authorities. The recycling and processing of electronic waste will make a significant contribution towards helping protect the environment. FCC WARNING:5

This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and the Canadian ICES-003. Operation is subject to the following conditions: - This device may not cause harmful interference, and - This device must accept any interference received, including interference that may cause undesired operation. Table of Contents Features 6 Basic Operation Instructions 7 Basic Operation (On/Off) 8 Functions 9 Photo 10 E-book / Recording 11 & 12 Music / Video 14 & 15 Calendar / FM radio 16 & 17 Alarms / Setting 18 & 19 File Transfer 246 Features Screen: 3.6inch TFT (480X272) high resolution display Video: Supported various video formats, including

Audio: Supported various music formats, including MP3/WMA Photo: Supported JPG image file. FM Radio Alarm clock, Calendar, Time EBook: Supported Notepad’s TXT file Multi-Language (English/French/Spanish/Chinese/Japanese/Korea…) MicroSD memory card expandable USB2.0 connectivity Built-in internal speaker Built-in Li-polymer rechargeable battery and qualified speaker7 Basic Operating Instructions A. Buttons & Sockets

Push the button to “ON/OFF” position for 3 seconds to power on. Perform the same procedure to turn the player off. Note: the player will turn off automatically if the battery is low.

2. Navigating System Menu

Press (►►) / (◄◄) to scroll through items in system menu and then press (►II) to enter. At any time, press (M) to exit or return to previous screen.

3. Playing Music & Video

In Music mode, press (+) / (-) to select the song from the list and then press (►II) to play. Press the same button again to pause. In Video mode, press (+) / (-) to select the video from the list and then press (►II) to play. Press the same button again to pause.

4. Volume Adjustment

When listening to music, the radio or viewing video, you can adjust the volume by pressing the (+) / (-) buttons.

5. Charging the Battery9

Connect the player to your computer via USB. Leave your system ON and the player connected for approximately 3 hours to charge the battery. Battery playback time varies with the volume, file type, button operation, User can set “Auto power-off” or “Auto screen-off” to increase the playback time.

Plug the player to your computer and then “drag n drop” your MP3 music files to the removable disk. Functions ● Main Menu When you first turn the player ON, the main menu will display on the screen. You can access different modes or switch functions from this screen.10 In main menu screen, press (►►) / (◄◄) to select “Music”, “Video”, “Calendar”, “Game”, “Radio”, “Alarm”, “Settings”, “Resource Manager”, “Photo”, or “EBook”, and then press (►II) to enter. ● Photo

Select “Photo” from main menu and press (►II) to enter the photo browsing interface.11

Operations: Choose the image you want to view and press (►II) to start photo browsing. Press (►►) / (◄◄) to select next or previous image, press (+) / (-) to zoom in or zoom out on the image. When browsing photos, press and hold (M) to bring up the sub-menu. In sub-menu screen, press (+) / (-) to select “Slide show”, “Delete Photo”, “Photo Information”, or “Exit” and then press (►II) to enter. A. Slide - Options

1. Slide Show Order, Slide Show Random, Slide Show Off.

2. Slide time setting: 3 Seconds, 5 Seconds, 10 Seconds.

3. Exit: Return to previous interface.12

B. Delete Photo Select this option and press (►II) to delete current picture. A confirmation screen will display. Select “Yes” or “No” and then press (►II) to accept. C. Photo Information Select this option and press (►II) to display image properties. Name, Date/Time, File Size, Resolution, and File Type will display on the screen. D. Exit Select this option and press (►II) to exit sub-menu screen.13 ● EBook

Select “EBook” from main menu and press (►II) to enter EBook interface. Operations: Choose a text file you want to open and press (►II) to start viewing the text file. Press (+) / (-) to select next or previous page, press (►II) to enable auto scrolling.14 When viewing a text file, press and hold (M) to bring up the sub-menu. In the sub-menu screen, press (+) / (-) to select “New bookmark”, “Bookmark list”, or “Turn on effects” and then press (►II) to enter. A. New bookmark Select this option and press (►II) to create a bookmark. B. Bookmark list Select this option and press (►II) to view the bookmark list. Choose the bookmark point and press (►II) to advance to the selected bookmark. C. Turn on effect Select this option and press (►II) to enable effect for auto scrolling.15 ● Record

Select “Record” from main menu and press (►II) to enter record interface. Operations

In record interface, press (►II) to start recording. When recording, press (►II) to stop and save the recording, press (►II) again to start playing the recorded file. In Record interface, press and hold (M) to bring up the sub-menu.16 A. New Record Select this option and press (►II) to create/start a new recording. B. Delete Record Select this option and press (►II) to delete current recording. C. Return Select this option and press (►II) to exit sub-menu screen. ● Resource Manager Select “Resource manager” from main menu and press (►II) to enter file browser interface. Operations: In file browser interface, press (►II) to open folder. When viewing file list, press (►II) to open selected file. Press (M)17 to exit or return to previous screen. In file list, press and hold (M) to bring up the delete option. Select “Yes” or “No” and press (►II) to confirm. ● Music

Select “Music” from main menu and press (►II) to enter music interface. By default your music are saved in the “MUSIC” folder, select this location and press (►II) to open.18 Operation: In music list interface, press (►II) to play selected track. When music is playing, press (►►) / (◄◄) to advance next track or go back previous track. Press (+) / (-) to adjust the volume. Press (M) to exit or return to previous screen. Press and hold (M) to toggle between Repeat One, Repeat All, and No Repeat. In music list interface, press and hold (M) to bring up sub-menu. A. Delete File Select this option and press (►II) to delete selected file (or track). B. Set alarm tone Select this option and press (►II) to set selected tone for alarm.19 ● Video

Select “Video” from main menu and press (►II) to enter video list interface. Operation: In video list interface, press (►II) to play selected video. When video is playing, press (►►) / (◄◄) to advance next video or go back previous video. Press (+) / (-) to adjust the volume. Press (M) to exit or return to previous screen.20 Press and hold (M) to toggle between Repeat One, Repeat All, and No Repeat. In video list interface, press and hold (M) to bring up delete option. Select “Yes” or “No” and press (►II) to confirm. ● Calendar Select “Calendar” from main menu and press (►II) to enter calendar interface. You can view the date, month and year in this calendar. Operation: In calendar viewing interface, press (►►) / (◄◄) to advance next month or go back previous month. Press (+) / (-) to advance next year or go back previous year. Press (M) to exit or return to previous screen.21 ● FM Radio

Plug in earphone. Select “FM Radio” from main menu and press (►II) to enter radio interface. Operation: In radio interface, press (►►) / (◄◄) to tune channels. Press (+) / (-) to adjust the volume. Press (M) to exit or return to previous screen.22 Press and hold (M) to bring up sub-menu. A. Manual scan Select this option and press (►II) to freely tune your own channels. B. Auto search Select this option and press (►II) to scan and find channels automatically. All the channels will be saved in the preset. C. Save channel Select this option and press (►II) to save the channel in the preset. D. Preset mode Select this option and press (►II) to enable preset mode. You can only tune to channels that were saved by auto-scan or yourself.23 E. Delete Select this option and press (►II) to delete a channel in the preset list. ● Alarms Select “Alarm” from main menu and press (►II) to enter alarm interface. Operation: In alarm interface, select ON or OFF by pressing (►II). A. Alarm time setting Select this option and press (►II) to enter alarm time setting. In alarm time setting interface, press (►II) to set the time. Press (+) / (-) to adjust the hour and minute. Press (►►) / (◄◄) to toggle between hour and minute.24 ● Settings

Select “Settings” from main menu and press (►II) to enter settings interface. Operations: In settings interface, press (►►) / (◄◄) or (+) / (-) to select “Language”, “Date/Time”, “TV”, “Memory”, “Speaker”, “Auto screen-off”, “Auto power-off”, “System default settings”, “System Information”, or “Video Screen Ratio”, and then press (►II) to enter.25 A. Language Select this option and press (►II) to enter language setting interface. You can choose one of these languages: English, French, Spanish, Chinese and so on. Press (M) accept your choice. Press (►II) to go back previous screen. B. Date/Time Select this option and press (►II) to enter date/time setting interface. In date/time setting interface, select the “date” or “time” to change and press (►II) to modify. Time adjustment: Press (+) / (-) to adjust the hour and minute. Press (►►) / (◄◄) to toggle between hour and minute. Press (M) to save and exit.26 Date adjustment: Press (+) / (-) to adjust the year, month, and day. Press (►►) / (◄◄) to toggle between year, month and day. Press (M) to save and exit. C. Memory Select this option and press (►II) to enter memory interface. In memory interface, select the “Flash partition-1” or “TF card partition-1” and press (►II) to review capacity. Flash partition-1 is the internal memory. TF card partition-1 is the micro SD memory card. When viewing selected partition, press (+) / (-) to toggle between “Working Space” and “Format”.27 Working Space Select this option and press (►II) to use selected partition for storage. NOTE: files on unselected partition will not be accessible. Format Select this option and press (►II) to erase all data on selected partition. D. Speaker Select this option and press (►II) to enable and disable built-in speaker. E. Auto screen-off The display will turn off after a set time. Select this option and press (►II) to enter language setting interface. You can choose one of these choices: Disable, 20 Seconds, 128 Minute, and 3 Minutes. Press (M) to accept your choice. Press (►II) to go back previous screen. F. Auto power-off The player will turn off after a set time. Select this option and press (►II) to enter language setting interface. You can choose one of these choices: Disable, 20 Seconds, 1 Minute, and 3 Minutes. Press (M) to accept your choice. Press (►II) to go back previous screen. G. System default settings Select this option and press (►II) to reset all settings to factory default. H. System Information Select this option and press (►II) to view system information.29

I. Video Screen Ratio

Select this option and press (►II) to enter video screen ratio setting interface. You can choose “Keep Aspect” or “Full Screen” and press (M) to accept your choice. File Transfer An easy way to understand this process is to think of the MP3 player as a place to store files, much like a memory stick. All you need to do is transfer files in compatible format (such as MP3s) to the device from the computer. The simplest way to transfer files is to simply use the file explorer on the computer to move files onto your MP3 player. The MP3 player by default will displayed as a “removable disk” on the computer.30

1. Connect the player to your computer.

2. Wait for your computer to find and recognize the player.

3. Open the removable disk drive from My Computer (or

4. Open a folder containing music files that is stored in your

5. Left-click on a song file and drag it to the removable disk’s

window. Drop the file and let your computer complete the transfer.

6. SAFELY UPLUG your MP3 player from your computer.

Compatible Files Here is a list of compatible files you can put on this player. Music: MP3, WMA Video: AVI/MPG/MPEG/RM/RMVB Photo: JPG EBook: TXT31 Need assistance? Please call us! If you encounter any difficulties with this product, please visit our website at www.hipstreetonline.com and review our support section or call us. Our representatives are ready to help you with any questions about your product. We can guide you through connections, first-time use, or any of the features. Just give us a call or send us an email. Customer & Technical Support: 1-888-4KOBIAN or 1-888-456-2426 Monday through Friday: 8:30am – 5:00pm EST Email: support@hipstreetonline.com We want you to start enjoying your product right away!1
