USER MANUAL HSU01 Hipstreet

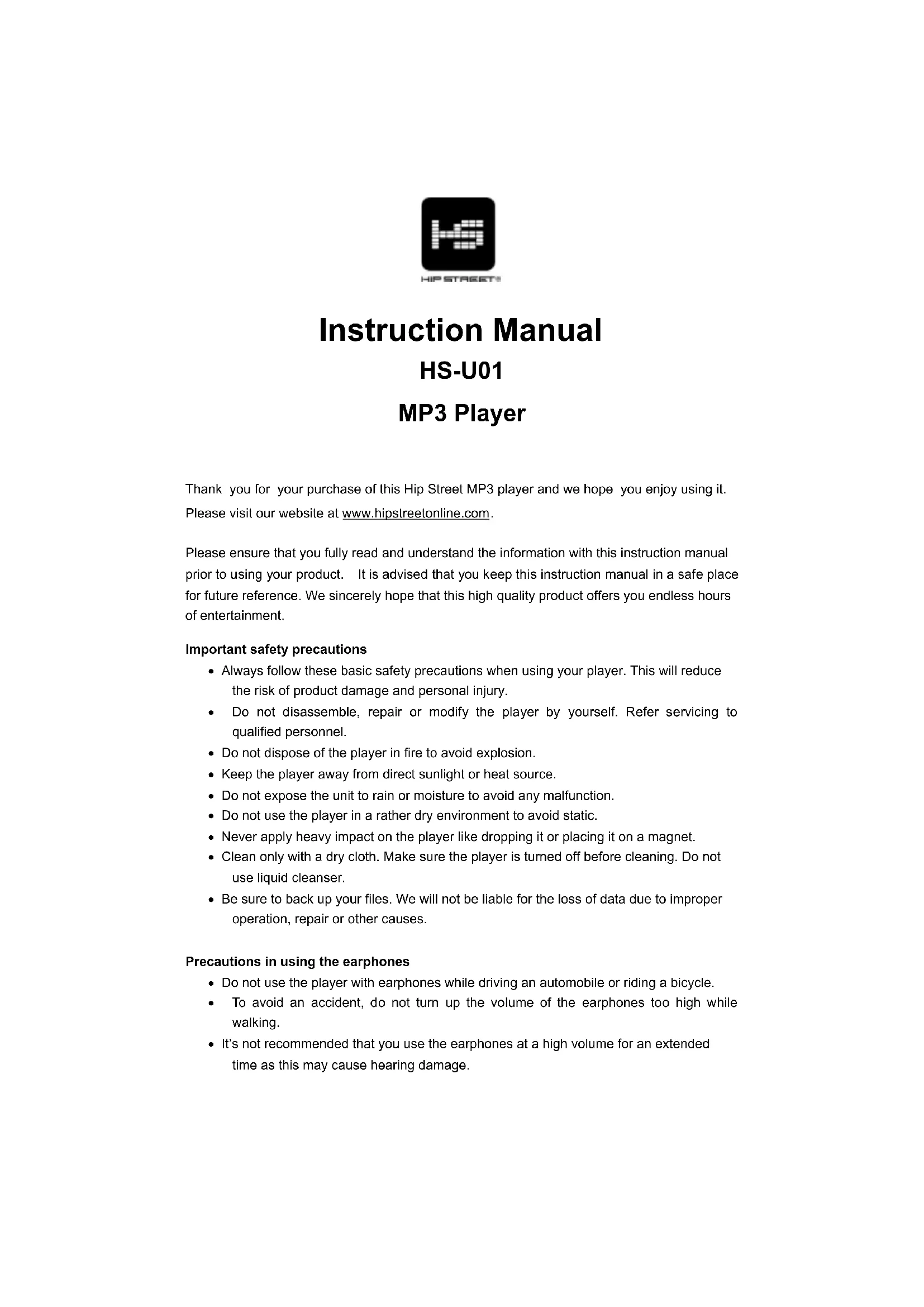

Instruction Manual HS-U01 MP3 Player Thank you for your purchase of this Hip Street MP3 player and we hope you enjoy using it. Please visit our website at www.hipstreetonline.com

Please ensure that you fully read and understand the information with this instruction manual prior to using your product. It is advised that you keep this instruction manual in a safe place for future reference. We sincerely hope that this high quality product offers you endless hours of entertainment. Important safety precautions

• Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and personal injury.

• Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.

• Do not dispose of the player in fire to avoid explosion.

• Keep the player away from direct sunlight or heat source.

• Do not expose the unit to rain or moisture to avoid any malfunction.

• Do not use the player in a rather dry environment to avoid static.

• Never apply heavy impact on the player like dropping it or placing it on a magnet.

• Clean only with a dry cloth. Make sure the player is turned off before cleaning. Do not use liquid cleanser.

• Be sure to back up your files. We will not be liable for the loss of data due to improper operation, repair or other causes. Precautions in using the earphones

• Do not use the player with earphones while driving an automobile or riding a bicycle.

• To avoid an accident, do not turn up the volume of the earphones too high while walking.

• It’s not recommended that you use the earphones at a high volume for an extended time as this may cause hearing damage.Features

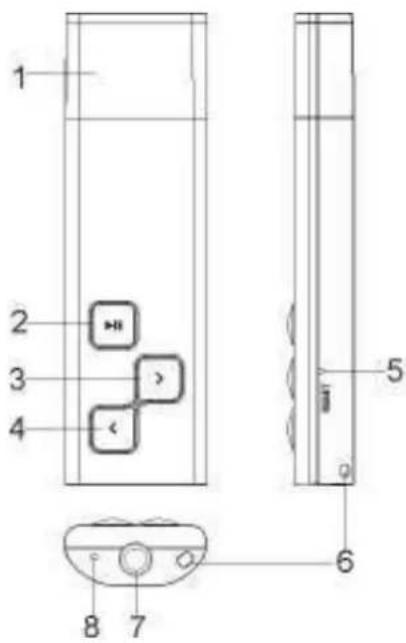

• Works as a memory storage device (USB flash drive) Diagram

2. Play/Pause button; press and hold to Power On/Off

3. Next / Volume increase

4. Previous / Volume decrease

Connecting with the Computer System requirements Your computer system must meet the following specifications:

• USB port supportedConnecting the player to computer Before connecting the player, make sure your computer is powered on.

1. Insert the USB cable provided into the player and computer.

2. For Windows, the computer system detects “New hardware” and starts to install the driver

automatically. Wait for the system to finish the installation. When it has finished, a new “Removable Disk” will be created in “My Computer”. For Mac, the computer will detect the player as a “NO Name” drive. Loading files to the player To download the files from your computer, perform the following steps.

1. Open Windows Explorer or My computer. “Removable Disk” will be displayed.

2. Select the files on your computer and simply move it into the “Removable Disk” in the

usual way (drag-and-drop or copy-and-paste). After copying is completed, the data will be available on the MP3 player. Note:

• Do not disconnect the player during loading. It may cause malfunction of the player and the files. Disconnecting the player After completing the file transfer, safely disconnect the MP3 player.

1. Double click the green arrow “Safety Remove Hardware” in the taskbar on the bottom

right of the window.

2. Select “USB Device” and click “Stop”.

3. When the “Stop a Hardware device” appears, click “OK” to disconnect the USB mass

storage device. Then you can unplug the player safely. Mass Storage The MP3 player can be used to store any type of file as a USB flash drive. It can, for example, be used to simply transfer files from one computer to another or as a back-up device. Charging the battery The battery of the player is charged automatically when the player is connected to the computer. Ensure the computer is turned on. The battery of the player is 80% charged in about one hour and fully charged in about two hours. If you charge the player while loading files to the player, it may take longer. During charging, the indicator flashes slowly. When the player is fully charged, the indicator will stop flashing and illuminate permanently. Power on/off the player Press and hold the Play/Pause button to turn on and off the unit. If there is no music on the player when turned on, the indicator light will flash quickly.Playing music Press the Play/Pause button to play and pause music. Press the Next or Previous buttons to skip to the next or previous song. When the music is playing, the indicator light will flash slowly. When the music is paused, the indicator light will illuminate permanently. Adjusting the volume Press and hold the Next or Previous buttons to increase or decrease the volume while playing music. Locking all buttons This prevents you from inadvertently pressing buttons while using the MP3 player

• If no buttons are pressed for 20 seconds during playback, it will lock automatically. The indicator light will flash 3 times quickly.

• To disable the lock function, press and hold the Play / Pause button. Resetting the player If a malfunction occurs, take a metal pin (end of a paper clip) and press it into the RESET hole to re-initialize the player back to factory default settings. Troubleshooting If you have problems in operating your player, please check the points below before sending it to the service center. Cannot power on

• The battery may be exhausted. Please recharge the battery. Files cannot be downloaded

• Check the connection between the player and PC.

• The memory capacity may be full. No sound from the earphone

• Please ensure the volume is not fully decreased and earphone jack is connected properly.
