USER MANUAL BBK300 BEEWI

For additional languages, visit our website

www.bee-wi.com

User's guide

ENGLISH 4

FRANCAIS 12

DEUTSCH 20

ITALIANO 28

ESPAñOL 36

PORTUGUES 42

NEDERLANDS 50

Thank you for purchasing the Mini Bluetooth Keyboard from BEEWI. Please read the following instructions to learn how to configure and use more effectively your product

INTRODUCTION

The Mini keyboard BBK300 can be used for emails, chat, internet browsing or to enjoy your favourite games. It is compatible with desktop computers running Windows® or Linux® but also with handhelds running iPhone®, Windows Mobile® or Symbian® S60 Operating systems.

It also supports the Sony® PlayStation®3. Use it with your HTPC on your sofa or browse the internet in the most comfortable manner.

1.PRODUCT DESCRIPTION

1.1. Packaging content

• Keyboard
• USB charging cable
• CDROM with UG and drivers

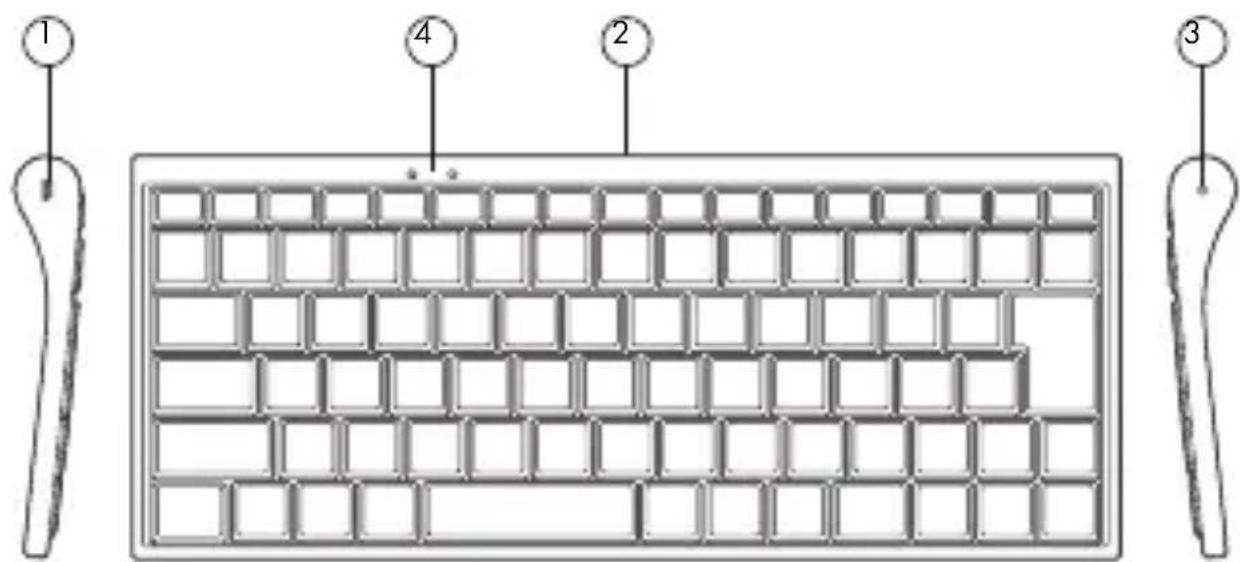

1.2. Product Outlook

1. Charging connector
2. On/Off switch
3. Pairing button
4. LED indicators

Note about AZERTY Keyboard:

The positions of the keys on french AZERTY keyboard may change according to the operating system you use, some keys have double marking. As an example: on Mac OS®, iPad® and iPhone® the combination Shift+6 will display § and on Windows®, Windows Mobile®, Symbian® the combination will display -.

1.3. Specifications

Bluetooth Specification: Version 2.0 Class 2

HID Profile 1.0

Li-ion Battery

Range : 10 metre

Dimensions:246mm(L)×101.7mm(W)×6.0mm(H)

1.4. System Requirements

Apple iPad

Apple iPhone® 3Gs with OS4.0 or above

Microsoft Windows Mobile® 5.0 or above

Nokia Symbian® S60 System

SonyPlaystation3

Bluetooth Enabled PC running under Windows® XP, VISTA or 7 OS

Bluetooth Enabled Mac computers running under Mac OS® 10.2.8 or above

1.5. Charging the keyboard

Connect the mini Bluetooth keyboard to your computer's USB port using the USB cable.

When charging, the red LED will light on. When charging is complete, the LED will turn off.

When battery is low, the green LED will blink every second.

1.6. Pairing with a Bluetooth device

Switch the keyboard ON, using the ON/OFF button. The green LED will light on for 1 second. Push the pairing button with a paper clip, on the right

side of keyboard. The green LED will light for 2 seconds then it will start blinking roughly every second. Now the Mini Bluetooth keyboard is under pairing state and it's waiting for connecting with your device. Once the pairing done, the light will turn off.

2. DRIVER INSTALLATION & CONNECTION WITH DEVICES

Before using the keyboard, it will be necessary to install a dedicated driver in your Smartphone. The following sections are describing the installation, pairing and connection procedure for each system.

2.1. iPhone (OS 4.0) / iPad

You don't need any driver to connect BBK300 to iPhone. Follow the below instructions on iPhone and keyboard:

1. Check that keyboard is in pairing mode.
2. On iPhone, open Settings and select Bluetooth. Enable Bluetooth if disabled.
3. in the Bluetooth devices list, search for « BeeWi BBK300 » and select to pair.
4. Enter the pairing code displayed on screen on the keyboard and confirm with Enter.
5. Pairing and connection are confirmed on iPhone. You can now use your BBK300

2.2. Desktop Windows OS with IVT Bluetooth stack Configuration

1. Make sure that the Bluetooth function is active on your PC. Double click the Bluetooth Icon, open the Management window, select "Bluetooth Device discovery" or click the Round Ball in the middle of the window.

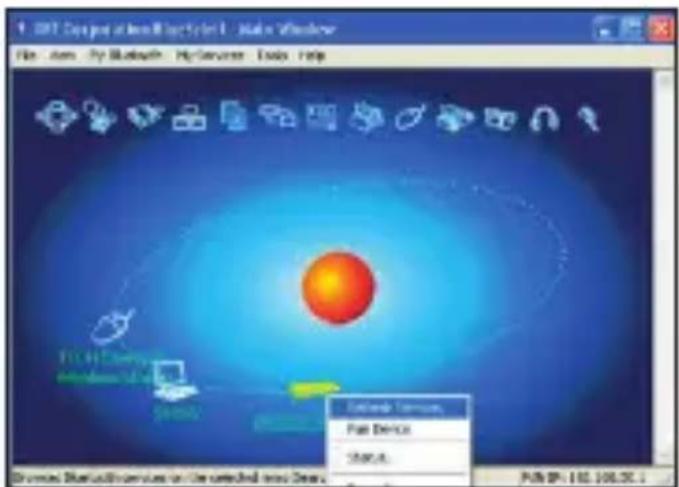

2. Right click on the Bluetooth Keyboard found and select "Refresh Services".

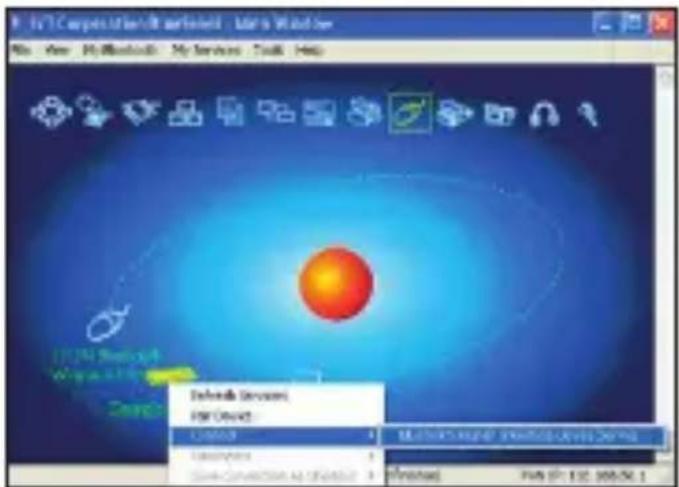

1. Right click on the Bluetooth Keyboard again and select "Connect-Bluetooth Input Service".

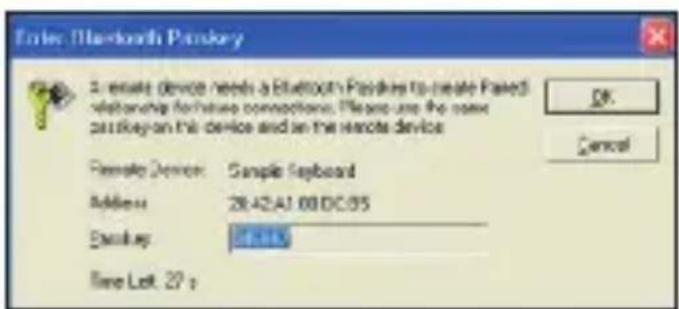

1. Input the same pass code on both PC and Bluetooth Keyboard and press OK.

The system will auto install the HID drivers for the Bluetooth Keyboard.

2.3. Desktop Windows OS with Broadcom Bluetooth stack Configuration

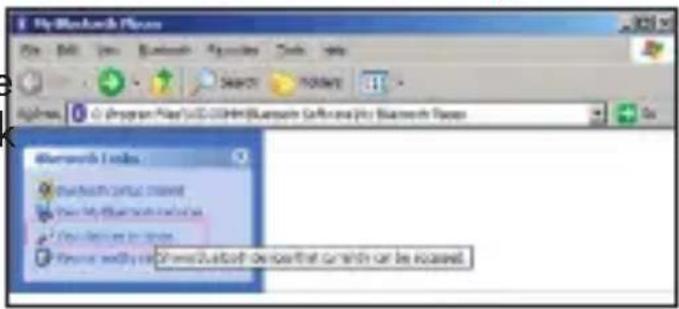

1. Make sure that the Bluetooth function is active on your PC. Double click the Bluetooth icon, then click "View devices in range"

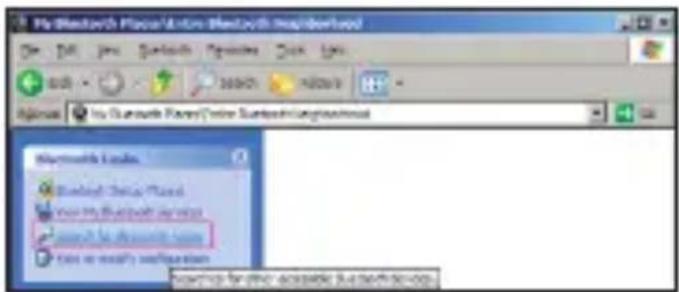

1. Click "Search devices in range" and wait until the Mini Bluetooth keyboard is discovered.

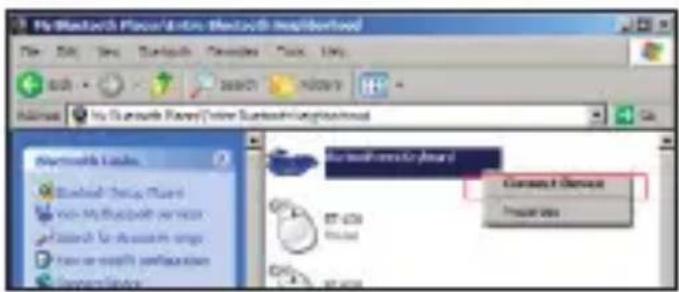

2. Right clicking the detected keyboard brings a popup menu. Click "Connect device".

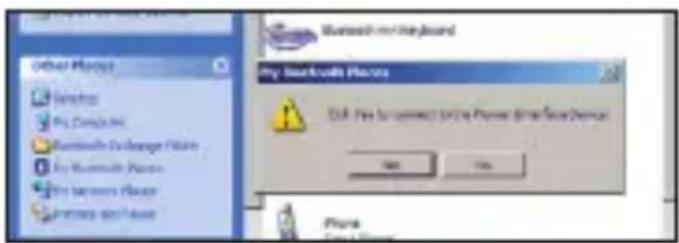

3. Press YES to connect to the "Human interface Device"

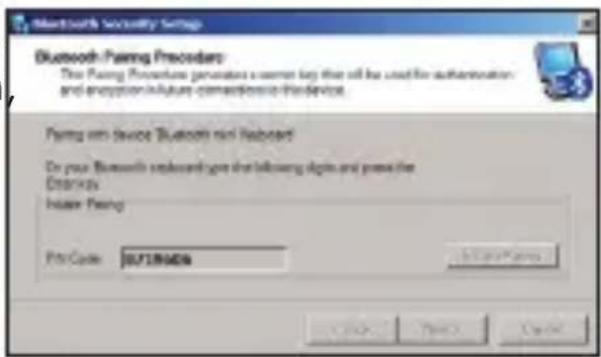

4. Using the Mini Bluetooth keyboard, type the number displayed on the screen then press enter:

Now the keyboard is connected, you can start using it with your applications.

2.4. Mac OS X Configuration

Open the Bluetooth Manager

Select Configure a Bluetooth Device

Select the type of device (in this case "keyboard")

The Bluetooth manager will find the keyboard. Select it and click on "Next"

Type the pass code provided by the Bluetooth Manager on your mini keyboard

The Bluetooth Manager will confirm a successful pairing.

2.5. Linux OS Configuration

There are several Linux distributions available. This guide was designed for Ubuntu linux, but can be easily adapted for other versions. Your desktop computer must be equipped with a Bluetooth module (built in, or US Dongle).

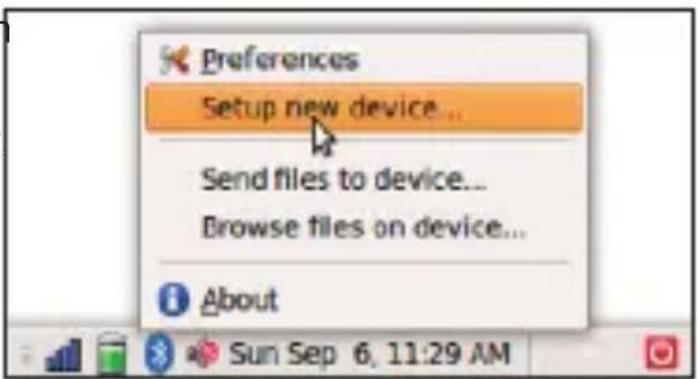

1. Make sure that the Bluetooth function is active on your PC. Click the Bluetooth icon and select "Setup new device"

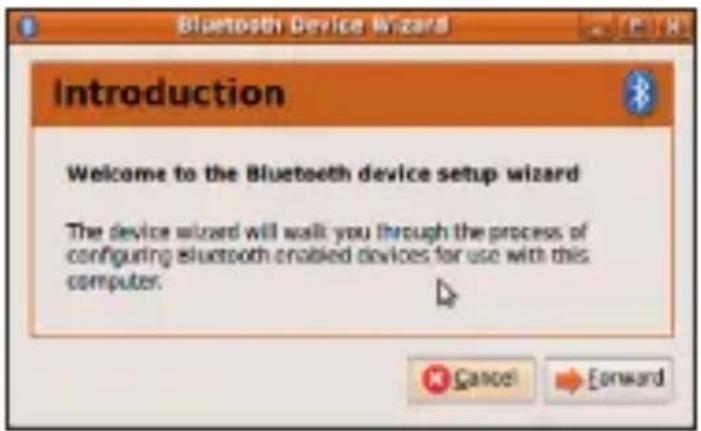

1. A wizard window opens, read the text and press "Forward"

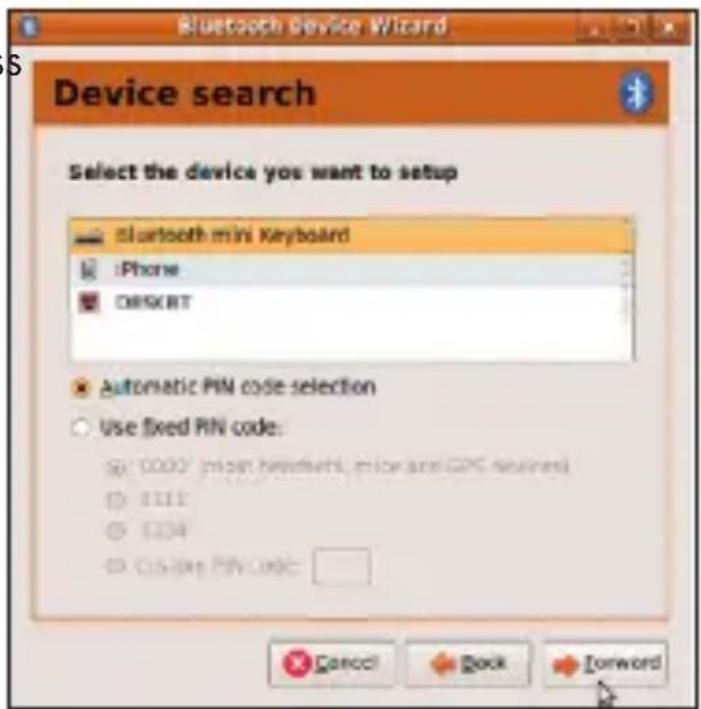

1. Wait until the keyboard is discovered, then select it and press "Forward"

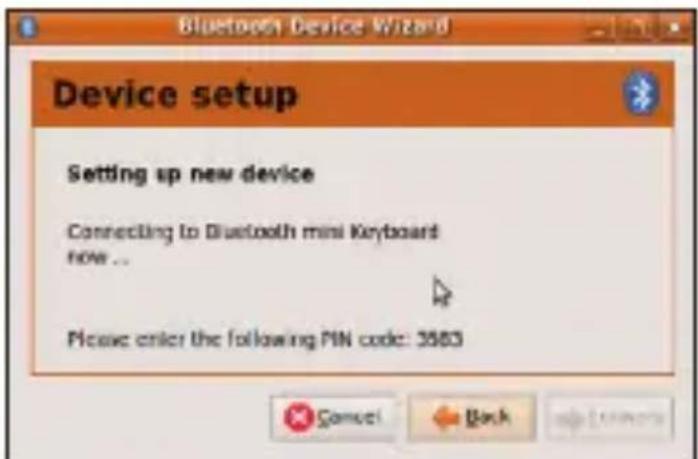

1. Type the code display on the Mini Bluetooth keyboard, then press Enter

If the code was correctly entered, a confirmation message is displayed. Now you can start using your Bluetooth keyboard.

European Union Directives Conformance Statement

Hereby, VOXLAND declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC
• All other relevant EU Directives

You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.bee-wi.com.

Caring for the environment by recycling

Do not dispose of electrical devices or accessories with your household waste.

In some countries or regions, collection systems are set up to handle electrical and electronic waste items. Contact your regional authorities for more details.

Copyright and other legal information

BEEWI is a registered trademark. Other trademarks mentioned herewith are owned by their proprietors. All other product or service names are the property of their respective owners.

The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products.

This product is covered by a 2-year product warranty which is valid from the date of purchase. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance will void the user's warranty.

Please visit our website www.bee-wi.com for more information.

Technical support: [e-mail].

© VOXLAND, 2010.
