USER MANUAL X59143MDO AEG-ELECTROLUX

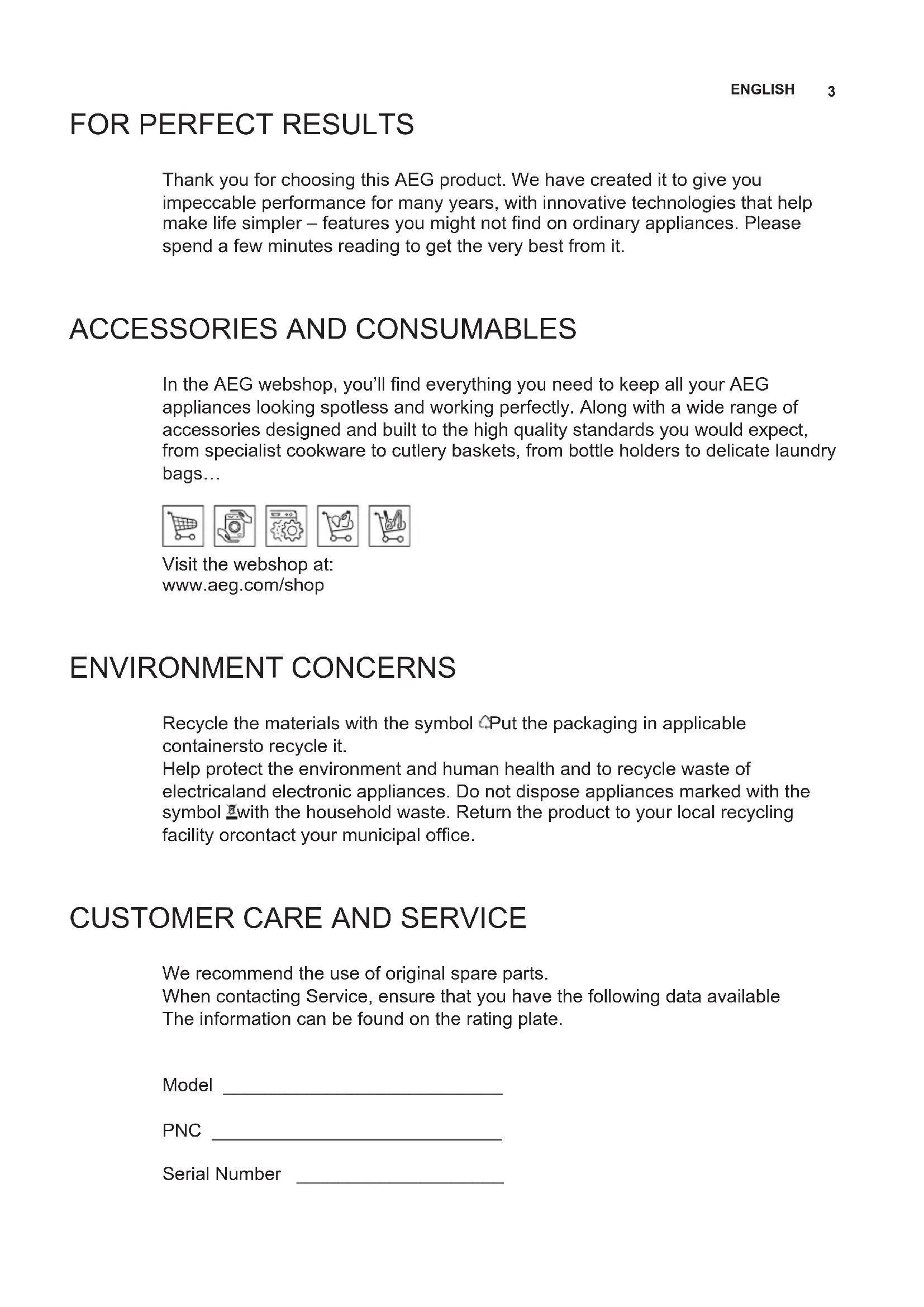

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not nd on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you’ll nd everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags… Visit the webshop at: www.aeg.com/shop ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable containersto recycle it. Help protect the environment and human health and to recycle waste of electricaland electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility orcontact your municipal ofce.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available The information can be found on the rating plate. Model ___________________________ PNC ____________________________ Serial Number ____________________4 RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may nd descriptions of individual features that do not apply to your specic appliance.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating plate xed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust ue through a pipe of minimum diameter 120 mm. The route of the ue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, replaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufcient degree of aeration must be guaranteed in the room in order to prevent the backow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked ames under the hood when it is in operation.

• Adjust the ame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into ames.

• Do not ambè under the range hood; risk of re.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• “ CAUTION: Accessible parts may become hot when used with cooking appliances”. MAINTENANCE

1. Switch off or unplug the appliance from

the mains supply before carrying out any maintenance work.

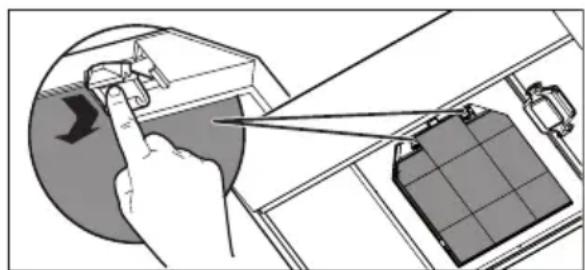

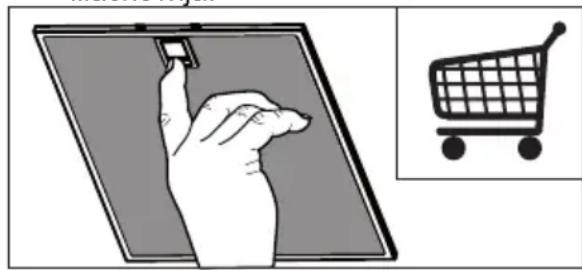

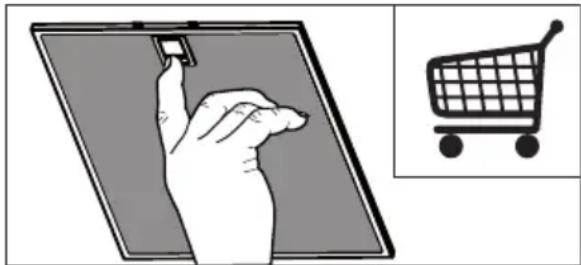

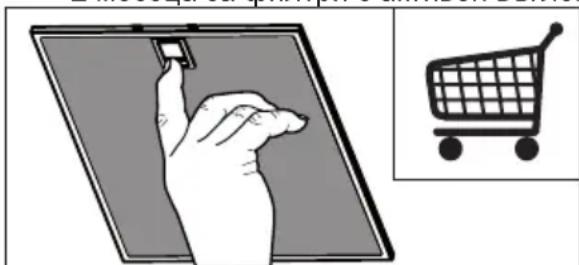

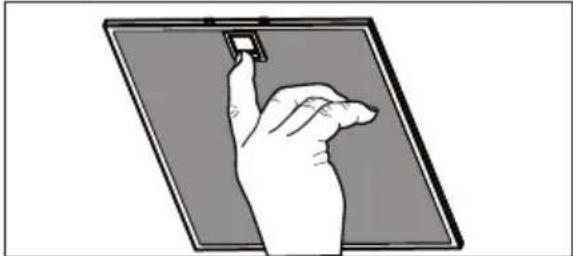

• Clean and/or replace the Filters after the specied time period (Fire hazard). - 4 months: for the Activated Charcoal Filters. - 2 months: for the Metal Grease Filters. - Control lights, if present.

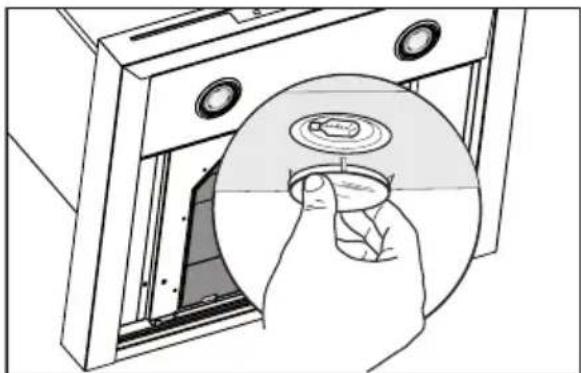

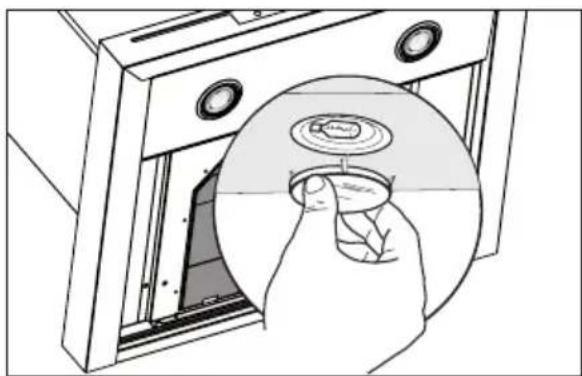

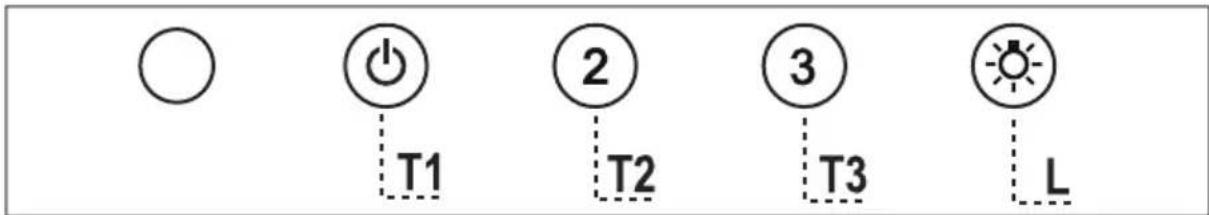

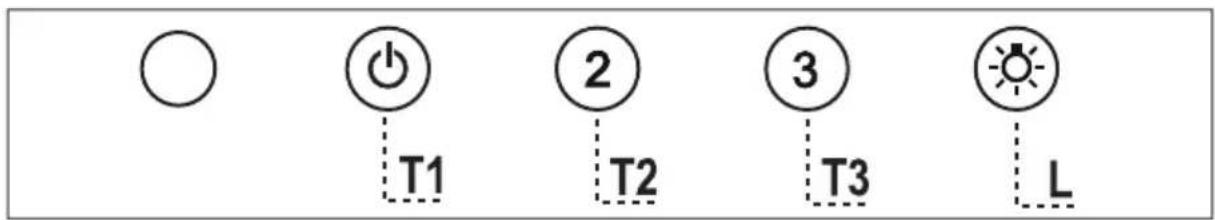

• Clean the hood using a damp cloth and a neutral liquid detergent.5 ENGLISH CONTROLS LIGHTING Button Function Led T1=Speed Turns the Motor on at Speed one. Turns the Motor off. On T2=Speed Turns the Motor on at Speed two. On T3=Speed When pressed briey, turns the Motor on at speed three. Fixed L=Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after rst passing to speed one.6
