USER MANUAL Syncro System 7570 BRAUN

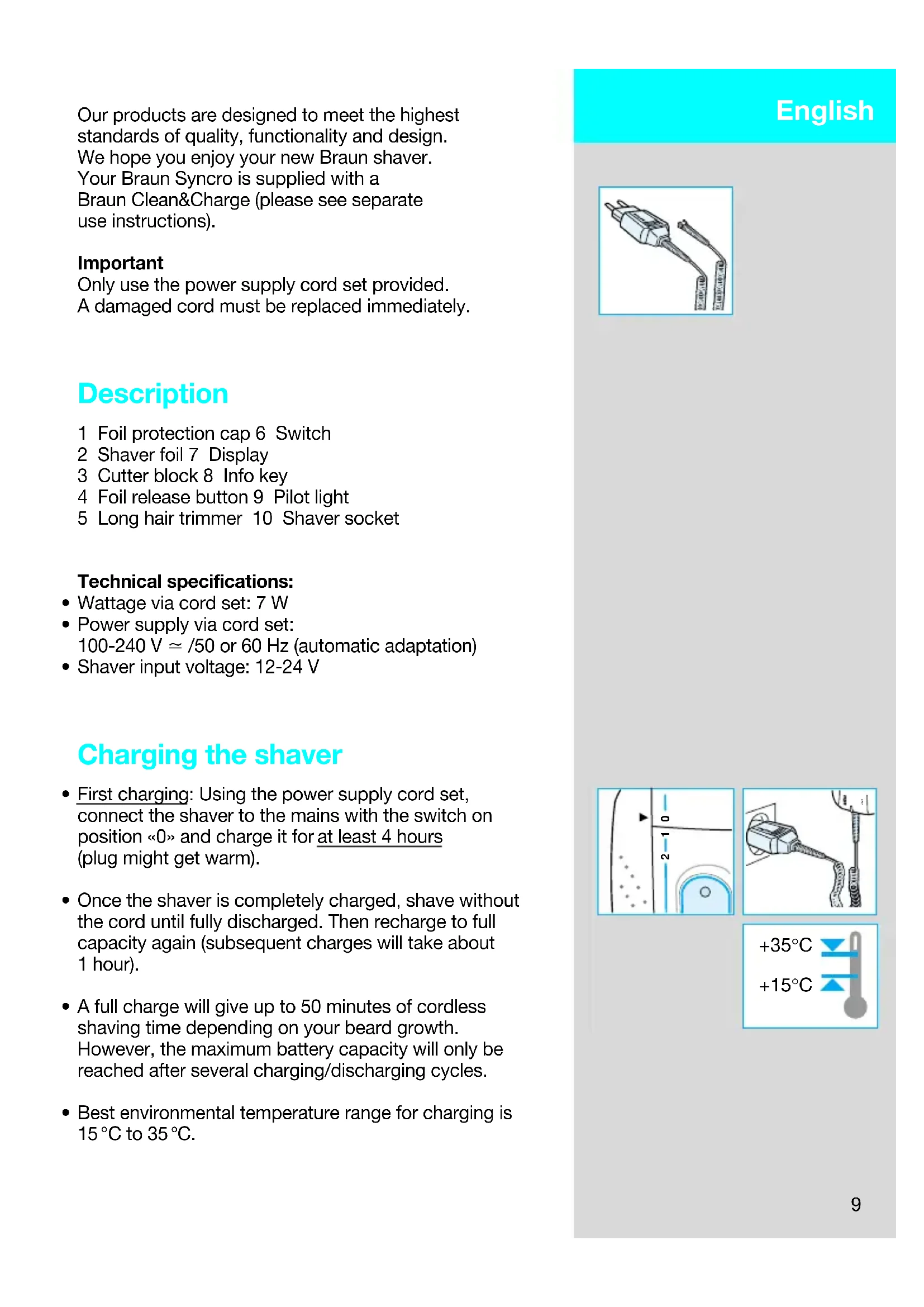

5491458_S 4-78 Seite 8 Freitag, 7. April 2000 9:37 099 English Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun shaver. Your Braun Syncro is supplied with a Braun Clean&Charge (please see separate use instructions). Important Only use the power supply cord set provided. A damaged cord must be replaced immediately. Description 1 Foil protection cap 6 Switch 2 Shaver foil 7 Display 3 Cutter block 8 Info key 4 Foil release button 9 Pilot light 5 Long hair trimmer 10 Shaver socket Technical specifications:

First charging: Using the power supply cord set, connect the shaver to the mains with the switch on position «0» and charge it for at least 4 hours (plug might get warm).

Once the shaver is completely charged, shave without the cord until fully discharged. Then recharge to full capacity again (subsequent charges will take about 1 hour).

A full charge will give up to 50 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.

Best environmental temperature range for charging is 15°C to 35°C. +35°C +15°C

5491458_S 4-78 Seite 9 Freitag, 7. April 2000 9:37 0910 Display The pilot light shows that the shaver is connected to the mains. The display shows the operation mode and charging conditions of the shaver: During charging the display shows the battery capacity symbol increasing by 20% segments and the remaining charging time (flashing): First charging (4 h): The display counts down in 20 min. steps. Subsequent chargings (1 h): The display counts down in 5 min. steps. The battery is fully charged. Below 10 minutes remaining shaving time, the display shows the minutes left. The «moving» plug symbol indicates that you should charge your shaver. There is insufficient battery charge for a cordless shave. Either recharge the shaver or shave with the cord connected to the mains. The display changes to this format when the shaver is in the Clean&Charge. Your shaver features an automated battery conditioning facility which monitors the charging/discharging process. If necessary, it will automatically recondition the battery with a complete discharge/recharge cycle (about every 6 months). For additional information, press the info key: press once: – to display the duration of the last shave press again: – to display the key part number for shaver foil and cutter block hold for 3 secs: – to run a display demo

5491458_S 4-78 Seite 10 Freitag, 7. April 2000 9:37 0911 The shaver has to be cleaned (refer to paragraph «Manual cleaning» or to separate «Clean&Charge» use instructions). To reset the display, push the info key. The shaver has to be lubricated (refer to paragraph «Manual cleaning» or to separate «Clean&Charge» use instructions). To reset the display, push the info key. The shaver cannot be charged if the environmental temperature is too low (<0 °C) or too high (>55°C). Allow the shaver to remain for some time at room temperature for optimal charging conditions. No display: The rechargeable battery is completely discharged and has to be recharged. Shaving Switch positions 0 = Off (switch is locked) Press and push up the switch to operate the shaver 1 = Shaving with the pivoting head The pivoting cutting system automatically adjusts to every contour of your face 2 = Shaving with the pivoting head locked at an angle (to permit shaving in difficult areas, e.g. under the nose) 3 = The long hair trimmer is activated (for trimming sideburns, moustache and beard) Shaving with the cord If the rechargeable battery is discharged, you may also shave with the shaver connected to the mains via the power supply cord set. (If the shaver does not run immediately, charge it with the switch on position «0» for approx. 1 minute.) Tips for the perfect shave

We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.

Hold the shaver at right angles (90°) to the skin.

Stretch your skin and shave against the direction of beard growth.

Replace the shaver foil and cutter block every

years, or when the parts are worn, to ensure optimum shaving performance.

5491458_S 4-78 Seite 11 Freitag, 7. April 2000 9:37 0912 Keeping your shaver in top shape Automated cleaning The Braun Clean&Charge takes care of all cleaning and lubrication needs of your shaver. Please refer to the separate use instructions. If not supplied already with your shaver, the Braun Clean&Charge is available at your dealer or Braun Service Centres. Manual cleaning For easy cleaning after each shave, switch the shaver off. Press the release buttons to lift the shaver foil (do not remove the foil completely). Switch on the shaver for approx. 5-10 seconds so that the shaved stubbles can fall out. For a thorough cleaning (weekly), remove the shaver foil and tap it out on a flat surface. Using the brush, clean the cutter block and the inner area of the pivoting head. About every four weeks, clean the cutter block with Braun cleaning agents. If your skin is very dry and you notice a reduced operation time of the shaver or if the display shows «oil!», apply a drop of light machine oil onto the shaver foil. Replacing the shaving parts The shaver foil and cutter block are precision parts that, in time, are subject to wear. Replace your foil and cutter block every 18 months and get a 25% better shave.* (Shaver foil and cutter block: part No. 7000) (* Overall evaluation from Braun users comparing their shave with new parts and those used for 18 months.) Accessories available at your dealer or Braun Service Centres:

Shaver foil and cutter block (part No. 7000) oil

Syncro 5491458_S 4-78 Seite 12 Freitag, 7. April 2000 9:37 0913 Environmental notice This appliance is provided with nickel-hydride recharge- able batteries. To protect the environment, do not dis- pose of the appliance in the household waste at the end of its useful life. Open the housing as shown, remove and dispose of the batteries at your retail store or at appropriate collection sites according to national or local regulations. Subject to change without notice. This product conforms to the EMC-Require- ments as laid down by the Council Directive 89/336/EEC and to the Low Voltage Regulation (73/23 EEC). 7XXX
