USER MANUAL Axiss 2012 MAXI-COSI

Congratulations on your purchase of the Maxi-Cosi Axis. During the development of the Maxi-Cosi Axis, we paid special attention to safety, ease of use, comfort and design. As a result of this, this product fulfils the most stringent safety requirements.

Studies have shown that a large percentage of child car seats are not used correctly. It is therefore important that you take the time to read these instructions through carefully. The optimum safety of your child is only guaranteed if the Maxi-Cosi Axisiss is used correctly.

Continuous research by our product development and marketing departments, both by intensive cooperation with test institutes and in consultation with consumers and customers, ensures that we remain at the forefront in the area of child safety in the car. If you have any questions or remarks concerning the use of the Maxi-Cosi Axisiss, we will be happy to hear from you.

Dorel (address and telephone number on the back of this instruction manual)

CONTENTS

1 IMPORTANT:READ FIRST!
2 PRODUCT DESCRIPTION
3 INSTALLATION AND REMOVAL OF THE MAXI-COSI AXISS
4 REMOVIDING THE MAXI-COSI AXISS FROM THE CAR
5 ADJUSTING THE HEIGHT OF THE SHOULDER BELTS
6 PLACING THE CHILD INTO THE CAR SEAT
7 REMOVING THE CHILD FROM THE CAR SEAT
8 ADJUSTING THE SITTING AND SLEEPING POSITION
9 MAINTENANCE AND REMOVING THE FABRIC COVER
10 WARRANTY
11 QUESTIONS

Disclaimer:

The utmost care was exercised in designing and compiling this instruction manual. We cannot, however, offer any guarantees with regard to the completeness and correctness of the information contained herein.

1 IMPORTANT: READ FIRST!

WARNING

• Read this instruction manual carefully and retain it as a reference by keeping it in the storage compartment at the rear of the car seat. If these instructions are not followed, the safety of a child may be severely endangered.
• Only use original accessories and parts that have been approved by the manufacturer. Do not make any modifications to the product. Contact your supplier or importer if you have any complaints or problems.

Maxi-CosiAxisss approved according to ECE R44/04

Group Child's Body Weight	Age
Group 1 (9 - 18 kg) approx 3.5 years	9 months -

• The shoulder belt should be adjusted to the height of your child (see page 12).
• To place your child into the Maxi-Cosi Axis correct, you should carefully follow the instructions on page 12.

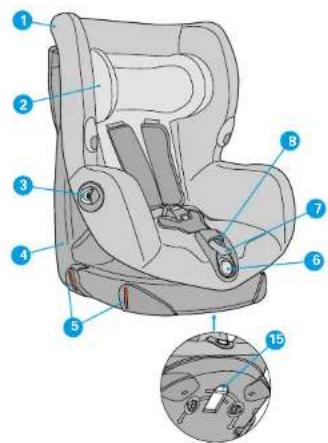

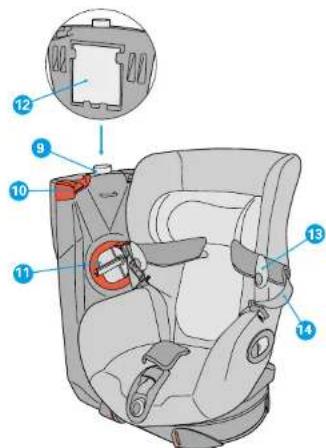

2 PRODUCT DESCRIPTION

1. Fabric Cover

1. Adjustable headrest
2. Handle for rotating the seat shell
3. Car seat support (base)
4. Belt guides for the lap part of the seat belt
5. Control button for adjusting the sitting and sleeping position
6. Fastening strap for the seat belt system
   B. Control button for the shoulder straps

7. Red/green indicator for locking the seat shell

8. Belt guide for the
   shoulder strap

9. Seat belt tensioner (for fastening the shoulder part of the belt)
10. Storage compartment for instruction manual
    13.Belt hook
11. Shoulder belt of harness
12. Button for adjusting
    direction of rotation of seat shell (left or right)

Special features

For ease of use, the Maxi-Cosi Axiss comes with the following features:

• The seat shell can be rotated to the right or to the left depending on where the car door is, to make placing the child easier.
• A seat belt tensioner so that the seat belt is secured extra tightly.

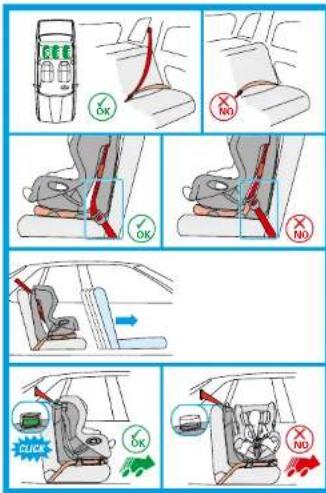

3 INSTALLATION AND REMOVAL OF THE MAXI-COSI AXISS

Installation with 3-point belt (follow red colour marks on product).

Only use the Maxi-Cosi Axis on a front-facing seat when the device is used in combination with an adult safety belt to be used by means of the following wording: Only suitable for use in the listed vehicles fitted with lap3 point/staticwith retractor safety-belts, approved to ECE Regulation No. 16 or other equivalent standards. (Strike out what does not apply.) Correct fitting of the car seat belt is essential for the safety of your child. The seat belt must be attached in the correct sequence along the red marks on the Maxi-Cosi Axis. For further instructions, look on the sticker on the side of the Maxi-Cosi Axis. Never fit the seat belt in a way other than that described.

Remove the headrest of the seat where the Maxi-Cosi Axiss is to be used in the car if it is in the way. Do not forget to put the headrest back when the seat is used again.

A. Installation

CAUTION: Lock fold-down rear seats before installing the Maxi-Cosi Axis.
CAUTION: In some cases, the seat belts are positioned too far forward. This will make proper installation impossible. Try a different seat in this case.

The Maxi-Cosi Axis should preferably be installed on a rear seat. If this is not possible, it can be installed on the passenger seat providing this does not contravene local laws in the country where the car seat is used.

When installing the car seat behind the passenger seat, position the passenger seat backrest upright and as far forward as possible so that the child cannot knock it.

IMPORTANT: Always lock the Maxi-Cosi Axis in a forwards facing position before driving away.

(Fig.1-4)

Rotating the car seat

The direction of rotation of the Maxi-Cosi Axis should always be adjusted to the direction of the nearest car door.

The button for adjusting the direction of rotation is located on the underside of the Maxi-Cosi Axis.

To rotate the seat right.

1. Slide the button towards the back if you want the seat shell to rotate RIGHT.

To rotate the seat left

1. Slide the button forwards if you want the seat shell to rotate LEFT.
2. Open the lever and with one hand hold the lever out whilst rotating the seat shell with the other to reach the desired position.

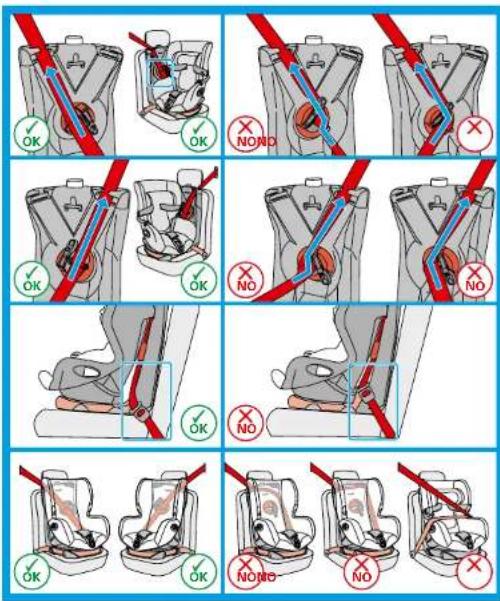

FIG.5-12 INSTALLING THE CAR SEAT INTO THE CAR: 工 IN THE DIRECTION OF TRAVEL

IMPORTANT: Before you begin using the Maxi-Cosi Axis, you should ensure that the spaces have been removed from the seatbelt guides. These form part of the packaging and should be removed.

Installing the car seat into the car: in the direction of travel .

1. Place the lap section of the seatbelt behind the two seat belt guides (a) on the car door side and then around the underside of the car seat (b).

2. Then place the lap section of the seat belt on the other side, behind the two belt guides (a). Fasten the seat belt (b) and tighten it. IMPORTANT: Ensure that the lap section of the seat belt is tight and passes through the 4 belt guides around the base. The seat belt should not be twisted.

3. Rotate the seat part towards you by opening the lever towards you with your other hand (b). IMPORTANT: the button under the base should be adjusted to the desired direction of rotation beforehand (see page 9).
4. Rotate the seat belt tensioner as far as it will go (see diagram).

1. (a) Place the shoulder section of the seat belt in the belt guide on the upper side of the base. (b) Fasten the shoulder belt into the slot of the seatbelt tensioner spindle. IMPORTANT: Ensure that the lap section of the seat belt is tight. There should be NO slack in the lap section of the belt (this can be checked by gently pulling the lap section of the belt).
2. Move the handle on the seat belt tensioner backwards and forwards a few times until the belt is fully tightened (do not push the button on the tensioner). IMPORTANT: if the belt is tight, the handle should be closed again. (*see diagram).
3. Rotate the seat shell to face the direction of travel. The green indicator will be visible on the upper side of the base. The green indicator shows that the seat shell is safely locked into position in the direction of travel. IMPORTANT: even when travelling with the car seat unoccupied, it should always be locked into position in the direction of travel.

Check that the car seat is installed correctly (according to the diagrams). Proper threading of the seat belt is essential to ensure the safety of your child. To fasten the car seat into the car, the seat belt should pass along the red markings on the Maxi-Cosi Axis. You should also refer to the instruction sticker on the side of the Maxi-Cosi Axis. Never fit the seat belt in a way other than that described! Any other way of installing this seat is unsafe.

IMPORTANT: when you have finished installing your Maxi-Cosi Axis, check the following points and correct your installation if necessary:

IMPORTANT: When the child is seated in the Maxi-Cosi
Axis, the seat shell should be locked into position facing the
direction of travel. Only then should the car be driven.
IMPORTANT:
- Ensure that the seat belt is not twisted.
- Ensure that the seat belt is fastened properly.

IMPORTANT: in some cars it may be necessary to push the upper side of the seat shell downwards to lock the shell in place (green indicator).

Fig. 13-14

The car seat is not stable

• Raise the headrest to a higher position. The headrest should NOT come into contact with the Maxi-Cosi Axis.
• Whenever possible and whenever necessary, adjust the angle of the backseat's backrest so that it is in full contact with the base of the car seat.

The seat shell is difficult to rotate and/or locking the seat shell into position in the direction of travel (green indicator) is difficult. Check the installation:

The seat belt must pass through all belt guides.
- The lap section of the belt must TIGHTLY pass through the belt guides, with no slack.
- The seat belt should not affect the seat part of the car seat.
- The seat belt has possibly been fastened too tight. - The position of the backrest and back seat could be cause of the problem - adjust the angle between the and the backrest.
- If possible, adjust the backrest so that it is completely in contact with the base of the car seat.
Check that nothing is impeding or obstructing the car seat.

If you are still unable to rectify the problem, we suggest you contact the retailer from which you have purchased the car seat.

4 REMOVIDING THE MAXI-COSI AXISS FROM THE CAR

(Fig.15-17)

1. Simultaneously open the handle (a) and rotate the seat shell (b) towards you.

2. (a) Push the button inwards (1) whilst simultaneously rotating the handle of the belt guide door. Keep the button pushed in (1) and pull the belt (2) to unwind it from the guide. Remove the belt from the spindle (3). IMPORTANT: the belt can only be released if the handle is rotated fully downwards.

3. Release the seat belt buckle (a), and remove the seat belt from the upper belt guide (b) and the lower belt guides on the car seat's base.

IMPORTANT: Even when the car seat is not occupied by a child, it should still be secured into the car according to the instructions. Car seats that are incorrectly secured can pose a danger to fellow passengers. In the event of collision, an insecure car seat can pose danger to life.

5 ADJUSTING THE HEIGHT OF THE SHOULDER BELTS

The belt system should be adjusted according to the height of the child.

• The shoulder bells of the harness should be adjusted so that they are level with the child's shoulders (see diagram).

Fig.18-21

1. Tilt the headrest forwards.
2. Adjust the headrest upwards or downwards depending on the child's body length.
3. When the headrest is in the desired position, press it back to lock it into position.

6 PLACING THE CHILD INTO THE CAR SEAT

(Fig.22-25)

1. To make placing the child into the car seat easier, use the handy belt hooks on the sides of the car seat (a). Before placing the child into the seat, fix the shoulder belts to the hooks.
2. Place the child into the car seat, then remove the belts from the hooks.
3. Slide the buckle sections (a) + (b) together and place them into the buckle until you hear a clear "click" sound.

4. Pull on the adjustable belt and then pull the whole belt system light.

5. Nofit not leave more than one finger's width of space between the child and the belt system.

6. Note: The belts should be pulled extremely tight. Slack of just one finger's width will make it virtually impossible for the child to free his/her arms from underneath the shoulder belts.

7 REMOVING THE CHILD FROM THE CAR SEAT

(Fig.26-27)

1. Push the adjuster button (a) and simultaneously pull the shoulder belts (b) to loosen the belt system (make sure to pull the belts and not the belt pads).
2. Push the red button on the buckle and open the belt system. Fix the shoulder belts to the hooks.

8 ADJUSTING THE SITTING AND SLEEPING POSITION

(Fig.28)

Adjusting the car seat

The Maxi-Cosi Axis can be adjusted to 6 different

positions from sitting to semi-reclining
Push the button on the front of the seat shell and simultaneously adjust the position of the seat backwards or forwards to the desired sitting/reclining position. Release the button to lock the seat shell into the desired position.

9 MAINTENANCE AND REMOVING THE FABRIC COVER

Maintenance

Fabric cover:
Refer to the washing label before cleaning the fabric cover (the washing label is stitched to the cover). The washing label displays the following information.

Washing instructions

Cleaning the cover:
- Wash the cover and belt pads by hand (maximum of 30^ ). Do not use a drier. Also see the care instructions on the cover.

Tip: It is wise to buy an extra cover when purchasing the Maxi-Cosi Axis so that you can continue to use it even when the cover is being washed and dried.

Plastic base and seat shell:

-CAUTION: Perform these actions only while the Maxi-Cosi Axis is outside of the car. Clean all plastic parts of the base using a cloth, soap and lukewarm water. Do not use any aggressive cleaning agents.
CAUTION: Never use lubricants - not even for the moving parts of the Maxi-Cosi Axix.

(Fig.29-35)

Removing the fabric cover from the seat shell: Tip: Prior to removing the fabric cover from the seat shell, we suggest you carefully study how it is attached so that you can correctly re-attach it to the car seat later on.

1. Rotate the Maxi-Cosi Axis seat
2. Open the belt buckle by pushing the red button, open the buckle (a), then push on the adjustable button (b) and simultaneously pull both shoulder belts forwards (pull the belts, NOT the belt pads).
3. Remove the shoulder belts from the belt yoke at the rear of the car seat, then pull the shoulder belts from the shell and the belt pads through the front of the car seat.
4. Loosen the elastic bands from the fabric cover (a). Lift the fabric cover over parts (b) + (c) on the seat shell (see diagram). Lift the belt components (d) through the opening on the seat, then carefully and slowly remove the cover.
5. Lift the elastic bands over the top of the headrest (see diagram). Guide the belt pads through the opening of the headrest cover, then remove the cover. Make sure to remove the support plate from the cover before washing.

IMPORTANT: do NOT remove other parts from the car seat, such as the EPSpolystyrene or other foam material from underneath the fabric cover. These materials are necessary for the safety of the Maxi-Cosi Axiss.

When re-attaching the cover, it is very important that the harness belts are not twisted. These should pass through the belt buckle flat (see diagram). The harness belts should be placed underneath the cross beams on the rear of the car seat. Before placing the child back into the car seat, you should check that the belt system is working correctly. If you have any doubt you should contact the retailer of the car seat.

Only for removing the headrest cover

Release the iron rod from the rear of the car seat (b) and remove it. The straps on the belt pads are then released. Remove the belt pads from the car seat through the front. The fabric cover from the headrest can now be removed.

Belt buckle functioning and cleaning:

The proper functioning of the belt buckle is very important for the safety of the child. The most common reason for the buckle not functioning properly is because it is dirty (from dust, grime, food particles, etc.). Ensure that the belt buckle is clean by removing dirt with a vacuum cleaner. The following is a list of possible causes of function failure and possible solutions.

A. Failure of the belt buckle:

• When opening the belt buckle, the buckle sections are released slowly.
• The belt buckle can only be opened with considerable force.
  It is difficult to click the buckle sections into the buckle (too much resistance).
• The buckle will no longer close, the buckle sections will not go together.
  There is no click sound when closing the buckle.

B. Solving any problems:

• Check the buckle for any dirt and if necessary clean by knocking the dirt out, rinsing, blasting with air or vacuuming.
  CAUTION: Never use lubricants!

If you are unable to close the belt buckle or if you are unsure whether you have solved the problem correctly, contact your retailer or importer immediately (see back of instruction manual). Under these conditions, do not use the Maxi-Cosi Aids.

NOTICE: This is a "Universal" child restraint. It is approved to Regulation No. 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a "Universal" child restraint for this age group. This child restraint has been classified as "Universal" under more stringent conditions than those which applied to earlier designs which do not carry this notice. If in doubt, consult either the child restraint manufacturer or the retailer.

IMPORTANT: The Maxi-Cosi Axiess is a universal car seat for use with a 3-Point belt:

Model approved according to ECE R44/04. For group 1 (children from 9 to 18kg) the car seat should always be used facing the direction of travel, preferably on the back seat of the car.
The car seat should always be positioned facing the direction of travel. The car seat must not be positioned with the back to the direction of travel.
The manufacturer can only be held liable where compliance with the regulations is concerned (R44). This excludes carelessness when driving, and not respecting the Highway Code.
After placing your child into the car seat, you should check that the seat belt is fastened correctly (the full 3-point seat belt) Tighten the 3-point seat belt by pulling it with force. Make sure the belts are not twisted.

General instructions

Always pay attention to the following...
- Always use the seat, even on short trips, as this is when most accidents occur.
Only use the Maxi-Cosi Axis in a car and not at home.
- The Maxi-Cosi Axiss may be used in the front seat and in the back seat, including where there is an airbag fitted. However, we recommend installing it on the back seat. If this is not possible, ensure that the front seat is as far back as possible if an airbag is provided. Refer to your car's handbook as increasingly, airbags can easily be deactivated.
- The seat must always be secured with the seat belt, even when not in use. A loose seat could injure other passengers in an emergency stop.
- Make sure that the Maxi Cosi Axis is not jammed or wedged by heavy luggage, adjustable seats or closing doors. Folding rear seats should always be locked down securely.
- Never use the Maxi-Cosi Axis without the fabric cover. Do not replace the cover with any cover other than the original as the cover forms part of the total safety of the seat.

• Always cover the Maxi-Cosi Axis when the car is parked in full sun as plastic and metal parts may become extremely hot, this can cause burns and may discolour the cover unnecessarily.
  To avoid damage to the fabric, do not remove the logos, etc. from the cover.
• Make sure that there is no baggage or other loose objects (for example on the parcel shelf) in the car. In an emergency stop or crash these become dangerous projectiles!
• When making long journeys, make sure to take frequent breaks in order to give your child some room to move.
• Never leave your child alone in the car.
• Keep your child in the car. Avoid interference in the appropriate place at the back of the Masi-Cosi Axis.
• Never use second-hand products as you can never be sure what may have happened to these in the past. The safety of the seat can only be guaranteed by the manufacturer if it is used by its first owner.
• The user should not make any modifications to the car seat or the belts. This includes the labels or warnings, etc. that form part of the seat. These should not be removed under any circumstances!
  Always replace the Maxi-Cosi Axis after an accident, as the seat may become unsafe due to damage that is not immediately apparent.
  The manufacturer is aware that car seats may cause impressions in car upholstery or car seat belts. These cannot be avoided, since the safety standards demand powerful and firm fastening methods. The manufacturer cannot be held liable for any damage that occurs as a result of these.

And of course

Always set a good example and wear your own seat belt!

Waste separation

To ensure optimum and safe use of car safety seats, they should not be used for longer than 5 to 6 years after the date of purchase. Ageing of the plastic, for instance under the influence of sunlight (UV), may quite noticeably reduce the qualities of the product.

Once the child has grown out of the seat, we advise you to stop using the car seat and to dispose of it accordingly. On account of our concern for the environment, we request the user of the Maxi-Cosi Axis to separate the waste accordingly, both from the beginning of the product's life (packaging) and the end of the product's life (product components).

Keep plastic wrapping material out of reach of your child in order to avoid the risk of suffocation.

10WARRANTY

We guarantee that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects in workmanship and material at the time of purchase. During the production process the product was subjected to various quality checks. If this product, despite our efforts, shows a material/ manufacturing fault within the warranty period of 24 months, (with normal use as described in the user instructions) we will comply with the warranty terms and conditions. In this case please contact your dealer. For extensive information on applying the warranty terms and conditions, you can contact the dealer or look on our website: www.maxi-cosi.com.

The guarantee is not valid in the following cases:

In case of a use or purpose other than described in the manual.
- If the product is submitted for repair through a dealer that is not authorized by us.
If the product is not supplied to the manufacturer with the original purchase receipt (via the retailer and/or importer),
- If repairs were carried out by third parties or a dealer that is not authorized by us.
If the defect is the result of improper or careless use or maintenance, negligence or impact damage to the fabric cover and/or frame.
If the parts show normal wear and tear that may be expected from daily use of a product (wheels, rotating and moving parts etc.)

Date of effect:

The warranty becomes effective on the date the product is purchased.

Warranty term:

The warranty period applies for a period of 24 consecutive months. The warranty only applies for the first owner and is not transferable.

What to do in case of defects:

After purchasing the product, keep the purchase receipt. The date of purchase must be clearly visible on the receipt. Should problems or defects arise please contact your retailer. Exchanging or taking back the product cannot be requested. Repairs do not give entitlement to extension of the warranty. Products that are returned directly to the manufacturer are not eligible for warranty.

This Warranty Clause conforms to European Directive 99/44/EG of 25 May 1999.

NOTES / NOTIZEN / NOTITIES / NOTAS / NOTICIAS

2 PRODUCTBESCHRIJVING
