USER MANUAL 2004 Desq

OPERATING INSTRUCTIONS

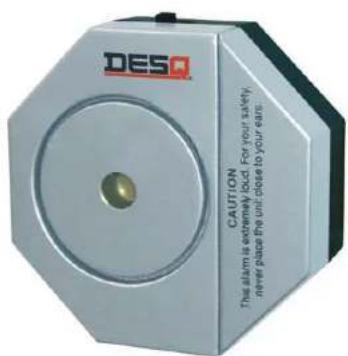

GLASS VIBRATION ALARM

MODEL 2004

Type Glass vibration alarm

Alarm Built-in 90 db alarm

Battery 2 x L11154 included (alkaline battery recommended)

CAUTION: This alarm is extremely loud. For your safety, never place the unit close to your ears. To test the alarm, direct the unit away from you at arms length and activate.

INTRODUCTION

The DESQ glass vibration alarm 2004 provides protection of unwanted intruders in your (home) office by detecting the vibration to or breakage of a window. It can provide valuable protection if used properly. However, this unit cannot guarantee complete protection against burglary or robbery. Therefore, DESQ International will not be held responsible for any loss or damage which could occur. In order to use this product correctly, read these instructions carefully. Please keep instructions for future reference.

IMPORTANT SAFETY TIPS

1) Read all installation and operating instructions.
2) Avoid dropping or rough handling.
3) The alarm siren is very loud, never put the unit close to your ear. To test the alarm, direct the unit away from you at arms length and activate.

SELECTING THE MOUNTING LOCATION

Important: before mounting and testing this unit, be sure to read the "important safety tips" section at the beginning of this manual.

1) To apply the alarm system on any glass surface, remove the film covering the warning sign in front of the sensor. The film is covering and adhesive, which when pressed to a glass surface will adhere to the glass.
2) To remove the alarm system (if needed) use a blow dryer and warm the sticky backing attached to the glass working the heat around the unit. While still warming the adhesive twist the unit until it disengages from the glass. The unit should be reusable unless the unit has been removed multiple times and adhesive has lost its cohesion.

OPERATION

The DESQ 2004 glass vibration alarm has a powerful 90 db siren. A slide switch is located on the side of the unit to select the right position.

ALARM MODE

1) To arm the unit, slide the switch to the "ON" position. The unit will automatically arm itself.
2) When a protected window is broken or excess force is applied, the alarm will immediately sound during 30 seconds and will reset itself.
3) To disarm the unit, slide the switch to OFF position.

LOW BATTERY

When the alarm volume becomes low, or the unit does not produce a normal strong alarm sound, replace the battery.

DESQ International:

Gildeweg 18 - 3771 NB - Barneveld

The Netherlands

Phone [phone] - Fax [phone]

E-mail [e-mail] - Internet www.desq.eu

Service Department:

NL: Phone [phone].

SPAIN: Ofiactiva S.L. - Phone [phone]
