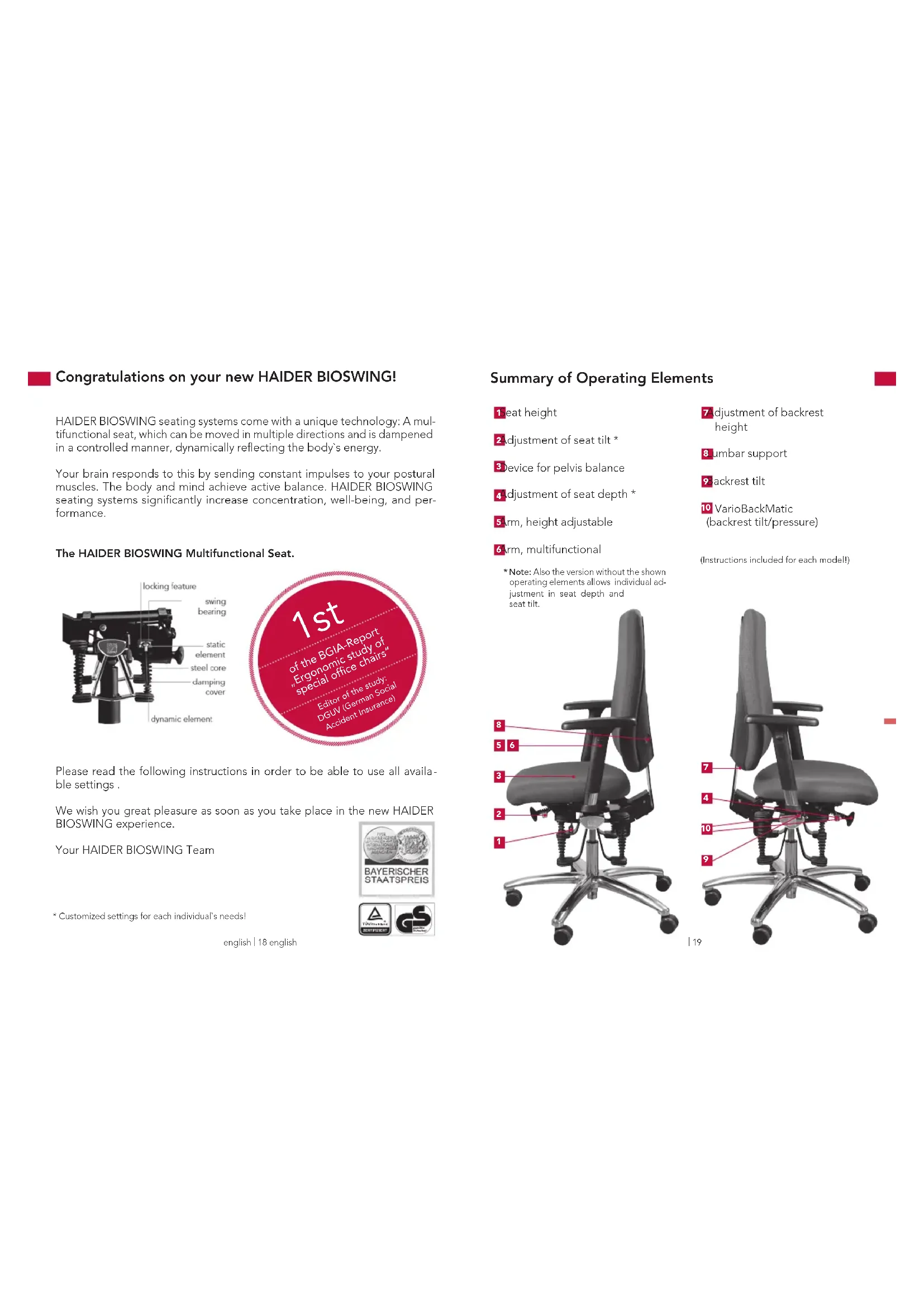

Congratulations on your new HAIDER BIOSWING!

HAIDER BIOSWING seating systems come with a unique technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.

Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. HAIDER BIOSWING seating systems significantly increase concentration, well-being, and performance.

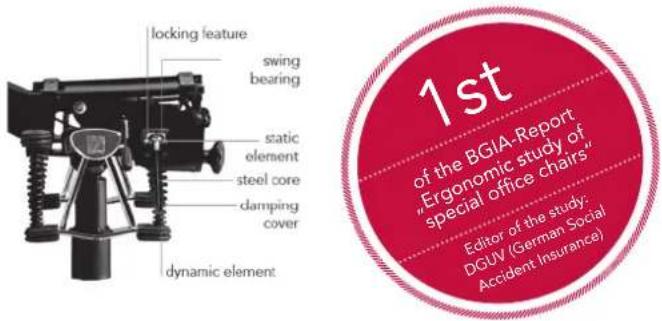

The HAIDER BIOSWING Multifunctional Seat.

locking feature swing bearing static element steel core damping cover dynamic element 1st of the BGIA-Report "Ergonomic study of special office chairs" Editor of the study: DGUV (German Social Accident Insurance)

Please read the following instructions in order to be able to use all available settings.

We wish you great pleasure as soon as you take place in the new HAIDER BIOSWING experience.

Your HAIDER BIOSWING Team

* Customized settings for each individual's needs!

english | 18 english

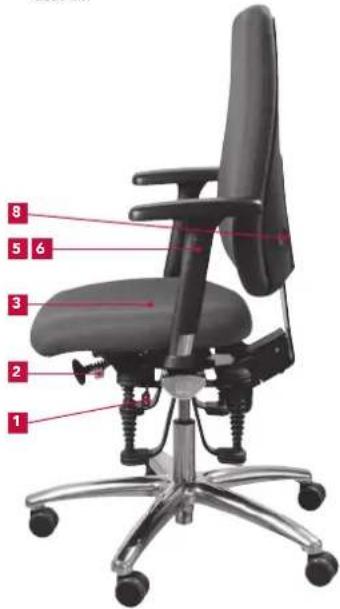

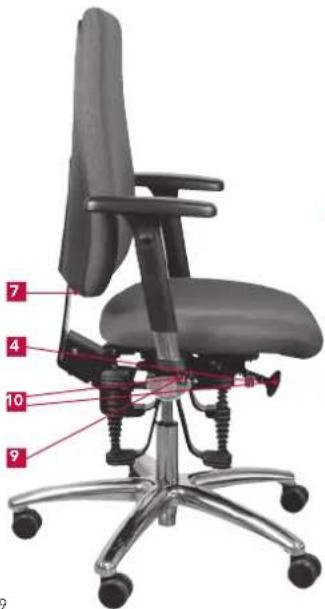

Summary of Operating Elements

1eat height

2 Adjustment of seat tilt *

3 Device for pelvis balance

4 adjustment of seat depth *

5 arm, height adjustable

6Arm, multifunctional

* Note: Also the version without the shown operating elements allows individual adjustment in seat depth and seat tilt.

7 adjustment of backrest height

8 umbar support

9 ackrest tilt

10 VarioBackMatic (backrest tilt/pressure)

(Instructions included for each model!)

1 2 3 5 6 8

Labeled diagram of an office chair with numbered parts for identification

1 Seat Height

Adjust the height of the seat surface according to the height to the hollow parts of your knees. Your upper and lower leg form a right to slightly open angle. Your feet are flat on the floor – without pressure on the upper thighs.

Lowering the Seat

While sitting on the chair, pull the operating element 1 upward and release it at the desired position. Please pay attention to the risk of getting trapped in the foot section.

Raising the Seat

Lightening the load on the seat, pull the operating element upward 1 and release it at the desired position.

Adjustment of Seat Tilt

2

To support the physically correct tilt of the pelvis, you can adjust the seat surface either by utilizing the permanent-contact mechanism or by adjusting it for individually desired inclination. The seat tilt facilitates the straightening of the spinal column.

Seat Tilt with Permanent-contact Mechanism

While sitting on the chair, press the operating element 2ward the front and then downward. The whole seat surface reclines according to the shift of your body weight and the position of your upper leg. To deactivate the setting, pull the operating element upward again.

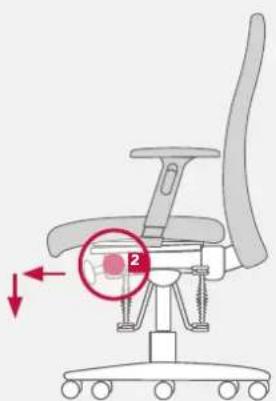

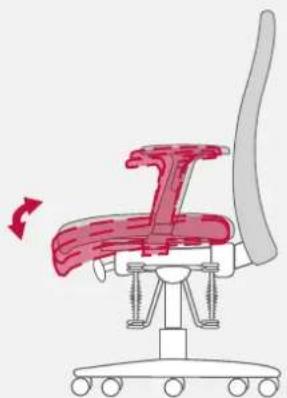

Individually Adjusted Seat Tilt

While sitting, push the operating element 2 toward the front and adjust the required tilt by shifting your body weight and upper leg and then release the operating element.

Version without Operating Handle: Seat tilt can be adjusted by turning the integrated adjusting screw, which is located in the middle of the bottom side of the seat cushion, clockwise or counterclockwise.

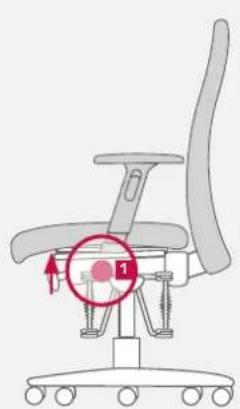

Diagram of an office chair with labeled parts and a red circle highlighting a specific area marked '1'

english | 20 english

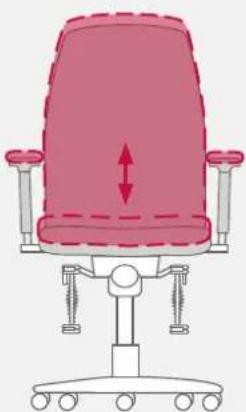

Illustration of an office chair with a red seat and vertical arrow indicating left side (no text or symbols)

Diagram of an office chair with labeled parts and directional arrows indicating movement or positioning

Illustration of a mechanical arm with red highlighted sections and a curved handle, showing motion direction (no text or symbols)

21

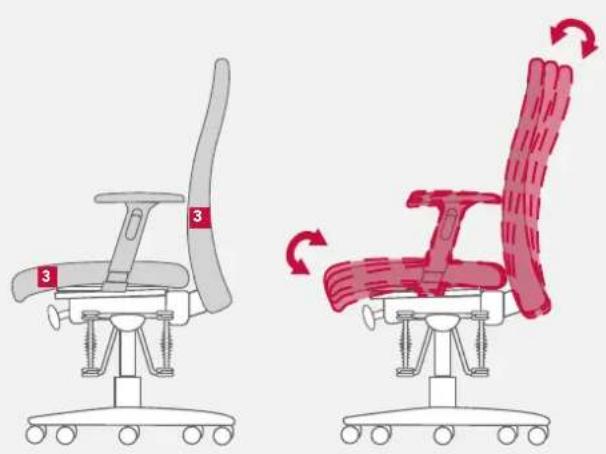

3 Device for Pelvis Balance

The device for pelvis balance allows you a harmonic adjustment of the seat surface to different positions. This motivates you to sit actively with an open angle, thereby promoting the stabilization of your back muscles.

Device for Pelvis Balance with Permanent-Contact Mechanism

Seat and back 3 automatically follow your movements. Simply shift your weight to the front or to the back and the seat surface tilts correspondingly. Further operation is not necessary.

Adjustment of Seat Depth

The adjustment of the seat depth helps you to adjust the seat surface to the length of your upper leg. Make sure that the front edge of the seat is at a distance of six inches from the hollow part of the knee.

Individually Adjusted Seat Surface

While sitting, pull the operating element 4 upward and simultaneously shift the seat forward and backward by pushing the seat cushion. Then release the operating element.

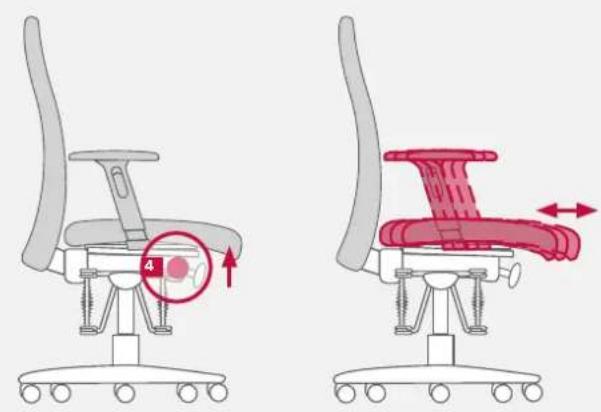

Version without Operating Handle:

With the help of the integrated quick-release lever at the bottom side of the seat cushion (in the front at the right side of the seat support), the seat depth can be changed by about 2.5 cm. Lift the quick-release lever, change the position of the seat cushion, and press the quick-release lever tightly on again. (Note: If the seat cushion cannot be moved, turn the loosened quick-release lever counterclockwise. If the seat cushion is not fixed tightly after its change of position, turn the loosened quick-release lever clockwise.)

Illustration of two different office chair designs with numbered parts, showing motion changes (no text or symbols)

english | 22 english

Diagram illustrating a medical or ergonomic device with labeled parts and directional arrows, showing two configurations.

23

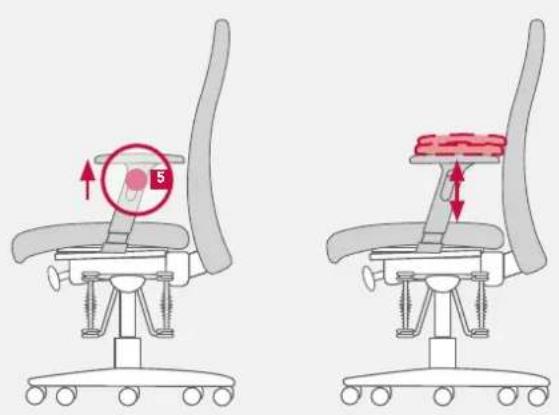

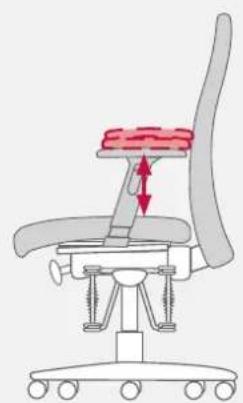

5 Arm, Height adjustable (1F)

To relieve the strain on shoulders and neck, the arms can be adjusted in height. Adapt the height so that you do not feel any tension in the shoulder area.

Adjustment of Arm in Height

Pull the operating 5 element upward. At the same time, adjust the arms at the desired height and then release the cord-pull switch.

(Arms allow adjustment to the width by using the elongated guide with position holes at the beam holding the arms up. Loosen the screws at the bottom of the seat cushion. Adjust the width by pulling the arms outward or inward and then tighten the screws firmly.)

Multifunctional Armrest (4F)

The arm rests may be adjusted in height, in order to relief the shoulder and neck musculature. Please adjust the height that way, so that you don't feel any tightness in the shoulder. Additionally you may align the supports of the arm rests in width and profundity in accordance with the particular proportions of the upper part of the body, and rotate them in respect to the position of the forearm.

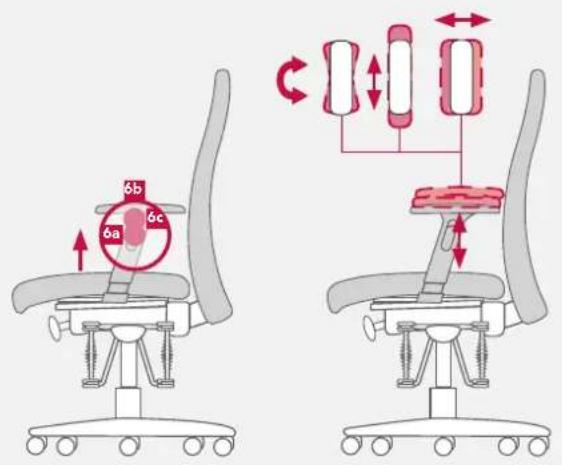

To adjust the height of the armrest

Please, pullupwardsthekey 6a, and simultaneously adjust the supports at the desired height and subsequently loosen the key.

To adjust the width and profundity, or rotate the support of the armrest. You may push by a noticeable locking resistance the supports of the armrest to the left/right or ahead/rear. By a previous pushing of the operation key below the support, may be adjusted the rotation of the support.

(The armrests may be adjusted in width by a long hole guiding in the bearing. Loosen the screwson the lower part of the seat upholstery, establish the width by pulling or pushing the armrest outwards or inwardly and subsequently tighten the screws again.)

Diagram illustrating foot massage technique on a seated chair, showing finger placement and movement arrows

english | 24 english

6b 6c 6a

25

7 Adjustment of Backrest Height

The backrest height can be individually adjusted to the shape of your spinal column.

Adjustment of Backrest Height

While sitting push in the press button 7 on the rear lower right side of the back rest (below the black plastic cover panel) and adjust the height of the back cushion. Release the press button until the back rest snaps into place.

Lumbar Support

With the adjustable lumbar support mechanism, you can adapt the curvature in the area of the lumbar lordosis. Adjust the seat curvature approximately at belt height by adjusting the backrest 7 so that your spine receives optimal support.

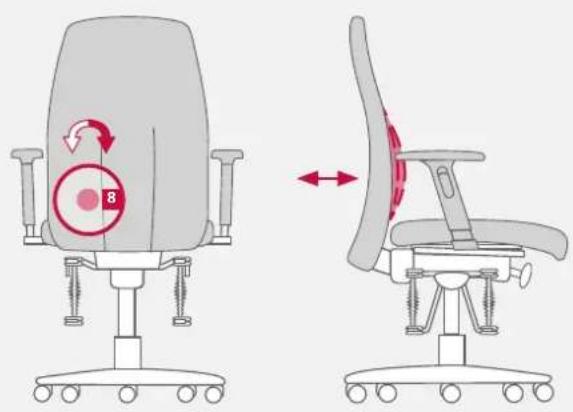

Adjustment of Lumbar Support to Shape of Back

By rotating to the right (clockwise) the switch button 8 on the back side of the black cover panel, it produces an increase of the bowing. The rotating to the left (anti-clockwise) produces a reduction of the bowing.

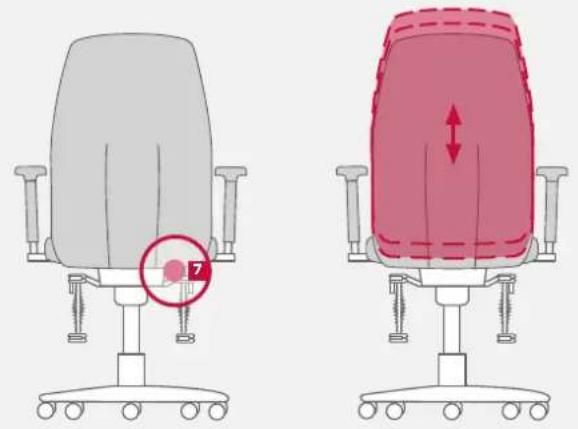

Illustration of two office chair designs with highlighted areas and directional arrows (no text or symbols)

english | 26 english

Diagram showing two views of an office chair with red arrows indicating motion or movement, labeled with number 8 and directional arrows.

27

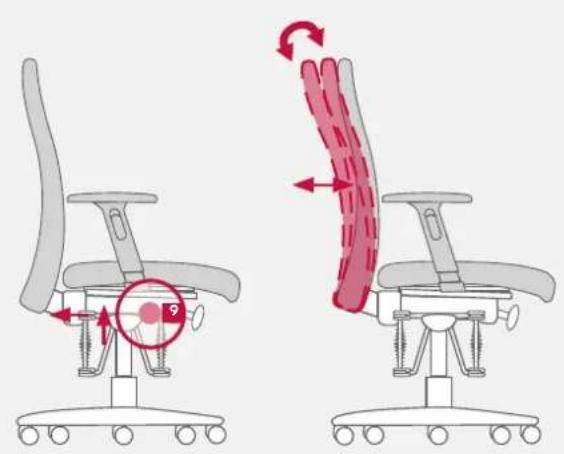

9 Backrest Tilt

Adjustments to the backrest make variable tilt possible. You can fix the backrest at a desirable tilt, or you can adjust it according to your movements by using the permanent-contact mechanism. In this way, you motivate yourself to change your position frequently.

Adjustment of Backrest Tilt:

Individually or by Permanent-contact Mechanism

Pull the operating element 9ward while sitting. The backrest will follow your movements. Then release the lever and the backrest is fixed at the desirable tilt.

You can activate the permanent-contact mechanism by pulling the operating element upward and then pushing it to the back.

VarioBackMatic (backrest tilt/pressure)

10

The VarioBackMatic responds to the backrest pressure and automatically synchronizes seat and backrest for a physically beneficial motion sequence. Try to adjust the backrest pressure level so that you never feel to have to apply too much force to lean back. In this way, you motivate yourself to change your sitting position frequently; thus, promoting positive lumbar effects.

Adjustment of Backrest Tilt: Individually or with Permanent Contact

While sitting, pull the operating element 10a yard. The backrest follows your movements. As soon as you release the lever, the backrest is fixed. You can activate the permanent-contact mechanism by pulling the operating element 10a yard and subsequently pushing it backward.

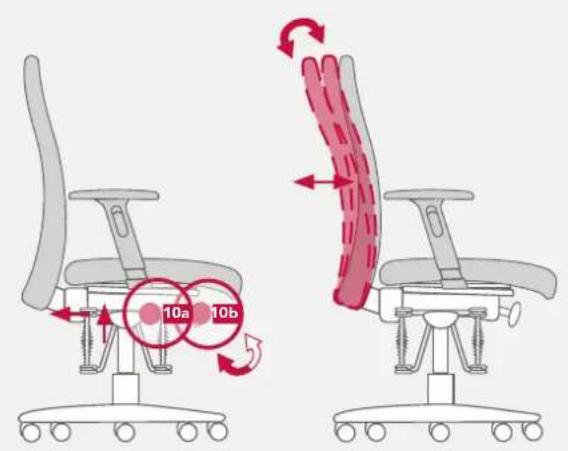

Individually Adapted Back Pressure

While sitting, pull the operating element 10a upward and then push backward so that you can adjust the back of the seat's tilt. Turn the hand wheel 10b, which is located at the right under the seat surface, clockwise to increase the back pressure. Meanwhile, turning the hand wheel counterclockwise decreases the back pressure.

Diagram illustrating the movement of a mechanical component on an office chair, showing left and right views with red arrows indicating motion direction.

english | 28 english

10a 10b

29

Special Notes

Use the office swivel chair only – as intended – to sit on it. Never stand on the chair.

Gas Spring

In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.

Castors

For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.

Pay attention to the correct choice of castors according to the floor covering.

If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.

If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.

Maintenance and Care

If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.

Labeled diagram of an office chair with numbered parts pointing to different positions on the wheel.

Diagram of an office chair with labeled parts and a red circle highlighting a specific area marked '1'

Illustration of a pink office chair with adjustable arm and seat (no text or symbols)

Diagram of an office chair with labeled parts and directional arrows indicating movement or positioning

Illustration of a mechanical armchair with red highlighted sections and a rotation arrow indicating motion (no text or symbols)

35

3 Balance Bassin

Illustration of a modern office chair with gray and red views, showing side and front fold changes (no text or symbols)

Diagram showing two different positions of a medical or ergonomic device, with numbered annotations and directional arrows indicating movement.

37

Diagram of a medical or ergonomic device with labeled point '5' and directional arrow, likely indicating a step or location.

Diagram of a mechanical arm with a red arrow indicating force or movement, no text or symbols present

Diagram illustrating ergonomic movement of a chair with directional arrows and labeled components

39

Illustration of two office chair designs with different seat positions and movement arrows (no text or symbols)

Diagram showing two views of an office chair with red circular indicators and directional arrows indicating movement or rotation.

41

Diagram illustrating the movement of a mechanical device on an office chair, showing left and right views with labeled components and directional arrows.
