350 iQ E Visitor - Office chair Bioswing - Free user manual and instructions

Product Type	Ergonomic office chair
Brand	Bioswing
Model	350 iQ E Visitor
Seat technology	360° cushioned system with controlled multidirectional movement
Pelvis Balance (Synchronous Body)	Automatic seat tilt following the center of gravity
EcoMatic (Backrest tilt)	Flexible backrest with tilt of 5 to 10 degrees depending on applied force
Maximum load	110 kg
Seat height	Adjustable via gas lift (range not specified, estimated 45-55 cm)
Dimensions (approx.)	60 x 60 x 100 cm (W x D x H)
Weight (approx.)	20 kg
Materials	Metallic elements, lacquered, plasticized, textile or leather covering depending on version
Casters	"Unloaded braked" casters: hard for carpet, soft for hard floor
Maintenance	Broom, cloth and mild soap; vacuum; dry cleaning products for fabric; leather products for leather
Warranty	5 years (excluding normal wear, max usage 8h/day)
Certification	Quality Passport, continuous quality control, BGIA study
Safety	Do not stand on chair, do not heat/open the gas lift

Frequently Asked Questions - 350 iQ E Visitor Bioswing

How to adjust the Pelvis Balance?

The Pelvis Balance is automatic: it continuously adapts to your movements without any manual adjustment.

How does EcoMatic work?

EcoMatic offers a flexible backrest: when you lean back, it tilts 5 to 10 degrees backward depending on the force applied.

Can I sit on this chair?

Yes, but only for sitting. Never stand on the seat, as this poses a safety risk.

What type of casters to use on carpet?

On carpet, use hard casters (single-color). On hard floors (parquet, linoleum, vinyl), use soft sole casters (two-color).

How to clean the chair?

Use a hand broom, a cloth and mild soap. For upholstery, vacuuming or dry cleaning is suitable. For leather, use specific leather products after testing on an inconspicuous area.

What is the maximum supported weight?

The maximum load is 110 kg for normal use of 8 hours per day.

How to change the gas lift?

Replacement of the gas lift must be carried out only by a certified professional. Never heat or force open the gas lift.

What is the warranty period?

Bioswing offers a 5-year warranty from the factory, excluding normal wear and subject to 8h/day use.

Is the chair suitable for hard floors?

Yes, provided the chair is equipped with soft sole casters (two-color) to avoid scratching the floor.

What to do in case of a stain on the upholstery?

Treat the stain promptly with a suitable product. Always test on an inconspicuous area before applying the cleaner to the entire surface.

USER MANUAL 350 iQ E Visitor Bioswing

HAIDER®

HAIDER BIOSWING GmbH

Dechantseeser Str. 4

D - 95704 Pullenreuth

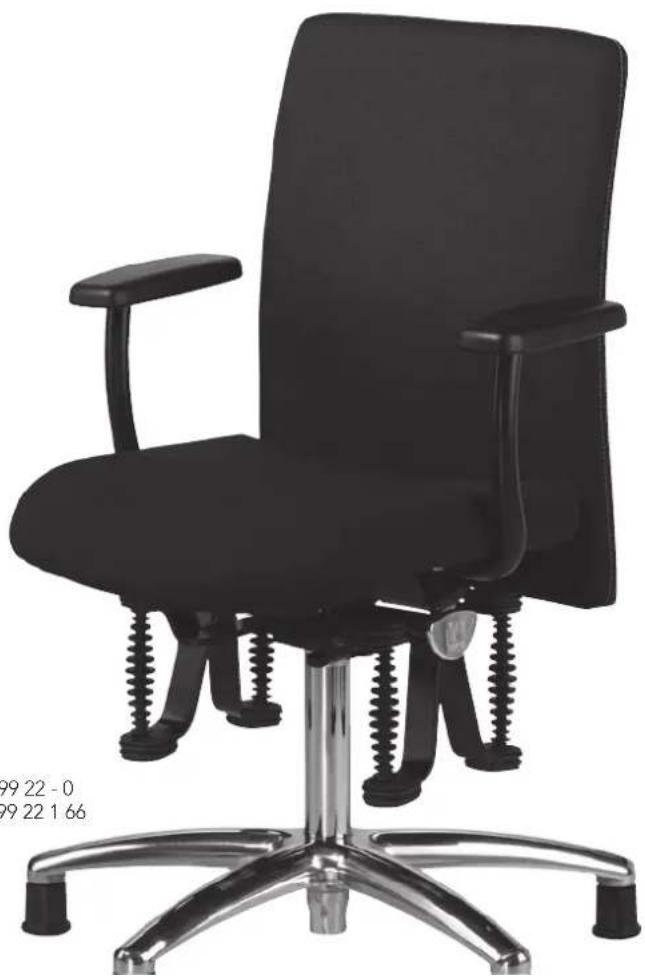

Black office chair with four arms and four legs, no visible text or symbols on the chair itself.

deutsch | 05 - 09

english | 11 - 15

français | 17-21

Illustration of a desktop office chair with labeled parts (no text or symbols present)

Illustration of a person's armchair with red motion arrows indicating rotation (no text or symbols)

17

1

Line drawing of an office chair with a seat, legs, and adjustable arm (no text or symbols)

Illustration of a mechanical arm with a red-handled lever and rotating arrow (no text or symbols)

deutsch | 8 deutsch

Besondere Hinweise

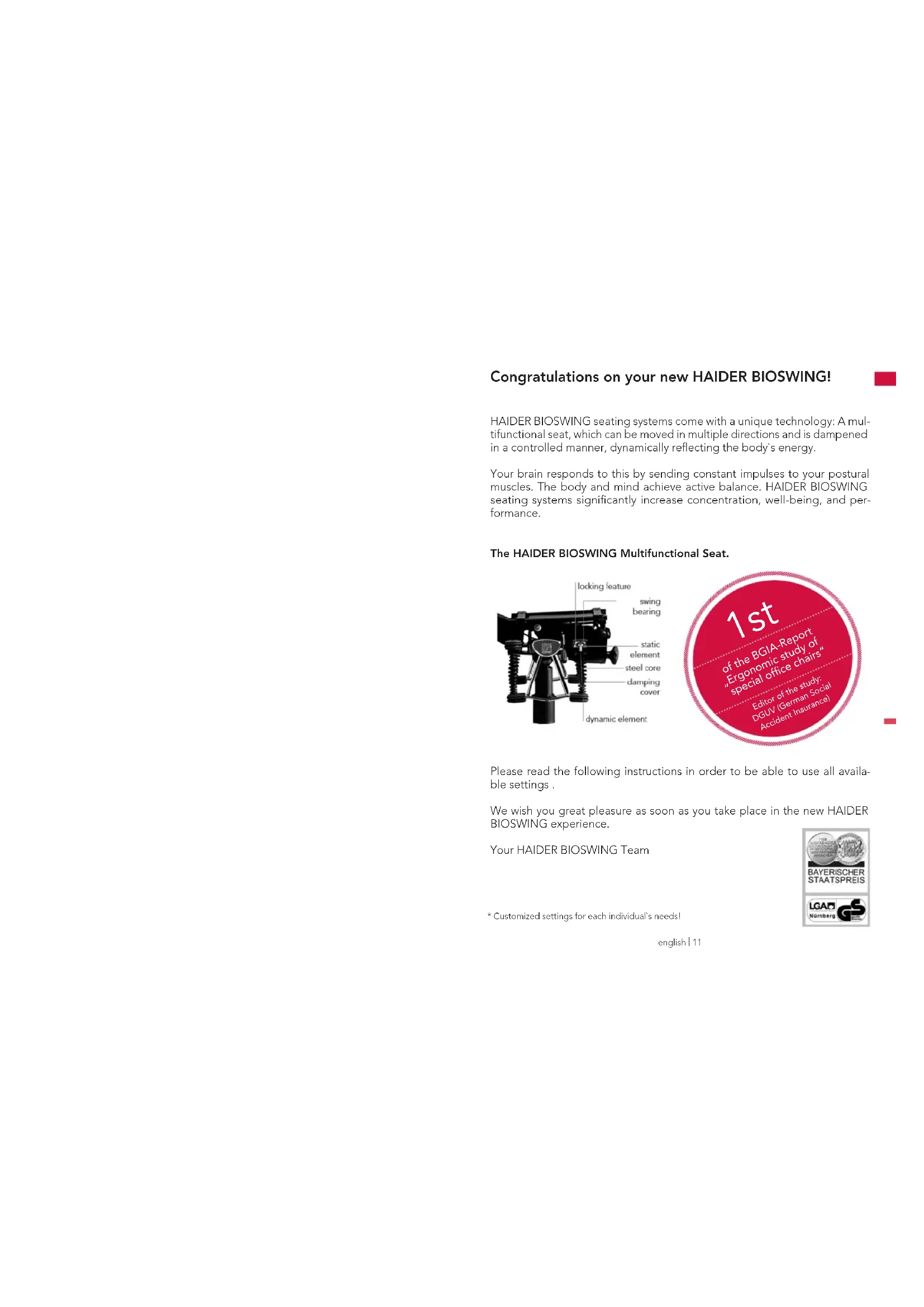

Congratulations on your new HAIDER BIOSWING!

HAIDER BIOSWING seating systems come with a unique technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.

Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. HAIDER BIOSWING seating systems significantly increase concentration, well-being, and performance.

The HAIDER BIOSWING Multifunctional Seat.

Please read the following instructions in order to be able to use all available settings.

We wish you great pleasure as soon as you take place in the new HAIDER BIOSWING experience.

Your HAIDER BIOSWING Team

* Customized settings for each individual's needs!

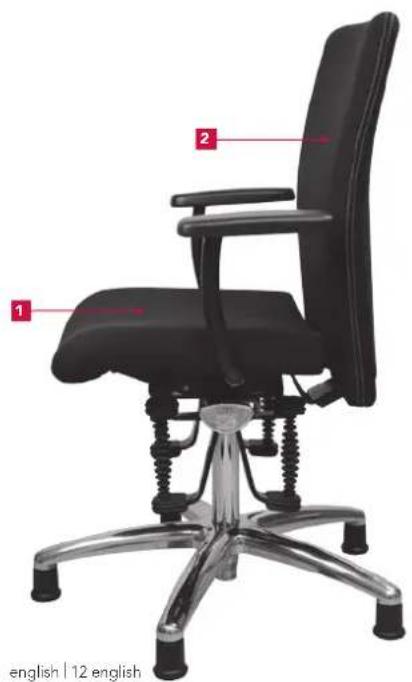

Summary of Operating Elements

1Device for pelvis balance

2 EcoMatic (backrest tilt)

Device for Pelvis Balance

1

The device for pelvis balance allows you a harmonic adjustment of the seat surface to different positions. This motivates you to sit actively with an open angle, thereby promoting the stabilization of your back muscles.

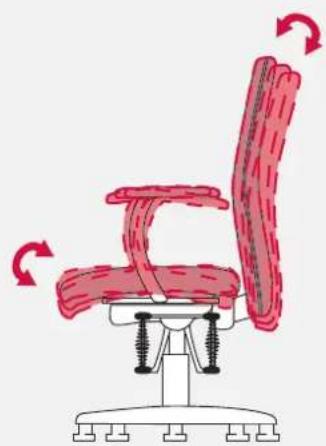

Device for Pelvis Balance with Permanent-Contact Mechanism

Seat and back 1 automatically follow your movements. Simply shift your weight to the front or to the back and the seat surface tilts correspondingly. Further operation is not necessary.

Illustration of an office chair with labeled parts (no text or symbols present)

Illustration of a red office chair with directional arrows indicating movement or rotation (no text or symbols)

13

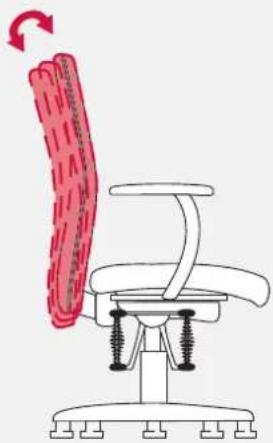

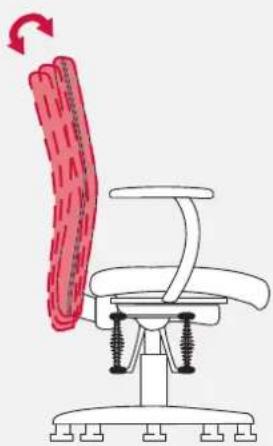

2 EcoMatic (backrest tilt)

The EcoMatic has got an elastic backrest junction. As soon as you lean back, the backrest follows your motions and drifts back between 5 and 10 degrees depending on your body weight.

Line drawing of an office chair with a seat, legs, and armrests (no text or symbols)

Illustration of a mechanical arm with a red textured rod and rotating arrow (no text or symbols)

english | 14 english

Special Notes

Use the office swivel chair only – as intended – to sit on it. Never stand on the chair.

Gas Spring

In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.

Castors

For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.

Pay attention to the correct choice of castors according to the floor covering.

If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.

If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.

Maintenance and Care

If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.

Illustration of an office chair with labeled parts (no text or symbols present)

Illustration of a red office chair with directional arrows indicating movement or rotation (no text or symbols)

19

Line drawing of an office chair with a backrest and seat, no text or symbols present

Illustration of a mechanical arm with a red textured rod and rotating arrow (no text or symbols)

|20

This certificate guarantees regular and thorough quality inspections.

HAIDER BIOSWING GmbH guarantees perfect quality and full functionality of its products.

The warranty lasts five years in consideration of normal wear and tear involved in 8 hours use per day with a maximum weight load of 110kg.

The warranty is valid from date of delivery/distribution of the product to our contracting partner.

(If you use the product continuously, contact us to request information about the time of the warranty and the warranty restrictions; the regulations can also be found on www.bioswing.de.)

This product has been carefully mounted and inspected by our employees.

Signature

In case of a complaint, please tell us the following serial number.

Serial number:

Your contracting partner:

Votre revendeur:

Qualitäts-Pass
