USER MANUAL 350 iQ E Meeting Bioswing

Black office chair with four arms and four legs, no visible text or symbols on the chair itself.

deutsch | 04 - 09

english | 10 - 15

français | 16-21

Tel. [phone] - 99 22 - 0

Two black office chair designs with adjustable legs and base supports, labeled 1 to 3 (no text or symbols on chairs)

|5

1 Sitzhöhe

Diagram of a medical or office chair with numbered parts and a highlighted insertion point, showing mechanical components.

deutsch | 6 deutsch

Illustration of a pink office chair with adjustable arm and legs (no text or symbols)

Illustration of an office chair with labeled parts (no text or symbols present)

Illustration of a red ergonomic chair with motion arrows indicating rotation (no text or symbols)

17

Line drawing of an office chair with a seat and armrest (no text or symbols)

Illustration of a mechanical arm with a red-handled lever and rotating arrow (no text or symbols)

deutsch | 8 deutsch

Besondere Hinweise

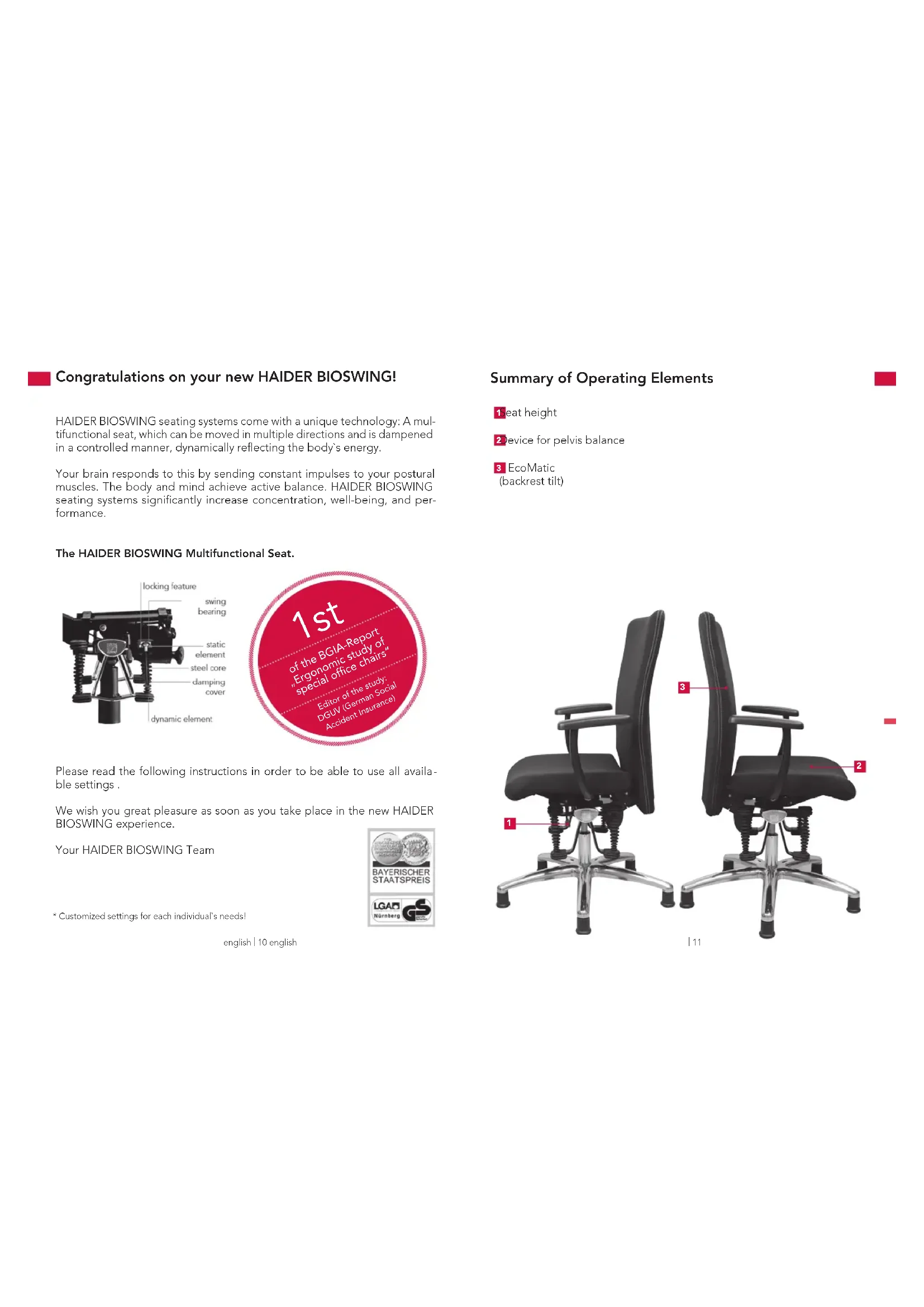

Congratulations on your new HAIDER BIOSWING!

HAIDER BIOSWING seating systems come with a unique technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.

Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. HAIDER BIOSWING seating systems significantly increase concentration, well-being, and performance.

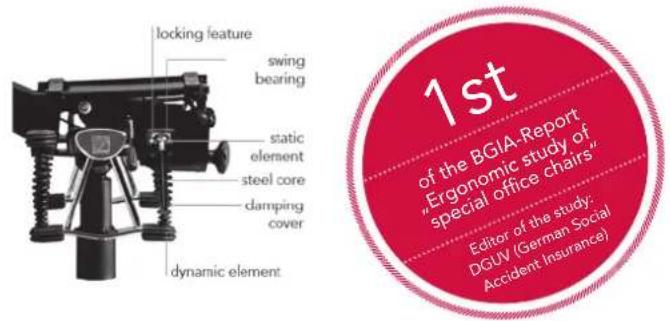

The HAIDER BIOSWING Multifunctional Seat.

locking feature swing bearing static element steel core damping cover dynamic element 1st of the BGIA-Report "Ergonomic study of special office chairs" Editor of the study: DGUV (German Social Accident Insurance)

Please read the following instructions in order to be able to use all available settings.

We wish you great pleasure as soon as you take place in the new HAIDER BIOSWING experience.

Your HAIDER BIOSWING Team

* Customized settings for each individual's needs!

english | 10 english

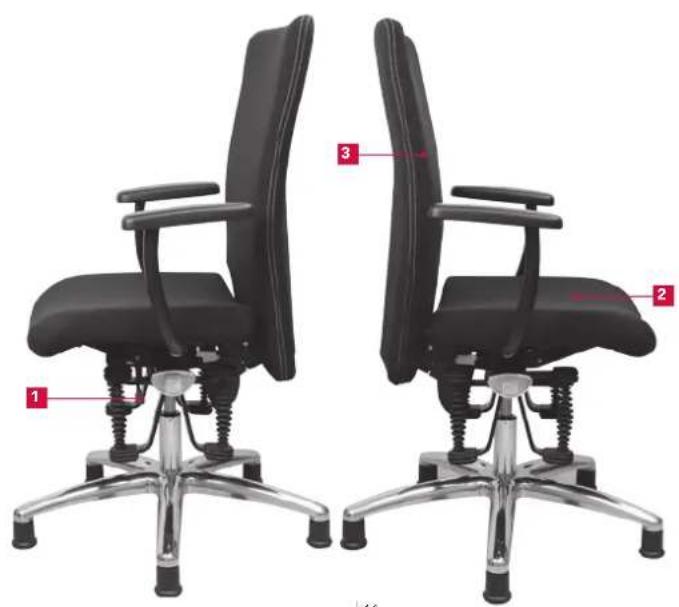

Summary of Operating Elements

1eat height
2 device for pelvis balance
3 EcoMatic (backrest tilt)

Two black office chair designs with adjustable legs and base supports, labeled 1 to 3 (no text or symbols on the chairs themselves)

11

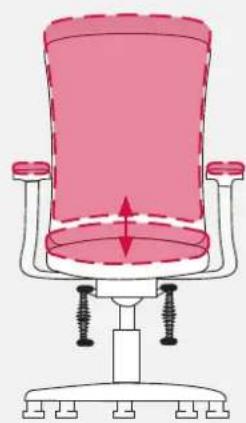

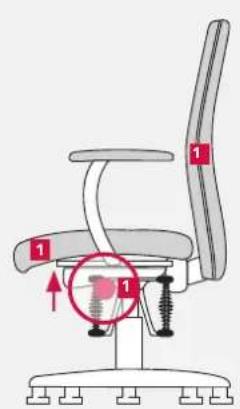

1 Seat Height

Adjust the height of the seat surface according to the height to the hollow parts of your knees. Your upper and lower leg form a right to slightly open angle. Your feet are flat on the floor – without pressure on the upper thighs.

Lowering the Seat

While sitting on the chair, pull the operating element 1 upward and release it at the desired position. Please pay attention to the risk of getting trapped in the foot section.

Raising the Seat

Lightening the load on the seat, pull the operating element upward and release it at the desired position.

Please note: The gas spring for seat height adjustment is equipped with a readjusting device, i. e. after standing up the chair gets back in its original position.

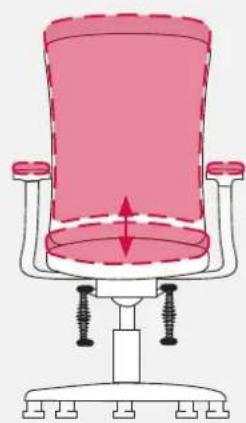

Device for Pelvis Balance

The device for pelvis balance allows you a harmonic adjustment of the seat surface to different positions. This motivates you to sit actively with an open angle, thereby promoting the stabilization of your back muscles.

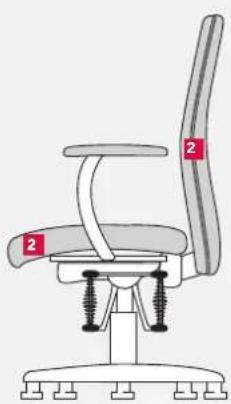

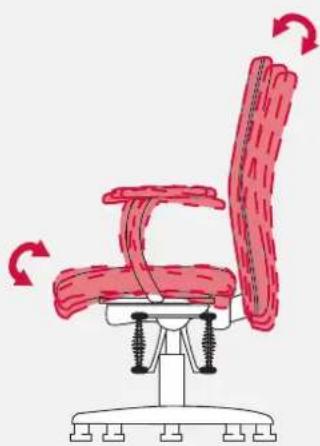

Device for Pelvis Balance with Permanent-Contact Mechanism

Seat and back 2 automatically follow your movements. Simply shift your weight to the front or to the back and the seat surface tilts correspondingly. Further operation is not necessary.

Diagram of an office chair with numbered parts and a highlighted insertion point, showing mechanical components.

english | 12 english

Illustration of a pink office chair with adjustable arm and legs (no text or symbols)

Illustration of an office chair with labeled parts (no text or symbols present)

Illustration of a red exercise chair with rotating arrows indicating movement (no text or symbols)

13

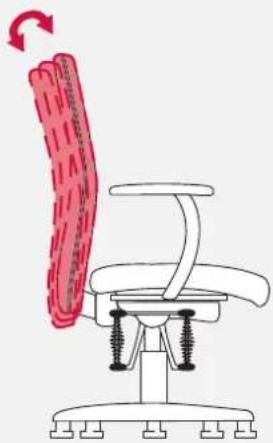

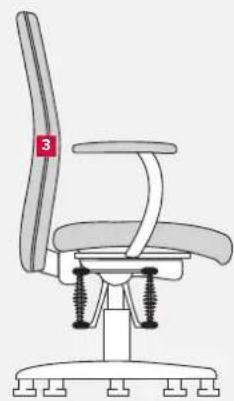

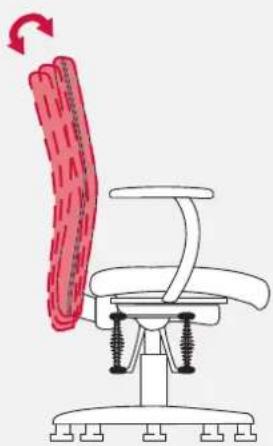

3 EcoMatic (backrest tilt)

The EcoMatic has got an elastic backrest junction. As soon as you lean back, the backrest follows your motions and drifts back between 5 and 10 degrees depending on your body weight.

Line drawing of an office chair with a seat and armrest (no text or symbols)

Illustration of a red mechanical component with a curved arm and spring, showing rotational motion (no text or symbols)

english | 14 english

Special Notes

Use the office swivel chair only – as intended – to sit on it. Never stand on the chair.

Gas Spring

In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.

Castors

For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.

Pay attention to the correct choice of castors according to the floor covering.

If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.

If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.

Maintenance and Care

If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.

Two black office chair designs with adjustable armrests and base supports, labeled 1 to 3 (no text or symbols on the chairs themselves)

Diagram of an office chair with numbered parts and a highlighted insertion point, showing mechanical components.

Illustration of a pink office chair with adjustable arm and legs (no text or symbols)

Illustration of an office chair with labeled parts (no text or symbols present)

Illustration of a red ergonomic chair with directional arrows indicating rotation or movement (no text or symbols)

19

Line drawing of an office chair with a seat and legs, no text or symbols present

Illustration of a mechanical arm with a red textured rod and rotating arrow (no text or symbols)

This certificate guarantees regular and thorough quality inspections.

HAIDER BIOSWING GmbH guarantees perfect quality and full functionality of its products.

The warranty lasts five years in consideration of normal wear and tear involved in 8 hours use per day with a maximum weight load of 110kg.

The warranty is valid from date of delivery/distribution of the product to our contracting partner.

(If you use the product continuously, contact us to request information about the time of the warranty and the warranty restrictions; the regulations can also be found on www.bioswing.de.)

This product has been carefully mounted and inspected by our employees.

Signature

In case of a complaint, please tell us the following serial number.

Serial number:

Your contracting partner:
