USER MANUAL 560 iQ S Bioswing

Congratulations on your new BIOSWING®!

BIOSWING seating systems come with a unique 3D technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.

Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. BIOSWING® seating systems significantly increase concentration, well-being, and performance.

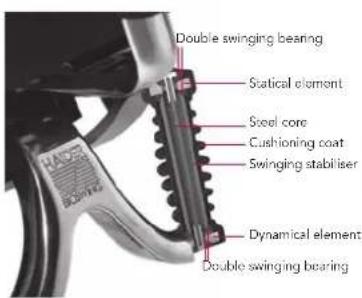

The BIOSWING 3D Multifunctional Seat.

Please read the following instructions in order to be able to use all available settings.

We wish you great pleasure as soon as you take place in the new BIO-SWING® experience.

Your HAIDER BIOSWING Team

• Customized settings for each individual's needs!

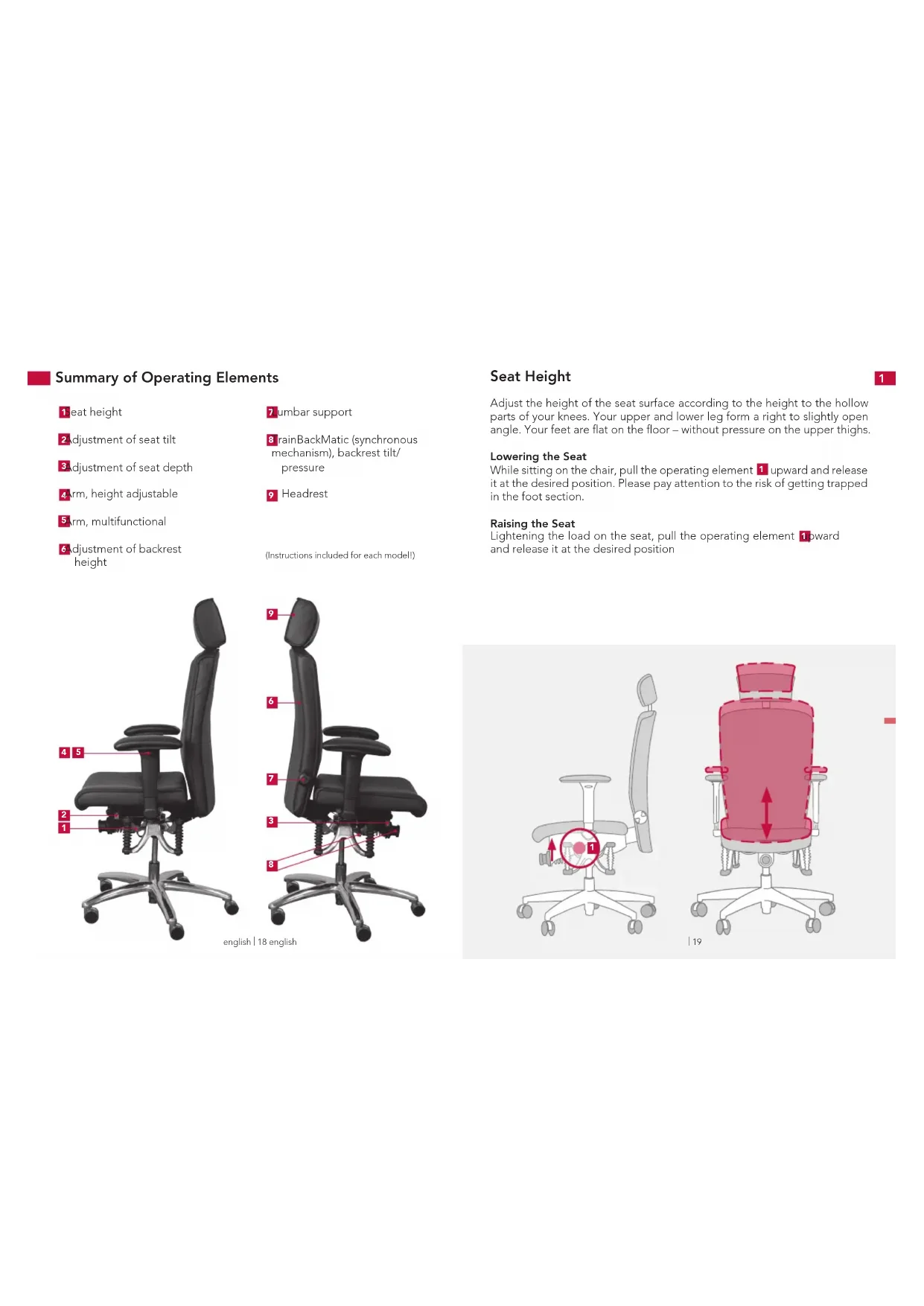

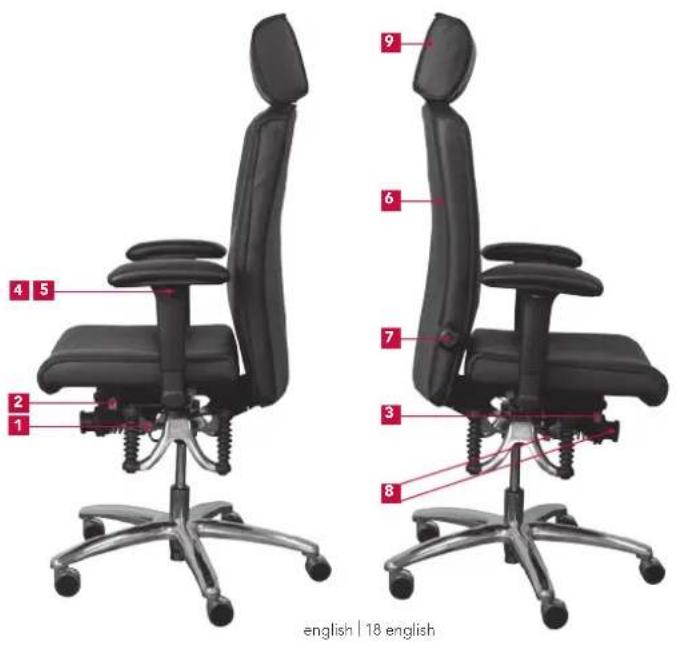

Summary of Operating Elements

1 eat height
2 Adjustment of seat tilt
Adjustment of seat depth
4 arm, height adjustable
arm, multifunctional
6 adjustment of backrest height

7.1umbar support
8 rainBackMatic (synchronous mechanism), backrest tilt/ pressure
9 Headrest

(Instructions included for each model!)

Seat Height

Adjust the height of the seat surface according to the height to the hollow parts of your knees. Your upper and lower leg form a right to slightly open angle. Your feet are flat on the floor - without pressure on the upper thighs.

Lowering the Seat

While sitting on the chair, pull the operating element 1 upward and release it at the desired position. Please pay attention to the risk of getting trapped in the foot section.

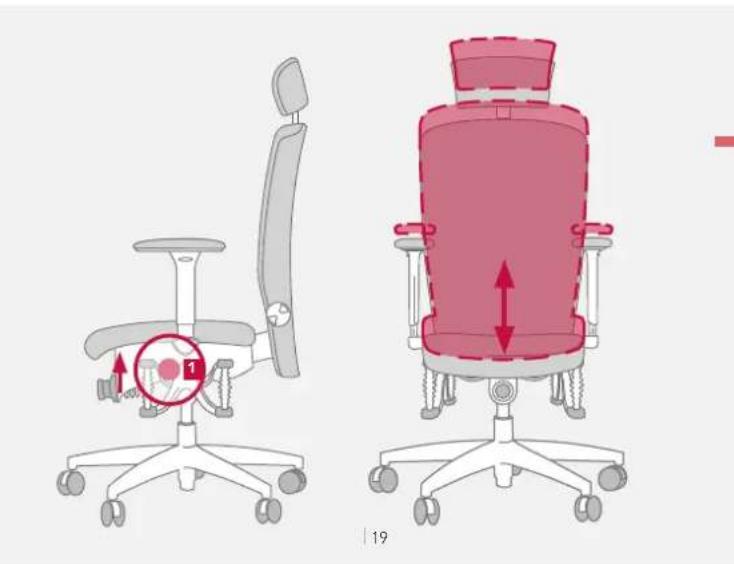

Raising the Seat

Lightening the load on the seat, pull the operating element upward and release it at the desired position

1

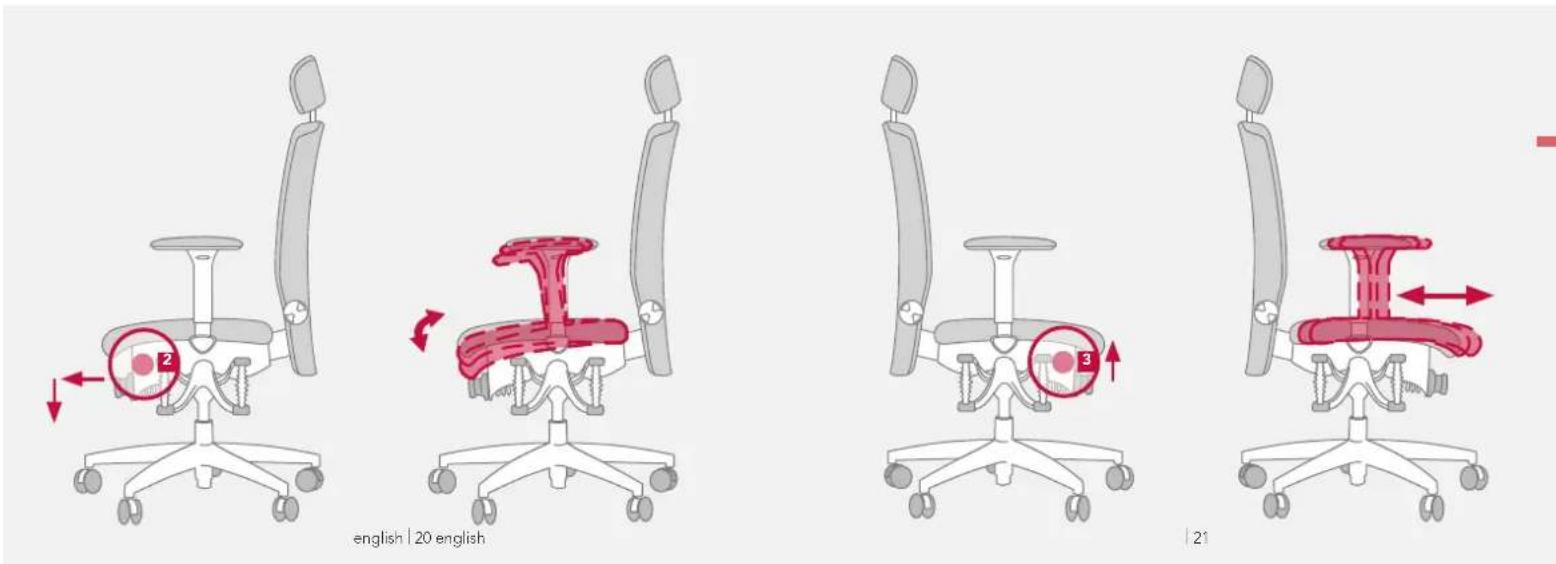

2 Adjustment of Seat Tilt

To support the physically correct tilt of the pelvis, you can adjust the seat surface either by utilizing the permanent-contact mechanism or by adjusting it for individually desired inclination. The seat tilt facilitates the straightening of the spinal column.

Seat Tilt with Permanent-contact Mechanism

While sitting on the chair, press the operating element 2 toward the front and then downward. The whole seat surface reclines according to the shift of your body weight and the position of your upper leg. To deactivate the setting, pull the operating element upward again.

Individually Adjusted Seat Tilt

While sitting, push the operating element 2 toward the front and adjust the required tilt by shifting your body weight and upper leg. Then release the operating element when complete.

Adjustment of Seat Depth

The adjustment of the seat depth helps you to adjust the seat surface to the length of your upper leg. Make sure that the front edge of the seat is at a distance of six inches from the hollow part of the knee.

Individually Adjusted Seat Surface

While sitting, pull the operating element 3 upward, while simultaneously pushing the seat cushion forward and backward until the desired position is reached. Then release the operating element when complete.

3

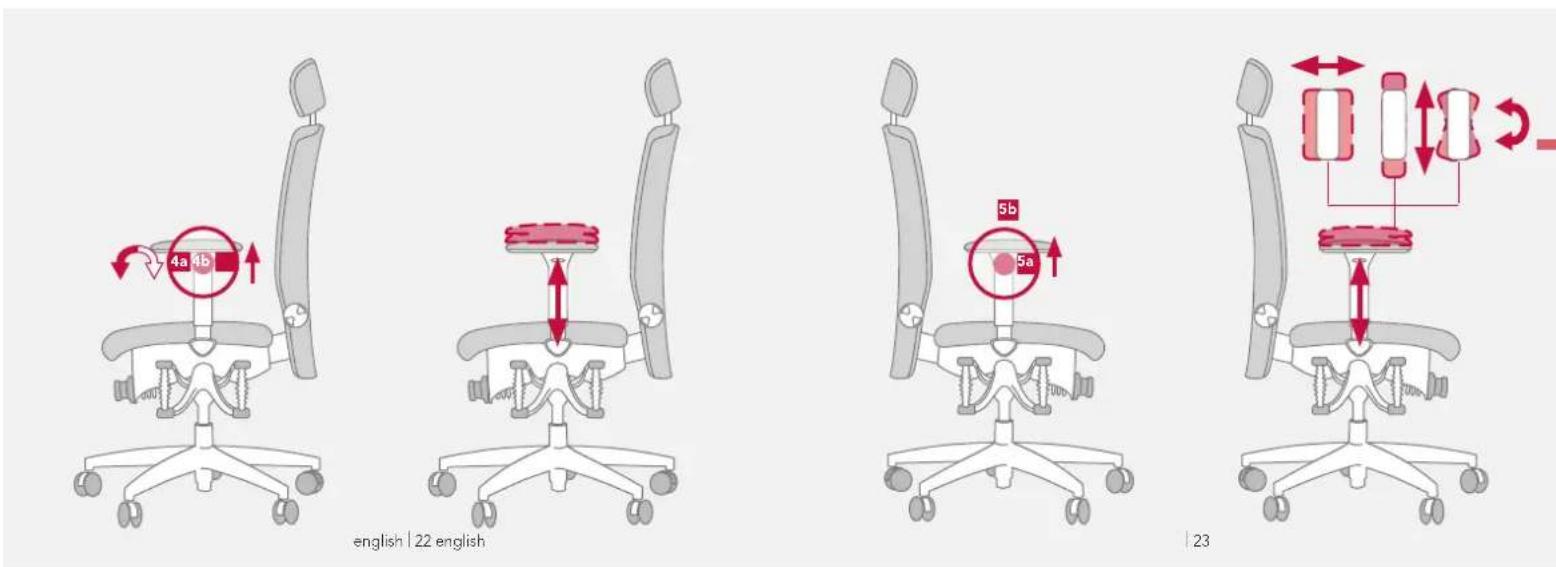

4 Arm, Height adjustable (1F)

To relieve the strain on shoulders and neck, the arms can be adjusted in height. Adapt the height so that you do not feel any tension in the shoulder area.

Adjustment of Arm in Height

• Version with rotary knob:
  The height can be adapted gradually by using the rotary knob 48
• Version with cord-pull switch: Pull the operating element 4b upward. At the same time, adjust the arms at the desired height and then release the cord-pull switch.

(Both versions allow adjustment to the width of the arms by using the elongated guide with position holes at the beam holding the arms up. Loosen the screws at the bottom of the seat cushion. Adjust the width by pulling the arms outward or inward and then tighten the screws firmly.)

Arm, Multifunctional (4F)

To relieve the strain on your shoulders and neck, the arms can be adjusted in height. Adjust the height so that you do not feel any tension in the shoulder area. Furthermore, the armrests can be adjusted to the individual proportions of the upper body in breadth and depth. They can also be turned according to the position of the forearm.

Adjustment of Arm in Height

Pull the cord-pull switch 5a upward. At the same time, adjust the armrests to the desired height and release the cord-pull switch.

Adjustment or Movement of Armrests in Breadth and Depth

While noticing resistance from the catches, push the armrests 3bhtward/ leftward or forward/backward or - alternatively - swivel the armrests outward/inward.

(Both versions allow adjustment to the width of the arms by using the elongated guide with position holes at the beam holding the arms up. Loosen the screws at the bottom of the seat cushion. Adjust the width by pulling the arms outward or inward and then tighten the screws firmly.)

5

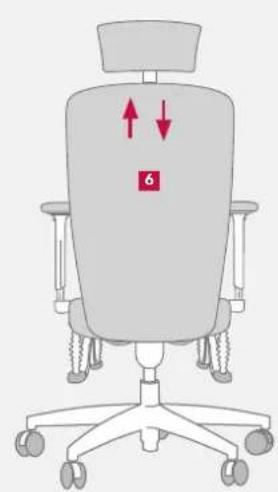

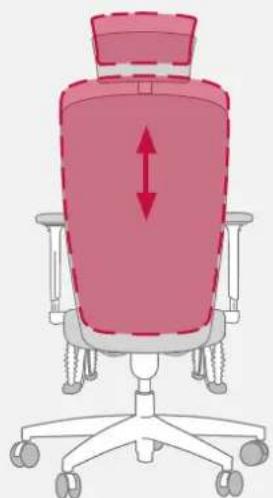

6 Adjustment of Backrest Height

The backrest height can be individually adjusted to the shape of your spinal column.

Adjustment of backrest height

While sitting, reach backward with both hands and adjust the backrest to the desired height by pushing it upward from the lowest point. Please note that the backrest can be lowered only from the highest position.

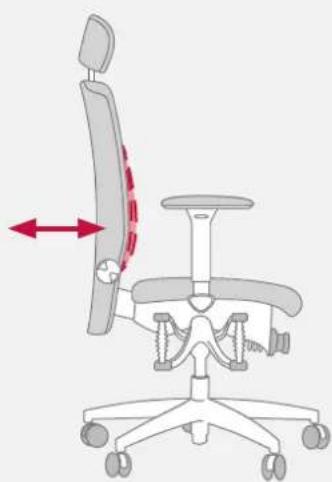

Lumbar Support

With the adjustable lumbar support mechanism, you can adapt the curvature in the area of the lumbar lordosis. Adjust the seat curvature approximately at belt height by adjusting the backrest so that your spine receives optimal support.

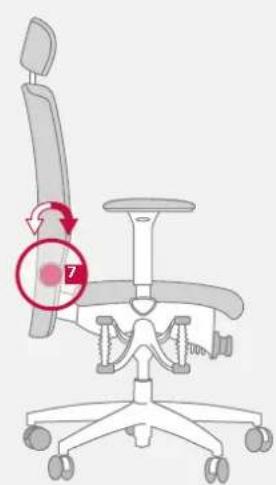

Adjustment of Lumbar Support to Shape of Back

Operating the rotary control 7 at the backrest forward increases the curvature of the spine. Operating backwards reduces the curvature of the spine.

english|24 english

25

7

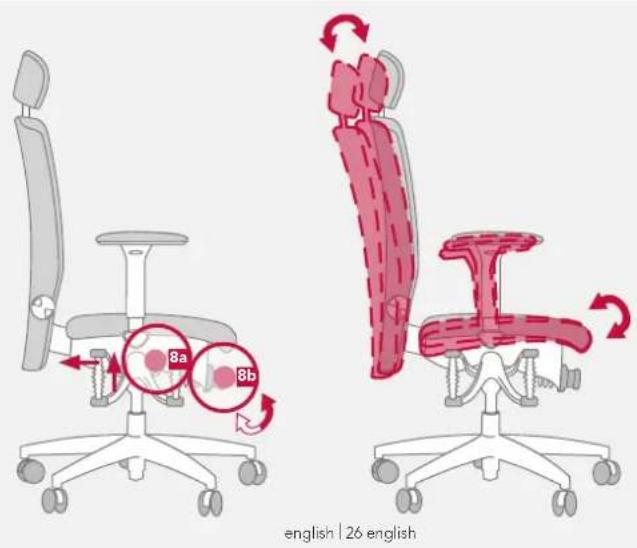

8 TrainBackMatic (Synchronous Mechanism)

The TrainBackMatic responds to the backrest pressure and automatically synchronizes seat and backrest for a physically beneficial motion sequence. Try to adjust the backrest pressure level so that you never feel to have to apply too much force to lean back. In this way, you motivate yourself to change your sitting position frequently; thus, promoting positive lumbar effects.

Adjustment of Backrest Tilt: Individually or with Permanent Contact

While sitting, pull the operating element upward. The backrest follows your movements. As soon as you release the lever, the backrest is fixed. You can activate the permanent-contact mechanism by pulling the operating element upward and subsequently pushing it backward.

Individually Adapted Back Pressure

While sitting, pull the operating element 3a upward and then push backward so that you can adjust the back of the seat's tilt. Turn the hand wheel 4b, which is located in the middle under the seat surface, clockwise to increase the back pressure. Meanwhile, turning the hand wheel counterclockwise decreases the back pressure.

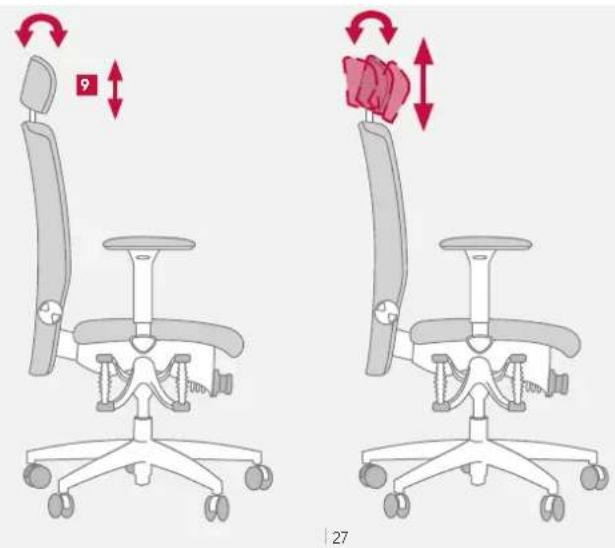

Headrest

The headrest supports the relief of the cervical spine, especially in the backward tilted posture of relaxation. The headrest can individually be adjusted in height and tilt.

Individual Adjustment of Headrest

While noticing resistance from the catches, you can push the headrest upward or downward. To adjust the tilt, turn it forward or backward.

Special Notes

Use the office swivel chair only - as intended - to sit on it. Never stand on the chair.

Gas Spring

In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.

Castors

For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.

Pay attention to the correct choice of castors according to the floor covering.

If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.

If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.

Maintenance and Care

If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.

This certificate guarantees regular and thorough quality inspections.

HAIDER BIOSWING GmbH guarantees perfect quality and full functionality of its products.

The warranty lasts five years in consideration of normal wear and tear involved in 8 hours use per day with a maximum weight load of 125kg

The warranty is valid from date of delivery/distribution of the product to our contracting partner.

(If you use the product continuously, contact us to request information about the time of the warranty and the warranty restrictions; the regulations can also be found on www.bioswing.de.)

This product has been carefully mounted and inspected by our employees.

Signature

In case of a complaint, please tell us the following serial number.

Serial number:

Your contracting partner:
