| Product type | Office chair |
| Brand | Bioswing |
| Model | 650 iQ E Visitor |
| Seat technology | 3D Pelvis Balance System (body-synchronous) and EcoMatic (360° flexible backrest) |
| Maximum load | 110 kg |
| Warranty | 5 years (excluding normal wear, 8h/day use) |
| Usage | Only for sitting (do not stand on it) |
| Casters | Delivered with braked casters; choose type according to floor (hard for carpet, soft for hard floor) |
| Maintenance | Vacuum, soft cloth and soap, dry cleaning for textiles, specific products for leather |
| Certificate | Quality Passport – continuous quality control in production |
| Gas cylinder | Replacement reserved for certified professionals – do not heat or force |
| Spare parts | Gas cylinder, casters (depending on floor), upholstery |
| Repairability | Gas cylinder: professional; casters: user-replaceable |
| Materials | Metal, lacquered, plastic-coated, textile or leather upholstery |
| Backrest tilt (EcoMatic) | 5 to 10 degrees depending on applied force |
| Seat movement | 360° dampened and controlled, automatic adaptation to center of gravity shift |
| Power supply | None (manual operation) |
| Serial number | Indicated on the label: 650 iQ E Visitor or 660 iQ E Visitor |
Frequently Asked Questions - 650 iQ E Visitor Bioswing
User questions about 650 iQ E Visitor Bioswing
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Office chair in PDF format for free! Find your manual 650 iQ E Visitor - Bioswing and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 650 iQ E Visitor by Bioswing.
USER MANUAL 650 iQ E Visitor Bioswing
Congratulations on your new BIOSWING®!
BIOSWING seating systems come with a unique 3D technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.
Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. BIOSWING® seating systems significantly increase concentration, well-being, and performance.
The BIOSWING 3D Multifunctional Seat.
Please read the following instructions in order to be able to use all available settings.
We wish you great pleasure as soon as you take place in the new BIO-SWING® experience.
Your HAIDER BIOSWING Team
- Customized settings for each individual's needs!

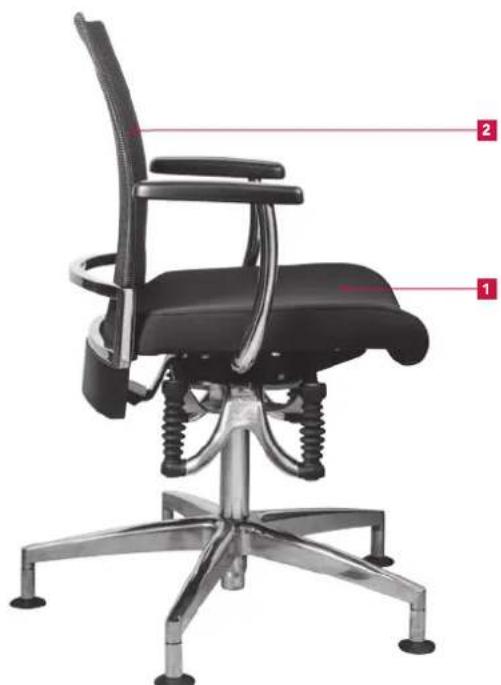

Summary of Operating Elements
Device for pelvis balance
2 EcoMatic (backrest tilt)
english | 12 english
Device for Pelvis Balance
The device for pelvis balance allows you a harmonic adjustment of the seat surface to different positions. This motivates you to sit actively with an open angle, thereby promoting the stabilization of your back muscles.

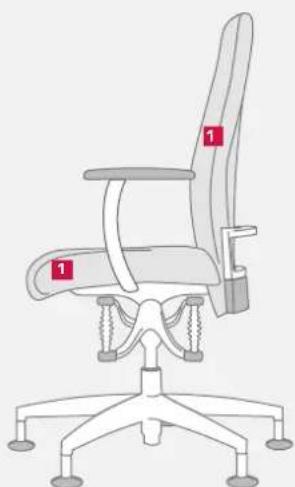

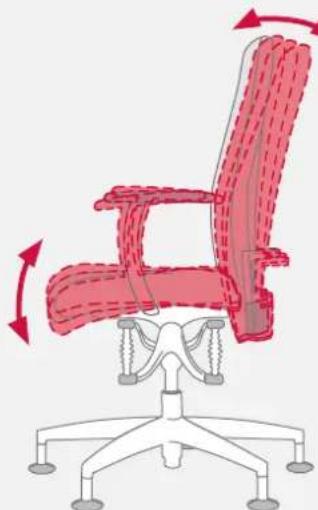

Device for Pelvis Balance with Permanent-Contact Mechanism
Seat and back 1 automatically follow your movements. Simply shift your weight to the front or to the back and the seat surface tilts correspondingly. Further operation is not necessary.
13
1

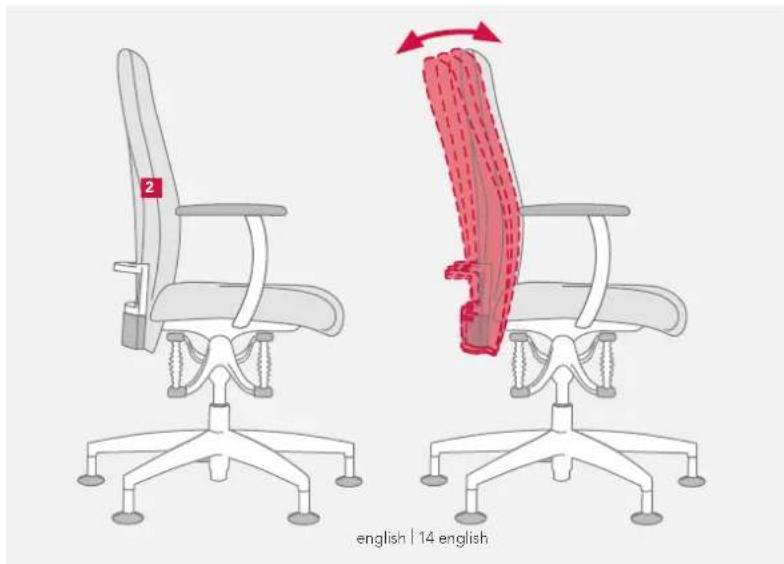

2 EcoMatic (backrest tilt)
The EcoMatic has got an elastic backrest junction. As soon as you lean back, the backrest follows your motions and drifts back between 5 and 10 degrees depending on your body weight.
Special Notes
Use the office swivel chair only - as intended - to sit on it. Never stand on the chair.
Gas Spring
In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.
Castors
For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.
Pay attention to the correct choice of castors according to the floor covering.
If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.
If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.
Maintenance and Care
If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.
This certificate guarantees regular and thorough quality inspections.
HAIDER BIOSWING GmbH guarantees perfect quality and full functionality of its products.
The warranty lasts five years in consideration of normal wear and tear involved in 8 hours use per day with a maximum weight load of 110kg
The warranty is valid from date of delivery/distribution of the product to our contracting partner.
(If you use the product continuously, contact us to request information about the time of the warranty and the warranty restrictions; the regulations can also be found on www.bioswing.de.)
This product has been carefully mounted and inspected by our employees.
Signature
In case of a complaint, please tell us the following serial number.
Serial number:
