Product Type	Ergonomic office chair
Brand	Bioswing
Model	660 iQ E Visitor
Seat technology	3D system with double oscillating cushion, static and dynamic element, steel core, damping shell, oscillation stabilizer
Pelvic Balance adjustment	Synchronous body: seat and backrest automatically follow body movements, encouraging active posture
EcoMatic adjustment	Flexible backrest tilting 5 to 10 degrees backward depending on the force exerted
Maximum supported weight	110 kg
Warranty	5 years basic (excluding normal wear, 8h/day use)
Casters	Casters with 'unloaded brake'; choose hard for carpet, soft for hard floors (parquet, lino, vinyl)
Maintenance	Hand brush, cloth, mild soap; vacuum cleaner; dry cleaning; specific leather products
Safety precautions	Do not stand on the seat; gas cylinder must be replaced only by a professional; use casters suitable for the floor
Certification	Ergonomically certified (ELU No.1, BGIA study)
Repairability	Gas cylinder and casters replaceable by a qualified professional
Upholstery materials	Fabric or leather depending on version
Country of manufacture	Germany (HAIDER BIOSWING GmbH factory)

Frequently Asked Questions - 660 iQ E Visitor Bioswing

How does the BIOSWING 3D seat system work?

The 3D system allows a damped and controlled movement in all directions (360°) of the seat. It reflects the body's dynamic energy and stimulates postural muscles through micro-impulses sent by the brain.

What is Pelvic Balance and how to adjust it?

Pelvic Balance automatically harmonizes the seat to body positions. It encourages active sitting with an open angle between thighs and back. No manual adjustment is needed: it follows body movements.

How does the EcoMatic backrest adjustment work?

The EcoMatic has a flexible backrest that tilts 5 to 10 degrees backward as soon as you lean against it. The tilt depends on the force exerted.

What is the maximum weight capacity of the chair?

The maximum supported load is 110 kg under normal use of 8 hours per day.

How to clean the chair upholstery?

For textile upholstery, vacuuming or dry cleaning is recommended. For leather, use specific leather products. Always test the product on an inconspicuous area before application.

Can I replace the gas cylinder or casters myself?

Replacement of the gas cylinder must be done only by a qualified professional. Casters are replaceable, but make sure to choose the type suitable for your floor (hard for carpet, soft for hard floors).

What is the warranty period?

The basic warranty is 5 years from the date of manufacture, excluding normal wear and for 8 hours per day use. Please consult bioswing.fr for more details.

Can I use this chair on hard floors (parquet, lino)?

Yes, but it must be equipped with soft casters (bi-colored). Hard casters (mono-colored) are for carpets only.

How to get a manual translated into another language?

On the download page, select your language and provide your email. A translated version will be sent to you by email.

What to do if the gas cylinder no longer works?

Contact a qualified professional for replacement. Never heat or force open the cylinder.

USER MANUAL 660 iQ E Visitor Bioswing

Office chair with black mesh backrest and metallic frame, no visible text or symbols on the chair itself

deutsch | 05 - 09

english | 11 - 15

français | 17-21

Exterior view of a modern office chair with adjustable armrest and four legs (no text or symbols visible)

deutsch | 6 deutsch

Beckenbalance

1

Illustration of two office chair designs with red and gray outlines, showing side and front views (no text or symbols)

17

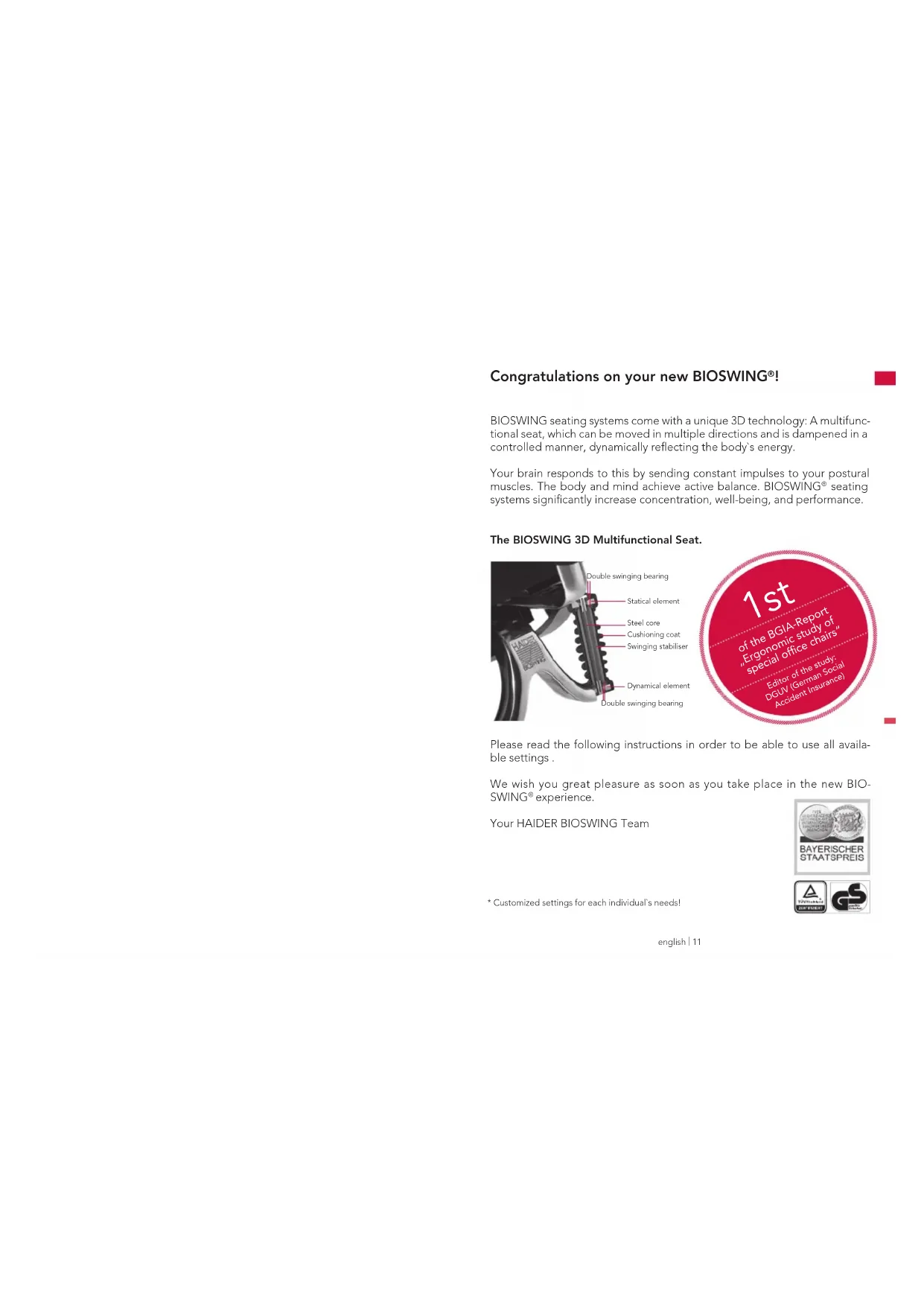

Congratulations on your new BIOSWING®!

BIOSWING seating systems come with a unique 3D technology: A multifunctional seat, which can be moved in multiple directions and is dampened in a controlled manner, dynamically reflecting the body's energy.

Your brain responds to this by sending constant impulses to your postural muscles. The body and mind achieve active balance. BIOSWING® seating systems significantly increase concentration, well-being, and performance.

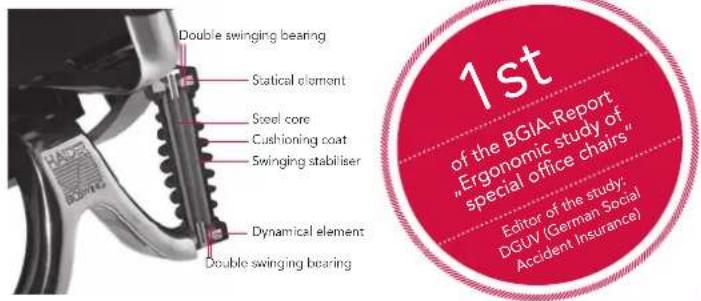

The BIOSWING 3D Multifunctional Seat.

Please read the following instructions in order to be able to use all available settings.

We wish you great pleasure as soon as you take place in the new BIO-SWING® experience.

Your HAIDER BIOSWING Team

* Customized settings for each individual's needs!

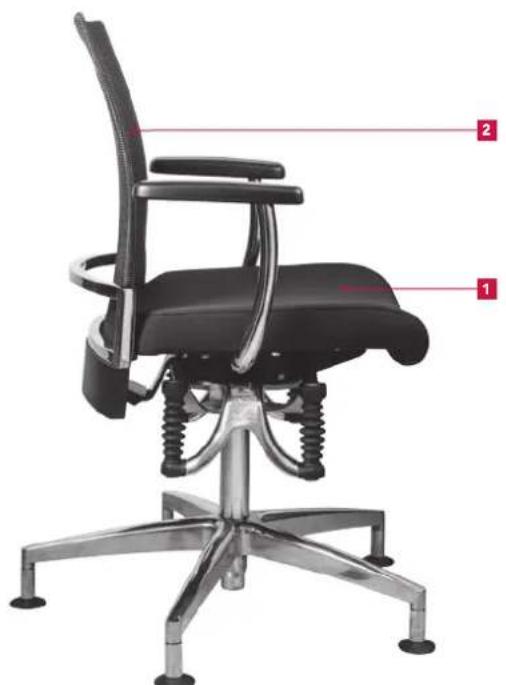

Summary of Operating Elements

1Device for pelvis balance
2 EcoMatic (backrest tilt)

Exterior view of an office chair with black backrest and metal frame, labeled with numbered annotations (1 and 2)

english | 12 english

Device for Pelvis Balance

1

The device for pelvis balance allows you a harmonic adjustment of the seat surface to different positions. This motivates you to sit actively with an open angle, thereby promoting the stabilization of your back muscles.

Device for Pelvis Balance with Permanent-Contact Mechanism

Seat and back 1 automatically follow your movements. Simply shift your weight to the front or to the back and the seat surface tilts correspondingly. Further operation is not necessary.

Illustration of two office chair designs with numbered labels, showing left and right side views (no text or symbols present)

13

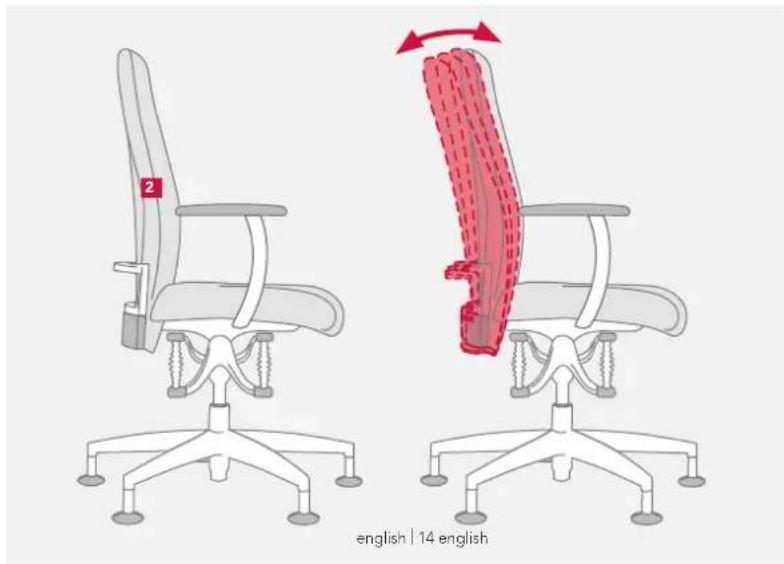

2 EcoMatic (backrest tilt)

The EcoMatic has got an elastic backrest junction. As soon as you lean back, the backrest follows your motions and drifts back between 5 and 10 degrees depending on your body weight.

Special Notes

Use the office swivel chair only – as intended – to sit on it. Never stand on the chair.

Gas Spring

In order to adjust the height, only specialist staff is allowed to make changes and perform work in the area of the gas spring. Do not heat or open the pneumatic spring with force.

Castors

For your safety, the office swivel chair is equipped in series with self-braking castors in order to impede the movement of an empty chair.

Pay attention to the correct choice of castors according to the floor covering.

If the chair is used on a soft floor (e.g. carpet), it should be equipped with hard castors. Hard castors are single-colored.

If the chair is used on a hard floor (e.g. parquet, linoleum, tiles), it should be equipped with soft castors. Soft castors are two-colored, which means that the tread has a different color.

Maintenance and Care

If the office swivel chair is used as intended, it is maintenance-free. Clean paint/plastic and metal surfaces with a soft hand brush or cloth with mild detergent, soap, or grease-dissolving liquid. According to how much the chair is used, a regular cleaning of the upholstery cover is recommended. The fabric/micro-fiber cover can be made dirt free by vacuum-cleaning it or with the help of standard dry foam. Leather coverings can be kept smooth for years by using standard leather-care products (solar radiation). Stains should be treated immediately. Check the effect of cleaning products first at a place that is not visible. Otherwise, select cleaning-agents can cause color discrepancies when compared to the untreated areas.

Exterior view of an office chair with black backrest and metal frame, labeled with numbered annotations (1 and 2)

Illustration of two office chair designs with red and gray outlines, showing side-to-side movement arrows (no text or symbols)

19

This certificate guarantees regular and thorough quality inspections.

HAIDER BIOSWING GmbH guarantees perfect quality and full functionality of its products.

The warranty lasts five years in consideration of normal wear and tear involved in 8 hours use per day with a maximum weight load of 110kg.

The warranty is valid from date of delivery/distribution of the product to our contracting partner.

(If you use the product continuously, contact us to request information about the time of the warranty and the warranty restrictions; the regulations can also be found on www.bioswing.de.)

This product has been carefully mounted and inspected by our employees.

Signature

In case of a complaint, please tell us the following serial number.

Serial number:
