Fomini 1610 - Milk frother CASO - Free user manual and instructions

Product type	Milk frother
Brand	CASO
Model	Fomini 1610
Article number	1610
Dimensions	Ø 75 x 250 mm
Power supply	2 AA batteries (1.5 V) not included
Main function	Frothing hot or cold milk
Filling capacity	Fill the container to one third
Maximum milk temperature	60 °C
Recommended frothing time	15 to 20 seconds
Rotating head	Yes, immersed in liquid
Start button	Push button
Cleaning the head	Rinse with clean water, deep clean in hot water
Cleaning the chassis	Damp cloth
Prohibition	Do not immerse the motor in water
Prohibition	Do not wash in dishwasher
Safety	Use with dry hands, heat dissipation space
Safety	Do not cover the device
Warranty	2 years
Usage	Domestic use only

Frequently Asked Questions - Fomini 1610 CASO

How to use the CASO Fomini 1610 milk frother?

Fill a container one third full with milk (hot or cold, max 60°C). Fully immerse the rotating head in the liquid, then press the start button. Make slow up and down movements for 15 to 20 seconds. Release the button to stop.

What types of milk can be used?

The frother can be used with most milk-based liquids, hot or cold. The milk should not have boiled or cooked, and its temperature must not exceed 60°C.

How to clean the frother?

Clean the head immediately after use by rinsing under running water. For a deeper clean, immerse the head in hot water and briefly press the button. The chassis can be cleaned with a damp cloth. Never immerse the motor in water.

Can the frother be put in the dishwasher?

No, never wash the appliance in the dishwasher as this could damage it. Clean it by hand as indicated in the instructions.

What to do if the frother does not work?

First check the batteries: open the compartment by sliding the cover and insert two AA batteries (1.5 V) observing polarity. Make sure the rotating head is fully immersed before pressing the button. If the problem persists, contact CASO customer service.

How long to froth milk?

The recommended time is 15 to 20 seconds of frothing while making slow up and down movements. You can adjust according to desired consistency.

What is the maximum milk temperature?

The milk temperature must not exceed 60°C. Milk that is too hot (boiled or cooked) will not froth properly and may damage the appliance.

How to change the batteries?

Press the sliding cover of the battery compartment located at the top of the device and slide it open. Insert 2 AA batteries (1.5 V) observing the indicated polarity, then close the cover.

Is the appliance under warranty?

Yes, the CASO Fomini 1610 comes with a 2-year warranty from the date of purchase, covering manufacturing or material defects. The warranty does not cover damage caused by improper use. For any claims, contact Braukmann GmbH.

Can the frother be used for other liquids?

The appliance is mainly designed for frothing milk and milk-based liquids. It can be used for hot or cold milk-based drinks, but not for thick liquids or those containing solid particles.

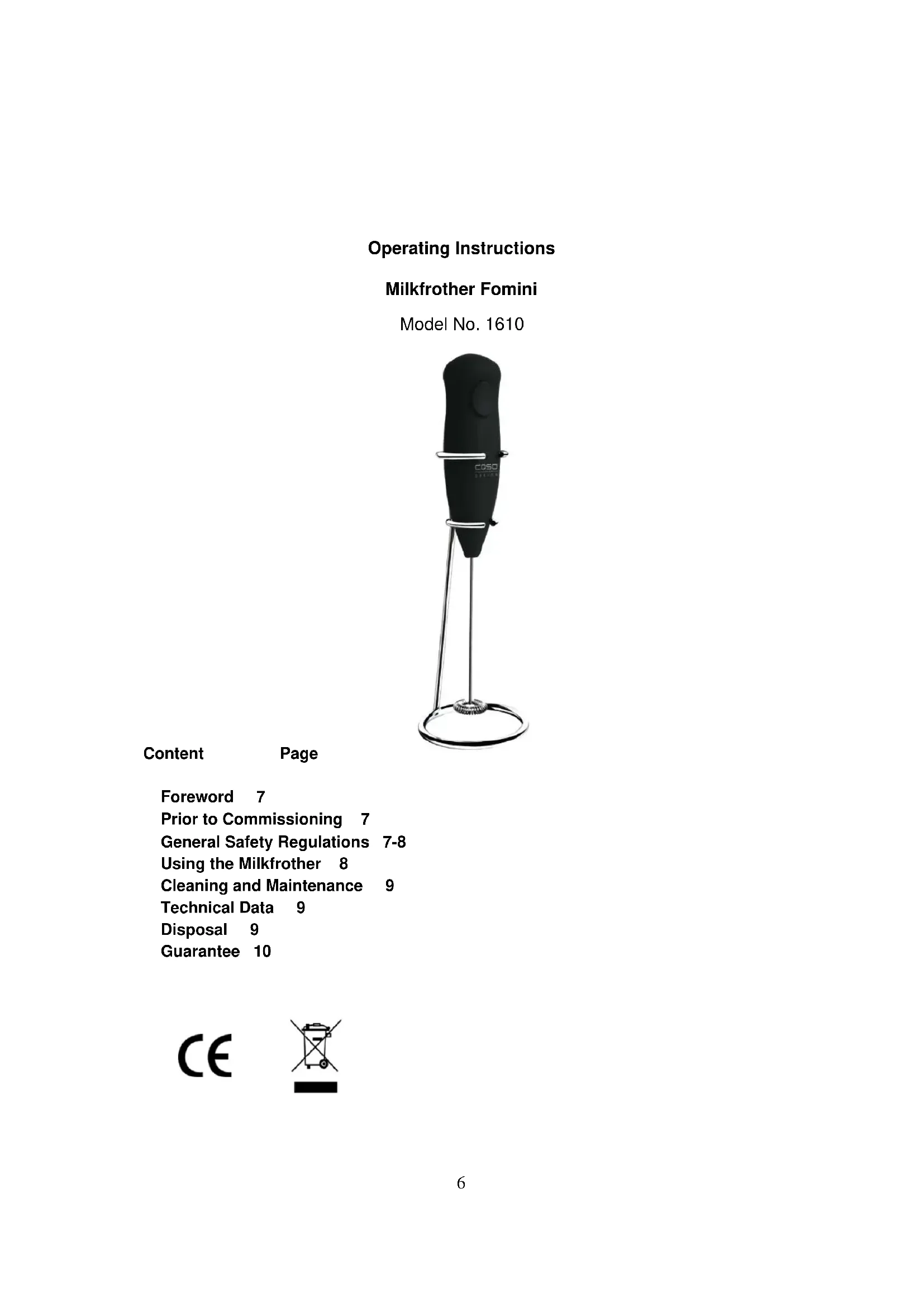

USER MANUAL Fomini 1610 CASO

Operating Instructions

Milkfrother Fomini

Model No. 1610

Content

Foreword 7

Prior to Commissioning 7

General Safety Regulations 7-8

Using the Milkfrother 8

Cleaning and Maintenance 9

Technical Data 9

Disposal 9

Guarantee 10

CE

Foreword

Dear Customer,

please read these operating instructions carefully before commissioning the milkbrother.

Please especially observe the safety notices on the following pages.

Keep these instructions for future reference and pass them on if you give the milkfrother away to someone else.

Prior to commissioning

Check the device for visible damage.

The power connections and the plug may not show any damages. If you detect damage, have the device checked by a qualified technician prior to putting it into operation in order to avoid any danger.

General safety regulations

The product you have purchased corresponds to the latest state of technology and the accepted safety regulations, still there are potential risks. Only operate the milkfrother in an immaculate condition and observe these operating instructions!

Only use the device for its intended purpose. It is designed for home use and is not suitable for commercial application. The Warranty shall be rendered invalid by use for purposes other than those described herein.

General safety regulations

1. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. Make sure your hands are dry when you touch the appliance.
5. The appliance needs to dissipate its heat in order to prevent fire. Therefore it is vital to make sure that the appliance has sufficient clearance on all sides and cannot come into contact with flammable materials. The appliance may not be covered up.
6. Do not use the appliance near explosives or flammable materials.
7. Do not use a metal scouring pad to clean the appliance. Fragments of metal could come loose and touch the appliances electrical parts causing it to short circuit.
8. Always engage a recognized, trained service engineer if the appliance is damaged, malfunctions have occurred and/or the appliance requires repairs.
9. Carrying out your own or having inexpert repairs carried out can cause considerable danger for the user.
10. We accept no liability for damage caused by incorrect usage or the ignoring of the regulations in this manual.
11. Use that does not comply with the manual is not covered by the responsibility and the warranty of the manufacturer.
12. Never place it in a dishwasher.
13. Only switch the appliance on when the rotating head is completely immersed in liquid.

Using the Milk frother

• Before using the new Froth Maker for the first time, we recommend that you clean the appliance thoroughly.
• Applying thumb pressure, open and remove the sliding battery compartment cover.
  Install the batteries in the position indicated on the battery position schematic.
• Replace the sliding compartment cover fully into operating position.
• Press the power button to ensure that the batteries are functioning properly.
• The milk frother can be used to froth a number of milk-based liquids, either hot or cold. Scalded or cooked milk is not suitable for frothing: Milk should be heated to a temperature of not more than 60^ C.
• Fill a recipient to 1/3 with liquid.
• Grasp the milk frother, immerse the rotating head of the milkfrother into the liquid, and press the power button to activate frothing and release it to stop.
• During the next 15-20 seconds, agitate the milk frother slowly in an up and down motion while keeping the rotating head fully immersed.
  After a suitable head of forth has developed, release the power button to suspend the rotating frothing and remove the milk frother from the liquid.

Cleaning and maintenance

Do not immerse the unit in water or place in the dishwasher. The appliance is best cleaned immediately after each use. Cleaning the head: when the appliance has been used to froth a cold liquid, the head may be cleaned in many cases by rinsing under running water. Persistent stains may be removed by fully immersing the head into hot water in a recipient and pressing the power button briefly. For remaining stains, a brush may be used. Note: operating of the appliance while the rotating head is under running water, i.e. partially immersed, may cause spattering. The casing should be cleaned by wiping with a humid cloth.

Technical data

Name	Milkfrother Fomini
Modell	Caso Fomini
Item no.	1610
Battery:	2 x 1,5V (AA)
Dimensions :	Ø 75 x 250 mm

Changes reserved

Disposal

Dispose of the packaging in the proper manner.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

For the caso Milkfrother Fomini we grant a

Guarantee of 2 years

For this device we grant a guarantee of 24 months, starting with the date of sale

regarding defects due to faulty manufacture or material. Your legal warranty claims according to §439 ff. BGB-E are not affected by this. This guarantee does not accept defects due to inappropriate treatment or use as well as defects which do not influence the function or the value of the induction hotplate essentially. Furtheron we do not grant a guarantee for wear parts or damage in transit as well as for defects due to repairs which have not been effected by us.

In case of legitimate claims we will decide wether to repair the device or to send you a new one.

Apparent defects have to be indicated within 14 days after delivery. Additional claims will not be accepted.

In order to assert your warranty claims please contact us before sending the device (always together with the sales slip!) to the following address.

Braukmann GmbH

Raiffeisenstraße 9

59757 Arnsberg

(0049) (0) 2932 / 80554-99

Repairs beyond any guarantee claim will be charged as low as possible.
