Wine Duett 620 - Wine cellar CASO - Free user manual and instructions

Brand	CASO
Model	Wine Duett 620
Product Type	Wine Cooler
Capacity	12 bottles (33 litres)
Dimensions (W x H x D)	55.5 x 53.5 x 34 cm
Net Weight	15 kg
Power Supply	230 V, 50 Hz, 140 W
Energy Consumption	1.0 kWh/24h at 15°C
Noise Level	≤ 25 dBA
Temperature Range	7°C to 18°C
Display	LED
Interior Lighting	Yes, controlled by button
Shelves	Wooden, removable
Door	Glass with stainless steel handle
Adjustable Feet	Yes, at the front
Installation	Indoor, away from sunlight and heat sources
Recommended Ambient Temperature	18°C to 26°C
Maintenance	Clean interior with warm water and baking soda
Warranty	2 years
After-Sales Service	Braukmann GmbH, Tel. 02932 / 54766-99, [e-mail]
Reparability	Spare parts available from manufacturer
Disposal	Do not dispose of with household waste, recycle according to local regulations

Frequently Asked Questions - Wine Duett 620 CASO

How to adjust the temperature of the wine cooler?

Use the push buttons on the display panel to adjust the temperature between 7°C and 18°C. Press the + and - keys to increase or decrease.

What to do if the cooler doesn't cool enough?

Check the temperature setting. Make sure the environment is not too hot, the door is properly closed, and the seal is tight. Avoid opening the door too often.

How to clean the interior of the wine cooler?

Unplug the appliance and remove the bottles. Clean the interior with hot water and a baking soda solution (2 teaspoons per quarter of water). Wipe with a soft cloth.

Why does the interior light not turn on?

Check if the Light button is pressed. If the LED still does not turn on, contact the after-sales service. There may be an issue with the control panel or the outlet.

How to install the door handle?

The stainless steel handle simply screws onto the door using the provided screws. Refer to the installation diagram in the manual.

Why does the wine cooler make noise or vibrate?

Check that the appliance is level by adjusting the front feet. An uneven floor can cause vibrations. Also ensure the fan is not obstructed.

What is the maximum bottle capacity?

The cooler can hold up to 12 standard wine bottles (33 litres). The wooden shelves are removable to accommodate larger bottles.

Can I use an extension cord?

Using an extension cord is not recommended. Plug the appliance directly into a grounded wall outlet (230 V, 50 Hz).

What to do in case of a power outage?

Do not open the door unnecessarily. The cooler will keep cool for a few hours. Once power is restored, check the temperature and adjust if necessary.

Where can I find spare parts?

Contact CASO after-sales service at Braukmann GmbH, Raiffeisenstraße 9, 59757 Arnsberg, or by phone at 02932 / 54766-99, or by email: [e-mail].

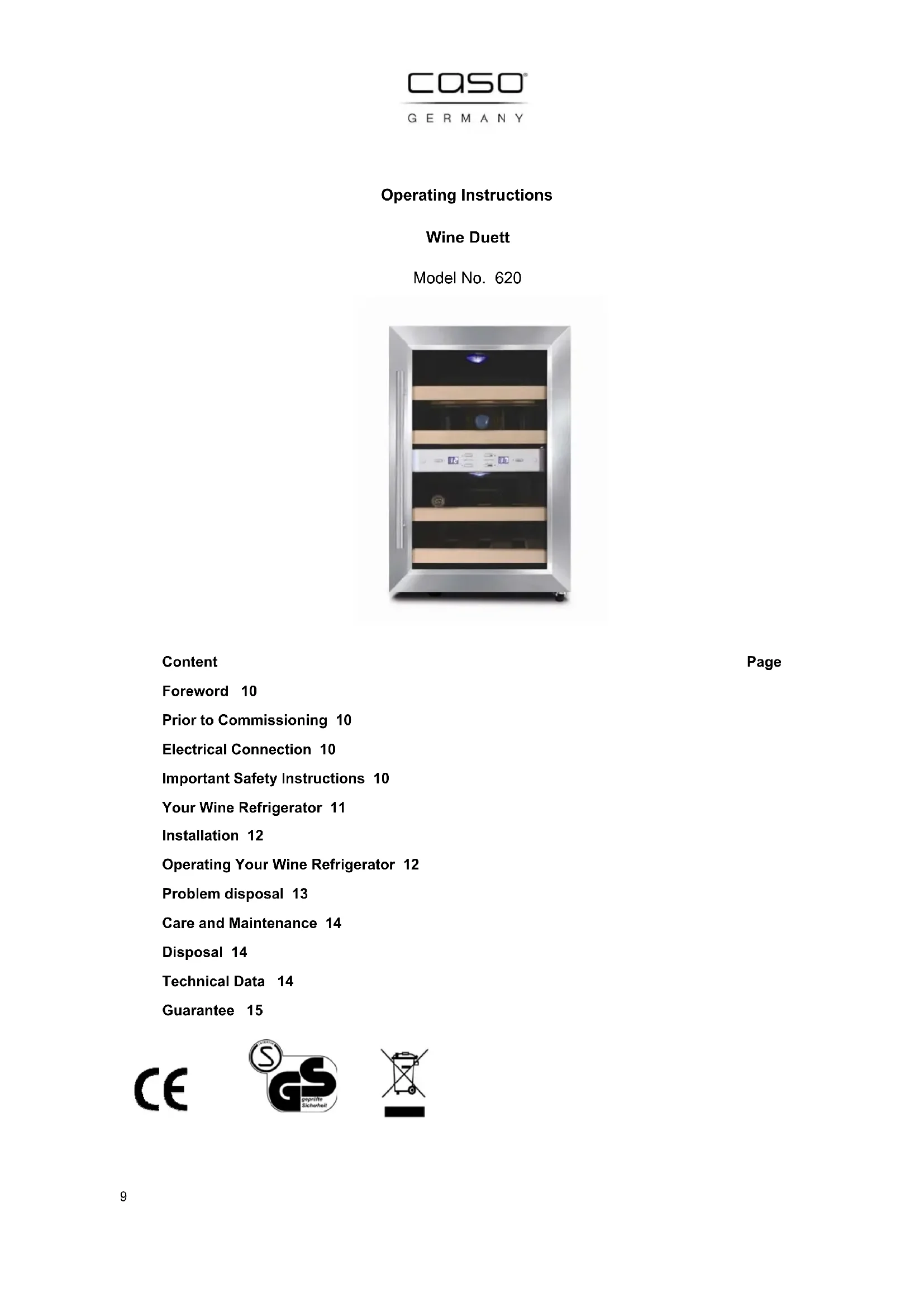

USER MANUAL Wine Duett 620 CASO

Operating Instructions

Wine Duett

Model No. 620

Content

Foreword 10

Prior to Commissioning 10

Electrical Connection 10

Important Safety Instructions 10

Your Wine Refrigerator 11

Installation 12

Operating Your Wine Refrigerator 12

Problem disposal 13

Care and Maintenance 14

Disposal 14

Technical Data 14

Guarantee 15

CE

Page

Foreword

Dear Customer,

please read these operating instructions carefully before commissioning the wine refrigerator. Please especially observe the safety notices on the following pages. Keep these instructions for future reference and pass them on if you give the wine refrigerator away to someone else.

Prior to commissioning

Check the device for visible damage.

The power connections and the plug may not show any damages. If you detect damage, have the device checked by a qualified technician prior to putting it into operation in order to avoid any danger.

This device is designed for private (domestic) use and its power is rated accordingly. Any professional use is only covered by the warranty in as far as it is comparable with the demands of private use. It is intended for any further professional use. Improper use voids the warranty.

Electrical Connection

WARNING:

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced.

• This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground wine from the power cord supplied.
• Use of extension cords is not recommended.
• This unit requires a standard 220V-50HZ electrical outlet with 2-pin plug.
• The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

Important Safety Instructions

WARNING:

To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions;

• Read all instructions before using the wine refrigerator.
• Junked or abandoned appliances can be dangerous for children: Before you throw away your old wine refrigerator: take of the door .leave the shelves in place so that children may not easily climb inside.

COSO

GERMANY

• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Does not store food in wine refrigerator, as interior temperature may not get cool enough to prevent spoilage.
  The socket must be readily accessible so that it can be easily unplugged in an emergency.
• WARNING: Keep children and other incompetent persons as well as persons under influence of drugs or alcohol away from the device.
  WARNING: This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or who lack the necessary experience and/or skills unless these persons act under the supervision of a person responsible for their safety or they were instructed by such a person on how to use the appliance.

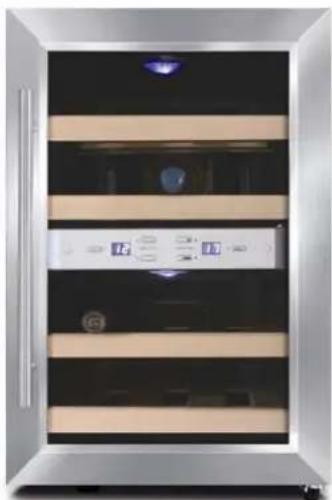

Your Wine Refrigerator

1. HING6. SHELF
2. LIGHT 7. FOOT (3 bigger feet and 1 small foot)
3. TEMPERATURE CONTROLLER 8. DOOR FRAME
4. TEMPERATURE DISPLAY 9.GALSS
5. FAN MASK 10. HANDLE

Installation

Before using your wine refrigerator:

• Remove the exterior and interior packing
• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
• To level your appliance, adjust the front legs at the bottom of the appliance.

The handle installing

• The wine cooler comes with 1 metal stainless steel handle. To install simply screw them to the door with the supplied screws

• Foe recessed installation away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.
• Designed for use inside the home.

Operating Your Wine Refrigerator

It is recommended that you installed the wine refrigerator in a place where the ambient temperature is between 18 - 26^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 10 - 16^ may not be reached.

The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

Any of the wine shelves can be removed to accommodate larger bottles.

How to use the press Buttons on the Display Panel

You can set the temperature as your desire by pressing the button. There are three press-button on the panel "▲" and "▼" to adjust the temperature by 1^ among 7-18°C. You can tune the interior light on or off by pressing the "Light" button.

Problem disposal

You can solve many common wine refrigerator problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling the service center.

PROBLEM	POSSIBLE CAUSE
Wine refrigerator do not operate. Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Wine refrigerator is not cold enough. Check the temperature control setting. External environment may require a higher setting. The door is open too often. The door is not closed completely. The door seal does not seal properly. The wine refrigerator does not have the correct clearance.
The light does not work. Check the service center.
Vibrations. Check to assure that the wine refrigerator is level.
The wine refrigerator seems to make too much noise	The wine refrigerator is not level. Check the fan.
The door will not close properly. The wine refrigerator is not level. The doors were reversed and not properly installed. The seal is weak. The shaves out of position.
LED could not display. Main control board does not work. PCB Problem. There is some problem with the plug.
LED display error - Lo Weak quality of display. Temperature point is out off. Check the service center.
Bottoms are not functional. Temperature controller panel is damaged.

Care and Maintenance

Cleaning your wine refrigerator

• Unplug the wine refrigerator and remove the bottles.
• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• The outside of wine refrigerator should be cleaned with mild detergent and warm water.
• Draw out the water box at the bottom, and wash.

Moving your wine refrigerator

• Remove all the bottles.
• Securely tape down all loose items inside your wine refrigerator.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerator stays in the upright position during transportation.

Disposal

Dispose of the packaging in the proper manner.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

Technical data

Name Wine Duett
Modell	SC-12B
Item No. 620
EAN 40 38437 00620 9
Power:	140
Power Consumption(KW.h/24h) 1.0(15°C)
Voltage: 230 V, 50 Hz
Dimensions (W/H//D): 34 x 53,5 x 55,5 cm
Capacity: 33 Liter (12 bottles)
Noise level: Max. 25 dba
Weight:	15

Changes reserved

For the caso wine refrigerator we grant a

Guarantee of 2 years

For this device we grant a guarantee of 24 months, starting with the date of sale regarding defects due to faulty manufacture or material. Your legal warranty claims according to §439 ff. BGB-E are not affected by this. This guarantee does not accept defects due to inappropriate treatment or use as well as defects which do not influence the function or the value of the induction hotplate essentially. Furtheron we do not grant a guarantee for wear parts or damage in transit as well as for defects due to repairs which have not been effected by us.

This device is designed for private (domestic) use and its power is rated accordingly. Any professional use is only covered by the warranty in as far as it is comparable with the demands of private use. It is intended for any further professional use.

In case of legitimate claims we will decide wether to repair the device or to send you a new one.

Apparent defects have to be indicated within 14 days after delivery. Additional claims will not be accepted.

In order to assert your warranty claims please contact us before sending the device (always together with the sales slip!) to the following address.

GERMANY

Braukmann GmbH

Raiffeisenstraße 9

59757 Arnsberg

customer service: 02932 / 54766-99

[e-mail]

Repairs beyond any guarantee claim will be charged as low as possible.

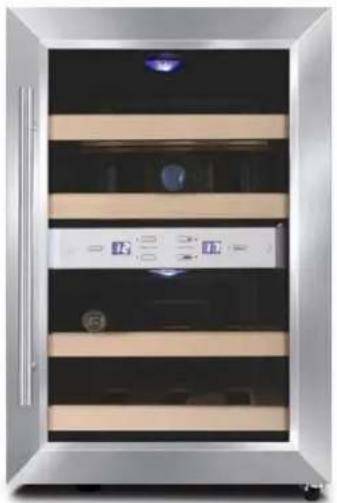

Mode d'emploi
