USER MANUAL NIWT980 PANASONIC

Operating Instructions

Mode d'emploi

or visit us at http://www.panasonic.com/repair

Please register via the Internet at: www.panasonic.com/register

For assistance, please visit us at http://www.panasonic.ca/english/support (Canada)

Operating Instructions

Steam Iron

Household Use Only

Model No.NI-WT980

Contents

Safety precautions. 4

Parts identification 9

How to fill the Water tank............10

Using the steam iron. 10

How to use the "Spray" feature.......13

How to use as a dry iron. 14

How to care for and store your iron..14

Q&A 18

Trouble shooting. 19

Specifications. 19

CONFORMS TO UL STD. 60335-1 & 60335-2-3

CERTIFIED TO CSA STD. C22.2 NO.81

Thank you for purchasing this Panasonic product.

Before using this product, please read these instructions completely.

Pay particular attention to the "Important Safety Instructions" on

pages 4 and 5. Save these instructions for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an iron, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.
2. To avoid the risk of electric shock, do not immerse the iron in water or other liquids.
3. Always turn the iron OFF before plugging or unplugging the iron from the electrical outlet.

Never pull on the cord to disconnect the iron from the electrical outlet; instead, grasp the plug and pull on the plug to disconnect the iron.

1. Do not let the cord touch hot surfaces. Let the iron cool completely before putting the iron away. Coil the cord loosely around the iron when storing.

2. Always disconnect the iron from the electrical outlet before filling the iron with water, emptying the water from the iron, and when the iron is not in use.

3. Do not operate the iron with a damaged cord or in the event the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair. Incorrect assembly might result in a risk of electric shock when the iron is used after reassembly.

4. Close supervision is required for any appliance used by or near children. Do not leave the iron unattended while the iron is connected or on an ironing board.
5. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a STEAM IRON upside down – there might be hot water in the reservoir.
6. To avoid a circuit overload, do not operate an iron on the same circuit with another high wattage appliance.
7. If an extension cord is absolutely necessary, a cord with an ampere rating equal to or greater than the maximum rating of the iron shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of personal injury, electric shock or fire, please observe the following:

Do not use when the Power Plug or Power Cord is damaged or hot. Never use the iron if the Power Plug fits loosely in a household outlet.
Do not leave the iron unattended while it is connected to the outlet.
Do not connect or disconnect the Power Plug to a household outlet with wet hands.
Do not damage, modify, forcibly bend, pull, or twist the Power Cord. Do not place anything heavy on or pinch the Power Cord.
Do not use with the Power Cord bundled.
Do not use the iron with wet hands.
Do not use in proximity of flammable materials (such as benzine or the like).

To reduce the risk of personal injury, electric shock or fire, please observe the following:

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the iron. Fully insert the Power Plug.
The Power Plug must be unplugged from the household outlet before the Water Tank is filled with water.
Regularly clean the Power Plug to prevent dust from accumulating. - Disconnect the Power Plug and wipe with a dry cloth.
! Immediately stop using and unplug the Power Plug if there is an abnormality or malfunction. Examples of abnormalities:

• The iron stops occasionally, the Power Cord or the Power Plug is abnormally hot or discolored.
• The iron is deformed or smells of burning.
• Refer servicing to authorized service personnel.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the iron.

• Failure to do so may cause an accident or injury.

The iron must be used and rested on a flat, stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

• If placed on a shaggy rug or other unstable location, the iron may fall over and cause damage to the rug, injury or burns.

If the Power Cord is damaged, it must be replaced by authorized personnel.

• Failure to do so may cause an accident or injury.

The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

• Refer servicing to authorized service personnel.

CAUTION

To reduce the risk of personal injury, property damage, electric shock or fire, please observe the following:

Do not touch the steam or "Power Shot" during use.

• When using an ironing board which steam can penetrate, do not place your hand, leg, etc. under the ironing board.
• Do not aim the steam at your hand, knee, or any other part of the body.
• Do not use steam or "Power Shot" when the iron is partially sticking out from the ironing board.
• Do not iron clothes while being worn.

Do not insert pins or needles in the iron or use it on clothes with sewing needles or the like inserted.

Do not put the Soleplate too close to you or others since steam may unexpectedly erupt from it.

CAUTION

Do not use the iron with the exception of fabric.

Do not store the iron until it has fully cooled down.

Do not use the iron while pointed towards you.

Do not store the Power Cord coiled with sharp angles. - This may cause damage to the cord.

Only use tap water in the iron. Do not add perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the Water Tank.

• Doing so may cause discoloration in the clothes.

Do not operate the Power Shot Button repeatedly in quick successions. - If repeating operation over an interval of less than 2 seconds, burns due to hot water leaks may result.

If the shot intensity is low, do not operate the Power Shot Button. - Doing so may cause burns due to hot water leaks.

Do not tilt or violently move the iron back and forth. - Doing so may cause burns due to hot water leaks.

To reduce the risk of personal injury, property damage, electric shock or fire, please observe the following:

Use a dry iron on moist clothing (spray misted).
Test on an inconspicuous area when using with following fabric. Or, place a cloth over the fabric to prevent shine marks on the fabric.

• Expensive or specially processed fabrics (velvet, acrylic, nylon, cashmere, etc.)
• Fabrics that are fragile to heat "low heat" or "medium heat" as indicated on label, or dark colored fabrics.

Care should be taken when using the iron.

• Steam emission may cause personal injury.

Drain water from the Water Tank after use.

• Failure to do so may cause the water to leak out from the Soleplate when the iron is next used.

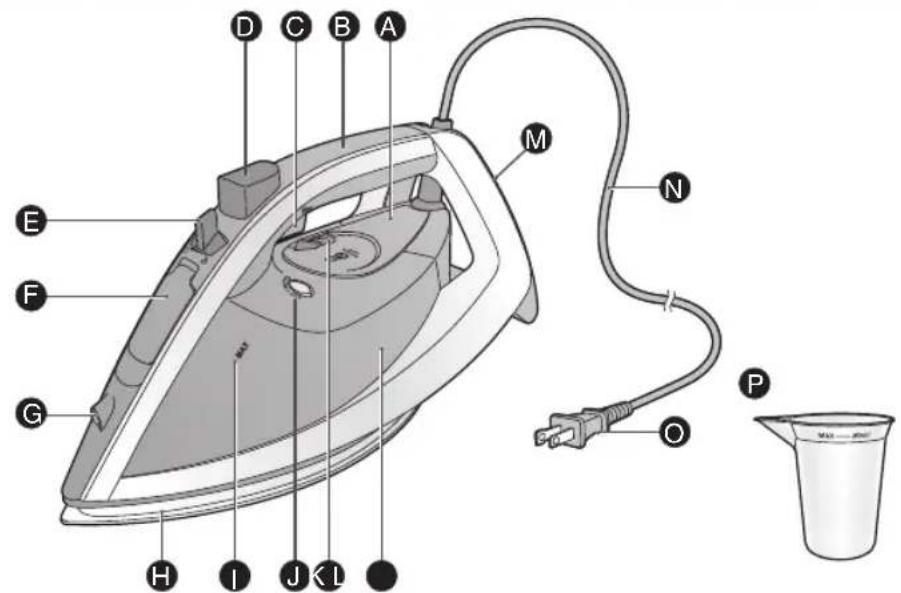

Parts identification

A Thermostat Operating Indicator Light
B Handle
Spray Mist Trigger
Power Shot Button
Steam/Dry Selector
Water Fill Cover
Spray Nozzle
Soleplate

Maximum Water Level Indicator
Self-Cleaning Button
Power Switch [O/
Water Tank
Heel Rest
Power Cord
Power Plug

Accessory

Cup

How to fill the Water tank

Before using the iron, check the fabric label.

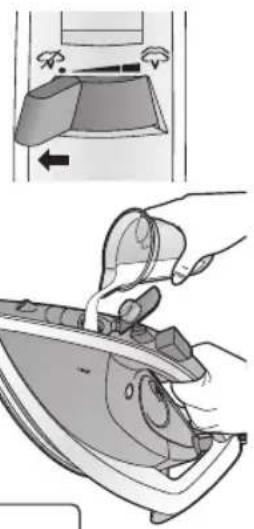

1 Set the Steam/Dry Selector to the Dry position to avoid water leakage.
2 Open the Water Fill Cover, hold the iron as shown and fill the Water Tank with tap water up to "MAX" dot (about 350~mL (12.3 ounces)).
- Use the cup for filling.

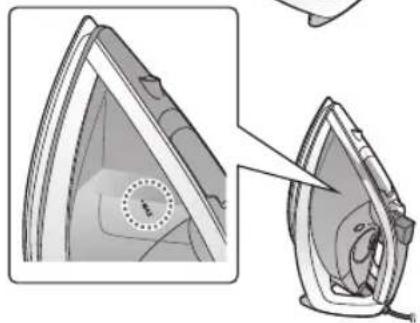

3 Check for the correct water fill level with the iron in the Heel rest position.
4 Close the Water Fill Cover.

Note

• Do not overfill the Water Tank. Steam will release through the vents when the iron is positioned vertically.
• Be sure the Water Fill Cover is closed during use.

Using the steam iron

How to use as a steam iron

1 Fill the Water Tank with tap water as described in "How to fill the Water Tank".
2 Position the iron in the Heel rest position and be sure the Power Switch is set to "O".
Plug the Power Plug into a household outlet.

4 Set the Steam/Dry Selector to the Dry position, and then set the Power Switch to "I".

The Thermostat Operating Indicator Light goes on.

• If the temperature of the Soleplate is high, the light will not go on.

uS|6u3

5 Preheat the iron until the Thermostat Operating Light goes out, usually it takes about 1 minute.

The Thermostat Operating Indicator Light will go on and off while ironing to indicate the temperature is being maintained.

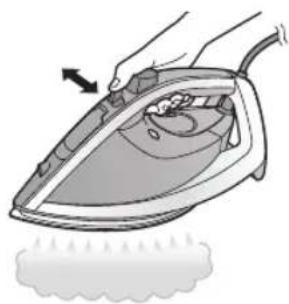

6 Use iron after holding it horizontally and setting the Steam/Dry Selector to the Steam position.

• Whenever the iron is positioned vertically, the steaming action will stop.

3 position Steam/Dry Selector
Dry Low steam	High steam

CAUTION: Do not aim the steam at any parts of your body or others.

Note

• The Anti-Drip System will activate when the temperature of the Soleplate's surface drops. At the same time, the steam will stop. It is not a sign of malfunction when you hear a clicking sound. The Thermostat Operating Indicator Light will be on, wait until the Thermostat Operating Indicator Light goes out.

How to use the "Power Shot" feature

The "Power Shot" feature provides extra steam which goes deep into the garment and is helpful for removing stubborn wrinkles. If you have not used the "Power Shot" feature in a long time, it is necessary to clean the inside of the iron before using this feature on any clothes to be ironed. Simply test the "Power Shot" feature several times away from the ironing board and clothes to be ironed. This will prevent brown spotting or water spotting on the clothes.

1 Fill the Water Tank with tap water as described in "How to fill the Water Tank".

2 Position the iron Heel rest position and be sure the Power Switch is set to "O".

3 Plug the Power Plug into a household outlet.

4 Set the Power Switch to "I" position. The Thermostat Operating Indicator Light goes on.

5 Preheat the iron until the Thermostat Operating Indicator Light goes off, which usually takes about 1 minute.

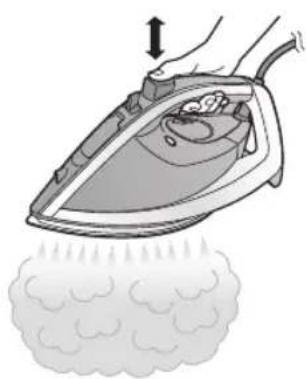

Simply pump the Power Shot Button when steam is desired.

• Pump the Power Shot Button several times at the beginning of each ironing session.
• Press the Power Shot Button in intervals of at least 2 seconds between use to prevent water spotting.
• Use a press cloth if necessary.

How to use the "Vertical Steam" feature

To get better results when using vertical steam, hang the garment on a clothes hanger. Curtains and drapes may also be steamed once they are hung. Hold the iron away from your body, close to but not touching the fabric. Pull the fabric tightly with your free hand and pump the Power Shot Button at 2 seconds intervals as you press the iron over the wrinkled fabric.

English

How to use the "Spray" feature

The spray feature is particularly helpful for removing stubborn wrinkles and where extra dampening is needed.

The spray may be used with steam or dry ironing.

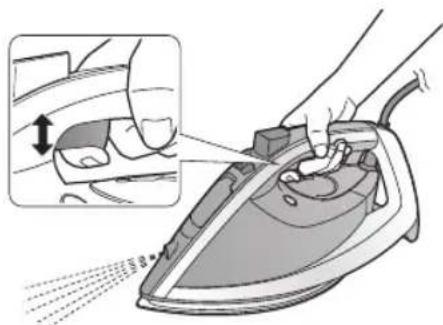

1 Simply push the Spray Mist Trigger whenever spray is desired.

• If the spray does not work immediately, keep triggering until it does.
• To get finer spray, push the Spray Mist Trigger repeatedly.

How to use as a dry iron

1 Set the Steam/Dry Selector to the Dry position.

2 Position the iron Heel rest position, set the Power Switch to "O".
3 Plug the Power Plug into a household outlet.
4 Set the Power Switch to "I". The Thermostat Operating Indicator Light goes on. If the temperature of the Soleplate is high, the Thermostat Operating Indicator Light will not go on.
Use iron after preheating it until the Thermostat Operating Indicator Light goes out, which usually takes about 1 minute.

How to care for and store your iron

3-way cleaning

METHOD (1) Using the Self-Cleaning feature

1. Fill the Water Tank with tap water as described in "How to fill with the Water Tank".
2. Set the Power Switch to "O".
3. Plug the Power Plug into a household outlet.
4. Set the Power Switch to the "I".
5. After the Thermostat Operating Indicator Light has gone out, set the Power Switch to "O and unplug the Power Plug.

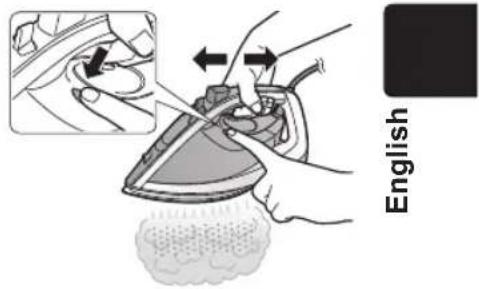

1. Hold the iron horizontally over the sink, press and hold the Self-Cleaning Button and gently shake the iron back and forth. Impurities and scale (if any), together with steam and boiling water will be flushed out.

Then, turn to METHOD(2).

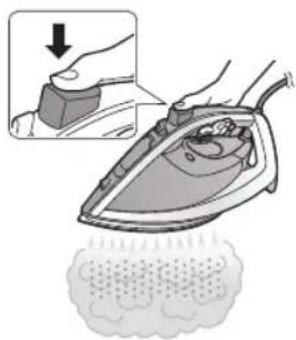

METHOD(2) Using the "Power Shot" feature

1. Repeat steps 1 to 4 as described in "METHOD (1)".

2. Hold the iron horizontally over the sink after the Thermostat Operating Indicator Light has gone out.

3. Pump the Power Shot Button quickly (at least 3 times per second) about 20-30 times. While pumping, tilt the iron up and down slowly to help clean the entire Water Tank and let the water drip out of the Soleplate vents.

4. To prevent corrosion of the Soleplate vents, after the Soleplate has cooled, set the Power Switch to "I" and preheat for about 5 minutes.

1. Unplug the Power Plug.

2. Do not store the iron with water in the Water Tank.

3. Iron on a used cloth to remove any impurities on the Soleplate.

4. Repeat METHOD (1) and METHOD (2) if the iron still contains a lot of impurities.

5. Use both methods once every two weeks. If the water in your area is very hard (i.e. Steam holes on the Soleplate are easily blocked by impurities), both methods should be used more frequently.

6. Let the iron cool down on its Heel Rest and follow the instructions "After each use".

METHOD (3) Anti Calc System (Stay Clean Vents)

The built-in Anti Calc System in the Water Tank continuously reduces scale build up in the vaporizing chamber of the iron.

This system makes it possible to use the steam function for a long period of time and prevents steam vents from clogging.

Anti-drip system (automatic water seal)

This model has an Anti-Drip System. When the temperature of the Soleplate's surface drops to low, the valve for the vaporizing chamber in the iron automatically closes and stops the water from flowing. This prevents hot evaporated water from spewing out from the Soleplate when the iron has cooled down. With this System, it is unnecessary for you to wait until the inside of the vaporizing chamber dries completely when you store the iron.

Note

• It is not a sign of malfunction when you hear a clicking sound. This sound can be heard whenever this system is activated.

Electronic 3-way auto shut-off function

• The Auto Shut-Off feature is not intended to take the place of unplugging the cord. The Auto Shut-Off system works regardless of the position of the Power Switch.

• When the iron is left unmoved on its Soleplate facing down or on its side for approx. 1 minute, the iron will automatically shut off.

• When the iron is left unmoved on its Heel Rest for approx. 10 minutes, the iron will automatically shut off.
• To resume ironing and turn the iron on, simply move the iron in any manner. Allow the iron to reheat until the Thermostat Operating Indicator Light goes out.

Always unplug the iron when you finish ironing. Even though the Iron is unplugged, the soleplate is still hot. Be sure to rest the product on its heel, away from fabric.

How to care for your iron

After each use

1. Set the Power Switch to "O".

2. Unplug the Power Plug.

3. Set the Steam/Dry Selector to the Dry position. If the Steam/Dry Selector is not in the Dry position after using, remaining water will move into the Soleplate and can result in burns when the iron is used next time.

English

1. Empty the Water Tank immediately after using. Do not store the iron with water in it. If you empty the Water Tank after it has cooled, heat the iron for about 5 minutes with the Power Switch set to "I".

• Do not use the Steam or the "Power Shot" while the Power Plug is unplugged or the Power Switch is set to "O", water will remain inside the Soleplate and cause staining.

• Do not wind the Power Cord around the iron. It may be damaged by the hot Soleplate.

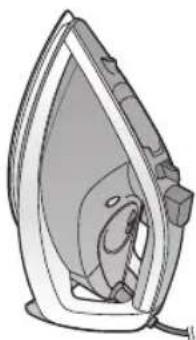

• Wait until the iron has cooled before storing it, and always set it on the Heel Rest to protect the Soleplate from scratches, corrosion or stains.

Outside surface of the iron

• After unplugging and cooling the iron, simply wipe off with a damp cloth and if necessary, use a mild detergent.
• Never use any harsh cleaners.

▶ Soleplate

• Starch and other residue may be easily removed from the Soleplate with a damp cloth.
• To avoid scratching the finish, never use a metallic pad to clean the Soleplate, and never place the iron on a rough surface.
• The best way to remove synthetic residue from the Soleplate is to iron over an old cotton cloth rag after heating the iron.

Note

• Never use cleaners in the iron, since they may damage the working parts of the iron. Some odor may be released during initial use of the iron, however, this is normal and the odor will not attach to your clothes. Never use steam iron detergent in the iron, as they may damage working parts of the iron.

Q&A

Question Answer

Why can a clicking or a metallic sound be heard while using or shaking the iron?

Why do the clothes sometimes become brown after being ironed?

Why are there white powder/particles coming out of the steam vents while using the steam function (especially when using "Power Shot"?

These sounds are made by the internal parts of the iron, spray mechanism, leakage prevention, etc, moving slightly. This is normal.
If there is laundry detergent remaining on the fabric, the clothes may become brown after being ironed.
The powder/particles are impurities and minerals found in hard water. The powder/ particles can be brushed off clothing.

Trouble shooting

Problem Causes, Solution
No heating	Make sure the Power Plug is plugged into a household outlet.
No steam	Fill the Water Tank with tap water up to “MAX” dot.
Poor steaming power	If there is no steam, set the Steam/Dry Selector to the Steam position, or set the Power Switch to “I”.
	For poor steam, move the Steam/Dry Selector several times, then reset to the Steam position.
	Press the Power Shot Button several times when the “Power Shot” appears insufficient.
	Wait until the Thermostat Operating Indicator Light goes off before using the iron.
	Set the Power Switch to “I”.
No spray	Push the Spray Mist Trigger several times.
	Fill the Water Tank with tap water up to “MAX” dot.
Water leaks from steam vents	Press the Power Shot Button in intervals of at least 2 seconds when using the “Power Shot”.
	Wait until the Thermostat Operating Indicator Light goes off before using the iron.
Clothes are marked	Empty the Water Tank and fill it with clean water. There may be contaminants in the iron/cup.

Specifications

Model No. NI-WT980
Power Source	120 V~ 60 Hz
Power Consumption 170 W 14.2 A
Weight (approx.) 1.8 kg (4.0 lb)
Dimensions (approx.)	307 mm x 141 mm x153 mm (12.1 in. x 5.6 in. x 6.0 in.)

This iron is intended for household use only.

LIMITED WARRANTY (U.S.A/Puerto Rico)

Panasonic Electric Iron One Year Limited Warranty

This warranty is valid only for the U.S.A. and Puerto Rico.

Limited Warranty Coverage

Panasonic Consumer Electronics Company (referred to as "the warrantor") will repair or replace this product with a new or a refurbished product, free of charge, in the U.S.A. and Puerto Rico for one (1) year from the date of the original purchase in the event of a defect in materials or workmanship.

For assistance in the continental U.S.A. and Puerto Rico:

Mail-In Service - Online or Telephone Repair Request

Online Repair Request

To submit a new repair request, and for quick repair status visit our Web Site at:

www.panasonic.com/repair

Telephone Repair Request

You may contact us at: 1-800-211-PANA (7262)

If repair is needed, during the warranty period, the purchaser will be required to furnish a sales receipt/ proof of the original purchase date, amount paid and place of purchase.

Also, the purchaser will be responsible for shipping the unit to the above address. This warranty is extended only to the original purchaser.

When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a daytime phone number where you can be reached.

Limited Warranty Limits and Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or serviced by anyone other than an authorized service center, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTY EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTYES, INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or an authorized service center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

If you ship the product

Carefully pack and send it prepaid, adequately insured and preferably in the original carton. Attach a postageaddixed letter, detailing the complaint, to the outside of the carton.

DO NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.

Customer's Record

Retain this warranty card along with a copy of your purchase receipt for future reference.

Model

No.

Serial

No.

Dai

Purchase

Dealer's

Name

Dealer's

Address

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (1-800-211-7262), Monday-Friday 9am to 9pm: Saturday- Sunday 10am to 7pm. EST.

TTY users (hearing or speech impaired users) can call 1-877-833-8855.

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Owner's Manual online for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:[e-mail]

You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am to 9pm, EST.)
Panasonic Service and Technology Company
20421 84^th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks.)

TTY users (hearing or speech impaired users) can call 1-866-605-1277.

LIMITED WARRANTY (Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT -LIMITED WARRANTY

EXCHANGE PROGRAM

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Electric Iron

One (1) year

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMplied, INCLUDING ANY IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

CONTACT INFORMATION

For product information and operation assistance, please visit our Support page:

www.panasonic.ca/english/support

For defective product exchange within the warranty period, please contact the original dealer.

Panasonic

Français

Mode d'emploi

Fer à vapeur

CONFORME A LA NORME CSA C22.2 NO. 81

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT PANASONIC - GARANTIE LIMITEE

PROGRAMME DE REMPLACEMENT

Panasonic Corporation of North America

Two Riverfont Plaza, Newark, NJ 07102-5490

http://www.panasonic.com/contactinfo

http://www.panasonic.com/help

(Canada)

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga ON L4W 2T3

http://www.panasonic.com

Panasonic®

Espanol

© Panasonic Corporation 2015

Printed in China

Imprimé en China

Impreso en China

P0116-0

F EN, CA, ES

i8200-δP59A
