USER MANUAL Titanium 53 ARCHOS

Package contents. 2
Description of the phone. 3
Assembling. 6
Getting started. 8
3G & WiFi connection. 10
Google account & Contacts. 12
Hints & tips with AndroidTM 14
Troubleshooting. 16

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Check your product box for the following items:

-ARCHOS 53 Titanium
-Battery
-Headset
-Micro SIM adaptor
-USB cable
-Charger
-Quick start guide
-Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

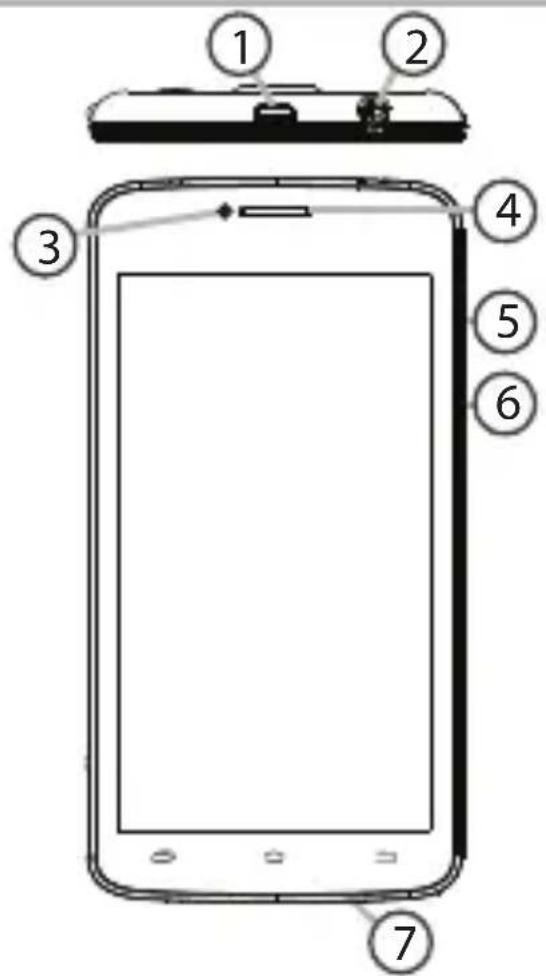

Description of the phone

Micro-USB port
2 Headset jack
3 Webcam
Phone speaker
Volume buttons
ON/OFF button
7 Microphone

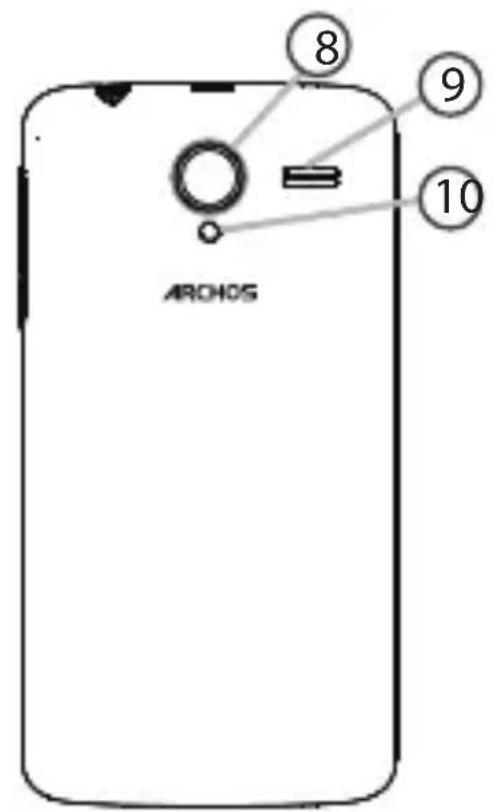

Description of the phone

Camera
9 Loudspeaker
10 Flashlight

11Menu
12 Home/Recent apps
13 Back

Menu: open the list of options available on the current screen.

Home/Recent apps: short press to return to the Home screen; long press to open the list of recent applications.

Back: return to the previous screen.

Assembling

Opening

1. Use the notch to remove the back cover.
   Do not bend or twist the back cover excessively. Doing so may damage the cover.
2. Remove the battery.

Inserting SIM cards

For your 3G SIM card, slide it facing downwards in the 2G/3G slot (slot 1).

For your standard SIM card, slide it facing downwards in the 2G slot (slot 2).

Inserting a Memory card

Slide it facing downwards in the slot 3.

Closing

1. Align the battery's 4 contact points with those of the phone and gently press the battery down into place.
2. Replace the back cover clicking it back into position.

Tip:

Before using your device for the first time, charge completely its battery.

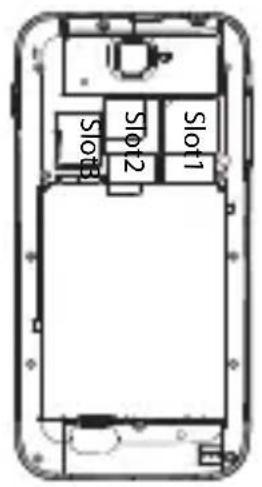

Lift the back cover using the notch

Slot1 2G/3G SIM card

Slot2 2G micro-SIM card

Slot3 Memory card up to 64 GB

Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.
   When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
   Beware of typing a wrong PIN code.
3. Select'OK'.

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

Sound & Notification profiles

1. When the device is turned on, press and hold the ON/OFF button.
2. Select an option.

Silent Vibrate Sound

Tip:

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button.

To set the duration, go to Settings > Display > Sleep.

EN

Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-Location consent
-Language
-Google account
-Location service options
-Date & time

Touch screen actions:

Tap: touch once to select or launch a menu, option, or application.

Tap and hold: tap an item and hold it for more than 2 seconds.

Drag: tap an item and move it to a new location.

Double-tap: tap an item twice quickly.

Flick: briskly scroll up, down, left, or right to move through lists or screens.

Pinch: place two of your fingers far apart, and then pinch them together.

3G & WiFi connection

3G connection

With your 3G SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network. When connected to the 3G network, the 3G icon is displayed in the status bar.

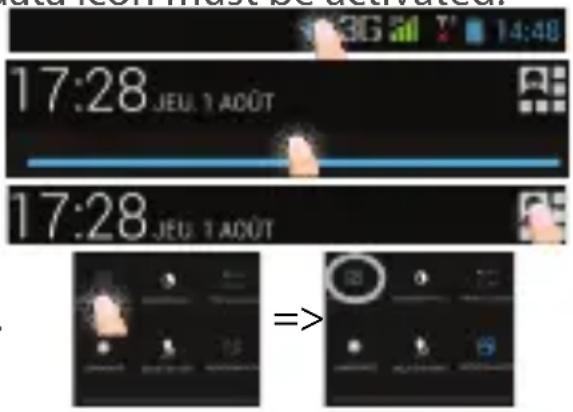

Activating the mobile data

To be able to access Internet, the mobile data icon must be activated.

1. Touch and hold the time & battery icons to reveal the status bar.
   2.Pull the blue line down to display the status dashboard.
2. Touch the status dashboard icon
3. Touch the mobile data icon to activate it.

Tip:

When you encounter connection problem's, see the FAQs on www.archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the blue line down to display the

status dashboard.

1. Touch the status dashboard icon
2. Touch the "Settings" icon to open the settings menu.
3. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
4. Touch "WiFi" to display available networks.
5. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data are backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.

The list of information that can be sync are displayed.

1. Check all information in order to sync them.
   You can get them back in case of loss of your device or SIM card.
   When your Google account is added to a new device, all your saved information are collected.

Saving your contacts

When your contacts are saved, they are always available on the web and can be syncsed to any Android phone that's set up with your Google account.

1. Install the SIM card with your contacts in your phone.
2. From a Home or All Apps screen, select the People app
3. Touch the Menu button > "Import/Export".
4. In Import/export contacts, select "Import from SIM card".
5. Select your Google account.
6. Check contacts to be imported and validate.
7. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
8. Select you Google account. Make sure "Contacts" is checked.
9. Select the Menu button, then "Sync now".
   Your contacts are saved to via your Google account.

Hints & tips with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Home button

Short press the Home button to go back to the main screen.

Double press the Home button to display all the apps you have opened.

Swipe any app left or right to close it.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Touch the "All Apps" icon on your home screen. Touch "Widgets" at the top of the screen. From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list.

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Troubleshooting

My phone is frozen or cannot switch on

Check the battery contacts, remove and reinstall your battery, then turn your phone on. Check the battery power level, charge for at least 20 minutes.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 3G network:

On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks.

Select Network settings. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.

Table des matières

Impossible de receivevoir des appeals

-「apaHTn n nHCTpyKcnn no 6e3oNaCHOCTn

-ARCHOS 53 Titanium
-AKKymyIaTOp
-ΓapHntype
-Micro SIM aanterp
-Ka6eJb USB
-3apraHoe yctpoiCTBO
-KpaTKoe pyKOBOdCTBO

KOMnoHeTbI, BXOJaIeB KOMnJIeKT NOCTaBKn yCTPOJCTBa, IN DOCTyINHbIe akceccayapbl MOrYT pa3JIuHaTbCS B 3aBNCIMOCTN OT PerNoHa IIN NoCTaBUnKa ycnyr. KomnoHeTbI, BXoJaIeB KOMnJIeKT, IpeDHa3NaueHbI DJIg NcNoJIb3OBaHnA TOJIbKO C DaHHbIM yCTPOJCTBOM IM MOrYT 6bITb HeCOBMeCTUmMbIMC dpyrIMN yCTPOJCTBaMn. IcNoIb3OBaHne akceccayapOB, KOToPbIe He 6bln pa3peWeHbIK PpIMeHnIO C daHHbIM yCTPOJCTBOM, MoXeT pPnBeCTN K erO HeNCnPpaBHOCTN.

Описиме устюйства

1 Nopt micro-USB
2 THe3do dny raphNtypbI
3 Be6-Kamepa
4 rpoMkoROBOpNTeIb
5 KhoPkn peYnnpOBKn rpoMkOCTN
6 KHOIIKA BKNIOUeHnBbIKIOUeHn
MnKPOΦOH

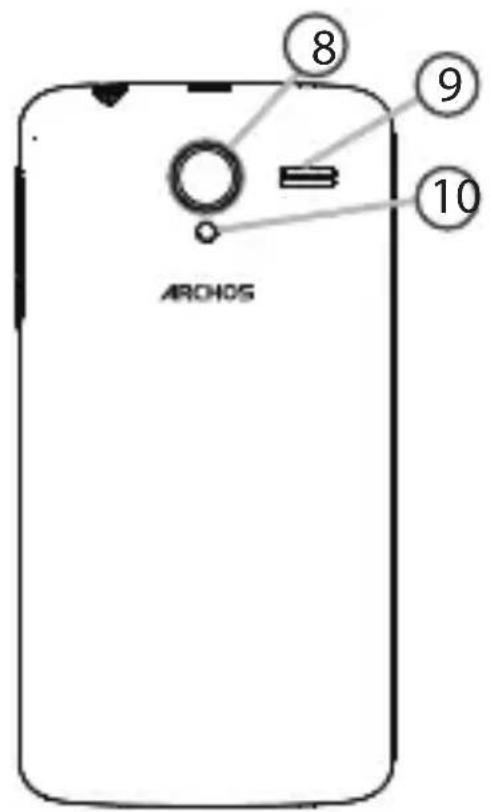

Описно устюйства

8 Kamepa
9 rPOMKOrOBOpHTeJIb
10 0HapnK

11 MeHIO
12 TnaBbIeKpaH/NoCneHne npnloXeHn
13 Haza

MeHIO:OTKpbITHe cINsKa yHKnI,IOCTyIHbIX Ha TeKyIeM 3KpaHe.

He n3r6aIte n He cKpyuNbaiTe KpbIshky CnIshkom CnIbHO. 3To MoXeT npINBeCTN Ke ee NOBpeJxDeHIO.

2.ИЗВЛЕКИТе6aTapeю.

Bctabka SIM-kapT

UTo6bI yCTaHOBnTb 3G SIM-KapTy, BCTaBbTe ee IInCeBOi CTOpOHoB BHn3 B rHe3do 2G/3G (rHe3do 1).

UTo6bI yCTaHOBnTb cTaHApTHyIO SIM-KapTy, BCTaBbTe ee IInCeBOi CTOpOH BHN3 B rHe3Do 2G (rHe3Do 2).

BcTaBka KaPTbI NaMaTn

IepetaiTe KapTu namrTn B cnot 3.

3aKpbTne

1. COBmecHTe 4 TOUKN KOHTaKTOB aKKymyIaTOPa C COOTBeTCTByIOuIMN ToUkAMn Ha TeNefoHe n OCTOpOxHNo HaadabNTe Ha aKKymyIaTOP BHN3, YTO6bI 3aADBHyTb erO Ha MeCTo.
2. YctaHOBInTe KpbIshky aKKymyIaTopa, TaK yTo6bI OHa CO IeJcKOM CtaJa Ha MeCTO.

PoiDcKa3Kn.

Ipeed nepBbIM nCnOJb3OBaHnem yCTpoiCTBa nONHOCTbIO 3apAInTe aKKymyIaTOp.

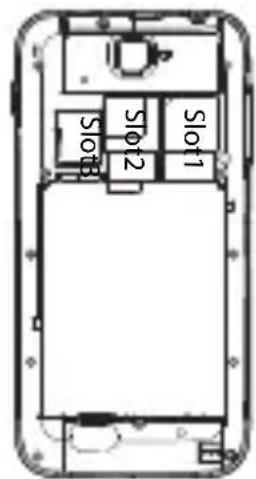

Chumume 3aohno kpbuuky c nomoubno na3a

RU

Teneoh he pearupyet Ha deiCTBn mH He BkIOaetcA

Проверп Te KOHTaKTbI aKKyMyJIrTOpa, ИЗВЛeКИTe I NOВТОРН O YCTaHOBITe aKKyMyJIrTOp, 3aTeM ChOBA BкЛIOчITE TeIeФOH. Проверп Te ypoBeHb 3apЯda aKKyMyJIrTOpa, BblONHITe 3apЯДКу B TeueHne He MeHee 20 MInHyT.

He ydaetc npdklouhtb TelefoH He moKet K cetn, nn oTo6paXaetc coo6ueHne No service (Het cetn)

PonbitaTecb yctaHOBNTb coeHHeHne B dpyrom MeCTe. PpOBepbTe y onepaTopa HauNue NOKpbTncaTt. PpOBepbTe y onepaTopa, DeiCTbNTbHa IIN BaSha SIM-kapTa. POnbitaTeCB bbl6paTb DoctynHyocetb (cETn) BpyHuO. POnbitaTeCB yCTaHOBNTb coeHHeHne No3Ke, eCNI cETb neperpyJKeHa.

He ydaetc BbINONHtB NCXODaIe Bbl3OBbl

y6eIITecb, yTO TEleoH NOdkluoyen K cETn, u TcTo cTe b DoctynHa n He nepeepykeHa.

He ydaetc npHnMaTb BXOJaIue Bbl3OBbl

Y6eHITecb, YTO TeIefoH BkIIOueH I NOIKIOueH K ceTn (npOBepbTe, YTO cETb IOCTyINHa N He neperpyKeHa).

3a6JIOKIpOBaH PIN-KoI SIM-KapTbI

HactpoJaHOBoi cTe 3G

Ecn yctpoiCTBO He yctaHOINo CoeINHeHne C cetbIO NOCTaBUNka ycnyr CBA3N 3G aBTOMaTnueckn,
6paNTecb K NOCTaBUNky ycnyr CBA3N 3G dIy NOLyehnna napameTpOB nOdkJIOUeyHnra.
Ha ekpahe ycTPOIcTBa KocHTecb NyHKta Settings (HAcTPOIKn). Bbl6epnte Wireless & networks >
More...> Mobile networks (BeCnpobOnHnay CBA3b N cETn > DOpONHtEnbHo...> CeTN MObINbHOJ CBA3N).
Bbl6epnte Network settings (HAcTPOIKn cETn). B pa3dene Network operators (OnepatopbI cETn)
Bbl6epnte HuxHoro onepatopa. B pa3dene Access Point Names (ImeHa ToyeK DoCTyNa) Bbl6epnte
PpabINbHOe IMMa TOnkN DoCTyNa I BBeDNTE ToCHhle npaMeTpbi NODKJIIOUeyHnra, ppeIOCTaBLeHHbIe
NoCTaBUnkOM ycnyr CBA3N 3G.

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0.You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction ReasonRemark

Bulgaria	None General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None If used outside of own premises, general authorization is required.
Luxembourg	None General authorization required for network and service supply (not for spectrum)
Norway	Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian

Federation

None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Due to the used enclosure material, the device shall only be connected to a USB interface of version 2.0 or higher. The connection to so called power USB is prohibited. The adapter shall be installed near the equipment and shall be easily accessible. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

The SAR limit of Europe is 2.0W / kg . Device types ARCHOS 53 Titanium has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.377W / Kg and when properly worn on the body is 0.548W / Kg . This device was tested for typical body-worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided.

Hereby, ARCHOS company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

CE 0700

The device working environment temperature range: -10^ - 40^
