| Product type | Refrigerator |
| Brand | Gamko |
| Model | Noverta Premium 000030043 |
| Dimensions (W x D x H) | 602 x 570 x 840-870 mm (model GM/2) |
| Weight | 52 kg |
| Power supply | 220-240 V ~ 50 Hz, 1~ |
| Power consumption | 173 W |
| Refrigerant | R134a (GWP 1300) |
| Cooling capacity | 240 W (5.08 cc) |
| Thermostat type | Electronic |
| Temperature range | +1 °C to +18 °C (standard setting +6 °C) |
| Interior volume | 145 L |
| Interior lighting | 1 x 3 W |
| Maximum load per shelf | 2 x 50 kg per door |
| Climate class | N (ambient +16 °C to +32 °C) |
| Number of doors | 1 (reversible) |
| Adjustable feet | Yes, for leveling and air circulation |
| Condenser | Finned (GM2/212) or maintenance-free (GM2/2/22) depending on model |
| Cleaning | Water and mild detergent; vacuum cleaner for the condenser |
| Defrosting | Manual if necessary |
| Warranty | Valid subject to compliance with the instructions |
Frequently Asked Questions - Noverta Premium 000030043 Gamko
User questions about Noverta Premium 000030043 Gamko
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual Noverta Premium 000030043 - Gamko and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Noverta Premium 000030043 by Gamko.
USER MANUAL Noverta Premium 000030043 Gamko
- Gamko product range type:
GMM
P. Naajkens
Operations Manager
WEEE-bepalingen
BELANGRIJK: AANDACHTIG DE INSTRUCTIES DOORNEMEN VOORALEER OVER TE GAAN TOT DE MONTAGE. DEZE DIEN EN OP EEN VEILIGE PLAATS TE WORDEN BEWAARD. DE INFORMATIE DIE DEZE BROCHURE OMVAT IS BELANGRIJK IN GEVAL VAN HET AFVOEREN OF HET HERGEBRUIKEN VAN HET TOESTEL OP HET EINDE VAN ZIJN NUTTIGE LEVENSDUUR.
Chapter 1 General information 28
Safety precautions 29
Product description 31
Type plate 32
Chapter 2 Installation 33
Installing the product 33
Changing the door 34
Drilling holes for beer column 35
Fitting storage racks 36
Power supply 36
Chapter 3 Using the appliance 37
Prior to use 37
Thermostat 37
Filling the cabinet 39
Chapter 4 Maintenance 40
Cleaning the cabinet 40
Version with bottle compartment 40
Interference 41
Chapter 5 Technical information 42
Plug ready bottle cooler 42
CE declaration 44
WEEE-regulations 45
GWP-table 47

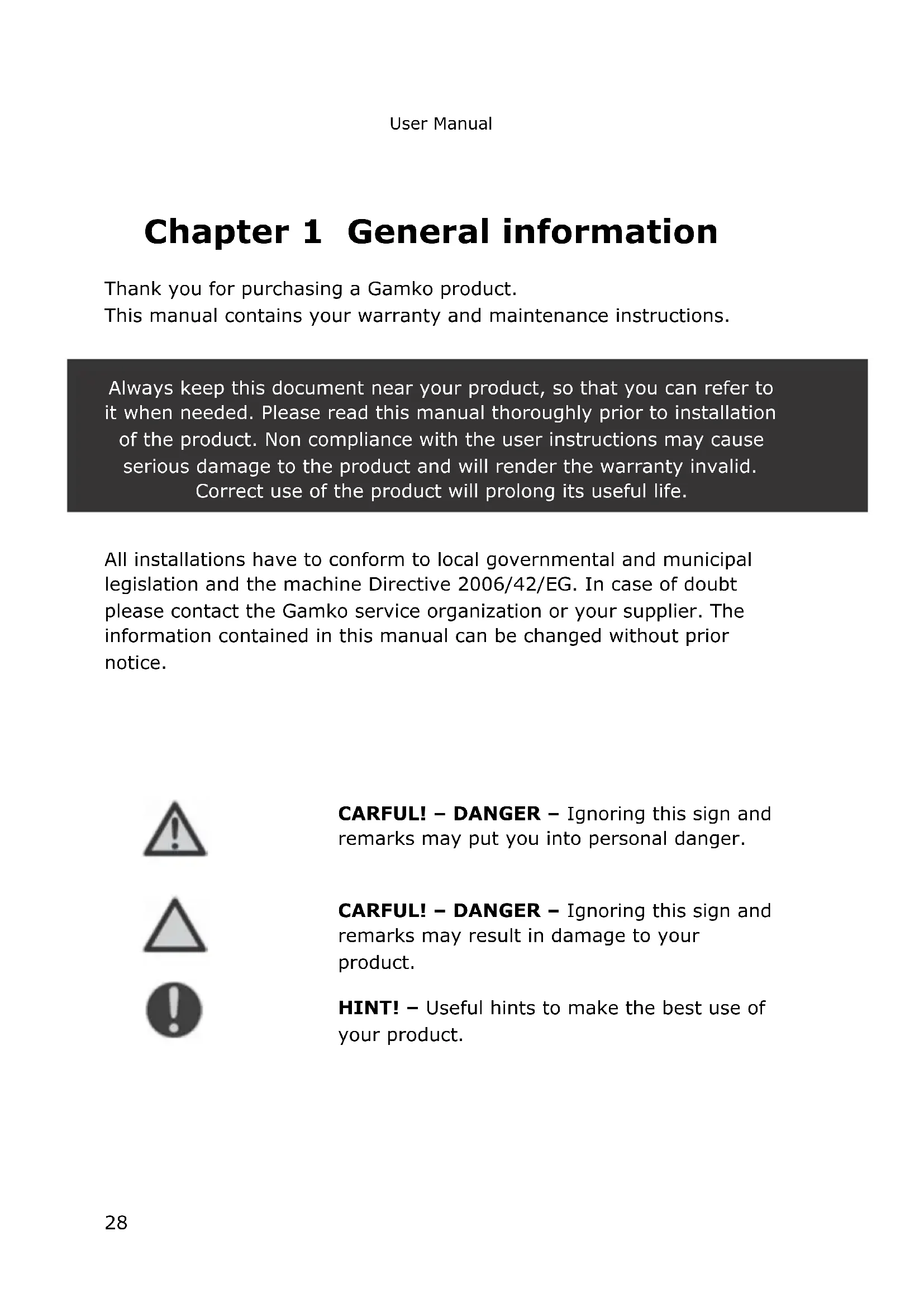

Chapter 1 General information
Thank you for purchasing a Gamko product.
This manual contains your warranty and maintenance instructions.
Always keep this document near your product, so that you can refer to it when needed. Please read this manual thoroughly prior to installation of the product. Non compliance with the user instructions may cause serious damage to the product and will render the warranty invalid. Correct use of the product will prolong its useful life.
All installations have to conform to local governmental and municipal legislation and the machine Directive 2006/42/EG. In case of doubt please contact the Gamko service organization or your supplier. The information contained in this manual can be changed without prior notice.
CARFUL! - DANGER - Ignoring this sign and remarks may put you into personal danger.
CARFUL! - DANGER - Ignoring this sign and remarks may result in damage to your product.
HINT! - Useful hints to make the best use of your product.
Safety precautions
Technical safety
- Prior to use check the plug and lead for any damage.
- Hold the plug when removing the plug from the socket.
- Check whether the power supply is suitable for this product.
- Ensure that the product is standing firmly and level.
- Always have repairs carried out by qualified service engineers.
- To avoid damage to the product a damaged plug lead may only be replaced by the manufacturer or a qualified service engineer.
Refrigerant
This product contains a refrigerant. The quantity used in this product is stated on the type plate.
-R134a
Large quantities of refrigerant can lead to suffocation.
- When exposed to fire the container can burst open or explode.
- Always ensure that there is sufficient ventilation in the room where the appliance is located.
- Never open the machine unit.
- Refrigerant can cause burns.
-R600a
- Contact with liquid may cause frostbite or cold burns.
- Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination.
- For liquid contact, flush with water for at least 15 minutes. Obtain medical assistance
- When exposed to fire the container can burst open or explode.
- Always ensure that there is sufficient ventilation in the room where the appliance is located.
- Never open the machine unit.
During operations
- Use this product only indoors.
- Only use this product for storing packed beverages.
- Never use the product as a step.
- Never store electrical appliances in the product.
User Manual
- Always store beverages with a high percentage of alcohol standing upright and tightly closed.
- Ensure that ventilation grilles both in and outside the cabinet remain unobstructed.
- In case of emergency the plug should be removed from the socket.
After use
- Make sure that the product is stored and disposed off safely.
User Manual

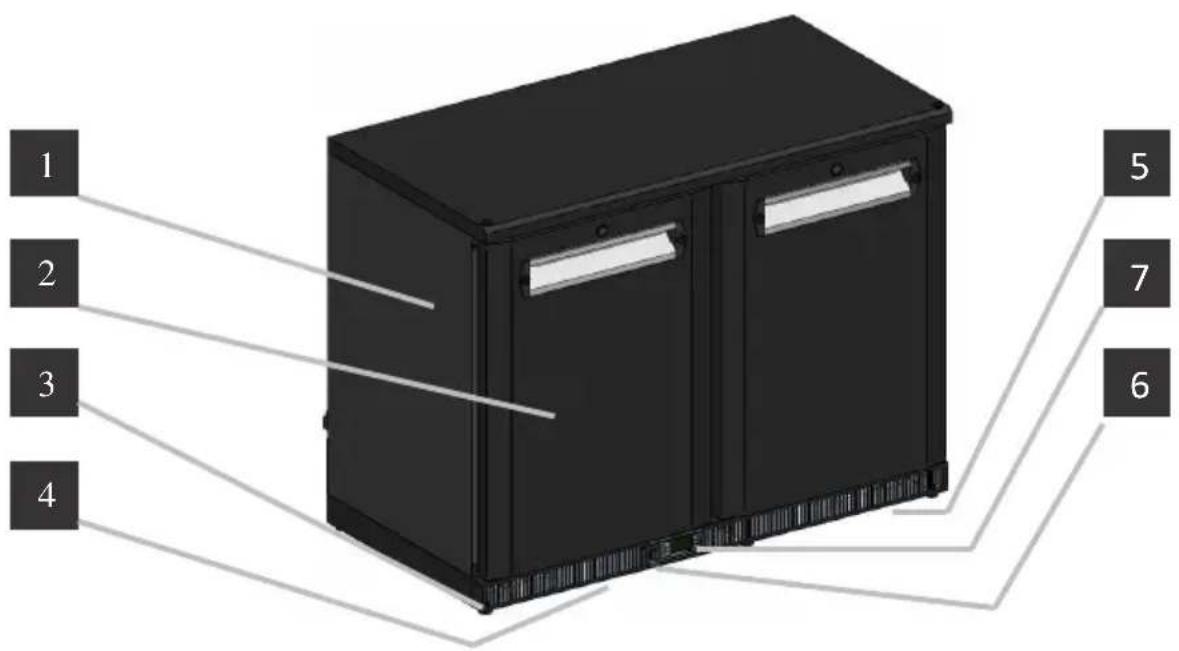

Product description
1 Type plate (inside)
2 Door
3 Adjustable feet
4 Air inlet
5 Air outlet
6 On/off switch
7 Thermostat
Type plate
Climate classification
A refrigerator is produced for optimal performance within certain ambient temperatures. This product is suitable for the following classification: N: from +16°C to +32°C.
Refrigerant
A Refrigerant like R134a can cause burns or, after exposure to air, lead to suffocation! A hydrocarbon refrigerant (R600a) can cause frostbites and cold burns. Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination.When exposed to fire the container can burst open or explode.
Chapter 2 Installation
Hint! Never install the refrigerator next to a heat source!
Operating principle
A refrigerator works by extracting heat from the space to be refrigerated and to release this in the surrounding area.
For maximum air circulation it is recommended to allow at least 10cm space around the refrigerator. Be very careful never to obstruct the air inlets and outlets.
Installing the product
Place the product on a smooth surface.
1 Place the product at his position.
2 Make sure the product is standing level using a spirit level.
3 The product must be placed with feet to provide adequate air circulation around the cabinet. This for an optimal operation of the product and to dispose a possible leakages of R600a. Also, the legs are used for product adjustment and leveling.
User Manual
Changing the door
How to change a door, see the picture below.
1; Remove cap and top hinge with a socket wrench.
2; Remove the door.
3; Remove the lower hinge with a screwdriver.
User Manual

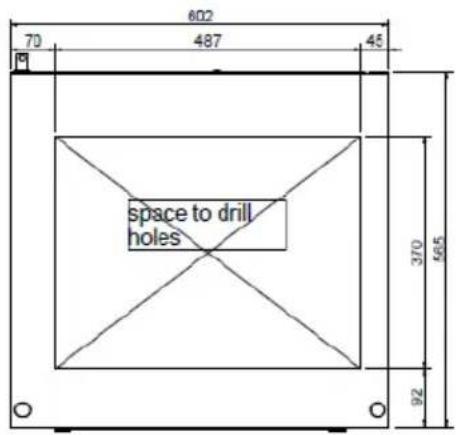

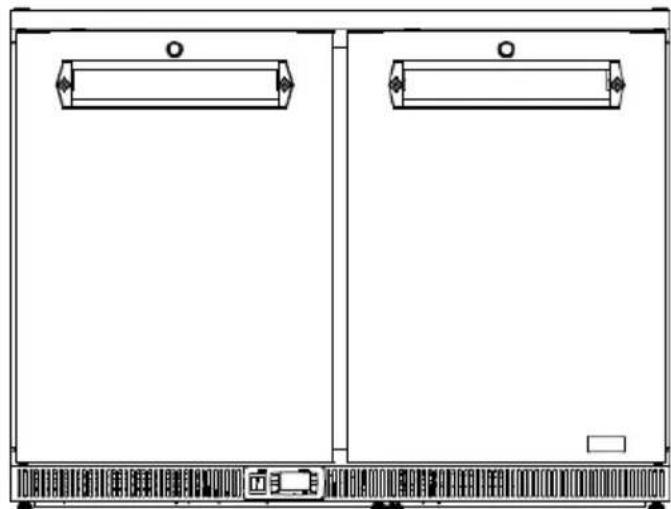

Drilling holes for beer column
How and where to drill the holes for the beer column, see pictures below.
Fitting storage racks
1 Hook pin (1) in openings (2) of rails (C).
2 Push bottom part (B) towards side (A).
3 This causes pin (3) to slot into the next opening (4) in the rails.
4 Fit the other pins at the same height.
5 Place the storage rack (D) sliding the pins (5) in the openings (6)
- If this device cable is damaged it must be replaced with an original cable supplied by the producer.
- In case of emergency: remove the plug lead from the socket.
- The socket should be within easy reach of the cabinet.
- Check for the correct power supply, referred to the information on the type plate.
- Ensure that the plug lead cannot be trapped or snagged.
- If necessary the plug lead can be extended by a qualified electrician.
- We do not recommend the use of an extension lead.
Fluctuations in the power supply can cause damage, which causes the cabinet to switch off. Gamko cannot be held responsible for any consequential damage.
Chapter 3 Using the appliance
Prior to use
- Clean the cabinet prior to use. For further details we refer to chapter maintenance.
- Leave the installation to stand for at least 2 hours before switching on the cabinet.
- Plug into a grounded power socket.
EMERGENCY STOP
REMOVE THE PLUG FROM THE SOCKET!
GM-line plug ready models have an electronic thermostat.
Thermostat
Using the thermostat
For use and settings of the thermostat, please refer to the manual supplied with this product.
XR02CX for GM2/212MU.
To see the set point.
- Push and immediately release the SET key, the set point will be showed;
- Push and immediately release the SET key or wait about 5 sec to return to normal visualisation;
To change the set point.
- Push the SET key for more than 2 sec to change the set point value;
- The value of the set point will be displayed and the ^ C or ^ LED starts blinking;
User Manual
3.
- To change the SET value push the o or n arrows within 10 sec.
- To memorise the new set point value push the SET key again or wait 10sec.
XR07CX for GM2/2 and GM2/22.
To see the set point.
- Push the SET key two times, the set point will be showed.
- Push the SET key three times to return to normal visualisation.
To change the set point
- Push the SET key for more than 2 sec and then push the SET key again;
- The value of the set point will be displayed and the "°C" LED starts blinking;
- To change the Set value push the UP or DOWN button;
- To memorise the new set point value push the SET key three times.
Filling the cabinet
- This product is only to be used for the refrigeration of packed beverages.
- Fill the cabinet during a period when it is least used. Repeatedly opening of the door will slow down the refrigeration of the products.
- Beverages with a high alcohol percentage should always be stored properly sealed in an upright position.
To guarantee optimal performance and air circulation the air vents of the cabinets should NEVER be obstructed.
NEVER use the cabinet to store electrical appliances!
HINT!
Apply the so called First-in First-out principle when serving beverages out of the cabinet. This to ensure that the coldest product is served.
Chapter 4 Maintenance
Cleaning the cabinet
Self-maintenance
- Before First use the cabinet should be cleaned using water and a mild detergent.
- Intensive use requires regular cleaning.
- The GM2//2/22 has a maintenance free condenser. The GM2/212 has a lamellae condenser and this needs to be cleaned once a week using a vacuum cleaner. When the condenser is not kept clean it will cost € 50,- extra in energy costs each year.
- Check and clean the magnetic seals on a regular basis. If the seal is not airtight it will have a negative effect on the refrigeration performance and it needs to be replaced immediately.
Version with bottle compartment
Gamko recommends cleaning the bottle compartment regularly. When you have a cabinet with a bottle compartment, the defrost drip tray below the evaporator needs to be cleaned twice a year related to the label and glue residues.
Attention!
- Do not dismantle any fixed components when cleaning the machine unit!
- Do not use aggressive abrasives or detergents.
Interference
Attention!
Always remove the plug from the socket when carrying out repairs!
The cabinet does not start.
- Check the plug.
- Restore the power supply by replacing a fault fuse or by using the on/off switch.
- Contact your local service organization.
Temperature is too high, in spite of recent adjustment of thermostat.
- Check/restore power supply.
- Remove contents which may obstruct ventilation.
- Clean magnetic seal, replace if necessary. Remove contents which may obstruct ventilation
- Defrost evaporator.
- The condenser is dirty, must be cleaned (applies only for GM2/212)
- Thermostat or compressor is defect.
Fan (evaporator or condenser) is defect. - Contact your local service organization.
Temperature is too low, in spite of recent adjustment of thermostat.
- Thermostat is defect.
- Contact your local service organization.
Water leak
- Defrost regularly - if necessary extra manual defrost cycle.
- Check if the product is leveled. If necessary level the product.
- Contact your local service organization.
Plug lead
- To prevent accidents the plug lead, if damaged, may only be replaced by the service/maintenance organization or qualified installer.
User Manual
Chapter 5 Technical information
Plug ready bottle cooler
Power supply 220 - 240 V / 50 Hz / 1~
Refrigerant R134a
Cooling capacity 240 Watt* (5,08 cc)
Thermostat Electronic
Temperature range +1^ C t / m + 18^ C , standard +6^ C
Type GM/2 GM/22
Power consumption 173 Watt 180 Watt
Internal volume 145 L 290 L
Weight 52 kg 78 kg
Illumination 1 x 3 Watt 1 x 3 Watt
Capacity tray 2× 50kg each door 2× 50kg each door
Dimensions 602× 570× 840 / 870mm 1110× 570× 840 / 870mm
User Manual
Power supply 220 - 240 V / 50 Hz / 1~
Refrigerant R600a
Cooling capacity 262 Watt* (6,78 cc)
Thermostat Electronic
Temperature range +1^ C t / m + 18^ C , standard +6^ C
Type GM2/2 GM2/22
Power consumption 132 Watt 139 Watt
Internal volume 145 L 290 L
Weight 52 kg 78 kg
Illumination 1 × 3 Watt 1 × 3 Watt
Capacity tray 2× 50~kg each door 2× 50~kg each door
Dimensions 602× 570× 840 / 870mm 1110× 570× 840 / 870mm
Power supply 220 - 240 V / 50 Hz / 1~
Refrigerant R600a
Cooling capacity 515 Watt* (12,23 cc)
Thermostat Electronic
Temperature range +1^ C t / m + 18^ C , standard +6^ C
Type GM2/212MU
Power consumption 390 Watt*
Internal volume 495 L
Weight 102 kg
Illumination
Capacity tray 2× 50kg each door
Dimensions 1670 x 570 x 860/880 mm
- Conditions: Min. evaporation T = -5^ , Max. condensation T = 45^ , Ambient temperature = 25^
CE declaration
Gamko
EC DECLARATION CONFORMITY FOR MACHINERY
(Directive 2006/42/EC, Annex II, sub A.)
Manufacturer: Gamko BV
Address: Mon Plaisir 75, 4879 AL Etten-Leur The Netherlands
Herewith declares that the following product
- Gamko product range type:
GM
Is provided as defined in:
The EC machines (Directive 2006/42/EC)
Electromagnetic compatibility (Directive 2004/108/EEC)
Directive low-voltage (Directive 2006/95/EEC)
PED pressurised equipment (Directive 97/23/EC)
RoHS directive 2002/95/EC
Etten-Leur, 23-12-2011
P. Naajkens
Operations Manager
WEEE-regulations
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. THE INFORMATION CONTAINED IN THIS BROCHURE IS IMPORTANT FOR THE DISPOSAL OR RE-USE OF THIS PRODUCT AT THE END OF ITS USEFUL LIFE.
Gamko Holding BV is attentive of the care of the environment and meets all requirements contained in the Directive 2002/96/CE, known as WEEE, or the Directive referring to Waste from Electrical and Electronic Equipment. This product conforms to the directive 2002/96/CE. At the end of its useful life the product, which is to be processed separate from household waste, should be transferred to a collection point of separate waste from electrical and electronic equipment. The objective of the Directive 2002/96/CE is to combat the increasing volumes of waste from electrical and electronic equipment, to increase the re-use of electrical and electronic equipment ("EEE") and finally to limit the total volume of waste EEE ("WEEE") destined to be disposed of. The symbol of the crossed out waste bin indicates that this product is subject to the application of this Directive. It is the responsibility of the user to transfer the product to specialized collection points, as indicated by local legislation or the distributor. In case of installation of a new product the old WEEE product can be collected by the distributor at the same time. The manufacturer, importer and distributor are responsible for the collection and processing of the waste which is collected directly or through a collection point. The enclosed list contains Gamko Holding BV distributors per country. Any violation of the above mentioned Directive will result in sanction measures in all of these countries. In general Gamko Holding BV applies the "CECED interpretation" (European Committee of Manufacturers of Electrical household appliances) according to which the WEEE legislation is applicable to portable air conditioners, dehumidifiers, window- air conditioning, split systems up to 12kW ,
User Manual
fridge's and plug in freezer compartments. Nevertheless it is possible that in the various member countries differences in legislation are detected. In case some products are not included on the list of WEEE products following national legislation, the national legislation should be adhered to, the WEEE directives applicable to products that are not included in the scope of these national legislations should be omitted. The directive does not apply to products sold outside the European Union. In case the product is to be sold outside the European Union, it is not necessary to adhere to the WEEE directive however; the vendor/distributor has to guarantee that local legislation is being observed. For further information please refer to the local authority for waste collection, the vendor/ distributor/ installer who supplied the product or directly to Gamko.
GWP-table
This product contains fluorinated gases covered by the Kyoto Protocol.
| Chemical Name of the Gas (see type plate) | R134a | R600a |
| Global Warming Potential (GWP) of the gas | 1300 | 3 |
Caution!
a. Hermetically sealed system
b. Emission of the contained fluorinated gas shall be prevented. The fluorinated gas may never be vented to the atmosphere during installation, service and disposal. When leak of the contained fluorinated gas is detected, the leak shall be repaired and stopped as soon as possible.
c Only qualified service personnel are allowed to access and service this product.
d^* . Handling of the fluorinated gas in this product, such as moving of the product, re-charging of the gas, shall comply with REGULATION (EC) No 842/2006 on certain fluorinated gases and relevant local legislation.
* (in case of R134a)
Mode I'emploi
Table des matieres
- Conditions: Min. evaporation T = -5 °C, Max. condensation T = 45 °C,
Température ambiente = 25 °C
P. Naajkens
Operations manager
Dispositions de la directive WEEE
IMPORTANT : LIRE ATTENTIVEMENT LES INSTRUCTIONS AVANT DE PROCÉDER AU MONTAGE. LES PRÉSENTES INSTRUCTIONS DOIVENT ÉTRE CONSERVÉES DANS UN ENDROIT SûR. LES INFORMATIONS CONTENUES DANS LA PRÉSENTE BROCHURE SONT IMPORTANTES EN CAS DE TRANSPORT OU DE RECYCLAGE DE L'APPAREIL À LA FIN DE LA DURÉE DE SERVICE DE L'APPAREIL.
Gamko Kuhlung Type:
GMM
Konform sind mit
