Brand	Philips
Model	AquaTouch AT753
Product type	Electric shaver
Usage	Dry shaving and in the shower (wet)
Power supply	Built-in rechargeable battery, 100-240V adapter
Charging time	Approximately 8 hours
Runtime	Up to 40 minutes of shaving
Charge indicator	White charge indicator (charging) and orange (battery low)
Shaving heads	3 rotating heads with blades and beard lifter
Cutting system	Self-sharpening blades
Integrated trimmer	No
Cleaning	Washable under hot water (max 80°C) and brush cleaning
Waterproof	Yes, usable in the shower
Safety	Adapter with safety transformer, do not immerse
Spare parts	Philips HQ8 shaving heads
Included accessories	Adapter, cleaning brush
Warranty	2 years (excluding shaving heads)
Sound level	69 dB(A)
Head replacement indicator	Yes (orange symbol)
Charging type	Charging via adapter only (no stand)

Frequently Asked Questions - AquaTouch AT753 PHILIPS

How to charge the Philips AquaTouch AT753 shaver?

Plug the small end of the adapter into the shaver, then plug the adapter into a wall outlet. The charge indicator flashes white during charging. A full charge takes about 8 hours. Once charged, the indicator stays solid white and turns off after 30 minutes.

What is the runtime after a full charge?

The runtime is approximately 40 minutes of shaving, which may vary depending on shaving duration and beard type.

Can I use the shaver in the shower?

Yes, the shaver is waterproof and designed for use in the shower or bath. It can also be cleaned under running tap water.

How to clean the shaver?

After each shave, open the shaving unit by pressing the release button, rinse it under hot water (max 80°C) for 30 seconds. Shake off excess water and let it air dry. You can also clean the heads with the provided brush.

When should I replace the shaving heads?

It is recommended to replace the heads once a year for optimal performance. The shaving head symbol lights up orange to indicate it is time to replace them. Use Philips HQ8 heads.

What to do if the shaver stops working?

First check if the battery is charged. If the indicator flashes orange, recharge it. If the shaver does not turn on after charging, it may have overheated; wait for it to cool down. If the problem persists, contact Philips service.

Can the shaver be used while plugged in?

No, the shaver can only be used cordless. It must be unplugged during use.

How to reset the head replacement reminder?

After replacing the heads, press and hold the on/off button for at least 5 seconds. The orange light will turn off.

Does the shaver come with a travel case?

No, the AT753 model is not delivered with a case. It comes with an adapter and a cleaning brush.

What to do if the shaving performance is poor?

Thoroughly clean the shaving heads, check that they are not clogged with hair or shaving foam residue. If the heads are worn, replace them. Also ensure the heads are properly inserted.

USER MANUAL AquaTouch AT753 PHILIPS

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button (AT893/AT890/AT752/ AT750 only)
5 Shaving head symbol
6 Charging light (AT893/AT890/AT752/AT750 only)
7 Charging stand (AT940/AT928/AT921 only)
8 Cleaning brush
9 Pouch (AT940/AT928/ AT921/AT893/AT890 only)
10 Adapter
11 Battery symbol (AT940/AT928/AT921 only)
12 Shaving head symbol
13 Shaver on/off button (AT940/AT928/AT921 only)
14 Trimmer release slide (AT940/AT928/AT921/ AT893/AT890 only)
15 Trimmer (AT940/AT928/AT921/AT893/AT890 only)

Note: You can find the type number on the back of the shaver.

Important

Read this important information carefully before you use the shaver and the charging stand (specific types only). Save this leaflet for future reference.

Danger

• Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• The shaver and the charging stand can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
• Always unplug the shaver before you clean it under the tap.

Caution

• Never immerse the charging stand in water nor rinse it under the tap.
• Never use water hotter than 80^ C to rinse the shaver.
• Do not use the shaver, adapter, charging stand or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charging stand or part with one of the original type.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Compliance with standards

• This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly.
• The shaver complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
  Maximum noise level: Lc = 69dB(A)

Charging

Note: The shaver cannot be used directly from the mains.

AT940/AT928/AT921/AT893/AT890: It takes approx. 1 hour to fully charge the shaver.

AT752/AT750: It takes approx. 8 hours to fully charge the shaver.

A fully charged shaver provides up to 60 (AT940/

AT928/AT921), 50 (AT893/AT890) or 40 (AT752/ AT750) shaving minutes.

The shaving time may be less than expected as a result of your shaving behaviour, your cleaning habits or your beard type.

Charge indications

Battery low

• AT940/AT928/AT921: When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the orange battery symbol starts to flash. When you switch off the shaver, the orange battery symbol continues to flash for a few seconds.
• AT893/AT890/AT752/AT750: When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange. When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging

(AT940/AT928/AT921/AT893/AT890 only)

• AT940/AT928/AT921: When you start charging the empty battery, the battery symbol flashes orange and white.

Note: When the battery symbol flashes white and orange towards only white, you can have a quick shave of three minutes.

• AT893/AT890: When you start charging the empty battery, the charging light alternately flashes orange and white.

Note: When the charging light flashes orange and white towards only white, you can have a quick shave of three minutes.

ENGLISH10

Charging

• AT940/AT928/AT921: When the shaver is charging, the white battery symbol flashes.

• AT893/AT890/AT752/AT750: When the shaver is charging, the charging light flashes white.

Battery fully charged

• AT940/AT928/AT921: When the battery is fully charged, the white battery symbol lights up continuously.

Note: After approx. 30 minutes, the battery symbol goes out to save energy.

• AT893/AT890/AT752/AT750: When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging with the adapter

Put the small plug in the shaver.
2 Put the adapter in the wall socket.

The charging light shows the charging status of the shaver (see section 'Charge indications' in this chapter).

Charging in the charging stand (AT940/AT928/AT921 only)

1 Put the small plug in the charging stand.
2 Put the adapter in the wall socket.
3 Place the shaver in the charging stand.

The charging light shows the charging status of the shaver.

Using the shaver

Note: This shaver can be used in the bath or shower. It can therefore not be used directly from the mains for safety reasons.

Shaving tips and tricks

• This shaver is suitable for both wet and dry use. Use the shaver with shaving gel or foam for extra skin comfort, or use the shaver dry for extra convenience.

Note: We advise you to use the shaver with shaving gel or foam when you use it for a wet shave. Do not use thick shaving cream or shaving oil with this shaver.

• For optimal shaving results, make circular movements during use.
• The shaver is waterproof and can be used in the bath or shower.
• Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Wet shaving

Apply some water to your skin.

ENGLISH12

2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.
5 Move the shaving heads in circular movements over your skin.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 After shaving, press the on/off button once to switch off the shaver and dry your face.
Clean the shaver (see chapter 'Cleaning and maintenance').

Note: Make sure you rinse all foam or shaving gel off the shaver.

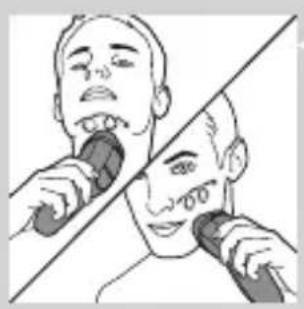

Dry shaving

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads in circular movements over your skin.
3 After shaving, press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter 'Cleaning and maintenance').

Trimming (AT940/AT928/AT921/AT893/AT890 only)

You can use the trimmer to groom your sideburns and moustache.

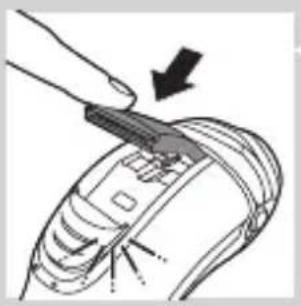

1 Push the trimmer slide downwards to open the trimmer.
2 Press the on/off button once to switch on the shaver.

You can now start trimming.

3 After trimming, press the on/off button once to switch off the shaver.
4 Clean the trimmer (see chapter 'Cleaning and maintenance').
5 Close the trimmer ('click').

Cleaning and maintenance

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the shaver and the charging stand (AT940/AT928/AT921 only).

Always unplug the shaver before you clean it under the tap.

• Clean the shaver after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.
• For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110).

ENGLISH14

• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

1 Switch off the shaver.
2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

• Rinse the hair chamber and the inside of the shaving unit.

• Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving unit.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver.

2 Press the release button to open the shaving unit.

3 Pull the shaving unit off the shaver.

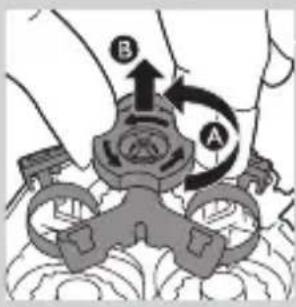

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

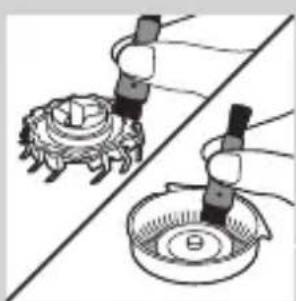

• Remove the cutter from the shaving guard and clean it with the brush.

• Clean the inside and outside of the shaving guard with the brush.

ENGLISH16

6 Put the shaving heads back into the shaving unit.

Make sure that the projections of the shaving heads fit exactly into the recesses.

Put the retaining frame back into the shaving unit and turn the lock clockwise.
Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush (AT940/AT928/AT921/AT893/AT890 only)

Clean the trimmer every time you have used it.

1 Switch off the shaver.
2 Push the trimmer slide downwards to open the trimmer.

3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.
4 Close the trimmer ('click').

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

There are several ways to store the shaver or to take it with you when you travel:

• Always put the protection cap on the shaver to prevent damage.
• AT940/AT928/AT921/AT893/AT890 only: Store the shaver in the pouch supplied.
• AT940/AT928/AT921 only: Store the shaver in the charging stand.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every year.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away.

Only replace the shaving heads with original HQ9 (AT940/AT928/AT921) or HQ8 (AT893/AT890/ AT752/AT750) Philips Shaving Heads.

1 The shaving head symbol lights up orange continuously.

2 Switch off the shaver. Disconnect the shaver from the mains or remove it from the charging stand (AT940/AT928/AT921 only).

3 Press the release button to open the shaving unit.

Pull the shaving unit off the shaver.

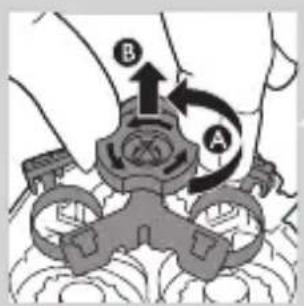

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).
6 Remove the shaving heads and place new ones in the shaving unit.

ENGLISH18

Make sure that the projections of the shaving heads fit exactly into the recesses.

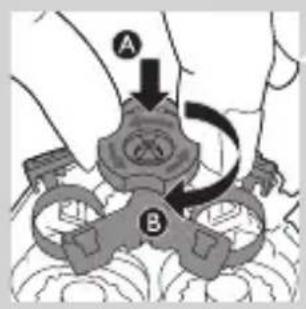

Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

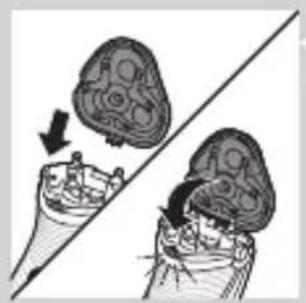

Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

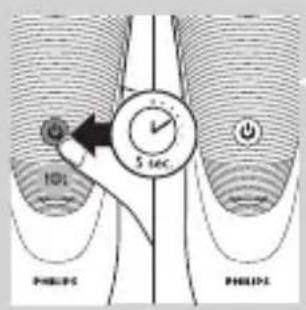

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light will go out.

Ordering accessories

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

• We advise you to replace your shaving heads every year. Always replace with HQ9 (for AT940/AT928/AT921) or HQ8 (for AT893/AT890/AT752/AT750) Philips Shaving Heads.

Cleaning

• Use Cleaning spray (HQ110) to clean the shaving heads thoroughly.

Recycling

• This symbol on a product means that the product is covered by European Directive 2012/19/EU.

• This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2006/66/EC which cannot be disposed of with normal household waste. Follow the instructions in section 'Removing the rechargeable battery' to remove the battery.
• Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains or remove it from the charging stand (AT940/ AT928/AT921 only).
2 Let the shaver run until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again or put it back into the plugged-in charging stand (AT940/AT928/AT921 only) after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please www.philips.com/support or call toll free: 1-866-800-9311. To locate the nearest Philips warranty depot, visit our website www.philips.com.

Guarantee restrictions

• Philips Consumer Lifestyle guarantees its products for a period of two years after the date of purchase. If any defect due to faulty materials and workmanship occurs within this two-year guarantee period, Philips Consumer Lifestyle will repair or replace the product at its expense.

• Philips Consumer Lifestyle will only pay for repair or replacement if convincing proof is provided, for instance by means of a receipt, that the day on which service is claimed is within the guarantee period. The shaving heads (cutters and shaving guards) are not covered by the terms of the international guarantee because they are subject to wear.

• The guarantee is not valid if a defect is due to damage caused by incorrect use, poor maintenance (e.g. parts blocked by scale) or if alterations or repairs have been carried out by persons not authorised by Philips Consumer Lifestyle.
• For the appliance to be used correctly, the user should strictly adhere to all instructions included in the user manual and should abstain from any actions or uses that are described as undesired or which are warned against in the user manual.
• These guarantee restrictions do not affect your statutory rights.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or call the Consumer Care Centre toll free at: 1-866-800-9311.

Problem Possible cause Solution
The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Foam or gel residues clog up the shaving heads.	Rinse the shaving unit under a hot tap (see section ‘Cleaning the shaving unit under the tap’ in chapter ‘Cleaning and maintenance’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see section ‘Cleaning the shaving unit with the cleaning brush’ in chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see section ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
The shaver does not work, although it is connected to the mains.	This shaver is not designed to be used directly from the mains.	Recharge the battery (see chapter ‘Charging’) and disconnect it from the mains.

Introduction
