Product Type	Electric Shaver
Model	AquaTouch AT892
Brand	Philips
Shaving System	Rotary (3 heads)
Wet & Dry Usage	Yes, fully washable
Trimmer	Pop-up trimmer for sideburns
Power Source	Rechargeable Li-Ion battery
Charging Time	1 hour
Runtime	50 minutes
Quick Charge	Yes, 5-minute quick charge for one shave
Voltage	100-240 V, automatic adjustment
Display	LED battery indicator
Dimensions (approx.)	5.5 x 2.5 x 4.0 inches (140 x 64 x 102 mm)
Weight	0.6 lbs (270 g)
Cleaning	Rinse under tap with Water+ technology
Replacement Heads	Philips SH30 or compatible
Accessories Included	Protective cap, charging cable
Safety	Waterproof, suitable for shower use
Warranty	2 years (varies by region)

Frequently Asked Questions - AquaTouch AT892 PHILIPS

Can I use the Philips AquaTouch AT892 in the shower?

Yes, the AT892 is fully washable and designed for both wet and dry use. You can use it with shaving foam or gel in the shower.

How do I clean the shaver?

Rinse the shaving heads under warm tap water. You can also use the integrated water+ technology for thorough cleaning. Dry the shaver after cleaning.

How long does the battery last?

The Li-Ion battery provides up to 50 minutes of cordless shaving after a full 1-hour charge.

Can I use the shaver while charging?

Yes, the AT892 can be used corded if the battery is empty. However, it's recommended to charge fully for optimal cordless performance.

What replacement heads fit the AT892?

Use Philips SH30 replacement heads. It's recommended to replace them every 12 months for optimal shaving performance.

How do I know when to replace the shaving heads?

The shaver may indicate replacement via a head replacement reminder. Also, if you notice reduced shaving performance or irritation, it's time to replace.

Is the shaver waterproof?

Yes, it is fully waterproof and can be used in the shower. Always rinse after use and let air dry.

How do I use the pop-up trimmer?

Slide the trimmer switch upward to release the trimmer. Use it for sideburns, mustache, or detailing. Push back to retract.

What is the charging time for a quick charge?

A 5-minute quick charge provides enough power for one full shave. This is handy if you're in a hurry.

Where can I download the user manual?

The user manual is available for free download on the Philips website or on manual platforms like notice-facile.com. It contains detailed instructions.

USER MANUAL AquaTouch AT892 PHILIPS

Always here to help you

Register your product and get support at

www.philips.com/welcome

AT941

AT940

AT899

AT897

AT896

AT894

AT891

AT890

AT811

AT790

AT756

AT753

AT751

AT750

User manual

PHILIPS

ENGLISH 6

DANSK 20

DEUTSCH 34

ΕΛΛΗΝΙΚΑ 48

ESPAÑOL 63

SUOMI 77

FRANÇAIS 90

ITALIANO 104

NEDERLANDS 118

NORSK 132

PORTUGUÊS 146

SVENSKA 160

TÜRKÇE 174

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button (AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750 only)
5 Shaving head symbol
6 Charging light (AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750 only)
7 Charging stand (AT941/AT940 only)
8 Adapter
9 Cleaning brush
10 Storage pouch (AT941/AT940/AT897/AT894/AT892/AT891/AT890/AT811 only)
11 Battery symbol and shaving head symbol (AT941/AT940/AT897 only)
12 Shaver on/off button (AT941/AT940/AT897 only)
13 Trimmer release slide (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756 only)
14 Trimmer (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756 only)

Note: You can find the type number on the back of the shaver.

Important

Read this user manual carefully before you use the appliance and the charging stand (AT941/AT940 only). Save it for future reference.

Danger

- Make sure the adapter does not get wet.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug the shaver before you clean it under the tap.

Caution

• Never use water hotter than 80° C to rinse the shaver.
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.
• The shaver and the other accessories are not dishwasher-proof.
• Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
• Do not use the shaver, adapter, charging stand or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter or charging stand with one of the original type.
• Use, charge and store the appliance at a temperature between 10° C and 35° C.
• Always place and use the shaver on a surface that is fluid-resistant.
• Only use the adapter, charging stand and accessories supplied.
• Always put the protection cap on the shaver to protect the shaving heads when you are travelling.
• If the shaver is subjected to a major change in temperature, pressure or humidity, let it acclimatise for 30 minutes before you use it.
• Do not immerse the charging stand in water or any other liquid, nor rinse it under the tap.

Compliance with standards

- This Philips appliance complies with all applicable standards and regulations regarding electromagnetic fields (EMF).

General

• The appliance is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Note: The shaver cannot be used directly from the mains.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

See the table below for the charging time of your shaver.

Charging time 1 hour 8 hours

AT941, AT940, AT897 AT899, AT896, AT790

AT894, AT892, AT891 AT756, AT753, AT751

AT890, AT811 AT750

The shaving time may be less than stated below in the table as a result of your shaving behaviour, your cleanings habits or your beard type.

- AT941/AT940/AT897: When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the orange battery symbol starts to flash. When you switch off the shaver, the orange battery symbol continues to flash for a few seconds.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange. When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811 only)

- AT941/AT940/AT897: When you start charging the empty battery, the battery symbol flashes orange and white.

Note: When the battery symbol flashes white and orange towards only white, you can have a quick shave of three minutes.

- AT896/AT894/AT892/AT891/AT890/AT811: When you start charging the empty battery, the charging light alternately flashes orange and green.

Note: When the charging light flashes orange and green towards only green, you can have a quick shave of three minutes.

Charging

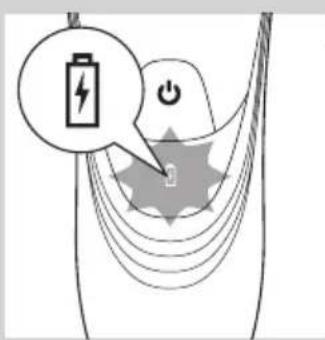

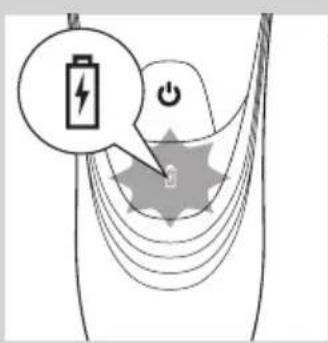

- AT941/AT940/AT897: When the shaver is charging, the white battery symbol flashes.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: When the shaver is charging, the charging light flashes green.

Battery fully charged

- AT941/AT940/AT897: When the battery is fully charged, the white battery symbol lights up continuously.

Note: After approx. 30 minutes, the battery symbol goes out to save energy.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750:When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.

The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Charging in the charging stand (AT941/AT940 only)

1 Put the small plug in the charging stand.
2 Put the adapter in the wall socket.
3 Place the shaver in the charging stand.

The charging light shows the charging status of the shaver (see section ‘Charge indications’ in this chapter).

Using the shaver

Note: This shaver can be used in the bath or shower. It can therefore not be used directly from the mains for safety reasons.

Shaving tips and tricks

- This shaver is suitable for both wet and dry use. Use the shaver with shaving gel or foam for extra skin comfort, or use the shaver dry for extra convenience.

Note: We advise you to use the shaver with shaving gel or foam when you use it for a wet shave. Do not use thick shaving cream or shaving oil with this shaver.

- For optimal shaving results, make circular movements during use.

- The shaver is waterproof and can be used in the bath or shower.

- Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Wet shaving

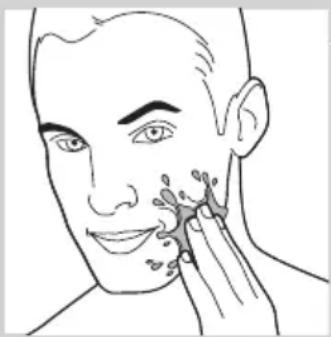

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.

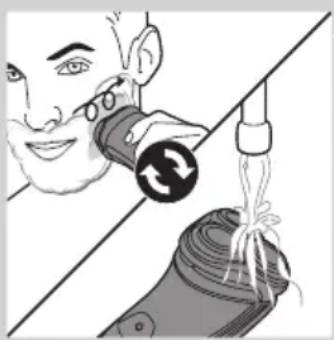

5 Move the shaving heads in circular movements over your skin.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 After shaving, press the on/off button once to switch off the shaver and dry your face.

7 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Dry shaving

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads in circular movements over your skin.
3 After shaving, press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter 'Cleaning and maintenance').

Trimming (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756 only)

You can use the trimmer to groom your sideburns and moustache.

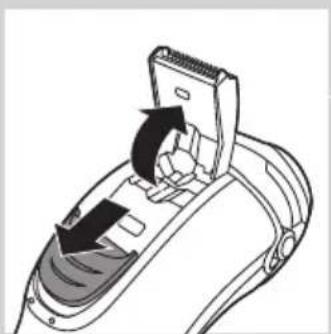

1 Push the trimmer slide downwards to open the trimmer.
2 Press the on/off button once to switch on the shaver. ▶You can now start trimming.
3 After trimming, press the on/off button once to switch off the shaver.

4 Clean the trimmer (see chapter 'Cleaning and maintenance').

5 Close the trimmer ('click').

Cleaning and maintenance

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the shaver and the charging stand (AT941/AT940 only).

Always unplug the shaver before you clean it under the tap.

• Clean the shaver after every shave for optimal shaving performance.
• Regular cleaning guarantees better shaving performance.
• For the best cleaning results, we advise you to use the Philips Cleaning spray (HQ110).
• Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

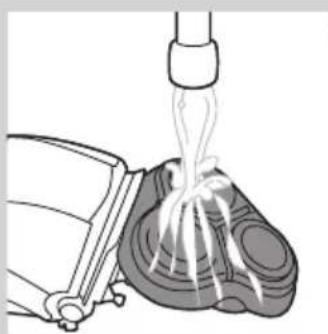

Cleaning the shaving unit under the tap

1 Switch off the shaver.

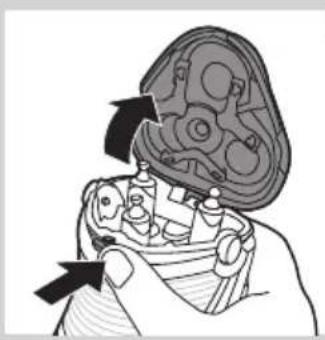

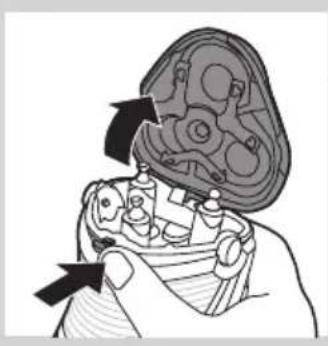

2 Press the release button to open the shaving unit.

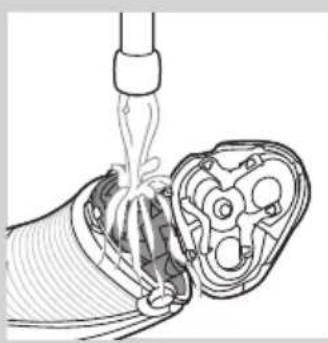

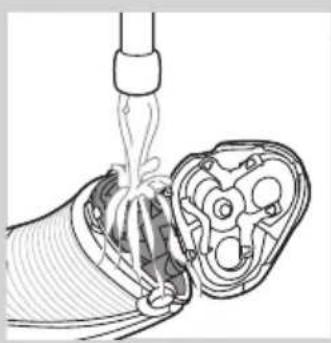

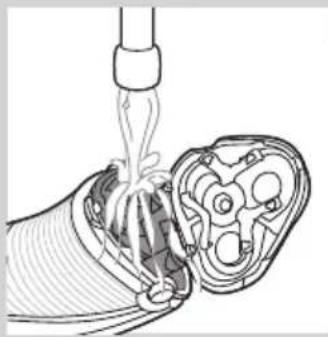

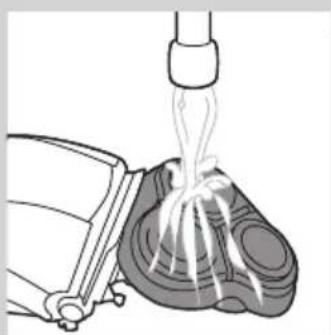

3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving unit.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver.

2 Press the release button to open the shaving unit.

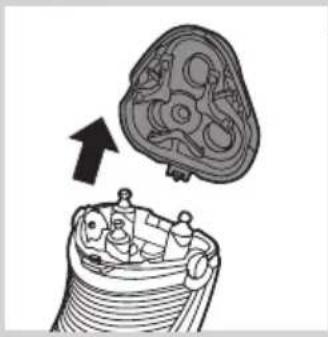

3 Pull the shaving unit off the shaver.

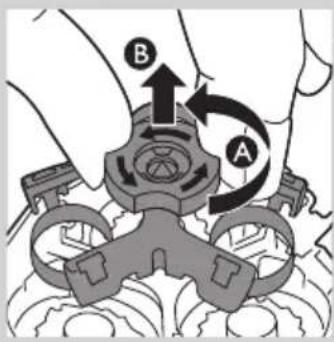

4 Turn the lock anticlockwise (A) and remove the retaining frame (B).

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

- Remove the cutter from the shaving guard and clean it with the brush.

- Clean the inside and outside of the shaving guard with the brush.

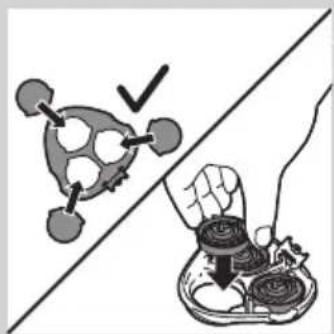

6 Put the shaving heads back into the shaving unit.

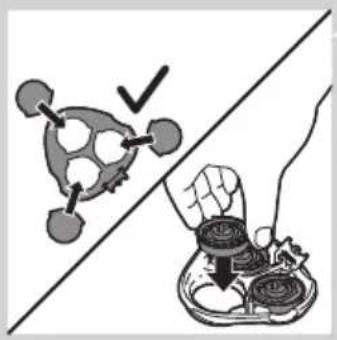

Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Cleaning the trimmer with the cleaning brush (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756 only)

Clean the trimmer every time you have used it.

1 Switch off the shaver.

2 Push the trimmer slide downwards to open the trimmer.

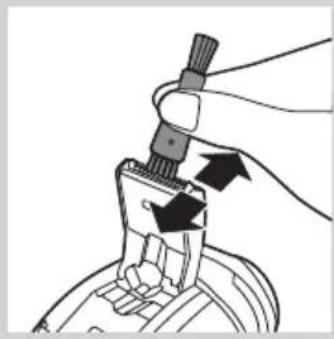

3 Clean the trimmer with the short-bristled side of the cleaning brush. Brush up and down along the trimmer teeth.

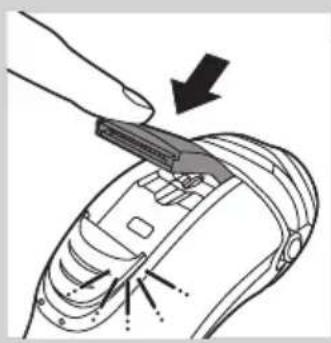

4 Close the trimmer ('click').

Tip: For optimal trimming performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Storage

- Put the protection cap on the shaver to prevent damage. - AT941/AT940/AT897/AT894/AT892/AT891/AT890 only: Store the shaver in the pouch supplied.

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every year.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away. Only replace the shaving heads with original HQ9 (AT941/AT940) or HQ8 (AT899/AT897/AT896/AT894/AT892/AT891/AT890/AT790/AT756/AT753/AT751/AT750) Philips Shaving Heads.

1 The shaving head symbol lights up orange continuously.
2 Switch off the shaver. Disconnect the shaver from the mains or remove it from the charging stand (AT940/AT921 only).

3 Press the release button to open the shaving unit.
4 Pull the shaving unit off the shaver.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

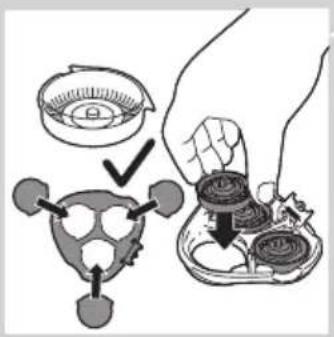

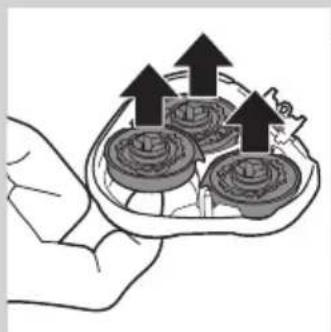

6 Remove the shaving heads and place new ones in the shaving unit.

Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

8 Insert the lug of the shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

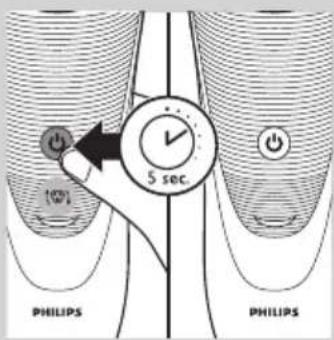

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light will go out.

Ordering accessories

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace with HQ9 (AT941/AT940) or HQ8(AT899/AT897/AT896/AT894/AT892/AT891/AT890/AT790/AT756/AT753/AT751/AT750) Philips Shaving Heads.

Cleaning

- Use Cleaning spray (HQ110) to clean the shaving heads thoroughly.

Environment

- Do not throw away the appliance with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver operate until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.
5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Foam or gel residues clog up the shaving heads.	Rinse the shaving unit under a hot tap (see chapter ‘Cleaning and maintenance’).
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
The shaver does not work, although it is connected to the mains.	The shaver is not designed to be used directly from the mains.	Recharge the battery (see chapter ‘Charging’) and disconnect it from the mains.

Introduktion

Forsigtig

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Når shaveren oplades, blinker opladeindikatoren grønt.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Når batteriet er fuldt opladet, lyser opladeindikatoren konstant grønt.

1 Påfør lidt vand på din hud.

1 Sluk for shaveren.

1 Shaverhovedsymbolet lyser konstant orange.

Achtung

Akku fast leer

Laden

Φόρτιση

Precaución

Batería baja

Carga rápida (solo modelos AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

Carga

1 Humedézcase la piel.

Varoitus

Akku täynnä

Attention

Piles faibles

Charge rapide (AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811 uniquement)

Charge

5 Remettez la tondeuse en place (clic).

Attenzione

Batteria scarica

Ricarica rapida (solo AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

1 Bagnate la pelle.

Accu bijna leeg

Snel opladen (alleen AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

Opladen

Accu vol

5 Klap de trimmer in ('klik').

- Spoel de haarkamer en de binnenkant van de scheerunit schoon.

Forsiktig

Lav batterikapasitet

Hurtiglading (kun AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

Lading

- AT941/AT940/AT897: Når barbermaskinen lader, blinker det hvite batterisymbolet.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Når barbermaskinen lades, blinker ladelampen grønt.

Fulladet batteri

- AT941/AT940/AT897: Når batteriet er fulladet, lyser det hvite batterisymbolet kontinuerlig.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Når batteriet er fulladet, lyser ladelampen kontinuerlig grønt.

2 Smør huden med barberskum eller barbergel.

5 Lukk trimmeren med et klikk.

1 Skjærehodesymbolet lyser oransje kontinuerlig.

2 Slå av barbermaskinen. Koble barbermaskinen fra strømnettet, eller fjern den fra ladestativet (kun AT940/AT921).

Cuidado

Bateria fraca

Carga rápida (apenas AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

Carregamento

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Quando a máquina de barbear está a carregar, a luz de carregamento fica intermitente a verde.

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Quando a bateria estiver completamente carregada, a luz de carregamento permanece continuamente acesa a verde.

1 O símbolo da cabeça de corte permanece continuamente aceso a cor de laranja.

Encomendar acessórios

Försiktighet

Batteriet fulladdat

Dikkat

Düşük pil

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/

Hızlı şarj (sadece AT941/AT940/AT897/AT896/AT894/AT892/AT891/AT890/AT811)

Şarj etme

- AT899/AT896/AT894/AT892/AT891/AT890/AT811/AT790/AT756/AT753/AT751/AT750: Tıraş makinesi şarj olurken şarj ışığı yeşil renkte yanıp söner.
