USER MANUAL PCM106822.1 WAVES

Pink WOYA-S food grater with white design and three radishes, no visible text or symbols on the device itself.

Popcake Maker (EN)

Popcake Maschine (DE)

Popcake machine (NL)

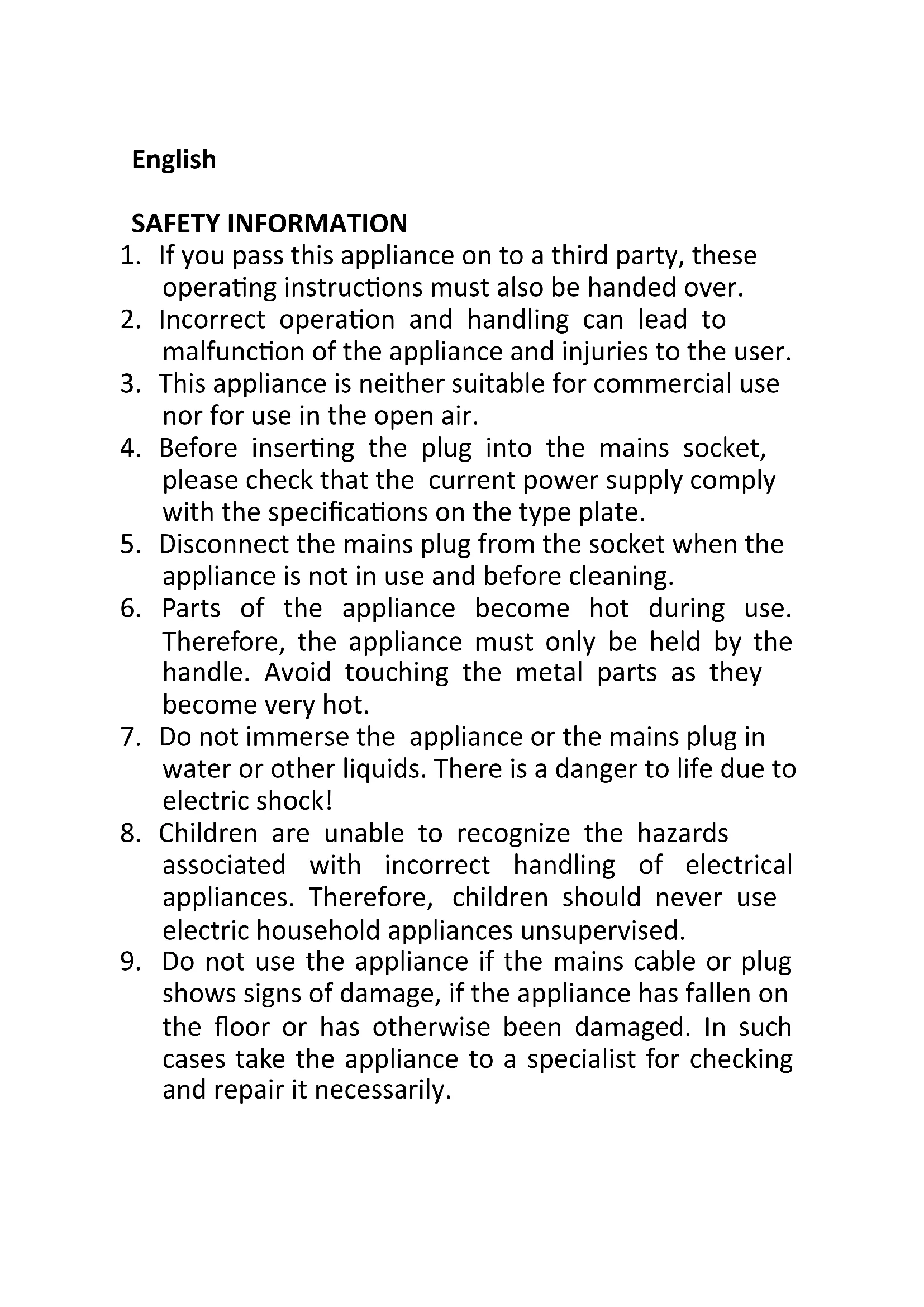

1. If you pass this appliance on to a third party, these operating instructions must also be handed over.
2. Incorrect operation and handling can lead to malfunction of the appliance and injuries to the user.
3. This appliance is neither suitable for commercial use nor for use in the open air.
4. Before inserting the plug into the mains socket, please check that the current power supply comply with the specifications on the type plate.
5. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
6. Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.
7. Do not immerse the appliance or the mains plug in water or other liquids. There is a danger to life due to electric shock!
8. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

9. Do not use the appliance if the mains cable or plug shows signs of damage, if the appliance has fallen on the floor or has otherwise been damaged. In such cases take the appliance to a specialist for checking and repair it necessarily.

10. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

11. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
12. Never leave the appliance unattended during use.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
14. Children shall not play with the appliance.
15. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
16. Keep the appliance and its cord out of reach of children less than 8 years.
17. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
18. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
19. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
20. This appliance is not designed for commercial use.

21. Caution:

The toasting surfaces as well as the sides and top of the appliance get very hot.

Avoid any contact. Danger of burning! Only

hold by the handle. The appliance must always be positioned horizontally during use.

German

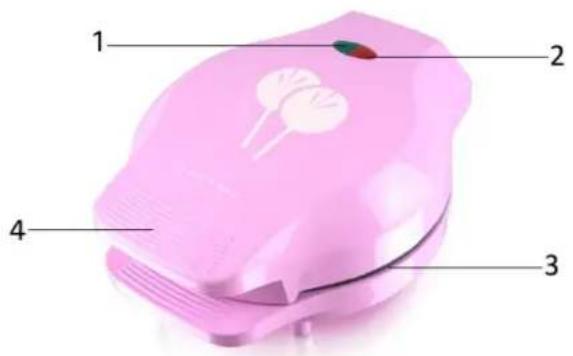

1. Power indicator
2. Temperature indicator
3. Heating plate
4. Cool touch handle

1 2 3 4

FIRST USE

Before using for the first time, please remove all the various packaging materials and wipe off the unit with a slightly dampened cloth.

OPERATION

1. Plug the device into a properly installed mains socket (the power indicator lights up).
2. The plate requires approx.2-3 minutes to warm up.
3. When the desired temperature has been attained, the temperature indicator lights up.
4. Now open the device, grease the baking plate and place the dough inside.
5. The heating plates include a non-stick coating. This means it is not necessary to use a lot of grease for normal use.
6. Now shut the lid, the baking process will last approx. 4-6 minutes (depending on the thickness and content of the dough).
7. Now remove the cake with the help of wooden or heat resistant plastic spatula. Do not use any objects with sharp edges, to avoid damaging the coating!
8. Unplug the device after use.

Note: During cooking the temperature indicator light cycles on and off to maintain the appliance at the correct temperature.

RECIPE

Basic recipe for popcakes

Ingredients for 48 pieces

• 190 grams all-purpose flour
• 1 teaspoon baking powder
- 14 teaspoon salt
- 120 grams butter
• 225 grams sugar
- 2 teaspoons vanilla
- 2 eggs

- 225 ml. milk

Beat together butter and sugar until light and creamy. Beat in eggs and vanilla. Add flour, baking powder, salt and milk. Blend well. Grease the baking plate and fill each cooking reservoir with about 1 tablespoon of batter. Bake 4 to 5 minutes or until a toothpick inserted into a popcake comes out clean.

Chocolate Popcakes

Ingredients for about 42 pieces

• 95 grams all-purpose flour
- 110 grams sugar
- 3 tablespoons cocoa
- 12 teaspoon baking soda
- 14 teaspoon baking powder
- 14 teaspoon salt
- 60 ml buttermilk
• 3 tablespoons vegetable oil
• 1 egg
- 12 teaspoon vanilla
- 60 ml freshly brewed hot coffee

Combine flour, sugar, cocoa, baking soda, baking powder and salt in a mixing bowl. Add buttermilk, vegetable oil, egg and vanilla. Using a mixer, blend until smooth. Add coffee and continue mixing until coffee is evenly incorporated into mixture. Grease the baking plate and fill each cooking reservoir with about 1 tablespoon of batter. Bake 4 to 5 minutes or until a toothpick inserted into the popcakes comes out clean. Allow to cool and glaze or coat, as desired.

Red velvet popcakes

Ingredients for about 42 pieces

• 155 grams all-purpose flour
- 14 teaspoon salt
- 1 tablespoon cocoa
- 60 grams butter, softened
• 165 grams sugar
• 1 egg
- 1 teaspoon vanilla
• 1 teaspoon red food coloring
- 125 ml buttermilk
- 12 teaspoon vinegar
- 12 teaspoon baking soda

Combine flour, salt and cocoa in a small bowl. Blend well and set aside. Using a mixer, beat butter

until creamy. Add sugar and beat until light and fluffy. Add egg and vanilla and blend well. In a separate bowl, whisk the red food coloring into the buttermilk. Alternately blend flour mixture, then buttermilk mixture into butter mixture, beginning and ending with flour mixture. Combine the vinegar and baking soda in a small bowl and allow to fizz. Fold into cake batter. Grease the baking plate and fill each cooking reservoir with about 1 tablespoon of batter. Bake 4 to 5 minutes or until a toothpick inserted into the popcakes comes out clean. Allow to cool and glaze or coat, as desired.

Lemon Popcakes

Ingredients for about 30 pieces

• 60 grams butter, softened
• 110 grams sugar
  • 1 teaspoon lemon zest
  • 1 egg
• 12 teaspoon lemon extract
  • 95 grams all-purpose flour
• 12 teaspoon baking powder
• 14 teaspoon baking soda
• dash of salt
• 3 tablespoons milk
  • 1 tablespoon lemon juice

Beat together butter and sugar until light and creamy. Beat in lemon zest, egg and lemon extract. Combine flour, baking powder, baking soda and salt. Combine milk and lemon juice. Alternately blend in flour mixture and milk mixture into butter mixture, beginning and ending with the flour mixture. Fold into cake batter. Grease the baking plate and fill each cooking reservoir with about 1 tablespoon of batter. Bake 4 to 5 minutes or until a toothpick inserted into the popcakes comes out clean. Allow to cool and glaze or coat, as desired.

White chocolate glaze

Ingredients

• 170 grams white chocolate
• 3 tablespoons heavy whipping cream
- 40 grams butter, softened and cut into pieces
- 70 grams powdered sugar, sifted
- 12 teaspoon vanilla

Combine white chocolate and cream in a deep bowl. Microwave on high power for 1 minute. Stir, and add butter and microwave on high power for 30 seconds. Stir again. Microwave on high power for an additional 10 to 15 seconds if necessary for white chocolate and butter to melt. Blend in sugar and vanilla. Stir until smooth. Dip the popcakes in warm frosting dip. Microwave on high power for 10 to 15 seconds as needed to keep a glaze consistency.

Vanilla glaze

Ingredients

• 170 grams powdered sugar
- 60 grams melted butter
- 2 to 2 12 tablespoons hot water
- 1 teaspoon vanilla

Combine the melted butter with the powdered sugar, stirring until well blended. Stir in the vanilla.

Blend in two tablespoons of hot water and stir until smooth. Add a little of the remaining hot water, if needed, to make a frosting consistency.

CARE AND CLEANING

Before cleaning the appliance, always switch it off, disconnect it from the electricity supply and allow it to completely cool down.

1. Do not allow stains to dry. Clean the appliance and the baking surfaces as soon as possible after use.
2. The inner baking surfaces can be cleaned with a damp cloth and a mild washing-up liquid. Wipe the surfaces dry with a soft cloth.
3. Do not use any wire wool, metal brushes, scourers or other hard objects to clean the appliance and the baking surfaces; these could scratch the appliance and its non-stick surfaces.
4. Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 800-1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee.

Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal

injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]
