VG VC 1 - Vacuum Cleaner Venga - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Venga
Model	VG VC 1
Power Supply	220-240 V, 50/60 Hz
Power	700 W (estimated)
Bag Capacity	2.5 L (estimated)
Collection Type	Paper Bag
Filtration	Motor filter + air filter (washable) Motor protection filter
Cord Length	5 m (estimated)
Cord Rewinder	Yes, automatic
Operating Radius	7 m (estimated, cord + hose)
Noise Level	78 dB (estimated)
Weight	4.5 kg (estimated)
Dimensions (L x W x H)	40 x 30 x 25 cm (estimated)
Included Accessories	2-position combination nozzle, crevice tool, upholstery brush
Power Adjustment	Manual on hose handle
Bag Full Indicator	Red indicator
Maintenance	Empty bag, clean filters (every 3 months)
Spare Parts	Paper bags, motor and air filters, accessories
Repairability	Authorized after-sales service required for electrical and rewinder repairs
Safety	Automatic shut-off in case of blockage? Not specified; unplug before maintenance; do not vacuum liquids or hot ashes

Frequently Asked Questions - VG VC 1 Venga

How to change the dust bag of the Venga VG VC 1 vacuum cleaner?

Unplug the appliance and detach the hose. Press the lid release button to open the compartment. Remove the full bag from its holder and discard it. Slide a new paper bag onto the holder by pushing the cardboard insert. Close the lid until it clicks.

How often should the filters be cleaned?

The motor filter and air filter should be cleaned approximately every 3 months. Wash them with water and mild detergent, rinse, and let dry completely before reinstalling.

What to do if the bag full indicator turns red?

If the indicator turns red, first check that the suction is not blocked by an object. If the indicator remains red after lifting the brush off the floor, change the bag.

How to use the combination nozzle on different surfaces?

The combination nozzle has two positions: brush retracted for carpets and rugs, brush extended for hard floors (tile, parquet). Simply toggle the position.

How to rewind the power cord?

Press the rewinder button on the appliance. The cord retracts automatically. Hold the plug to avoid whipping.

Can the vacuum cleaner pick up liquids?

No, this vacuum cleaner is designed for dry use only. Never vacuum liquids, especially flammable ones, as this would damage the appliance and pose a hazard.

Where can I buy replacement bags?

Contact the store where you purchased the vacuum cleaner or contact Venga after-sales service (details provided on the warranty card).

How to adjust the suction power?

Use the slider on the hose handle: low position for delicate fabrics (curtains, furniture), high position for carpets and floors.

What to do if the vacuum cleaner stops or loses power?

Check for blockages in the tube or hose. If the bag is full or filters are dirty, empty and clean. If the problem persists, contact an authorized service.

Can I use the vacuum cleaner without a bag?

No, a paper bag is essential to collect dust and protect the motor. Using the appliance without a bag will damage filters and the motor, and void the warranty.

USER MANUAL VG VC 1 Venga

1. Floor brush
2. Flexible hose
3. Tube
4. Hose connection inlet
5. Dust bag level indicator
6. Cable rewind button
7. ON/OFF switch
8. Crevice tool
9. Upholstery brush
10. Cover

F

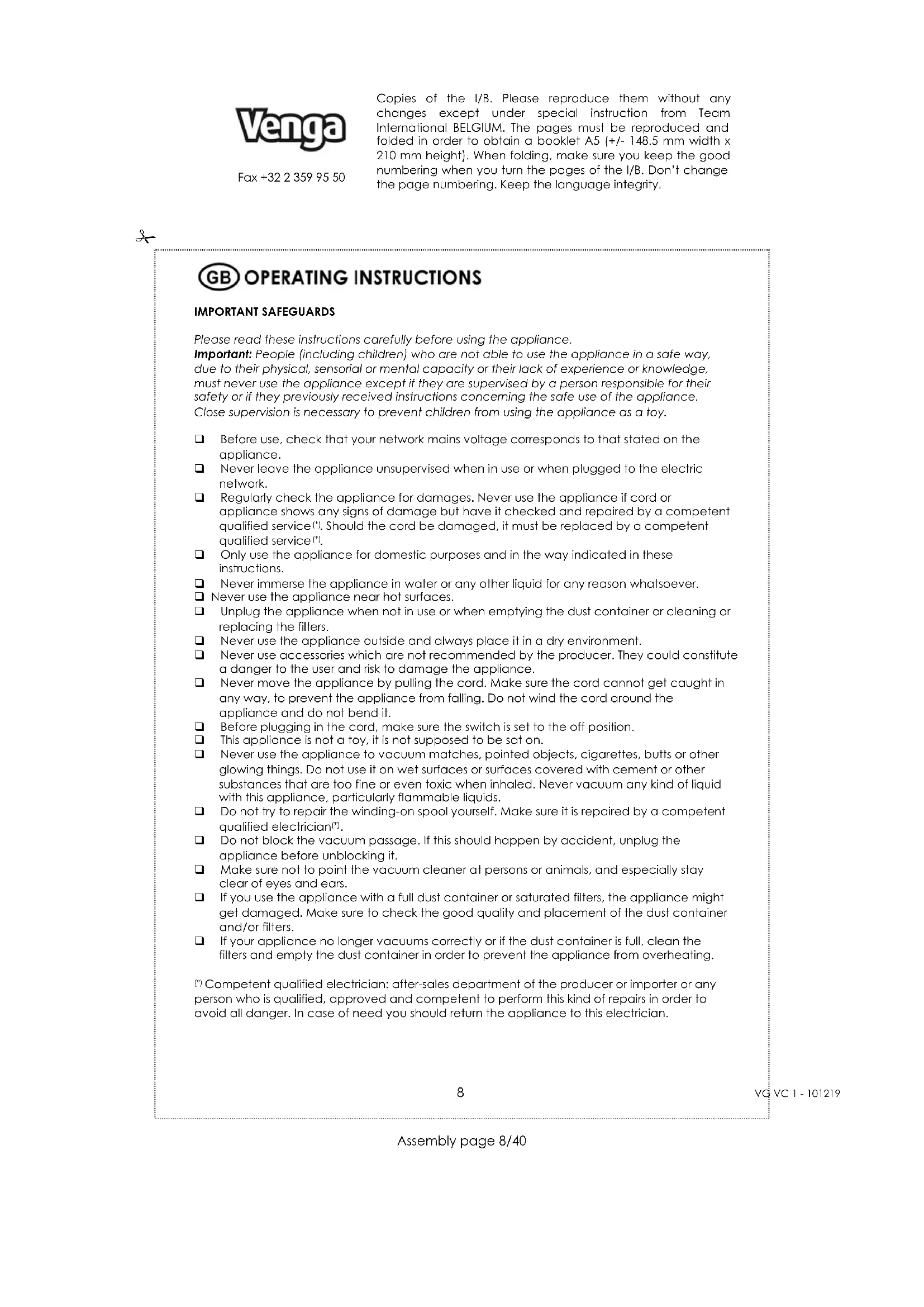

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use or when plugged to the electric network.

Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service.[7]. Should the cord be damaged, it must be replaced by a competent qualified service.[7].

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever.

Never use the appliance near hot surfaces.

Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.

Before plugging in the cord, make sure the switch is set to the off position.

This appliance is not a toy, it is not supposed to be sat on.

Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.

Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^(*) .

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.

Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.

If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.

If your appliance no longer vacuums correctly or if the dust container is full, clean the filters and empty the dust container in order to prevent the appliance from overheating.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!
- Insert the hose connector into the hose connection inlet until it locks. To remove the hose, press the sides of the hose connector and pull at the hose.
- Fit the tube to the handle of the flexible hose.
Fit the tube to the floor brush.
- Removing tube and accessories: to remove the accessories, pull firmly apart.
The floor brush is ideal for the daily cleaning of carpets and hard floors.

Setting with the bristles inside for cleaning carpets.

Setting with the bristles outside for cleaning hard floors.

The appliance is delivered with the following accessories:

a crevice tool: for radiators, crevices, corners, baseboards and between cushions.
an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION

Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot.
- You can adjust the suction power by using the wind-force adjuster on the handle of the flexible hose. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch.
  Unplug the appliance from the power supply.
  Simply press the cable rewind button to activate the cable rewind mechanism.

REPLACING THE DUST BAG AND CLEANING THE FILTERS

The filter system consists of: 1 motor filter (in front of the motor in the dust compartment)

1 air filter, to vacuum the smallest particles (at the back of the appliance)

It is necessary to clean the filters regularly to avoid operating problems.

Paper dust bag

The dust bag level indicator indicates when the dust bag should be replaced.
- The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object which blocks your tube or flexible hose, and your appliance will function properly again. Do not forget to unplug the appliance before removing the blocking object. Replace the dust bag when the dust bag level indicator is completely red. To do so, unplug the appliance.
- Disconnect the hose.

Press the release button of the cover and open the dust compartment.
- Remove the dust bag from its holder and throw it in a dustbin.
Put a new dust bag in its holder.
- Close the dust compartment by slightly pressing on the front cover.
Connect the hose again.

Motor filter

To clean the motor filter (filter situated in front of the motor), switch off the appliance, open the dust compartment and remove the filter to wash it in soapsuds (approximately every 3 months). When it is completely dry, put it back in the appliance.

Air Filter

This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the frequency of operation).
- Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid.

NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical position.
  The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture, or after use when storing your appliance.
  The vacuum cleaner requires no other regular maintenance than the filter cleaning and bag replacement tasks as detailed here above.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

SPARE DUSTBAGS

In order to get new dust bags, please contact first of all the shop where you bought your vacuum cleaner, or contact the customer service, the address of which is mentioned on your guarantee card.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE
