VG VC 2 - Vacuum Cleaner Venga - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Venga
Model	VG VC 2
Power supply	Mains 230 V ~ 50 Hz
Adjustable power	Yes, with electronic speed control and manual control on the handle
Collection type	Paper dust bag
Bag full indicator	Red indicator light
Motor protection filter	Washable (clean every 3 months)
Air filter	Washable (clean every 3 months)
Cord rewinder	Automatic, rewind button
Included accessories	Combination nozzle (2 positions), crevice tool, upholstery brush, telescopic tube, hose
Recommended use	Hard floors, carpets, rugs, upholstery, curtains
Safety	Do not vacuum liquids or glowing objects; unplug before maintenance
Maintenance	Change bag when indicator is red; clean filters regularly
Assembly	Connect the hose, tube, and nozzle; adjust tube length

Frequently Asked Questions - VG VC 2 Venga

How to assemble the VG VC 2 vacuum cleaner?

Connect the end of the hose into the front opening of the appliance until it clicks. Assemble the tube onto the hose handle, then attach the combination nozzle or another accessory to the other end of the tube. You can adjust the tube length.

How to adjust the suction power?

The power can be adjusted electronically using the speed control button on the appliance, as well as manually on the hose handle. Use low power for curtains and upholstery, and maximum for carpets.

When should the dust bag be changed?

Change the bag when the fill indicator turns red, unless the suction is blocked by an object or you are using the vacuum on a thick carpet. In that case, check by lifting the nozzle: if the indicator stays red, the bag is full.

How to clean the motor filter?

Open the dust compartment, remove the motor filter from its housing, clean it with water and detergent, rinse it, and let it dry completely before replacing it. Perform this operation approximately every 3 months.

How to clean the air filter?

Open the grille at the back of the appliance, remove the air filter, clean it with water and detergent, rinse and let it dry completely before putting it back. Replace it after several washes if it is damaged.

What accessories are included with the vacuum cleaner?

The appliance comes with a combination nozzle (2 positions: retracted brush for carpets, extended brush for hard floors), a crevice tool for radiators and tight spaces, and an upholstery brush.

Can I vacuum liquids with this vacuum cleaner?

No, do not vacuum any liquids with this appliance, especially flammable liquids. The vacuum cleaner is designed for dry use only.

How to use the cord rewinder?

Pull the plug to unwind the desired cord length. A yellow mark indicates you are almost at maximum, the red mark is the limit. After use, unplug and press the rewind button to automatically rewind.

What to do if suction decreases?

First check that there is no blockage in the tube or hose. If not, clean or replace the bag and filters. If the problem persists, contact an authorized service center.

How to maintain the vacuum cleaner?

Maintenance is limited to regular changing of the paper bag and cleaning of the filters every 3 months. Clean the filters with water and detergent, dry them completely before putting them back. Do not use the appliance without filters.

USER MANUAL VG VC 2 Venga

1. Handle
2. Floor brush
3. Flexible hose
4. Tube
5. Hose connection inlet
6. Dust bag level indicator
7. ON/OFF switch
8. Electronic power control switch
9. Cable rewind button
10. Crevice tool
11. Upholstery brush
12. Cover

VGVC2-101220

F

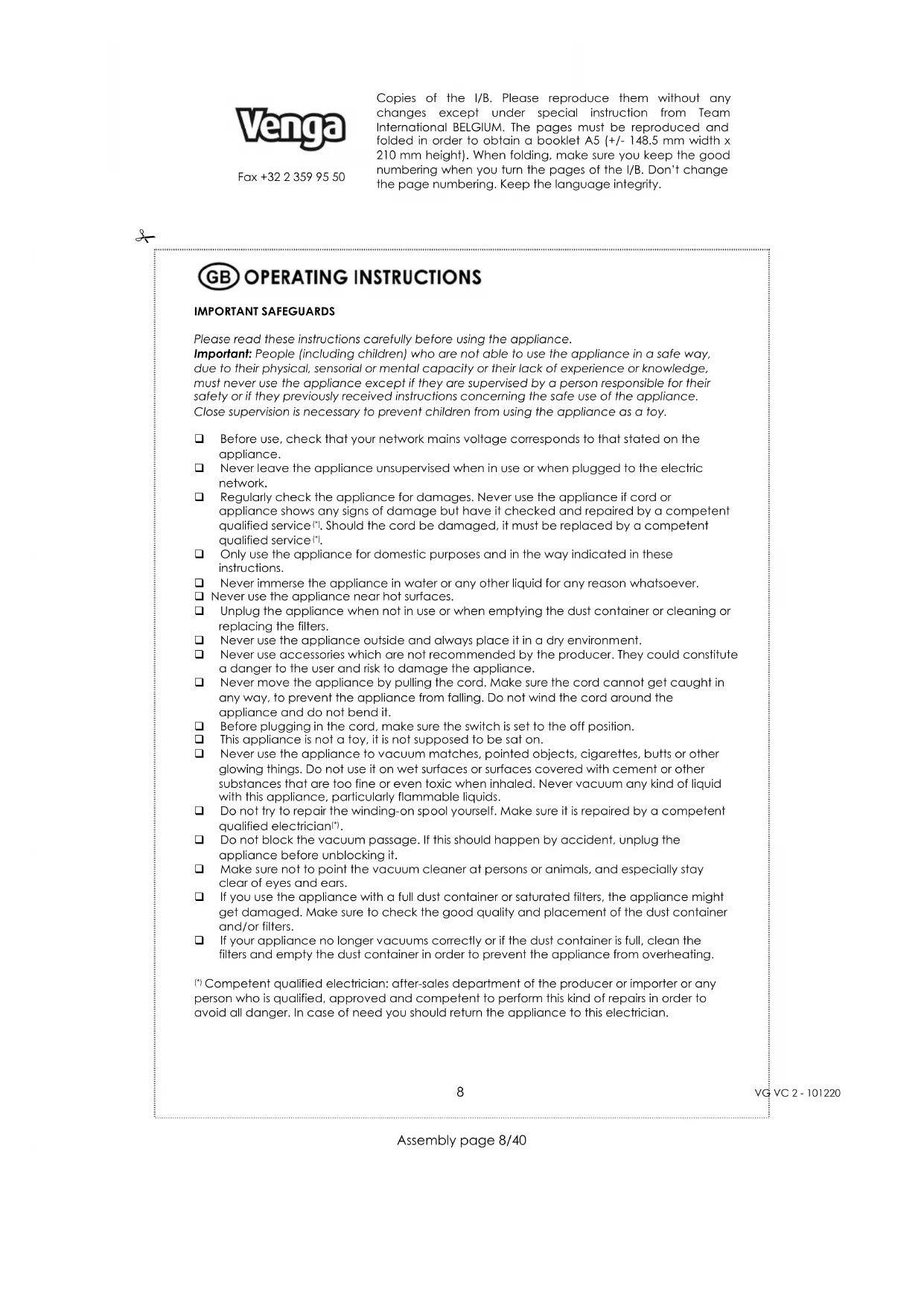

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use or when plugged to the electric network.

Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service.[7]. Should the cord be damaged, it must be replaced by a competent qualified service.[8].

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever.

Never use the appliance near hot surfaces.

Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.

Before plugging in the cord, make sure the switch is set to the off position.

This appliance is not a toy, it is not supposed to be sat on.

Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.

Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^(*) .

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.

Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.

If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.

If your appliance no longer vacuums correctly or if the dust container is full, clean the filters and empty the dust container in order to prevent the appliance from overheating.

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!
- Insert the hose connector into the hose connection inlet until it locks. To remove the hose, press the sides of the hose connector and pull at the hose.
- Fit the tube to the handle of the flexible hose.
Fit the tube to the floor brush.
You can adjust the length of the tube.
- Removing tube and accessories: to remove the accessories, pull firmly apart.
- The floor brush is ideal for the daily cleaning of carpets and hard floors. Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.
The appliance is delivered with the following accessories:

a crevice tool: for radiators, crevices, corners, baseboards and between cushions.
an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION

Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot.
It is advisable to set the electronic power regulator to MIN before switching on the appliance. By sliding the regulator button, the suction power can be adjusted. You can also adjust the suction power by using the wind-force adjuster on the handle of the flexible hose. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch.
  Unplug the appliance from the power supply.
  Simply press the cable rewind button to activate the cable rewind mechanism.

REPLACING THE DUST BAG AND CLEANING THE FILTERS

The filter system consists of: 1 motor filter (in front of the motor in the dust compartment)

1 air filter, to vacuum the smallest particles (at the back of the appliance)

It is necessary to clean the filters regularly to avoid operating problems.

Paper dust bag

The dust bag level indicator indicates when the dust bag should be replaced.
- The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object which blocks your tube or flexible hose, and your appliance will function properly again. Do not forget to unplug the appliance before removing the blocking

object. Replace the dust bag when the dust bag level indicator is completely red. To do so, unplug the appliance. Disconnect the hose.

Press the release button of the cover and open the dust compartment.
- Remove the dust bag from its holder and throw it in a dustbin.
Put a new dust bag in its holder.
- Close the dust compartment by slightly pressing on the front cover.
Connect the hose again.

Motor filter

To clean the motor filter (filter situated in front of the motor), switch off the appliance, open the dust compartment and remove the filter to wash it in soapsuds (approximately every 3 months). When it is completely dry, put it back in the appliance.

Air Filter

This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the frequency of operation).
- Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid.

NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical position.
  The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture, or after use when storing your appliance.
  The vacuum cleaner requires no other regular maintenance than the filter cleaning and bag replacement tasks as detailed here above.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

SPARE DUSTBAGS

In order to get new dust bags, please contact first of all the shop where you bought your vacuum cleaner, or contact the customer service, the address of which is mentioned on your guarantee card.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted

VGVC2-101220

municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

VGVC2-101220
