USER MANUAL Compact Lets 213000 PRINCESS

Illustration of a blender with a side panel and control knob (no text or symbols on the device itself)

ART 213000

Portrait of a man with curly hair and glasses, resting his chin on his hand (no visible text or symbols)

Gebruiksaanwijzing

Nederlands 1

User's instructions

English 5

Mode d'emploi

Français 9

Bedienungsanleitung

Deutsch 13

Labeled diagram of a blender with numbered parts for identification

1

Diagram of a blender with three circular gauges showing different rotary controls for cleaning or adjustment.

P

Illustration of a hand using a syringe to measure a volume (no text or symbols visible)

3

Algemeen

This attractive blender has been designed by Jan des Bouvrie. The appliance can be used to finely chop fruit and vegetables or to make delicious shakes and juices. Both the housing and the jug are of a modern and luxurious design.

The Jan des Bouvrie Blender has a powerful motor with two speed settings and a pulse setting.

The jug has a lid with an opening through which it can be filled. Products can be added through this opening whilst blending without making a mess. The jug has a volume of 0.8 litres. Steel knives are integrated in the jug, so that the blender can easily chop and puree both large and small pieces of fruit and vegetables.

The device must be connected to the mains power supply.

Operation and controls

See figure 1.

1 Housing
2 Power cord and plug
3 Operation indicator light (orange)
4 On/Off indicator light (red)
5 Rotary button
6 Jug (volume 0.8 litres)
7 Filler cap
8 Lid

Before using for the first time

1 Remove all the packaging materials and stickers from the appliance.
2 Clean the appliance and all the accessories (see 'Cleaning and maintenance') and dry them thoroughly.

Blending products

1 Place the housing on a stable surface.
2 Fit the jug to the housing. The three catches on the housing must fit precisely into the slots in the base of the jug.
3 Place the lid on the jug.
4 Place the filler cap in the lid and tighten the filler cap by rotating it a quarter of a turn.
5 Cut the fruit and/or vegetables into pieces. Do not make the pieces too large. They must be small enough to fit into the bottom of the jug.
6 Open the lid and put the pieces in the jug.
7 Place the lid back onto the jug to prevent splashing.

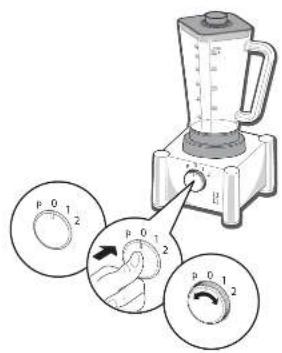

8 If the rotary button is in 0-position and pushed in, the button is locked. Push the rotary button to unlock it (see figure 2).
9 Switch the blender a few seconds to setting 1 or 2 or the pulse setting (P). This blender works very fast. In seconds the product will be chopped. The longer the blender is turned on, the finer the products will be chopped.
10 If necessary, you can top up the jug by opening the filler cap. Unscrew it a quarter of a turn and remove it from the lid. If the pieces to be added do not fit through the filler opening, turn off the blender, remove the lid and place the pieces in the jug. Place the lid back on the jug before turning the blender back on.
11 Switch off the blender (position 0) once the required quantity of fruit and/or vegetables have been chopped.
12 Push the rotary button to lock it (see figure 2).
13 Remove the plug from the plug socket.

Cleaning and maintenance

• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Make sure no moisture gets into the interior of the housing.

• Do not immerse the appliance in water or in other liquids. If this does happen, do not use the appliance again. For safety reasons, dispose of the appliance.

• Only the separate components may be cleaned in a dishwasher.

• Never use corrosive or scouring cleaning products.
• This blender uses sharp knives, which are located in the bottom of the container. Therefore, be very careful when emptying and cleaning the blender. Avoid cutting yourself on the knives.

1 Clean the exterior of the housing with a soft, damp cloth.
2 Clean the jug and the components with warm soapy water.
3 Thoroughly clean the rotating knives at the bottom of the jug, in particular, and make sure you remove all the food from them (see 'Removing and fixing the base with the rotating knives').
4 Dry the components thoroughly after they have been cleaned.

Removing and fixing the base with the rotating knives

See figure 3.

1 Fit the jug to the housing.
2 Hold the housing.
3 Rotate the jug anti-clockwise.
4 Remove the jug from the base with the rotating knives.
5 Remove the base with the rotating knives from the housing.
6 Reassemble the base with the rotating knives and the jug in the opposite order.

Safety

General information

• Please read these instructions carefully and keep them for future reference.
• Only use this appliance in accordance with these instructions.
• Only use this appliance for domestic purposes.
• The use of this appliance by children or persons with a physical, sensory, mental or motor limitation or persons

who lack the necessary knowledge and experience may result in a dangerous situation. Persons responsible for their safety must give explicit instructions or supervise the use of the appliance.

• Make sure children do not play with the appliance.
  • Repairs may only be carried out by a qualified service technician. Never try to repair the appliance yourself.

Heat and electricity

• Verify that the mains voltage is the same as that indicated on the appliance's type plate before use.
• Plug the appliance into an earthed plug socket.
• Always remove the plug from the plug socket when the appliance is not in use.
• Always remove the plug from the plug socket by pulling the plug, not the power cord.
• Do not use the appliance if the power cord or the appliance is damaged. For your own safety, return the appliance to our service department. A damaged power cord may only be replaced by our service department using the special tools required for the repair.
• Make sure the appliance and the power cord do not come in contact with heat sources, such as a hot hob or a naked flame.
• Make sure the appliance, the power cord and the plug do not come into contact with water.
• Do not pick up the appliance if it falls into water. Remove the plug from the plug socket immediately. Do not use the appliance anymore.

During use

• When using the blender continuously during a longer period, the electric motor will warm up. In this case, let the motor cool down before further use of the appliance.
• Never use the appliance outdoors.
• Never use the appliance in a humid room.

• Place the appliance on a flat, stable surface where it cannot fall.

• Never allow the power cord to hang over the edge of the draining board, worktop or table.

• Make sure your hands are dry when you touch the appliance, the power cord or the plug.
• Only turn on the appliance if a jug has been placed on the housing and a lid has been placed on the jug.
• Switch off the appliance and remove the plug from the plug socket in the event of a malfunction during use and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Never leave the appliance unattended when in use.
  • After use, clean the appliance thoroughly (see 'Cleaning and maintenance').
  • The blender works very quickly. The ingredients are ground within just a few seconds. The longer the blender is turned on, the finer the products will be ground.
• Hot liquids in the blender may result in the lid flying off due to the steam and pressure caused by the hot liquid. Prevent this from happening by holding the lid down with a cloth whilst the blender is in use.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

- The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The environment

Dispose of packaging materials, such as plastic and boxes, in the appropriate containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it must be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with normal household waste, but hand it over to a recycling collection point. Contact your local authority for

information about available disposal and collection systems in your area.

Applicable European guidelines:

• 2002/95/EC
• 2002/96/EC

Recipes

Browse the internet for delicious recipes to make with a blender. Below you'll find three of the recipes we have found for you.

Banana milkshake

Ingredients:

1 Banana

Vanilla ice

Milk

Cut the banana into slices and put these in the jug of the blender. Add some vanilla ice and some cold milk. Switch on the blender and let it blend for a few seconds. The result is a delicious banana milkshake!

Strawberry breakfast

Ingredients:

2 cups unsweetened whole strawberries

1 1/2 cup milk
1/2 cup plain yogurt
2 env. vanilla flavoured instant breakfast mix
2 tablespoon honey

Put the ingredients in the jug of the blender. Cover, blend until almost smooth, stop the blender and stir if necessary. Pour into 3 or 4 glasses. Serve immediately.

Creamy avocado lime dip

Ingredients:

1 ripe avocado
1 tablespoon freshly squeezed lime juice
1/2 teaspoon hot pepper sauce
1 garlic clove, finely chopped

salt & freshly ground black pepper

Peel, dice and de-pit the avocado and place the remainder in the blender. Add lime juice, hot pepper sauce and garlic.

Process until smooth and then season with salt and pepper.

Transfer to a bowl and cover by placing plastic wrap on top of the avocado mixture. Keep refrigerated until served.
