USER MANUAL 1618 JOCCA

IMAGEN/IMAGEM/PICTURE/SCHEMA

1

2
4

3

Circulo Circulo Cercle

5

Horizontal Horizontale
6
Circulo Circulo Cercle

7

4-ES ES-5

PISTOLA DE PINTURA ELECTRICA

-No permitted to be used for personal use.
-No permit to be used for personal use.
-No permit to be used for personal use.
-No permit to be used for personal use.
-No permit to be used for personal use.
-No permit to be used for personal use.

m = 311 ;

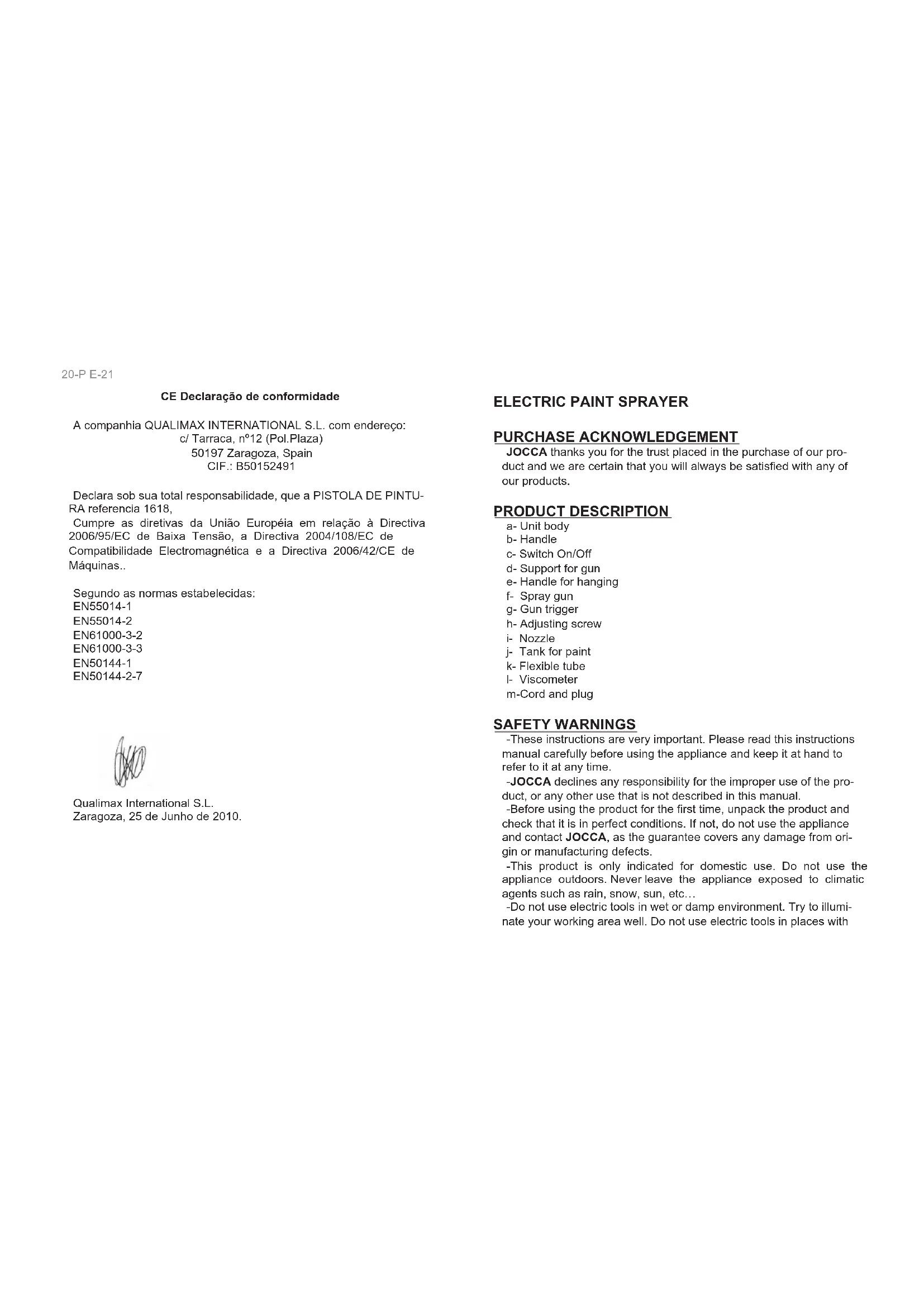

JOCCA thanks you for the trust placed in the purchase of our product and we are certain that you will always be satisfied with any of our products.

PRODUCT DESCRIPTION

a-Unit body

b- Handle

c- Switch On/Off

d- Support for gun

e- Handle for hanging

f-Spray gun

g-Gun trigger

h-Adjusting screw

i- Nozzle

j- Tank for paint

k- Flexible

I-Viscometer

m-Cord and plug

SAFETYWARNINGS

-These instructions are very important. Please read this instructions manual carefully before using the appliance and keep it at hand to refer to it at any time.

-JOCCA declines any responsibility for the improper use of the product, or any other use that is not described in this manual.

• Before using the product for the first time, unpack the product and check that it is in perfect conditions. If not, do not use the appliance and contact JOCCA, as the guarantee covers any damage from origin or manufacturing defects.

-This product is only indicated for domestic use. Do not use the appliance outdoors. Never leave the appliance exposed to climatic agents such as rain, snow, sun, etc...

-Do not use electric tools in wet or damp environment. Try to illuminate your working area well. Do not use electric tools in places with

high risk of explosion or fire.

-Do not allow children or disabled persons using a device or touching an extension cable. Keep them away from your working area.

• Before connecting the appliance to the mains, check that the cable and plug are in perfect conditions. Also check that the voltage indicated on the appliance is valid for your electrical installation.

-If you detect that the power supply cable, the plug or the adaptor are damaged or have fallen into water or any other liquid, do not use the appliance, replace the cable, the plug, or the adaptor. Go directly to the authorised JOCCA technical service where they will replace it correctly for you.

-Do not carry a device by a cord neither pull it to disconnect from a socket. Avoid cord contacting with hot zones, oil and sharp edges.

-Do not immerse the appliance or any part of it in water or any other liquid.

-If your appliance has been dropped or fallen into water or any other liquid do not use it or try to repair it. Take it to the JOCCA technical service.

-For your safety and for the appliance to work correctly, always use JOCCA spare parts and accessories.

-Please do not use the appliance with wet hands or feet or with barefoot.

-Never touch paint output when a device is operating - you can hurt yourself.

-Do not direct spray painting against animals or people.

-Do not shake a device when it is operating, it can cause splashing.

-Do not leave a device unattended when while operating.

-Do not put into a tank detergents or chemicals, it can cause damage of a device.

-If you note that a nozzle of painting output is blocked, do not use a device and unplug it.

-Disorder in workplace increases risk of an accident, it is recommended to keep in order your working area.

-Avoid body contact with grounded surfaces (for example, pipes, radiator, electric cookers, refrigerators).

-Unused tools should be stored in a dry, closed place away from reach of children.

-It will work better and safer respecting rate of indicated voltage.

-Do not use tools or devices connected to too low power supply for industrial purpose. Do not use tools in case they are not designed for this work (for example, do not use manual circular saw to cut or prune trees).

-Do not wear wide dress or jewels, their parts can get stuck while moving. For external work it is recommended to wear rubber gloves and shoes with nonslip soles. If you have long hair, collect it.

-Stand firmly on the floor and keep balance at any moment.

• Keep your tools sharp and clean to work better and safer. Read the maintenance instructions and indications of equipment change. Check an extension cable periodically and change it if it is damaged. Keep handles dry and free of oil and grease.

• Before switch it on, ensure that keys and adjusting tools have been removed.

-Do not carry a device with the finger on a switch while plugged.
Ensure that a switch is in stop position before plug in a device.

-For external work use only extension cables that are intended for external use.

-Look at your work. Use common sense. Do not operate the tool while tired.

• Before using a device again, check carefully protective mechanisms or parts slightly damaged to determine that a device will operates correctly and perform its intended function. Check correct alignment and free movements of all the mobile parts or if there are other damaged parts. All the parts must be assembled correctly and qualify to guarantee faultless operating of a device. Any damaged protective mechanism or any part must be repaired or replaced appropriately by authorized service if it is not stated otherwise in the manual. Damaged switch of a remote control must be replaced by authorized service. Do not use a device if its switch can not close and open circuit correctly.

-This tool is in accordance with safety rules in force. Any repairing must be made by specialist and with original spare parts only - if not, it can cause serious risk to user's safety.

-Do not use guns to spray inflammable materials.

-Do not clean guns with inflammable solvents.

-To be cautious with any risk that sprayed material can cause and consult indications on a containers or information provided by supplier about material for spraying, including requirements for personal protection using equipment.

-Do not spray any material if you do not know its risk.

INSTRUCTIONS FOR USE

Assembling of a device:

-It is quite easy to assemble a gun – take a paint support and fit it into the lateral of a unit body, see picture 1.
- Then take one edge of a flexible tube and fit it into a unit body and another edge - into a spraying gun, see picture 2.
-Finally take a carrying tape for hanging and fix it on a motor base as it is shown on the picture 3.

Preparation of a zone for painting:

• Before start painting, ensure that an area you want to paint is clean and dust free.
  -It is also recommended to use masking tape to cover areas you do not want to paint.

Preparation of paint and liquids to spray:

-This device can spray different types of paint and different liquids like varnishes, disinfectants, waxes, pesticides etc.
- Paint should be diluted and free of paint particles or grains. Grains of paint or particles can block a nozzle, thus it is not recommended to use grain painting.
-To start spraying it is necessary to measure viscosity - to mix paint or liquid you want to use and to fill a viscometer with it, see picture 4.
-To see if liquid or paint is diluted well and its viscosity is correct, a viscometer should empty in less than 30 seconds.
-If a viscometer empties in more than 30 seconds, you have to dilute liquid or paint before using it - maximum viscosity for this device is 30 seconds. Never use liquid or paint that exceeds 30 seconds of dripping time. If dripping time is less than 15 seconds, paint is too liquid to apply and it will flow down the walls, try to thicken paint.
-To dilute liquid or paint, pay attention if this paint has water base, it

will be diluted with water then. For other types of liquids you can use diluent or alcohol. To be sure about proper way of diluting liquids for spraying you must consult a manufacture of paint, varnish etc.

Follow the next guide table:

Liquid or paint type Dripping time	in seconds
Varnishes Not diluted
Clear varnish/aluminium paint 15	30 seg
Acrylic paint 20-30 seg
Wood coating/pesticides Not diluted (max. 30 seg)

-Once you achieve correct viscosity, mix well liquid for sparring and fill a tank of a device with it. To separate a tank trigger, turn clockwise and open a tank, then pour liquid inside and put back a trigger on a tank and screw counter clockwise on it.

-Plug in a device ensure that a switch On/Off is in position 0 (switched Off).

-For better operating, you can place a hanging tape of a shoulder having both hands free to work. It is recommended to take out a support of a gun during its using for better operating of a device.

• Before start spraying, try a gun on some surface and adjust spraying amplitude with help of an adjusting screw, see picture 5.

-If you want to reduce spraying flow, turn a screw clockwise.
-If you want to increase spraying flow, turn a screw counter clockwise.

-This device can spray in 3 positions: vertical, horizontal and circle, depending on nozzle position, see picture 6.

-Having flow and jet position adjusted, take a device by its handle and direct a nozzle towards you want to spray liquid, press a gun trigger, a device will start spraying liquid then.

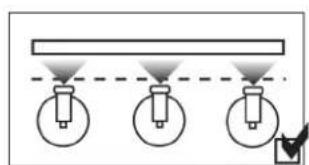

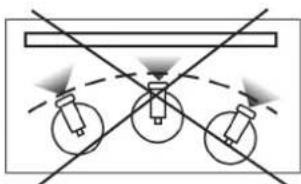

-It is recommended keep a nozzle in 25-30 cm from a surface to be painted and paint in straight and parallel to avoid spills, see picture 7.

-Once you have painted or sprayed the entire necessary surface, put a switch in position 0 (switch Off) and unplug a device.
-If you want to spray over the second layer, consult a manufacture

about time of paint or liquid drying.

-When you are filling a tank ensure that a device is unplugged.

CLEANING AND STORAGE

• Before cleaning the appliance, make sure it has been disconnected from the mains.
  -Leave the appliance to cool down before cleaning it.
  -Do not use abrasive detergents or products that may damage the appliance.
• When you have finished painting, unplug a device and empty a tank for paint.
  -Empty content that may remain inside of a tank - take out a trigger turning clockwise and reach a tank.
  -Use a damp cloth or sponge to clean the inside and outside of the appliance.
  -Wash all the accessories with hot soapy water, and then dry them with a dishcloth.
  -NEVER PLACE THE APPLIANCE INTO WATER OR ANY OTHER LIQUID.

TECHNICAL SPECIFICATIONS

230-240V 50Hz 600W

N_O = 30000 rpm

Hole = 1.8mm

Flow = 380ml / min

IP = 20

Insulation class: II

Sound pressure: 75.1 db (A)

Vibration level: 2.2m / s^2

This device conforms to the safety requirements and provisions of directives 2006/95/EC on Low tension devices, 2004/108/EC on Electromagnetic Compatibility and 2006/42/EC on Machinery.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

This product has been designed and manufactured with high quality materials and components that can be recycled and reused.

When you see the symbol of a crossed out litter bin on wheels next to a product, this means that the product conforms to the European Directive 2002/96/EC.

Please obtain information about the local recycling system for electric and electronic products.

Follow the local rules and do not dispose of used products by throwing them in the normal bins at home. Proper recycling of your used product will help avoid negative impacts on the environment and people's health.

EC Declaration of Conformity

The company QUALIMAX INTERNATIONAL S.L. with address:

c/Tarraca, n^12 (Pol.Plaza)

50197 Zaragoza, Spain

VAT: B50152491

Declareres under its responsibility that the PAINT GUN ref 1618,

Conforms with the guidelines of the European Union to the safety

requirements and provisions of directives 2006/95/EC on Low tension

devices, 2004/108/EC on Electromagnetic Compatibility and

2006/42/EC on Machinery.

According to standardizing norms:

EN55014-1

EN55014-2

EN61000-3-2

EN61000-3-3

EN50144-1

EN50144-2-7

Qualimax International S.L.

Zaragoza, 25 June 2010

F-2928-E
