frifri Cooking Systems with Oil Article: VF41102 Type: Vision 411 Manufacturing Order: OF-0800651 Week: 8/2008 Cable: 5x4 mm² P: 22 Kw U: 3N~400V I: 31.6 A F: 50/60 Hz CE GS S IPX 5 CCA Swiss made Ch-2500 La Nouvelle www.mfi.com [e-mail]

°C 22°C 1 2 3 4 P on | off

00:00 175°C 02:55 172°C on | off

finri CN-2006 La Neuverk www.fini.com [e-mail] Article: VF41102 Serial No.: 080001 Type: Vision 411 Manufacturing Order: OF-0800651 Week: 8/2008 Cable: 5x4 mm² P: 22 Kw U: 3N~400V I: 31.6 A F: 50/60 Hz CE GS S IPX 5 CCA Swiss made

2.3 Conditions ambiantes

°C 22°C 1 2 3 4 P on off

00:00 175°C 02:55 172°C 1 P on | off

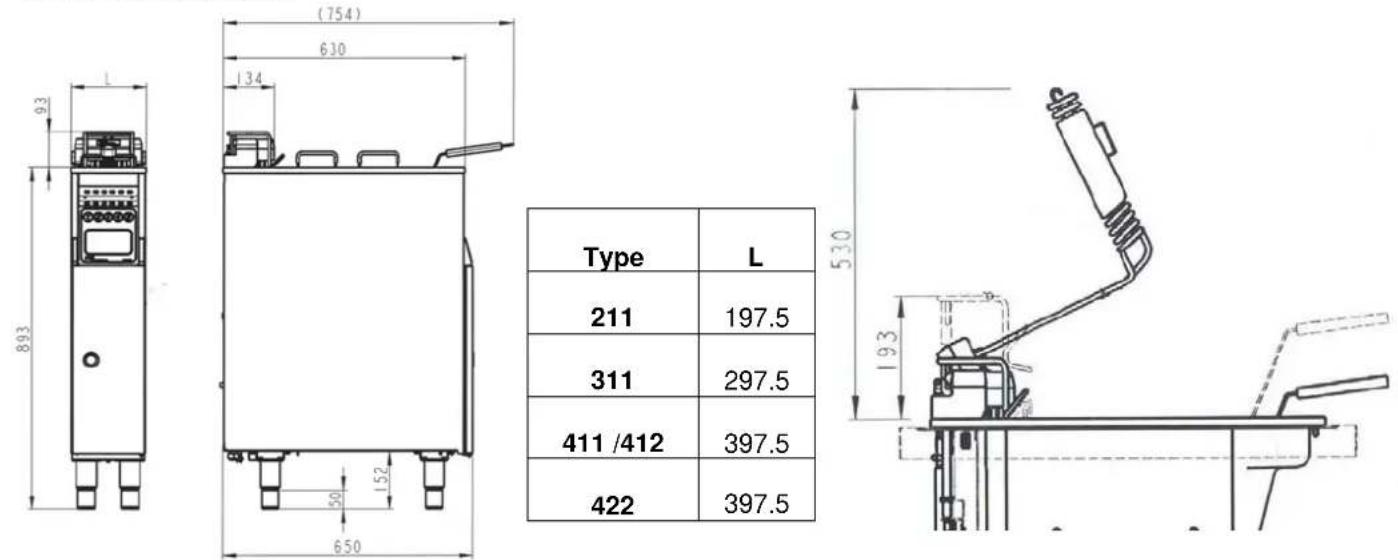

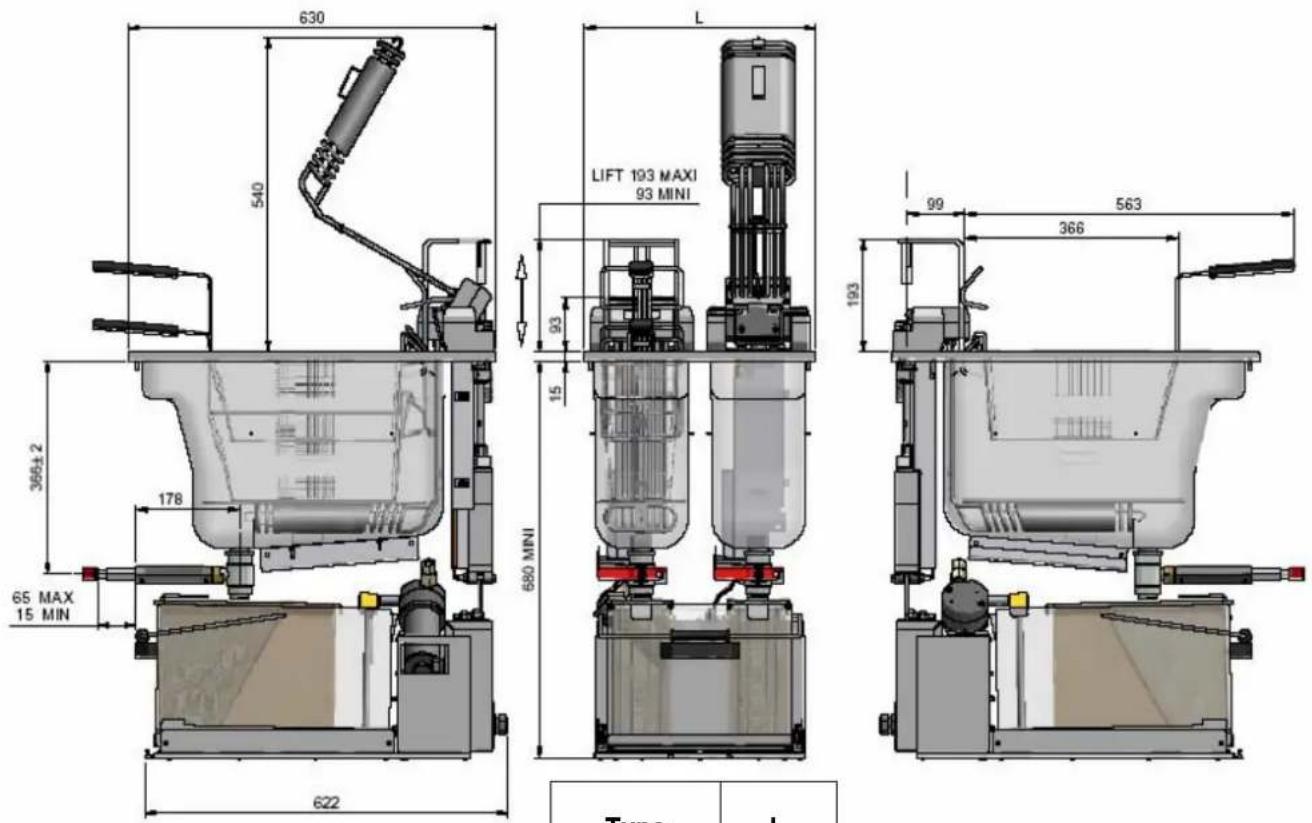

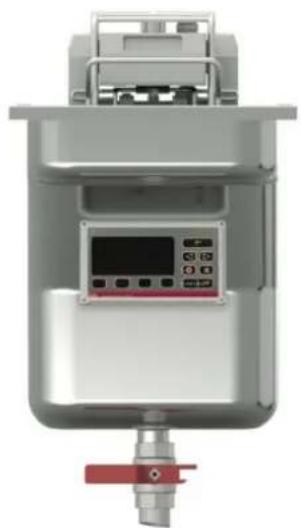

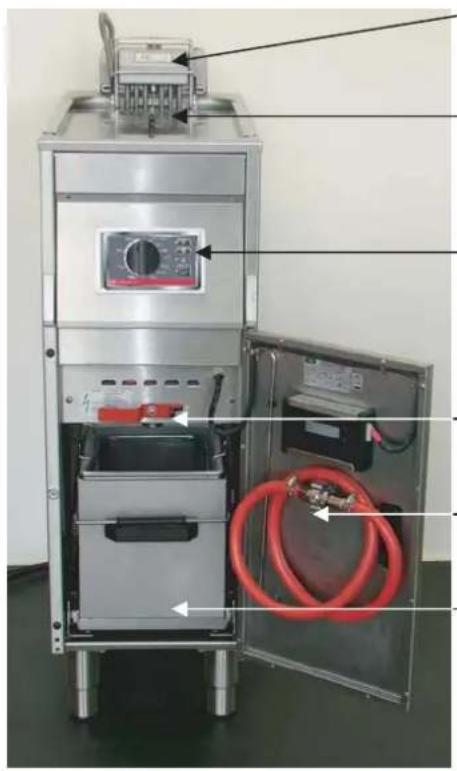

2. Executions and dimensions

Floor standing fryers:

Type	L
211	197.5
311	297.5
411/412	397.5
422	397.5

Built-in fryers:

Type	L
211	197.5
311	297.5
411-412	397.5
422	397.5
522	495
622	592

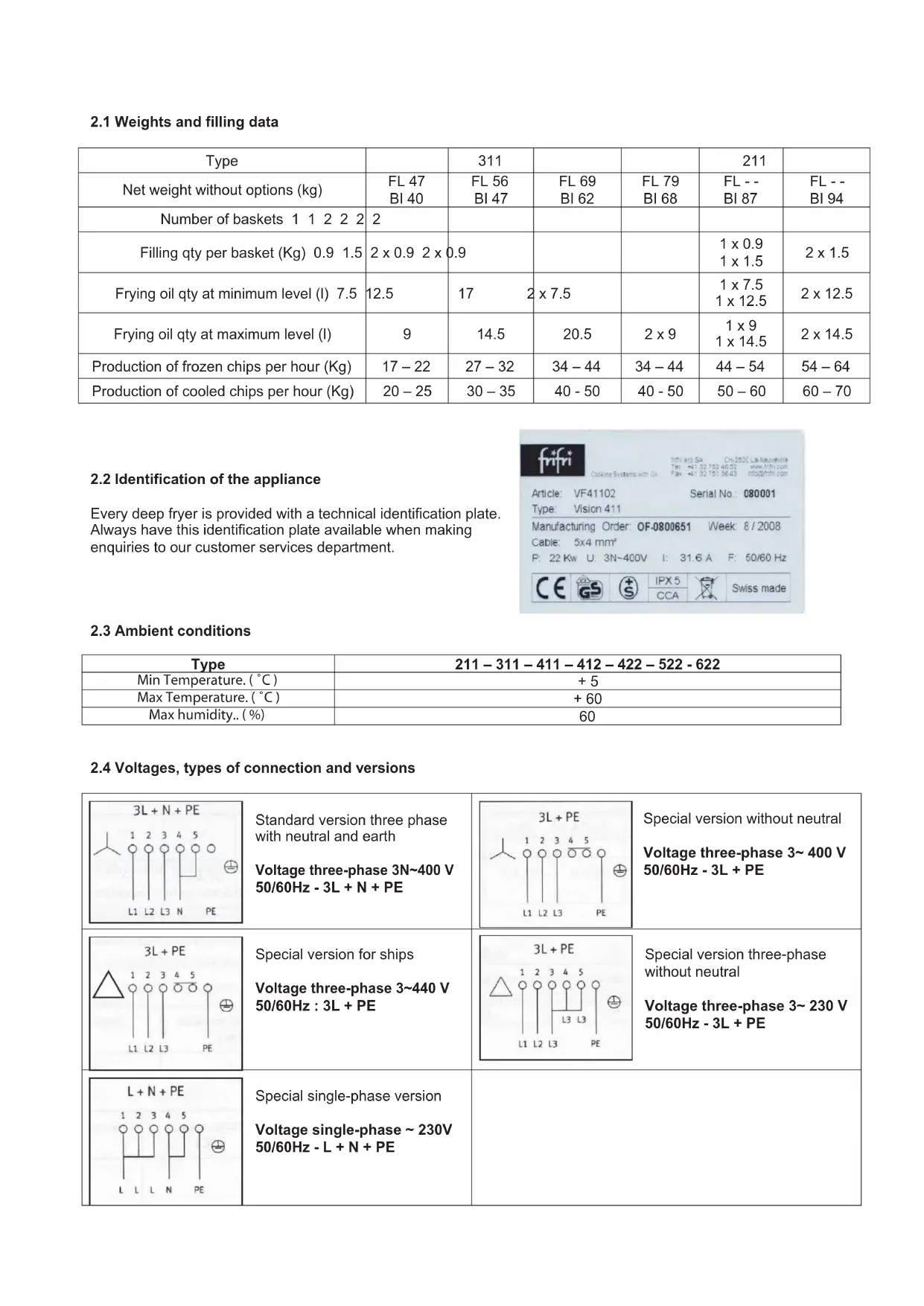

2.1 Weights and filling data

Type		311			211
Net weight without options (kg)	FL 47BI 40	FL 56BI 47	FL 69BI 62	FL 79BI 68	FL --BI 87	FL --BI 94
Number of baskets 1 1 2 2 2	2
Filling qty per basket (Kg) 0.9 1.5	2 x 0.9 2 x 0.9				1 x 0.91 x 1.5	2 x 1.5
Frying oil qty at minimum level (l) 7.5	12.5	17 2 x 7.5			1 x 7.51 x 12.5	2 x 12.5
Frying oil qty at maximum level (l)	9	14.5	20.5	2 x 9	1 x 91 x 14.5	2 x 14.5
Production of frozen chips per hour (Kg)	17 – 22	27 – 32	34 – 44	34 – 44	44 – 54	54 – 64
Production of cooled chips per hour (Kg)	20 – 25	30 – 35	40 - 50	40 - 50	50 – 60	60 – 70

2.2 Identification of the appliance

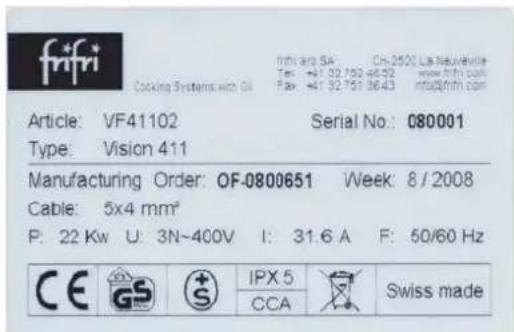

Every deep fryer is provided with a technical identification plate. Always have this identification plate available when making enquiries to our customer services department.

fri Cooking Systems with Oil Article: VF41102 Serial No.: 080001 Type: Vision 411 Manufacturing Order: OF-0800651 Week: 8/2008 Cable: 5x4 mm² P: 22 Kw U: 3N~400V I: 31.6 A F: 50/60 Hz CE GS S IPX 5 Swiss made CCA

2.3 Ambient conditions

Type	211 – 311 – 411 – 412 – 422 – 522 - 622
Min Temperature. (°C)	+ 5
Max Temperature. (°C)	+ 60
Max humidity.. (%)	60

2.4 Voltages, types of connection and versions

	Standard version three phase with neutral and earthVoltage three-phase 3N~400 V50/60Hz - 3L + N + PE		Special version without neutralVoltage three-phase 3~ 400 V50/60Hz - 3L + PE
	Special version for shipsVoltage three-phase 3~440 V50/60Hz : 3L + PE		Special version three-phase without neutralVoltage three-phase 3~ 230 V50/60Hz - 3L + PE
	Special single-phase versionVoltage single-phase ~ 230V50/60Hz - L + N + PE

2.5 Mains fuses

Type 211 / 422(422 with two supply cables)				311 411 / 412 / 422		(422 with one supply cable)
Power 7.5	KW 9 KW	11 KW 11.4	KW 15 KW	15 KW 18 KW	22 KW
AC 230V		32.6	A	39.1	A	-	-	-
3AC 230V	18.8 A 22.6 A 27.6 A		27.6 A 37.6	5 A 37.65 A	- -
3AC 400V	10.8 A 13 A 15.8 A 1		5.8 A 21.7 A	21.7 A 26	A 31.6 A
3NAC 400V	10.8 A 13 A 15.8 A 1		5.8 A 21.7 A	21.7 A 26	A 31.6 A
3AC 440V	9.9 A	11.8 A 14.5 A 14.5 A		19.7 A 19.7	A 23.6 A 28.9 A

Type	522 (with two supply cables)			522 (with two supply cables)			622 (with two supply cables)
Power	7.5 kW+11.4 kW	9 kW+11.4 kW	11 kW+11.4 kW	7.5 kW+15 kW	9 kW+15 kW	11 kW+15 kW	2 x 11.4 kW	2 x 15 kW
3N ~ 400V	10.8 A+16.5 A	13 A+16.5 A	15.8 A+16.5 A	10.8 A+21.7 A	13 A+21.7 A	15.8 A+21.7 A	2 x 16.5 A	2 x 21.7 A

2.6 Electrical connection

The electrical connection of the machine must be done by an electrician or a qualified person who can ensure that the installation meets the required standards. Proceed as follows:

a) Check if the specifications of the electrical mains correspond to those given on the rating plate. This plate is located on the control panel inside the door.
b) Connect according to IEC or CEI 335-1 standards and local regulations, i.e.: Fit a mains plug to the connection cable, corresponding to the power of the rated current. Plug into the mains socket. The plug must be accessible after installing the fryer. The manufacturer recommends to connect the fryer to a fault-current protective switch (for machines which exceeds 10mA of dispersion current). For permanent installation: connect to a main switch with all the poles isolated; minimum distance of the contacts 3 mm. The connection cable should at least be an H05RN-F type.

c)

Allows he connection of the ground (Earth connection). It is essential for your installation. Supplemented by a differential device, it protects the users when an electrical defect occurs on an appliance. The fault current runs out towards the ground and causes the release of the differential.

d) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. Safety regulations

The following warning symbols are fitted to the deep fryer as appropriate:

High voltage

Warning of dangerous electrical voltage Electric shocks lead to serious injury or death. Only authorized specialist personnel may carry out work on electrical installations. Follow the specific technical safety instructions! Always disconnect the deep fryer from the mains power before carrying out work on electrical installations.

Hot surfaces / hot internal components

Warning of heat which can lead to injuries. Always allow hot surfaces to cool down before carrying out work on these components; or wear heat resistant gloves.

Hot frying oil

Warning of hot frying oil which can lead to injuries. Always allow the hot frying oil to cool down before carrying out work on submerged components-or wear safety glasses.

Advice

The manufacturer has mounted warning symbols (stickers) at all the relevant positions on the deep fryer before delivery. If during operation or within the scope of cleaning work any of these warning symbols become detached the operator of the deep fryer is obliged to apply these warning symbols again immediately!

3.1 Specified use of the deep fryer

The deep fryer is exclusively intended for the frying of fresh and deep-frozen foods which during the frying process do not react to endanger people, material assets or the environment. The deep fat fryer is exclusively authorized for supervised operation. Any other use of the deep fryer is regarded as non-specified. The observance of the operating manual and the following of the maintenance and repair instructions from the manufacturer are also part of the specified use.

3.2 Specific dangers and instructions

WARNING

The deep fryer is exclusively authorized for supervised operation. If the oil receptacle pot contains hot frying oil, protective clothing, gloves and safety glasses must be worn while handling. Never hose down the deep fryer with water from a spray head, a water hose or a high-pressure cleaner. There is a danger of fire and/or the safety thermostat will switch off the deep fryer if it is started up without first filling it with fat or frying oil to the maximum oil level mark.

During operation the frying oil level must not fall below the minimum oil level mark. There is a danger of fire and/or the safety thermostat will switch off the deep fryer. During operation the frying oil level must not go above the upper oil level mark. There is a danger of overflowing or frothing over. Used, contaminated frying oil is increasingly likely to ignite and also tends to froth over. If the frying oil ignites never try to quench it with water but instead immediately put on the frying pot cover or use a fire extinguisher with a special filling (Halon) or use a quenching cover.

CAUTION

If too much deep-frozen or wet frying product is put into the hot frying oil, frothing over of the hot frying oil will occur and this will reduce the quality of the fried food. Do not move the deep fryer in the heated state. This leads to a risk of the hot oil slopping over. For safe draining or transferring the frying oil it must have cooled down to a temperature below 175 °C.

Never clean the submerged heater with a steel brush or by burning off (dry operation). Verifiable improper cleaning of the submerged heater will lead to the exclusion of all guarantee.

CAUTION

The two oil tanks have never to be drained at the same time, but one by one, otherwise the oil would overflow from the below oil collector.

3.3 Personnel safety

WARNING

If incorrectly operated, the deep fryer can cause serious or fatal injuries to personnel. The personnel who operate and maintain the deep fryer must be trained in the correct operation and handling of the appliance and must have read and understood the safety regulations in this operating manual before starting work on or with it.

Never change or remove safety devices. Do not switch off safety devices by making changes to the deep fryer. Never remove warning symbols which may have been fitted to the deep fryer (depending upon country). Immediately replace missing or defective warning symbols.

Never operate the deep fryer in a damaged condition. Report immediately any irregularities, especially those which affect safety, to your managers.

When exchanging electrical or mechanical components ensure that the deep fryer is disconnected from the mains power supply. Always check all safety functions after completing servicing work.

3.4 Safety equipment

Apart from the warning symbols applied to the deep fryer (depending upon the country) it is also fitted with the following safety equipment:

Main switch

Safety contactor

Safety thermostat

3.5 Authorized personnel

Only those personnel who have been authorized for the respective work may work on and with the deep fryer. Personnel are seen as authorized if they fulfil the minimum training and knowledge requirements as listed in this section and have been assigned a fixed area of responsibility.

"This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance."

3.6 Area of responsibility of personnel

3.6.1 Owner/operator

The owner/operator is the legally, higher-ranking person who is responsible for the specified use of the deep fryer and for the training as well as the tasks of the authorized personnel. He establishes the competencies and authorities to issue directives of the authorized personnel with respect to his operation.

3.6.2 Operator of the deep fryer

He is responsible for the following work:

He fills frying oil into the deep fryer.

He monitors frying quality and tops up the frying oil and carries out cleaning and filtering.

He starts up the process and monitors it.

He prepares the deep fryer for the product to fry

He loads the deep fryer with the food to be fried.

He localizes problems and organizes their rectification.

3.6.3 Maintenance personnel

He is responsible for the following work:

The cleaning, maintenance and repair of the deep fryer according to the work described in Sections “Cleaning and Maintenance”

The dismantling, storing and disposal of the deep fryer.

3.7 Minimum training and qualifications of the authorized personnel

3.7.1 Owner/operator

He is a person trained in business management (in a management function).

He has the relevant experience in assessing dangers and in personnel management.

He has read and understood the section "Safety regulations".

3.7.2 Operator of the deep fryer

This is a person who has been instructed in the operation of the deep fryer and is aware of the existing dangers.

3.7.3 Service personnel

These are people who have completed successfully the relevant occupational training, are familiar with the servicing of the deep fryer and have the necessary qualifications from their tasks. Servicing work on the electrical equipment of the deep fryer may only be carried out according to the electro technical regulations by electrical specialists or by trained personnel under the leadership and supervision of an electrician.

3.8 Duty of maintenance

The owner/operator is obliged to clean and maintain the deep fryer at regular intervals. To only operate the deep fryer in perfect and undamaged condition. To only use original consumables and original spare parts. To check the safety equipment after maintenance and repair work.

3.9 Availability of operating manual

A copy of this operating manual must be available at all times to the personnel at the installation location of the deep fat fryer.

4. Installation and starting up

4.1 Installation of the appliance

When installing the machine, please take into consideration the following points:

a) The fryer has to stand evenly and its height can be easily adapted according to user's request thanks to the four adjustable legs. The height of the fryer varies between 850mm min. and 900mm max. counted from the floor.
b) Minimal distance to respect between the back of the fryer and a wall or another device: 30 mm.
c) The fryer should not stand on an inflammable surface. Please comply with local safety and construction regulations.
d) In case the fryer is equipped with castors (2 swivel and 2 fixed castors), brakes have to be set on the two front castors. The advantage of the castors is to facilitate servicing and cleaning of the fryer.
e) It is possible to modify a fryer with standard feet and to mount castors. In this case, do not forget to use washers together with the fixing screws.

Warning:

Because of insufficient stability, the fryer models 211 and 311 cannot be left without a permanent fixation.

They have to be fixed with the two elements added to the fryer (VDE compliance).

4.2 Starting up after the installation

Remove any remains of packaging which are still around. Remove the lid of the tank. Take the basket out of the tank. Clean the deep fryer and the accessories, which accompany the delivery, with a non caustic cleaning agent, which is permitted for the food area. CLOSE THE DRAIN VALVE. Fill the tank with frying oil of the MAX. level or place the fat for frying on the heating elements. The MIN/MAX level is visible inside of the tank.

Warning:

If you are in the « fat melting cycle » (FMC), always remove the fish grill, respectively the grid over the heating elements. The fat should be in direct contact with the heating element.

5 Use of the fryer

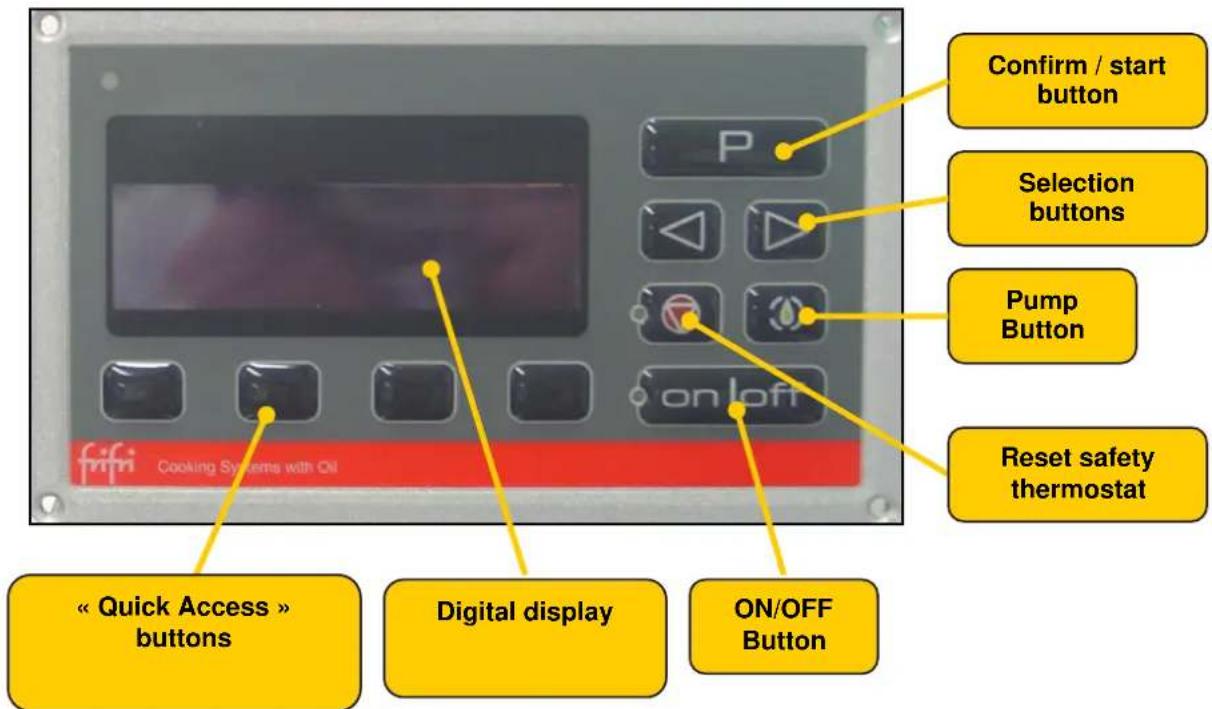

5.1 Control panel

Confirm / start button Selection buttons Pump Button on/off Reset safety thermostat « Quick Access » buttons Digital display ON/OFF Button frifri Cooking Systems with Oil

5.2 Switch on of the control panels

The „Reset“ button initialize the safety thermostat.

The red LED indicates that the safety curcuit is active.

With the „On“ button the control panel gets under tension.

The green LED indicates that the control paenl is now ready for further input.

The „Off“ button shut down completely the control panel.

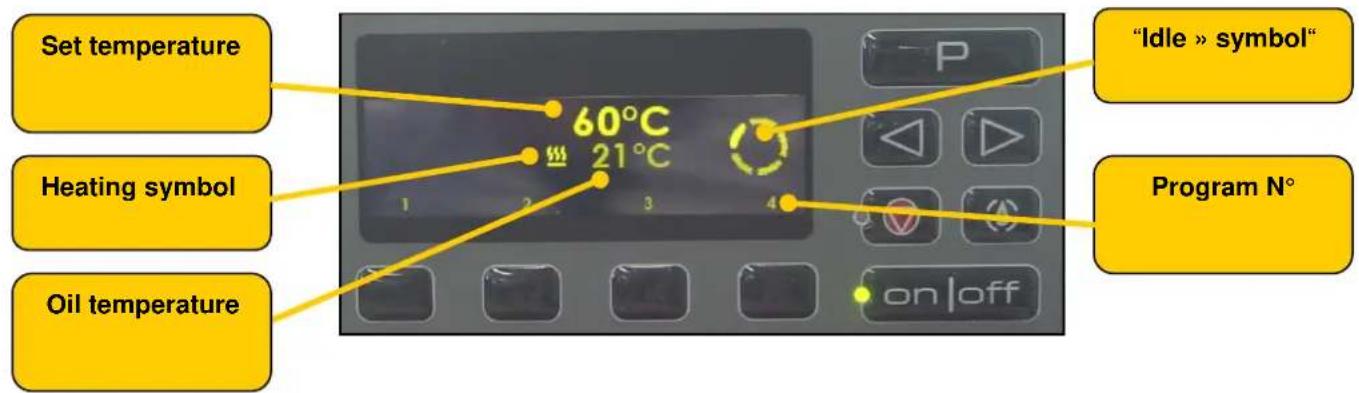

5.3 Wait for input – Idle Modus

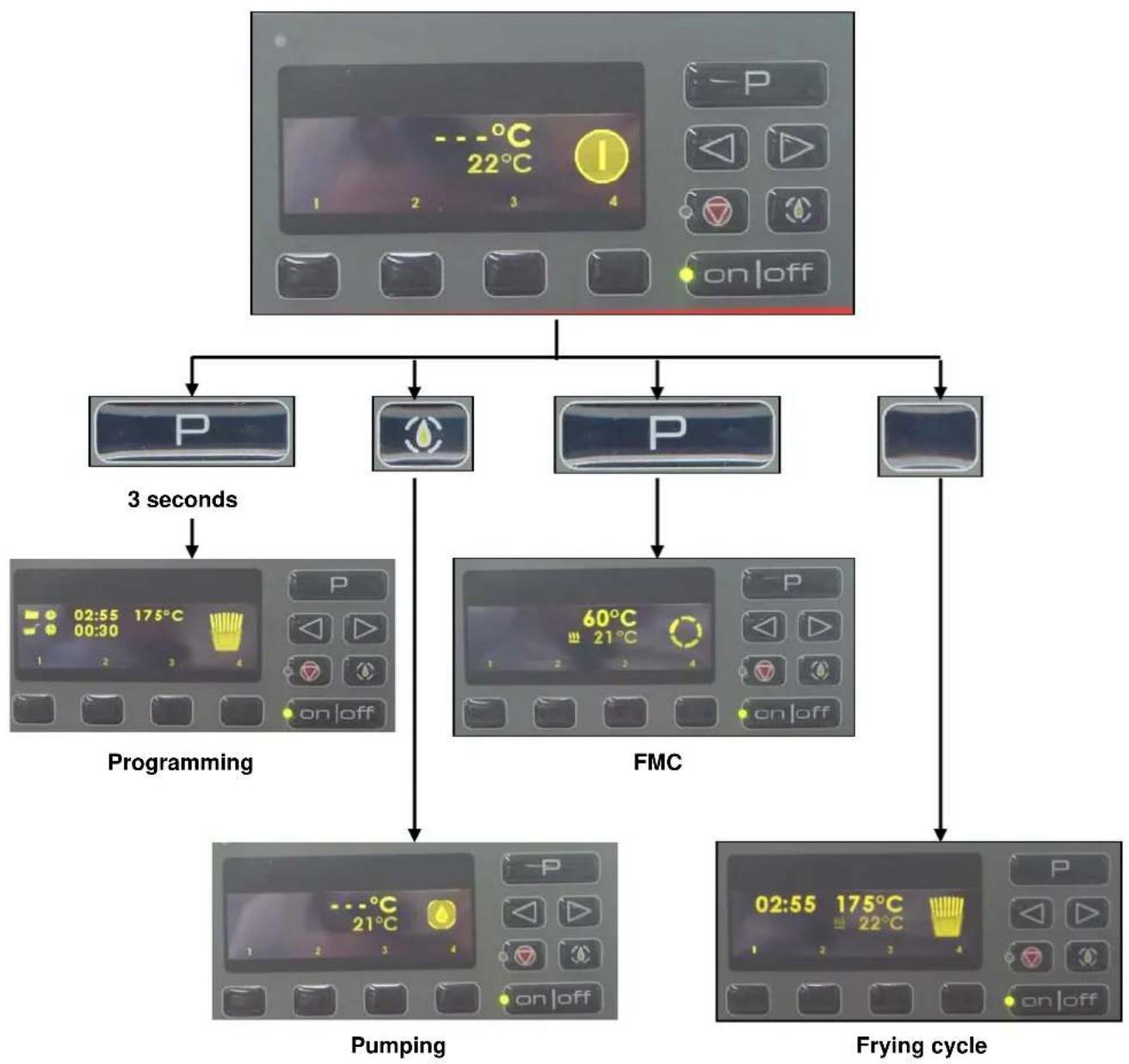

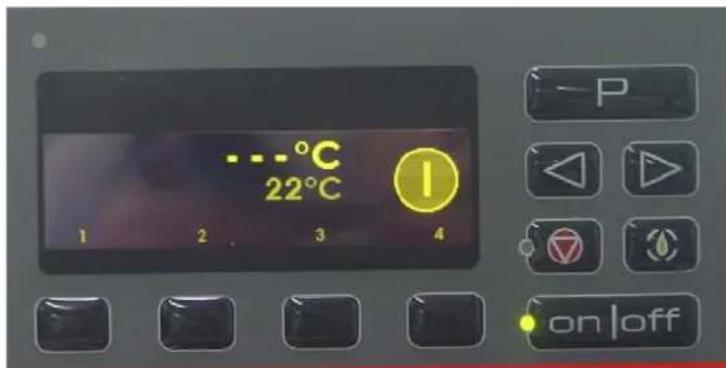

This screen indicates that the control panels is waiting for further input. From this position on you can choose:

...°C 22°C 1 2 3 4 -P on | off

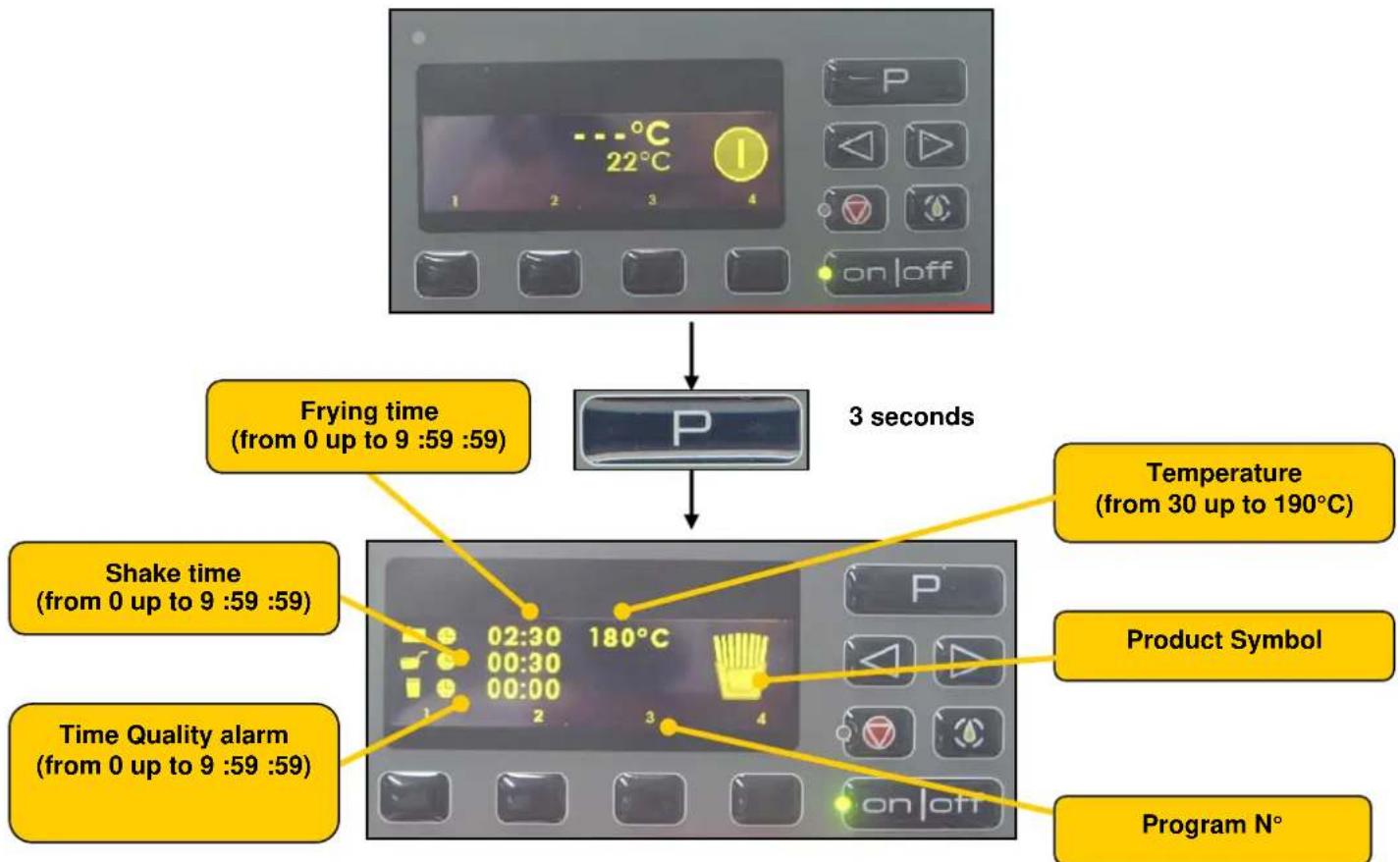

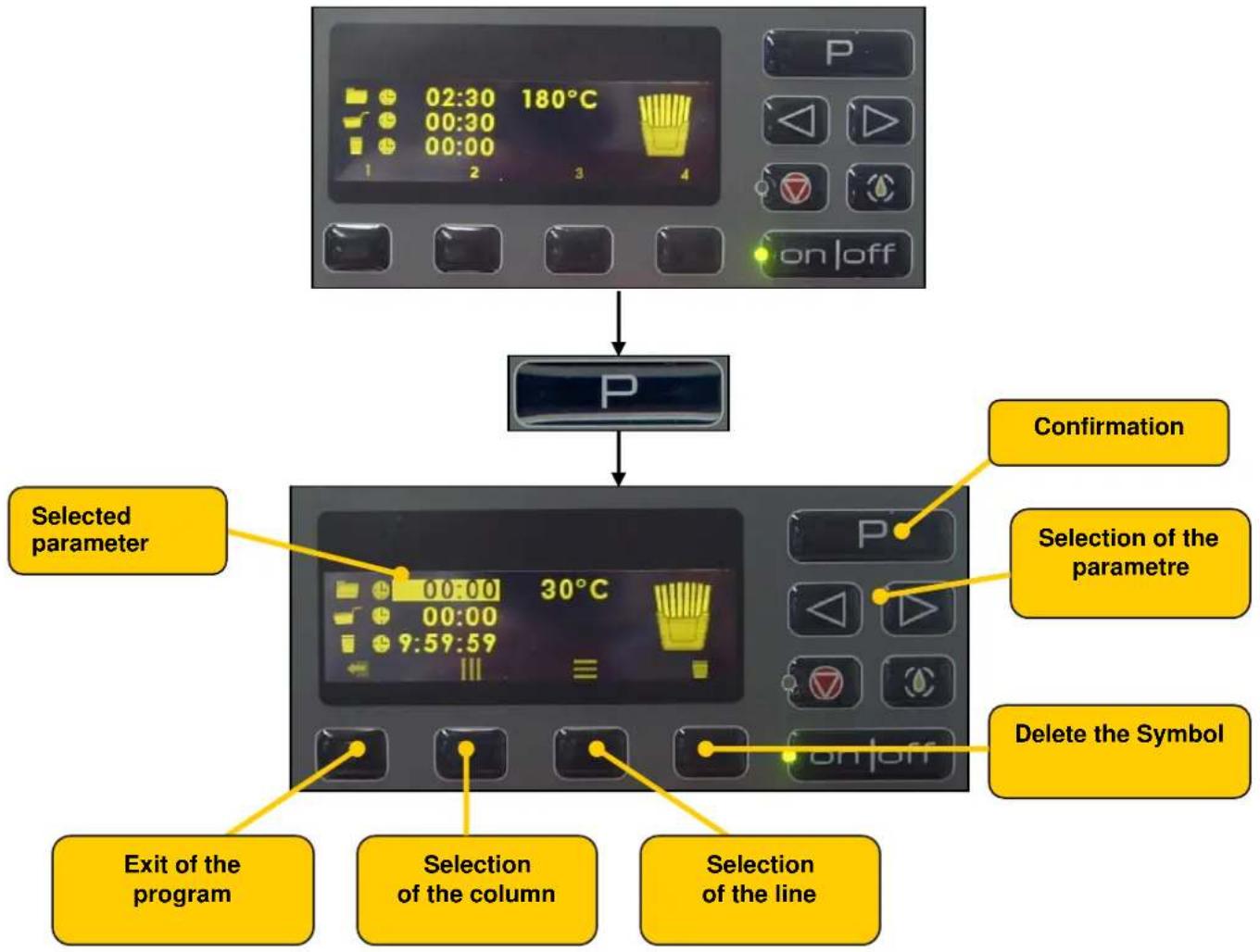

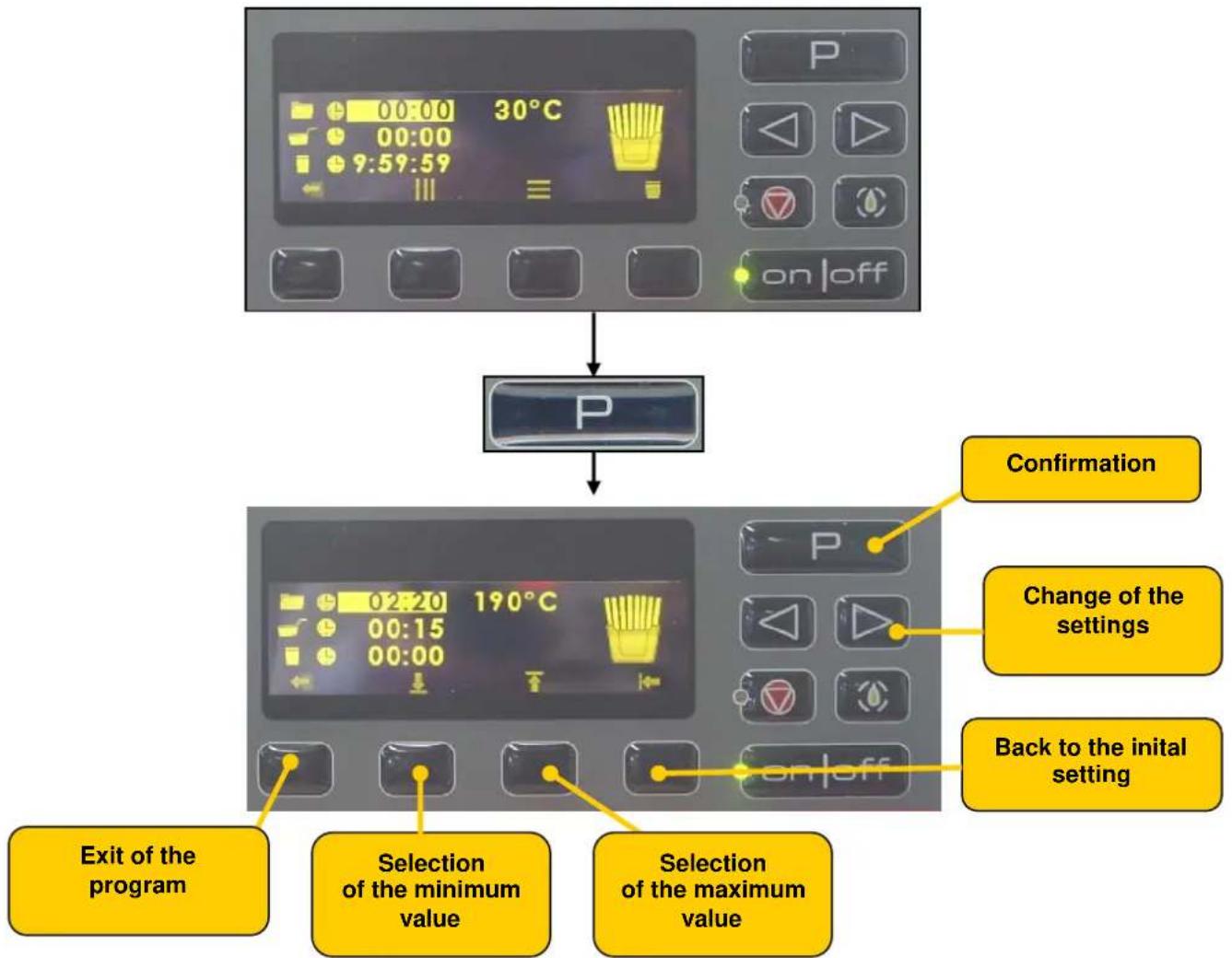

a) Selcet the programming mode

Keep the „P“ button pressed for three seconds

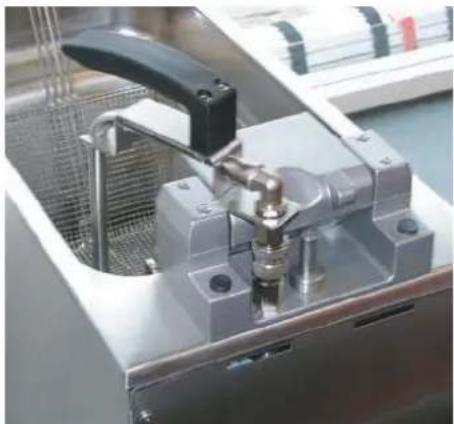

b) Start the optional oil pump

A touch on the „Pump“ button starts the pump process.

c) Start the fat melting cycle (FMC)

By a touch of the "P" button

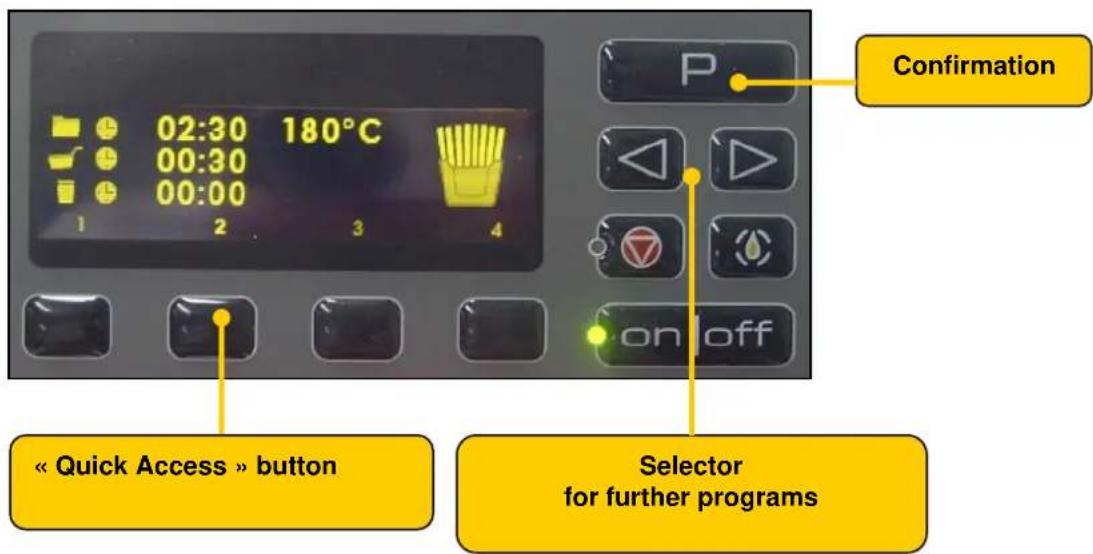

d) Select a frying program

By a touch on a "Quick Access" button

Remark: Its possible to set an automatic switch into the FMC mode by setting a time frame for the "Idle" modus. See programming of the "Service Mode".

5.4 Fat melting cycle (FMC)

Set temperature 60°C 21°C Heating symbol Oil temperature "Idle » symbol" Program N° on/off

The position fat melting cycle allows to melt slowly fat by heating up with breaks in between. In this way the fat is liquefied and heated up without any smoke and deterioration

It is possible to adjust the setting between 30 and 90°C in the programming mode. See chapter "Service Mode".

If you do not wish to use the function FMC, you can take off this function in the "Service Mode".

In this way the fryer will heat continuously to reach the selected frying temperature.

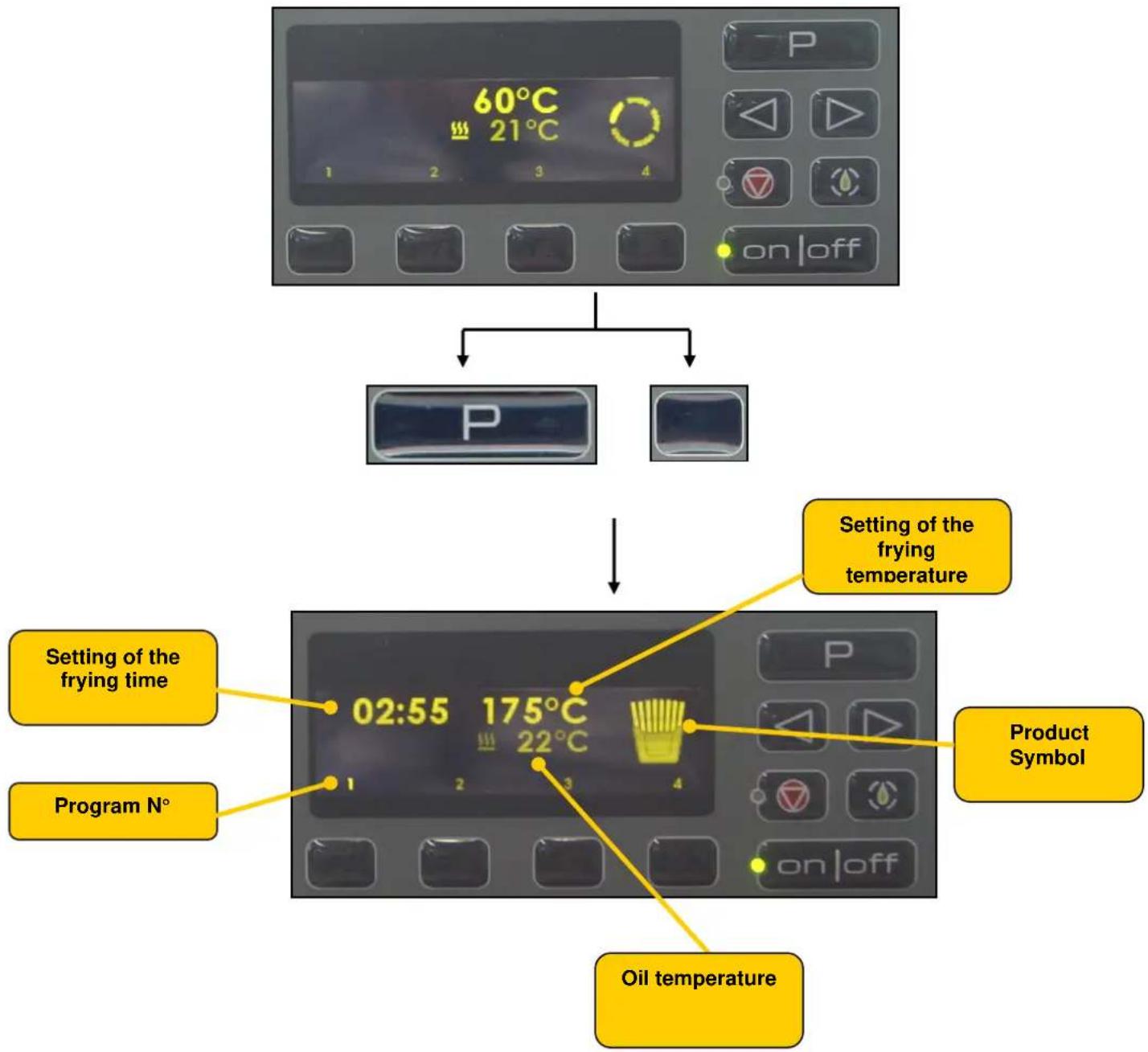

5.5 Selection of a frying program

To pass from the FMC cycle to a frying program, it is necessary to press the button "P". The display shows the setting of the last program in use.

Or choose a "Quick Access" button under the display to select the required program.

Remark: The number of the selected program lights up more strongly

5.6 Frying cycle:

Start of a frying cycle by a simple touch on the „P“ or a „Quick Access“ button.

If the temperature of the oil is lower than the setting, the order to lower the basket lift is memorised but the basket lift will only lower once the selected frying temperature is reached. The count down of the frying time is on “O”.


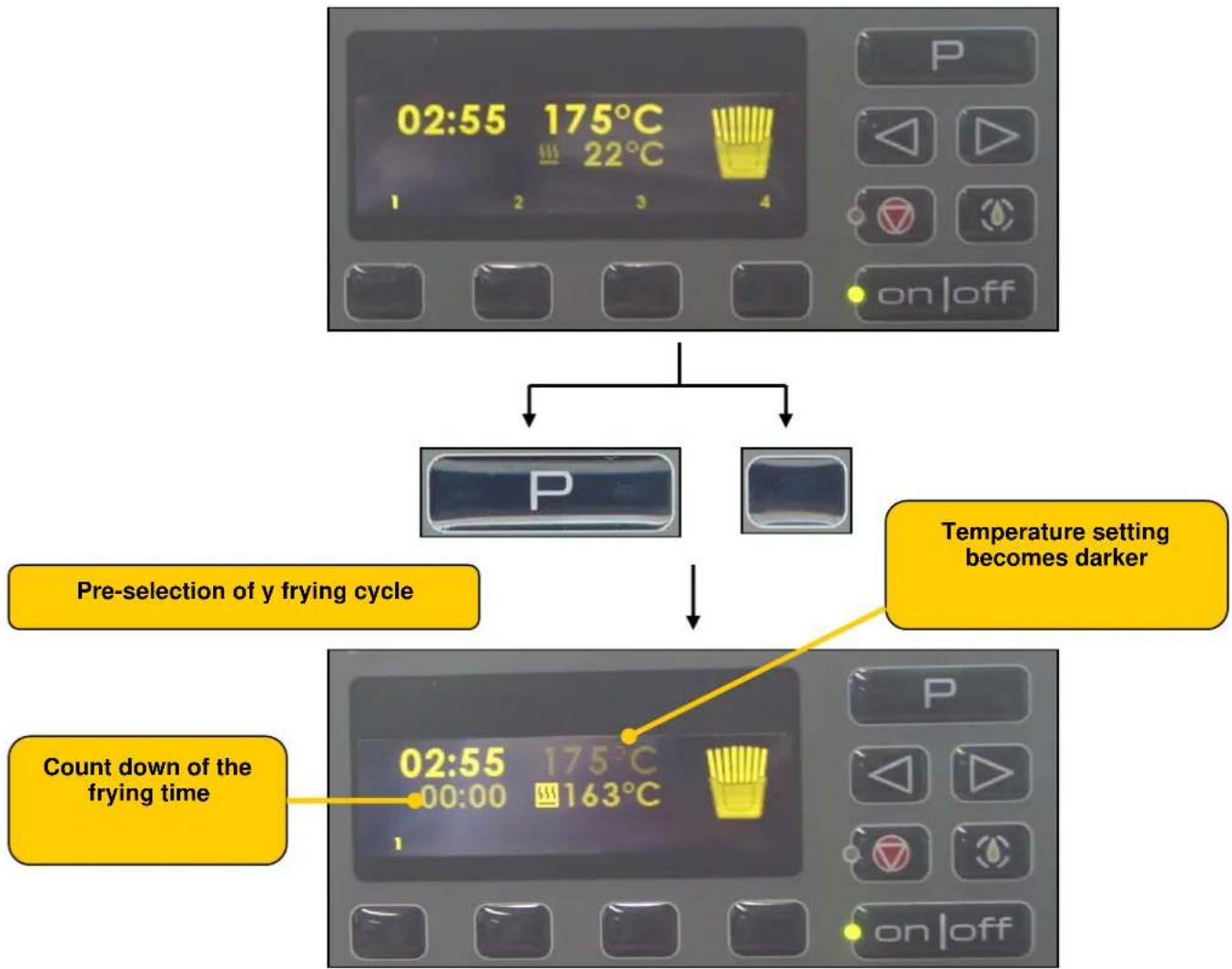

    F["Count down of the frying time"] --> G["02:55 175°C 00:00 163°C"]
    G --> H["On/off"]

Remark: The order to lower the basket lift and the start of the count down of the frying time starts only if the oil temperature is at least "Setting -3C".

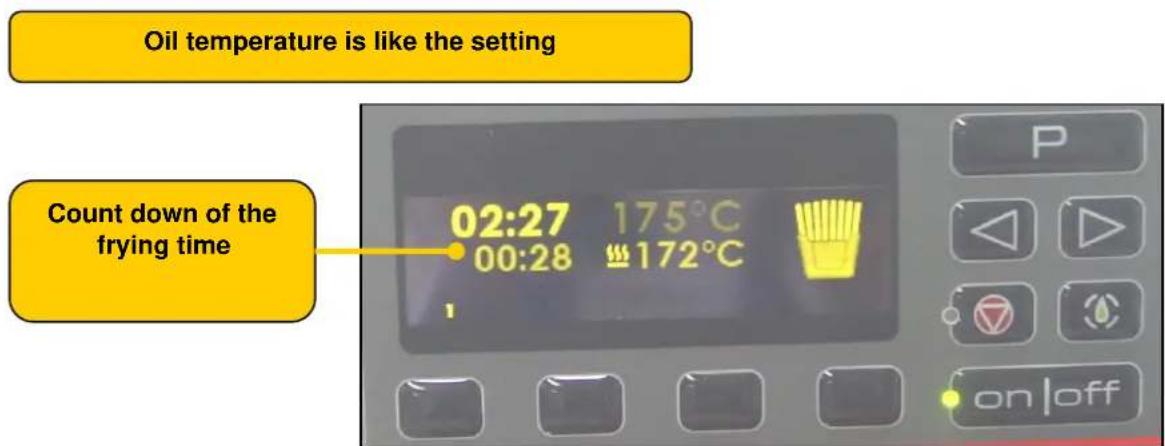

Oil temperature is like the setting Count down of the frying time 02:27 175°C 00:28 172°C on off

5.7 Shake Time:

An acoustic signal gives information to the user to shake the basket.

The "Shake time" can be set for each program.

The function and the time setting can be adjusted in the "Service Mode".

It is possible to stop the acoustic signal by pressing the button "P" or a "Quick Access" button.

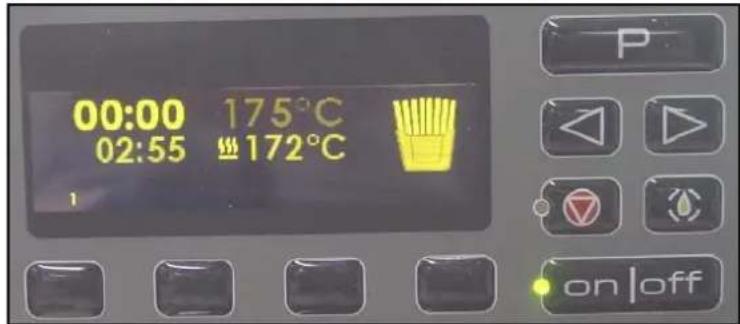

5.8 End of frying cycle

00:00 175°C 02:55 172°C on off

The count down indication flashes „0.00“ and an acoustic signal informs the operator.

5.9 Cancel of a frying cycle

By pressing the „P“ button during three seconds, a selected frying cycle can be cancelled.

5.10 Programming

Programming can be made from the Idle mode, by pressing three seconds the „P“ button. An acoustic signal confirms programs mode. In 19 program places and the service mode adjustments can be made.

a) Selection of a program

02:30 180°C 00:30 00:00 1 2 3 4 Confirmation on off « Quick Access » button Selector for further programs

The "Quick Access" button allows to select directly a program number.

With the selector you choose further program numbers.

By the "P" button you will confirm your choice.

b) Modification of the parameters

Select the parameter who shall be modified with the left/right "Selector" buttons or a "Quick Access" button. The selected parameter lights up more strongly. Confirm the choice by pressing the "P" button.

The selected parameter is flashing. Change of the setting with the left/right "Selector" or "Quick Access" buttons. Confirm the change of settings with the "P" button.

Remark: If the frying time is set to "0", the program does not appear for the operator in the "Frying mode". If the parameter "Quality Alarm" is set inactive in the "Service Mode", no adjustment can be made in the "Programming".

c) Exit of the program

Either by pressing the „Quick Access“ under the following symbol or „P“ button for three seconds.

We can now modify another program or leave the programming mode by pressing the "P" button for another three seconds.

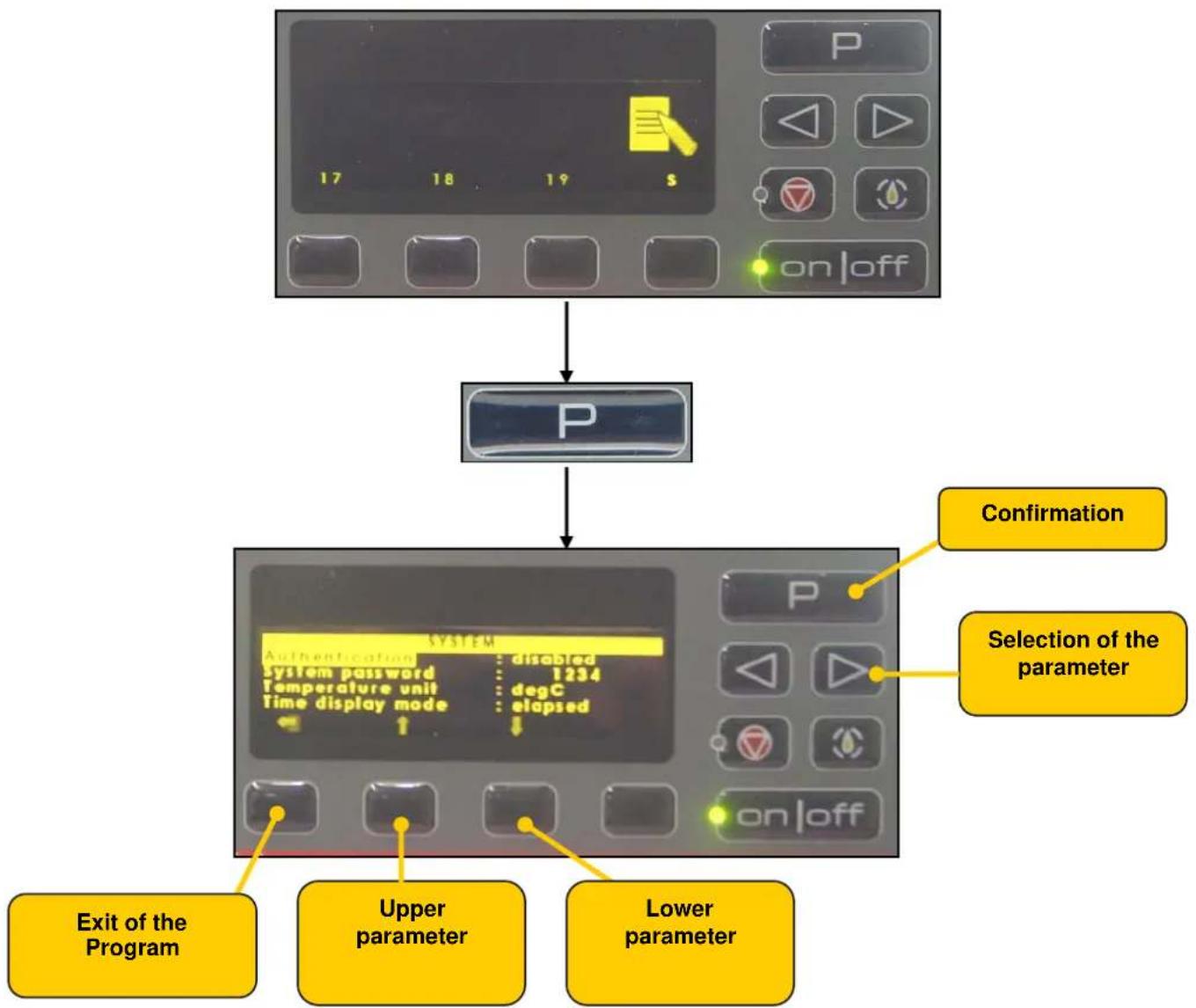

d) Service Mode

In the "Programming Mode" the program number 20 is the "Service Mode".

The "Service Mode" allows to modify different parameters of the fryer.

The selected parameter lights up more strongly.

After the selection of the parameter the choice must be confirmed with the "P" button.

Change of the setting with the left/right "Selector" or "Quick Access" buttons.

Confirm the change of settings with the "P" button.

Another parameter for modification can be selected now.

Exit of the "Service Mode" by pressing the "Quick Access" button.

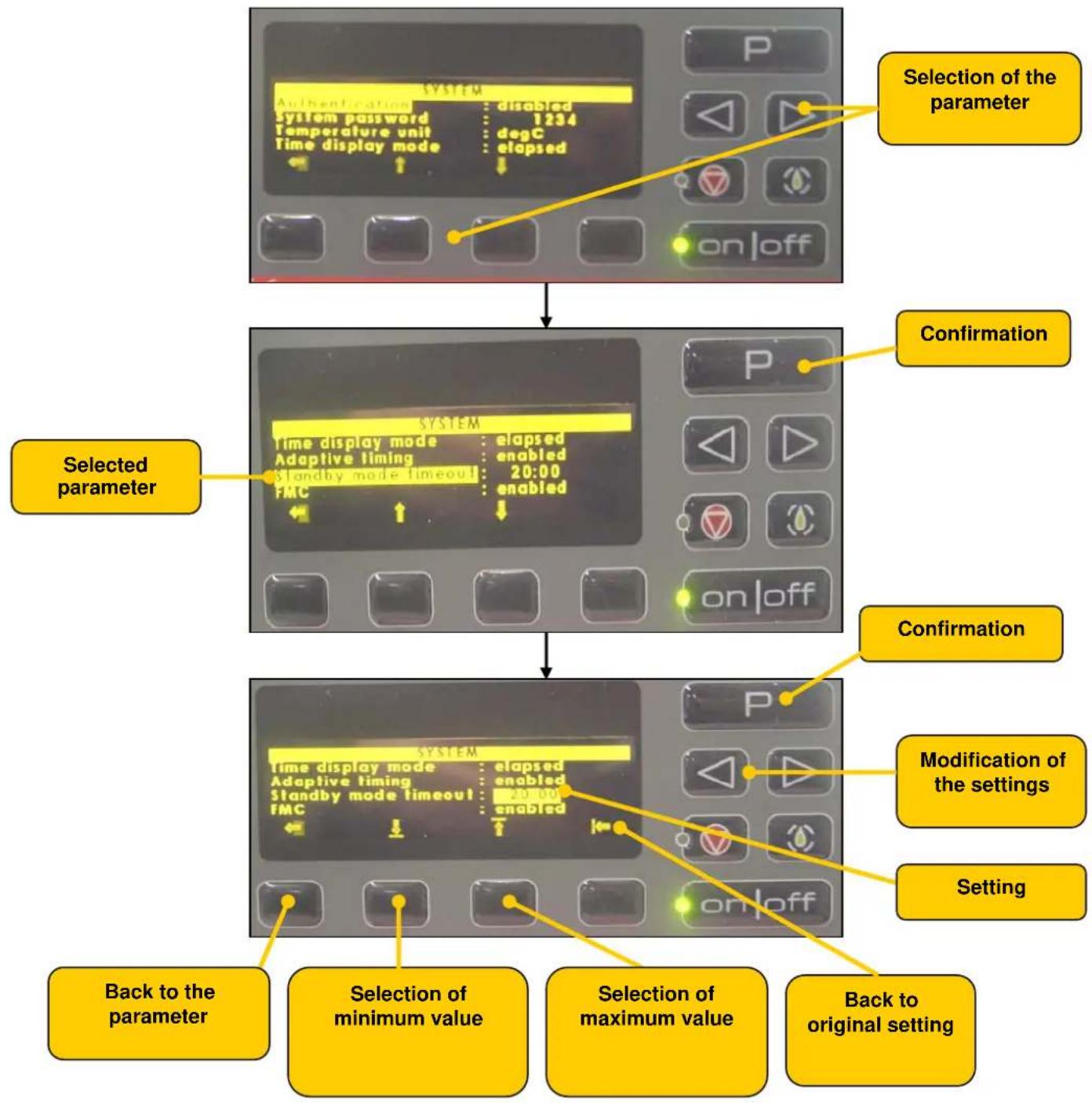

Example: Modification of the StandBy mode timeout

e) List of changeable parameters

Parameter	Fonction	Setting / Value
Authentication	Access code to programming mode	disabled : inactiveenabled : active
System Password	Access code	Corresponds to the Quick Access buttons( 4 digit code )
Temperature unit	Temperature indication	degC : CelciusdegF : Fahrenheit
Time display mode	Time display	elapsed : real timeremaining : count down
Adaptive timing	Fry Computer	disabled : inactiveenabled : active
Standby mode timeout	Time for Standby	Adjustment between: 00 :00 / 4 :15 : 00If time is set to 00 :00, the Standby is inactive
FMC	Fat melting cycle	disabled : inactive ( continuous heating)enabled : active
FMC temperature	End temperature of the FMC	Adjustment between: 30 / 90°C
Standby temperature	Temperature setting for the Standby	Adjustment between: 30 / 120°C
Idle Timing	Time to switch into FMC after switching on the control panel	If time is set to 00 :00 the switch over is manual
Buzzer reset timer	Buzzer settings	Adjustment between: 00 :00 / 00 : 30If time is set to 00 :00 the reset is manual by the "P" or "Quick Access" button
Buzzer volume	Sound volume	low / medium / high
Quality alarm	Alarm after the last frying cycle.Survey of a chips scuttle.	disabled : Inactiveenabled : ActiveAdjustment between: 00 :00 / 9 : 59 : 59
Temp meas. Trim offset	Adjustment of the measured temperature	Adjustment between: -10 / 10 °C
Temp meas. Trim slope	Adjustment of measure cycle
Twin mode off	Synchronisation of basket lifts (Models 412)	disabled : Inactiveenabled : Active
Display intensity	Intensity of luminosity	Auto / low / medium / high
Skip temp. setting	Allow start frying cycle by pressing twice the " P" button before set temperature is reached	disabled : Inactiveenabled : Active
Hide spTemp. if prg.run	Display set temperature after the start of a frying cycle	disabled : Inactiveenabled : ActiveAfter start of frying cycle, the set temperature becomes darker
Screen saver mode	Economy mode of the display by non use of the fryer	Logo : Logo frifriOil temp : Oil temperatureState : state
Reset factory def	Back to factory default settings

6. Cleaning and maintenance

6.1 Cleaning intervals, daily or according the duration of use of the appliance

CAUTION

Only use non-caustic, non-abrasive cleaner.

Only use non-abrasive cleaning cloths.

Only use cleaners which are permitted for the food area.

Always carry out cleaning work only after the frying oil and the deep fryer have cooled down to a temperature level at which no scalding can occur.

Cleaning area Cleaning work
External surfaces and covers Clean with damp cloth
Control panel Clean with damp cloth
Fast coupling (option pump) Cleaning agent / hot water
Frying pot Dishwashing/ hot water
Frying basket Dishwashing/ hot water
Frying basket holder Dishwashing/ hot water
Frying oil pot cover Dishwashing/ hot water
Internal surfaces and covers Clean with damp cloth
Connecting cables Clean with damp cloth
Oil receptacle container Dishwashing/ hot water
Deep fryer surrounds Clean with hard and soft brushes and damp cloths and follow special instructions if necessary

6.2 Frying oil exchange

Filtration Daily or according to the intensity of use
Exchange According to the saturation

6.3 Periodic checks

Oil catcment container	Cleanliness, filling level
Frying oil quality	According to hygiene regulations
Frying pot Cleanliness, settled frying residues
Drain pipe and fast coupling Cleanliness, function, sealing after installation
Submerged heating	Surface

6.4 Maintenance

We recommend a regular maintenance service by a after sales service company, according to the intensity of use of the equipment.

Occasional use	Less than 8 h per day	A maintenance service per year
Middle use	8 to 12 h per day	One to two maintenance service per year
Intensive use	More than 12 h per day	One intermediate service as well as one basis service per year

7. After sales service

In the case of a breakdown, contact your local dealer or the nearest repair centre. However, before contacting it, check:

• that the fuses have not gone
• if the electric plug is pushed right in
• if the machine has been started correctly
• if the oil level is correct

Important!

If you call the repair centre, give the type and number of your machine. You will find these on the small plate on the panel behind the door.

fri Coloring Systems with Cl Article: VF41102 Serial No.: 080001 Type: Vision 411 Manufacturing Order: OF-0800651 Week: 8/2008 Cable: 5x4 mm² P: 22 Kw U: 3N~400V I: 31.6 A F: 50/60 Hz CE GS S IPX 5 CCA Swiss made

°C 22°C 1 2 3 4 P on | off

00:00 175°C 02:55 172°C on | off
