Product type	Programmable thermostat
Brand	Fantini Cosmi
Model	IntelliTherm C58
Dimensions (L x H x D)	130 x 80 x 17 mm
Power supply	2 AA 1.5V alkaline batteries
Battery life	Approximately 2 years
Standards	EN 60730-1 and second part
Switching current	5(3)A 250V~
Comfort temperature range	2 to 62°C
Economy temperature range	2 to 62°C
Differential	±0.25°C
Anti-freeze temperature	5°C (programmable)
Protection rating	IP20
Double insulation	Yes
Contact type	Voltage-free
Programming	24-hour clock, 30-minute steps
Functions	Comfort, Economy, Off, Anti-freeze, Boost (1-240h)
Display	Ambient temperature, heating hours, min/max temperatures
ErP classification	Class IV, 2%
Safety	Anti-freeze protection, double insulation
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Spare parts and repairability	Not user-serviceable. Contact authorized after-sales service.

Frequently Asked Questions - IntelliTherm C58 Fantini Cosmi

How to properly install the IntelliTherm C58 thermostat?

To install the thermostat, mount it at 1.5 meters height, away from heat sources, windows, and doors. Ensure the base is fixed flat against the wall. Make electrical connections by connecting terminals 1 and 2 to the heating system. Terminal 4 is free for other uses. Insert two AA alkaline batteries observing polarity. For more details, refer to the manual.

How to set the time and programming?

The time is set with dedicated buttons. Programming is done via the 24-hour dial divided into 30-minute segments. Press the color buttons (red for Comfort, blue for Economy, black for Off) to assign the temperature to each segment. The flashing segment changes color according to the selected temperature.

How to switch to summer mode for air conditioning?

Move the switch to the SUMMER position (sun symbol). The system prepares for air conditioning operation. The red segments of the dial indicate the on periods for the air conditioning system, other colors indicate off periods.

What to do if the screen shows a flashing battery symbol?

The flashing battery symbol indicates low battery charge. Replace both AA alkaline batteries with new ones within 15 days, otherwise the thermostat will turn off automatically and display "OFF". Replacement does not erase programs.

How to use the Boost function for a temporary temperature?

The Boost function allows temporarily overriding the automatic program for 1 to 240 hours. Press the button of the desired color (Comfort, Economy, or Off) to activate this temperature continuously. After the programmed time, it automatically returns to the automatic program.

How to view the minimum and maximum temperatures of the previous day?

Move the switch to the ECONOMY position to display the minimum temperature or to the COMFORT position for the maximum temperature. The screen then shows the temperature and the time it was measured. Then move the switch to PROG position to return.

How to reset the thermostat to factory settings?

Press the reset button (often marked RST) for a few seconds. All programs will be cancelled and the standard factory program restored.

What does the anti-freeze dip switch mean and how to use it?

The dip switch at the top allows programming anti-freeze protection at 5°C. In the UP position, the thermostat maintains a temperature of 5°C to protect the system from freezing. In the DOWN position, the system is completely off. This selection must be made during installation before inserting the batteries.

How to connect the thermostat to the heating system?

Connect terminals 1 and 2 to the heating system with two wires, replacing an existing thermostat. When temperature rises, the relay opens terminals 1-2 and closes 1-4. Terminal 4 is optional for signaling. Ensure installation is done by a professional.

Is the device compatible with an air conditioning system?

Yes, the thermostat has a summer/winter switch. In summer mode, it controls air conditioning: the red segments indicate cooling periods. Comfort and Economy temperatures are adjustable with the corresponding buttons.

USER MANUAL IntelliTherm C58 Fantini Cosmi

Microdisconnection (1BU)

Software classe A

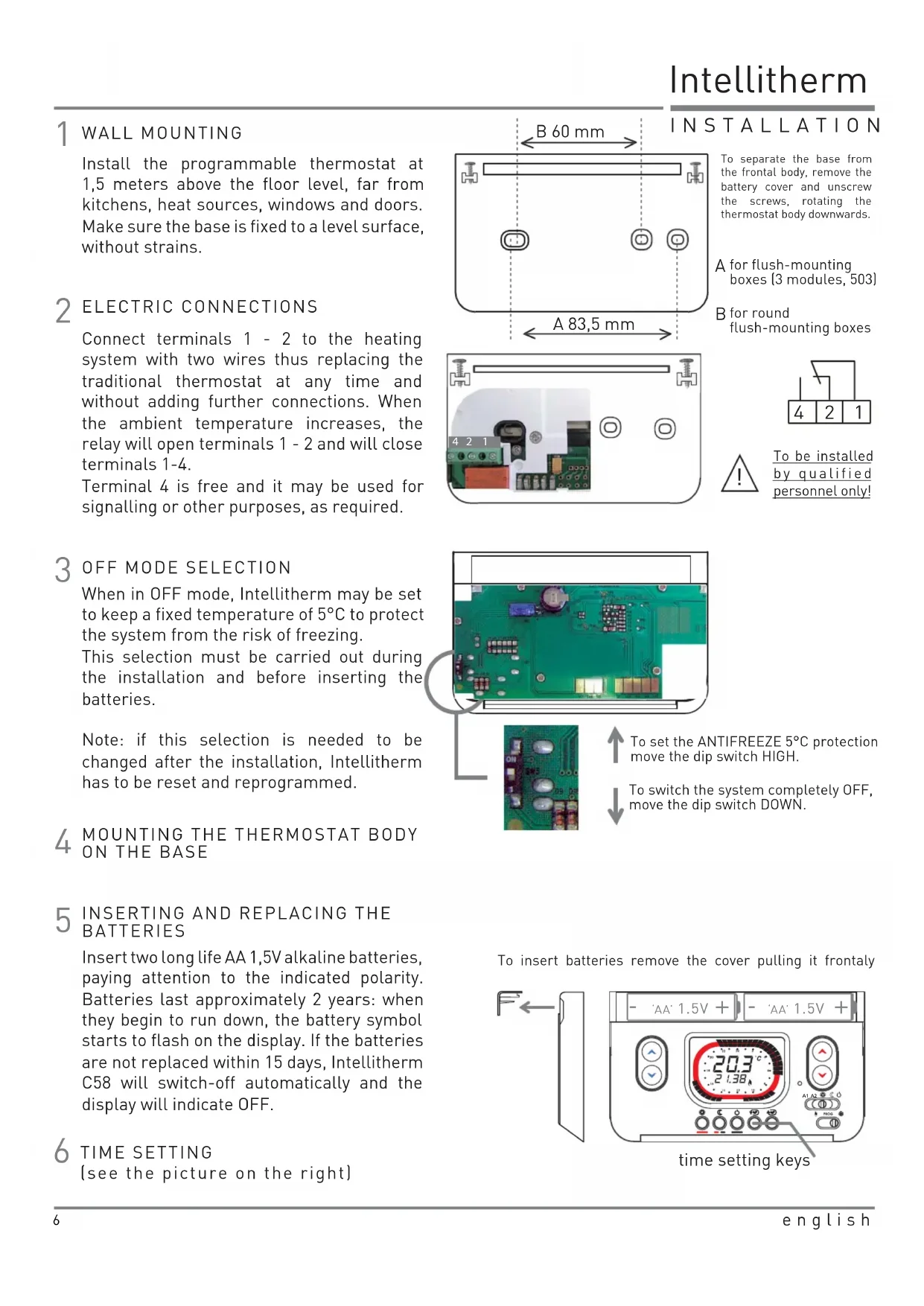

Install the programmable thermostat at 1,5 meters above the floor level, far from kitchens, heat sources, windows and doors. Make sure the base is fixed to a level surface, without strains.

2 ELECTRIC CONNECTIONS

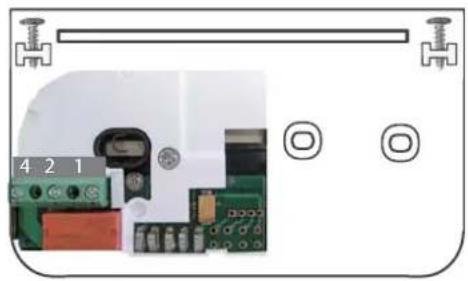

Connect terminals 1 - 2 to the heating system with two wires thus replacing the traditional thermostat at any time and without adding further connections. When the ambient temperature increases, the relay will open terminals 1 - 2 and will close terminals 1-4.

Terminal 4 is free and it may be used for signalling or other purposes, as required.

INSTALLATION

To separate the base from the frontal body, remove the battery cover and unscrew the screws, rotating the thermostat body downwards.

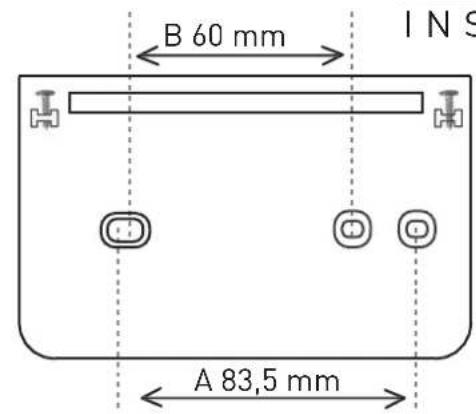

A for flush-mounting boxes [3 modules, 503]

B for round flush-mounting boxes

To be installed by qualified personnel only!

3 OFF MODE SELECTION

When in OFF mode, Intellitherm may be set to keep a fixed temperature of 5^ to protect the system from the risk of freezing.

This selection must be carried out during the installation and before inserting the batteries.

Note: if this selection is needed to be changed after the installation, Intellitherm has to be reset and reprogrammed.

4 MOUNTING THE THERMOSTAT BODY ON THE BASE

5 INSERTING AND REPLACING THE BATTERIES

Insert two long life AA 1,5V alkaline batteries, paying attention to the indicated polarity. Batteries last approximately 2 years: when they begin to run down, the battery symbol starts to flash on the display. If the batteries are not replaced within 15 days, Intellitherm C58 will switch-off automatically and the display will indicate OFF.

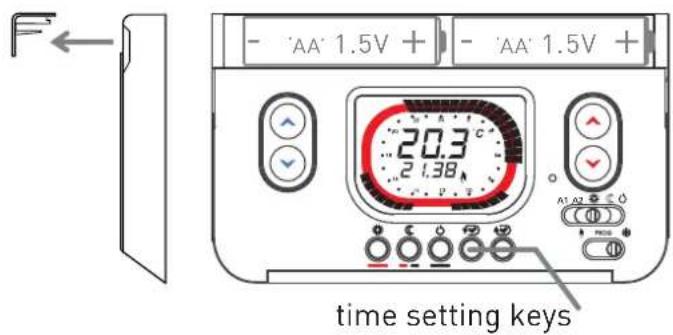

6 TIME SETTING (see the picture on the right)

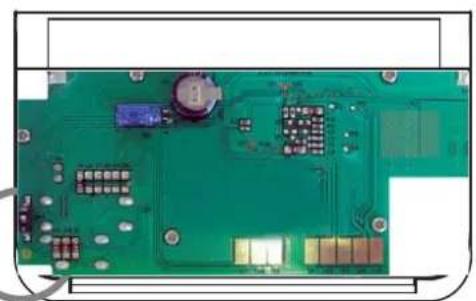

To set the ANTIFREEZE 5^ protection move the dip switch HIGH.

To switch the system completely OFF, move the dip switch DOWN.

To insert batteries remove the cover pulling it frontaly

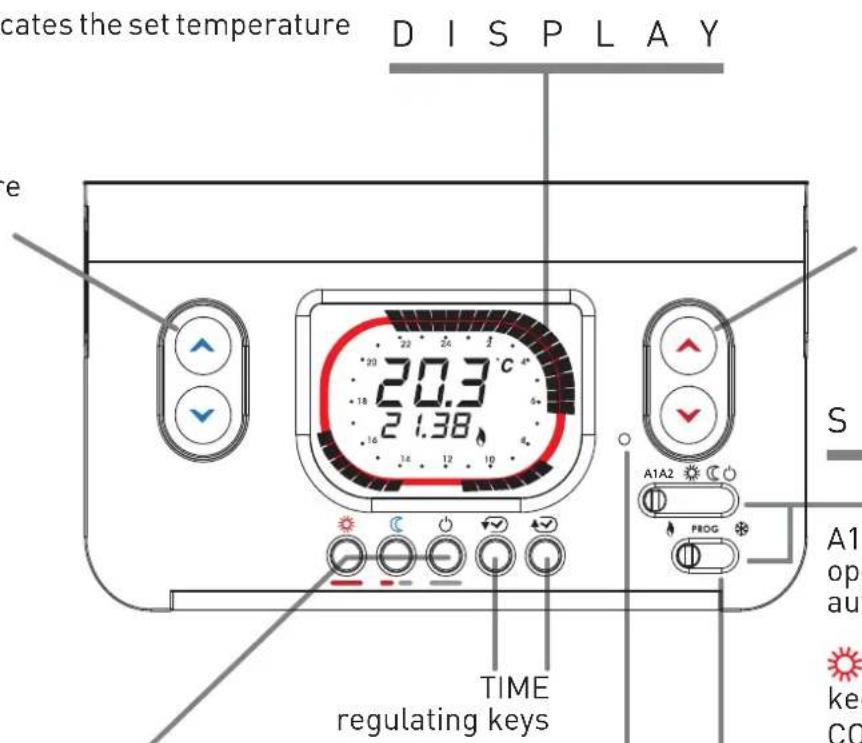

PROGRAMMABLE THERMOSTAT

C58

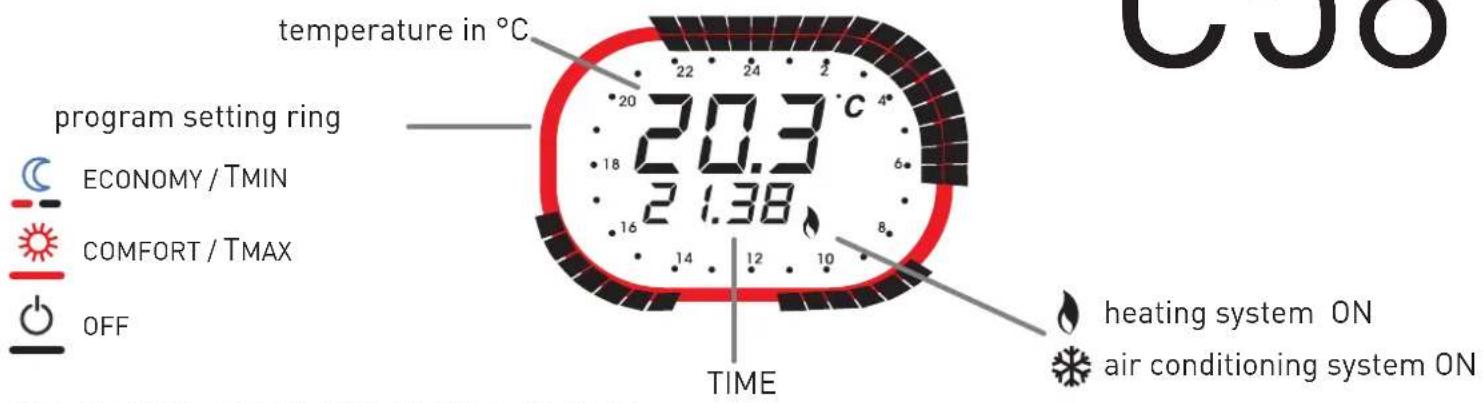

The program setting ring shows a 24-hours clock, divided into 30 min sectors.

The sector colour indicates the set temperature for that period.

Minimum temperature keys.

TMIN/ECONOMY

from 2^ to 62^

Maximum temperature keys TMAX/COMFORT from 2^ to 62^

SWITCHES

A1 or A2 operation with the daily automatic program

COMFORT/TMAX keeps constantly the COMFORT temperature set with the TMAX keys.

ECONOMY/TMIN keeps constantly the ECONOMY temperature set with the TMIN keys.

OFF keeps the system constantly OFF or with antifreeze protection 5^

Temperature setting keys

In pushing one of the three keys, the flashing sector will turn into the colour of the desired set temperature

RESET

keep it pressed for a few seconds to reset any customization and restore the pre-set standard program

With the switch set on

C58 is set to regulate the heating system

With the switch set on

C58 is set to regulate the air conditioning system.

Once the C58 is installed and connected, it is possible to use the weekly program with the pre-set operating time and temperatures, just positioning the switch on the A1 or A2 position.

Verify that the switch is in the HEATING position.

A1 for weekdays

A2 for weekends and holidays

C U S T O M I Z A T I O N

It is possible to set the desired temperature for every 30 minutes.

1

Set the temperature

T MIN

T MAX

3

It is possible to set the desired temperature pressing one of the three keys. The sector will change the colour and advance 30 minutes.

COMFORT/TMAX ECONOMY/TMIN

OFF

To move the switch without changing the temperature, use the keys

Move the switches to the A1 or A2 and PROG positions to start the program setting.

The display will show time 00.00 and DAY1.

On the programming ring the sector which the temperature has to be changed flashes and corresponding time appears.

Once the changes are finished, position the switch to start the heating or to start the air-conditioning

J O L L Y F U N C T I O N

With this function C58 enables you to cut out temporarily the automatic program at any time, without changing its settings, in order to have constantly the required temperature COMFORT - ECONOMY - OFF for a period from 1 to 240 hours.

A1 A2

With the switch in the A1 or A2 position, press the keys or or to set for how many hours the C58 has to cut the automatic program out, in order to force temporarily the temperature. The ring on the display will change the colour according to the selected temperature.

ECONOMY/TMIN

COMFORT/TMAX

OFF

Once the set time is passed, C58 will resume the automatic program. To reduce or cut out the JOLLY period before the set time, press a different colour key than the one shown on the ring

ADVANCED FUNCTIONS

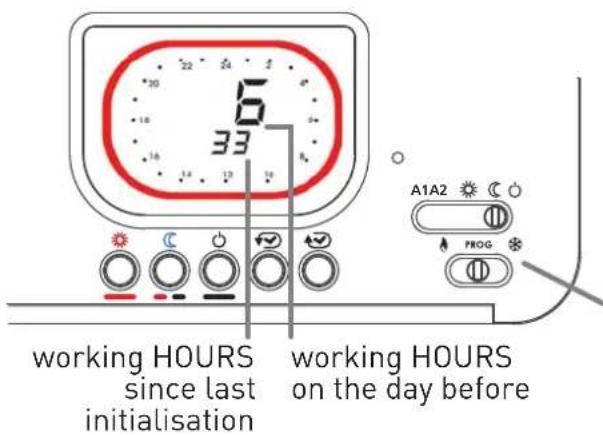

With C58 it is possible to know for how many hours the heating system worked the day before (closed relay - ON) and from the last Intellitherm initialization (last reset or battery insertion).

The display will show the heating working hours, positioning the switches as indicated in the picture.

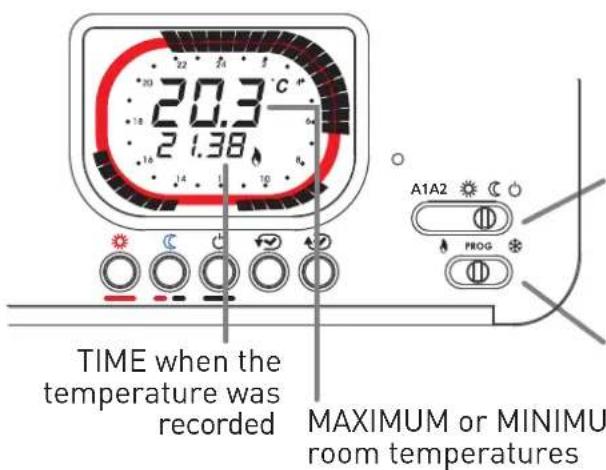

PREVIOUS DAY MINIMUM AND MAXIMUM TEMPERATURES

With Intellitherm C58 it is possible to verify the MINIMUM and MAXIMUM temperatures reached the day before and what time they were measured.

Move the switch to the ECONOMY position to read the MINIMUM temperature or move to the COMFORT position to read the MAXIMUM temperature.

Move the switch to PROG

SUMMER / AIR-CONDITIONING MODE

Intellitherm C58 starts the AIR-CONDITIONING mode moving the switch to the SUMMER position. The COMFORT/TMAX temperature can be regulated pressing the red keys. The red sectors on the ring indicate what time the air-conditioning is ON; the other colours indicate when the system is OFF

TECHNICAL FEATURES

In compliance with CEI EN 60730-1 and parts two

Contact rating 5 (3)A 250V c.a.

Micro-disconnection [1BU]

Software classe A

Voltage free switching contact

Temperature regulation: COMFORT from 2^ to 62^

ECONOMY from 2^ to 62^

Differential: +/- 0,25^

Thermal gradient: 4^ / h

OFF mode with optional antifreeze protection [5^] by a dip switch.

Maximum room temperature: T45.

double insulation

Protection degree IP20

Pollution degree 2

Impulse voltage 4000V

Power supply without connection to the electrical line with

2 AA 1,5V alkaline batteries [1 year battery life].

Automatic control of the battery charge; the display will

indicate if the charge is inadequate.

Battery replacement without data dropout.

Switch for the winter or summer operating modes.

Reset key to restore the set program.

Dimensions 130 × 80 × 17 ~mm

ErP classification: ErP Class IV; 2% (EU Reg. 811/2013

-813/2013]

1 FIJAR A LA PARED

F U N C I O N J O L L Y

CHRONOTHERMOSTAT SUR LE SOCLE

5 INSERTION ET REMPLACEMENT DES PILES

F O N C T I O N “ J O K E R ”

FONCTIONNEMENT D'ETÉ OU CLIMATISATION

Impulsion detension 4000V

F U N K T I O N J O L L Y

DISPOSAL OF PRODUCTS

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product
