USER MANUAL HSRM11000 ABUS

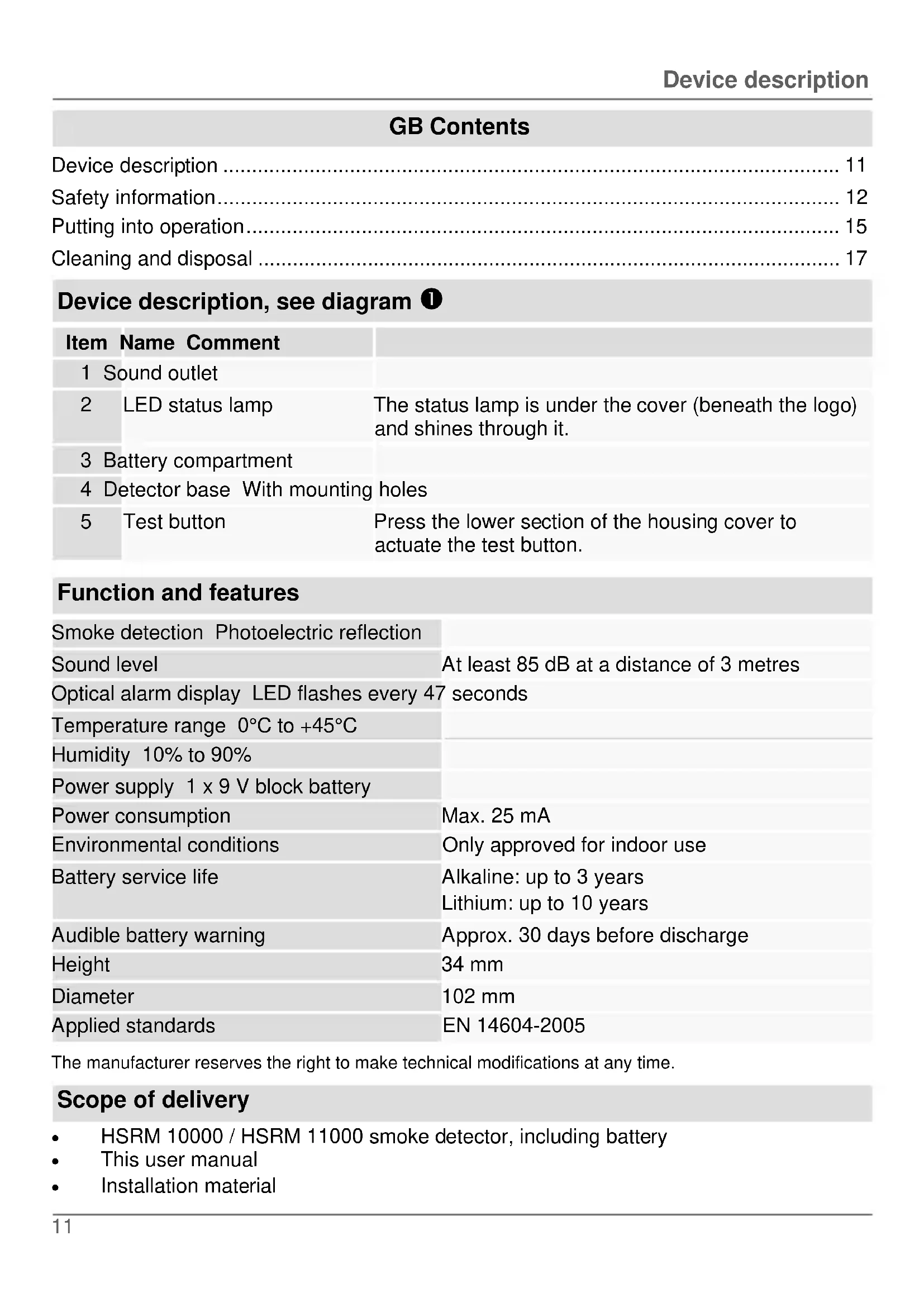

t least 85 dB at a distance of 3 metres Optical alarm display LED flashes every 47 seconds Temperature range 0°C to +45°C Humidity 10% to 90% Power supply 1 x 9 V block battery Power consumption Max. 25 mA Environmental conditions Only approved for indoor use Battery service life

lkaline: up to 3 years Lithium: up to 10 years

pplied standards EN 14604-2005 The manufacturer reserves the right to make technical modifications at any time. Scope of delivery HSRM 10000 / HSRM 11000 smoke detector, including battery This user manual Installation materialSafety information

Safety infor mation Explanation of symbols The following symbols are used in this manual and on the device: Symbol Signal word Meaning Warning Indicates risk o

or health hazards. Warning Indicates risk of injur

or health hazards caused by electrical voltage. Important Indicates possible damage to device/accessories. Note Indicates important information.

Warning The smoke detector does not detect gas, steam, heat or fire/flames. Detectors with special sensors are required for this. People with hearing impairments may not be able to hear the alarm. Special alarms with visible signalisation are available for such cases. Smoke detectors help save lives. Therefore, for safety’s sake, you should regularly test the battery and the operation of the detector. For day-to-day use, remember that the smoke detector cannot prevent fires but simply provides signalization in the event of one. For your own safety, please replace smoke detectors every ten years at the latest. Very high electromagnetic radiation can cause malfunctions. Therefore, do not install the detector near strong magnets or devices which produce electromagnetic radiation. The smoke detector works optically by measuring smoke particles that penetrate into its measurement chamber. When the alarm threshold is exceeded, a loud alarm sounds. The alarm is switched off as soon as there is no more smoke in the measuring chamber. Surveillance area: 40 m

within a room Battery operated (1 x 9 V battery) Automatic battery state monitoring Battery compartment check (the smoke detector can only be installed when the battery is fitted) Optical LED indicator lamp and acoustic alarm Simple installationSafety information

Warranty: ABUS products are designed and manufactured with the greatest care and tested according to the applicable regulations. The warranty only covers defects caused by material or manufacturing errors that occurred before the product was purchased. If there are demonstrable material or manufacturing errors, the smoke detector will be repaired or replaced at the warrantor's discretion. In such cases, the warranty ends when the original warranty period expires. All further claims are expressly rejected. The warranty does not cover the batteries supplied. ABUS will not be held liable for defects and damage caused by external influences (e.g. transport, use of force, operating errors), inappropriate use, normal wear and tear or failure to observe the instructions in this manual. In the event of a warranty claim, the original receipt with the date of purchase and a short description of the problem must be supplied along with the smoke detector. If you discover a defect on your smoke detector which existed at the time of purchase, contact your dealer directly within the first two years. Proper use Only use the device for the purpose which is was designed and built for. Any other use is considered inappropriate. This device may only be used for the following purpose(s): Detecting fire/smoke in private households Declaration of conformity “ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, D-86444 Affing, hereby declares that the HSRM 10000 / HSRM 11000 complies with the basic requirements and other relevant terms of the EMC directive 2004/108/EC.” The declaration of conformity can be found at www.abus-sc.deSafety information

Warning Observe the following instructions to prevent any failure of the device: Do not cover the device. Do not paint over the device or cover it with wallpaper. Never open the device or attempt to repair it, as its function can then no longer be guaranteed. Failure to observe this instruction will invalidate the warranty. Do not use the device if it has been dropped or damaged in any other way. If you pass on the device to someone else, you must include this user manual. Before operation Warning Keep children away from the packaging – there is a risk of suffocation. Remove all packaging material before using the device. What to do when you hear the alarm Leave the premises immediately. Every second counts – there is no time to get dressed or gather valuable belongings. Use the emergency escape routes. Warn your fellow residents and make sure they also leave – especially children and people with impaired hearing. Do not open doors without first checking the surface. Do not open a door if it is hot or you see smoke under it. Use an alternative escape route. If the surface is cool, push against it with your shoulder, slightly open it and be prepared to close it again if there is heat, smoke or fire behind it. If there is smoke in the air, keep close to the floor and breathe through a damp cloth if possible. Close the doors after leaving the room. Once you have left the building, go to the agreed assembly point and do not go back inside. Call the fire brigade from outside the burning building. Notify the fire brigade of the situation inside the building.Putting into operation

Putting into operation For recommended installation locations, see the diagram Position the smoke detector directly on the ceiling in the centre of the room. Priority rooms: living rooms, bedrooms and children’s playrooms. If you have more than one bedroom, each one should be fitted with a smoke detector. To monitor corridors, you should also fit smoke detectors there, because stairwells are particularly susceptible to fires due to the chimney effect. Long corridors might require several smoke detectors. The distance between smoke detectors should not be more than 8 metres. When fitting on the ceiling, make sure that the smoke detectors are at least 15 cm from the side walls and 50 cm from the corners. Warning Avoid the following locations to prevent malfunctions of the smoke detector: Places where expected temperature variations are greater than the ambient operating temperature (+0°C to +45°C). Places where draughts can keep smoke away from the detector, such as near windows, doors or ventilation shafts. Places where vapour, increased air humidity or exhaust fumes may trigger false alarms, e.g. in kitchens, bathrooms or garages. Places where dust or dirt could impair the function of the smoke detector. The highest point in rooms with gable ceilings. The distance to the highest point of the gable should be at least 30 cm. For installation and attachment, see the diagram Warning When marking out the drill holes, make sure there are no electrical wires or cables, pipes or other important components behind them. If in doubt, consult an expert before drilling. If you are fitting the smoke detector in a vehicle (such as a camper or caravan), you must contact the manufacturer or your local dealer first for information on the most suitable location.Putting into operation

1. Loosen the smoke detector from the base of the housing by turning it anticlockwise.

Mark the drill holes through the base.

2. Drill the holes, put in the plugs and screw in the base.

3. Insert the battery (see the diagram

) and fasten the smoke detector by twisting it clockwise onto the base. The detector has a safety device that prevents installation without a battery.

4. If you cannot fasten the smoke detector to the base:

Check whether the battery is correctly inserted and connected. Operation and function test The smoke detector is ready for use as soon as you put in the battery. Under the housing cover there is an indicator lamp which flashes every 47 seconds to show that the battery is correctly inserted and is delivering enough power to generate an alarm. Check the function of the smoke detector at regular intervals. Press the lower section of the housing cover for 5 seconds. If you hear a signal, the device is working properly and can be fastened. Alternatively, you can use the RM test spray available from ABUS to test the smoke detector. If the RM test spray enters the detection chamber, an alarm should sound, so that you can test whether the detector is working properly. Replacing the battery If the battery is low, the smoke detector beeps once every minute (for up to 30 days) to remind you to replace the battery. You must change this battery when you hear this signal. Even so, the smoke detector remains functional in this condition. You must test the smoke detector each time you change the battery. Carry out the test as detailed above. Note To ensure a long service life and reliable operation, we recommend using the following high-quality batteries: HSRM 10000: Alkaline 9 V block battery HSRM 11000: Ultralife U9VL-J Alarms and error signals When the alarm threshold is exceeded, a loud alarm sounds. The alarm continues sounding as long as there is smoke in the detection chamber. The alarm is only switched off when there is no more smoke in the detection chamber.Cleaning and disposal

Cleaning and disposal Note Your device requires no maintenance. Protect the device from dust, dirt and moisture. Cleaning Dusty detectors must be cleaned. You can clean dust from the air vents of the detector using a vacuum cleaner or compressed air. If necessary, you can remove the dust with a brush. When changing the battery, carefully clean the detection chamber with a vacuum cleaner to remove any dust or dirt. You can clean the surface using a cloth slightly dampened in soapy water. Important Do not allow water to penetrate inside the device. Do not clean the device in a dishwasher. Do not use sharp, pointed, abrasive or corrosive cleaning materials or hard brushes. Do not use chemicals. Do not use flammable liquids for cleaning. Information on the EU directive on waste electrical and electronic equipment To protect the environment, do not dispose of the device with domestic refuse at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material. Dispose of the device in accordance with EU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be disposed of, for example, by your local or municipal authority, the local waste disposal company or your dealer.Cleaning and disposal
