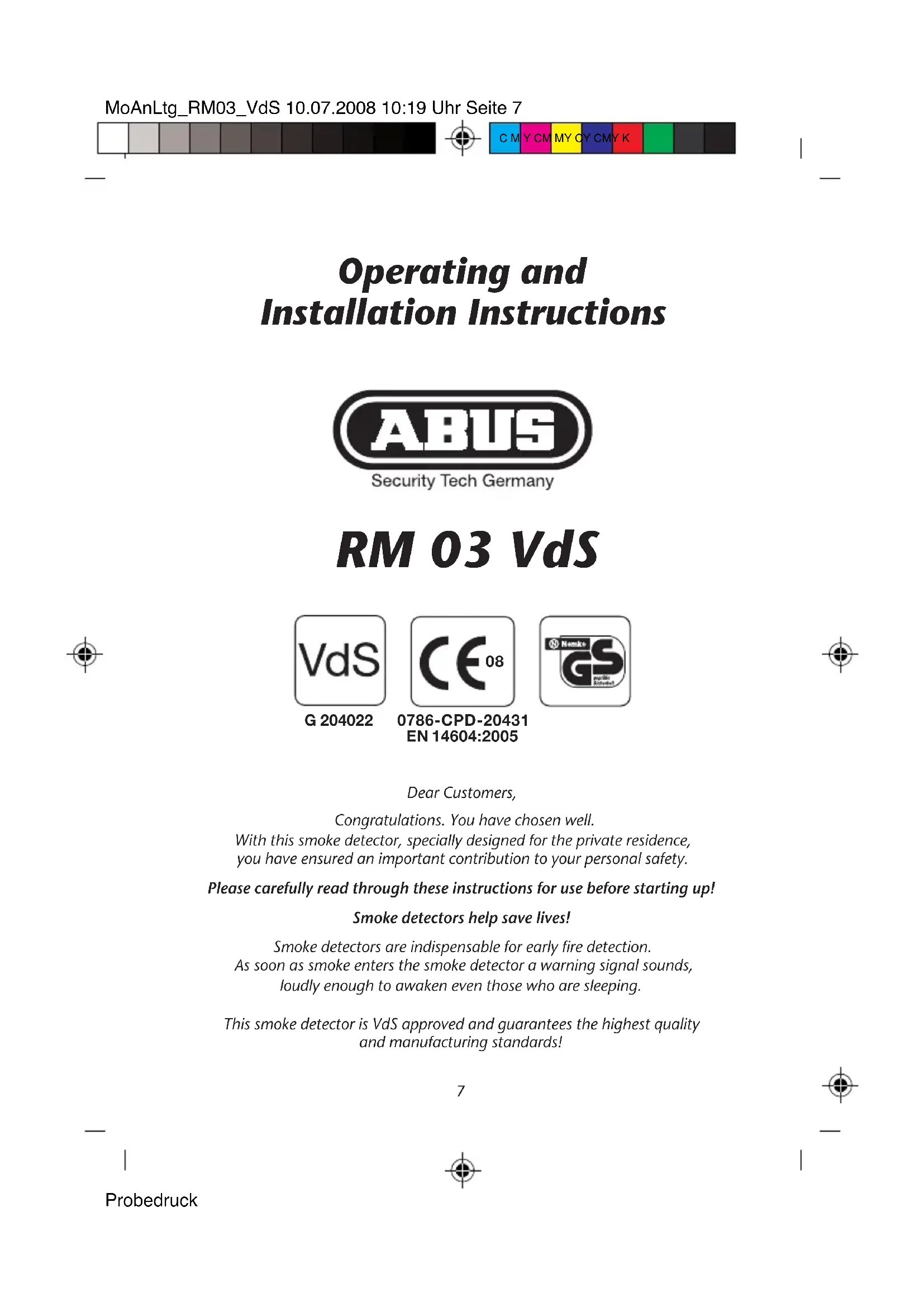

USER MANUAL RM03 VdS ABUS

0786-CPD-20431 EN 14604:2005MoAnLtg_RM03_VdS 10.07.2008 10:19 Uhr Seite 8 Probedruck C M Y CM MY CY CMY K Functionalty and Characteristics The smoke detector operates according to the optical principle and has a measurement chamber in which penetrating smoke particles are measured. If the alarm threshold is exceeded, a clamorous alarm sounds. The alarm is turned off as soon as the measurement chamber is smoke-free.

• Monitoring area: 40 m

• Battery operated (1x9V battery)

• Automatic recognition of battery level

• Battery case monitor (smoke detector can only be installed with battery inserted)

• Simple cover assembly

• Optical (LED) and acoustic alarm What to do in case an alarm sound is triggered

• Immediately leave the residence! Every second counts; do not lose any time to getting dressed or carrying objects. Use an escape route!

• Do not open any doors without first inspecting the surface. If it is hot or smoke can be seen underneath the door, do not open the door! Use an alternative escape route. If the surface is cool, press a shoulder against it, open it slightly and be prepared to close the door if heat and smoke enter.

• If the air is smoky, stay close to the floor and breath through a damp cloth if possible.

• Once out of the building, go to the agreed upon meeting point and do not return to the house.

• Call the fire department outside the burning building. Installation locations

• Place the smoke detector directly on the ceiling in the center of the room.

• Preferred rooms are living rooms, bedrooms and children’s rooms. If there are multiple bedrooms, install additional smoke detectors in each bedroom.

• Smoke detectors should also be installed in hallways in order to monitor them, as fires can easily be ignited in stairways in particular (chimney effect). Several detectors may be necessary in long hallways. The distance between the detectors should not be greater than 8 m.

• When installing on the ceiling, ensure that the detector is at least 15 cm from the side wall and at least 50 cm from each corner. 8MoAnLtg_RM03_VdS 10.07.2008 10:19 Uhr Seite 9 Probedruck C M Y CM MY CY CMY K Avoid these locations for installation !

• Spots where there are greater temperature fluctuations than the operating temperature range (+4°C to +45°C).

• Locations where draft air can keep smoke away from the detector, such as next to windows, doors or ventilation shafts.

• Spots where moisture, increased air humidity or exhaust emissions can trigger false alarms, such as in kitchens, bathrooms or garages.

• Locations that can negatively influence the functionality of the detector due to high dust and contamination loads.

• At the highest point of “A”-shaped ceilings. The distance to the peak of the ceiling should be at least 30 cm.

• Loosen smoke detector from the detector base (by turning counter-clockwise) and mark the drill holes through the base.

• Install the necessary drill holes and wall anchors and screw down detector base.

• Insert battery and fasten smoke detector on detector base (by turning clockwise). The detector is equipped with a safety device that prevents attachment of the detector without a battery.

• If the smoke detector cannot be fastened on the base, ensure that the battery is properly connected

Start-Up and Function Test

• The smoke detector is operationally ready as soon as the battery is inserted. A red display light is located under the test button, which blinks once per minute and shows that the battery is correctly installed and creating enough current to trigger the alarm.

• Each smoke detector should be tested once per month by pressing the test button, located on the front of the detector, for 5 –10 seconds. Alternatively, the Test Spray RM (in the ABUS product line) can be used on the smoke detector for testing. The siren sounds and the functionality of the smoke detector is tested. Replacing the battery

• The 9V DC battery will last approximately one year under normal conditions.

• If the battery should be weak, the smoke detector will emit a beeping sound once per minute (for approx. 30 days) as a reminder to replace the battery. The battery must be replaced if this signal sounds. The smoke detector remains fully functional during this period.

• The smoke detector should be tested after every battery replacement. Press the test button and hold for 5 –10 seconds until the alarm sounds. If the signal sounds, the device is working properly and can be fastened. We recommend using the following high-quality alkaline batteries: Duracell # MN 1604, Energizer Ultra+, Energizer Industrial or Varta Longlife. Used batteries do not belong in household garbage – please dispose of them environmentally correctly

• If the alarm threshold is exceeded, a clamorous alarm sounds. The alarm remains activated for as long as smoke is found in the detection chamber. The alarm is not turned off until the measurement chamber is smoke-free. Maintenance

• Dusty detectors must be cleaned. Dust deposits in the air slots of the detector can be vacuumed or blown out. If necessary, the dust can be removed with a brush.

• The surface can be cleaned with a towel, lightly dampened with soap suds.
