USER MANUAL Heat Tower PTC 2000 OSC SUNTEC

GB This product is not suitable as the main heater. This product is only suitable for well-insulated rooms or for occasional use.

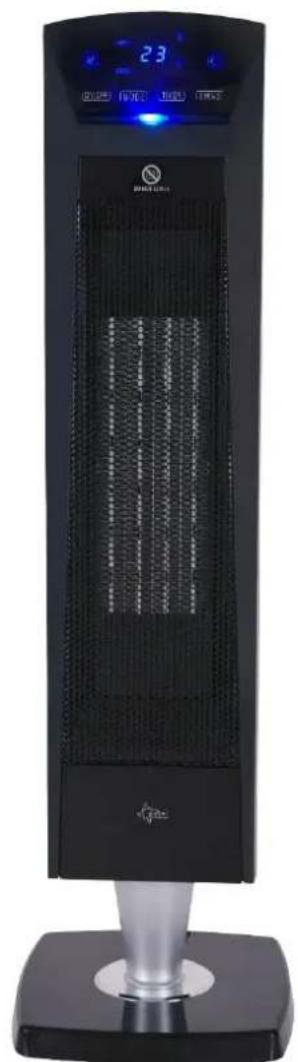

Heat Tower PTC Design 2000 OSC

PTC-Heizlüfter

Sicherheitshinweise

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Do not use the appliance for other than its intended use. Other applications may cause fire. For domestic indoor use only.

• Do not operate the appliance in the immediate surroundings of baths, showers or swimming pools.

• Do not use the appliance on carpets.

• Do not use multiple sockets or extension cords.
• Please do not leave the appliance unattended.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• Please be careful of hot surfaces and do not touch them as they might cause burns.
• The use of accessory not recommended by the manufacturer, e.g. time switches, may cause harm.
• Only operate the appliance on a flat, stable and heat-resistant surface.
• Remove the appliance from the wall socket when it is not in use, before cleaning, when moving and in case of malfunctions. Pull on the power plug, not on the power cord.
• Never use the appliance with wet hands.
• Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
• Do not place the heater directly under a power socket, near curtains, drapes or other flammable materials as well as walls and other objects.
• Never immerse the appliance, it's cord and plug into water or other liquids.

Warning: In order to avoid overheating, do not cover the heater!

Positioning of the appliance

The heater should only be operated at minimum distance of 50cm from any wall or other object. Position the air flow in order to optimize the heating of the room. Avoid corners, small volumes, floors and ceilings.

Operation

Operating voltage: 220-240V\~, 50Hz, 2000W

1. Carefully remove the heater from the plastic bag and the carton.
2. Place the heater on a firm leveled surface.
3. Set the main switch to the "Off" position and plug the mains plug of the power cable into the socket (220-240V). Now set the main switch to "On".
4. If the device is in standby mode, all keys except the On / Off key are locked. Please press "ON / OFF" once to operate the unit. Press "ON / OFF" again to turn off the unit. Once the unit is in operation, you can make the following selections:

a) Low power: 1200W (confirm with the mode button)
b) High power: 2000W (confirm with the mode button)
c) Timer: from 1 to 8 hours (confirm with the timer button)

With the timer function you can set the duration of operation from 1 hour to 8 hours. Each time you press the timer button, you increase the duration of operation by 1 hour. When the time setting is entered, the timer counts down the hours in half and full hours and displays the remaining operating time until the unit stops operating. Please press the timer button again after the display shows 8 hours to reset the unit to continuous operation.
d) Oscillation: The heater can oscillate from left to right by pressing the SWING button. All functions are shown on the LED display.

Warning

Before unplugging the unit from the wall outlet, turn it off and allow it to cool for 30 to 60 seconds to protect internal components.

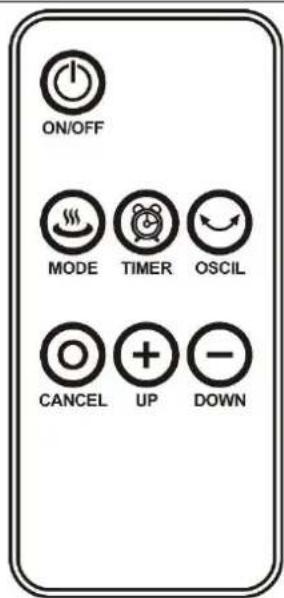

Remote control

1. Please install a button cell battery CR2025 (not included)
2. All functions of the manual control via the unit's display are identical to the functions on the remote control.

UP/DOWN: Adjust the temperature from 10 - 49^

CANCEL: You can cancel the temperature setting.

Overheating protection

The unit is equipped with an overheating protection which automatically switches off the unit if there is a risk of overheating, e.g. if the air outlet is completely or partially blocked. In this case, unplug the appliance from the wall outlet and wait about 30 minutes for the appliance to cool down. Then remove the object blocking the air outlet. Now switch on the unit again. The unit should now function properly again. If the problem persists, please contact your point of sale.

Safety control

To prevent damage and danger due to overheating, your heater is equipped with a protective device so that the device cools down to a certain temperature in the event of overheating. Due to the built-in overturn protection,

the overheat protection function cannot be activated when the unit is in a horizontal position. Please observe this and operate your device only in the upright position.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents such as steel wool.
• If you do not use the appliance for a long period of time, please store it in a dry place protected from dust.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
  If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2019/03 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

© 2019/03 SUNTEC WELLNESS GMBH

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
