USER MANUAL Opal BEBE CONFORT

Illustration of a car comfort seat with seatbelt and seatbelt (no text or symbols)

EN

Dear Parents,

- You have just purchased a Bébé Confort car seat, thank you for your confidence in us.

- By following this user guidance, which provides step by step instructions on what you need to do, you will be sure to install the seat in your vehicle in exactly the right way and thus guarantee the safety and comfort of your baby.

- Bébé Confort is applying all its experience to looking after your baby: safety, comfort, ease of use, ergonomics - our research and product development teams have thought of everything.

Happy reading and enjoy your journey!

FR

Chers parents,

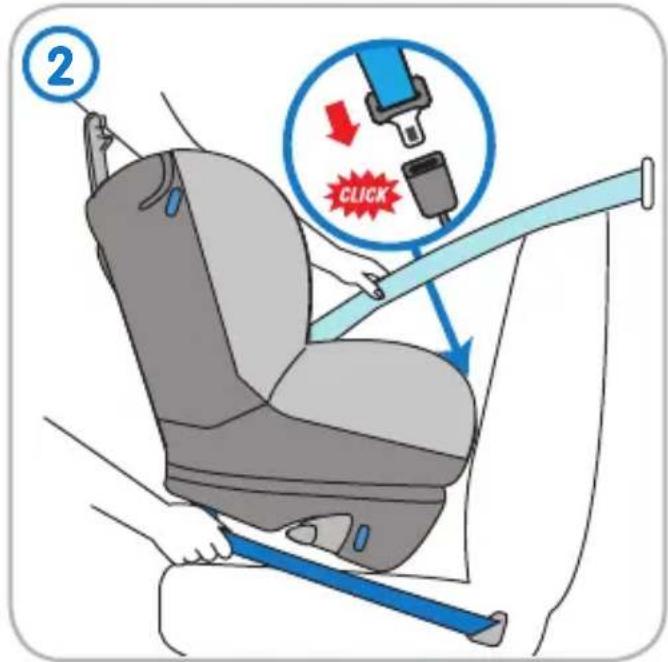

Illustration of a car seatbelt being inserted, showing blue arrows indicating force or movement (no text or symbols)

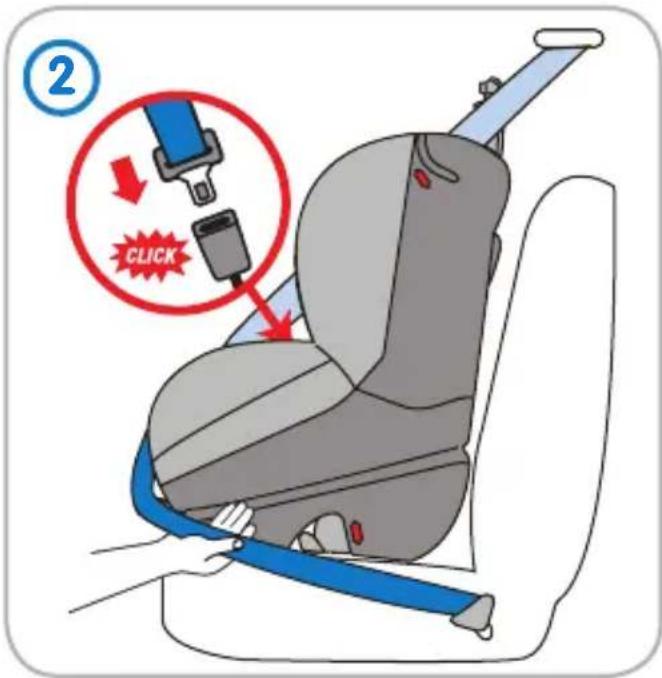

② CLICK

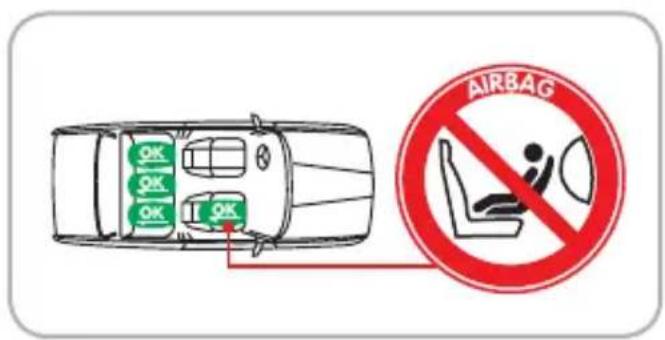

19K 19K 19K AIRBAG

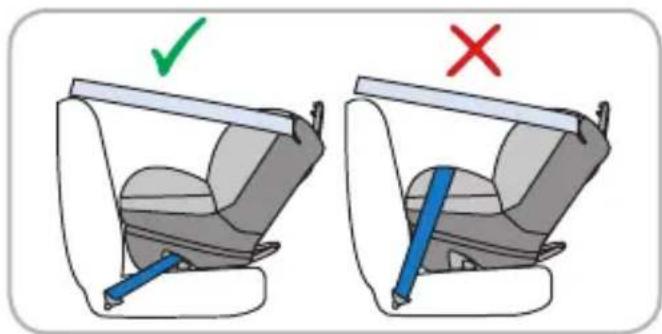

Illustration of two safety gear meshing setups with checkmarks and X marks (no text or symbols)

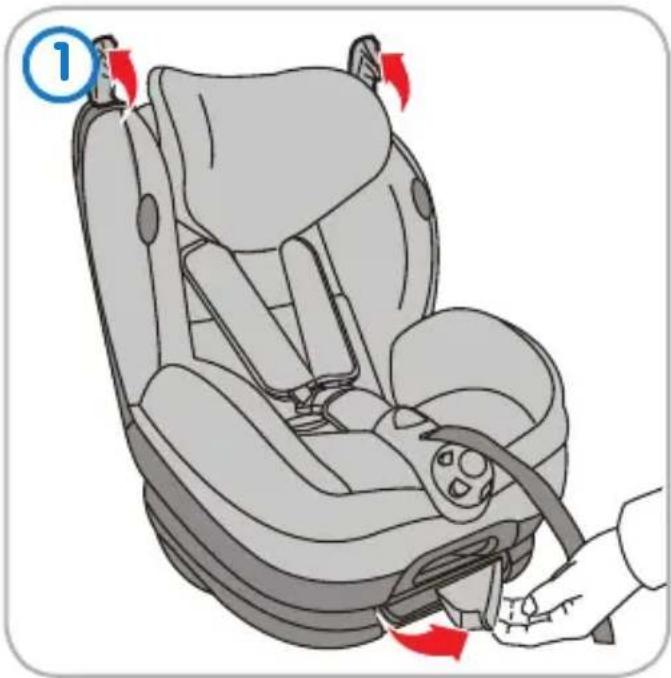

GRO+ 0-13 kg

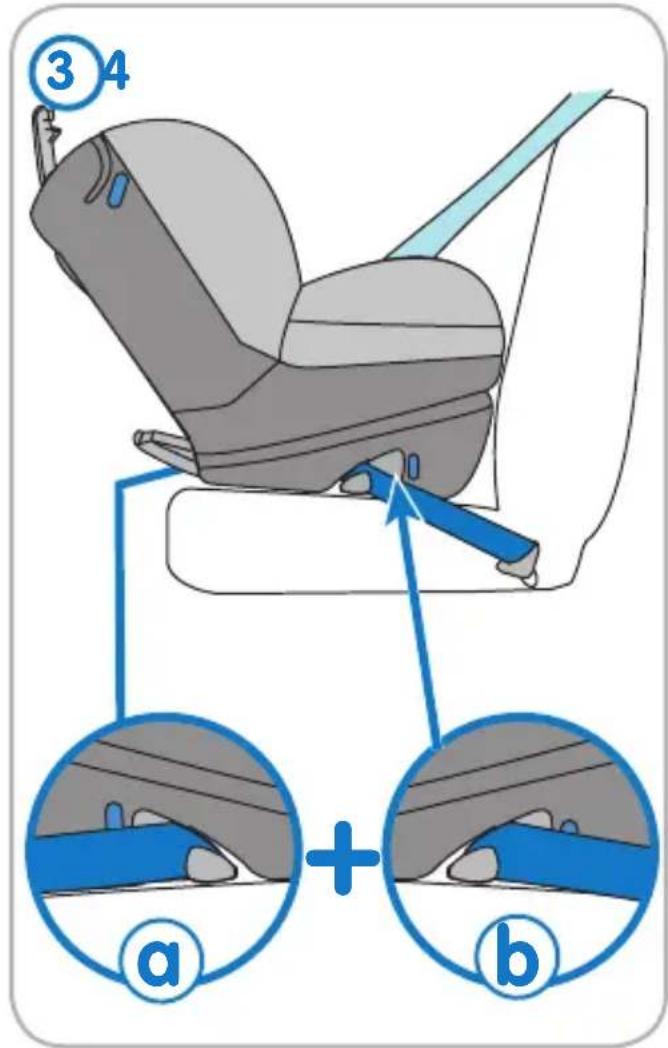

③④ a + b

Diagram showing car seatbelting with warning symbols and directional arrows indicating safety or stress zones

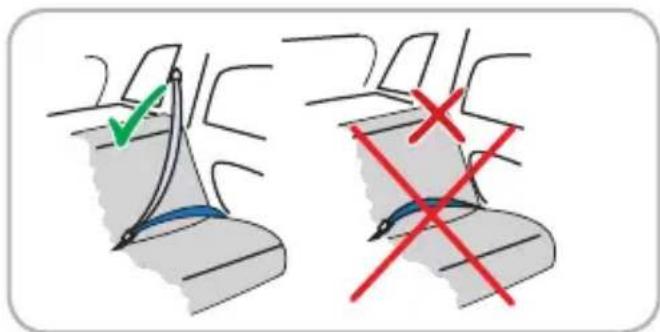

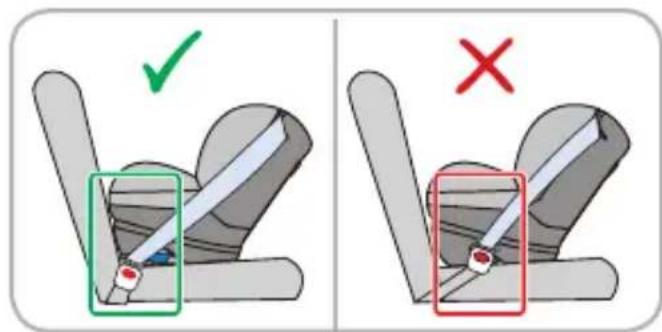

Two scenarios of a car seatbelt device, one with green checkmark and red X mark, the other with blue diagonal stripe (no text or symbols)

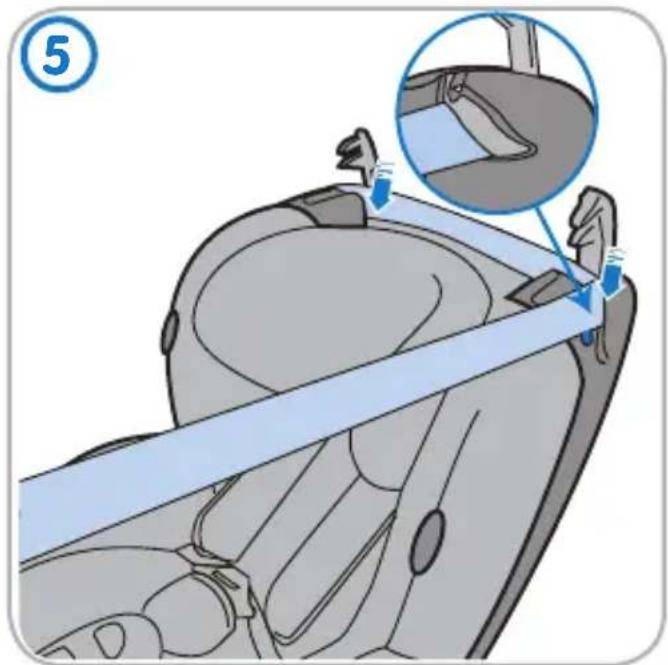

GR0+ 0-13 kg

Diagram showing car seatbelting instruction with magnified detail view

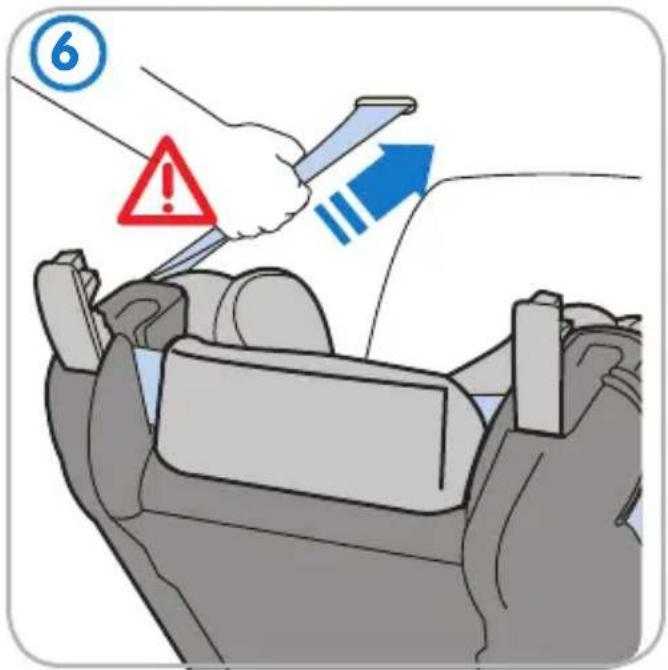

Diagram showing car seatbelt buckle adjustment with warning symbol and directional arrows

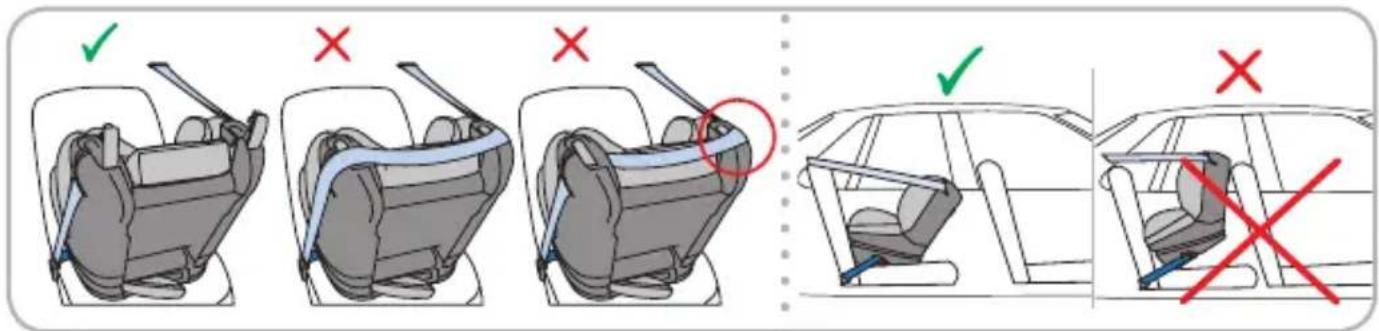

Diagram illustrating car seatbelting and safety check, showing correct and incorrect states with red X marks and a circled area highlighting the correct state.

GR0+ 0-13 kg

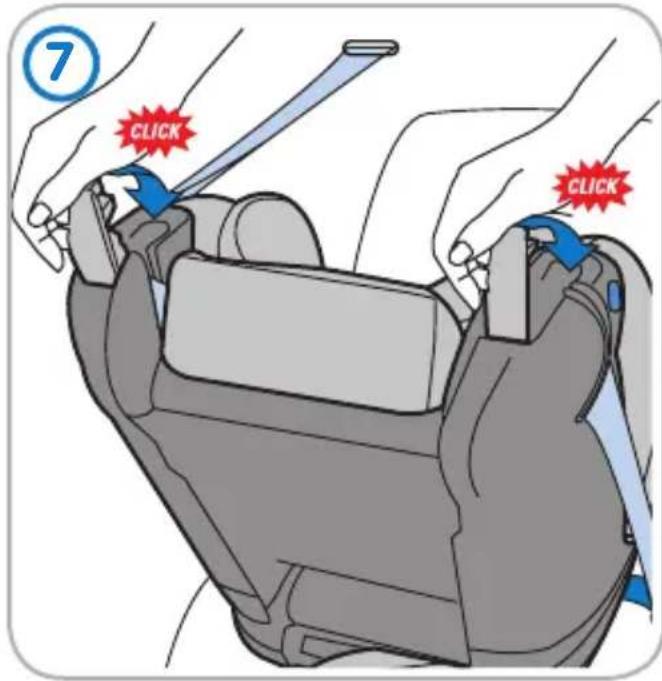

7 CLICK CLICK

Diagram showing car seatbelting with checkmark and cross symbols indicating correct and incorrect states

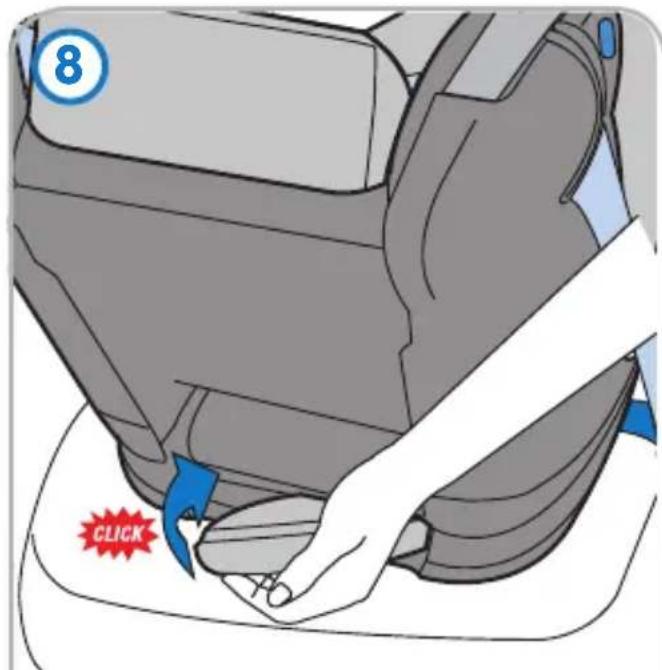

8 CLICK

OK

GR1 9-18 kg

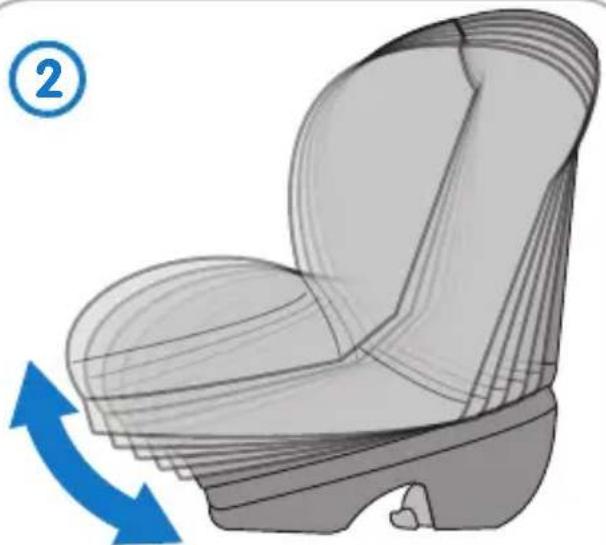

Illustration of a car seat with red arrows indicating seat movement, no text or symbols present

(2) CLICK

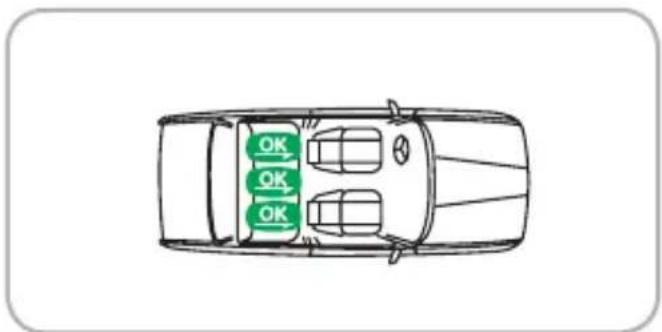

OK OK OK

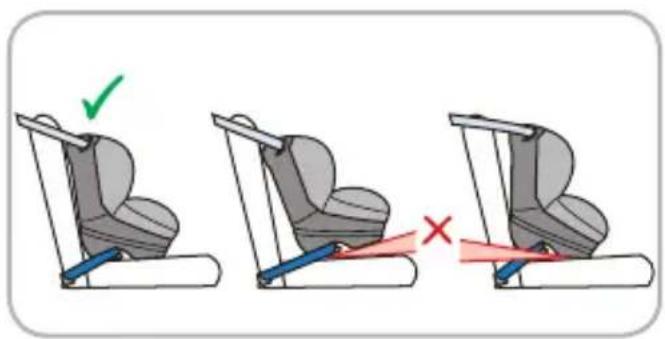

Diagram showing two types of mechanical components with checkmark and cross symbols indicating selection or failure.

GR1 9-18 kg

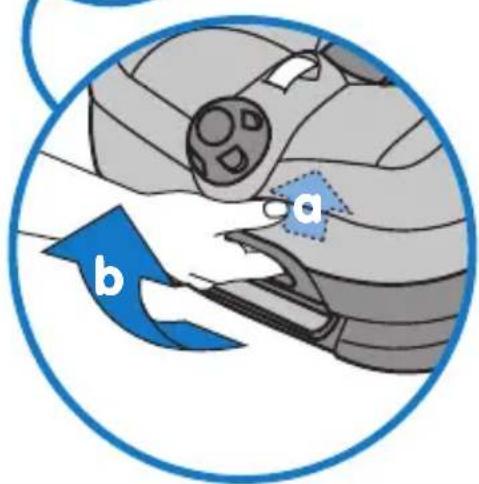

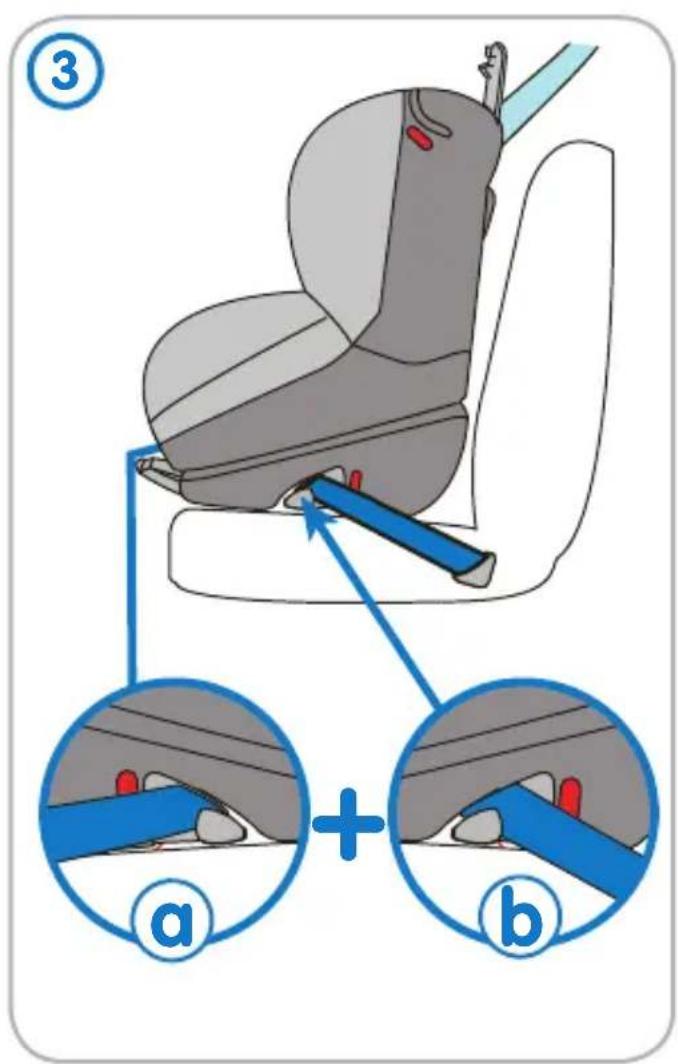

Diagram illustrating car seatbelt usage with labeled parts (a) and (b), showing how to switch from seatbelt to seatbelt plus back.

Diagram showing car seatbelt usage with warning sign and safety warning symbol

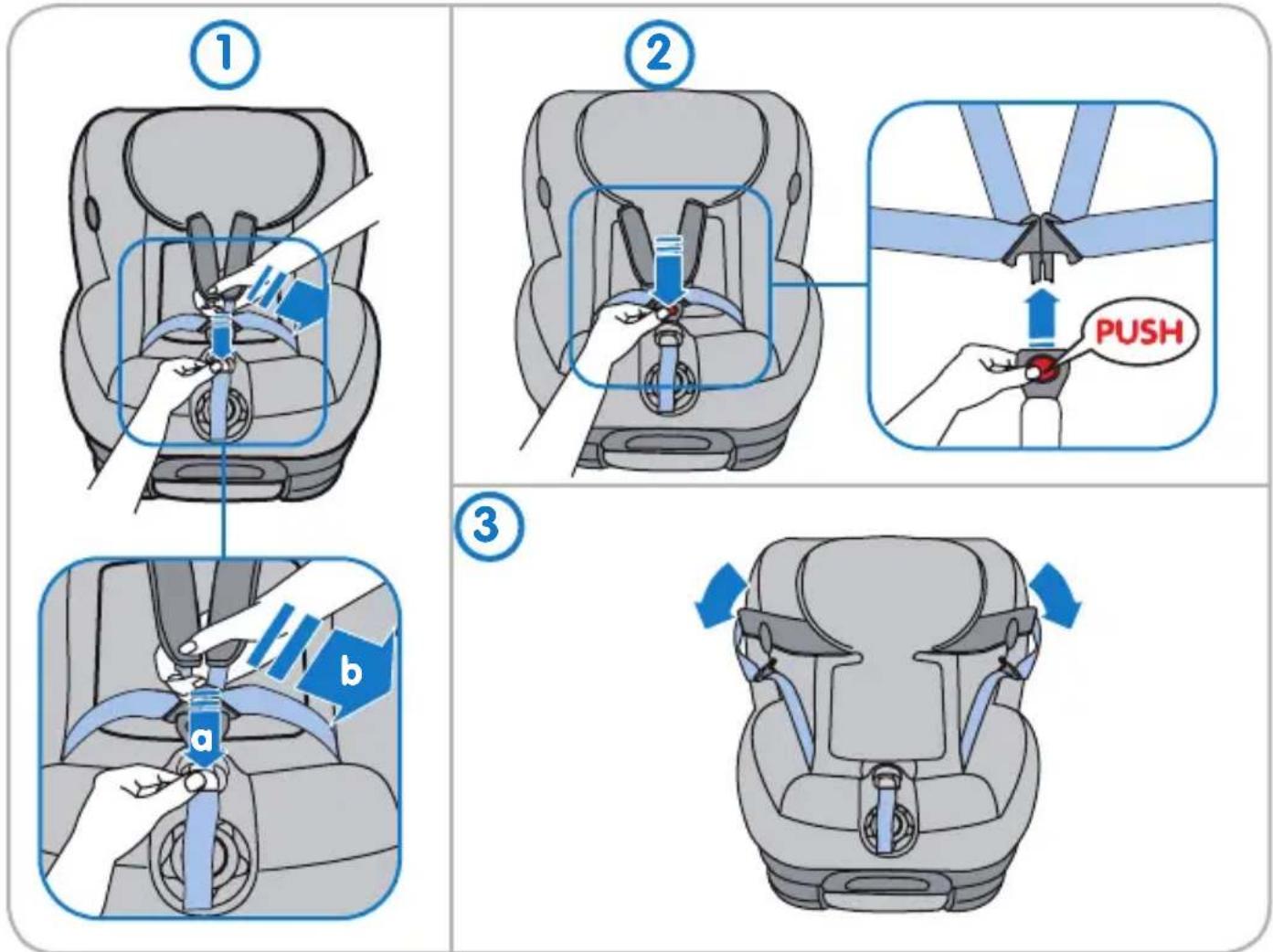

GR1 9-18 kg

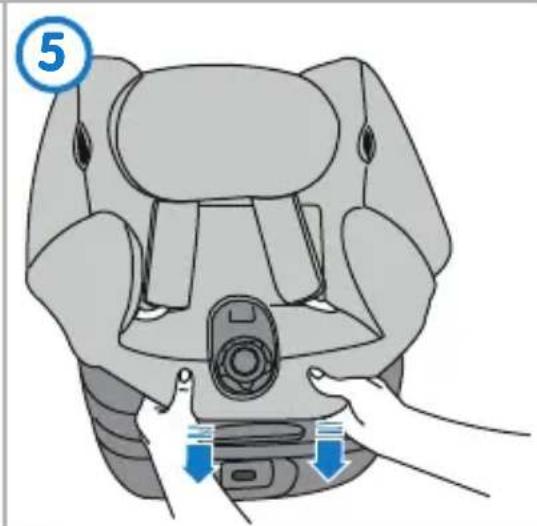

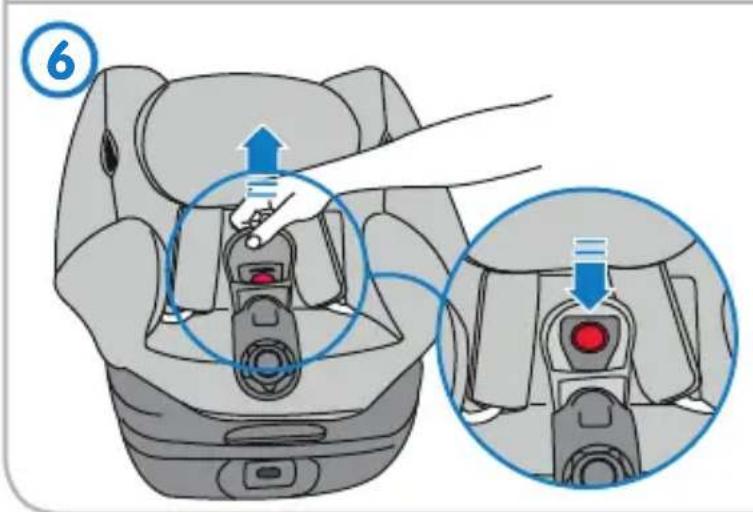

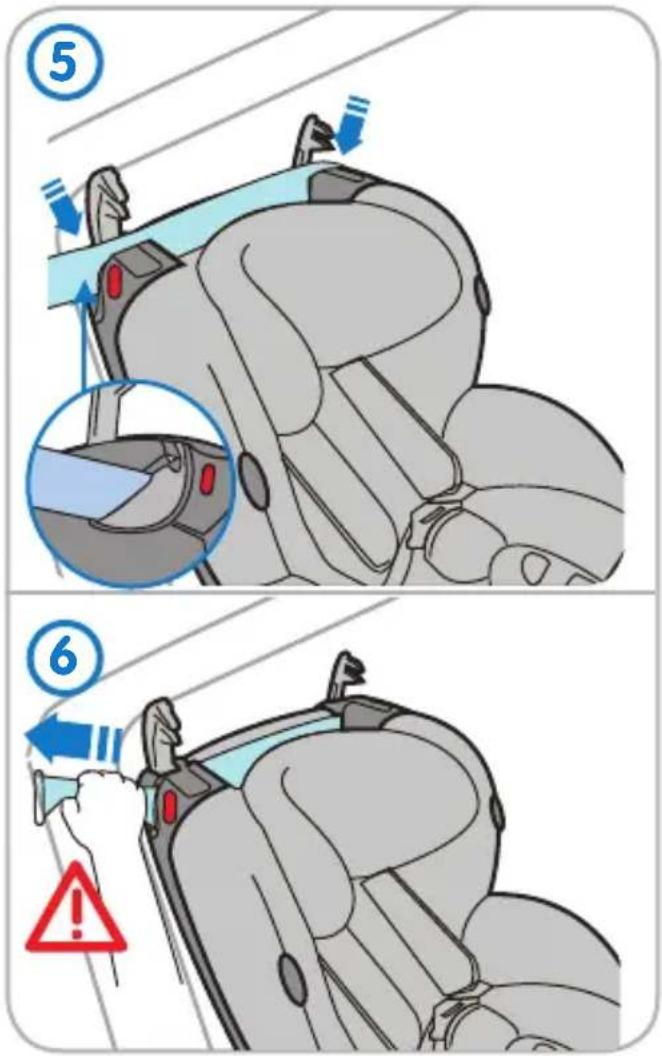

Diagram illustrating car seatbelting instructions, showing step 5 and step 6 with highlighted safety warning

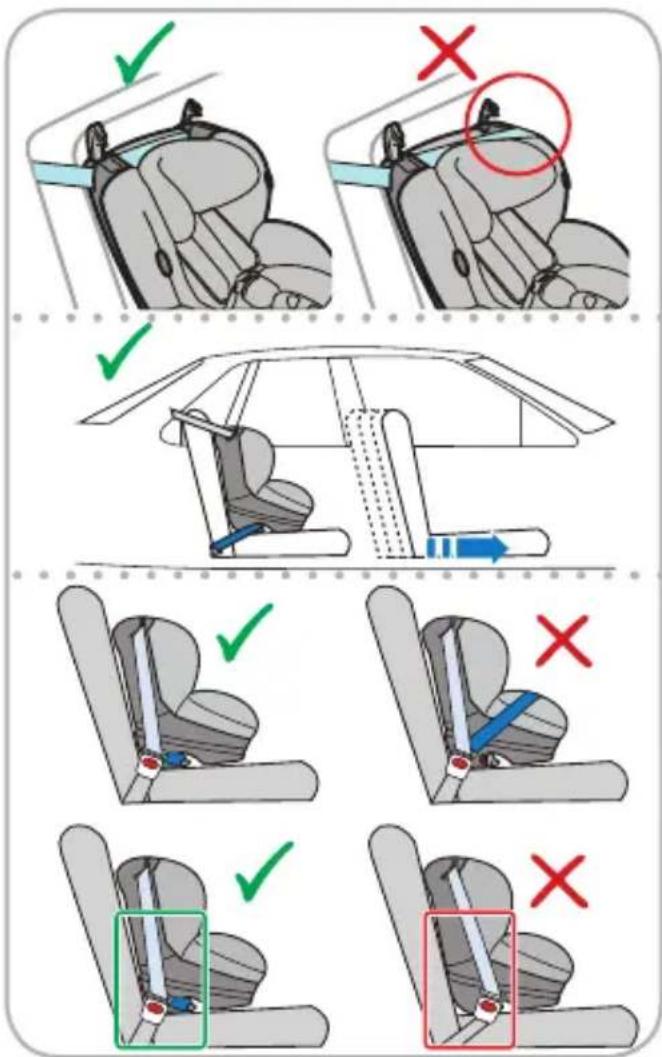

Diagram illustrating car seatbelting instructions with checkmarks and red X marks indicating correct and incorrect states.

GR1 9-18 kg

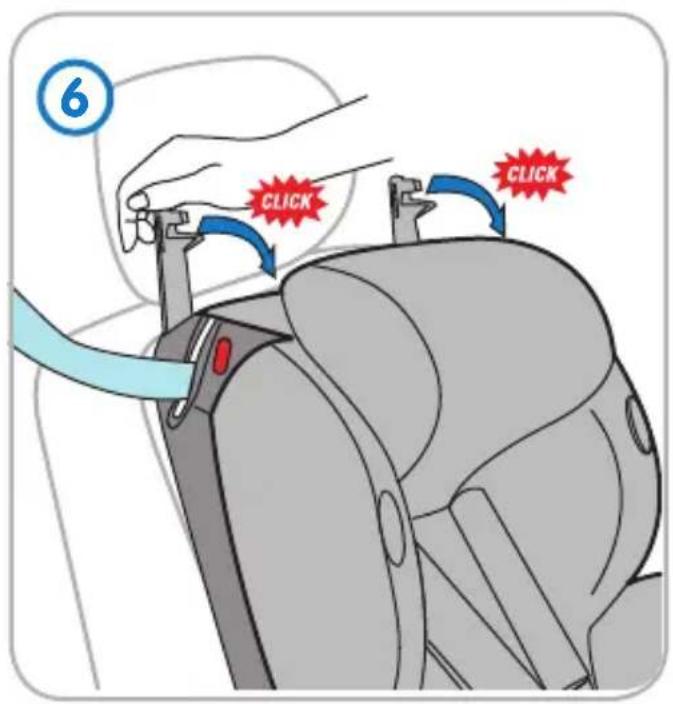

6 CLICK CLICK

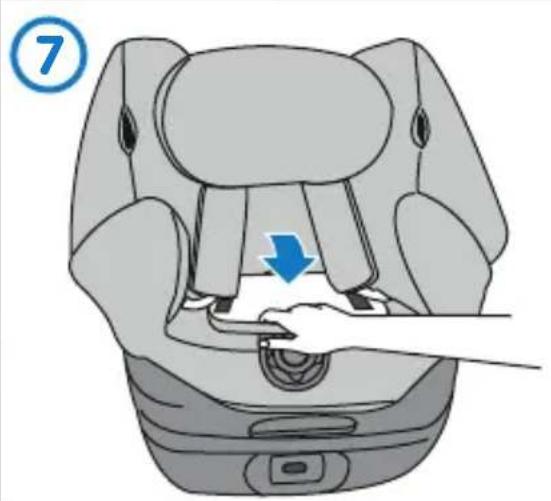

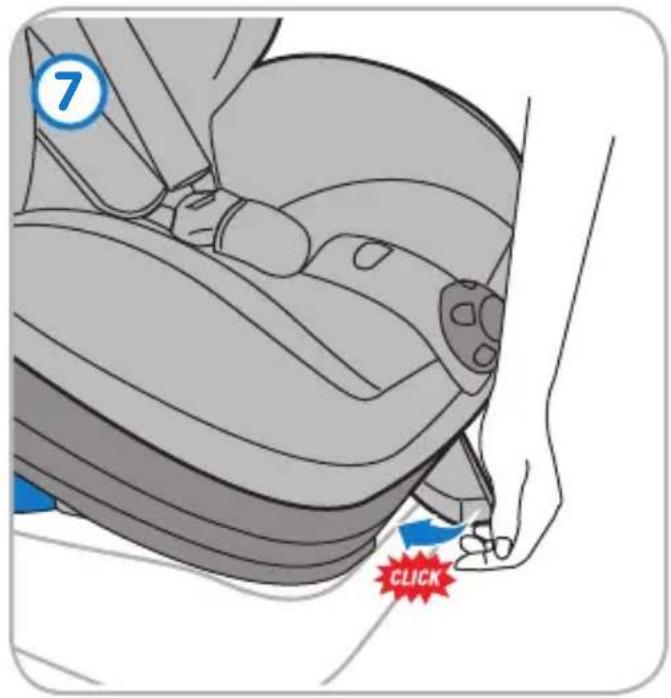

7 CLICK

Diagram illustrating car seat replacement rules with check and cross icons indicating correct and incorrect states

OK

Illustration of a car seat with blue and gray sections (no text or symbols)

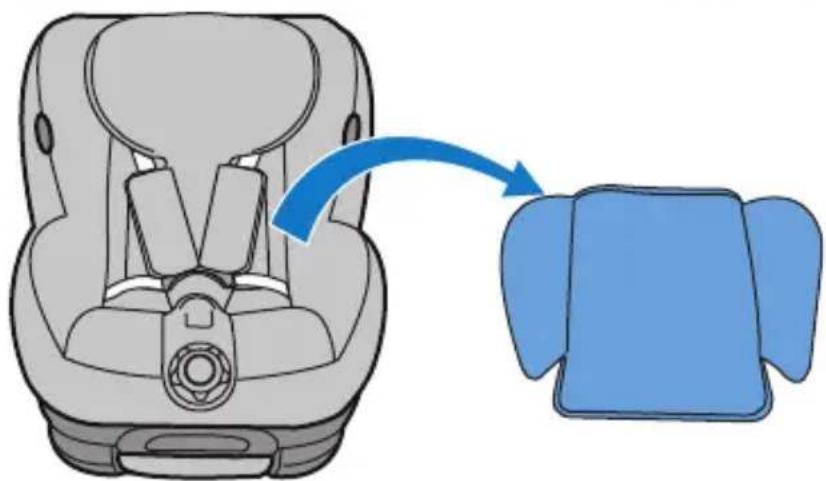

Illustration of a car seat with a blue arrow indicating the direction of change from the seat to the side (no text or symbols present)

Step-by-step instructions for car seatbelting, showing steps from seat positioning to lifting a push button.

Illustrated guide showing how to adjust a baby's seatbelt using a traffic light, with numbered instructions and a speech bubble.

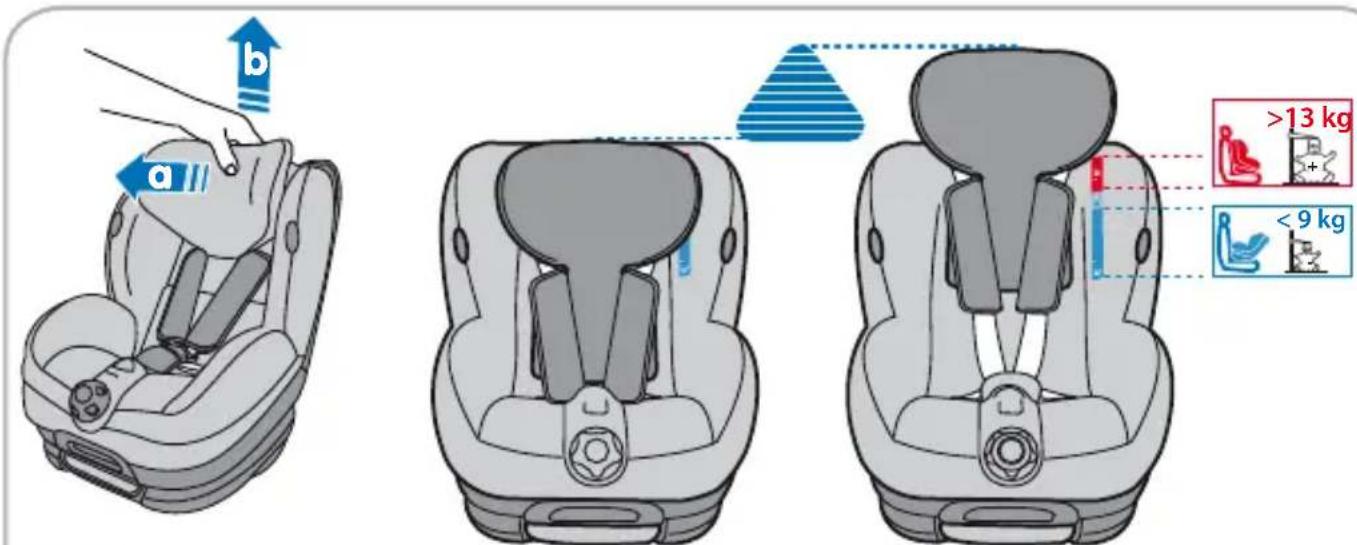

a b >13 kg < 9 kg

9 - 13 kg

• Between 9 and 13kg Bébé Confort recommends that the rear facing position is used. Above 13kg the forward facing position may be used.
• •Entre 9 et 13 kg Bébé Confort vous recommande d'utiliser la position dos à la route jusqu'à 13 kg.
• Zwischen 9 und 13 kg, Bébé Confort empfiehlt bis 13 kg die Position Rücken in Fahrtrichtung zu benutzen.
• Bébé Confort raadt u aan om kinderen tussen 9 en 13 kg met de rug naar de weg te installeren.
• Entre los 9 y los 13 kg, Bébé Confort le recomienda utilizar la posición de espaldas a la carretera (hasta los 13 kg).
• Tra i 9 e i 13 kg Bébé Confort vi raccomanda di utilizzare la posizione contraria al senso di marcia fino ai 13 kg.
• Entre os 9 e os 13 kg, a Bébé Confort recomenda a utilização da posição voltada para trás até aos 13 kg

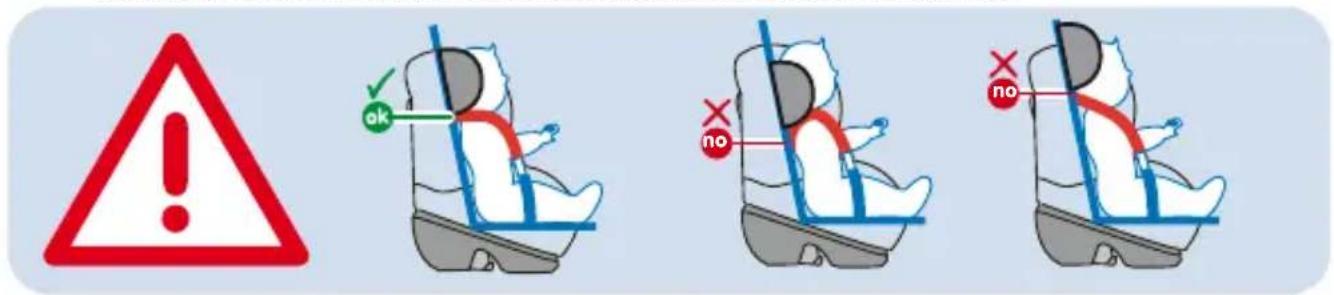

! ok no no

GR1 9-18 kg

1

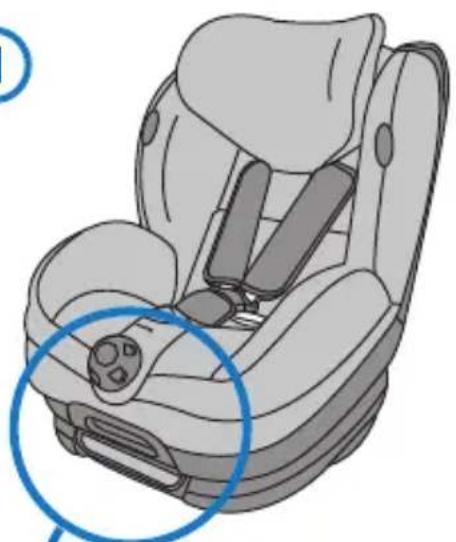

Illustration of a car seat with a blue circular highlight on the lower side (no text or symbols present)

a b

3D model of a seatbelt with blue directional arrows indicating rotation (no text or symbols)

Illustration of a car seatbelt switch with a red starburst symbol indicating compression or damage (no text or symbols present)

Illustration of a car seat with a red starburst effect, showing hand and seat (no text or symbols)

Illustration of a hand pressing a red starburst on a car seatbelt (no text or symbols)

NO

Illustration of a shoe seat with a blue arrow indicating motion direction (no text or symbols)

Illustration of a car seat being adjusted for a seatbelt, showing the blue arrow indicating the process (no text or symbols present)

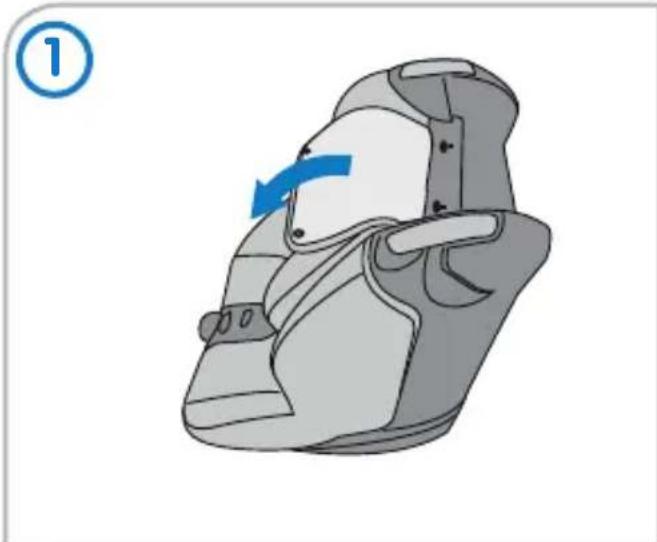

Diagram illustrating car seat replacement steps with labeled arrows and numbered instructions

Diagram showing car seat cleaning steps with numbered instructions and blue directional arrows indicating rotation or movement.

Illustration of a car seatbelt with hands adjusting the seat (no text or symbols)

6

Illustration of a car seatbelt with a hand pressing down on the seat (no text or symbols)

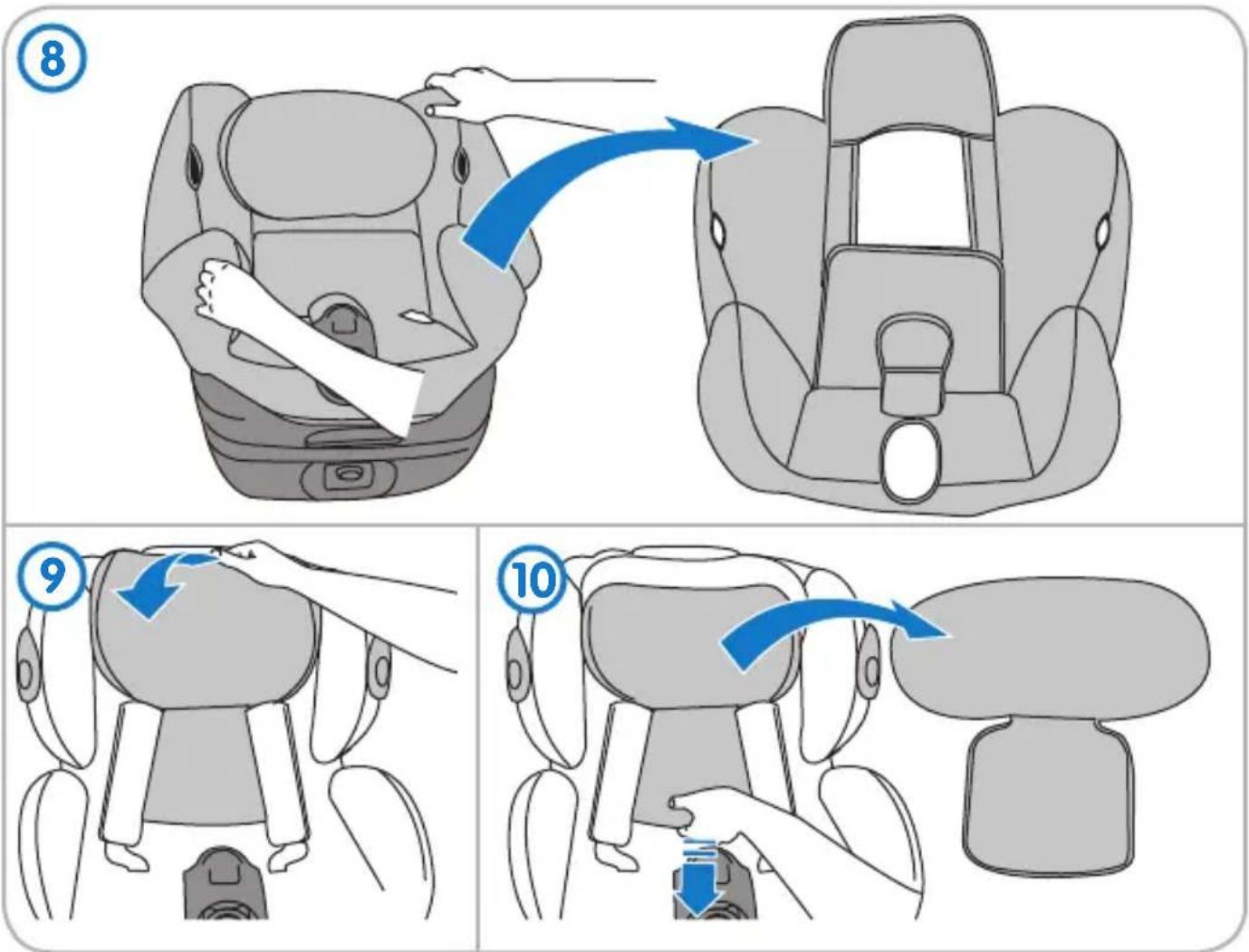

Diagram illustrating car seatbelt adjustment steps, showing step 8 and step 10 with blue arrows indicating movement direction.

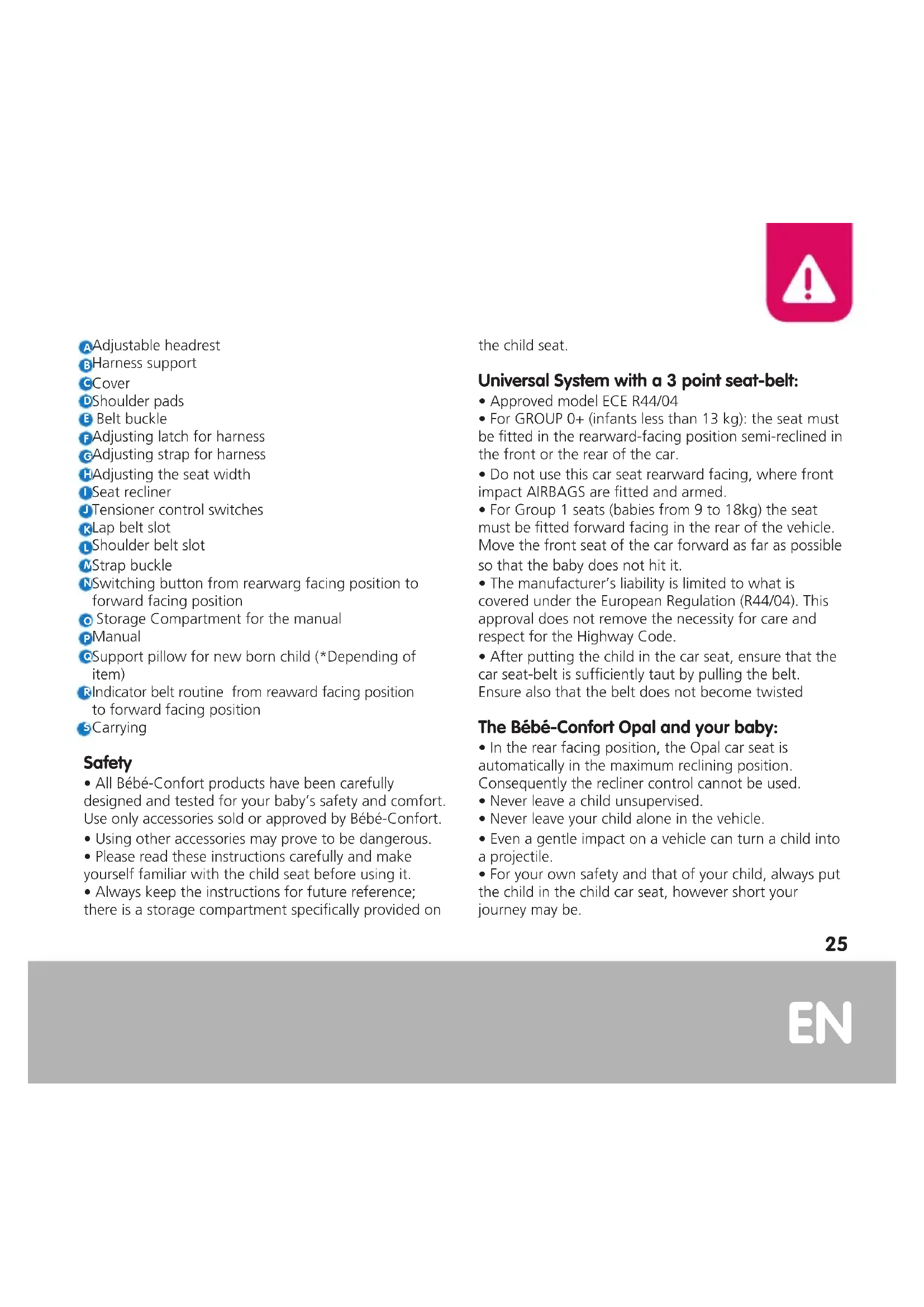

Adjustable headrest
B Harness support
Cover
DShoulder pads
E Belt buckle
F Adjusting latch for harness
GAdjusting strap for harness
HAdjusting the seat width
1 Seat recliner
J Tensioner control switches
K Lap belt slot
LShoulder belt slot
MStrap buckle
NSwitching button from rearwarg facing position to forward facing position
Storage Compartment for the manual
PManual
Support pillow for new born child (*Depending of item)
R Indicator belt routine from reaward facing position to forward facing position
s Carrying

Safety

• All Bébé-Confort products have been carefully designed and tested for your baby's safety and comfort. Use only accessories sold or approved by Bébé-Confort.
  • Using other accessories may prove to be dangerous.
• Please read these instructions carefully and make yourself familiar with the child seat before using it.
  • Always keep the instructions for future reference; there is a storage compartment specifically provided on

the child seat.

Universal System with a 3 point seat-belt:

• Approved model ECE R44/04
- For GROUP 0+ (infants less than 13 kg): the seat must be fitted in the rearward-facing position semi-reclined in the front or the rear of the car.
- Do not use this car seat rearward facing, where front impact AIRBAGS are fitted and armed.
- For Group 1 seats (babies from 9 to 18kg) the seat must be fitted forward facing in the rear of the vehicle. Move the front seat of the car forward as far as possible so that the baby does not hit it.
- The manufacturer's liability is limited to what is covered under the European Regulation (R44/04). This approval does not remove the necessity for care and respect for the Highway Code.
• After putting the child in the car seat, ensure that the car seat-belt is sufficiently taut by pulling the belt. Ensure also that the belt does not become twisted

The Bébé-Confort Opal and your baby:

• In the rear facing position, the Opal car seat is automatically in the maximum reclining position. Consequently the recliner control cannot be used.
• Never leave a child unsupervised.
• Never leave your child alone in the vehicle.
• Even a gentle impact on a vehicle can turn a child into a projectile.
• For your own safety and that of your child, always put the child in the child car seat, however short your journey may be.

• Ensure that the straps under the stomach lie as low as possible, to properly support the pelvis.
• The temperature inside a vehicle may become very high, particularly after a long period of exposure to the sun. It is strongly recommended, under such conditions, to cover the seat of the car with a piece of material or something equivalent to prevent the harness fixings, and in particular the metal parts, from becoming hot and burning the child.

Bébé-Confort Opal car use

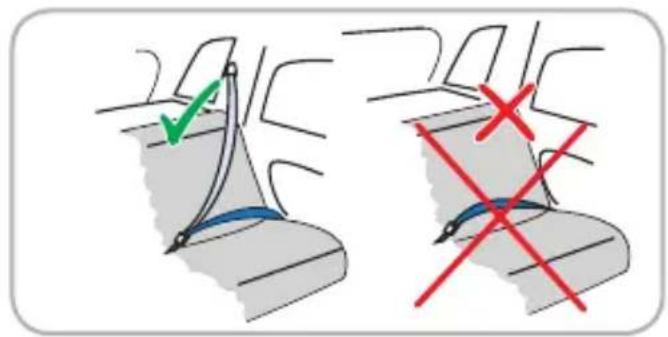

• This device should be used only on approved vehicles equipped with 3 point/static/inertia reel seat-belts that are approved in accordance with EEC/UN regulation N° 16 or other equivalent standard.
• Back to the road, do not use this car seat rearward facing, where front impact AIRBAGS are fitted and armed. You may be able to deactivate it (see instruction book supplied with your vehicle). If so, and you are able to deactivate the airbag, you can use it facing forwards in your vehicle.
• Facing forward, the child seat must be placed on the rear seat of the vehicle or exceptionally on the front seat depending on the current legislation in the country of use.
• This child restraint is effective only if the instructions for use are respected.
  • Always fasten the child restraint even when the child is not sitting in it.

• The user must always check that any luggage and other objects likely to cause injury to the occupant of the car seat in the case of impact are properly secured.

• Never place heavy objects on the rear parcel shelf, to avoid the danger of projectiles in the event of an accident.

• The rigid parts and the plastic sections of a child restraint device should be positioned and installed in such a way that they cannot, when the vehicle is being used under normal conditions, become trapped under a moving seat
  or in the vehicle door.
  • Always check that no part of the seat or the harness is trapped under a seat or in the vehicle door.
• It is essential that the car seat be replaced after an accident.
• Never modify the construction or the materials of the car seat and the seat belt without consulting the manufacturer.
• Do not use the child restraint device without the cover. Do not replace the seat cover with a cover other than that recommended by the manufacturer, because it will have a direct effect on the functioning of the child restraint.
• Folding seats must always be locked in place
• After purchasing, install the seat in your vehicle. If you encounter any installation problems due to the length of the vehicle seat belt, contact your distributor immediately (prior to use).
• If in any doubt about the correct installation or use of the system, the user is advised to contact the distributor or the manufacturer of the child restraining device system.

Care

Fabric:

• Before removal, ensure you have carefully noted the way which the various parts are attached to the seat so as to facilitate reassembly.
• Before cleaning check the label sewn into the fabric, you will find the wash symbols indicating the method of washing each item.

Washing symbols :

Machine wash 30°

Do not tumble dry

Hand wash only

Do not dry clean

Do not use bleach (Chlorine)

Do not iron

Shell:

- Clean the shell using a damp cloth.

Environment

Keep all plastic packaging materials out of reach of your child to avoid the risk of suffocation.

For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

If you have any questions, contact your local Bébé Confort retailer (see www.bebconfort.com for contact information). Make sure that you have the following information on hand:

• Serial number at the bottom of the orange ECE sticker
• Make and type of car and seat on which the Bébé Confort Opal is used
• Age, height and weight of your child

Warranty

We guarantee that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects in workmanship and material at the time of purchase. During the production process the product was subjected to various quality checks. If this product, despite our efforts, shows a material/manufacturing fault within the warranty period of 24 months, (with normal use as described in the user instructions) we will comply with the warranty terms and conditions. In this case please contact your dealer. For extensive information on applying the warranty terms and conditions, you can contact the dealer or look on our website:

www.bebeconfort.com.

The warranty is not valid in the following cases:

• In case of a use or purpose other than described in the manual.
• If the product is submitted for repair through a dealer that is not authorized by us.
• If the product is not supplied to the manufacturer with the original purchase receipt (via the retailer and/or importer).
• If repairs were carried out by third parties or a dealer that is not authorized by us.
• If the defect is the result of improper or careless use or maintenance, negligence or impact damage to

the fabric cover and/or frame.

- If the parts show normal wear and tear that may be expected from daily use of a product (wheels, rotating and moving parts etc.)

Date of effect:

The warranty becomes effective on the date the product is purchased.

Warranty term:

The warranty period applies for a period of 24 consecutive months. The warranty only applies for the first owner and is not transferable.

What to do in case of defects:

After purchasing the product, keep the purchase receipt. The date of purchase must be clearly visible on the receipt. Should problems or defects arise please contact your retailer. Exchanging or taking back the product cannot be requested. Repairs do not give entitlement to extension of the warranty. Products that are returned directly to the manufacturer are not eligible for warranty.

This Warranty Clause conforms to European Directive 99/44/EG of 25 M
