USER MANUAL Freedom Saris

Abstract yellow geometric logo with a white stylized 'S' shape (no text or symbols)

SARIS

Freedom - 2 Bike

Assembly Instructions | Instrucciones de montaje | Instructions d'assemblage 4412B

TELL US WHAT YOU THINK

SARIS.COM/FEEDBACK

REGISTER YOUR PRODUCT FOR UPDATES

SARIS.COM/REGISTRATION

White SUV front view with a white bicycle rack, parked outdoors under trees (no visible text or symbols)

LONG FOR THE RIDE

Just as no garage is complete without a bicycle, at Saris, we believe no car is complete without a bike rack.

Since setting off on this journey nearly 30 years ago, Saris racks have freed millions of bike-lovers to explore new territory and terrain, take part in group rides, bike pool to races, and commute to and from work.

And we continue to do so in style.

As the all-time #1 best-selling bike rack, Saris Bones® continues to set the standard for excellence in design. Today all Saris bicycle racks are intuitive to load and secure, and guaranteed for life.

Built by cyclists for cyclists in Madison, Wisconsin, we strive to create the world's best bike racks.

Because cycling is what we live for.

MADE IN WISCONSIN

LIFETIME WARRANTY

White SUV front view with attached SARIS tire rack attachment (no visible text or symbols on the vehicle body)

Specifications: 4412B - Freedom 2 Bike

For use with receiver hitches Class II or higher.

View our Installation video at

http://www.saris.com/en/instructional-videos-1.html

For relevant patents, see www.saris.com/patents

Tools Needed: Items Included:

Herramientas necesarias: Outils nécessaires:

Adjustable or 19mm and 17mm

x 2

x 3x

x 1

Optional Accessories:

M10 M10 x 60

x 2 17mm

8m

2

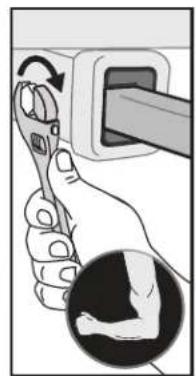

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

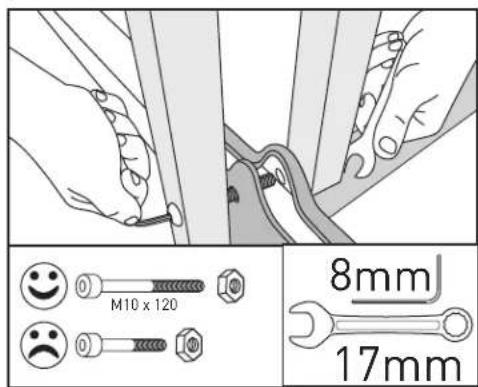

M10 x 120 8mm 17mm

Pure mechanical assembly diagram without any text, numbers, or symbols

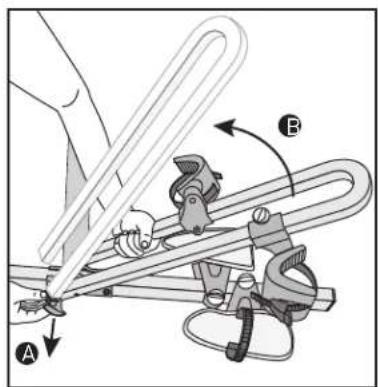

Diagram illustrating a mechanical clamp or bracketing mechanism with labeled parts A and B, showing tool path and assembly steps.

3

Technical diagram showing mechanical assembly with clamping mechanism and mounting bracket (no text or symbols)

Diagram of a mechanical clamp or lever mechanism with multiple tool blades and directional arrows indicating motion (no text or symbols)

4

Technical line drawing of a vehicle rear lift assembly with mounting hardware (no text or symbols)

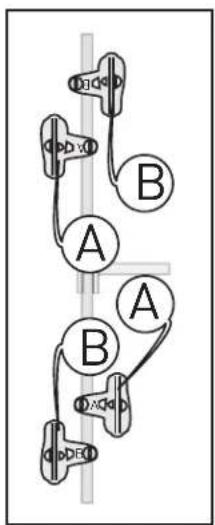

A B A B A

5

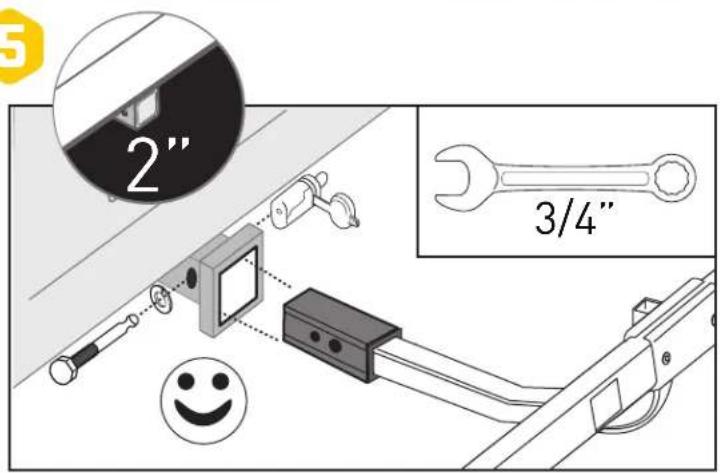

5 2" 3/4"

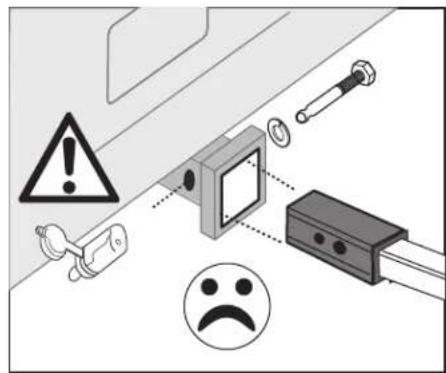

Safety warning diagram showing hazard symbols and a sad face on a wall-mounted device

Illustration of a hand using a tool to lift a component, with an inset showing a close-up of the arm (no text or symbols present)

6

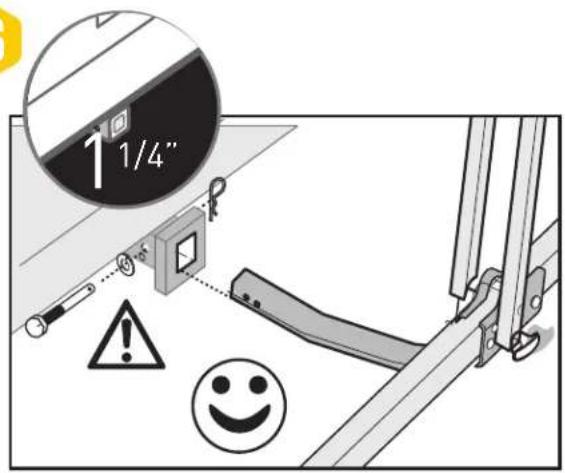

1 1/4"

Diagram showing a mechanical device with a downward force and a sad face, intersected by diagonal lines (no text or symbols)

Illustration of a person's hand holding a tool, with a sofa and arm in the background (no text or symbols)

3/4"

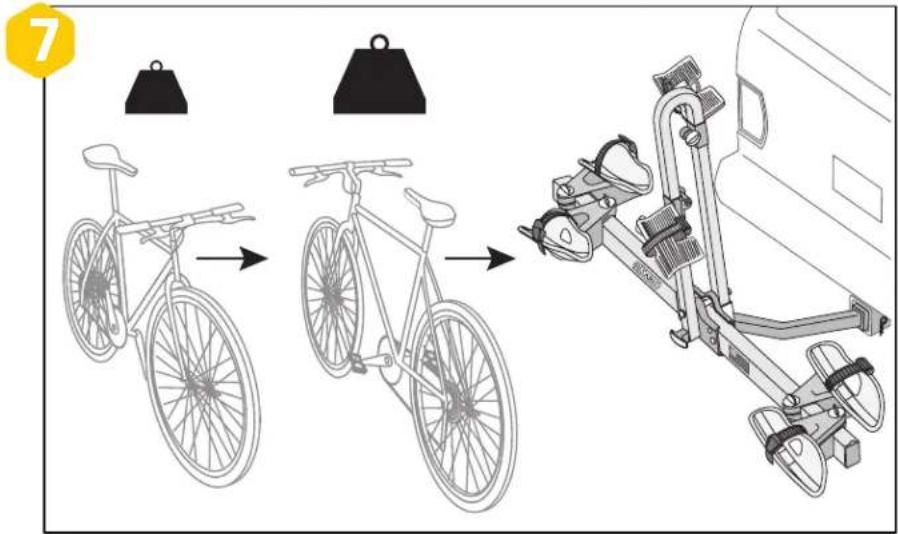

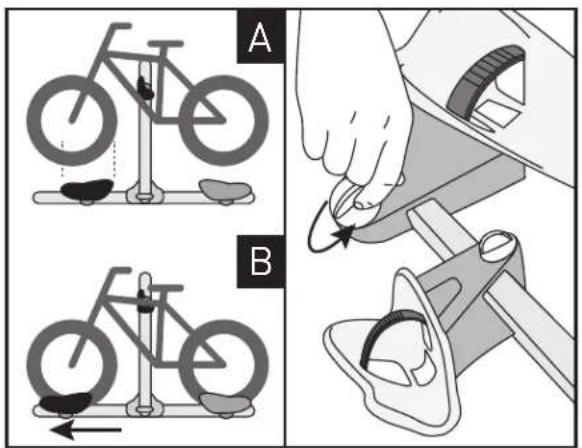

LOAD BIKES / CARGAR BICICLETAS / CHARGEMENT DES VÉLOS

7

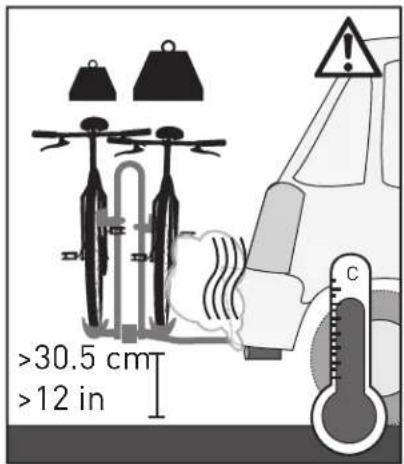

>30.5 cm >12 in

A B

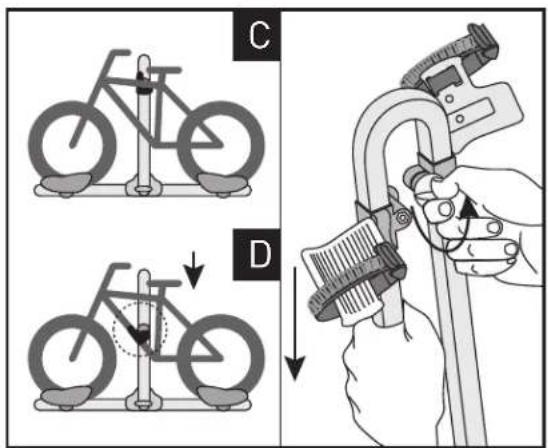

Diagram illustrating bicycle usage and hand tool application, showing step C and D with labeled diagrams and arrows.

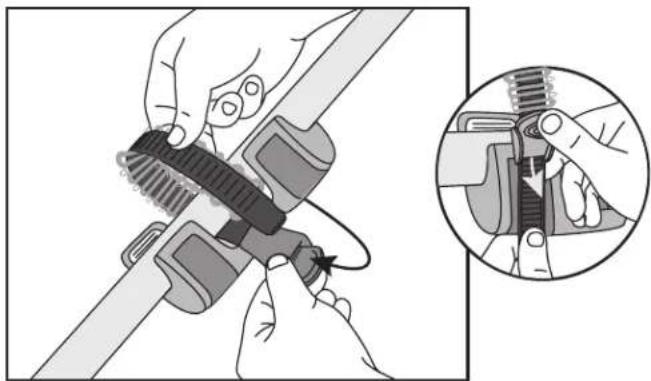

Illustration of hands adjusting a car seatbelt with an inset showing the mechanism (no text or symbols present)

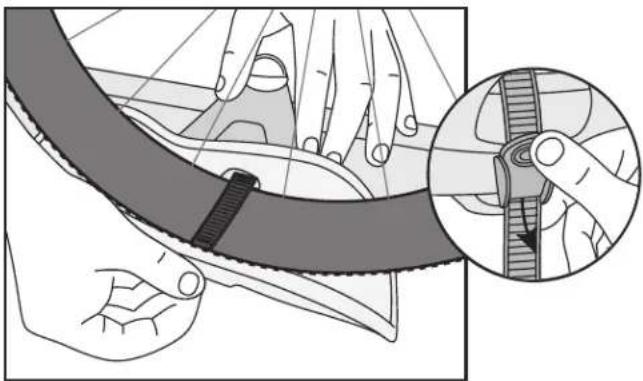

Illustration of hands fastening a mechanical buckle buckle, showing the cable being inserted into a key (no text or symbols present)

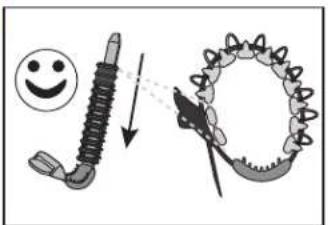

Illustration showing a cartoon worm with a smiley face transforming into a circular shape resembling a shark, accompanied by a hand holding a tool.

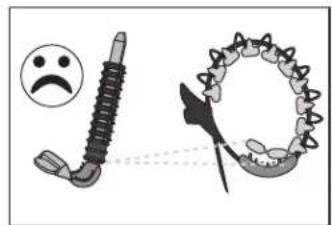

Illustration of a cartoon-style tool and a circular object with a sad face, no text or symbols present.

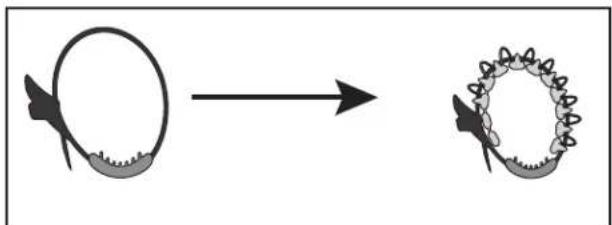

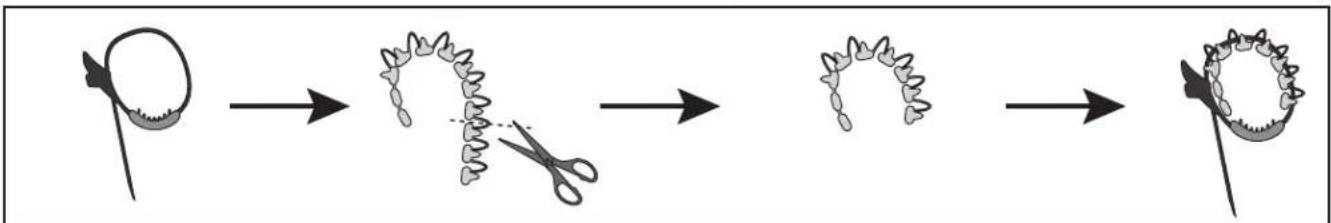

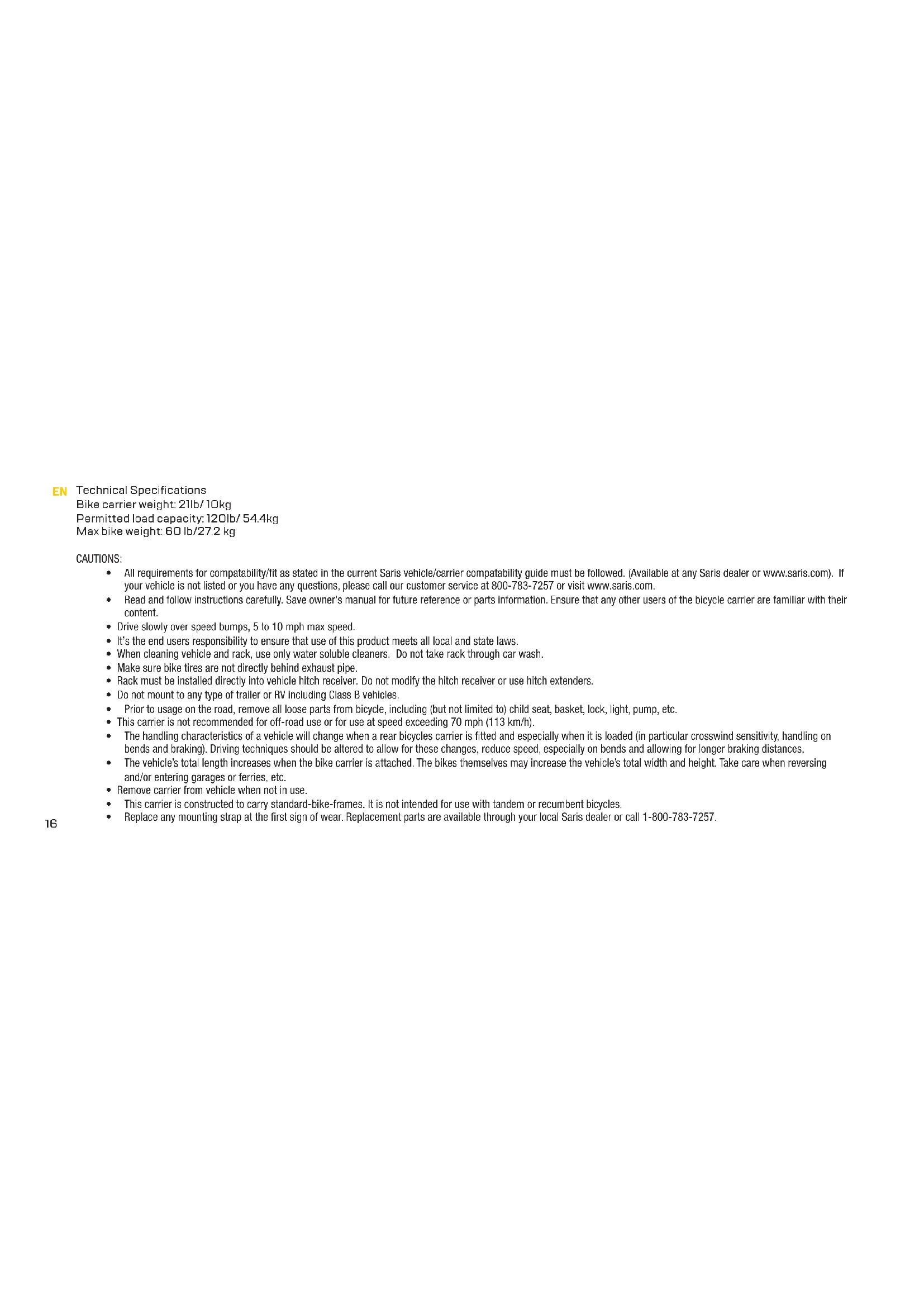

EN Technical Specifications

Bike carrier weight: 21lb/10kg

Permitted load capacity: 120lb/54.4kg

Max bike weight: 60 lb/27.2 kg

CAUTIONS:

• All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed. (Available at any Saris dealer or www.saris.com). If your vehicle is not listed or you have any questions, please call our customer service at 800-783-7257 or visit www.saris.com.
• Read and follow instructions carefully. Save owner's manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with their content.
• Drive slowly over speed bumps, 5 to 10 mph max speed.
• It's the end users responsibility to ensure that use of this product meets all local and state laws.
• When cleaning vehicle and rack, use only water soluble cleaners. Do not take rack through car wash.
  • Make sure bike tires are not directly behind exhaust pipe.

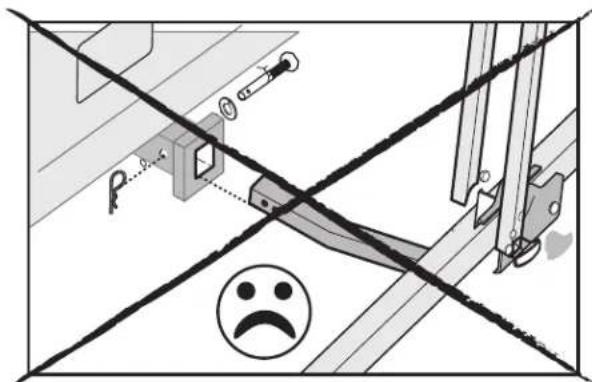

• Rack must be installed directly into vehicle hitch receiver. Do not modify the hitch receiver or use hitch extenders.
• Do not mount to any type of trailer or RV including Class B vehicles.
  • Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
• This carrier is not recommended for off-road use or for use at speed exceeding 70 mph (113 km/h).
• The handling characteristics of a vehicle will change when a rear bicycles carrier is fitted and especially when it is loaded (in particular crosswind sensitivity, handling on bends and braking). Driving techniques should be altered to allow for these changes, reduce speed, especially on bends and allowing for longer braking distances.
• The vehicle's total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle's total width and height. Take care when reversing and/or entering garages or ferries, etc.
• Remove carrier from vehicle when not in use.
  • This carrier is constructed to carry standard-bike-frames. It is not intended for use with tandem or recumbent bicycles.

• Replace any mounting strap at the first sign of wear. Replacement parts are available through your local Saris dealer or call 1-800-783-7257.

• Tighten straps regularly during the journey.

• Vehicle should be in good condition in the area at which the hitch is located.
• Do not exceed maximum load capacity of carrier (120 lbs max or 60 lbs max per bike!) Secure properly and adjust for even load distribution, loading the heaviest/biggest bike first and closest to the vehicle.
• Saris absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.

Recommended Rack Maintenance & Care Instructions

Each use:

• Wipe down trunk rack feet
• Avoid ground contact with trunk rack feet
• Check straps for signs of wear
• Check bike cradles and wheel scoops
• Check for loose bolts

Every 90 days actions:

• Clean with water and mild soap
• Lubricate locks if applicable (use wet, oil-based lubricant; NO WD-40)
• Grease hitch bolt threads
• Check for scratches in paint.

Official Warranty Terms: Saris Racks

Saris Cycling Group, Inc (SCG), parent company of Saris Racks, warrants our products to the original consumer to be free from defects in materials and workmanship. Your purchase includes the following warranty which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchaser. This warranty gives you specific legal rights. You may have other legal rights which vary from state to state. Please retain your sales slip for your records, as proof of purchase will be required.

EN

Warranty Term

Car Racks Limited Lifetime*

Home Storage/Bike Storage Limited Lifetime*

Kool

Rack

1

Year

Parking Racks 1 Year

* Warranty only valid for original purchaser. Limited lifetime warranty available in North America only.

Manufacturing defects are most likely to be identified on new products or early in the product's lifespan. Each warranty claim is unique, and it is solely up to SCG to determine if a product can be covered by the limited lifetime warranty due to defects, or if the product has suffered wear and tear.

Any product or part thereof found to be defective within the term as set forth above will be replaced without charge provided that: (1) its failure resulted from a defect in material or workmanship and not from normal wear and tear expected in the use of the product; (2) the product was not abused, misused, improperly assembled, improperly maintained or damaged by accident or installation of parts or accessories not originally intended or compatible with the racks as originally sold., (3) there was no failure to follow instructions or warnings in Owner's Manual; (4) no alterations or modifications were made; and (5) the product or part is delivered, freight prepaid, to Saris Cycling Group or an authorized service center. Please call 1-800-783-7257 to obtain return authorization prior to return. Any other claims not included in the statements above are void and will not be honored. SCG reserves the right to inspect any product before issuing a replacement. SCG's only obligation shall be to replace such products or parts that it determines are defective.

Limitations

THE FOREGOING WARRANTIES ARE THE ONLY WARRANTIES MADE BY SCG. THERE ARE NO OTHER WARRANTIES. ANY WARRANTY THAT MIGHT OTHERWISE BE IMPLIED BY LAW INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED STRICTLY TO THE APPLICABLE LENGTH OF THIS LIMITED WARRANTY.

SCG shall not be liable for incidental or consequential losses, damages, or expenses in connection with its products. SCG's liability hereunder is expressly limited to the replacement of goods not complying with this warranty or, at SCG's election, to the repayment of an amount of the purchase price of the product in question.

Exclusions

• If consumer does not comply with all warnings, cautions, or instructions listed in Instruction Manual, damage is not covered under warranty
- Impact/collision damage is not covered under warranty
- Cradles and strap damage due to improper arm placement are not covered under warranty
- Carrying anything other than a bicycle is not covered under warranty
- Paint damage – chipping, cracking, or fading is not covered under warranty
- Rust is wear and tear and is preventable with rack maintenance
• Weather impact (UV, salt air/water)
• Damage to mounting surface
- Damage or loss resulting from failure to replace/maintain consumable items not covered.
• Not following Recommended Rack Maintenance
- Consumable Items not covered by warranty. Including but not limited to.

• Arm and wheel tray adjustment knobs
  • Frame and wheel straps
  • Vehicle attachment straps
• Molded wheel trays
• Frame cradles
• Threaded assemblies
• Ratcheting assemblies

Abstract yellow geometric logo with a white stylized 'S' shape (no text or symbols)

SARIS

Saris

5253 Verona Road

Madison WI 53711

www.saris.com

800.783.7257 | [e-mail]
